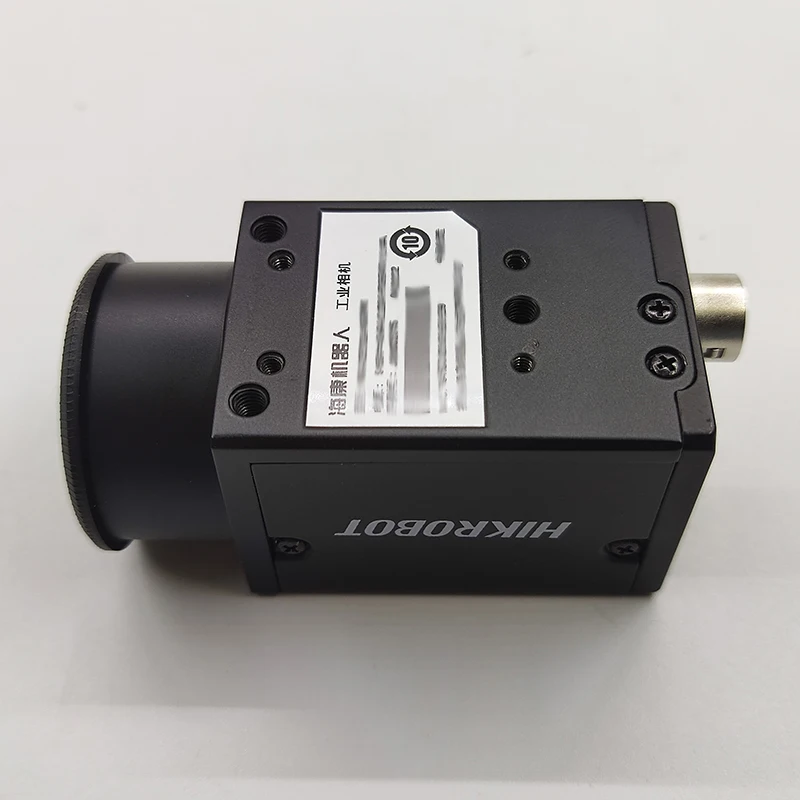

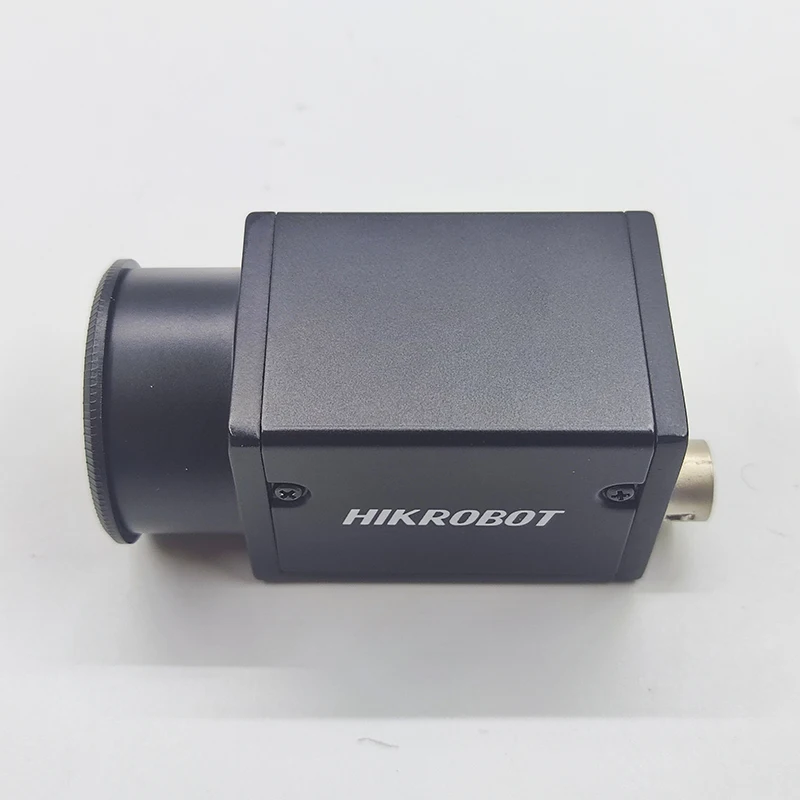

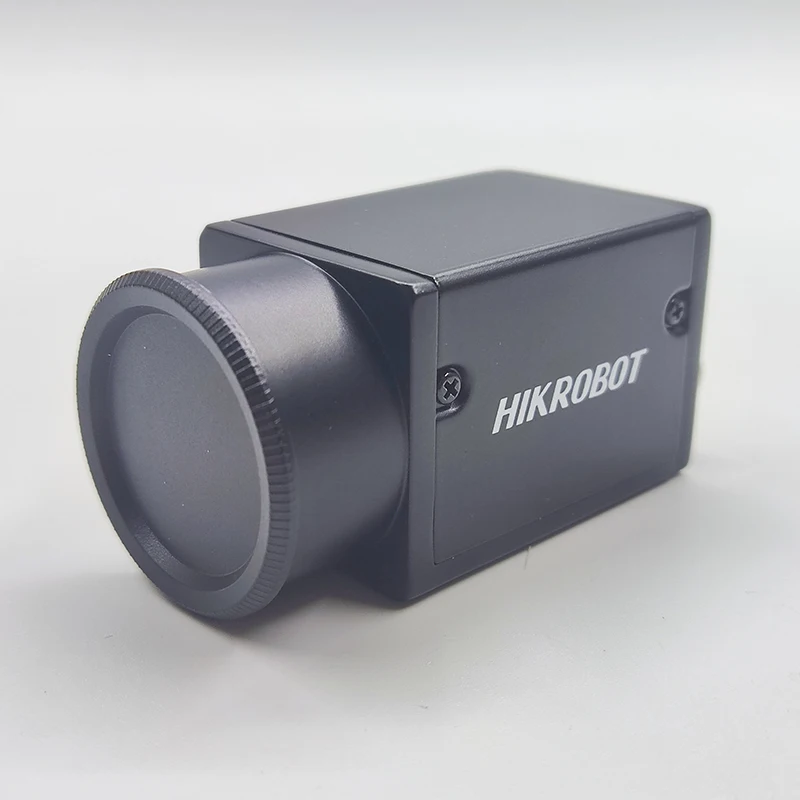

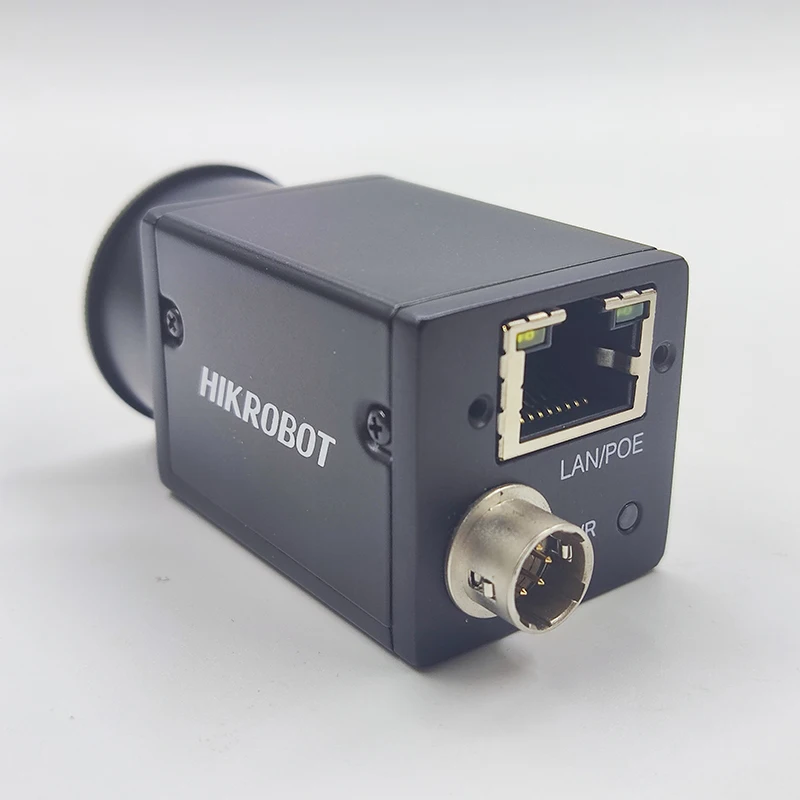

HIKROBOT MV CE013 80GM/GC 1.3MP GigE CMOS With SS Sensor Industrial Digital Camera for Visual Inspection
HIKROBOT MV-CE013-80GM/GC 1.3MP GigE CMOS With SS Sensor Industrial Digital Camera for Visual Inspection
HIKROBOT MV-CE013-80GM/GC 1.3MP GigE CMOS With SS Sensor Industrial Digital Camera for Visual Inspection
HIKROBOT MV-CE013-80GM/GC 1.3MP GigE CMOS With SS Sensor Industrial Digital Camera for Visual Inspection
HIKROBOT MV-CE013-80GM/GC 1.3MP GigE CMOS With SS Sensor Industrial Digital Camera for Visual Inspection
HIKROBOT MV-CE013-80GM/GC 1.3MP GigE CMOS With SS Sensor Industrial Digital Camera for Visual Inspection
HIKROBOT MV-CE013-80GM/GC 1.3MP GigE CMOS With SS Sensor Industrial Digital Camera for Visual Inspection

HIKROBOT MV CE013 80GM/GC 1.3MP GigE CMOS With SS Sensor Industrial Digital Camera for Visual Inspection

Share on (1600591563916):


Price:

Quantity:


Product Overview

Description



Product Features


1. Support automatic or manual adjustment of gain, exposure time, LUT, Gamma correction, etc.

2. Using Gigabit Ethernet interface, the maximum transmission distance can reach 100m without relay

3. Compatible with GigE Vision V2.0 protocol and GenICam standard, seamless access to third-party software platforms


Products Description








Specifications





Model Number
Name
1.3 million pixel network port area scan camera, SS, black & white and color

Model
MV-CE013-80GM、MV-CE013-80GC











Performance
Sensor model
SS

Gain
0 dB ~ 20 dB

Mirroring
support horizontal mirroring, vertical mirroring

Dynamic range
60 dB

Binning
supports 1 × 1, 2 × 2

Resolution
1280×1024

B&W/Color
black & white、color

Pixel size
4.0 µm×4.0 µm

Exposure time
31 μs~1 sec

Sensor Type
CMOS, Global Shutter

Signal-to-noise ratio
40 dB

Downsampling
1 × 1, 2 × 2 supported

Maximum frame rate
89.9 fps@1280×1024



Pixel Format
black and white
Mono 8/10/10Packed/12/12Packed



color
Mono 8/10/12
Bayer BG 8/10/10Packed/12/12Packed
YUV422Packed，YUV422_YUYV_Packed，RGB 8，BGR 8

Target surface size
1/2.7"

Shutter mode
support automatic exposure, manual exposure, one-key exposure mode


Electrical Characteristics

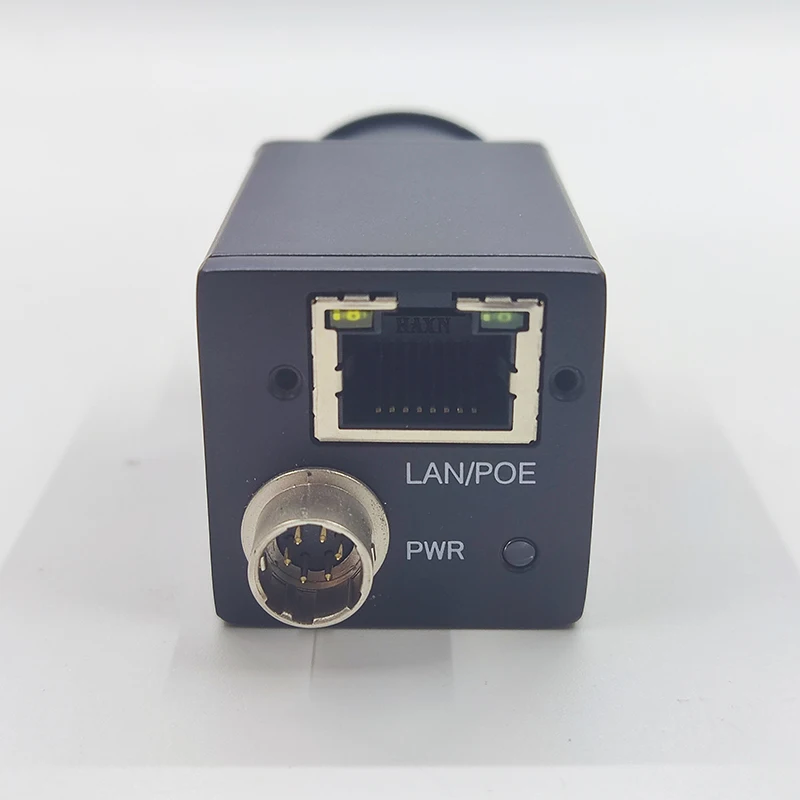

Digital I/O
6-pin P7 interface provides power and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output
(Line1), 1 bidirectional configurable non-isolated I/O (Line2)

Power supply
9 ~ 24 VDC, support PoE

Data Interface
GigE

Typical power consumption
2.4 W@12 VDC




Structure
Temperature
working temperature 0 ~ 50℃, storage temperature -30 ~ 70℃

Weight
Approx. 96g

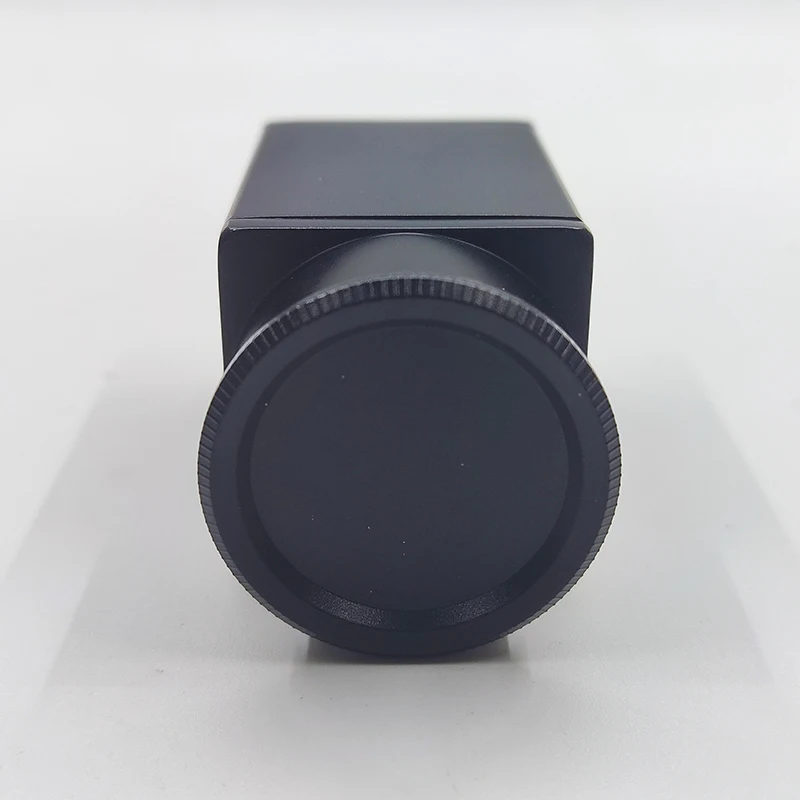

Lens mount
C-Mount

Humidity
20% ~ 80%RH non-condensing

IP protection grade
IP30 (when the lens and cable are installed correctly)

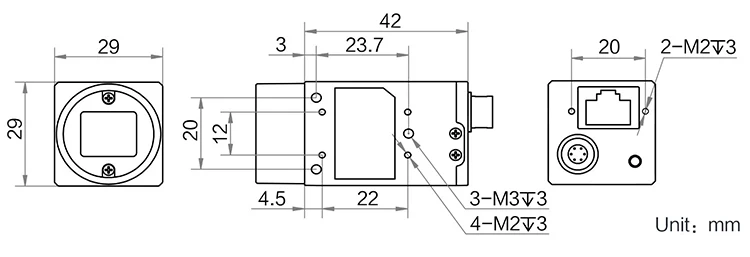

Dimensions
29 mm × 29 mm × 42 mm


General Specifications
Certification
CE, FCC, RoHS, KC

Operating System
Windows XP/7/10 32/64bits, Linux 32/64bits, MacOS 64bits

Protocol/Standard
GigE Vision V2.0, GenICam

Software
MVS or 3rd party supporting GigE Vision protocol software


Product packaging
