Rubber Processing Machinery Pin Type Cold Feed Rubber Extruder Machine
- Category: >>>
- Supplier: Jiangyin,Maisun,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

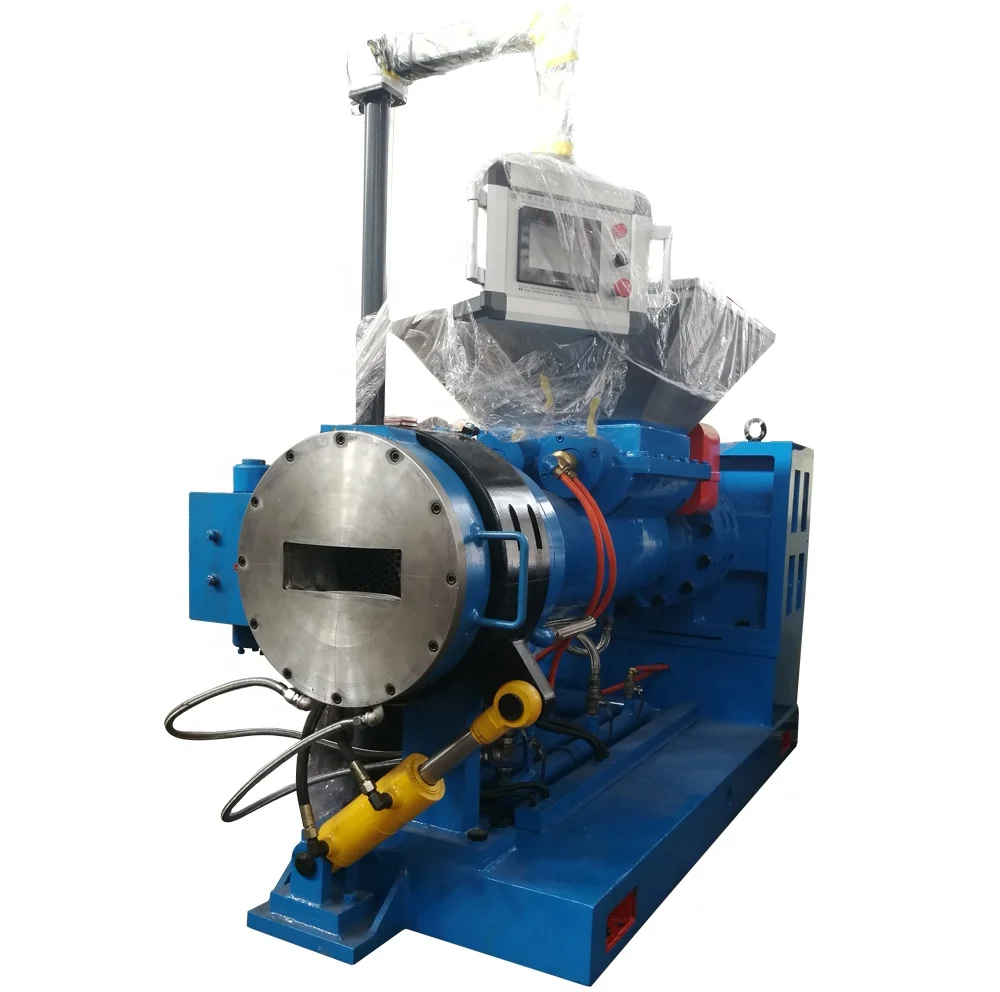

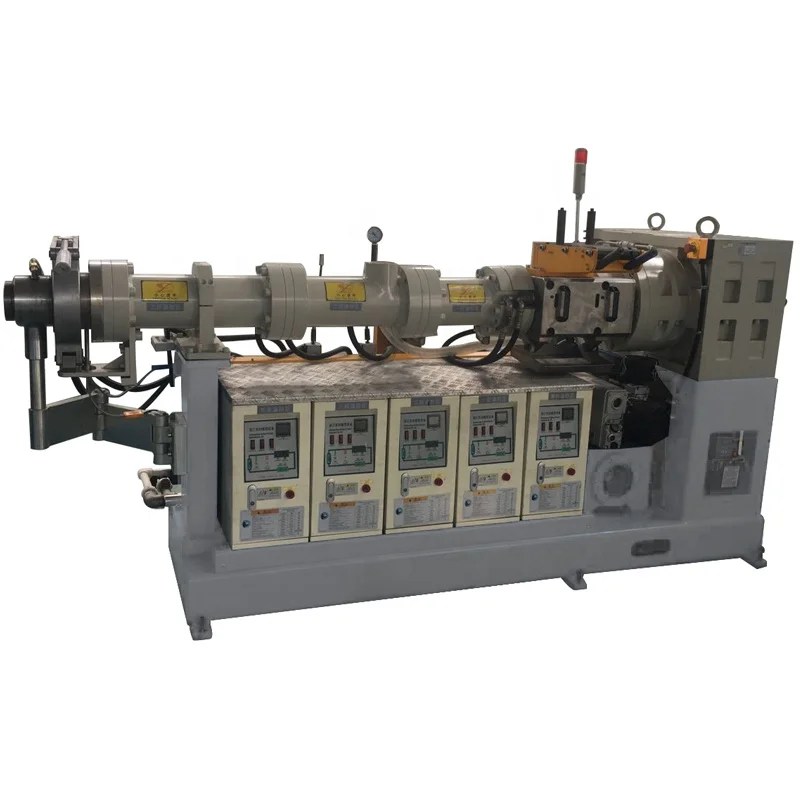

Rubber Processing Machinery Pin Type Cold Feed Rubber Extruder Machine
Product Introduction
Pin-type cold feed rubber extruder has the features of high production capacity, low energy consumption, fine mixing quality, precise temperature control, uniform plasticization, etc.
this series of rubber extruder can be widely used for extrusion moulding of the rubber hose, inner tube, rubber belt, sealing strip and other rubber products, it can also be used by small calendars for feeding.
this series of rubber extruder can be widely used for extrusion moulding of the rubber hose, inner tube, rubber belt, sealing strip and other rubber products, it can also be used by small calendars for feeding.
Technical Data
Model | XJD-60 | XJD-90 | XJD-120 | XJD-150 | XJD-200 | XJD-250 |
Screw diameter (mm) | Φ60 | Φ90 | Φ120 | Φ150 | Φ200 | Φ250 |
Screw L/D ratio | 8-12 | 12-16 | 12-16 | 12-18 | 12-18 | 12-18 |
Screw rotation speed (r/min) | ~80 | ~60 (55) | ~50 | ~45 | ~33 | ~26 |
Production capacity (kg/h) | 80-150 | 250-350 | 600-800 | 1000-1500 | 1600-2500 | 2800-3500 |
Pin number | -7 | -10 | -10 | -12 | -12 | -12 |
Cooling water pressure (MPA) | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
Motor Power (KW) | 18.5-22 | 45-75 | 75-110 | 160-250 | 220-355 | 355-450 |
Overall dimension (mm) | 1800*1310*1400 | 3360*1350*1450 | 3750*1600*1550 | 5200*1650*1650 | 7150*1950*2300 | 8500*2450*2600 |
Weight (KG) | 1800 | 3000 | 4200 | 5350 | 9500 | 15000 |
Details Images
Related Products
Our factory provides all kinds of Rubber Filter/Strainer machines and rubber extruder machines for natural rubber, butyl rubber,EPDM rubber, silicon rubber, reclaimed rubber, etc.
Certifications

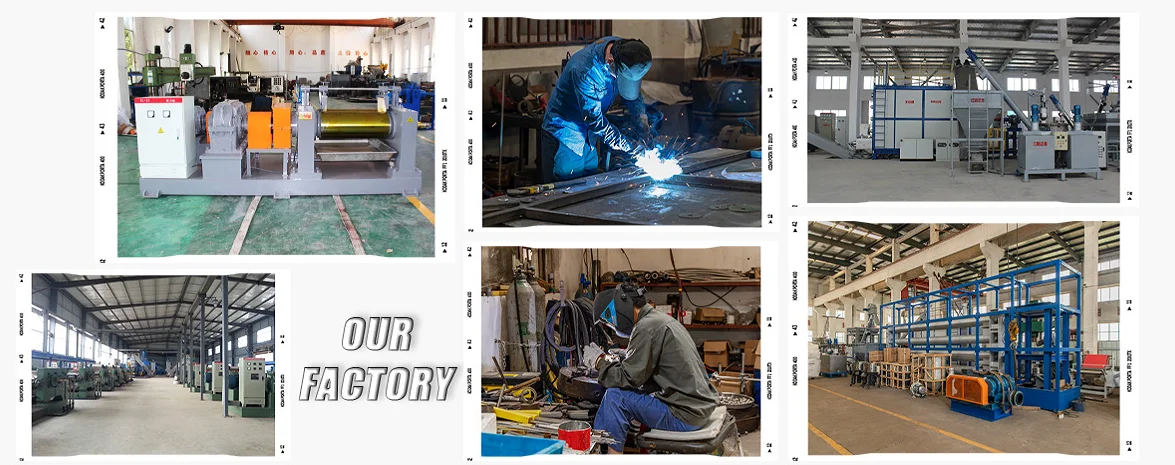

Company Profile
Jiangyin Maisun Machinery CO., LTD is the industry and trade integration enterprise, mainly engaged in the research, production and sale of waste rubber recycling equipment. We have a joint-stock international trade company, reclaimed rubber production enterprise and rubber asphalt modifier production enterprise. Our company is a private science and technology enterprise and a high- tech enterprise in Jiangsu Province. We're also the engineering technology research and development center of waste rubber powder plasticizing equipment in Jiangyin city.
Product packaging
Exhibition
FAQ
Q1: Are you a factory or a trading company ?
A1: We are a manufacturer with more than 8 years production experience in tire recycling plant. We also have export license, we can offer you the factory prices.
Q2: Where is your factory located. How can I visit there?
A2: Our factory is located in Jiangyin City, Jiangsu Province, China. The trafic is very convenient. It's about two hours driving from Shanghai and one hour from Wuxi.
Q3: How about the installation?
A3: We will provide foundation drawings after the order is confirmed and engineer is available to serve overseas to guide the installation and train the workers on your site .
A1: We are a manufacturer with more than 8 years production experience in tire recycling plant. We also have export license, we can offer you the factory prices.
Q2: Where is your factory located. How can I visit there?
A2: Our factory is located in Jiangyin City, Jiangsu Province, China. The trafic is very convenient. It's about two hours driving from Shanghai and one hour from Wuxi.
Q3: How about the installation?
A3: We will provide foundation drawings after the order is confirmed and engineer is available to serve overseas to guide the installation and train the workers on your site .
