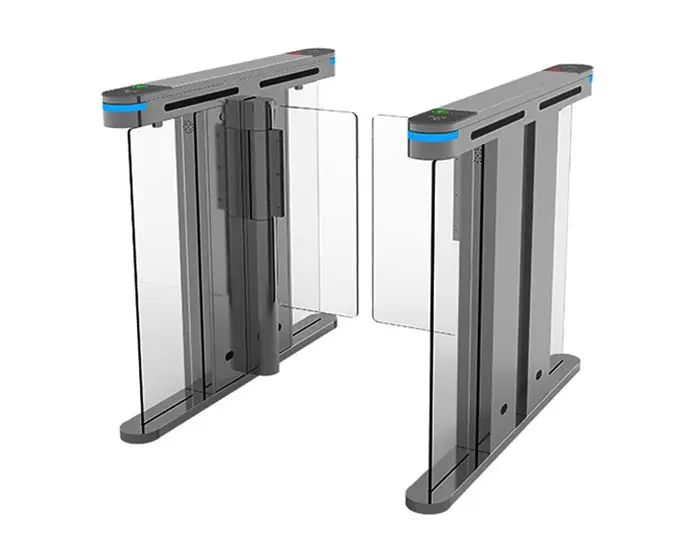

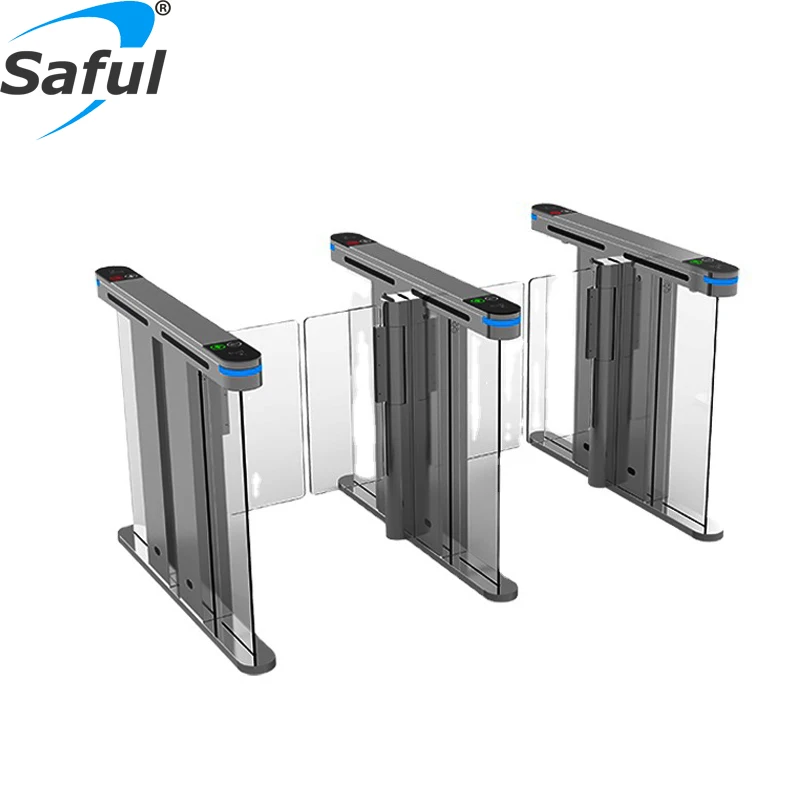

High Speed Sensitivity Automatic Servo Motor Turnstile Gate Swing Barrier Turnstile Speed Gates
- Category: >>>
- Supplier: Shenzhen Hezhong Electronics Technology Co. Ltd.
Share on (1600591664577):
Product Overview
Description

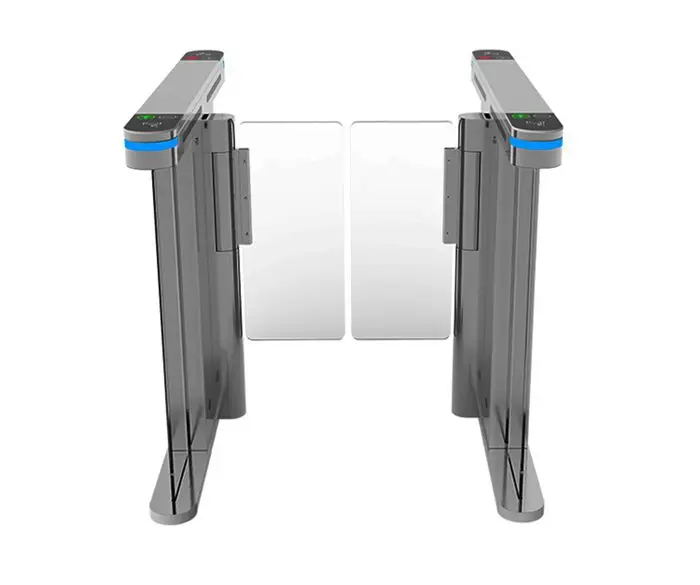

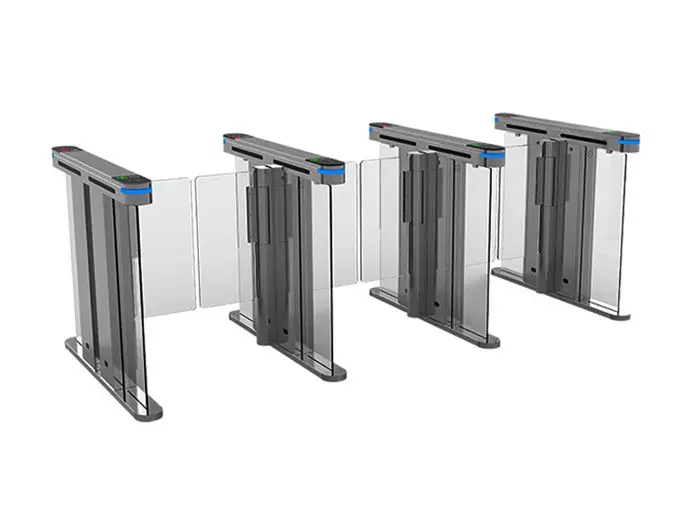

Access control speedlane swing barrier turnstile HZ-1288
We can customize any size and appearance according to the customer's demands
Product Description
The intelligent speedland swing barrier is one of the serial products of intelligent passage management series from Our Company. use servo motor, It possesses superiority incomparable with the traditional management mode.

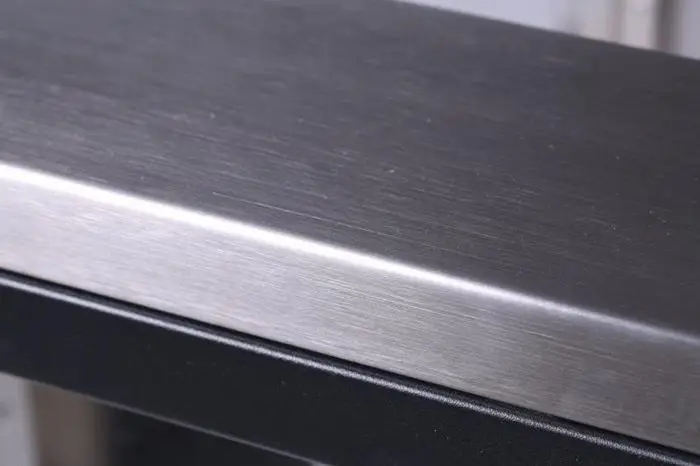

The outline of the product is formed after pressing the stainless steel plate. The shape is featured as a pleasing appearance, a good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the product with read/write facilities. A special control system is equipped in the product to meet the requirement of fire control, so that the smooth passage flow is ensured, realizing a timely diverting of passengers. The product is featured as stable in performance, safe and reliable, and can be used widely in the places where passenger flow is great and monitoring is needed such as stations, harbors and guest house.
Features
- Provide normally open / normally close to satisfy management request.
- Compatible with RF card readers, bar code readers, biometric readers, push button...
- Equipped with infrared photocell, alarm while unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian.
- Expanded to automatic identification system, access control system, Traffic control, attendance check and fare collection system etc.
- Automatically reset : lock automatically while the pedestrian not pass the lane in the pre-set time after the flap opened. The passing time is adjustable.
- Equipped with international interface, can be easily integrated with other R/W device and managed through remote supervision computer
- (Optional) Support gate open while power failure and recover N/C mode after power on.
- (Optional) Memory function. Can pass N pedestrians continuously by swiping card N times correspondingly (N<=16)
- (Optional) Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction after reading the card.
- One direction or bi-direction is optional.
Specifications
Model | HZ-1288 | HZ-1288-1 | |
Item | Single swing barrier | Double swing barrier | |
Power consumption | 50W | 100W | |
Housing Size | 1400x160x1000 mm | ||
Housing material | 1.5--2mm, #304 Stainless Steel, Matt finish | ||
Drive motor | DC brushless motor | ||
Channel width | 600mm | ||
Pass speed | 45 persons/min. | ||
Power supply | AC220V / 110V (optional) | ||
Input interface | Switch Volume or 12V Level | ||
Communication interface | RS485 | ||
Gate open while power off | Yes | ||
Working temperature | -30°C~+70°C | ||
Working environments | Indoor | ||
Relative humidity | ≤95% coagulation free | ||
MCBF | 1,500,000 cycles | ||
Warranty | 1 year | ||
Outside packing | Plywood box, 1420x320x1020 mm | ||
Pieces per box | 1 pcs / box | ||
Gross weight | 80KG | 90KG | |

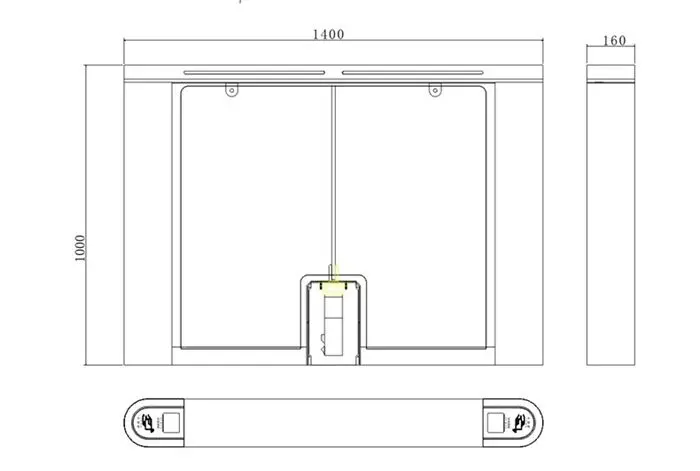

Schematic View
Packaging & Shipping
1 * swing barrier
1 * manual
1 * package
Delivery Detail: | 50sets in 1-2 working days, and we Cooperate well with DHL, EMS, UPS, FEDEX, China Air Post. You can also choose your own shipping forwarder and you will receive goods only 3-5 days later. |
Our Services
Installation and commissioning
The metal tripod turnstile with integrated design, only 10 minutes to complete the installation or dismantling, installation and commissioning were equipped with operating instructions.
Use
1. Office space: commercial buildings, government offices, etc;
2.Science unit: universities, research institutes, libraries, etc;
3. Commercial service establishments: supermarkets, shopping malls, hotels, clubs, banks, etc;
4. Leisure and entertainment: parks, scenic areas, playgrounds, etc;
5. Transportation Sites: bus, train, subway stations, airports and so on.
Service
1. Any inquiries will be replied within 24 hours
2. Professional maufacturer. Welcome to visit our factory.
3. OEM/ODM available
You can have your own fashionable design at reasonable& competitive price
5. High quality:
1.) All products are stictly checked in warehouse before packing
2.) All products are well-packed before shipping
3.) All products have 2 years warranty
6.Payment:
T/T, Western Union, Paypal, Moneygram can be accepted
7. short lead time:
Sample order in stock, and 3--7 days for bulk production
8. Shipping:
Cooperate well with DHL, EMS, UPS, FEDEX, China Air Post
You can also choose your own shipping forwarder
