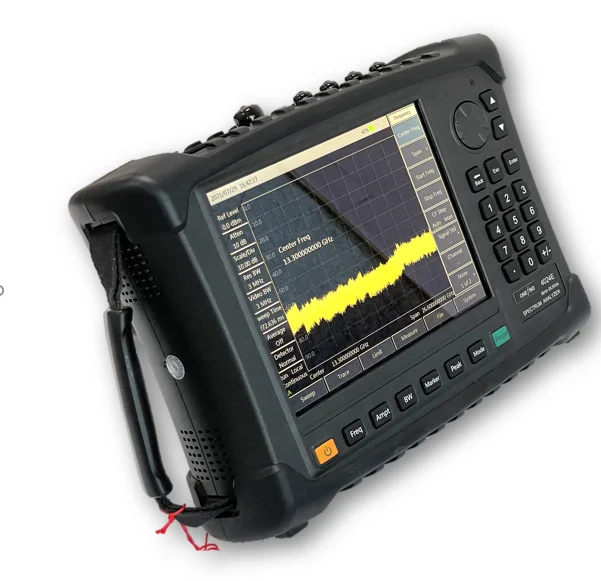

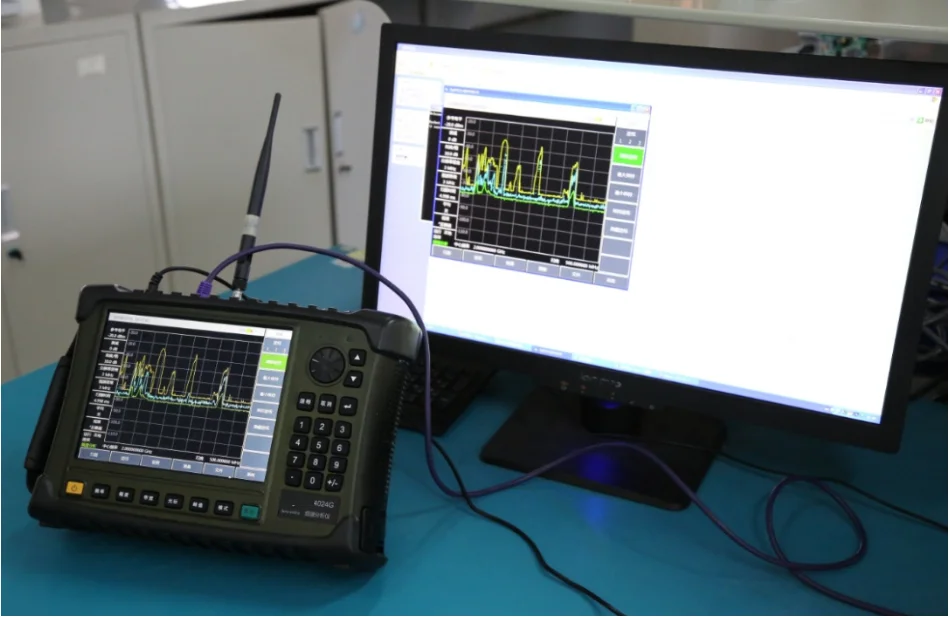

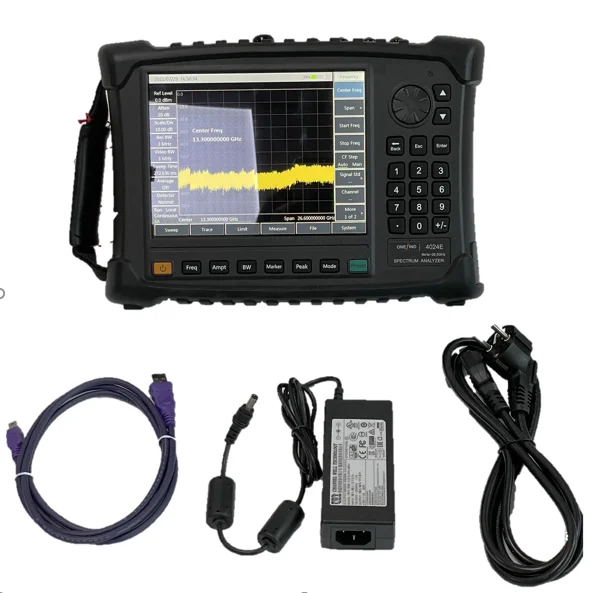

4024A/B/C/D/E/F/G/H/L Spectrum Analyzer
(9kHz~4GHz/6.5GHz/9GHz/20GHz/26.5GHz/32GHz/44GHz/50GHz/67GHz)
(9kHz~4GHz/6.5GHz/9GHz/20GHz/26.5GHz/32GHz/44GHz/50GHz/67GHz)
Product Overview
4024 series spectrum analyzer has many advantages: wide frequency range, high performance index, high sweep speed, various
functions, and easy operation. In terms of performance index, it has excellent displayed average noise level, low phase noise, and
high sweep speed. In terms of measurement functions, it has measurement functions of spectrum analyzer, interference analyzer,
AM/FM/PM analyzer, power meter, channel scanner etc. as well as intelligent measurement functions of channel power, occupied
bandwidth, adjacent-channel power ratio, tune&listen, emission mask, and carrier-to-noise ratio etc. 4024 apots the integrated
design of 8.4 inch LCD and capative touch screen, which improves the display definition and operation convinience. It is handheld,
compact and light, with flexible power supply, which is very suitable for field work.
4024 can be used for signal and equipment test in the fields of aerospace, microwave & stallite communication, radio
communication, radar monitoring, electronic countermeasures & reconnaissance, and precision guidance.
Main Characteristics
1. Wide frequency range: from 9kHz to 67GHz.
2. Low displayed average noise level: -157dBm@1Hz RBW
3. Excellent phase noise performance: -106dBc/Hz@100kHz frequency offset@1GHz carrier
4. High sweep speed: for 1GHz span, shortest sweep time <20ms
5. Resolution bandwidth: 1Hz~10MHz
6. Full-band pre-amplifier: standard configuration
7. Various measurement functions: spectrum analyzer, interference analyzer (spectrogram, RSSI), AM/FM/PM analyzer, channel
scanner, high accuracy power meter etc.
8. Various intelligent measurement functions: field strength measurement, channel power, occupied bandwidth, adjacent-channel
power ratio, tune&listen, carrier-to-noise ratio, emission mask.

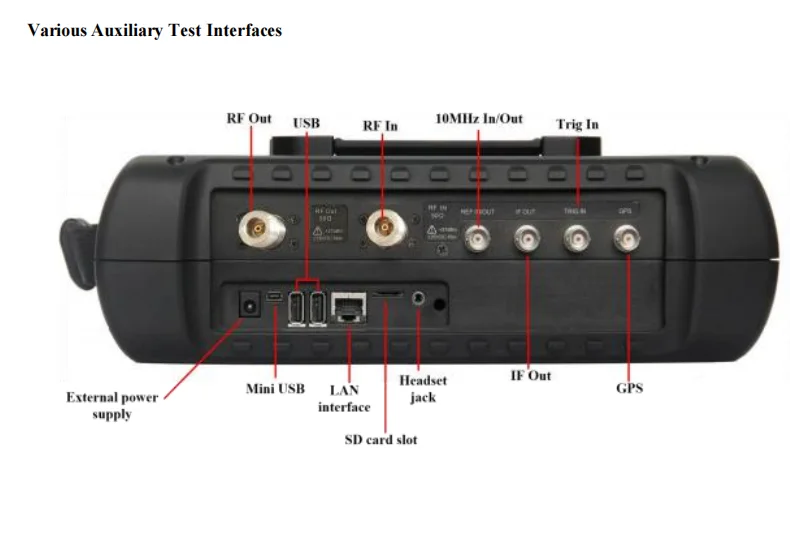

9. Various auxiliary test interface: 10MHz reference input/output interface, GPS antenna interface, zero span IF output interface,
external triggering input interface etc.
10. Easy & convenient user operation: 8.4 inch high definition LCD and large font display, convenient capacitive touch screen
operation, combination of LCD and touch screen, various display modes, and automatic adjustment of backlight brightness etc.
11. Working temperature range: -10℃~50℃; Power supplied by battery or adapter.
4024 series spectrum analyzer has many advantages: wide frequency range, high performance index, high sweep speed, various
functions, and easy operation. In terms of performance index, it has excellent displayed average noise level, low phase noise, and
high sweep speed. In terms of measurement functions, it has measurement functions of spectrum analyzer, interference analyzer,
AM/FM/PM analyzer, power meter, channel scanner etc. as well as intelligent measurement functions of channel power, occupied
bandwidth, adjacent-channel power ratio, tune&listen, emission mask, and carrier-to-noise ratio etc. 4024 apots the integrated
design of 8.4 inch LCD and capative touch screen, which improves the display definition and operation convinience. It is handheld,
compact and light, with flexible power supply, which is very suitable for field work.
4024 can be used for signal and equipment test in the fields of aerospace, microwave & stallite communication, radio
communication, radar monitoring, electronic countermeasures & reconnaissance, and precision guidance.
Main Characteristics
1. Wide frequency range: from 9kHz to 67GHz.
2. Low displayed average noise level: -157dBm@1Hz RBW
3. Excellent phase noise performance: -106dBc/Hz@100kHz frequency offset@1GHz carrier
4. High sweep speed: for 1GHz span, shortest sweep time <20ms
5. Resolution bandwidth: 1Hz~10MHz
6. Full-band pre-amplifier: standard configuration
7. Various measurement functions: spectrum analyzer, interference analyzer (spectrogram, RSSI), AM/FM/PM analyzer, channel
scanner, high accuracy power meter etc.
8. Various intelligent measurement functions: field strength measurement, channel power, occupied bandwidth, adjacent-channel
power ratio, tune&listen, carrier-to-noise ratio, emission mask.
9. Various auxiliary test interface: 10MHz reference input/output interface, GPS antenna interface, zero span IF output interface,
external triggering input interface etc.
10. Easy & convenient user operation: 8.4 inch high definition LCD and large font display, convenient capacitive touch screen
operation, combination of LCD and touch screen, various display modes, and automatic adjustment of backlight brightness etc.
11. Working temperature range: -10℃~50℃; Power supplied by battery or adapter.
Field Strength
Interference Analyzer (Spectrogram)
AM/FM/PM Demodulation
Channel Scanner
Power Meter (USB Power Probe)
Signal Analyzer
Field Strength Measurement
Channel Power
Occupied Bandwidth
Adjacent-Channel Power Ratio
Emission Mask
Carrier-to-Noise Ratio
Limit Line
List Sweep
Multi-Traces
Night Vision Mode
Specification

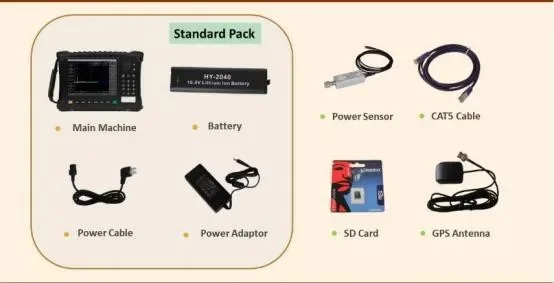

Model | 4024A/B/C/D/E/F/G/H/L | ||||||
Frequency Range | 4024A:9kHz～4GHz4024B:9kHz～6.5GHz 4024C:9kHz～9GHz 4024D:9kHz～20GHz 4024E:9kHz～26.5GHz 4024F:9kHz～32GHz 4024G:9kHz～44GHz 4024H:9kHz～50GHz 4024L:9kHz～67GHz Tuning Resolution:1Hz | ||||||
Frequency Reference | Frequency: 10MHz Aging: ±0.5ppm/Year Initial Frequency Accuracy: ±0.3ppm Temperature Stability:±0. 1ppm(- 10～50℃, Comparative to 25℃) | ||||||
Sweep Time | Range: 10μs～600s (Zero Span) Accuracy: ±2.00% (Zero Span) | ||||||
Frequency Readout Accuracy | ±(Frequency Readout× frequency Reference +2%× Span +10%× Resolution Bandwidth) | ||||||
Frequency Span | Range: 100Hz ～Upper Frequency Limit of Corresponding Model or 0Hz Accuracy: ±2.0% | ||||||
Resolution Bandwidth | 1Hz～10MHz (1-3 Times of Stepping) | ||||||
Video Bandwidth | 1Hz～10MHz (1-3 Times of Stepping) | ||||||
Displayed Average Noise Level (input port is connected with a 50Ω load, 0dB input attenuation, average detection, logarithm of video type, RBW normalized to 1Hz, tracking source off, 20℃~30℃) | 4024A/B/C: Pre-amp Off: ≤- 140dBm(10MHz～3GHz) ≤- 138dBm(3GHz～9GHz) Pre-amp On: ≤- 160dBm(10MHz～3GHz) ≤- 157dBm(3GHz～9GHz) | 4024D/E/F/G: Pre-amp Off: ≤- 138dBm(10MHz～20GHz) ≤- 135dBm(20GHz～32GHz) ≤- 127dBm(32GHz～40GHz) Pre-amp On: ≤- 157dBm(10MHz～20GHz) ≤- 154dBm(20GHz～32GHz) ≤- 148dBm(32GHz～40GHz) | |||||
4024H/L: Pre-amp Off: ≤- 135dBm(10MHz～20GHz) ≤- 129dBm(32GHz～40GHz) ≤- 114dBm(46GHz～50GHz) ≤- 100dBm(60GHz～67GHz) | ≤- 134dBm(20GHz～32GHz)≤- 120dBm(40GHz～46GHz) ≤- 114dBm(50GHz～60GH | ||||||
Pre-amp On: ≤- 153dBm(10MHz～20GHz) ≤- 147dBm(32GHz～40GHz) ≤- 132dBm(46GHz～50GHz) ≤- 118dBm(60GHz～67GHz) | ≤- 152dBm(20GHz～32GHz)≤- 142dBm(40GHz～46GHz) ≤- 132dBm(50GHz～60GHz) | ||||||
Residual Response | 4024A/B/C (exceptional frequency: 3.2GHz): Pre-amp Off: ≤-82dBm （ 10MHz～9GHz） Pre-amp On: ≤-95dBm （ 10MHz～9GHz） | 4024D/E/F/G (exceptional frequency: 3.2GHz): Pre-amp Off: ≤-90dBm(10MHz～13GHz) ≤-85dBm (13GHz～20GHz) ≤-80dBm (20GHz～44GHz) Pre-amp On: ≤- 100dBm (10MHz ～ 32GHz) ≤-95dBm (32GHz～44GHz) | |||||
Second Harmonic Distortion (0dB attenuation, -30dBm input signal) | 4024A/B/C/H/L: <-65dBc 4024D/E/F/G: <-60dBc | ||||||
Absolute Amplitude Accuracy (input signal 0dBm~-50dBm, all settings are automatic couplings, 20 ℃ ~30 ℃ , 30 minutes ofpreheating) | ±1.8dB (10MHz～13GHz) ±2.3dB (13GHz～40GHz) ±2.7dB (40GHz～50GHz) ±3.0dB (50GHz～67GHz | ||||||
Input Attenuator | 4024A/B/C/H/L: Attenuation Range: 0dB～30dB, 5dB Stepping | 4024D/E/F/G: Attenuation Range: 0dB～50dB, 10dB Stepping | |||||
Maximum Continuous Input | 4024A/B/C/H/L: +27dBm Peak Attenuation) +20dBm Peak Attenuation) +10dBm Peak Typical(Pre-amp On) | 4024D/E/F/G: +30dBm Peak Attenuation) +23dBm Peak Attenuation) +13dBm Peak Typical(Pre-amp On) | |||||
Reference Level | Range: - 120dBm～+30dBm Conversion Uncertainty: ±1.20dB | ||||||
Dimension | 314mm (W)×218mm (H)×91mm (D) (Excluding Handle, Stand) 338mm(W)×218mm (H)×100mm (D) (Including Handle, Stand) | ||||||
Weight | 4024A/B/C:≤4.5g | 4024D/E/F/G:≤5. 1kg | |||||
Working Temperature | - 10℃～+50℃ (the battery operation temperature is 0℃～+45℃) | ||||||
Storage Temperature | -40℃～+70℃ (the battery storage temperature is -20℃～+60℃) | ||||||
Electromagnetic Compatibility | Conforms to GJB3947A 2009 3.9 1 Requirements | ||||||
Battery operation time | 4024A/B/C: about3h | 4024D/E/F/G: about 2.5h | 4024H/L:2h (typical) | ||||
Power Consumption | 4024A/B/C: ≤25W | 4024D/E/F/G: ≤33W | 4024H/L: ≤38W | ||||
Test Interface | RF input: 4024A/B/C/D/E: Type-N Connector（female） 4024F/G: 2.4mm Connector(male) 4024H/L: 1.85mm Connector(male) RF output: Test interface of tracking generator option for 4024A/B/C: Type-N Connector（female） | ||||||

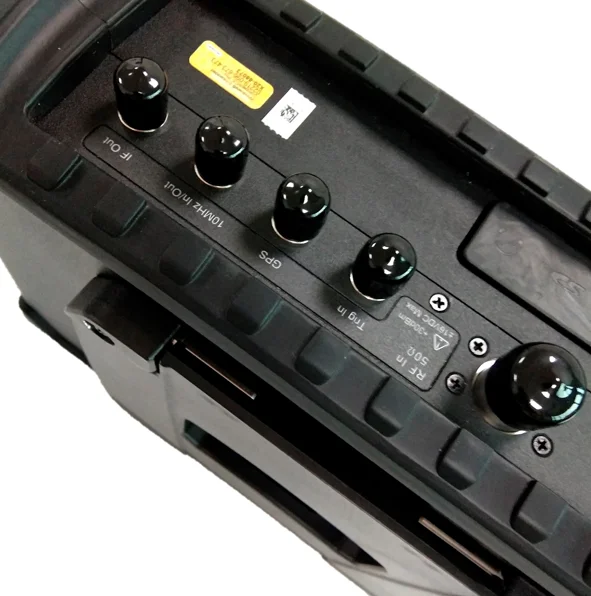

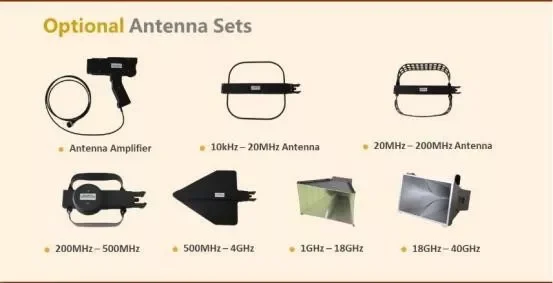

Other Interfaces | 10MHz Reference Input/Output: BNC (female) ConnectorExternal Triggering Input: BNC (female) Connector IF Output: BNC (female) Connector GPS Antenna Input: BNC (female) Connector | ||||||
