12 Volt High Torque No Sound Cutting Plotter Small Dc Servo Motor 12 V 12Vdc 100W 180 Watt Servomotor Brushless 12V 24V 48V
- Category: >>>
- Supplier: Guangzhou,Dmke,Intelligent-Technology,Co.,Ltd.
Share on:
Product Overview
Description
Feature:
A. High power range from 20W to 10KW
B. Dia: 40mm-220mm
A. High power range from 20W to 10KW
B. Dia: 40mm-220mm
C. Easy for speed & direction adjustment
D. Rich stock and fast shipping time in 10 working days
E. Strong stability for driver/controller
F. Lifetime above continuous 10000 hours
G. IP65 protection rank is available for us
H. Above 90% enery efficiency motor is available
I. 3D file is available if customers needed
J. Permanent magnet brushless dc motor
K.High-performance and stable matching driver and controller
D. Rich stock and fast shipping time in 10 working days
E. Strong stability for driver/controller
F. Lifetime above continuous 10000 hours
G. IP65 protection rank is available for us
H. Above 90% enery efficiency motor is available
I. 3D file is available if customers needed
J. Permanent magnet brushless dc motor
K.High-performance and stable matching driver and controller
Specification
Rated Output(Kw): | 0.4 | Number of Poles： | 10 | ||
Rated Voltage(V)： | DC24 | Vibration Class ： | F | ||
Rated Speed(rpm)： | 3000 | Max. Speed(rpm)： | 3200 | ||
Rated Current(A)： | 20±10% | Instantaneous Max. Current(A): | 40±10% | ||
Rated Torque(N.m)： | 1.27 | Instantaneous Peak Torque(N.m): | 2.54 | ||
Line Resistance(Ω): | 0.07±10%(25℃) | Line Inductance(mH): | 0.17±10% | ||
Line Back EMF.(V/krpm)： | 3.8±10% | Torque Coefficient(N.m/A): | 0.06±10% | ||
Rotor Moment of Inertia(Kg.m2×10-4): | 0.58±10% | Feedback Component： | Incremental Encoder, 2500PPR | ||
Static Torque（N.m）： | - | Rotation Direction ： | CCW | ||
Insulation Resistance(MΩ): | DC500V，>20MΩ | Noise(dB)： | ≤60dB，None Special Noise | ||
Time rating ： | Continuous | Vibration Class ： | V 15 | ||
Ambient Temperature ： | 0～+40℃ | Ambient Humidity ： | 20～80% No Condensation | ||
Excitation： | Permanent Magnet | Mouting ： | Flange Method | ||
Drive Method ： | Direct Drive | ||||
Enclosure ： | Totally Enclosed, Self-cooled, IP65(except for shaft opening ). | ||||
Kindly remind: As different customers may need different motor parameter for fitting your equipment. If below motor can't fit your need, please kindly send inquiry to us with information for rated power or torque,rated speed, and rated voltage for our new size drawing making for you. CLICK HERE to contact me. Thanks a lot!

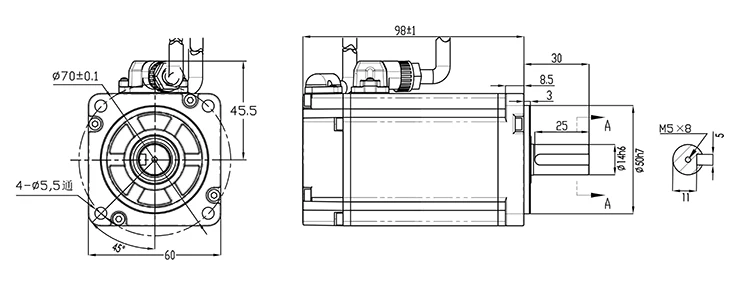

Dimensions (Unit: mm )
Mounting screws are included with gear head.
Dimensions (Unit: mm )
Mounting screws are included with gear head.
60MM DC Servo Motor Size Dimensions

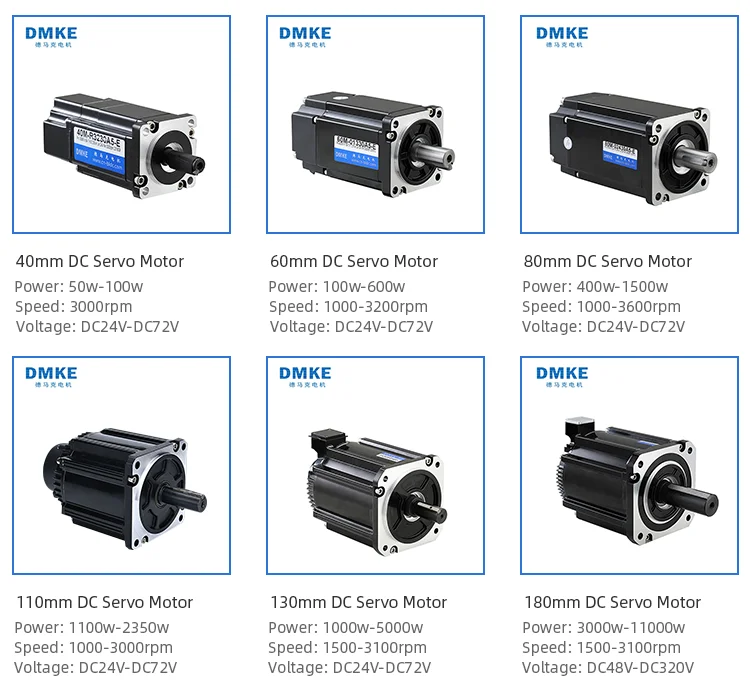

Main Products
Company Profile
DMKE motor is a specialized motor company founded in Y2009 by Haibing Jian,who boats 18 years of experience in the motor and controller industry. Our company located in Panyu,Guangzhou,China.
Our main products are brushless dc motor, brushless controller, dc servo motor and controller, planetary gear motors, worm gear motors, brush dc motor and AC motor. They are widely used in AGV, RGV, robots, barrier gate, lifting equipment, cleaning machines, medical equipment, cafe machinery, packing machinery, amusement game machines, automobiles, industrial equipment etc.
With a plant area of 4000 square meters, we have the independent design and development capabilities and strong technical force,with an annual output of more than 1 million units. We can accept OEM motor and controller based on customers’ need.
Our main products are brushless dc motor, brushless controller, dc servo motor and controller, planetary gear motors, worm gear motors, brush dc motor and AC motor. They are widely used in AGV, RGV, robots, barrier gate, lifting equipment, cleaning machines, medical equipment, cafe machinery, packing machinery, amusement game machines, automobiles, industrial equipment etc.
With a plant area of 4000 square meters, we have the independent design and development capabilities and strong technical force,with an annual output of more than 1 million units. We can accept OEM motor and controller based on customers’ need.
Our Advantages
FAQ
Q1: What kind motors you can provide? |
A1: For now, we mainly provide Brushless DC Motor, DC Servo Motor, Drive Dheel, Servo Electric Cylinder, Gearbox, Motor Controller, with diameter range from 16 to 220mm, and power range from 5W to 20KW. |
Q2: Are you motors reversible? |
A2: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection. |
Q3: Is it possible for you to develop new motors if we provide the tooling cost? |
A3: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we’ll make our evaluation. Welcome to click here to send your requirements. |
Q4: What is your after-sales services? |
A4: A) Free maintenance within 12 months guarantee, lifetime consultant. B) Professional solutions in installation and maintenance. |
