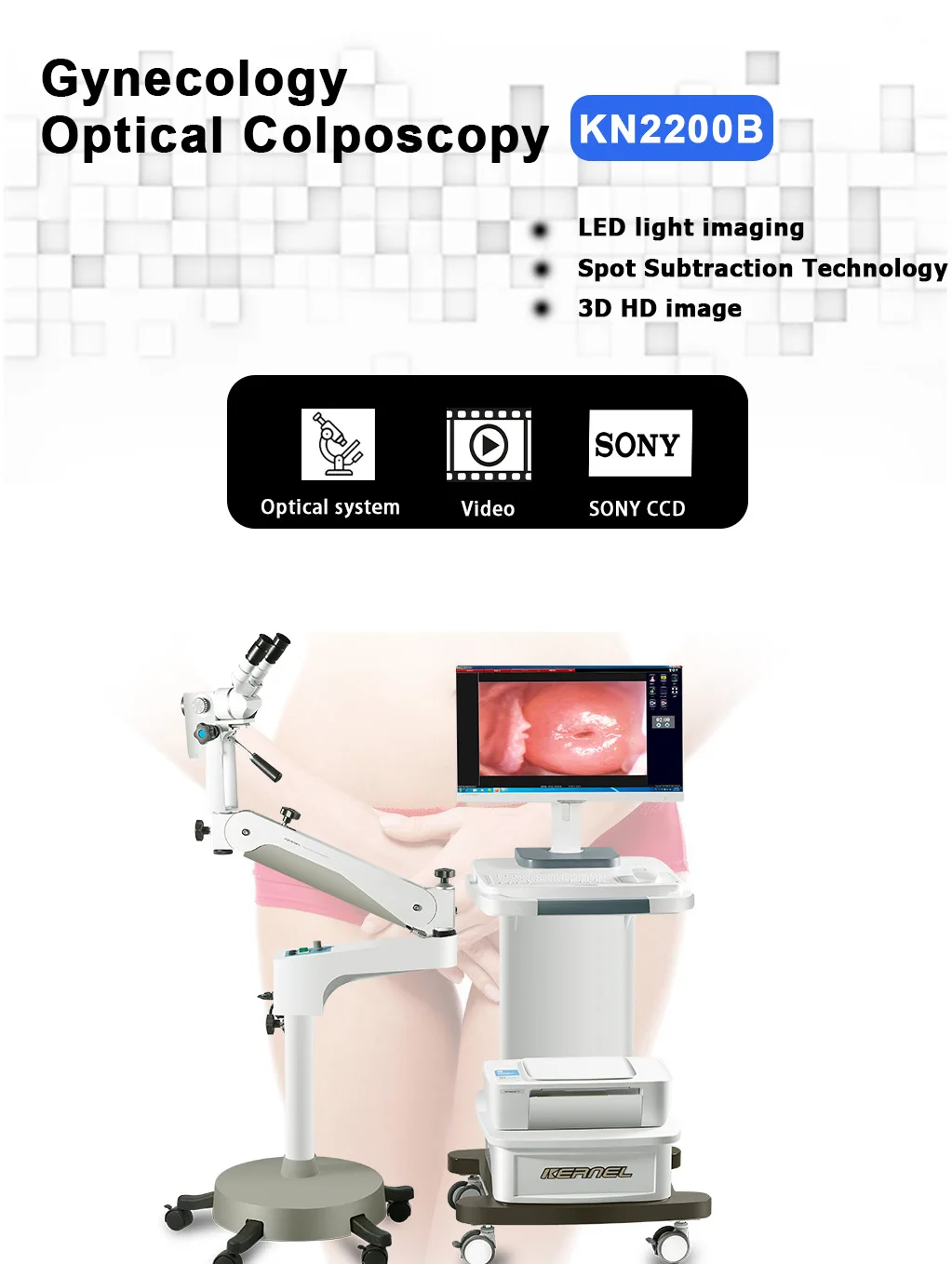

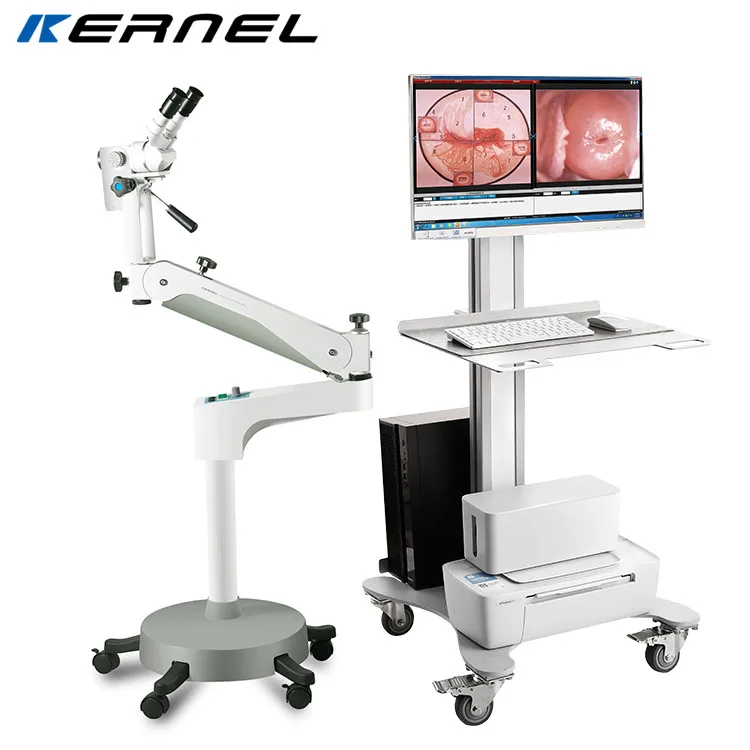

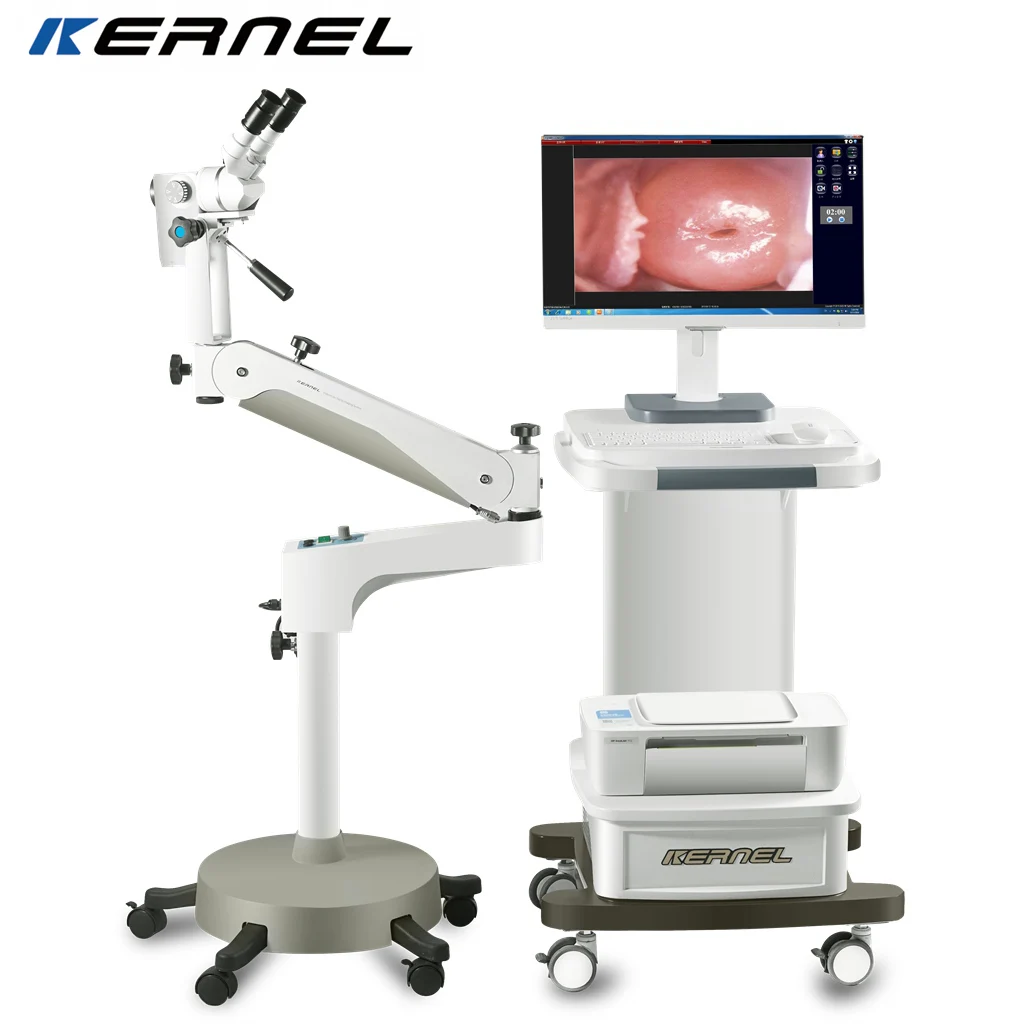

KERNEL KN 2200B Series binocular vision optical video colposcope for gynecology vagina examination
- Category: >>>
- Supplier: Kernel,Medical,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
HD optical Colposcope For Vagina Digital Gynecology colposcopy Sony Camera video colposcope
*Clinical value of colposcope
A. Diagnose early cervical cancer, distinguish tumor from inflammation
B. It has guiding significance in treatment, especially for the treatment of cervical intraepithelial neoplasia, which can indicate the location and extent of the lesion.
C. Colposcopy is also valuable for the estimation and treatment of benign cervical lesions.
D. The storage of colposcopy photos or computer images is very important for the follow-up observation of cervical lesions.
E. To study the relationship between HPV and sub-HPV infection and precancerous lesions and cervical cancer
Manufacture price colposcope, with both CE and US 510K approved!
Let's see how to get clear image through optical colposcope KN-2200B
*Application
1.Suitable for gynecology examination and cervical cancer early diagnose
2.On the clinical, checkup with vulva, vagina, cervix and other part
1.Suitable for gynecology examination and cervical cancer early diagnose
2.On the clinical, checkup with vulva, vagina, cervix and other part
*Features
●High resolution and high definition observation system.
●LED light source, luminance can be adjusted freely.
●Fast manual focus control, white-balance auto-adjustment.
●Unique beam splitter design and CCD imaging trimming, makes imaging stereo, acquire the best observation effect for the various level of lesions
●Built-in scale,can measure the size of lesions.
●Five-step magnification and focus, strong stereoscopic effect, distinct gradation, large viewing.

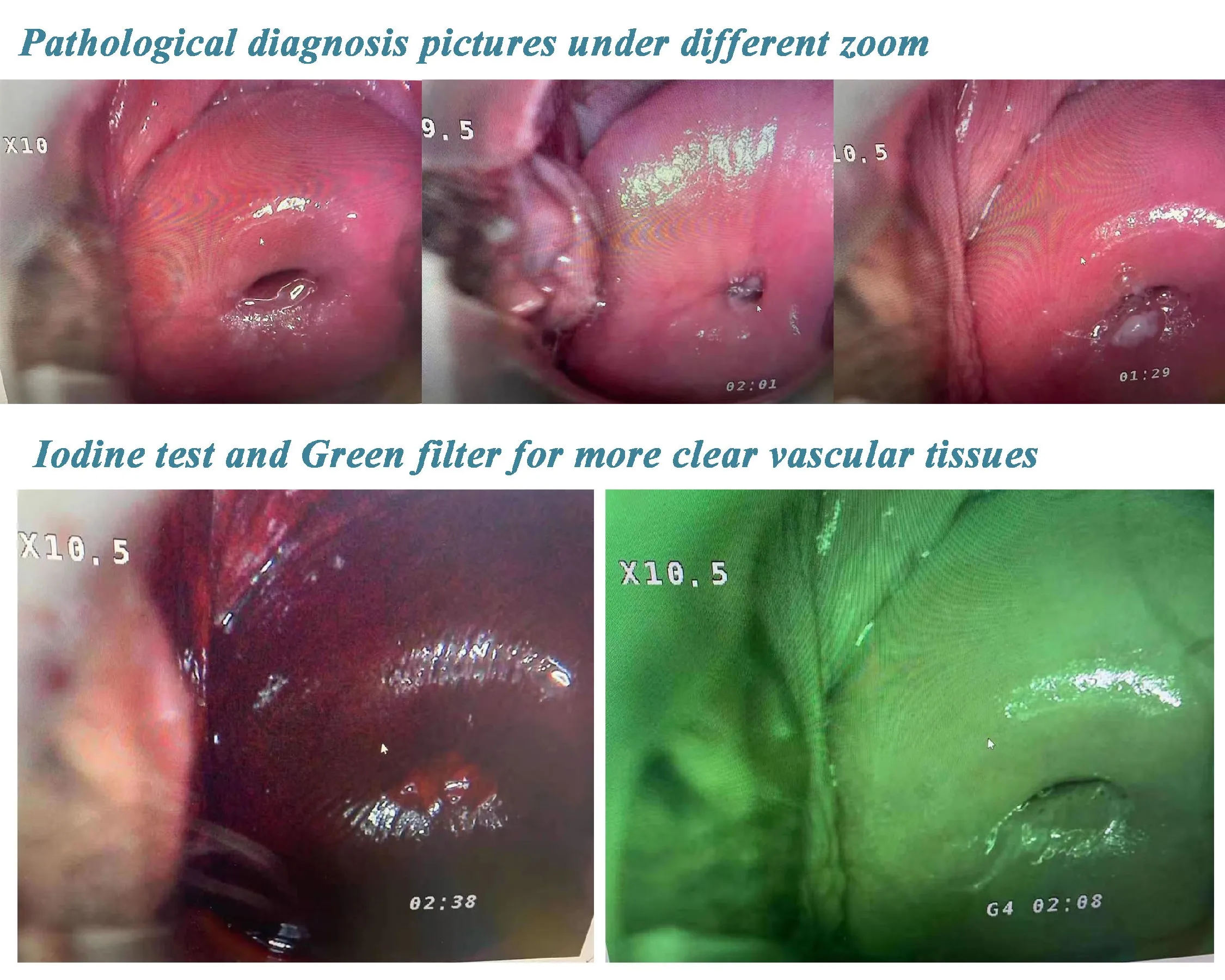

●Equipped with green filter, easy to observe capillary of lesions.
●Flexible, convenient,lockable swing arm, barrier-free design, easy to adjust to any angle
●Multi-function management software with the ability of image observation, capture, video recording, freezing, editing, report printing and storage.
●Special Software package, with the function of acetic acid reaction countdown, applicable to dynamic observation of examination and operative treatment.
●Support Win7/8/10
●High resolution and high definition observation system.
●LED light source, luminance can be adjusted freely.
●Fast manual focus control, white-balance auto-adjustment.
●Unique beam splitter design and CCD imaging trimming, makes imaging stereo, acquire the best observation effect for the various level of lesions
●Built-in scale,can measure the size of lesions.
●Five-step magnification and focus, strong stereoscopic effect, distinct gradation, large viewing.
●Equipped with green filter, easy to observe capillary of lesions.
●Flexible, convenient,lockable swing arm, barrier-free design, easy to adjust to any angle
●Multi-function management software with the ability of image observation, capture, video recording, freezing, editing, report printing and storage.
●Special Software package, with the function of acetic acid reaction countdown, applicable to dynamic observation of examination and operative treatment.
●Support Win7/8/10

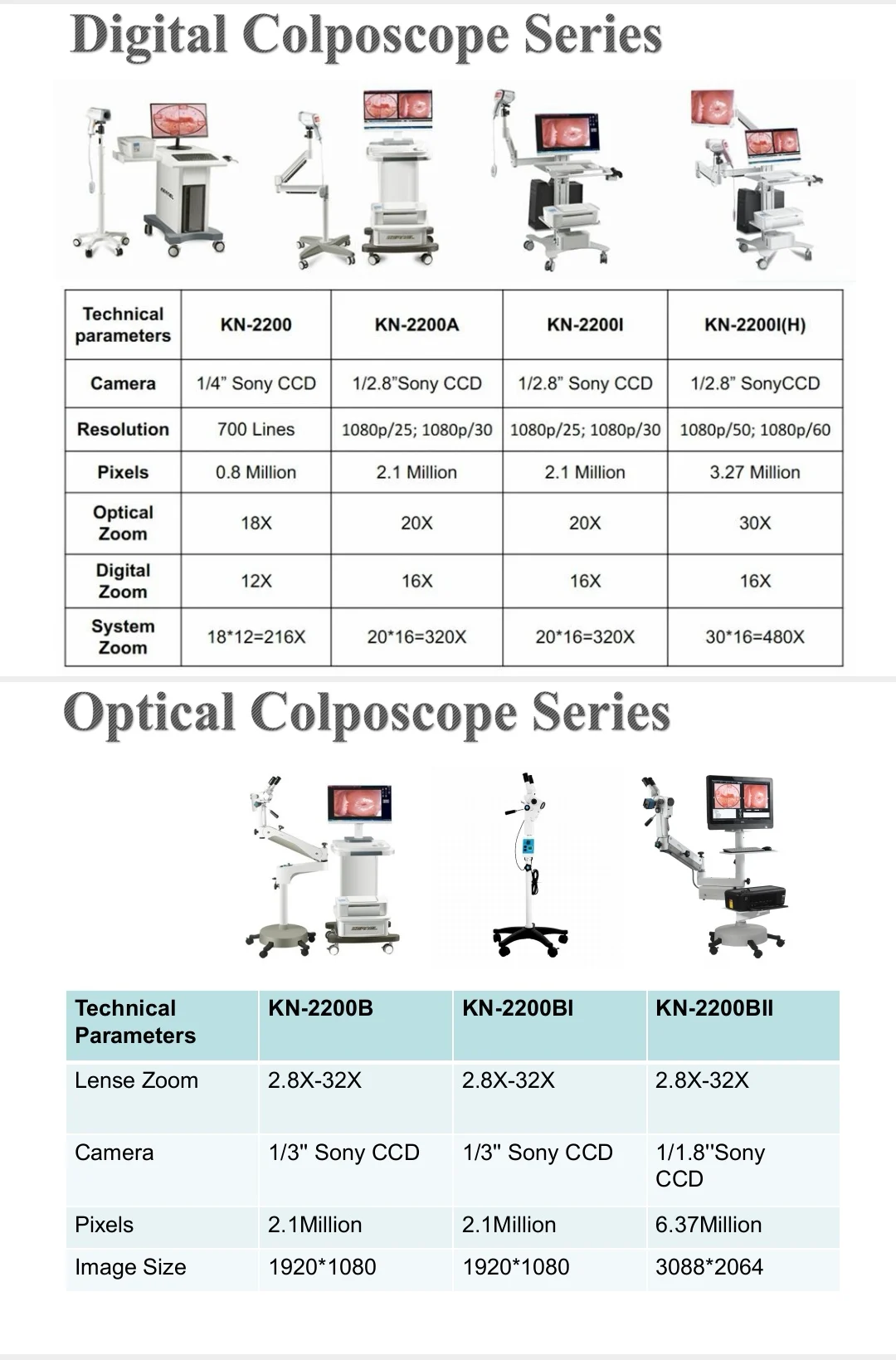

*Parameters
Optics System | Binocular eyepiece focus | 160mm, Built-in accurate measurement ruler |
Eyepiece | 12.5x, wide-angle vision adjustment(Refraction adjustment) 0±5D | |
Work distance | 300mm | |
Eye-distance adjustment range | 50-75mm | |
Micro focusing range | 0-40mm | |
Image collection Raster | f 4.5-f 32 | |
Cold light source | Green Filter | |
Light illumination | ≥30000Lux | |
Optics magnification times | 2.8-17 times | |
Camera System | Type | 1/3'' color CCD camera, successive scans |
Level Resolution | 540lines | |
Minimum illumination | 0.05Lux | |
Signal Noise Ratio of lens | ≥50 dB |

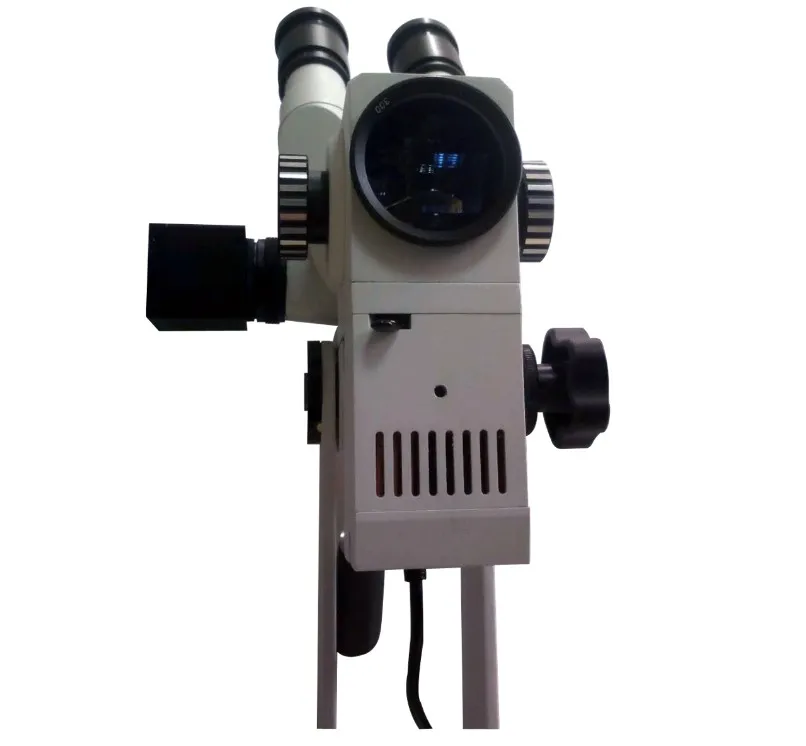

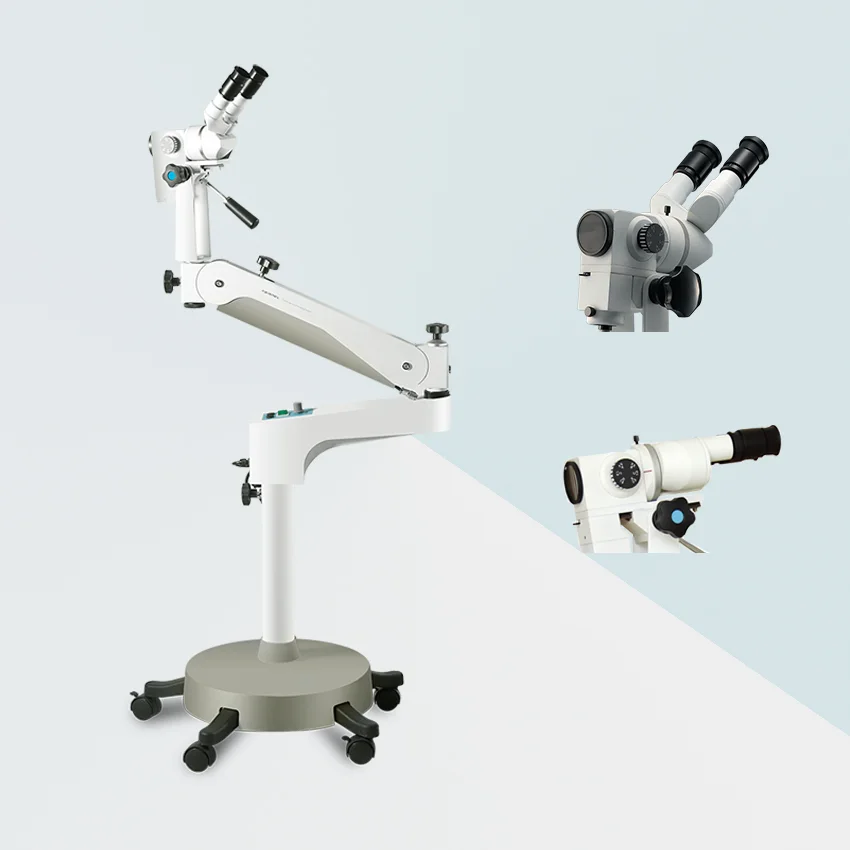

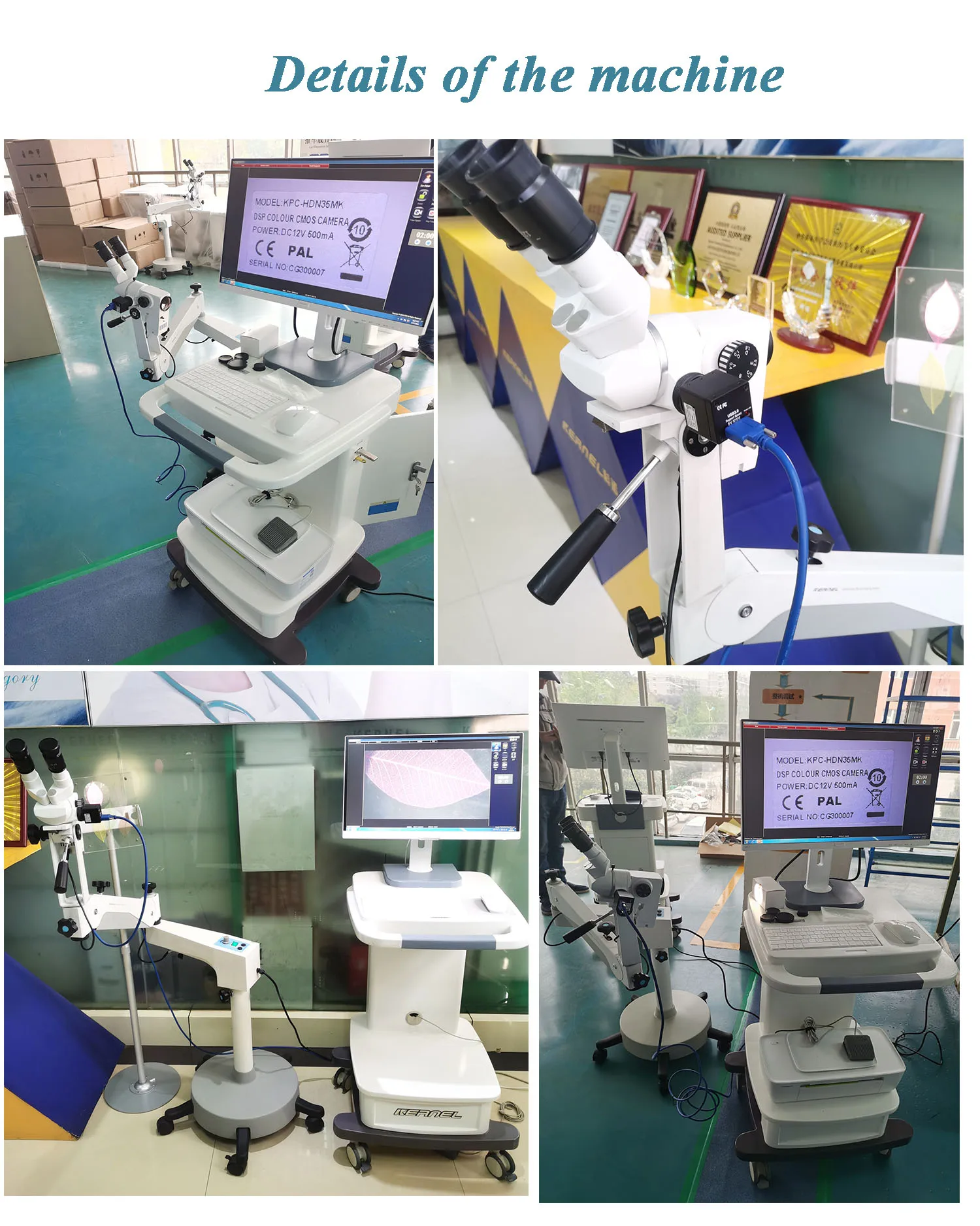

Details Images

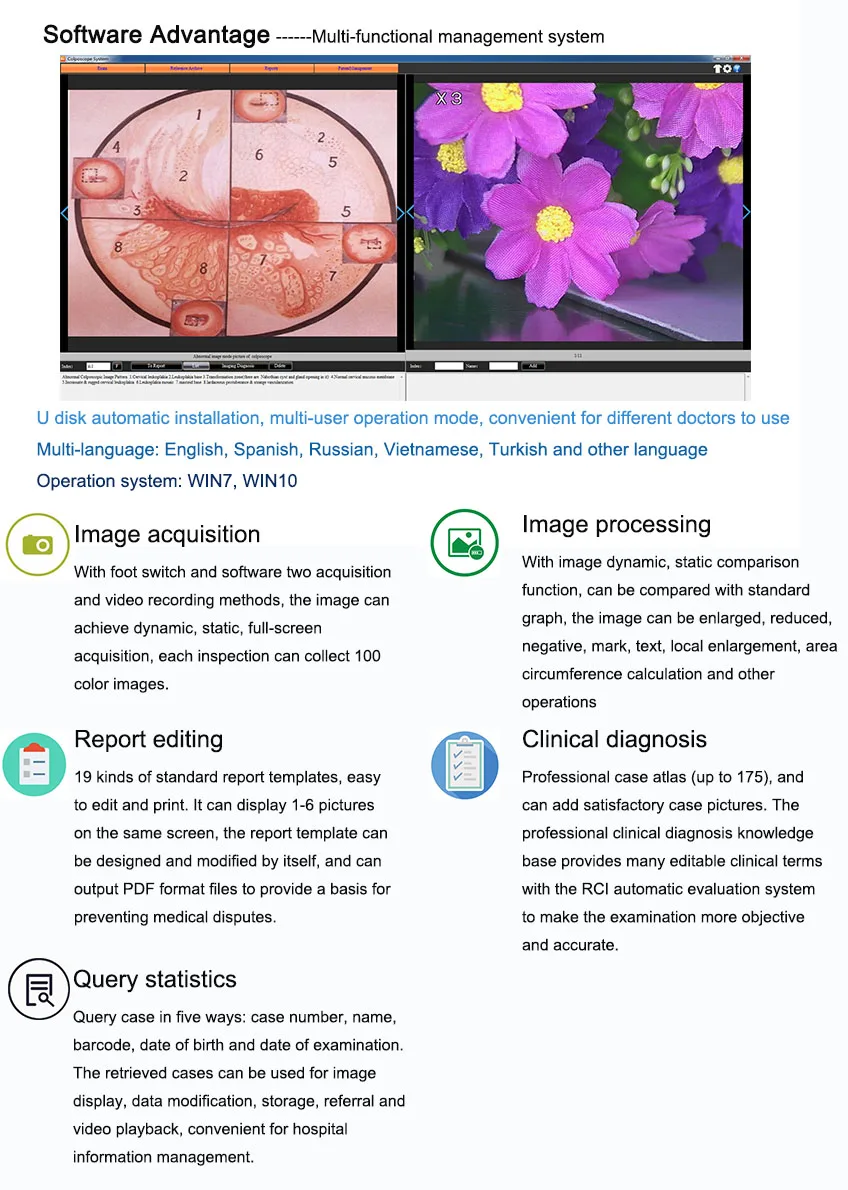

*Patent Software

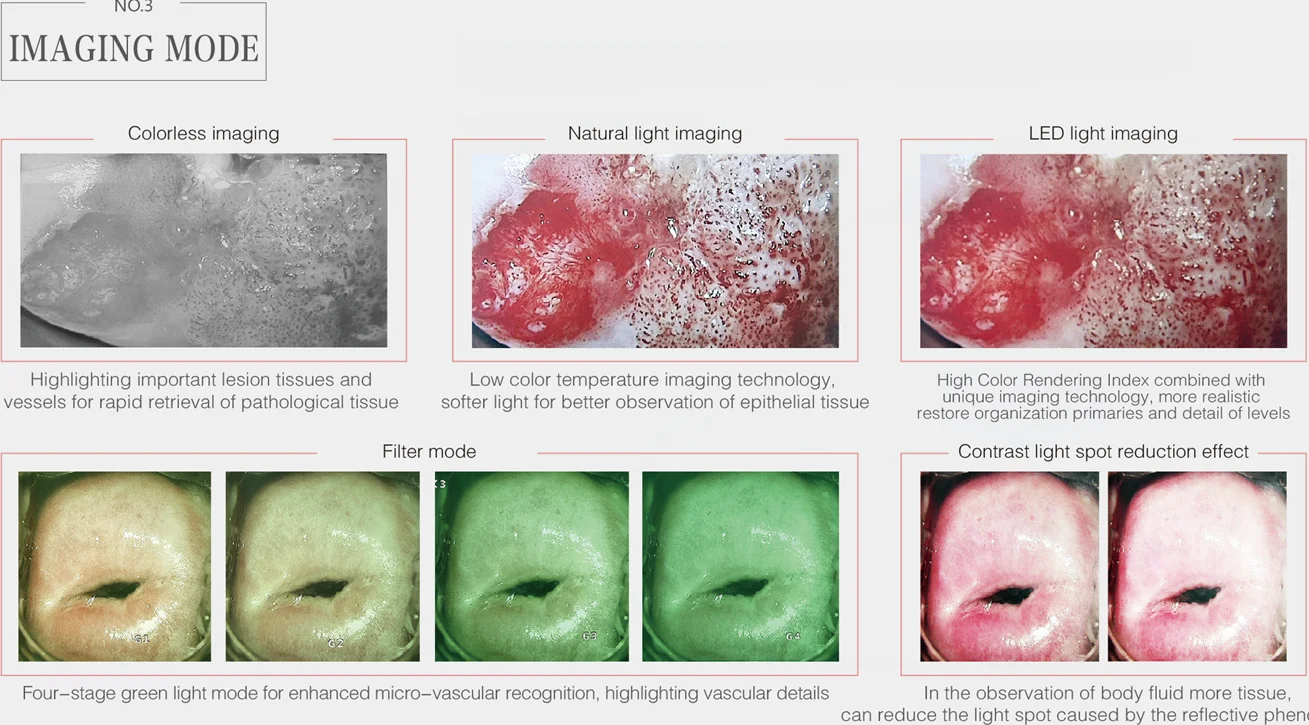

* Display images real-time, freezing, storage, delete, image-magnify or dwindle, auto-focus, manual focus, adjust light,intensity, green filter, normal real color model choose.
* Advanced imaging processing technique,can be marked,calculated area,magnification
* Data storage: 175 pcs standard pictures collection can be compared and analyzed, edit diagnosing report, Amend patients information, clinic diagnose advice, Case management : multi-model(case number, name, age, date, etc)index, lookup, analyze,edit and print.

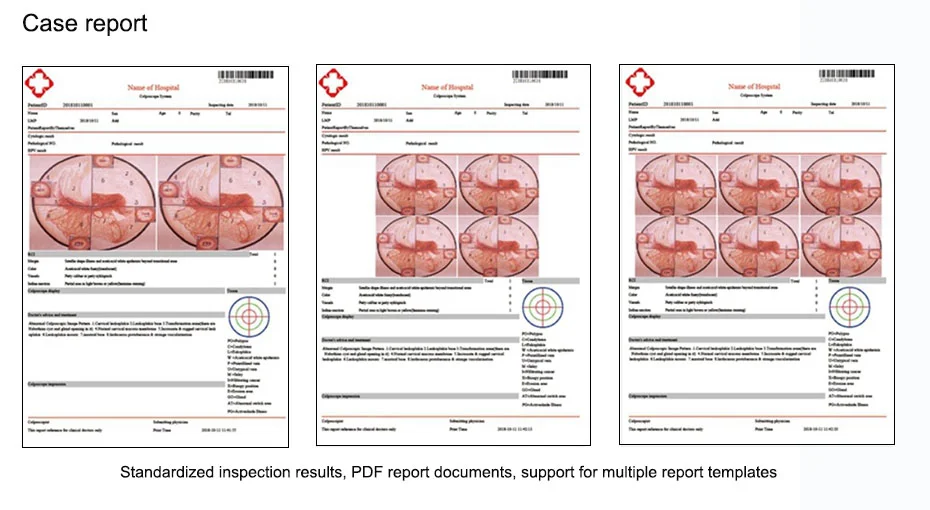

* Printing of Multi-format diagnosis report
* REID evaluation
* Unique acetic acid test timer function, real-time display of acetic iodine reaction tests.
* Advanced imaging processing technique,can be marked,calculated area,magnification
* Data storage: 175 pcs standard pictures collection can be compared and analyzed, edit diagnosing report, Amend patients information, clinic diagnose advice, Case management : multi-model(case number, name, age, date, etc)index, lookup, analyze,edit and print.
* Printing of Multi-format diagnosis report
* REID evaluation
* Unique acetic acid test timer function, real-time display of acetic iodine reaction tests.

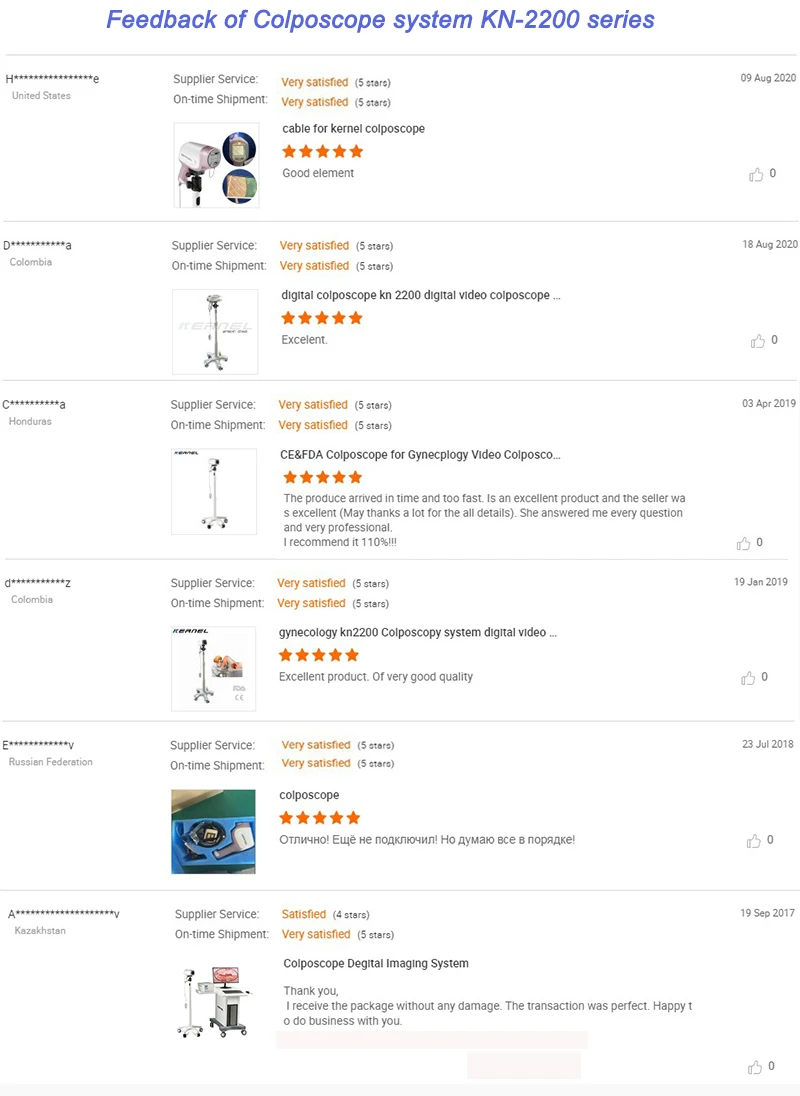

Customer Feedback
Related Products
Recommend Products
Certificate
Packing & Delivery
Standard Configuration | ||
Image capture system | *1 | |
Image control system | *1 | |
Bracket | *1 | |
Footswitch | *1 | |
Software | *1 | |

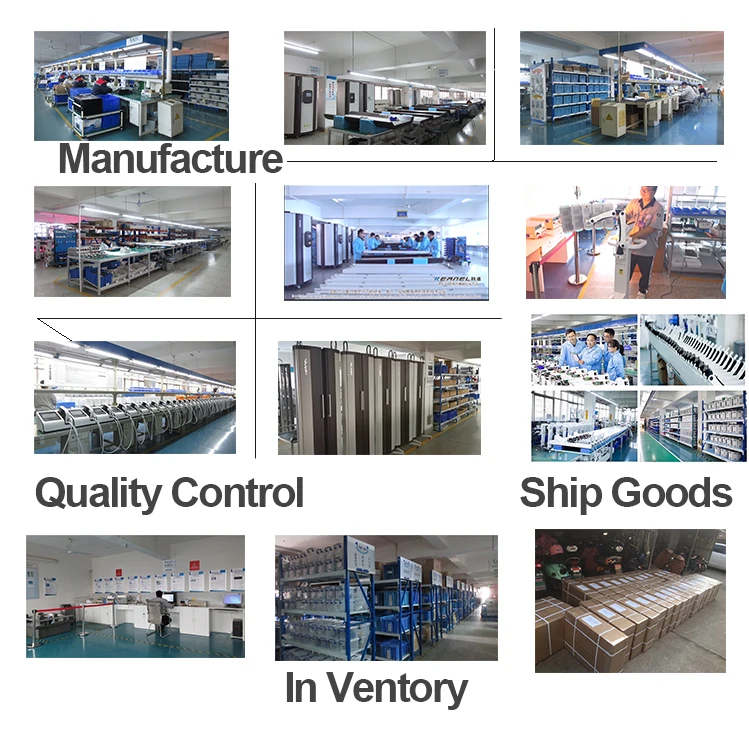

Company Introduction
