Product Description

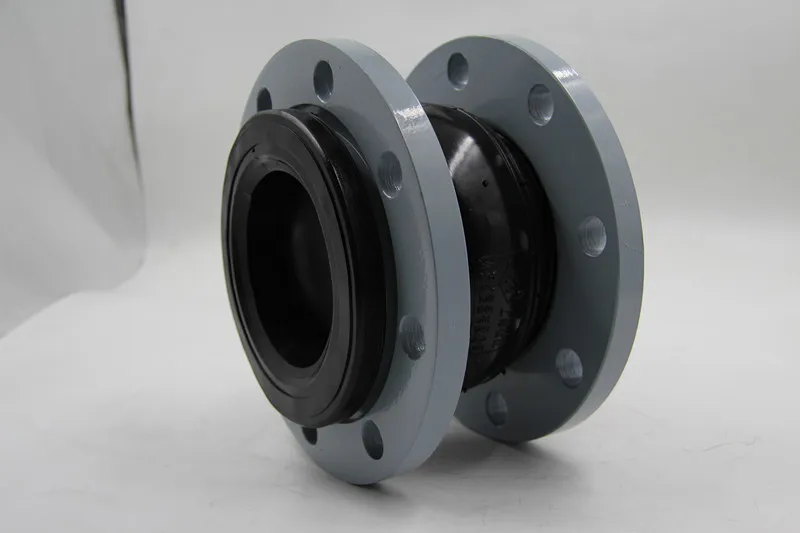

Description of Standard Carbon Steel Rubber Expansion Joints Coupling
Standard Carbon Steel Rubber Expansion Joints Coupling can reduce vibration and noise, and can compensate thermal expansion and contraction caused by temperature change. It is widely used in various pipeline systems.




Brand
Jiufu
Name
Rubber expansion joint
Standard
GB/T9119-2010
Flange Material
carbon steel/Stainless steel/UPVC
Rubber Material
NR/NBR/EPDM etc,
Diameter
DN25-DN3200
Operating temperature
-15℃-80℃/-30℃-150℃
Suitable medium
Water/hot water/sea water/oil/acid/alkali/air etc.


We can customize various rubber and flange materials according to customer needs, and can provide samples and drawings according to customer requirements.

If you have these request,contact us now!


Technical parameters


Technical parameters of Standard Carbon Steel Rubber Expansion Joints Coupling


Nominal diameter
Length（mm)
Axial displacement mm
Horizontal displacement
Angle of deflection
mm
Inch
extension
compress
a1+a2
32
11/4
95
6
9
9
15°
40
11/2
95
6
10
9
15°
50
2
105
7
10
10
15°
65
21/2
115
7
13
11
15°
80
3
135
8
15
12
15°
100
4
150
10
19
13
15°
125
5
165
12
19
13
15°
150
6
180
12
20
14
15°
200
8
210
16
25
22
15°
250
10
230
16
25
22
15°
300
12
245
16
25
22
15°
350
14
255
16
25
22
15°
400
16
255
16
25
22
15°
450
18
255
16
25
22
15°
500
20
255
6
25
22
15°
600
24
260
6
25
22
15°
700
28
260
16
25
22
15°
800
32
260
16
25
22
15°

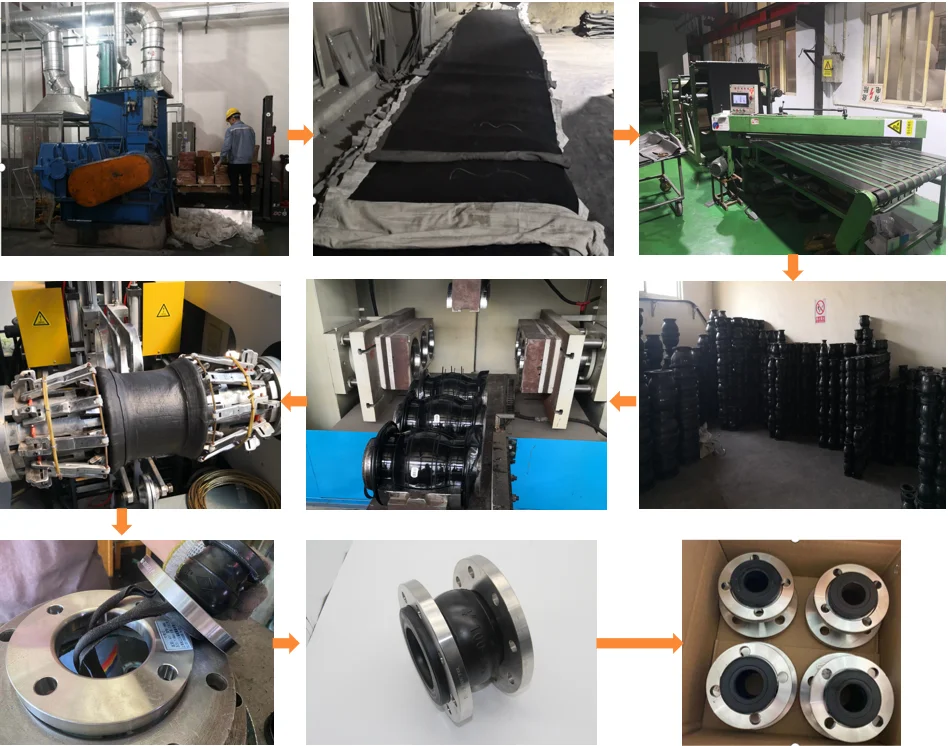

Production line


Production line of Standard Carbon Steel Rubber Expansion Joints Coupling

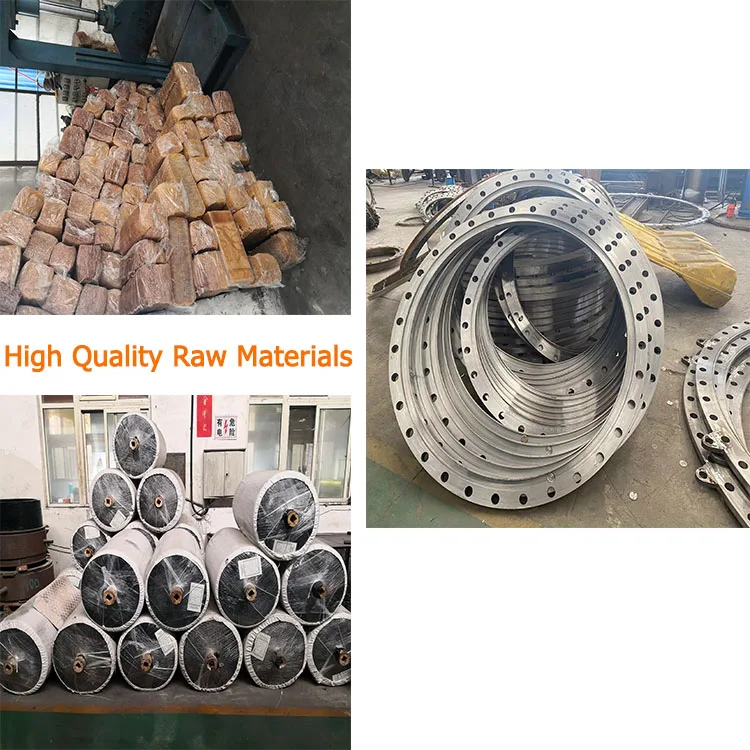

Prepare raw material-Mixer rubber and fabric-cutter-Make sphere-Vulcanization-Install flange-Package




Packing&Shipping




Inner packing of Standard Carbon Steel Rubber Expansion Joints Coupling:
Cartons

Delivery of Standard Carbon Steel Rubber Expansion Joints Coupling:
Within 5-7 days after received deposit

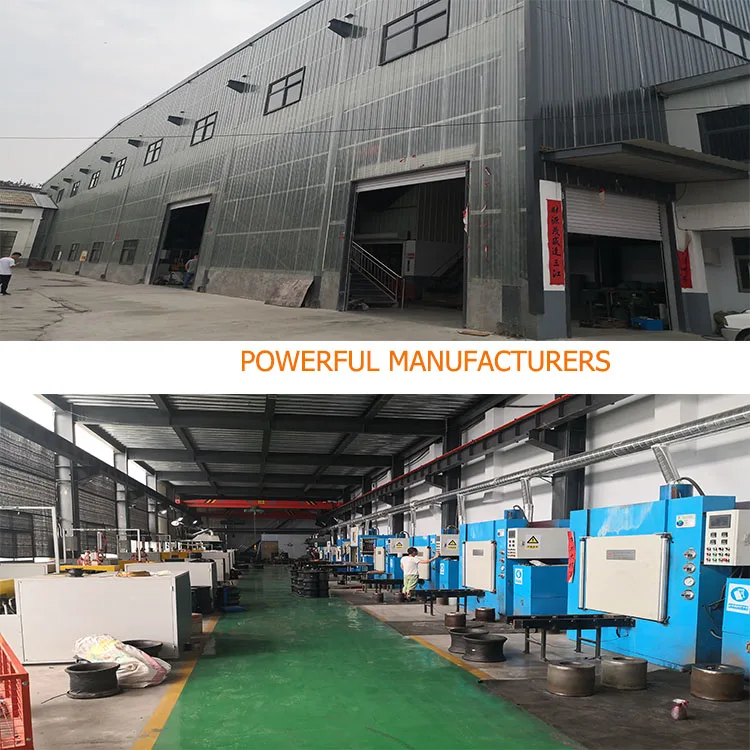

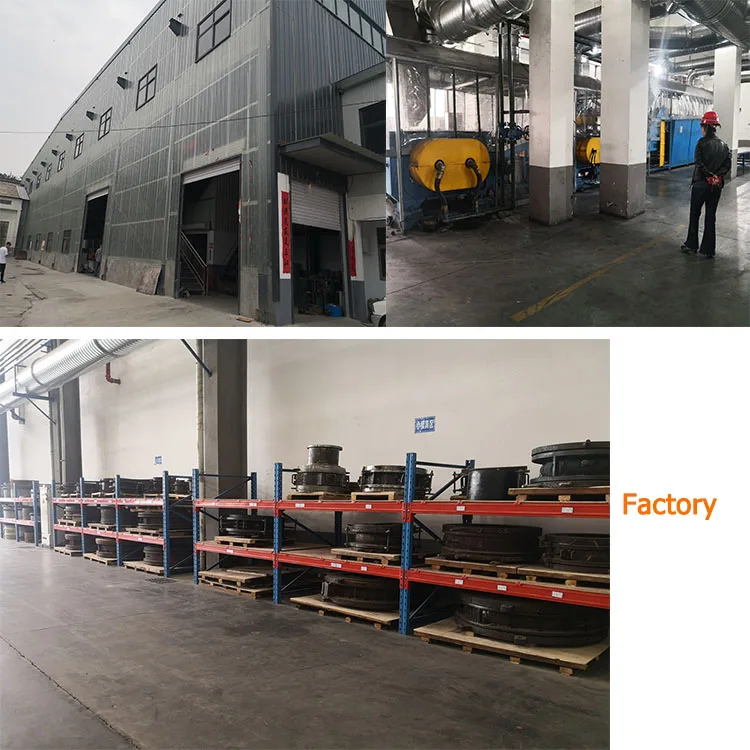

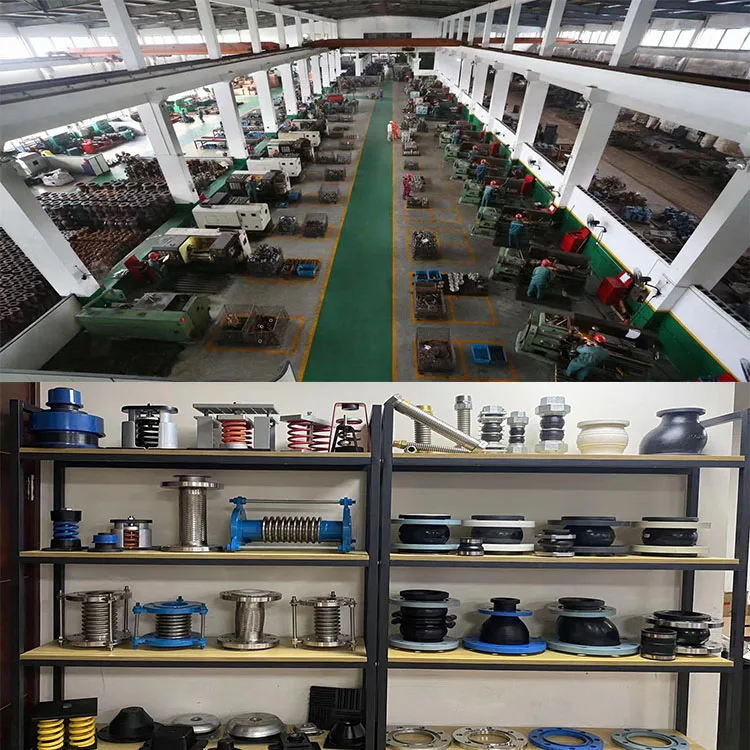

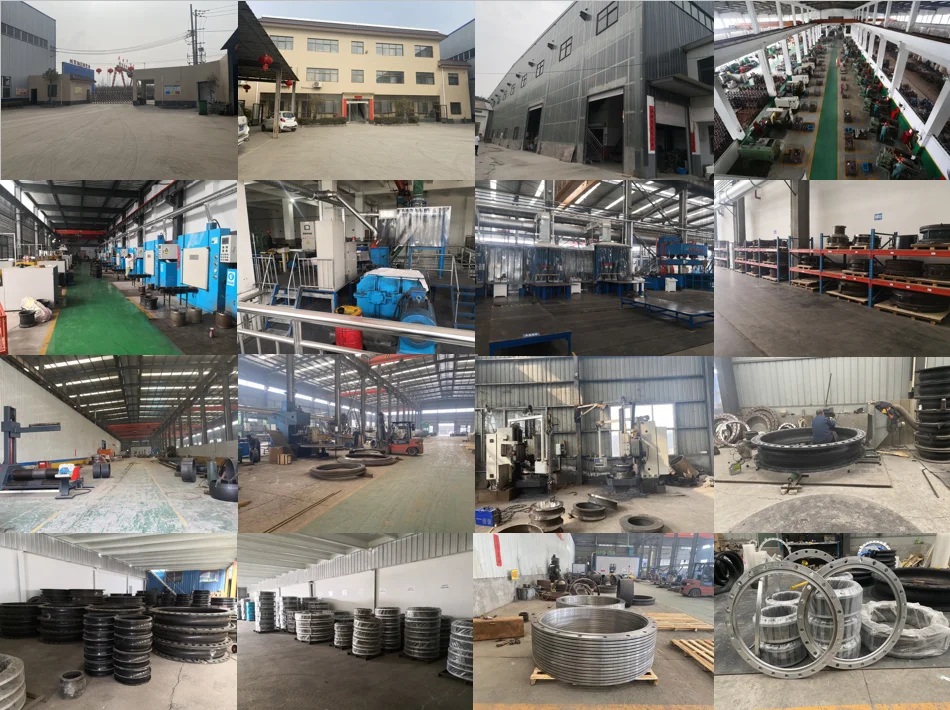

Company Introduction




Shanghai Songjiang Jiufu Shock Absorber Co., Ltd. has always pursued the business tenet of "survive by quality and development by science and technology", the quality policy of "integrity-based, technological innovation, wholeheartedness and perfection" and a warm and thoughtful after-sales service system. "Building a brand-name enterprise and opening up the international market" is our eternal goal to move towards a first-class enterprise with an internationally synchronized management level.






Our service




1. 24 hours all day service, tel/whatsapp/wechat: 86 13761130991

2. Can be customized according to customer needs

3. check again before we send the goods

4. send the goods on time

5. The more you need, the cheaper the unit price is




FAQ


Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement

Q: What are your payment terms?
A: T/T (30% as desposit, the rest 70% will be paid before delivery), L/C at sight

Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.

Q: How can you guarantee the quality or any warranty?
A: Check the specification, material and appearance before delivery, and approve the delivery after qualified
B: Support third-party inspection

Q: Do you accept small quantity order?
A: Of course we do.
