KF94 N95 FFP2 HEAD STRAP FACE MASK MAKING MACHINE

Product Overview

Description



KF94 N95 FFP2 HEAD STRAP FACE MASK MAKING MACHINE



Description :

Servo Motors KF94 Disposable Surgical Face Mask Making Machine is a one-driven-one full-automatic fish mask machine, which can produce fish mouth mask products suitable for KF94 in Korea and DS2 in Japan. The mask size can be customized and the appearance can be customized with this equipment. The whole manufacturing process is highly automated from filming to ear belt welding, with simple and convenient operation, small volume and favorable site planning; This machine is mature in technology, stable and reliable, with extremely low failure rate. Its products have been exported to South Korea, Vietnam, Japan, South Africa,India, Singapore, and other countries, and are well received.

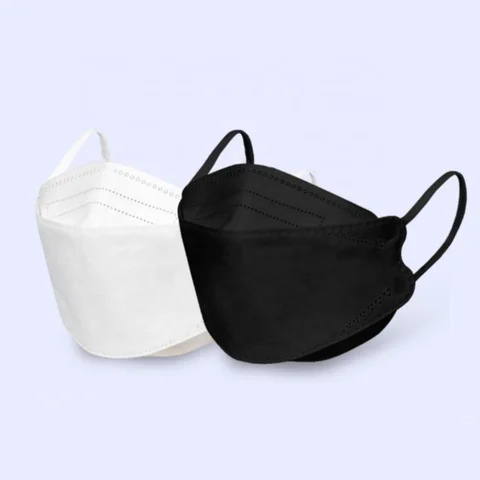

KF94 mask is a standard produced in South Korea. According to the data of official website of Korea Ministry of Food and Drug Safety (MFDS), the filtration rate of masks under this standard for particles with a diameter of 0.4 μm is greater than 94%. In other words, KF94 standard mask can filter out at least 94% of particles with a diameter equal to 0.4 μm

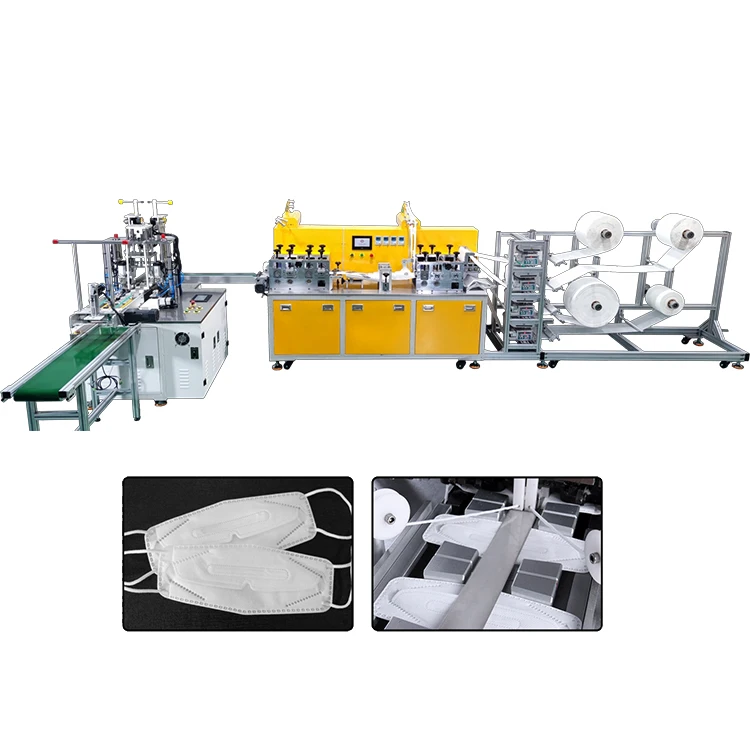

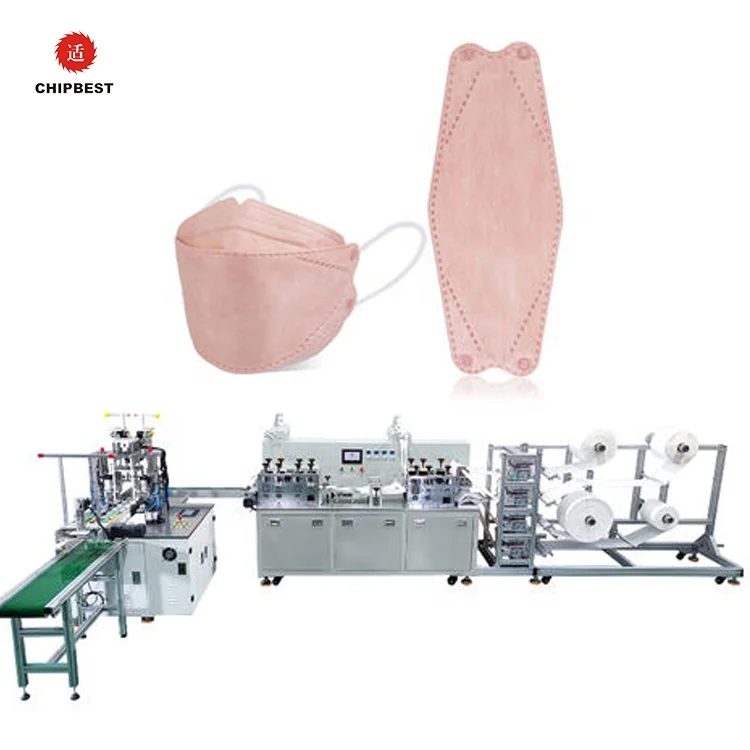

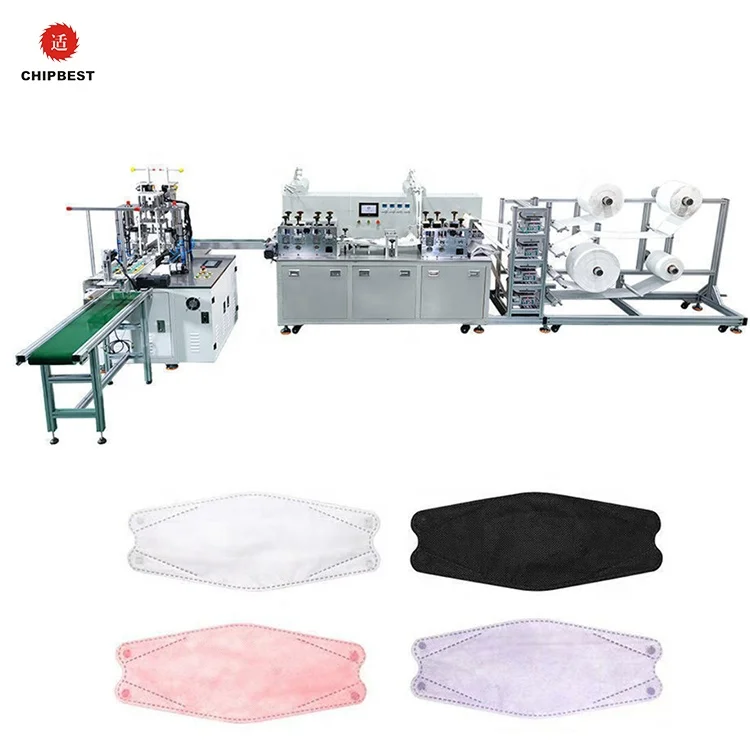

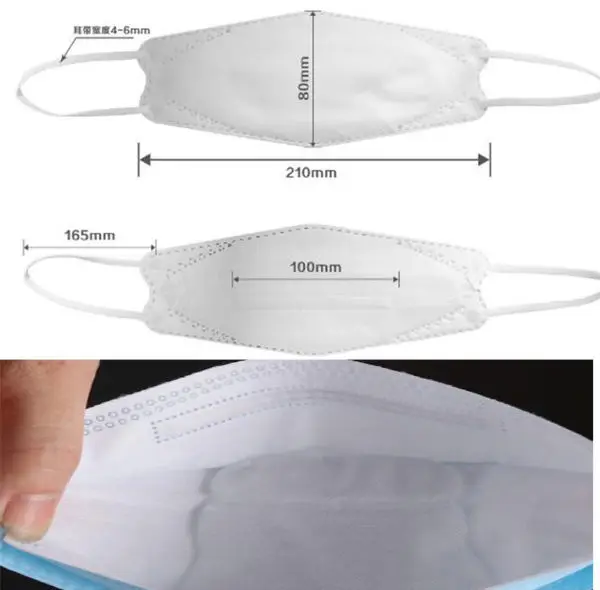

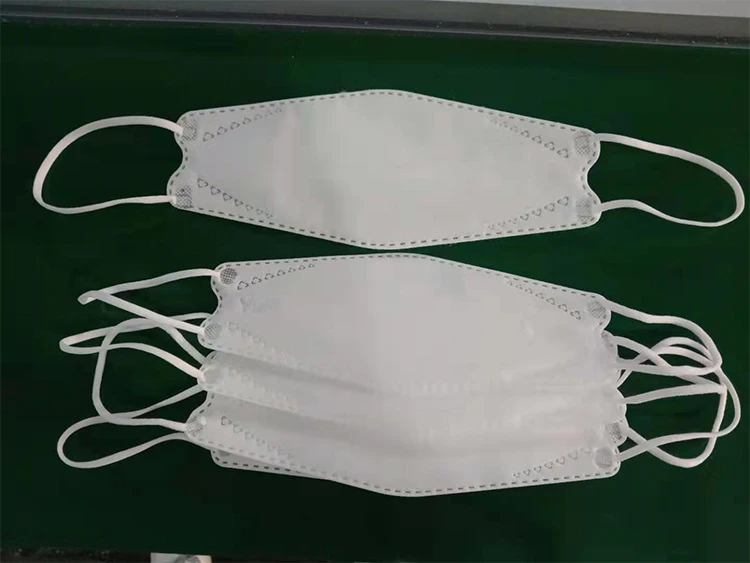

KF94 Machine Refer Photos :

Main Parameters:

Product Name	Servo Motors KF94 Disposable Surgical Face Mask Making Machine
Material width	Recommended width: 240mm, compatible width: 260mm
Capacity range	110-130 pcs/min
Applicable power supply	220V/380V,50HZ/60HZ (can be customized to meet your customer's local electry requirement)
Applicable Air source	0.5-0.7Mpa
Rated power	7500w
Machine size	Rack: 2650 x 780 x 1350mm Body: 2110 x 1072 x 1600mm Tail end: 1600x 1040 x1650mm (ear belt machine)
Machine weight	Weight shall be calculated in sections, and the single section shall not exceed 350KG, total weight about 1100kg

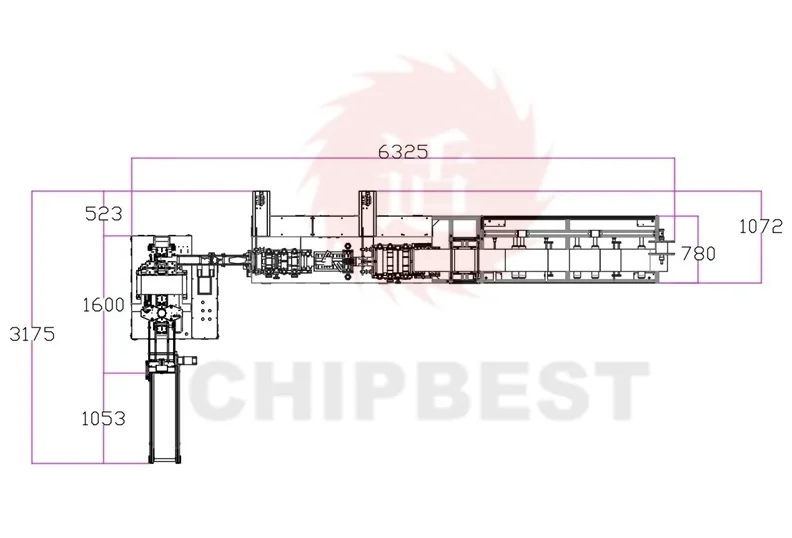

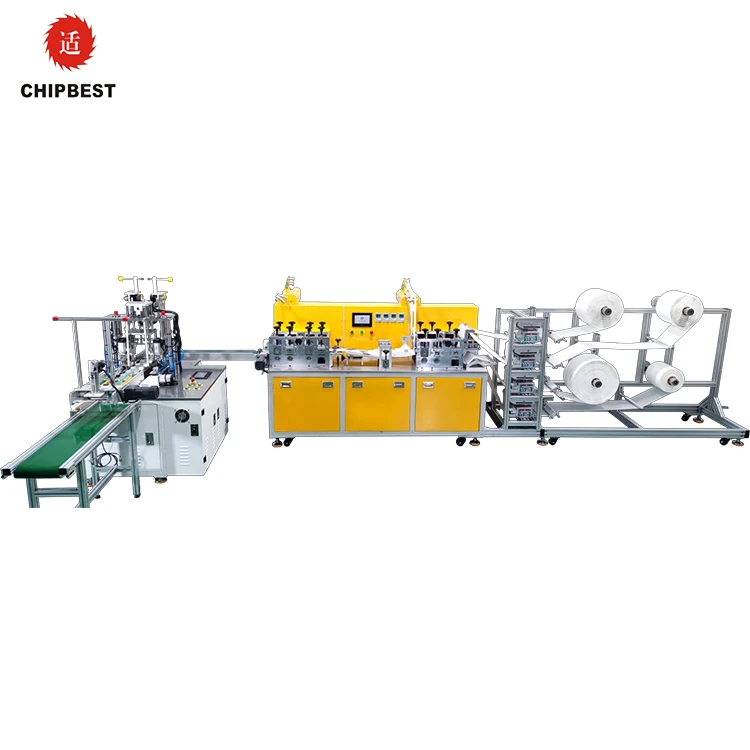

Top View Of KF94 Mask Production Equipment :

Plane Figure:

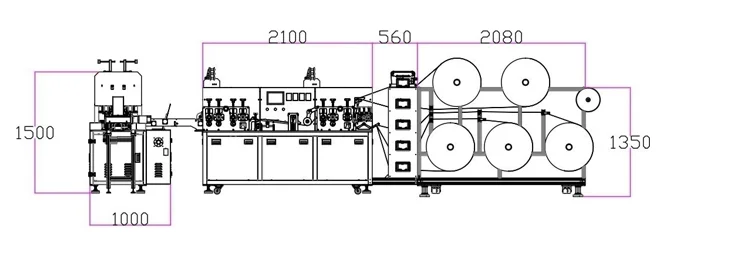

Product Dimension Drawing :

The Servo Motors KF94 Disposable Surgical Face Mask Making Machine consists of three sections, namely the material rack (2650mm x 780mm x 1350mm), the body (2110mm x 1072mm x 1600mm) and the tail end (1610mm x 1040mm x 1650mm). Among them, the combination of the material rack and the body is also called the filming machine, and the tail end is also called the ear belt filming machine.

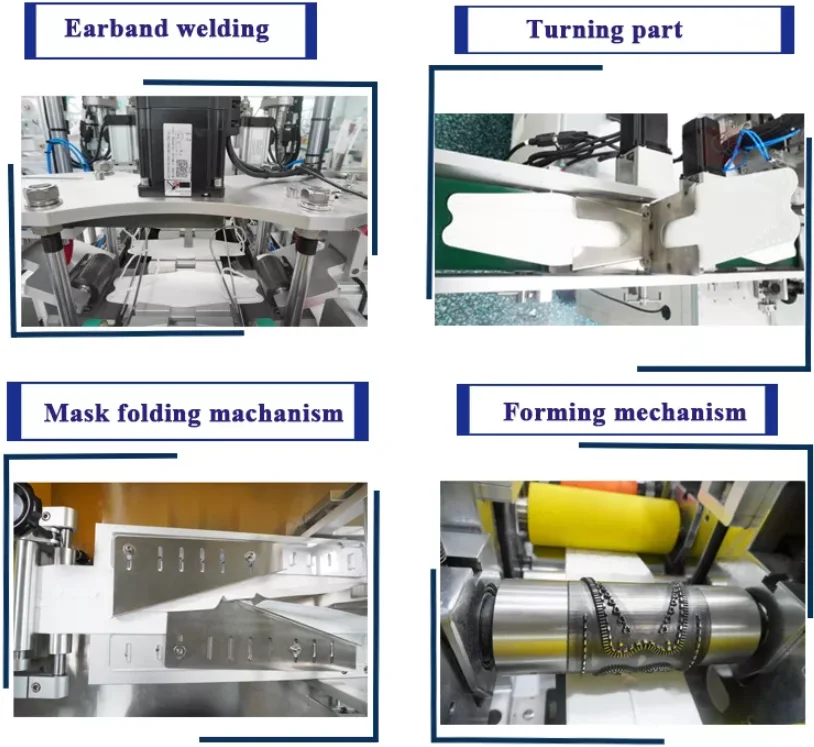

Machine Features :

Servo Motors KF94 Disposable Surgical Face Mask Making Machine consists of a material rack part, a nose line fixing part, a shape welding part, a folding and forming part, a shape cutter part, a turning part, a material dividing part, a ear belt welding part and a collection part. The servo motor and ultrasonic welding technology are adopted to complete the production.

1.  Material rack part: inflatable shaft, magnetic powder brake and controller to ensure moderate material tension without wrinkling;

2.  Nose line fixing part: the cylinder is welded with ultrasonic wave to fix the nose line with required length                 specification on thematerial;

3.  Shape welding part: the mold is matched with ultrasonic wave, and the preliminary grain welding is carried out;

4.  Folding and forming part: cloth folding;

5.  Shape cutter part: custom cutter, rolling and forming, at this time the mask is initially formed;

6.  Turning part: turn over the mask to prepare for the ear beltwelding;

7.  Material dividing part: reasonable distribution and increased production capacity;

8.  Ear belt welding part: use the special rotating disc of the mask machine industry to spot weld the ear belt line  on the semi-finished mask with ultrasound, and the mask is formed at this time;

9.  Collection part: belt out and product collection;



Suggestions For Material Use :

The traditional KF94 mask products have four layers in total, among which the middle two layers are meltblown layers, which play a filtering role. It is suggested that the width of the cloth used for the machine is 240mm, but the conventional 260mm width cloth can also be used. The following is a material suggestion table:

From outside to inside (width 240 or 260)
Layer 1	SS grade 50g nonwoven fabric	Outermost layer
Layer 2	99 grade 25g meltblown cloth
Layer 3	99 grade 25g meltblown cloth
Layer 4	SS grade 25g nonwoven fabric	Innermost layer

Note: This is only the recommended material, and the quality of KF94 face mask products depends largely on the material.

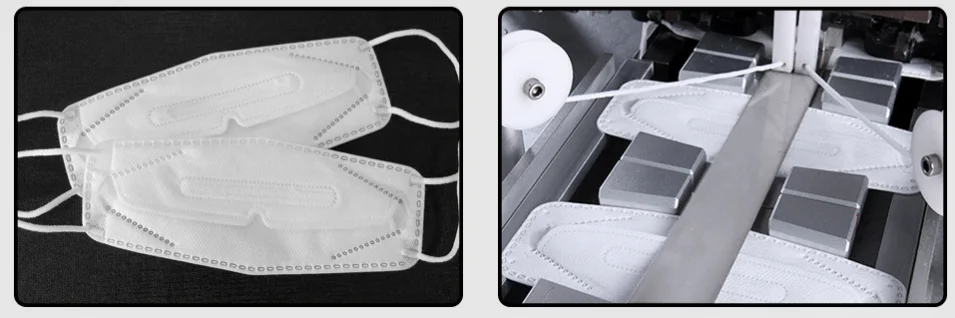

More Pictures Of KF94 Mask Producing Machine :





FAQ
1: How to find an automatic machine suitable for my product?
Please Provide Below details, and we will recommend machine for you:
a. What kind of face mask you want to make .
b.The size of the position space reserved for the workshop;
c.The output you want to achieve.

2: Is an engineer available to serve oversea?
Yes, we got  customers from all around the world.We can send our engineer to your country to install the machine if needed with the extra cost such as air ticket and hotel,ect.
And we will send you a video of the full details machine installation and assist you till the end.

3. Are you a factory or trading company?
We are the factory, and especially in automation equipment manufacture and sell various SMT equipments.
We have engaged in the mask machines and SMT automation production for many years.

4. How can we make sure about the machine quality?
Before delivery, we will send you the pictures and videos for you to check the quality,
and also you can arrange for quality checking by yourself or by your contacts in China.

6. We are afraid you won't send us the machine after we send you the money?
Please note our above business license and certificate.
And if you are worry about it, we can use trade assurance service,
guarantee your money, and guarantee your machine's on-time delivery and machine quality.
