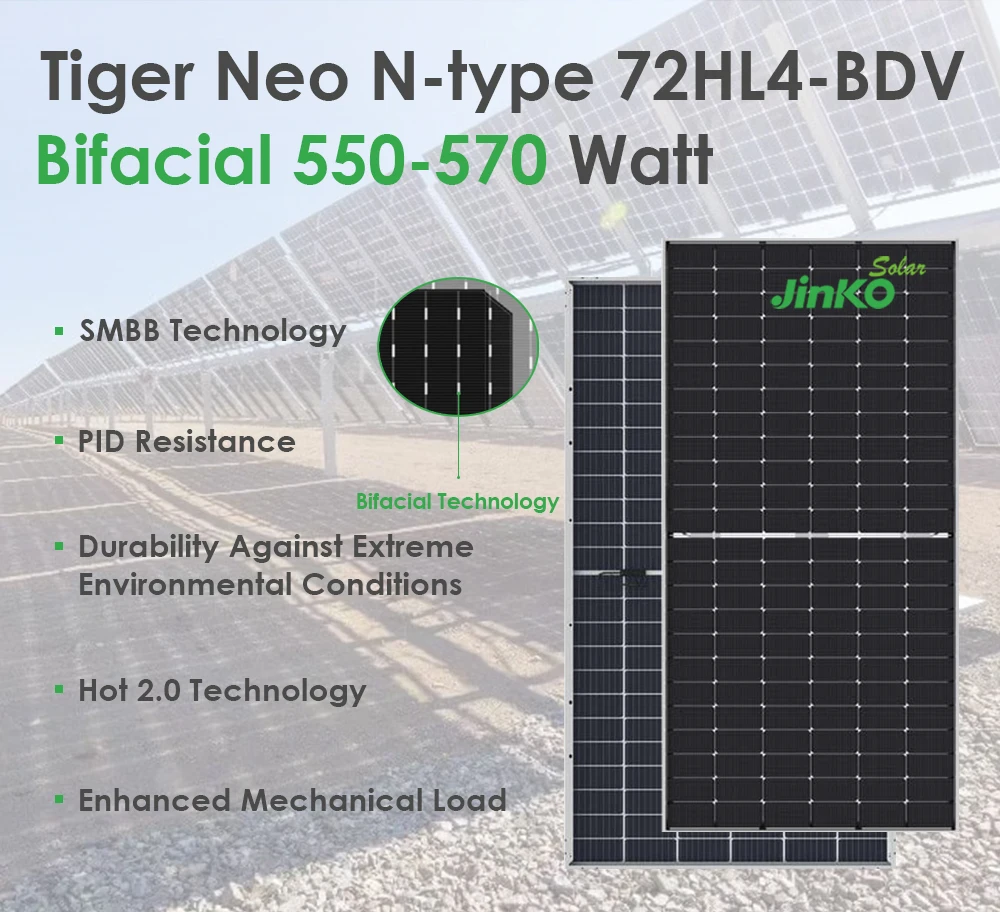

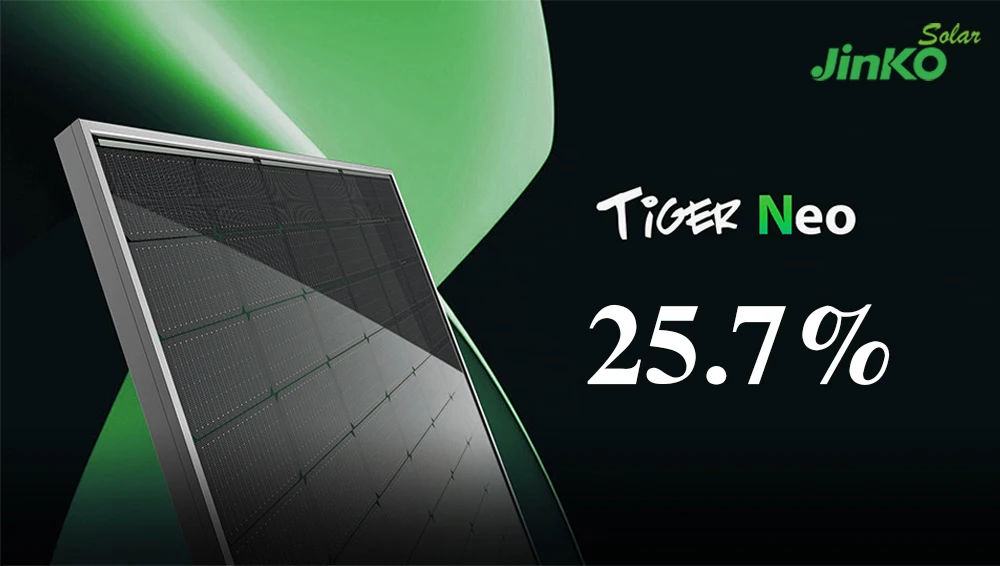

Jinko high efficiency 550w 555w 560w 565w 570w solar panel tiger neo bificial Jinko solar panel
- Category: >>>
- Supplier: Nonivia Technology Co. Ltd.
Share on (1600592536975):
Product Overview
Description
Product Description
Specification
Menchanical Characteritics | ||||||||
Cell Type | N type Mono-crystalline | |||||||
No.of Cell | 144 (6×24) | |||||||
Dimensions | 2278×1134×35mm (89.69×44.65×1.38 inch) | |||||||
Weight | 28 kg (61.73 lbs) | |||||||
Front Glass | 3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass | |||||||
Frame | Anodized Aluminium Alloy | |||||||
Junction Box | IP68 Rated | |||||||
Output Cables | TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length | |||||||
SPECIFICATIONS | ||||||||||
Module Type | JKM555N-72HL4 JKM555N-72HL4-V | JKM560N-72HL4 JKM560N-72HL4-V | JKM565N-72HL4 JKM565N-72HL4-V | JKM570N-72HL4 JKM570N-72HL4-V | JKM575N-72HL4 JKM575N-72HL4-V | |||||
STC NOCT | STC NOCT | STC NOCT | STC NOCT | STC NOCT | ||||||
Maximum Power (Pmax) | 555Wp 417Wp | 560Wp 421Wp | 565Wp 425Wp | 570Wp 429Wp | 575Wp 432Wp | |||||
Maximum Power Voltage (Vmp) | 41.64V 39.12V | 41.77V 39.25V | 41.92V 39.38V | 42.07V 39.51V | 42.22V 39.60V | |||||
Maximum Power Current (Imp) | 13.33A 10.67A | 13.41A 10.73A | 13.48A 10.79A | 13.55A 10.85A | 13.62A 10.92A | |||||
Open-circuit Voltage (Voc) | 50.47V 47.82V | 50.47V 47.94V | 50.60V 48.06V | 50.74V 48.20V | 50.88V 48.33V | |||||
Short-circuit Current (Isc) | 14.07A 11.36A | 14.15A 11.42A | 14.23A 11.49A | 14.31A 11.55A | 14.39A 11.62A | |||||
Module Efficiency STC (%) | 21.48% | 21.68% | 21.87% | 22.07% | 22.26% | |||||
Operating Temperature(℃) | -40℃~+85℃ | |||||||||
Maximum system voltage | 1000/1500VDC (IEC) | |||||||||
Maximum series fuse rating | 25A | |||||||||
Power tolerance | 0~+3% | |||||||||
Temperature coefficients of Pmax | -0.30%/℃ | |||||||||
Temperature coefficients of Voc | -0.25%/℃ | |||||||||
Temperature coefficients of Isc | 0.046%/℃ | |||||||||
Nominal operating cell temperature (NOCT) | 45±2℃ | |||||||||

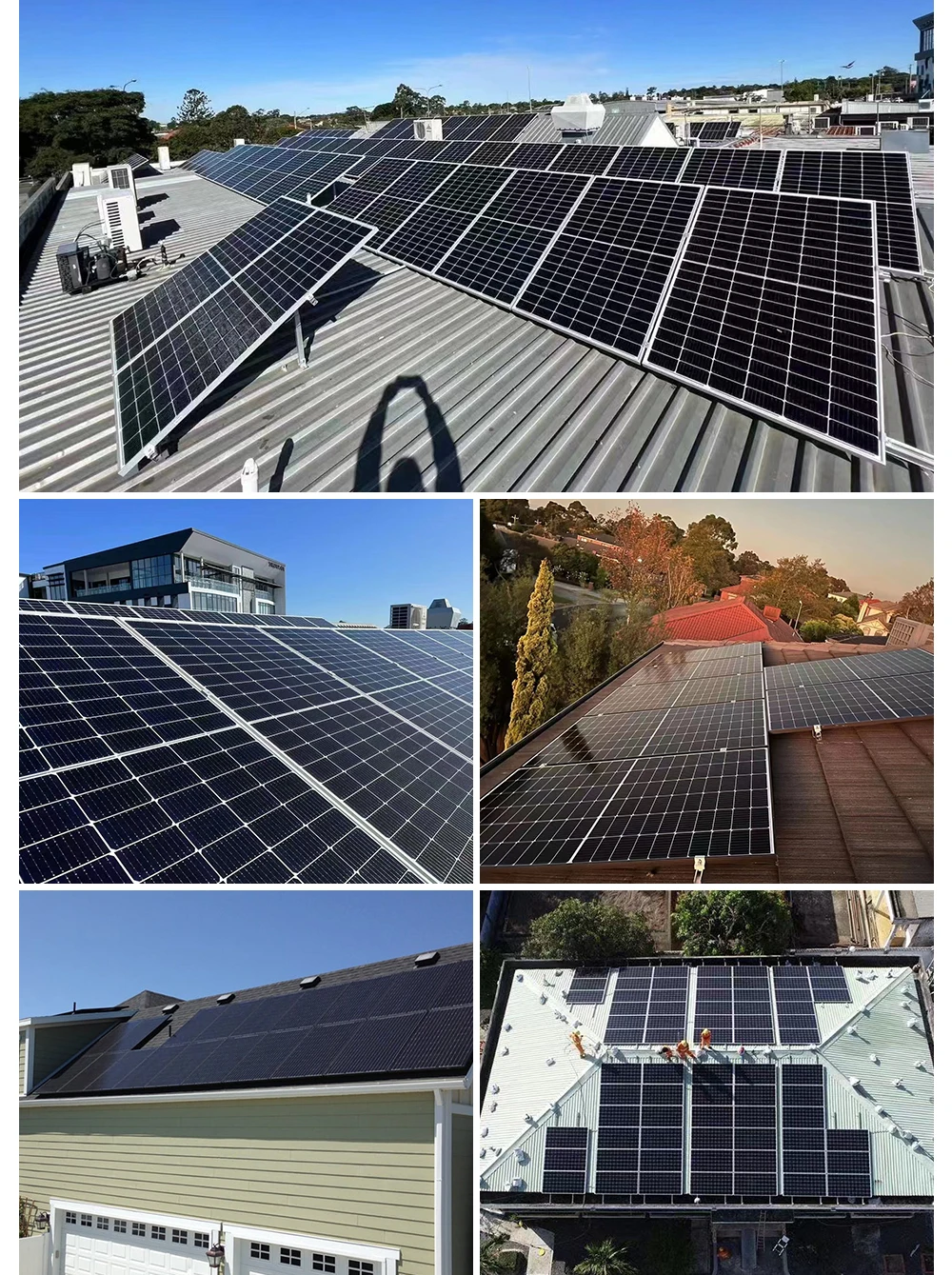

Project Case

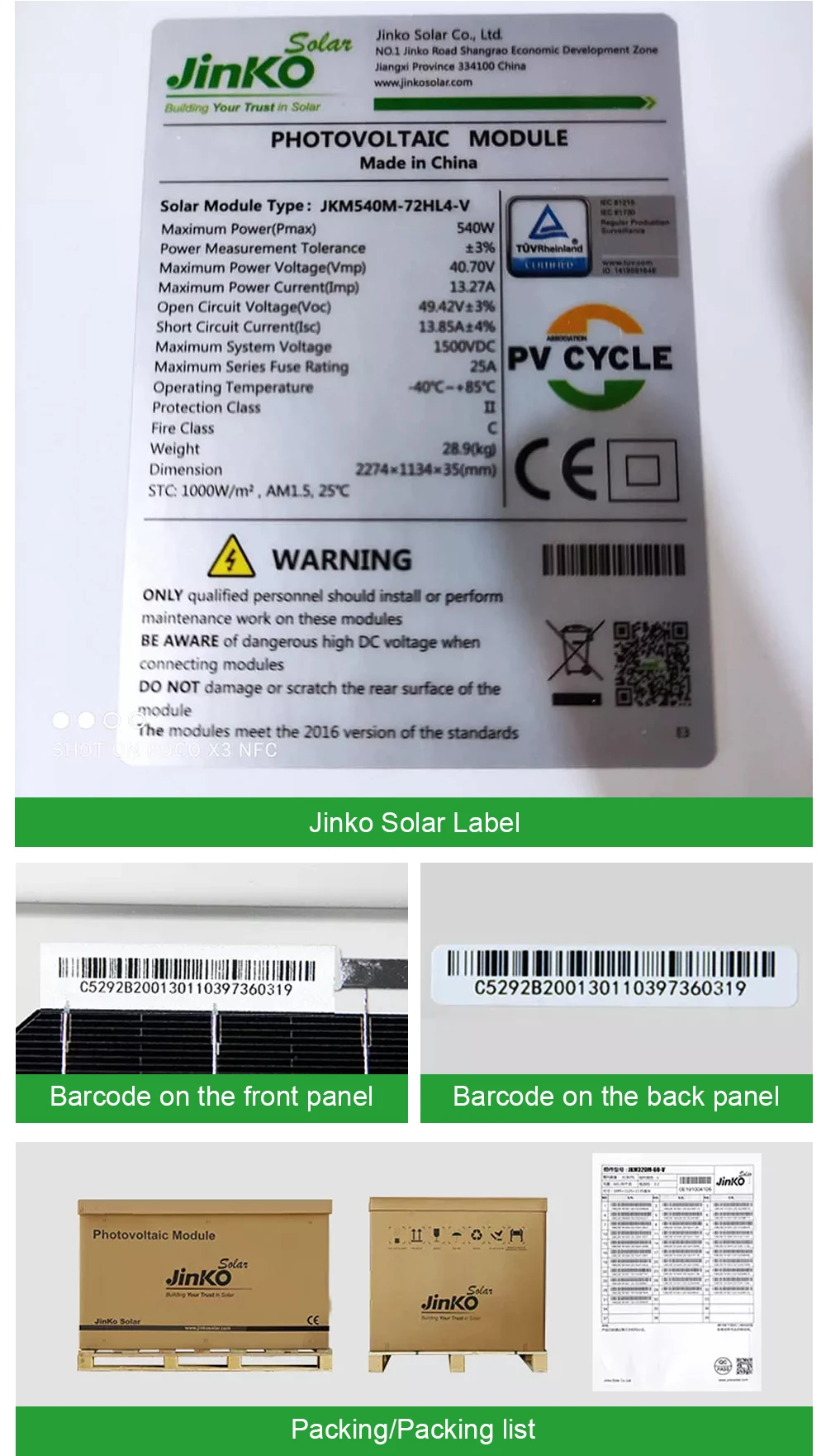

Packing Detials

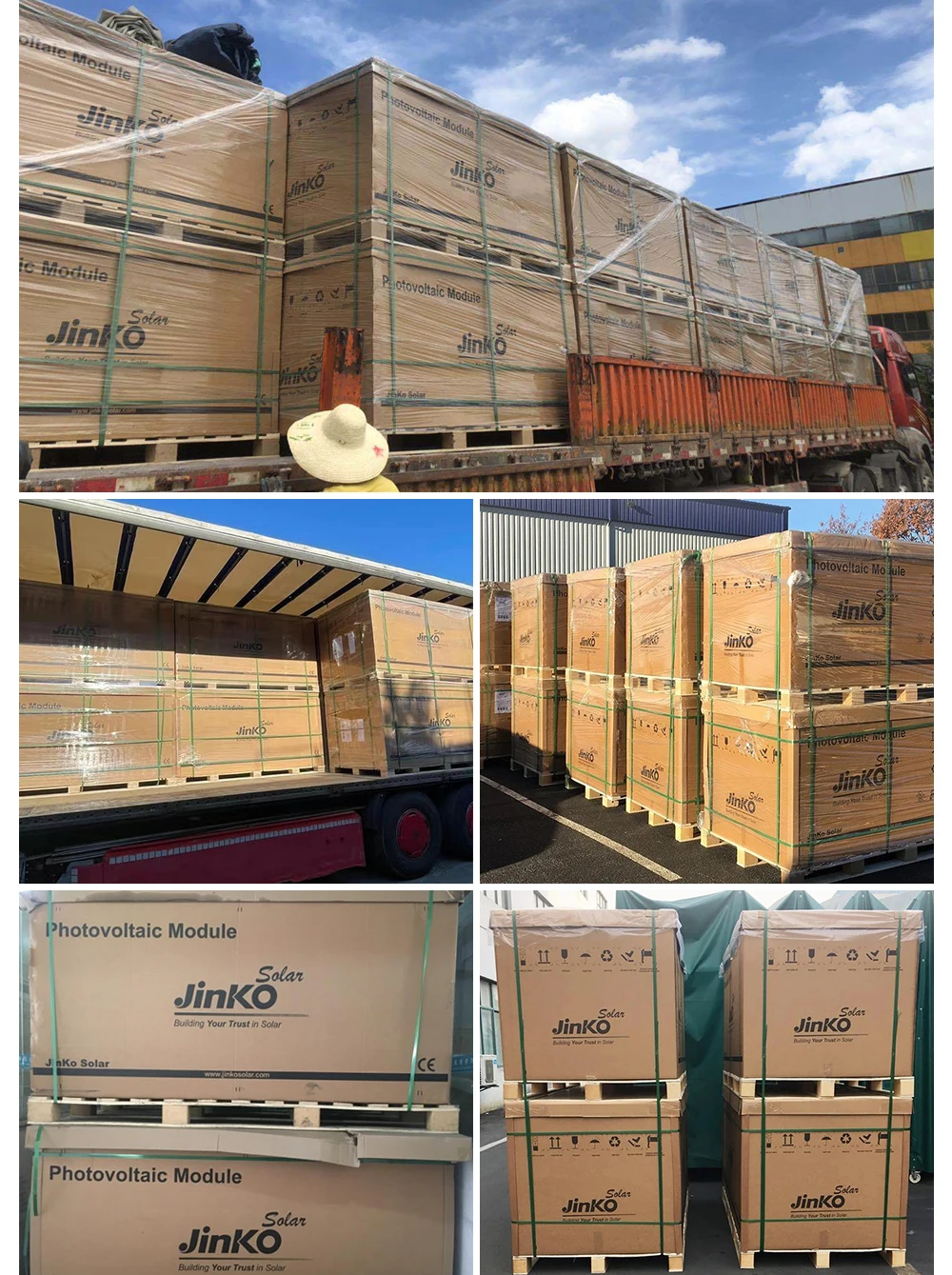

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
