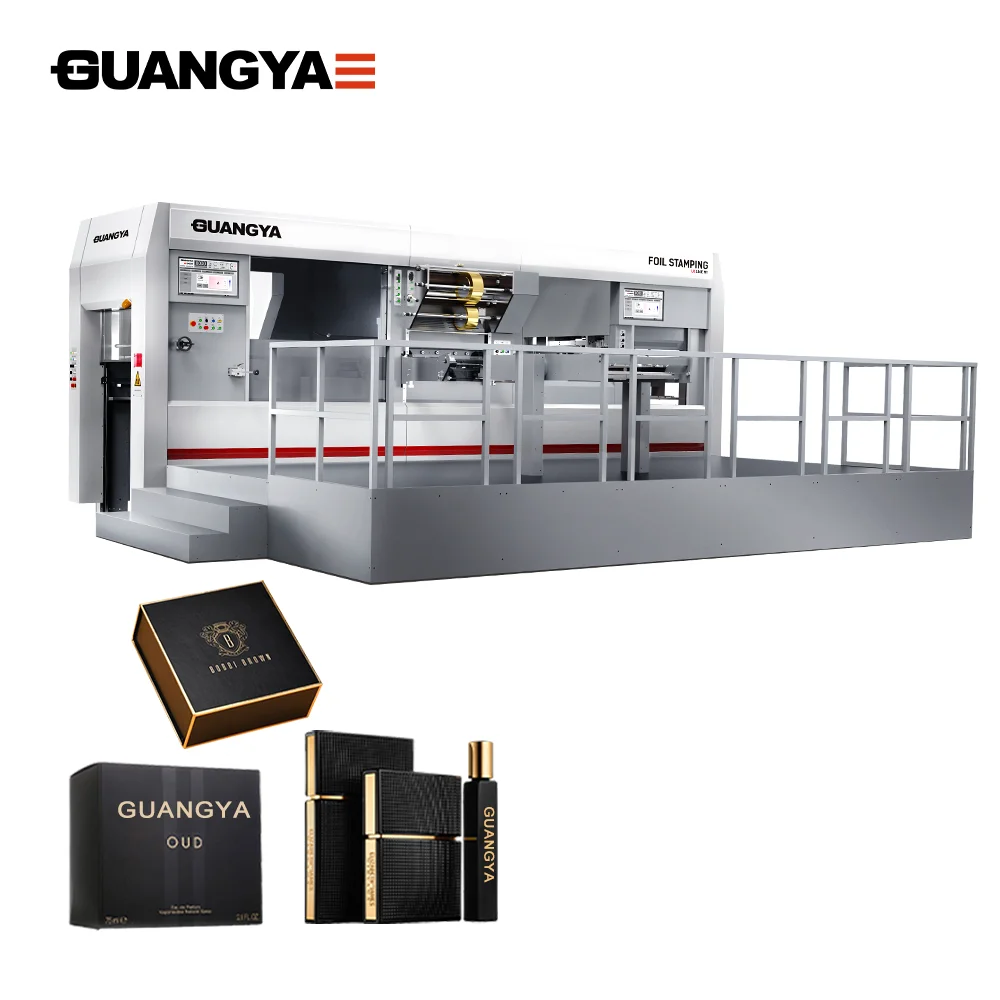

LK106EMT automatic corrugated box hot foil stamping and die cutting machine
- Category: Paper Processing Machinery >>>
- Supplier: Wenzhou,Guangya,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
PRODUCT FEATURES
1. Automatic pressure adjustment system by servo motor, higher precision and more convenient
2. Automatic decreasing pressure if no paper, extend mould service life
3. Non-stop sampling function, improve work efficiency
4. Remote information monitoring function, automatic foiling optimization function
5. Stamping data storage function
2. Automatic decreasing pressure if no paper, extend mould service life
3. Non-stop sampling function, improve work efficiency
4. Remote information monitoring function, automatic foiling optimization function
5. Stamping data storage function
TECHNICAL PARAMETER
Model | LK106EMT |
Max. sheet size(mm) | 1060×760mm |
Min. sheet size(mm) | 400×340mm |
Max. die cutting size(mm) | 1060×746mm |
Max. stamping size(mm) | 1060×746mm |
Gripper Margin(mm) | 8-17mm |
Paper range | 80-2000g/㎡(cardboard) 0.1-2mm(cardboard) ≤4mm(corrugated) |
Max. working pressure | 350T |
Max. working speed(s/h) | 6500s/h |
Max. stamping speed(s/h) | 8000s/h |
Foil feeding shaft | 5 (3 in longitudinal, 2 in transversal) |
Zones individually heated | 12 (max to 200°C) |
Max. delivery pile height | 1300mm |
Max. feeding pile height | 1400mm |
Main motor power(KW) | 15kw |
Power rating(KW) | 65kw |
Machine weight(kg) | 26000kg |
Overall machine dimensions(mm) | 7400*5820*2800mm |
Air requirements | 0.6Mpa, >0.37m³/min |
MAIN FEATURES
Non-stop Feeder
• Imported Non-stop High-Speed Feeder
• Feeder anti-collision protection
• Feeder electric adjustment
• “SMART” - One button start function, feeder is automatically in position
• Synchronous belt drive to ensure the accuracy of paper feeding
• Left and right movement function of pile tray
• Adjustable paper feeding side blowers
• Pre-stacking paper function, non-stop paper feeding function
• Feeder anti-collision protection
• Feeder electric adjustment
• “SMART” - One button start function, feeder is automatically in position
• Synchronous belt drive to ensure the accuracy of paper feeding
• Left and right movement function of pile tray
• Adjustable paper feeding side blowers
• Pre-stacking paper function, non-stop paper feeding function

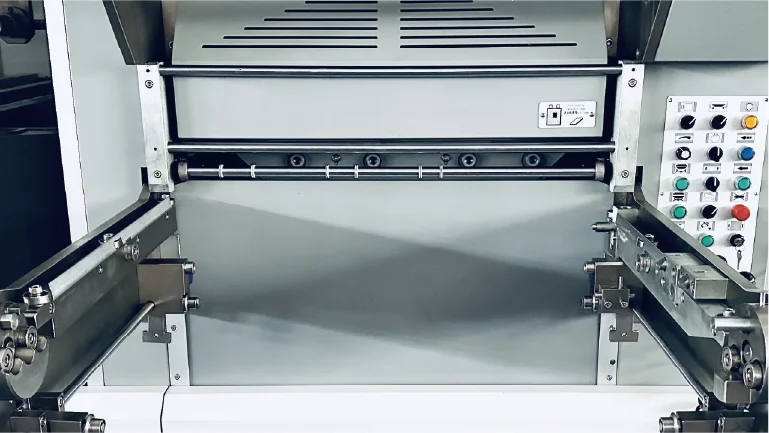

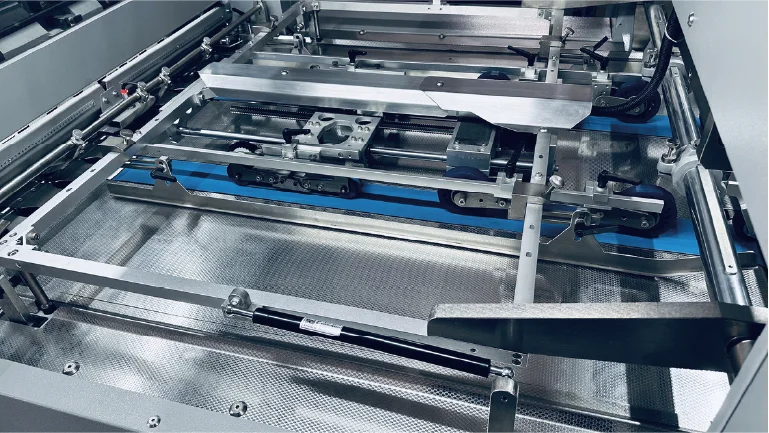

Feed Table
• Imported belts
• The belt is automatically tightened, no need to adjust
• Adaptive pressure wheel
• Electrical front lays
• Push-pull integrated side guides
• Imported Antistatic pattern stainless steel
• Ultrasonic double sheet detector
• “SMART” - One button start function, feeding wheel is automatically in position
• The belt is automatically tightened, no need to adjust
• Adaptive pressure wheel
• Electrical front lays
• Push-pull integrated side guides
• Imported Antistatic pattern stainless steel
• Ultrasonic double sheet detector
• “SMART” - One button start function, feeding wheel is automatically in position
Host station
• Electrically pressure adjustment function
• Automatic pressure keeping and pressure reduction function
• Imported intermittent mechanism and synchronous belt drive to ensure running accuracy
• Presetting Table
Frame and Bottom Plate
• Two-way one button locking device for chase and bottom plate
• Positioning locking function of frame and host to ensure operation accuracy
• Anti-drop protection function for chasing and supporting plate
• Integrated bottom plate, change job fast
• Steel plate imported from Germany
• Quick-lock cutting board frame with center positioning
• Cutting plate fine adjustment
Host Structure
• Host with exclusive and innovative design and is made of specially treated materials
• Extremely high strength, toughness, and service span
• Can withstand greater working pressure and working speed
• Automatic pressure keeping and pressure reduction function
• Imported intermittent mechanism and synchronous belt drive to ensure running accuracy
• Presetting Table
Frame and Bottom Plate
• Two-way one button locking device for chase and bottom plate
• Positioning locking function of frame and host to ensure operation accuracy
• Anti-drop protection function for chasing and supporting plate
• Integrated bottom plate, change job fast
• Steel plate imported from Germany
• Quick-lock cutting board frame with center positioning
• Cutting plate fine adjustment
Host Structure
• Host with exclusive and innovative design and is made of specially treated materials
• Extremely high strength, toughness, and service span
• Can withstand greater working pressure and working speed

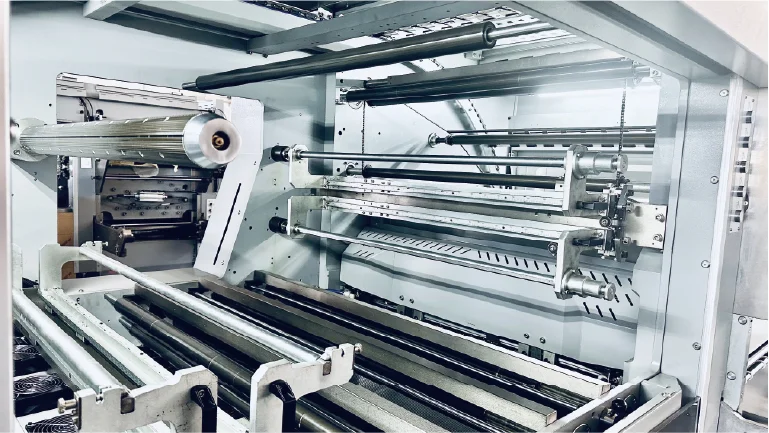

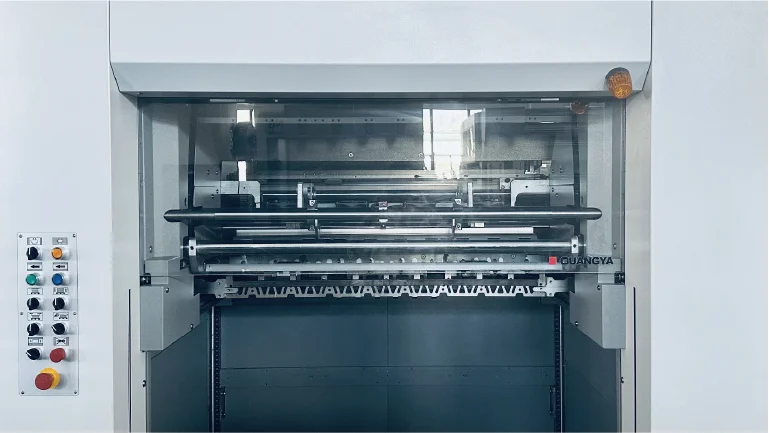

Foil Stamping Station
• Exclusive innovative foil stamping structure
• With 3 longitudinal and 2 transverse foil shafts
• 12 independent temperature zones to avoid interstitial temperature differences
• Independent temperature control, energy efficient
• Preheating function in temperature zone, save time
• Hot stamping memory function, storing operation recipes, reducing make ready time
• Extremely large operating space, reduced labor intensity
• Longitudinal foil group has an electrical foil feeding system, greatly saving time, and improving work efficiency
• Air shaft unit, multi-purpose, suited for large areas of aluminum foil
• Holographic foil stamping (optional)
• With 3 longitudinal and 2 transverse foil shafts
• 12 independent temperature zones to avoid interstitial temperature differences
• Independent temperature control, energy efficient
• Preheating function in temperature zone, save time
• Hot stamping memory function, storing operation recipes, reducing make ready time
• Extremely large operating space, reduced labor intensity
• Longitudinal foil group has an electrical foil feeding system, greatly saving time, and improving work efficiency
• Air shaft unit, multi-purpose, suited for large areas of aluminum foil
• Holographic foil stamping (optional)

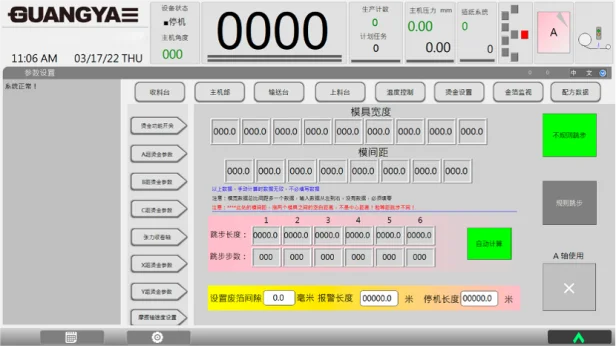

Foil Stepping Function
• Independently developed, exclusive system
• Automatic foil stepping calculation function, foil stepping optimization function
• Up to 6 sets of irregular foil stepping with different spacing can be calculated automatically
Foil Break Detection System
• On-screen operation, easy to use
• Sensitive detection, reducing waste of aluminum foil and paper
• Independent switch
• Automatic foil stepping calculation function, foil stepping optimization function
• Up to 6 sets of irregular foil stepping with different spacing can be calculated automatically
Foil Break Detection System
• On-screen operation, easy to use
• Sensitive detection, reducing waste of aluminum foil and paper
• Independent switch
Delivery
• Automatic non-stop auxiliary delivery function
• Non-stop sampling function
• Servo-controlled braking brush with motorized adjustment function (length and angle)
• Rear jogger fine adjustment device
• Tape inserter
• Safety light curtain
• “SMART” - One button start function, delivery is automatically in the position
• Paper delivery fan system. It can be adjusted individually; infinitely variable speed.
• Automatic intermittent lubrication system
• Non-stop sampling function
• Servo-controlled braking brush with motorized adjustment function (length and angle)
• Rear jogger fine adjustment device
• Tape inserter
• Safety light curtain
• “SMART” - One button start function, delivery is automatically in the position
• Paper delivery fan system. It can be adjusted individually; infinitely variable speed.
• Automatic intermittent lubrication system
Control System

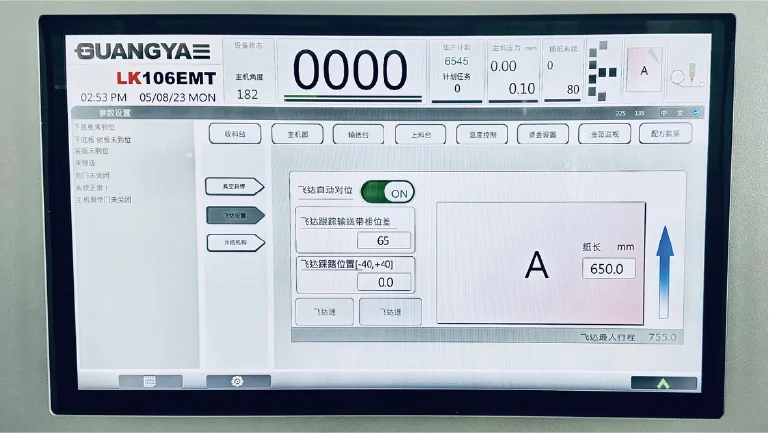

Operating System
• 24-inch industrial control large-size true color touch capacitive screen
• Easy operation and visualized functions
• Automatic screen-off function, environmental protection, and energy saving
• Production operation monitoring and data statistics function.
• Imported motion control system, Ethercat real-time industrial bus structure
Electrical System
• Modular design of the electrical system
• All imported electrical appliances, quality assurance
• Remote module, fast and convenient maintenance
• Large-capacity air circulation filter system for electrical cabinets
• Air conditioner for electric cabinet (optional)
• 24-inch industrial control large-size true color touch capacitive screen
• Easy operation and visualized functions
• Automatic screen-off function, environmental protection, and energy saving
• Production operation monitoring and data statistics function.
• Imported motion control system, Ethercat real-time industrial bus structure
Electrical System
• Modular design of the electrical system
• All imported electrical appliances, quality assurance
• Remote module, fast and convenient maintenance
• Large-capacity air circulation filter system for electrical cabinets
• Air conditioner for electric cabinet (optional)
*FOR MORE DETAILS, PLEASE ASK YOUR SALES CONSULTANT
SAMPLES

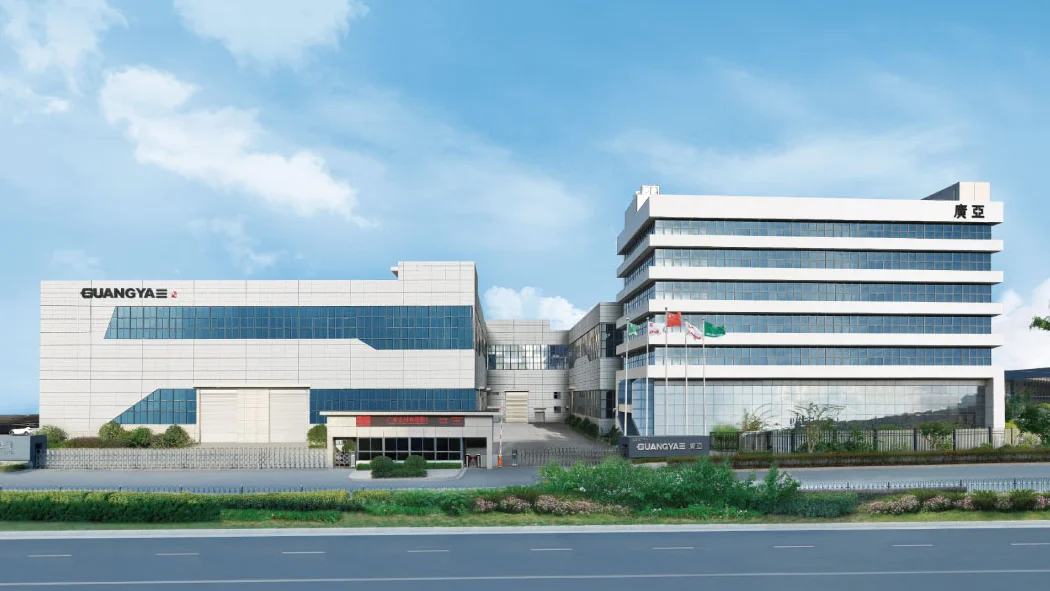

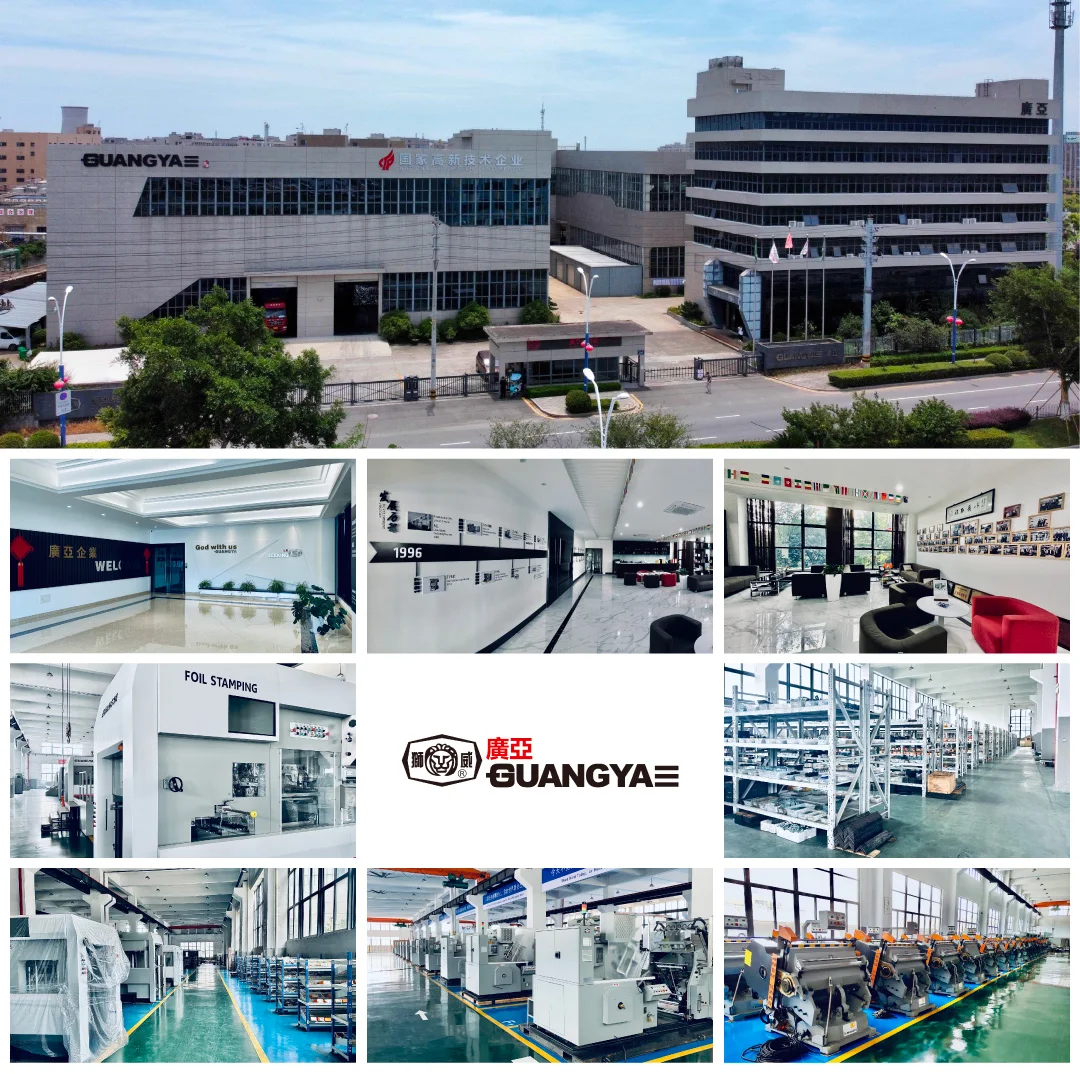

ABOUT US
VR
Pre-Sales Service
* Inquiry and consulting the support
* Testing support in our factory
* Inspect machine in our Factory
* Testing support in our factory
* Inspect machine in our Factory
After-Sales Service
* Training how to install the machine, training how to
use the machine
* Engineers available to service machinery overseas
use the machine
* Engineers available to service machinery overseas

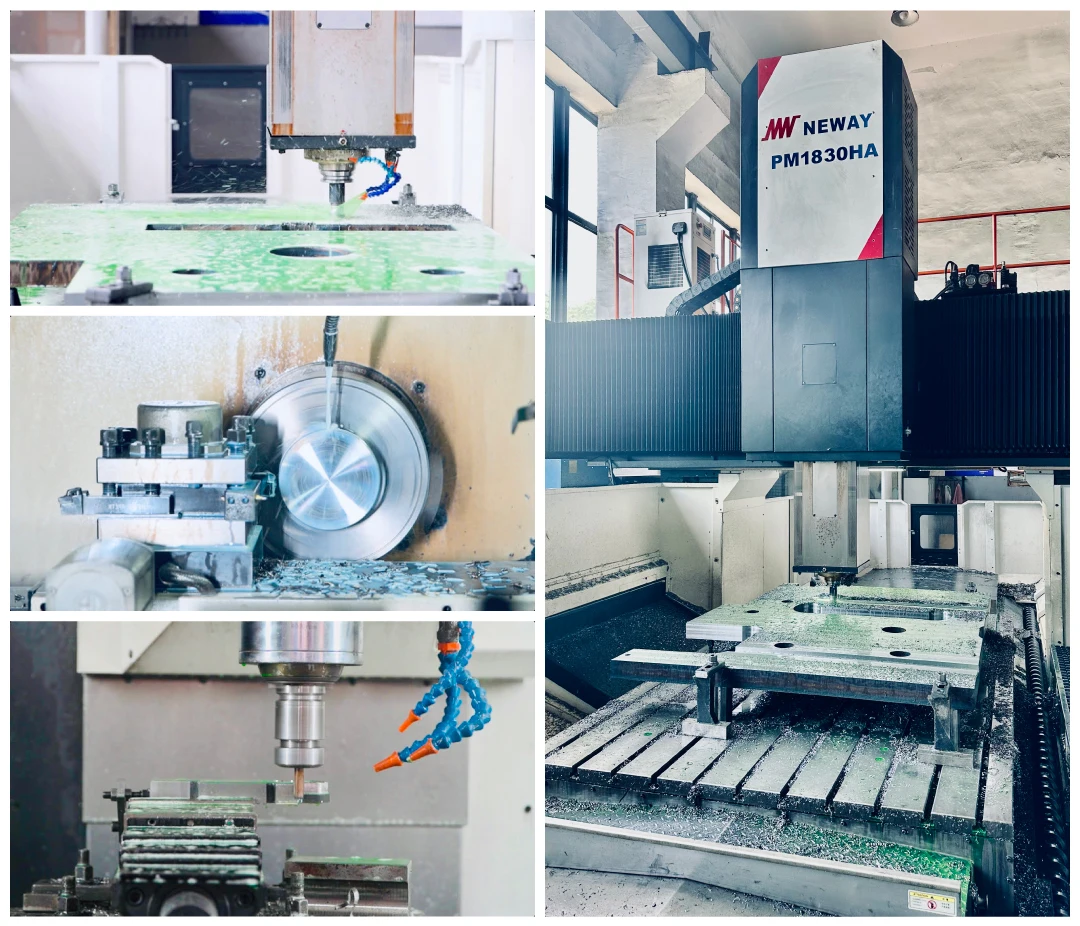

PROCESSING EQUIPMENT

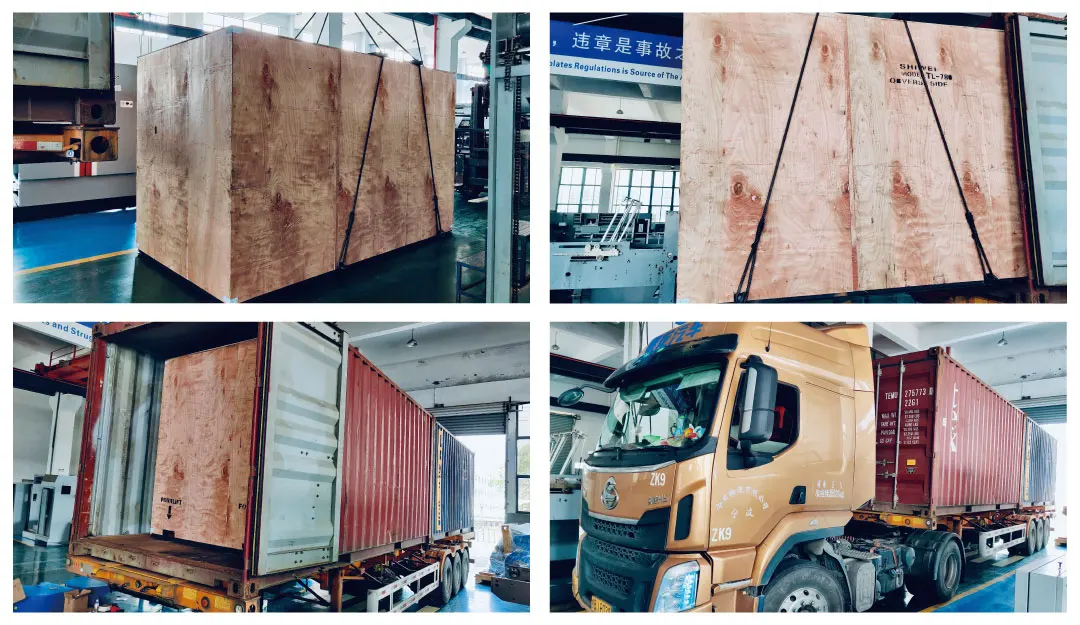

DELIVERY

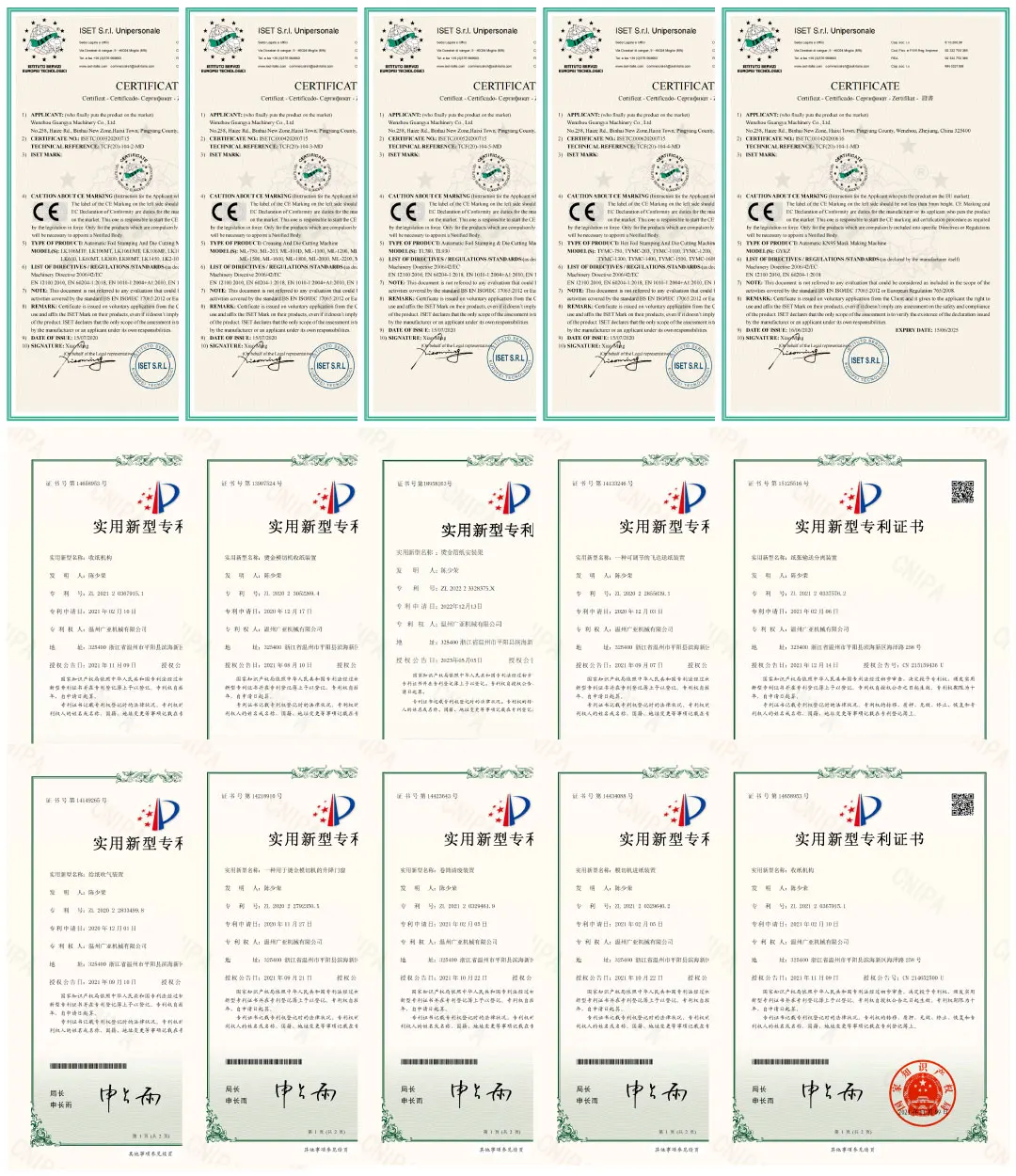

CERTIFICATIONS

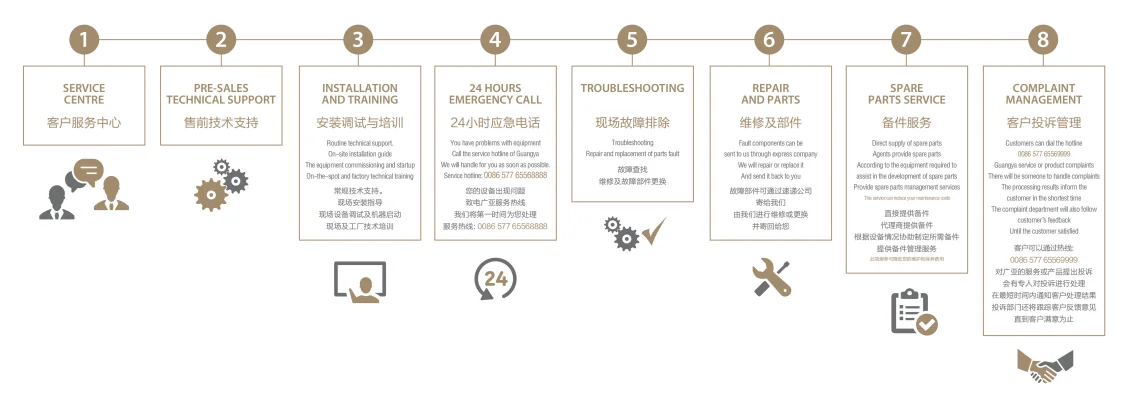

SALES SERVICE
