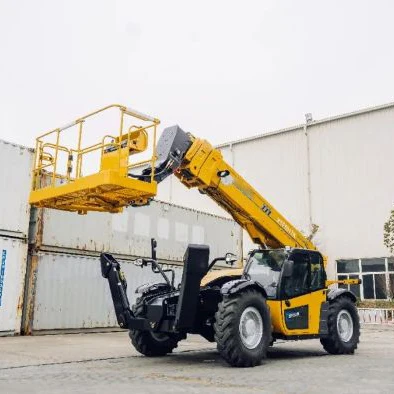

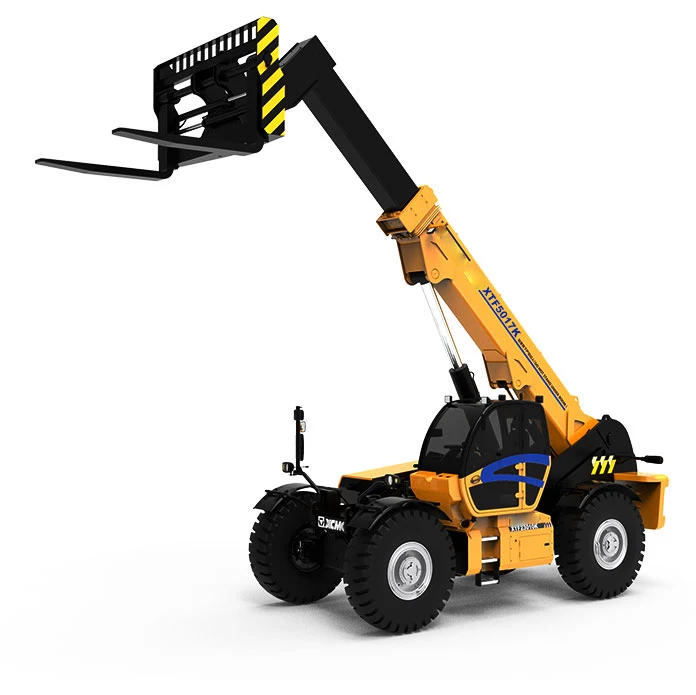

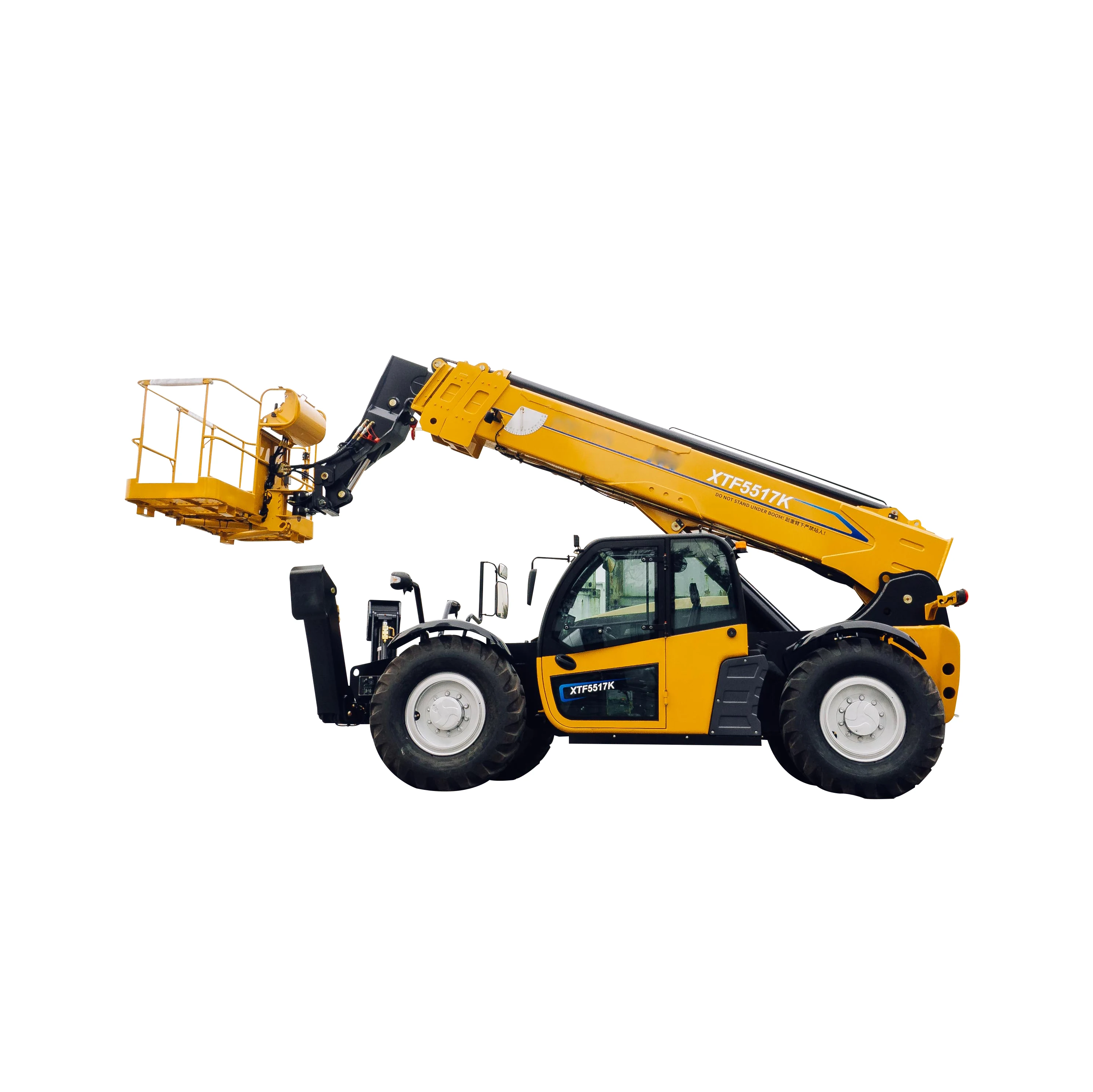

17m Telescopic Forklift 5ton Telehandler With Various Attachments
- Category: >>>
- Supplier: Shandong Panda Construction Machinery Co. Ltd.
Share on (1600592636728):
Product Overview
Description
Product information
The telehandler adopts a new visual recognition appearance, panoramic cab, and optimized ergonomic design to achieve fashion, beauty and comfortable operation. The product adopts electronically controlled shifting, various steering methods, and hydraulic frame leveling technology, and can be installed with various accessories to achieve strong adaptability to working conditions. SAR anti-rollover protection and safety interlock control technology ensure safe operation.
Product advantages

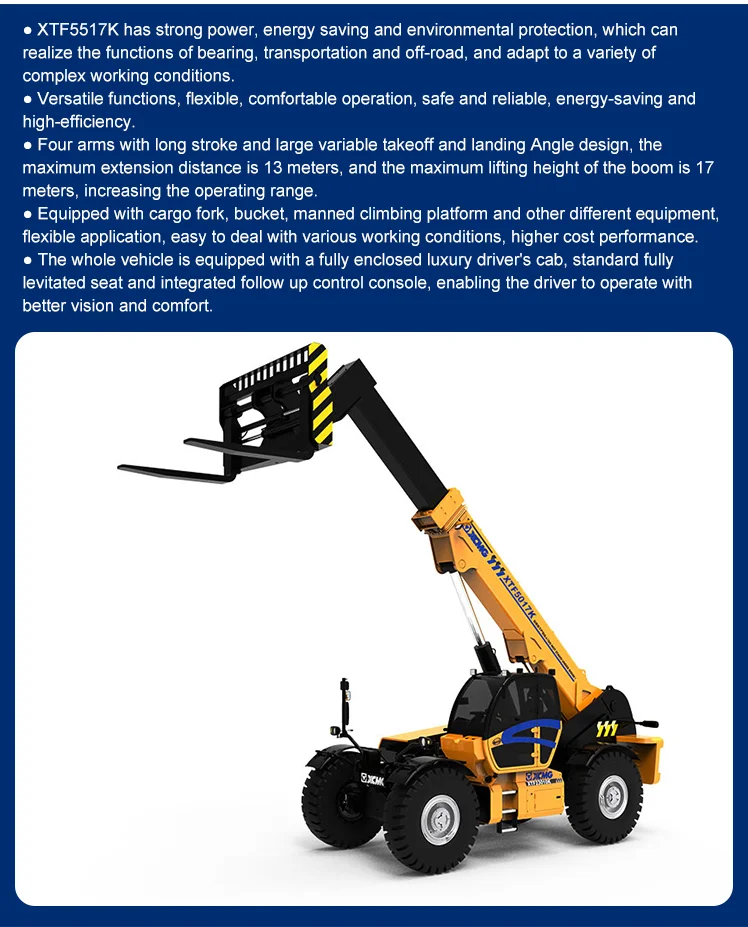

1、XTF5517K has strong power, energy saving and environmental protection, which can realize the functions of bearing, transportation and off-road, and adapt to a variety of complex working conditions.
2、Versatile functions, flexible, comfortable operation, safe and reliable, energy-saving and high-efficiency.
3、Four arms with long stroke and large variable takeoff and landing Angle design, the maximum extension distance is 13 meters, and the maximum lifting height of the boom is 17 meters, increasing the operating range.
4、Equipped with cargo fork, bucket, manned climbing platform and other different equipment, flexible application, easy to deal with various working conditions, higher cost performance.
5、The whole vehicle is equipped with a fully enclosed luxury driver's cab, standard fully levitated seat and integrated follow up control console, enabling the driver to operate with better vision and comfort.
2、Versatile functions, flexible, comfortable operation, safe and reliable, energy-saving and high-efficiency.
3、Four arms with long stroke and large variable takeoff and landing Angle design, the maximum extension distance is 13 meters, and the maximum lifting height of the boom is 17 meters, increasing the operating range.
4、Equipped with cargo fork, bucket, manned climbing platform and other different equipment, flexible application, easy to deal with various working conditions, higher cost performance.
5、The whole vehicle is equipped with a fully enclosed luxury driver's cab, standard fully levitated seat and integrated follow up control console, enabling the driver to operate with better vision and comfort.

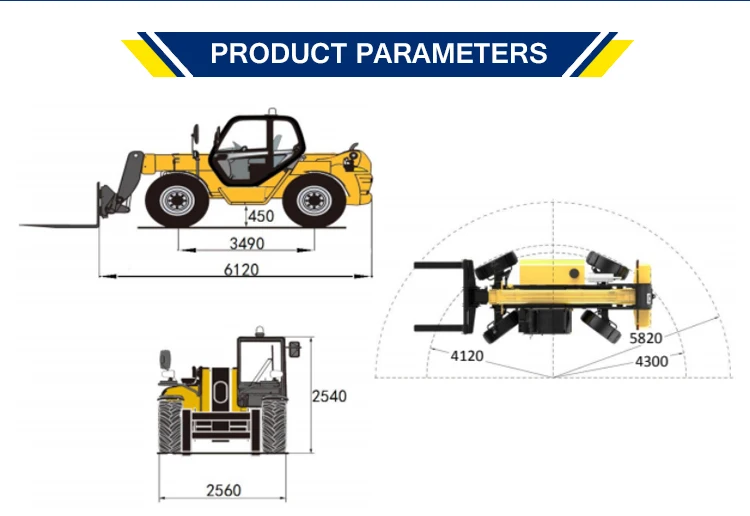

Product parameters
Project | Parameter |
Machine weight (including forks) | 15000KG |
Overall size and width | 2560mm |
Overall size and height | 2540mm |
Overall size and length (to fork frame) | 6120mm |
Wheelbase | 3490mm |
Ground clearance | 450mm |
Frame leveling range | ±10° |
Fork tipping angle (tip up/down) | -14/111° |
Maximum lifting capacity (600mm load center distance) | 5000KG |
Maximum lift height | 17.1m |
Outreach (600mm load center distance) | 13.15m |
Maximum height lifting weight (600mm load center distance) | 2267KG |
Maximum lifting weight (600mm load center distance) | 1361KG |
Lifting/lowering speed (no load) | 44513s |
Extend/Retract Speed (No Load) | 18/15s |
Maximum travel speed | 32km/h |
Gradeability (heavy load) | 45% |
Turning radius (outer wheel) | 4.3m |
Transfer method | first 4 after 3 |
Steering mode | 3 steering modes: front axle, crab walking, and small turn |

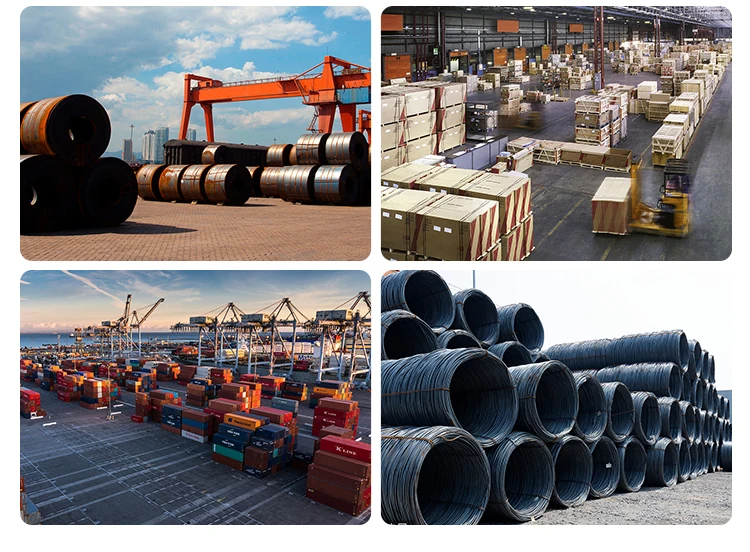

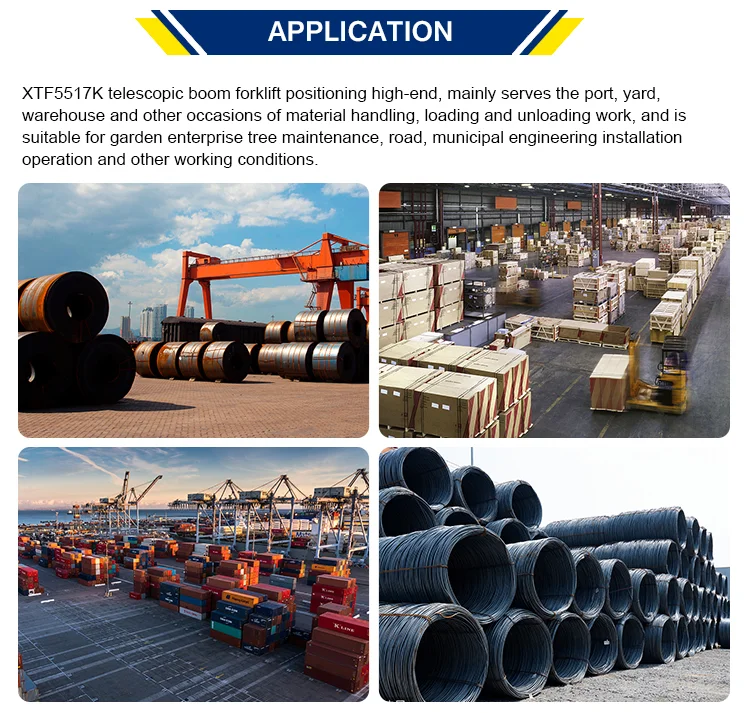

XTF5517K telescopic boom forklift positioning high-end, mainly serves the port, yard, warehouse and other occasions of material handling, loading and unloading work, and is suitable for garden enterprise tree maintenance, road, municipal engineering installation operation and other working conditions.
