Rated power 75KW diesel generator set 120V/240V 1 phase Cummins engine 4BTA3.9-G11 100KVA genset
- Category: Diesel Generators >>>
- Supplier: Taizhou,Sutech,Power,Machinery,Co.,Ltd.
Share on:
Product Overview
Description

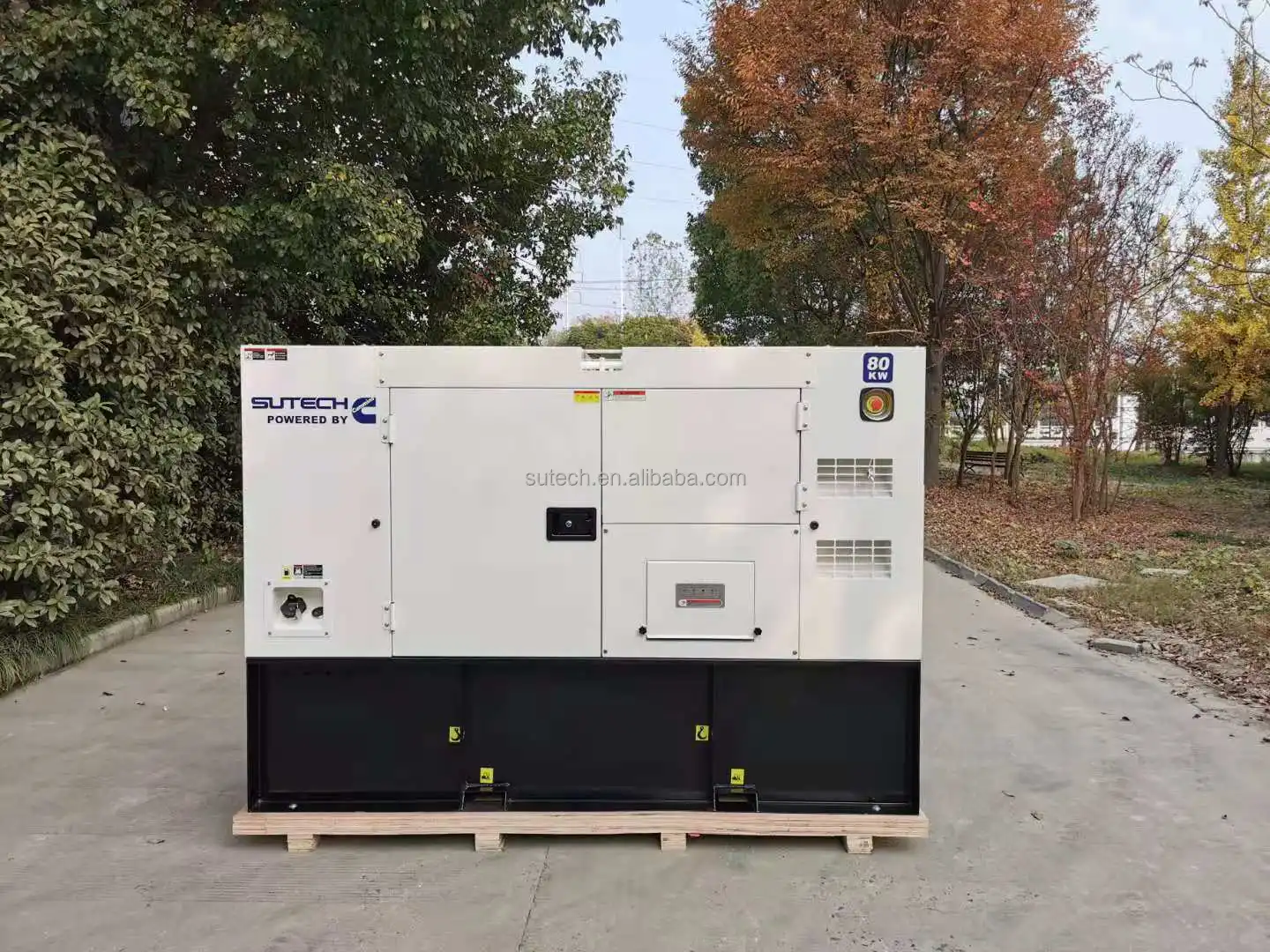

silent 75kw diesel generator powered by Cummins engine 4BTA3.9-G11
Related Products
The following engine brands, alternator brands and Control panel for optional
Rated power | Engine | Alternator | Control panel |
20kw~1300kw | Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators | Deepsea ComAp Harsen Smartgen | |
8kw~1600kw | |||
68kw~504kw | |||
20kw~500kw | |||
220kw-2400kw | |||
280kw-800kw | |||
600kw-1800kw | |||
50kw-650kw | Doosan Daewoo | ||
2kw~2500kw |
Product Description
silent 70kw diesel generator powered by Cummins engine 4BTA3.9-G11
Engine Model | 4BTA3.9-G11 |
| Engine manufacturer | CUMMINS |
| Number of cylinders | 4 cylinders in line |
| Cycle | 4 stroke |
| Aspiration | Turbocharger and aftercooler |
| Bore×Stroke | 102mm x120mm |
| Displacement | 3.9L |
Compression ratio | 17.3:1 |
Prime power/speed | 70KW/1500RPM |
Standby Power/Speed | 80KW/1500RPM |
Speed governer | Electrical |
Cooling system | Forced water cooling cycle |
| Steady speed droop | ≤1% |
| Total Lubricating oil capacity | 11L |
| Coolant capacity (engine only) | 8.3L |
| Fuel consumption at 100% load | 208g/kw.h |
| Starter motor | DC24V |
| Alternator | DC24V |
silent 70kw diesel generator powered by Cummins engine 4BTA3.9-G11
Alternator brand | Stamford,Marathon,Leroy Somer,Mecc-alte, TWGII… |
Prime power | 70KW |
Frequency/speed | 50HZ/1500rpm or 60Hz/1800rpm |
Exciter type | Single bearing, Brushless, Self-excited |
Power factor | 0.8 |
Voltage adjust range | ≥5% |
Voltage regulation NL-FL | ≤±1% |
Insulation Grade | H |
Protection Grade | IP23 |
silent 70KW diesel generator powered by Cummins engine 4BTA3.9-G11
Brand | Deepsea/ComAp/Smartgen |
The control module gives digital readouts of: Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run. The control module has indicators for failure information: Overspeed/underspeed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure Automatic shutdown occurs under: Low engine oil pressure; High engine water temperature; Overspeed/underspeed; Failure to start after three attempts. |
|
Optional-addtional parts:70kw diesel generator price
Engine | Fuel System | Cooling system | Exhaust system |
Coolant Heater Lube oil heater Electronic governor Engine oil temperature | External Tank Water Separator | 50-60 Radiator, Remote radiator Cooling tower | Heavy Duty air filter Silencer Enclosures |
Alternator | Control System | Others | Voltage Connections |
Anti Condensation Heater Permanent Magnet Generator-PMG Drop CT-for paralleling | Remote Control Panel Auto Transfer Switch ATS-Control Panel Paralleling System Electricity Output Cabinet | Rainproof Type Soundproof Type Containerized Type Trailer Type Spare Parts | 480/277V 440/254V 416/240V 400/230V 380/220V 240/139V 220/12 V 208/120V |
High Voltage of 6.3kv, 6.6kv, 10.5kv, 13.8kv etc are available | |||
Product Overviews
silent 70KW diesel generator powered by Cummins engine 4BTA3.9-G11
Details: silent 70KW diesel generator powered by Cummins engine 4BTA3.9-G11
Application
- 24 hours continuous stable power supply, in extreme or normal temperatures from -10 °C to 50 °C.
Sutech Power generators are design to work 24*7 in extreme temperature conditions with minimum maintenance requirement.
- In some cases CHP & CCHP (Combined heat and power/ Combined cooling heat and Power) to utilized heat.
Sutech Power specially designs Diesel and Gas CHP/CCHP Power generators to provide hot water or steam as well as Power.
- Lower noise level is important.
Sutech power generators are made to be environment friendly with low emission and lower noise level
- Reliable AMF & ATS System (Auto mains failure & Auto transfer System) which can start and stop generators automatically with load transfer in case of city supply on or off.
