automatic start machine k cup filling sealing capsule filling machine for k cup
- Category: >>>
- Supplier: Suzhou Wuhui Machinery Automation Co. Ltd.
Share on (1600592974643):
Product Overview
Description
Machine Function

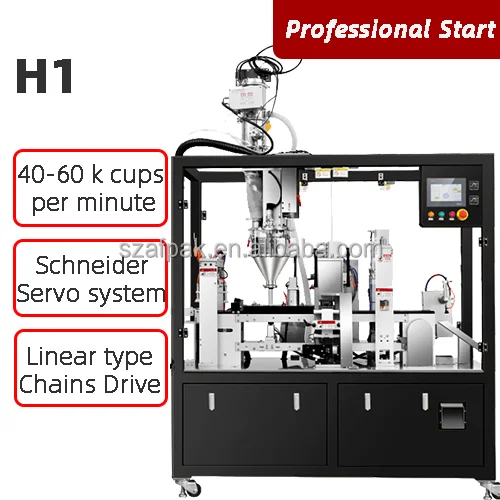

H1 capsule filling machine for k cup
Standard main functions:
1* Empty capsule auto feeder \u2028
2* coffee auto vacuum feeder
3* No capsules, no filling/seal
4* Filling 5-20g adjustable
5* Edge cleaning and tamping \u2028
6* Pick and place pre-cut lids \u2028
7* Sealing \u2028
8* Output to the conveyor \u2028
9* 7-10 Nitrogen flushing stations
Machine Model | H1 K Cup Pod Filling Sealing Machine |
Filling Speed | 1800-3000 capsules per hour |
Coffee Hopper Volume | 5 Kgs |
Power | 2 Kw |
Voltage | 1 Phase, 220V/50-60Hz, Custimized |
Filling Weight | 1-20 adjustbale |
Sealing Temperature | 0-400°C adjustable |
Noise level | 50-68 dB |
Machine Size | L1200/W1010/H1990 mm |
Machine Weight | 800 Kgs |
stable and accuracy coffee capsule filling
±0.15 grams
5 kgs coffee tank
can fill tea, coffee, powder and small granuels

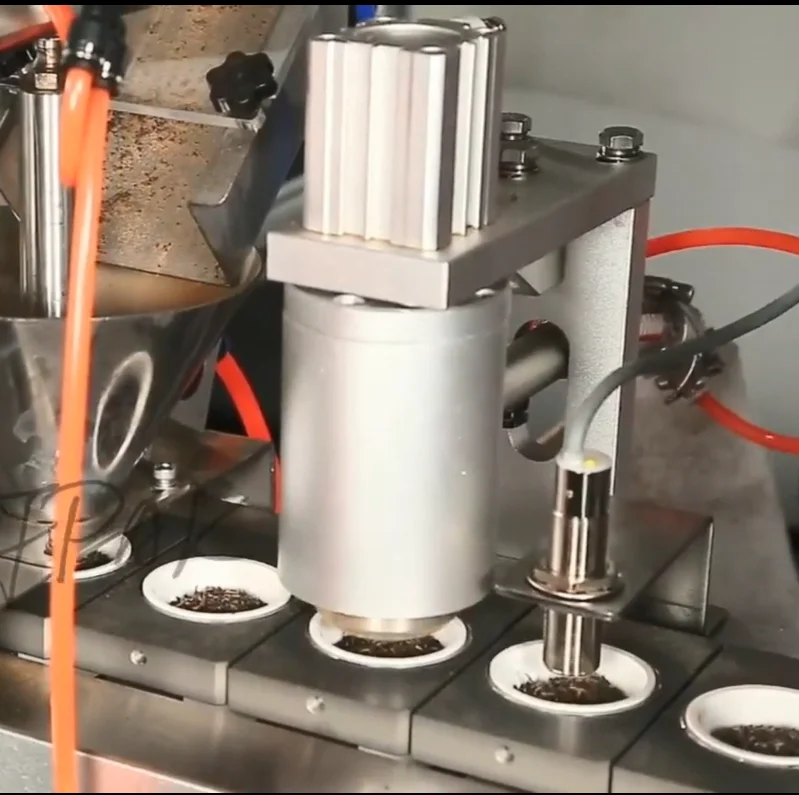

temping and coffee capsule edge cleaning
with powder temping adjustbable pressure
capsule edge cleaning for better seal
capsule edge cleaning for better seal
organic glass cover and nitrogen flush
the coffee capsule filling and sealing protect by the glass cover, away from dust, and keep the coffee fresh with 8-10 nitrogen flushing head

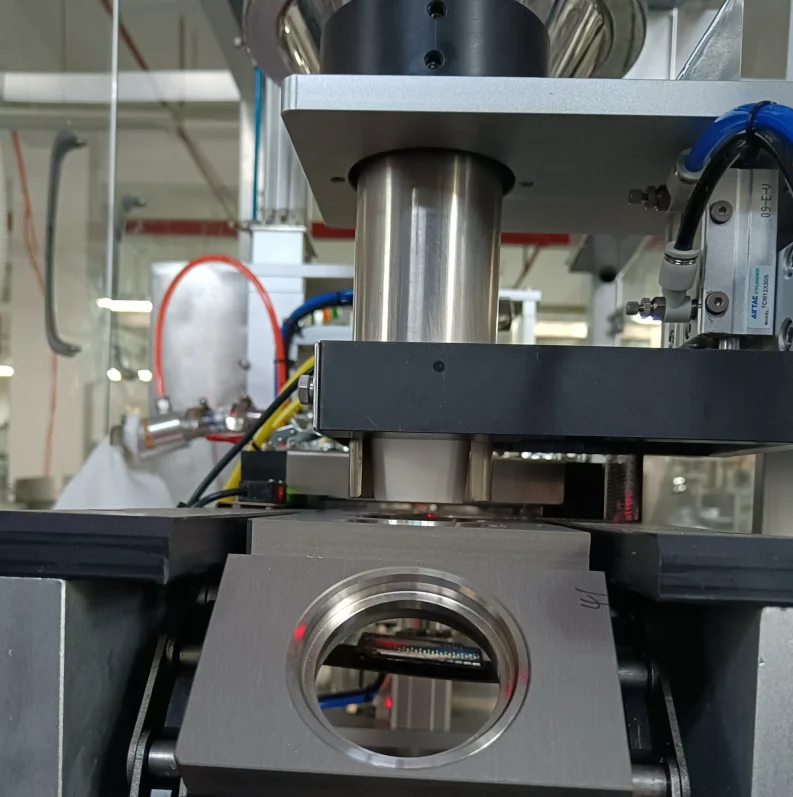

high standard capsule sealing
with powder temping adjustbable pressure
capsule edge cleaning for better seal
capsule edge cleaning for better seal
0-400°C adjustable sealingseal pre cut lids
optional for roll film/lids/foil sealing
optional for roll film/lids/foil sealing

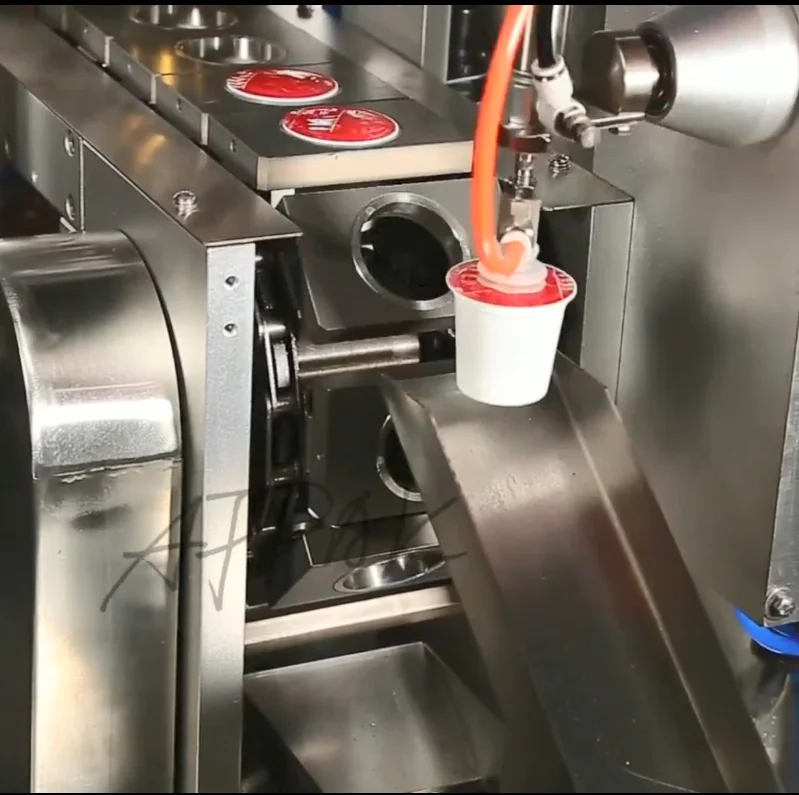

coffee capsule out put
out put the coffee capsule to the way you need, can be customzied
pop up/blow effect
the sealing lids will pop up with high and good standard machine
Optional Add-On
Roll film/foil/lids cutting
rolled aluminum lids/foil/film
rolled paper lids/foil/film
rolled plastic lids/foil/film
empty coffee capsule sorting feeder
sort bio-degradable/plastic coffee capsule and feed to the coffee capsule filling sealing machine
split and count
split the finished coffee capsule into different direction with count number
Customize Your Idea with AFPAK
Machine Application
Nespresso Coffee Capsule
Aluminum Nespresso
Plastic Nespresso
Biodegradable Nespresso
Compostable Nespresso

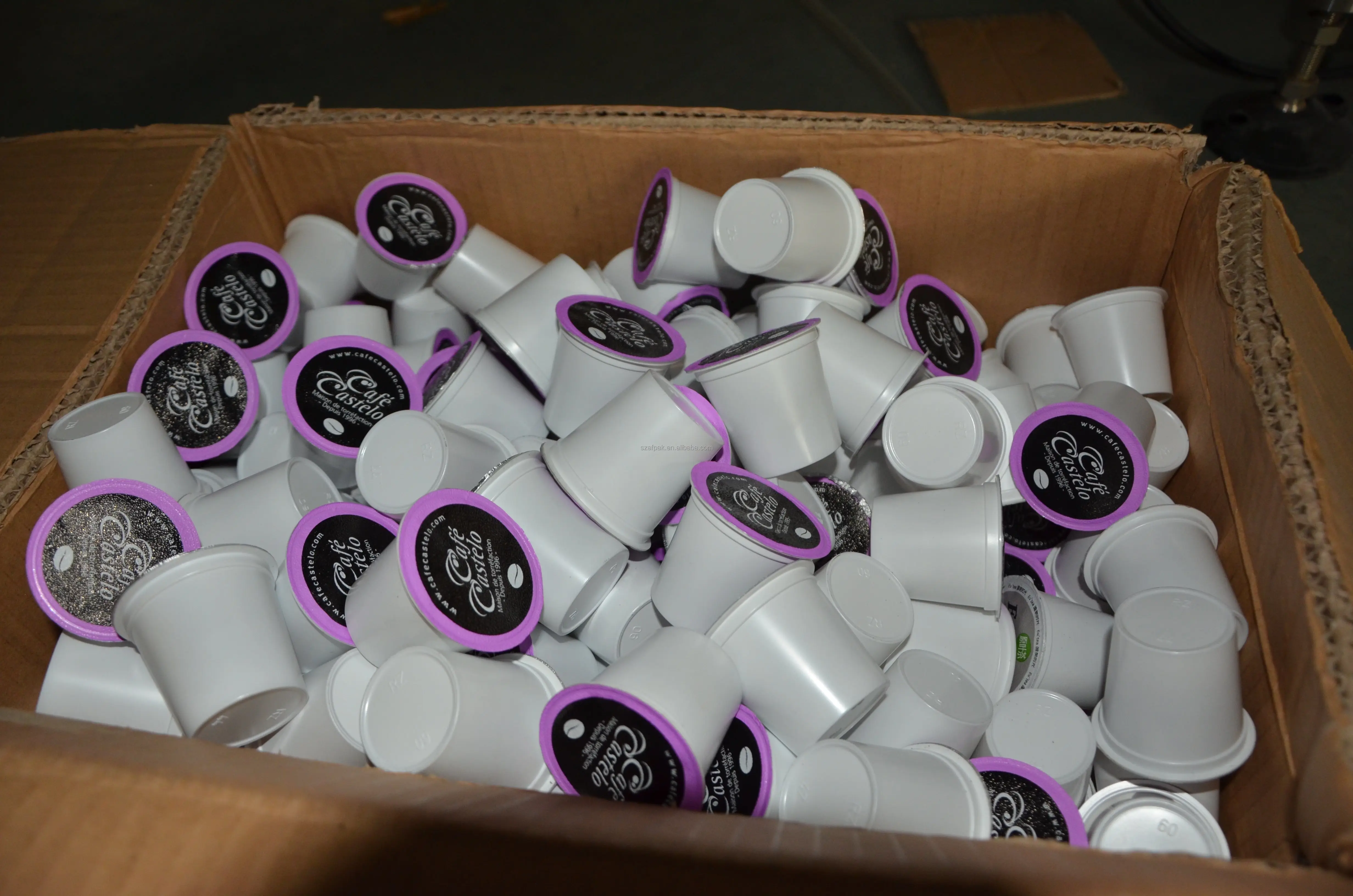

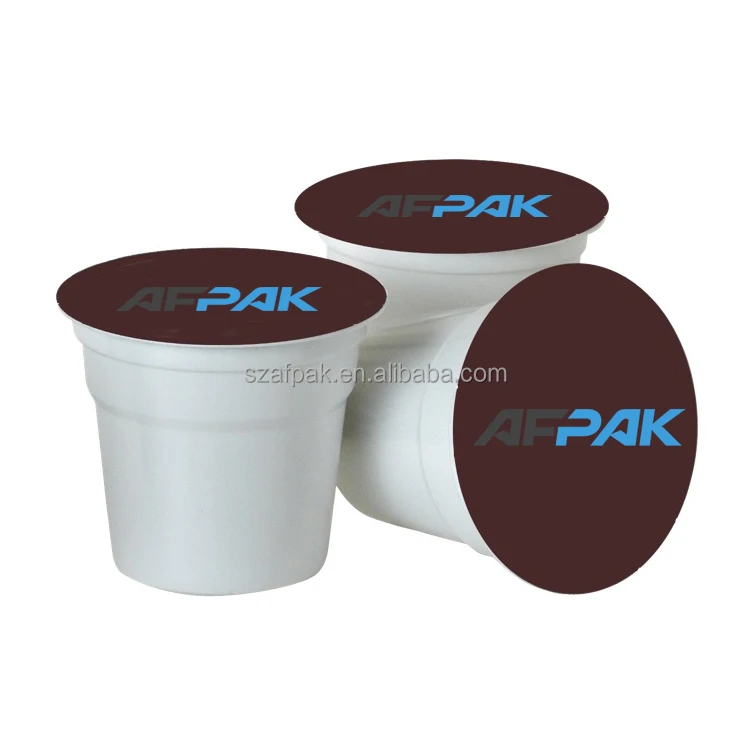

K Cup Coffee Capsule
K Cup with filter
K Cup and filter seperate
K Cup only filter
IFILL Cup
Dolce Gusto Coffee Capsule
Dolce Gusto inside filter
Dolce Gusto 3 filter
Nespresso Vertuo Coffee Capsule
Lava-zza Coffee Capsule
Lava-zza Blue
Lava-zza Point
Lavaz-za A Modo Mio
Customized Cpasule Product
Any other capsule product filling powder, granule, liquid, sauce, seasoning etc.

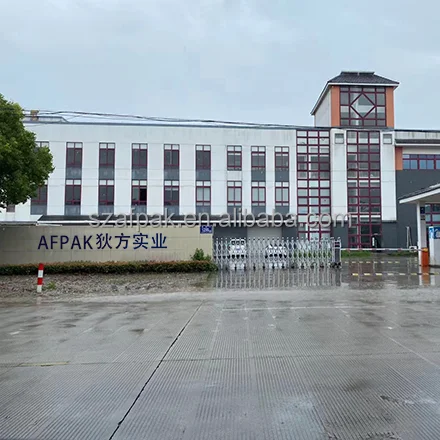

Company Profile

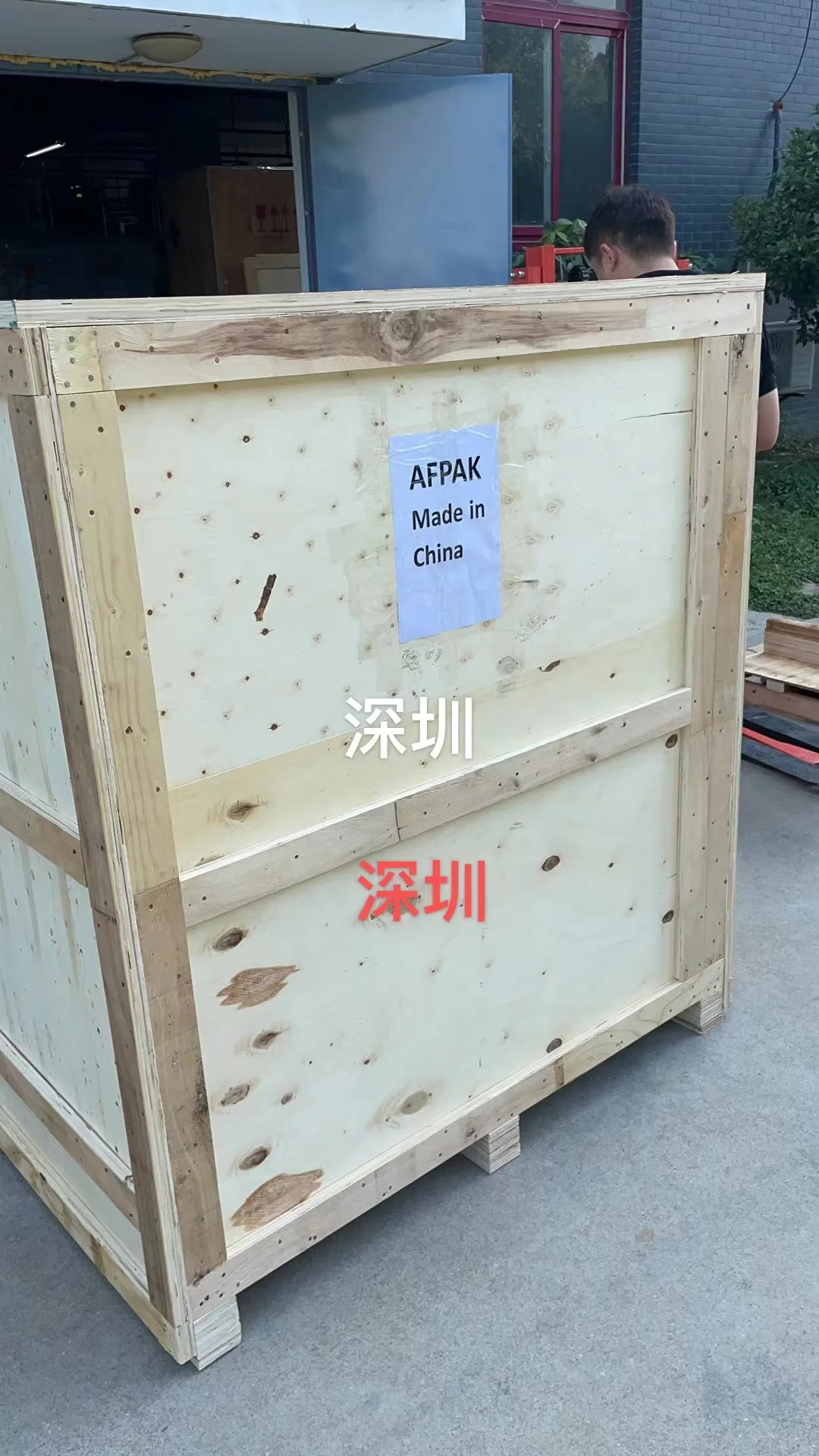

Packing&Shipping
Fast Delivery and Use
The shipping company we cooperate with can deliver machines to your countries, ports and cities as quickly as possible with less cost.
The filling machine are ready to use when you get it, no need experience and skill.
Why Choose Us
We have 14 years of experience in providing one-stop coffee capsule production solutions for filling, sealing and packaging equipment, which can help them save a lot of time and energy by provide empty capsules, sealing lids,filling sealing machine, Cartoning machine and bag packing machine all together. With the continuous development of AFPAK, The production capacity and machine models are spread over 1800-24000 capsules per hour, which can meet the production needs of large, medium and small scale.
AFPAK has ISO and CE certification for all the machines we made, AFPAK values machine quality above all else，even small machine part all from world famous brand.
AFPAK also pays attention to the diversification of customer needs and the flexibility of machines. Considering the needs of some customers to produce multiple coffee capsules, we have carried out modular design of machines, which can produce multiple types of coffee capsules with one machine, and we have rich machine plug-in options to meet the customized needs of all coffee capsules production.
AFPAK has ISO and CE certification for all the machines we made, AFPAK values machine quality above all else，even small machine part all from world famous brand.
AFPAK also pays attention to the diversification of customer needs and the flexibility of machines. Considering the needs of some customers to produce multiple coffee capsules, we have carried out modular design of machines, which can produce multiple types of coffee capsules with one machine, and we have rich machine plug-in options to meet the customized needs of all coffee capsules production.
FAQ
1.What is your smallest auto coffee capsule filling sealing machine?
A: We many models speed from 1800-24000 capsules per hour,
the smallest filling machine is H1 liner model, speed 1800-3000 capsule per hour, no extra cost, standard machine is enough to make good capsule automatic.
most customer start by RN1S rotary model, speed 3000-4200 capsule per hour, more compact.
2.is the machine need to to install when i get it?
A: the machine is ready to use then you get it, easy to use, no special skill needed.
3.do you have support video and calls
A:We provide a full set of machine use videos, after-sales team of staff are experienced machine engineers speak English
4.how fast can we get the machine
A: it depand on the speed you need, if standard machine no need customization, we can ship it in 1 week.
5.what need to parepare to order and use the machine
A：air compressor, eletric power, a space, empty capsule and sealing lids
