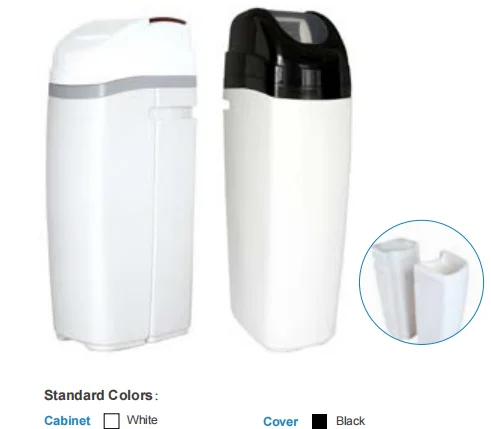

Canature Water Softener CS10H Twin Cabinet
- Category: >>>
- Supplier: Canature Health Technology Group Co. Ltd.
Share on (1600593296346):
Product Overview
Description
Features:

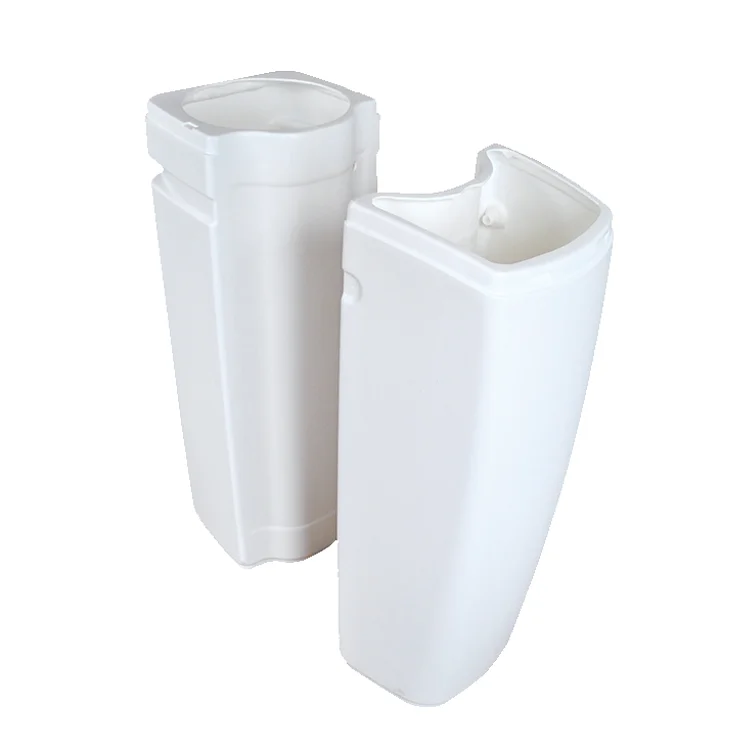

●Separate salt brine cabinet and tank cabinet design.
Specification | ||||||
Model | CS10H-Twin Cabient-Slide | CS10H-Twin Cabient-Transparent | ||||
Control System | BNT-850F Control Valve | BNT-1650F Control Valve | ||||
Regeneration Type | Down Flow | |||||
Regeneration Mode | Meter Immediate, Meter Delayed, Day Override, Vacation | |||||
Hardness Removal (Gram) | (@ 48 g/L salt dosage) | 710 | 710 | |||
(@ 96 g/L salt dosage) | 1215 | 1215 | ||||
(@ 192 g/L salt dosage) | 1648 | 1648 | ||||
Tank Size | 10×35 | 10×35 | ||||
Sand Quantity(Kg) | / | / | ||||
Resin Quantity(L) | 25 | 25 | ||||
Salt Storage Capacity(Kg) | 46 | 46 | ||||
Rated Service Flow(m3/H) | 2.0 | 2.0 | ||||
Back Wash Flow Rate(L /M) | 9.0 | 9.0 | ||||
Water Used Per Regeneration(L) (@ 96 g/L salt dosage) | 112 | 112 | ||||
Product Dimension(DxWxH mm) | 504×314×1109 | 504×314×1138 | ||||
Carton Size(D×W×H mm) | 545x360x1170 | 545x360x1200 | ||||
Container Capacity(40" HQ, pcs) | 396 | 264 | ||||
Plumbing Connections | 3/4”or 1”Fittings Available | |||||
Electrical Requirements | Input 110V- 120V / 220-240V AC 50/60 Hz | |||||
Output 12V AC 650mA | ||||||
Water Supply | Municipal | |||||
Water Temperature(°C ) | 4-43 | |||||
Operating Pressure(MPa) | 0.21-0.86 | |||||
Notes: 1. The data of softener performance is only for reference, it may vary from different water qualities and applications. 2.Rated Service Flow is based on NSF/ANSI Standard 44. | ||||||
About Canature

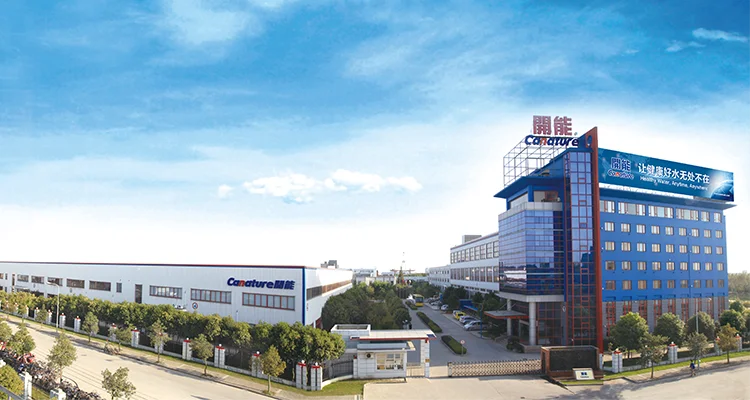

Founded in 2001, located in Shanghai,China.A High Tech Public Company with over 21 years experience in Water Treatment.A large professional “one-stop manufacturer” of residential and commercial water treatment Solution and Products Service Provider. Cost Lead, Good Service and Deep Innovation are our main focus to building our competitive strength.Our entire plant has been certified to ISO9001 and ISO14001.

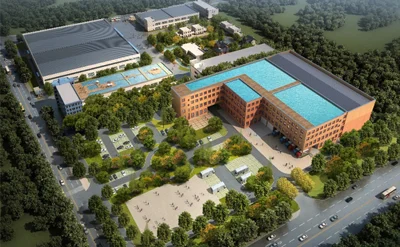

Our Products export to over 100 countries and regions,We have over 800 employees and covers an area of 45,000+ square meters production plant in headquarter. Our Group owns over 6 Manufacturing and Logistic Centers in China and N.A. We have vertical integrated value chain capability from raw material to finished products. Our main products covers Water Softener, Water Filter,RO System,Water Dispenser, Pressure Tanks, Control Valves, RO Membranes etc.All products are qualified with RoHS standard.Our Products owns NSF,CE,ACS certifications to achieve different countries quality standards.
Our Products export to over 100 countries and regions,We have over 800 employees and covers an area of 45,000+ square meters production plant in headquarter. Our Group owns over 6 Manufacturing and Logistic Centers in China and N.A. We have vertical integrated value chain capability from raw material to finished products. Our main products covers Water Softener, Water Filter,RO System,Water Dispenser, Pressure Tanks, Control Valves, RO Membranes etc.All products are qualified with RoHS standard.Our Products owns NSF,CE,ACS certifications to achieve different countries quality standards.

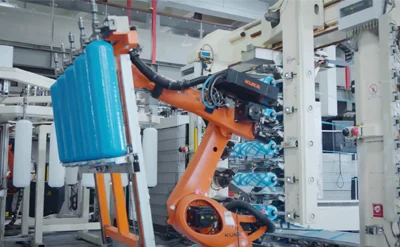

Canature is aiming at strategy of building an intelligent manufacturer with automation, digitization and lean manufacturing. We owns independent R&D center and strong R&D Team, CMA certificated Lab, owns over 200 design and technology patents.Owns modern intelligent manufacturing facilities, the world's advanced automatic robot pressure tanks production line, Control Valves and automatic RO membrane production line.
Our Business covers distribution,OEM and ODM service and sourcing service.
Canature, Your one-stop water treatment solution provider!
Our Business covers distribution,OEM and ODM service and sourcing service.
Canature, Your one-stop water treatment solution provider!
R&D Center
Professional R&D ability is one of Canature's strong competitive advantages.Canature's R&D Center has two functions:one is the new product and new technologies development, another one is the chemical and physics lab. They guaranteed the quality of the finished products through raw material inspection and new product testing.
Canature's R&D Center gathered many Ph.D, high-tech talents with Ph.D or master degrees, who has rich experience in water treatment products development and application. All Canature's key technologies and products are designed this team.

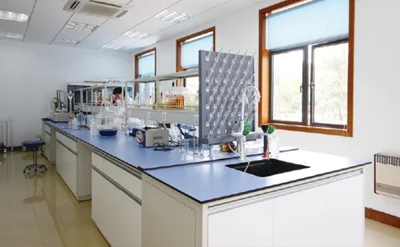

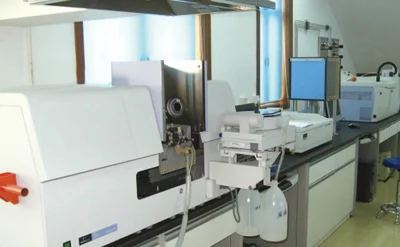

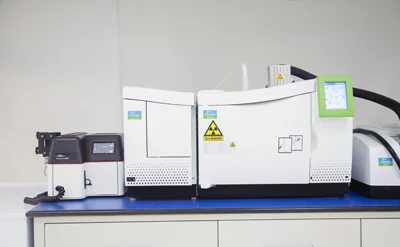

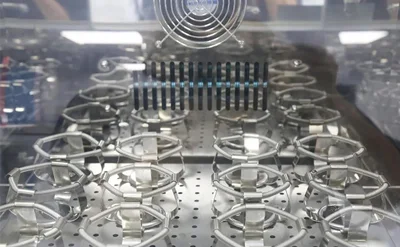

We have set up an R&D center in line with the world's water quality purification standard, we equipped with the world's leading physical fluid laboratory, chemical laboratory and water quality analysis laboratory.
We have set up an R&D center in line with the world's water quality purification standard, we equipped with the world's leading physical fluid laboratory, chemical laboratory and water quality analysis laboratory.

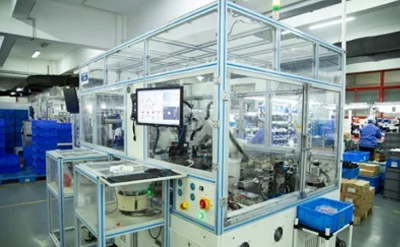

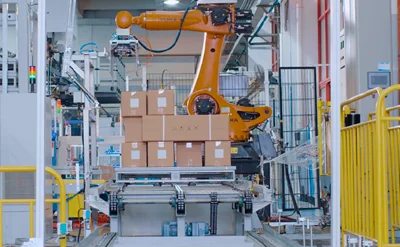

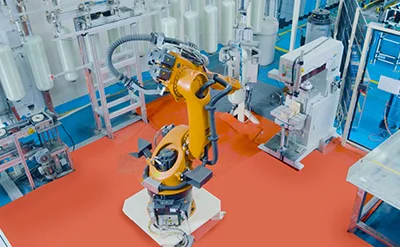

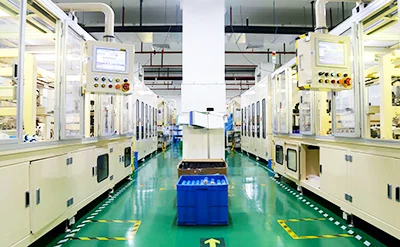

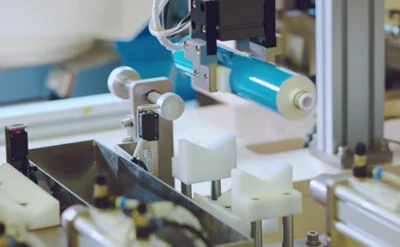

Intelligent Manufacturing

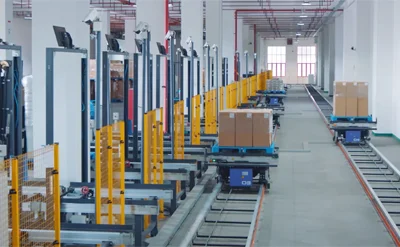

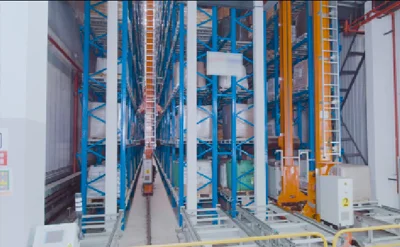

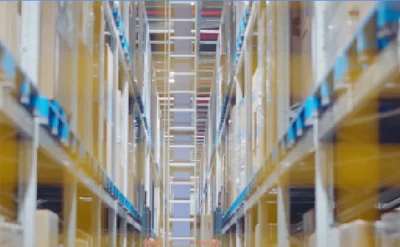

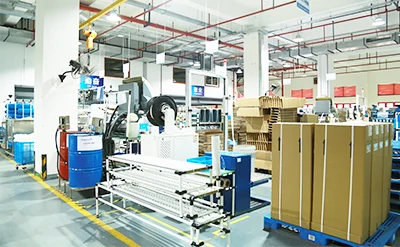

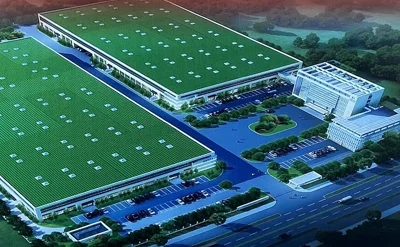

Intelligent Logistic Center

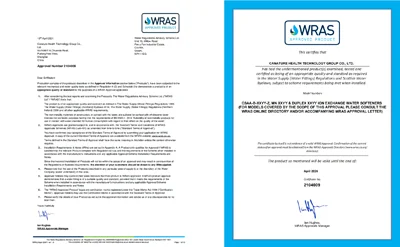

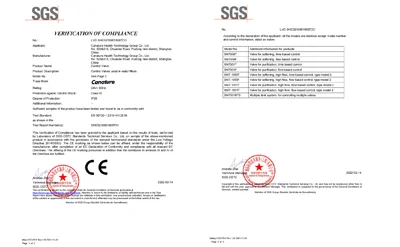

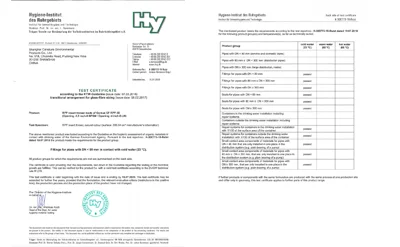

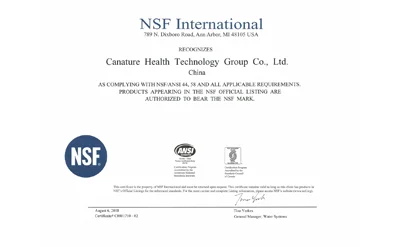

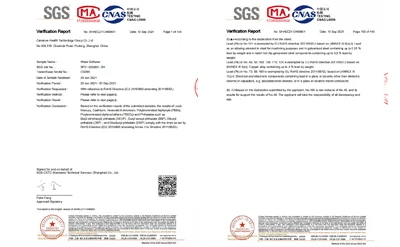

Certificates
Marketing

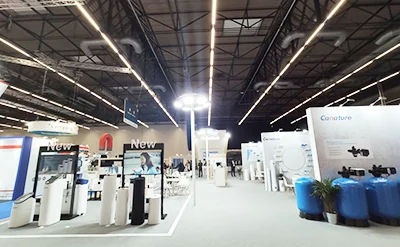

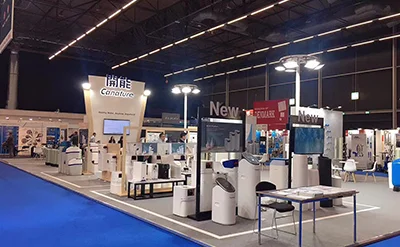

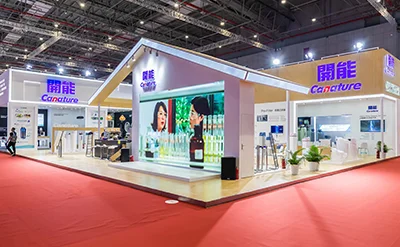

2019-Amsterdam-Aquatech
2020-China-Aquatech
2020-China-Aquatech

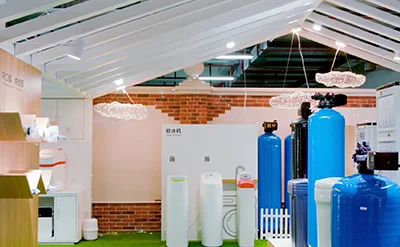

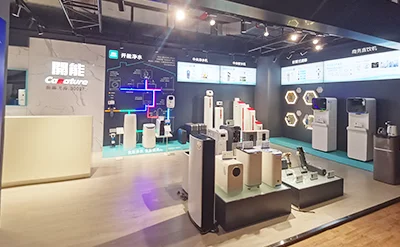

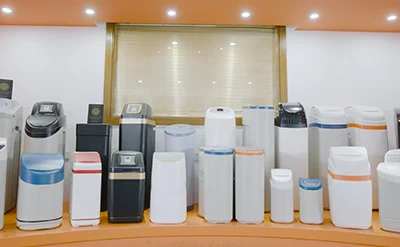

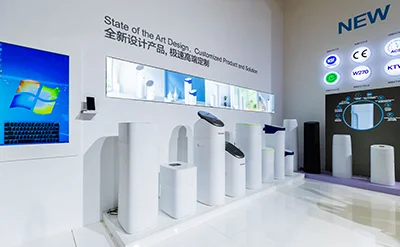

Showroom
