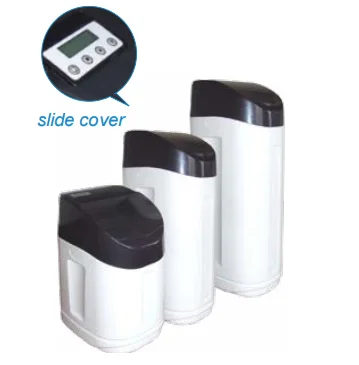

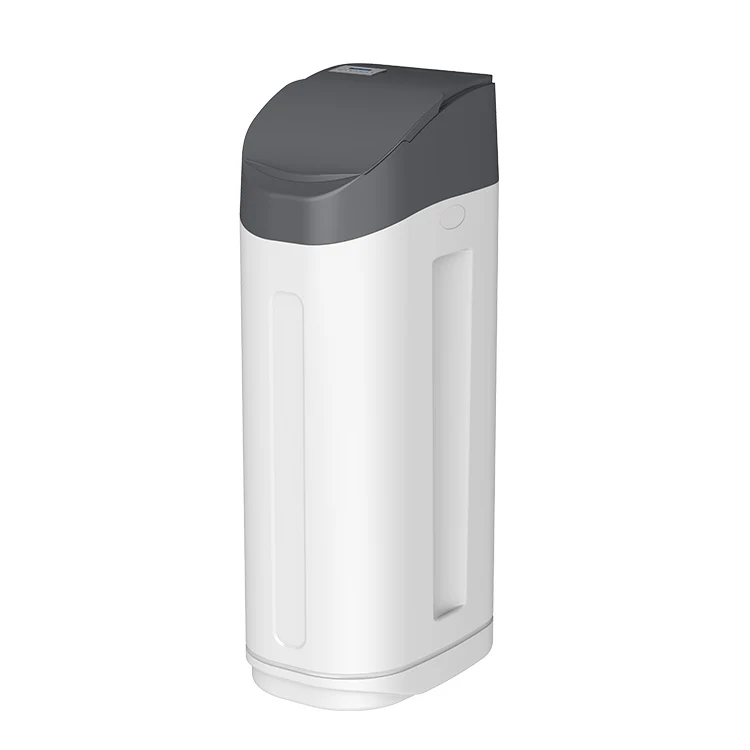

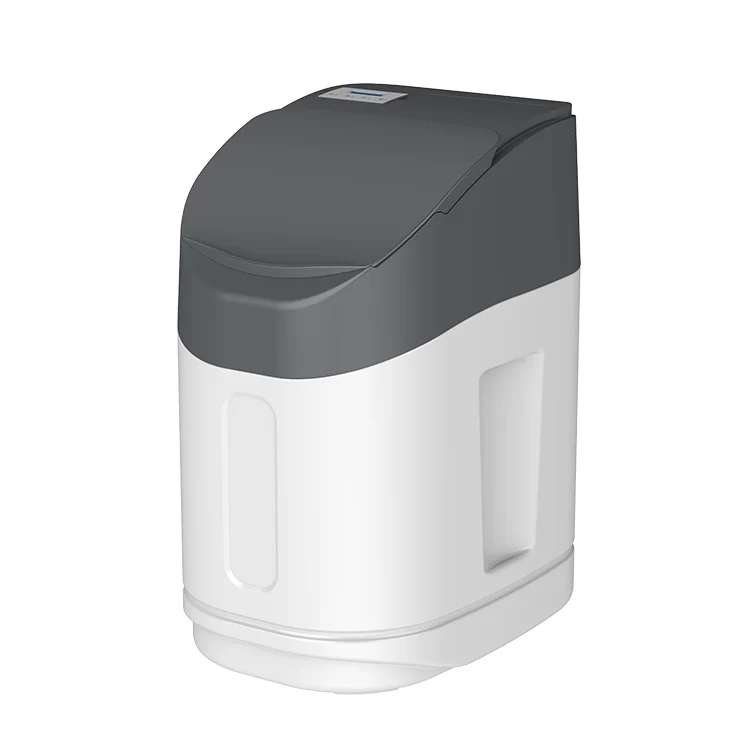

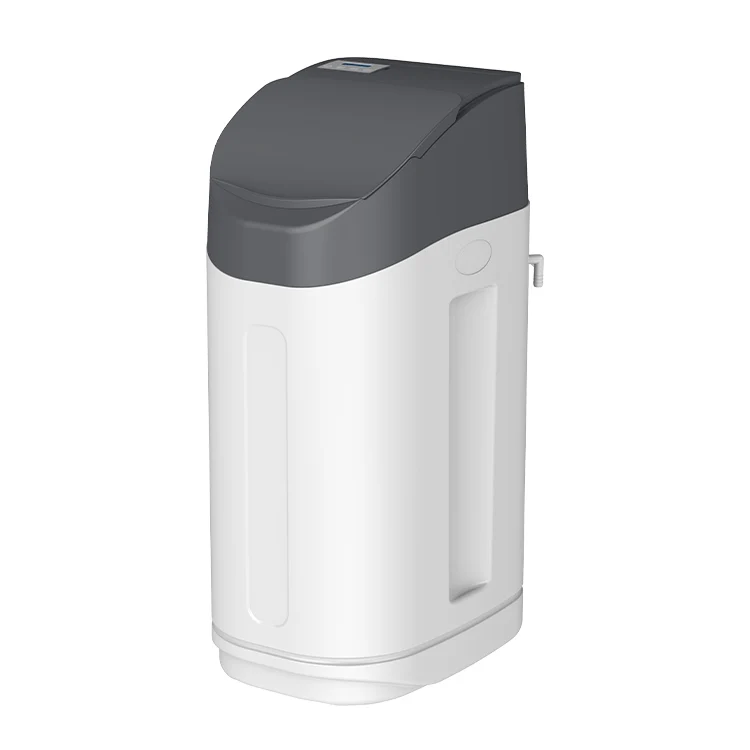

Canature Water Softener CS6H Slide Cover
Canature Water Softener CS6H Slide Cover
Canature Water Softener CS6H Slide Cover
Canature Water Softener CS6H Slide Cover
Canature Water Softener CS6H Slide Cover

Canature Water Softener CS6H Slide Cover

Share on (1600593308690):


Price:

Quantity:


Product Overview

Description









Specification
Model

CS6H-1017(Slide)
CS6H-1026(Slide)
CS6H-1035(Slide)
Control System
BNT-850HE(UF) Control Valve
Regeneration Type
UP Flow
Regeneration Mode
Meter Immediate,  Meter Delayed, Day Override, Vacation

Hardness Removal
(Gram)
(@ 48 g/L salt dosage)
361
569
781
(@ 96 g/L salt dosage)
598
1064
1590
(@ 192 g/L salt dosage)
781
1543
2306
Tank Size
10×17
10×26
10×35
Sand Quantity(Kg)
/
5
5
Resin Quantity(L)
14
21.5
30
Salt Storage Capacity(Kg)
23
41
61
Rated Service Flow(m3/H)
1.1
1.7
2.0
Back Wash Flow Rate(L /M)
7.5
7.5
9.0
Water Used Per Regeneration(L)
(@ 96 g/L salt dosage)
52
84
118
Product Dimension(DxWxH mm)
499×330×575
499×330×806
499×330×1030
Carton Size(D×W×H mm)
520x360x740
520x360x950
520x360x1170
Container Capacity(40" HQ, pcs)
414
276
276
Plumbing Connections
3/4”or 1”Fittings Available

Electrical Requirements
Input 110V- 120V / 220-240V AC 50/60 Hz

Output 12V AC 650mA
Water Supply
Municipal
Water Temperature(°C )
4-43
Operating Pressure(MPa)
0.21-0.86
Notes:
1. The data of softener performance is only for reference, it may vary from different water qualities and applications.
2.Rated Service Flow is based on NSF/ANSI Standard 44.
