5500W Wholesale High Negative Pressure Industrial Dust Collector Extractor Machine
- Category: >>>
- Supplier: Dongguan,Villo,Technology,Inc.
Share on:
Product Overview
Description

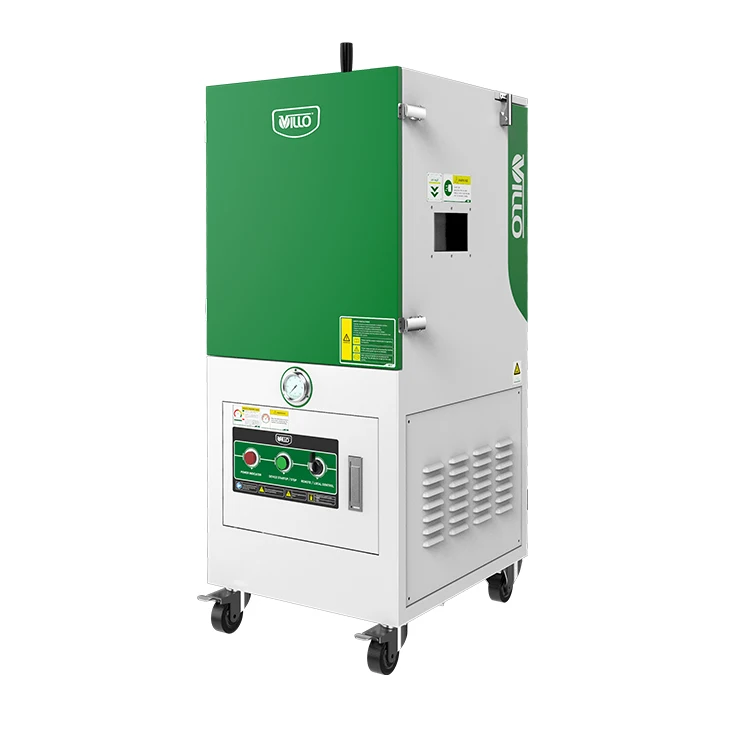

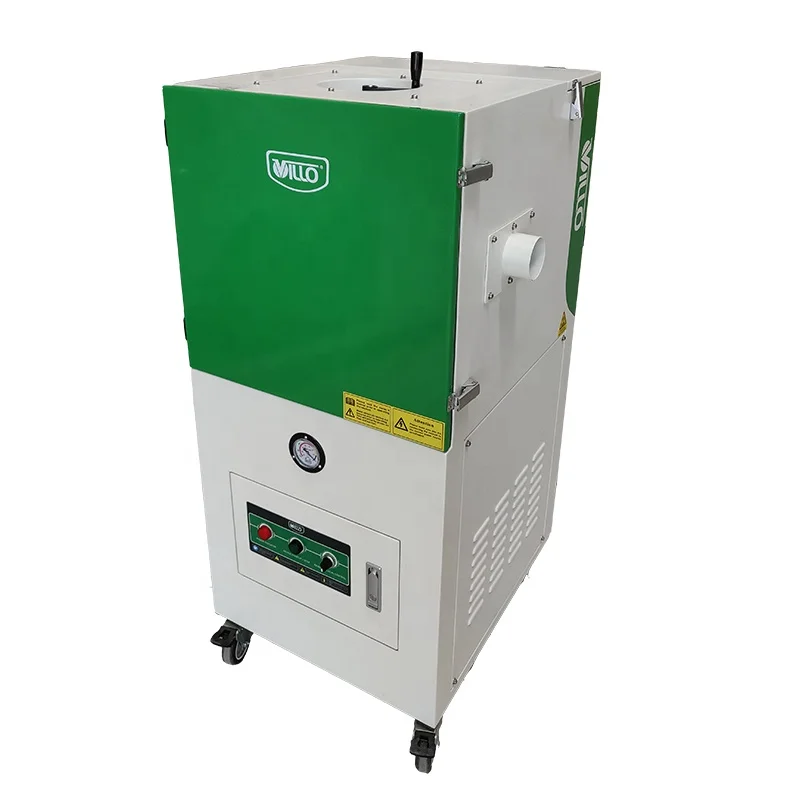

VX Series Cabinet Type High Pressure Industrial Dust Collector
Product description
VX series is an industrial dust collector with high negative pressure, stable design, small footprint and flexible movement.
Applications
A manual cleaning dust collector with high negative pressure for continuous working applications such as metal working (grinding, cutting, drilling, sandblasting); PCB machining; battery manufacturing, etc.
VX series is an industrial dust collector with high negative pressure, stable design, small footprint and flexible movement.
Applications
A manual cleaning dust collector with high negative pressure for continuous working applications such as metal working (grinding, cutting, drilling, sandblasting); PCB machining; battery manufacturing, etc.
Features
* Equipped with auto filter cleaning device for easy filter cleaning. User can set the pulse frequency depending upon the requirements.
* The filter material is polyester with PTFE coated, which can filter 99.9% dust at 0.3 microns. * Equipped with filter cleaning device for easy filter cleaning.
* Maintenance free powerful turbine motor can work continuously for 24 hours.
* Pressure gauge to detect filter clogging.
* Easy dust container cleaning
Right elevation
Left elevation
Front elevation
Technology Parameters
VX-150 | VX-220 | VX-300 | VX-400 | VX-550 | VX-750 | |||||||||
VX-150F | VX-220F | VX-300F | VX-400F | VX-550F | VX-750F | |||||||||
Voltage(V / Hz) | 380/50 | |||||||||||||
Starting current (A) | 25 | 30 | 40 | 60 | 85 | 100 | ||||||||
Rated current (A) | 4.3 | 5.6 | 7.2 | 9 | 12.9 | 16.7 | ||||||||
Power (kW) / (HP) | 1.6 / 2.15 | 2.2 / 3.0 | 3.0 / 4.0 | 4.0 / 5.5 | 5.5 / 7.5 | 7.5 / 10.0 | ||||||||
Max air flow (m³/h) / (CFM) | 210/55 | 265/156 | 318/187 | 420/247 | 530/312 | 700 / 412 | ||||||||
Noise dB (A) | 70±2 | 72±2 | 74±2 | 76±2 | 78±2 | 78±2 | ||||||||
Dia. air inlet (mm) / (in) | Ø 50 / 2 | |||||||||||||
Filter efficiency | >99% | |||||||||||||
VX series | ||||||||||||||
Filter area (m²)/ (sq.ft) | 1.8/19.4 | 3.5/37.7 | 3.5/37.7 | |||||||||||
Capacity of collection barrel (L) / (gal) | 22/5.8 | 26/6.9 | 30/7.9 | |||||||||||
Dimension [L*W*H] (mm) / (in) | 530*540*1040 / 20.9*21.3*40.9 | 600*750*1250 / 23.6*29.5*49.2 | 760*680*1355/30.0*26.8*53.4 | 785*750*1365/31.0*29.6*53.8 | ||||||||||
VX-F series | ||||||||||||||
Filter area (m2)/ (sq.ft) | 2 / 21.5 | 4.8 / 51.7 | 7.2 / 77.6 | |||||||||||
Capacity of collection barrel (L) / (gal) | 30 / 7.9 | 30 / 7.9 | 40 /10.6 | |||||||||||
Dimension [L*W*H] (mm) / (in) | 860*650*940 / /33.9*25.6*37.0 | 860*650*940 / /33.9*25.6*37.0 | 1050*780*1150 / 41.3*30.7*45.3 | |||||||||||
It is normal that the current value may fluctuate in a small range Voltage and frequency will affect the current value | ||||||||||||||
Product Configuration
PTFE coated filter cartridge
Negative pressure gauge
Turbine Motor
Optional Configuration
Siemens Inverter
Multi Tower Light
Soft Starter

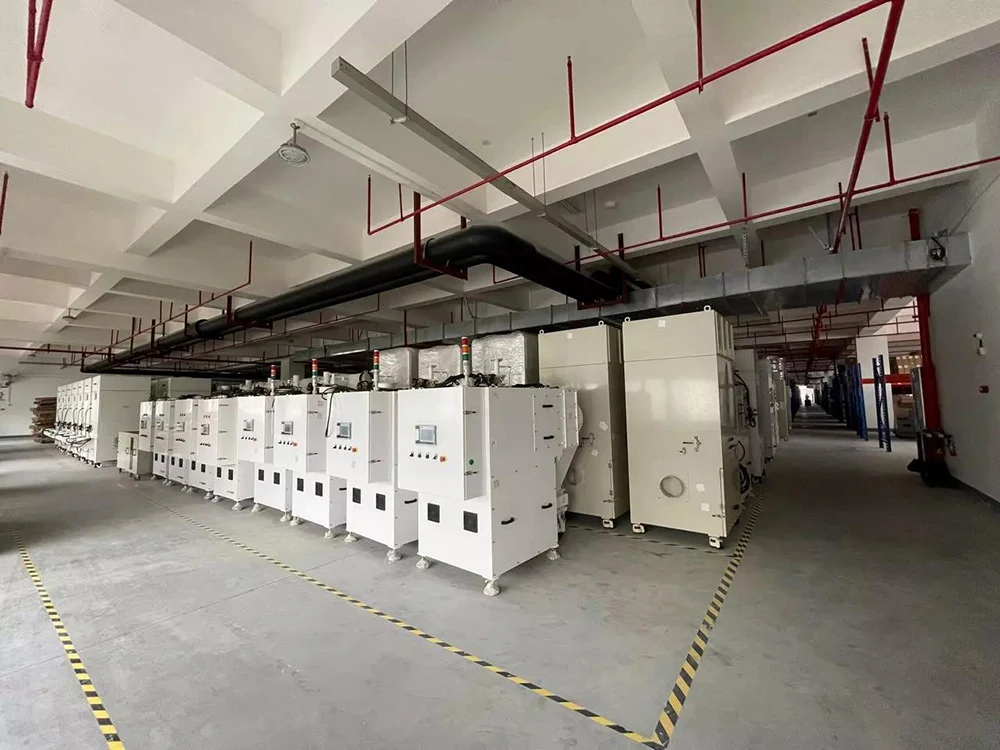

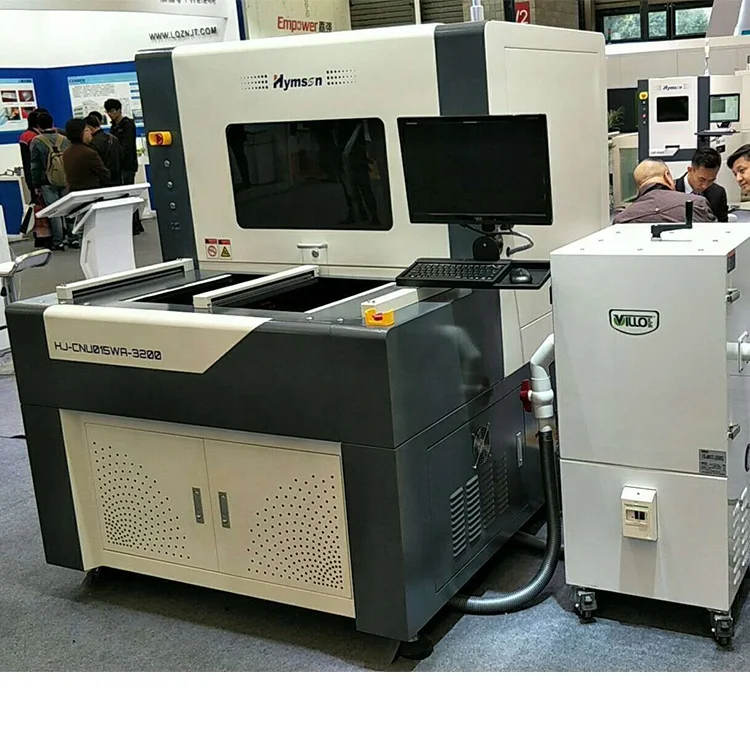

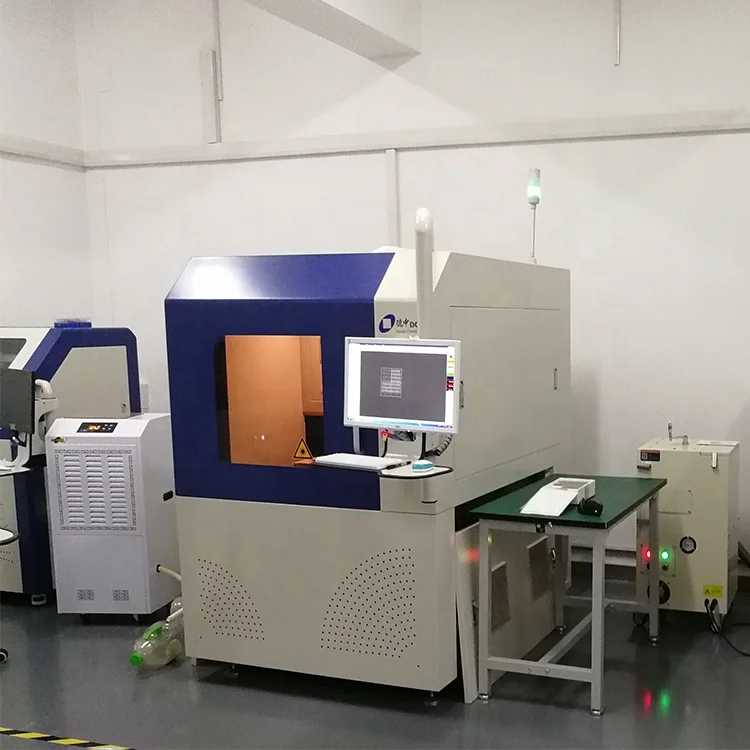

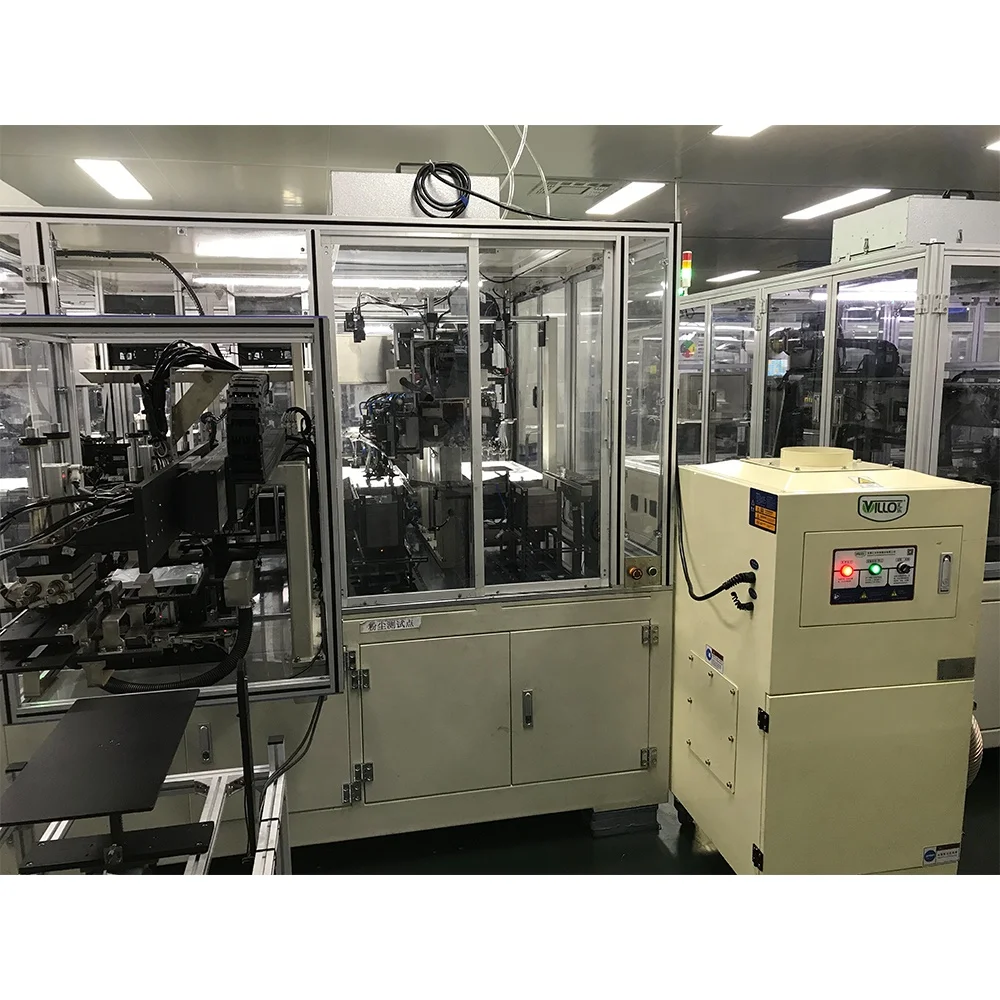

Successful Project
Related Products
VJ-H Series Manual Cleaning Industrial Dust Collector
VJF Series Pulse Jet Cleaning Industrial Dust Collector
VJFG Series Moderate-high Pressure Industrial Dust Collector

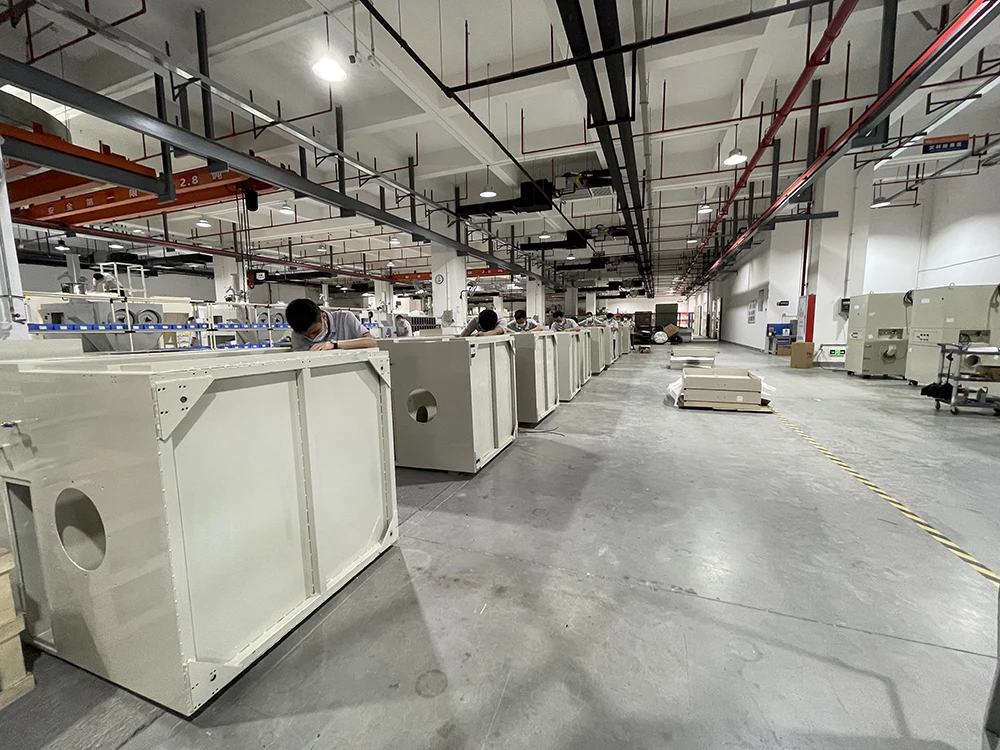

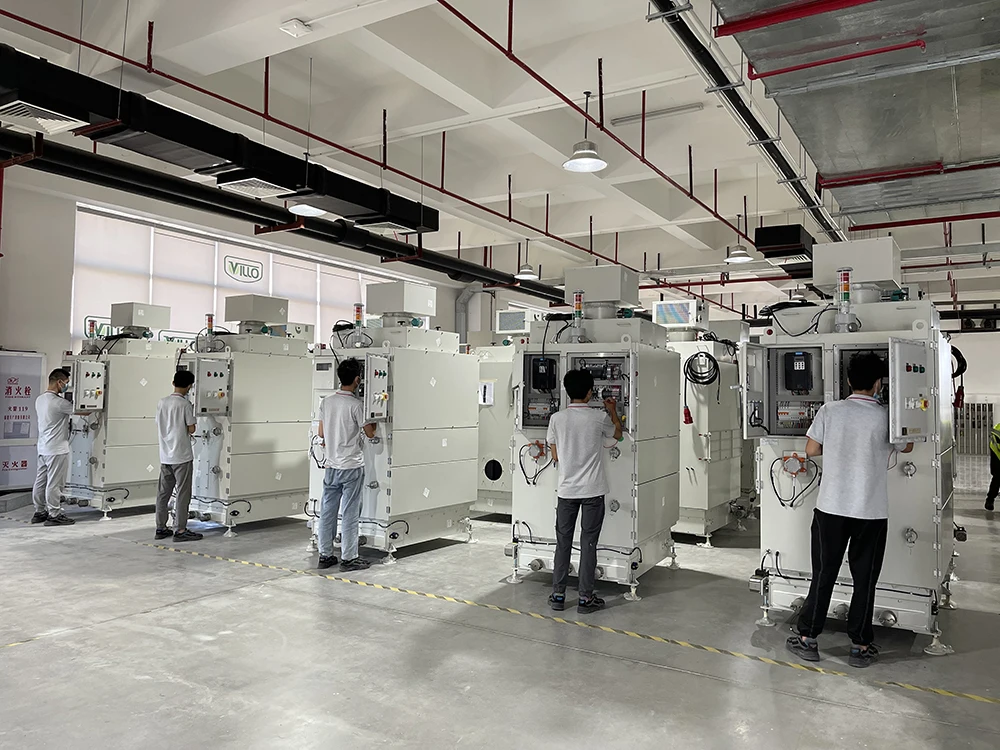

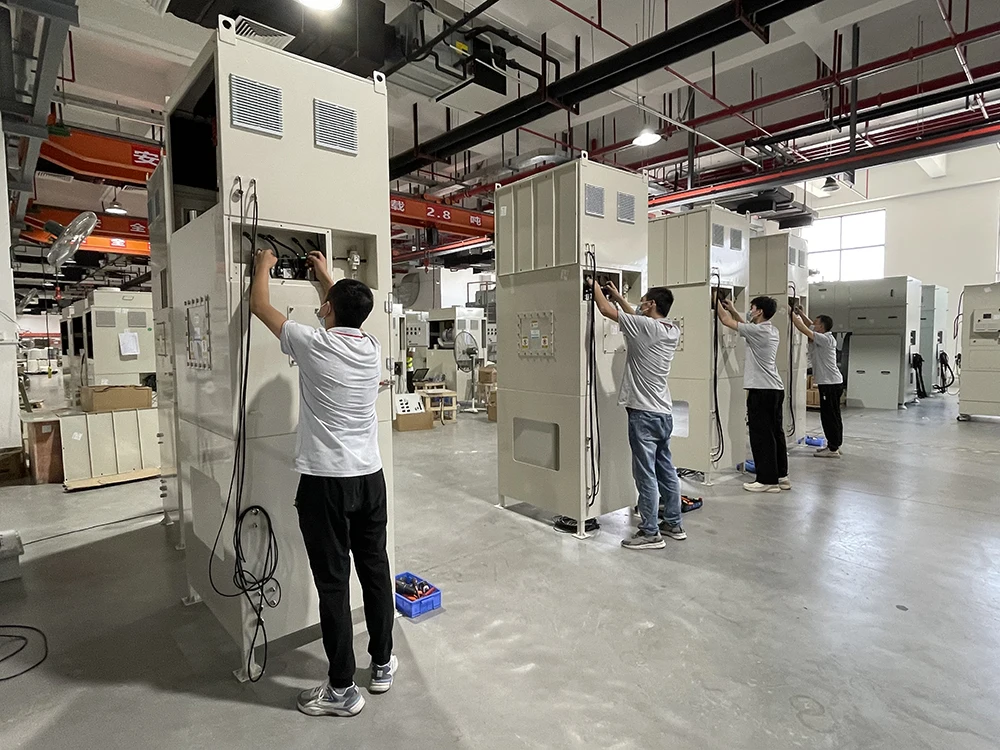

Certificates & Our Company
