Notebook Making Machine/Thread Sewing Machine/Semi Auto Programmable Sewing Machine/Maufung SXM460F
- Category: >>>
- Supplier: Dongguan Maufung Machinery Co. Ltd.
Share on (1600593661153):
Product Overview
Description
Related Products
Product Description

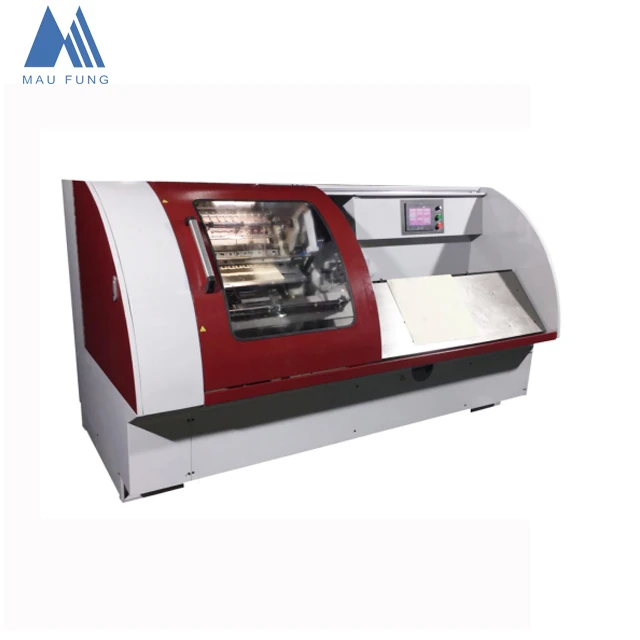

MF-SXM460F Semi Automatic Programmable Sewing Machine
1. Adopte whole streamlined cover design, rail type sliding door, more safe and convenient (external patent);
2. The book shelf (rocker arm) adopts aluminum-magnesium alloy die-casting process, which is light in weight and high in strength, ensuring high-speed operation (90 sheets/min);
3. The whole processing of the lifting plate (needle seat) is made of high-strength aluminum alloy powder metallurgy sleeve, integral sealing, and imported linear guides, which makes the machine more stable during operation, no need to adjust the needle position (12 sets of fine needles, stitch length) 18mm);
4. The double bead can be adjusted to the outer diameter ball (SKF) in the main cam groove, so that the machine can lock the bookcase (rocker arm) without movement during operation, and ensure the accurate alignment of the upper and lower needles (patented technology);
5. Circulating pull gauge, the transport frame is equipped with German imported slats to reduce friction and make the posts easily in place. The receiving desk automatically lifts and is equipped with a synchronous output mechanism to make the book cores output neatly after the lock.
6. Equipped with signature automatic support robot, so that the bottom of the book core is guaranteed to ensure the quality of the lock line.
7. Intelligent control: (automatic centralized oil supply, sub-counting, active secant, empty post, retracted post detection, broken needle, disconnection alarm) has low requirements on manual technology, and the whole machine is safe, energy-saving and efficient. .
2. The book shelf (rocker arm) adopts aluminum-magnesium alloy die-casting process, which is light in weight and high in strength, ensuring high-speed operation (90 sheets/min);
3. The whole processing of the lifting plate (needle seat) is made of high-strength aluminum alloy powder metallurgy sleeve, integral sealing, and imported linear guides, which makes the machine more stable during operation, no need to adjust the needle position (12 sets of fine needles, stitch length) 18mm);
4. The double bead can be adjusted to the outer diameter ball (SKF) in the main cam groove, so that the machine can lock the bookcase (rocker arm) without movement during operation, and ensure the accurate alignment of the upper and lower needles (patented technology);
5. Circulating pull gauge, the transport frame is equipped with German imported slats to reduce friction and make the posts easily in place. The receiving desk automatically lifts and is equipped with a synchronous output mechanism to make the book cores output neatly after the lock.
6. Equipped with signature automatic support robot, so that the bottom of the book core is guaranteed to ensure the quality of the lock line.
7. Intelligent control: (automatic centralized oil supply, sub-counting, active secant, empty post, retracted post detection, broken needle, disconnection alarm) has low requirements on manual technology, and the whole machine is safe, energy-saving and efficient. .
Model | MF-SXM460F |
Power | 2KW |
Max Sew Size | 460*320mm |
Min Sew Size | 150*80mm |
Needle quantity (Maximum) | 12 groups |
Needle distance | 18mm |
Sewing Speed | 90times/min |
Machine Dimension | 2240*1400*1500mm |
Net Weght | 1400kg |
Core technology
1. Intelligent control, lower demands for manual technology; Machine is safety, energy saving and high efficiency.
2. Equipped with a signature automatic righting device to make the bottom hole accurate.
3. Circulating pull gauges smoothly deliver the signatures.
4. The height of the acceleration wheel can be intelligently set to make the signature move smoothly.
5. High-precision machining, the needle plate is equipped with a linear guide rail to ensure the accuracy of the needle position and reduce the adjustment time and process.
6. Equip with advanced automatic book publishing mechanism and automatic lifting platform
2. Equipped with a signature automatic righting device to make the bottom hole accurate.
3. Circulating pull gauges smoothly deliver the signatures.
4. The height of the acceleration wheel can be intelligently set to make the signature move smoothly.
5. High-precision machining, the needle plate is equipped with a linear guide rail to ensure the accuracy of the needle position and reduce the adjustment time and process.
6. Equip with advanced automatic book publishing mechanism and automatic lifting platform
Technology innovation

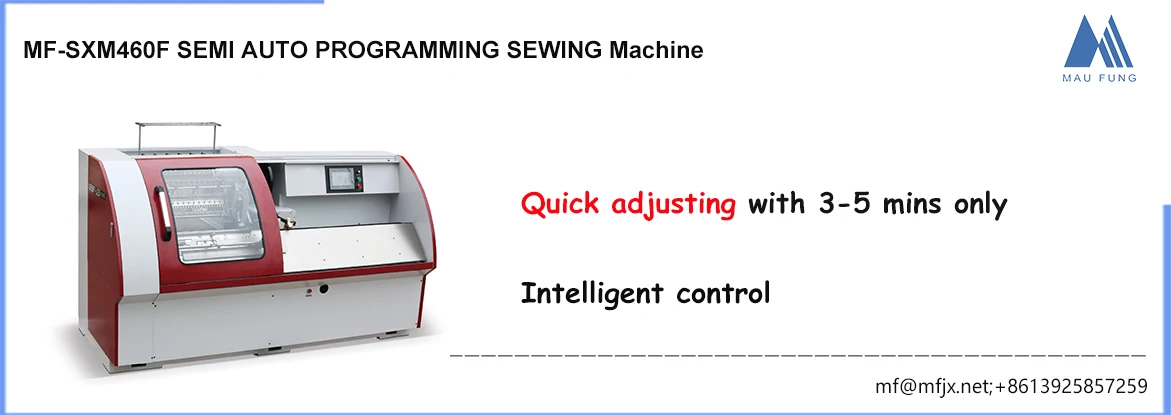

The machine is easy to adjust. It only takes 3-5 minutes to change the specification. The maximum lock line size can be 460*320mm, and the thick (1200g) thin (one sheet) page lock line can achieve the desired effect, fully reflecting the lock line.
