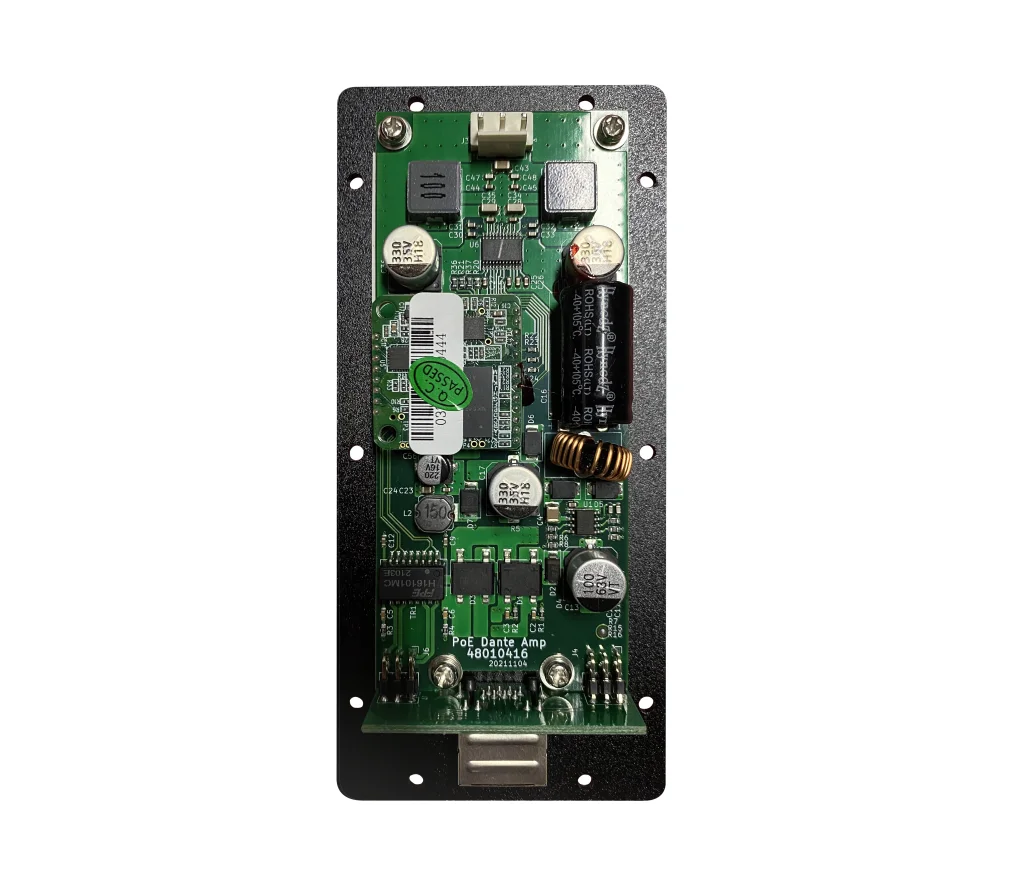

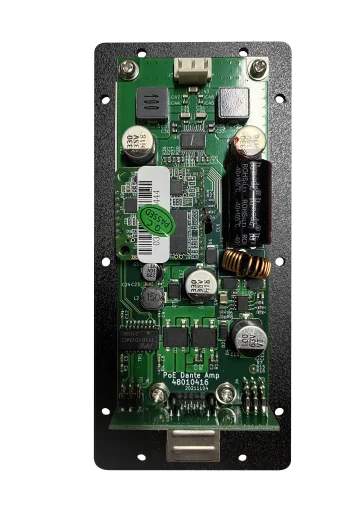

S TRACK CICADA D115 PoE Dante Full Network Digital Amplifier Module
- Category: >>>
- Supplier: Shenzhen S-Track Science & Technology Co. Ltd.
Share on (1600593814331):
Product Overview
Description
Products Description
Cicada D115\\D130\\D160 module is a POE power supply, Dante to analog signal output, built-in DSP processing function, full network digital amplifier module products, generally built into the speaker. It can be adjusted visually through PC software to meet different needs for sound quality. The audio transmission using Dante network protocol has the characteristics of freedom from transmission line interference, high fidelity and no delay. The use of network transmission, engineering wiring is simple, can make the installation of amplifiers and speakers more convenient, safe and reliable new products.
POE Power Supply: support IEEE 802.3af/at/bt standard respectively.
DSP Processing Functions: including scene saving, scene import, scene export, reset, 5-band equalizer, high-pass filter, low-pass filter, treble enhancement, bass enhancement, limiter, gain, etc..
POE Power Supply: support IEEE 802.3af/at/bt standard respectively.
DSP Processing Functions: including scene saving, scene import, scene export, reset, 5-band equalizer, high-pass filter, low-pass filter, treble enhancement, bass enhancement, limiter, gain, etc..

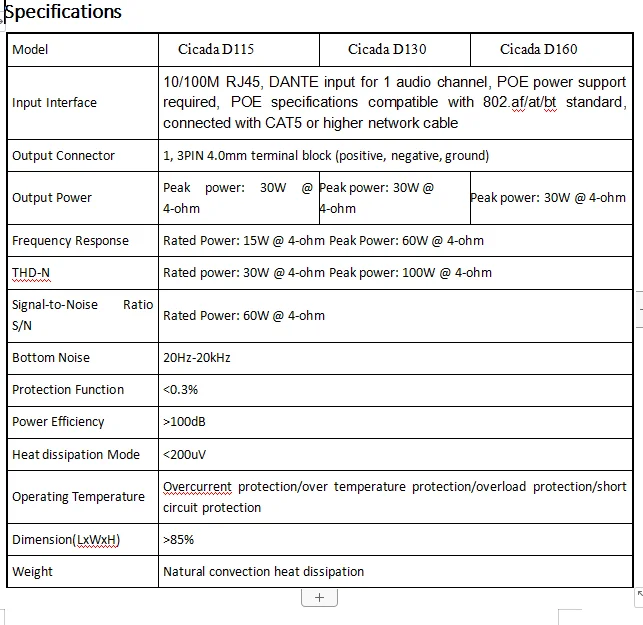

Model | Cicada D115 | Cicada D130 | Cicada D160 | ||
Input Interface | 10/100M RJ45, DANTE input for 1 audio channel, POE power supply support required, POE specifications compatible with 802.af/at/bt standards, connected with CAT5 or higher network cable | ||||
Output Connector | 1, 3PIN 4.0mm terminal block (positive, negative, ground) | ||||
Output Power | Peak Power: 30W @ 4-ohm Rated Power: 15W @ 4-ohm | Peak Power: 60W @ 4-ohm Rated Power: 30W @ 4-ohm | Peak Power: 100W @ 4-ohm Rated Power: 60W @ 4-ohm | ||
Frequency Response | 20Hz-20kHz | ||||
THD-N | <0.3% | ||||
Signal-to-noise ratio S/N | >100dB | ||||
Bottom Noise | <200uV | ||||
Protection Function | Overcurrent protection/over temperature protection/overload protection/short circuit protection | ||||
Power Efficiency | >85% | ||||
Heat dissipation method | Natural convection heat dissipation | ||||
Operating temperature | -10℃ ~ +40℃ | ||||
Dimension(LxWxH) | 148mmx68mmx20mm | ||||
Weight | 185g | ||||
Company Profile
Exhibition
Certifications
FAQ
1.Q:Are you the manufacturer?
A:Yes,We are the manufacturer located in Shenzhen.
2.Q:Are you provide OEM/ODM services?
A:Yes,We can provide OEM,ODM.
3.Q:What's the warranty of this products?
A:We can provide two years warranty.
4.Q:What certificates do you have?
A:Our products passed CE,ROHS,CCC,FCC,ISO9001 certificates.
5.Q:What's products you have?
A:Our products line including the DSP audio processor,Dante Interface,Dante Box,Dante adapter,Dante speaker,Dante micphone,Dante amplifier,also we can provide a series Dante solution to our customer at education,conference etc...
A:Yes,We are the manufacturer located in Shenzhen.
2.Q:Are you provide OEM/ODM services?
A:Yes,We can provide OEM,ODM.
3.Q:What's the warranty of this products?
A:We can provide two years warranty.
4.Q:What certificates do you have?
A:Our products passed CE,ROHS,CCC,FCC,ISO9001 certificates.
5.Q:What's products you have?
A:Our products line including the DSP audio processor,Dante Interface,Dante Box,Dante adapter,Dante speaker,Dante micphone,Dante amplifier,also we can provide a series Dante solution to our customer at education,conference etc...
