QSMOTOR 138 3000W V3 70H 5500W Max continuous 72V 100KPH Mid drive Motor conversion kit with EM150-2SP Controller

For138 motor powertrain kits,it could be used for electriclight motorcycle, which could be 72V100KPH.

e.g. Dirt bike

E-motorcycle weight, approx 128kg+2*80kg

Speed: continuous 100km/h

Gear ratio: 1:2.35

Climbing slope: 25°@5kph @208kg

Battery: 72V40h

Tire: 130/70-17

P.S. If you have any confused about the shipping cost, please feel free to contact with us.

Also could place order but don't pay first, then we could adjust the price.

Combo1

1.1pc XQS 138 3kW V3 Mid drive motorwith 15T 428 sprocket adapter

2.1pcs X EM150SP sine wave motor controller with standard CAN-BUS

Combo2

1.1pc XQS 138 3kW V3 Mid drive motorwith 15T 428 sprocket adapter

2.1pcs X EM200SP sine wave motor controller with standard CAN-BUS

Combo3

1.1pc XQS 138 3kW V3 Mid drive motorwith 15T 428 sprocket adapter

2.1pcs X EM150-2 sine wave motor controller with standard CAN-BUS

Key Features

1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

Product Description

1.QSMOTOR 138 3000W Mid drive motor with 15T 428 sprocket adapter

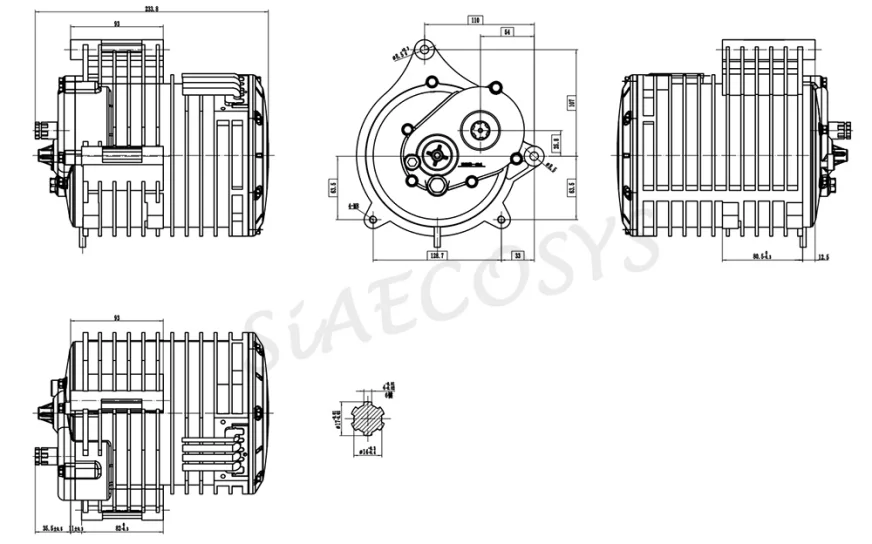

Drawing

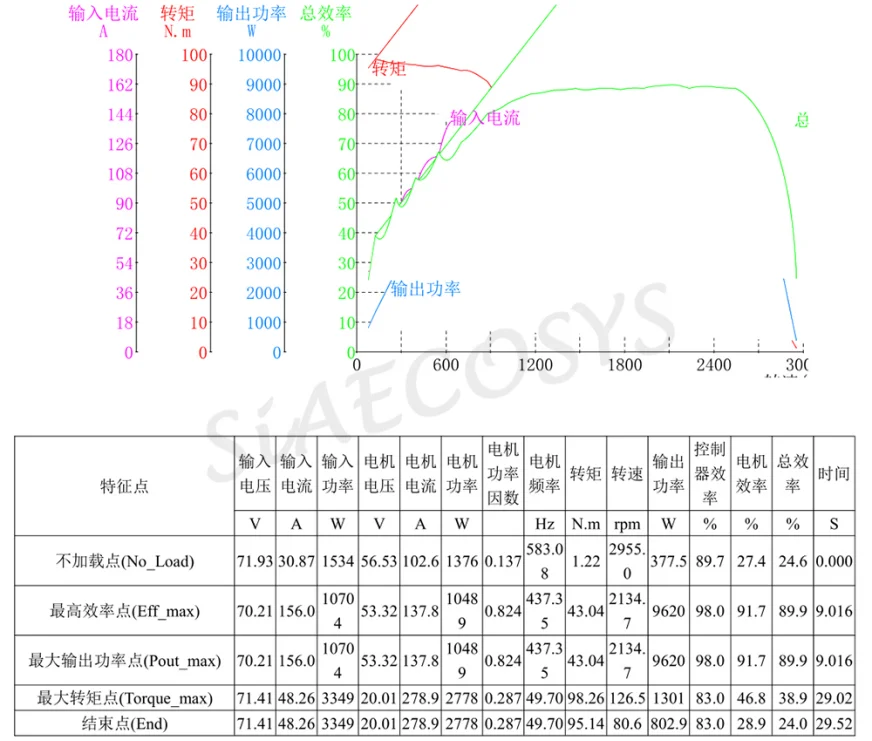

Test Report

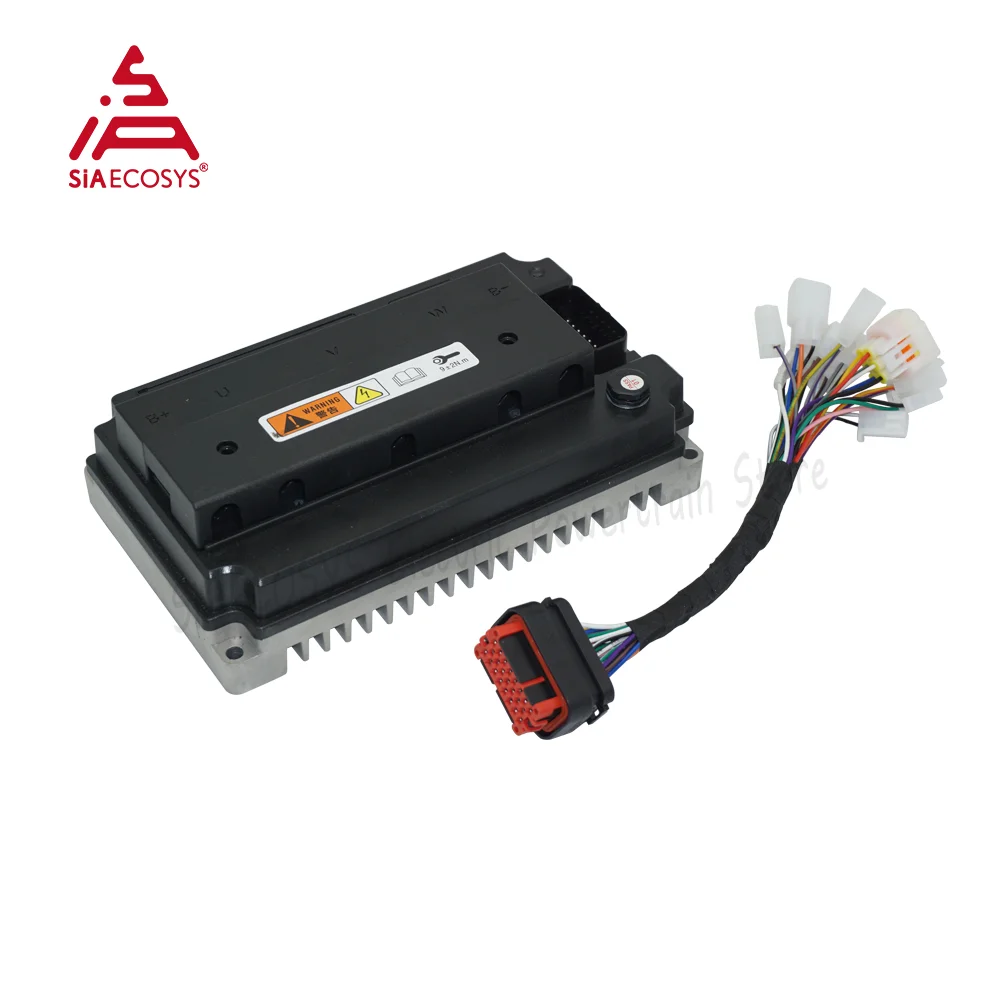

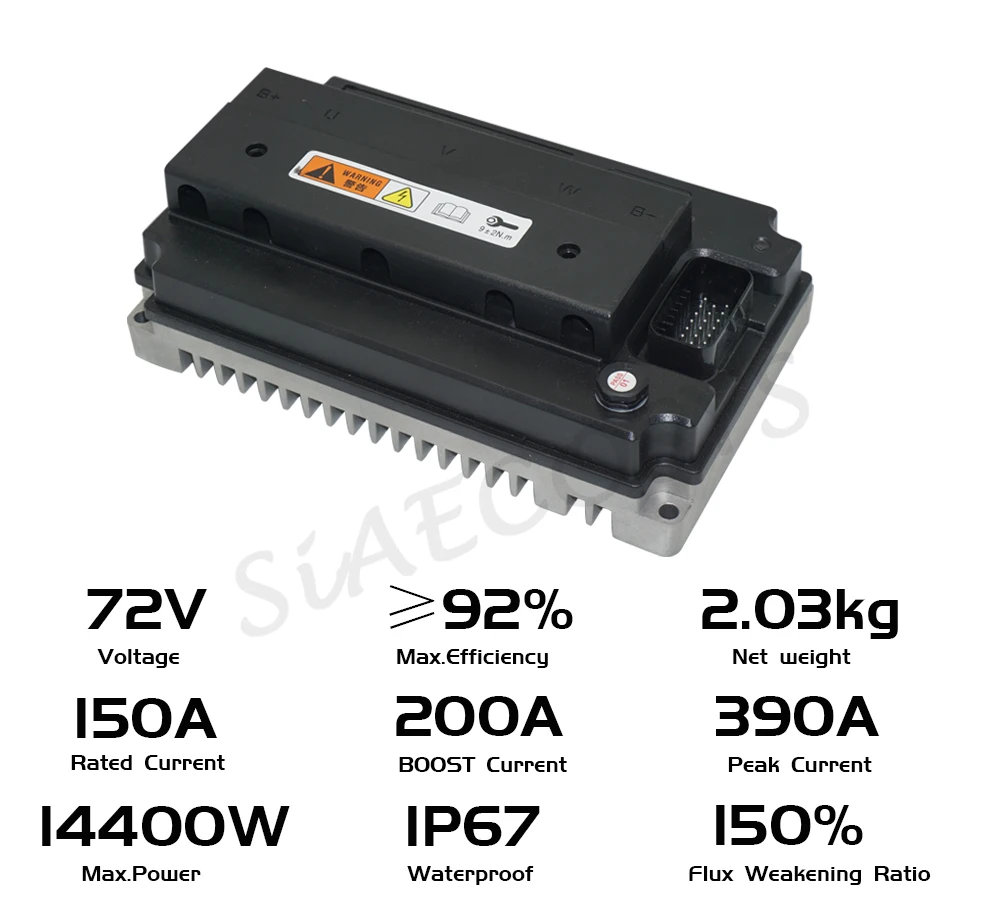

2.EM150-2SP sine wave motor controller with standard CAN-BUS

There is latest new hardware controller, it support 1st2nd3rdspeed gear, sport mode, reverse mode (no Parking mode), soft start as default.

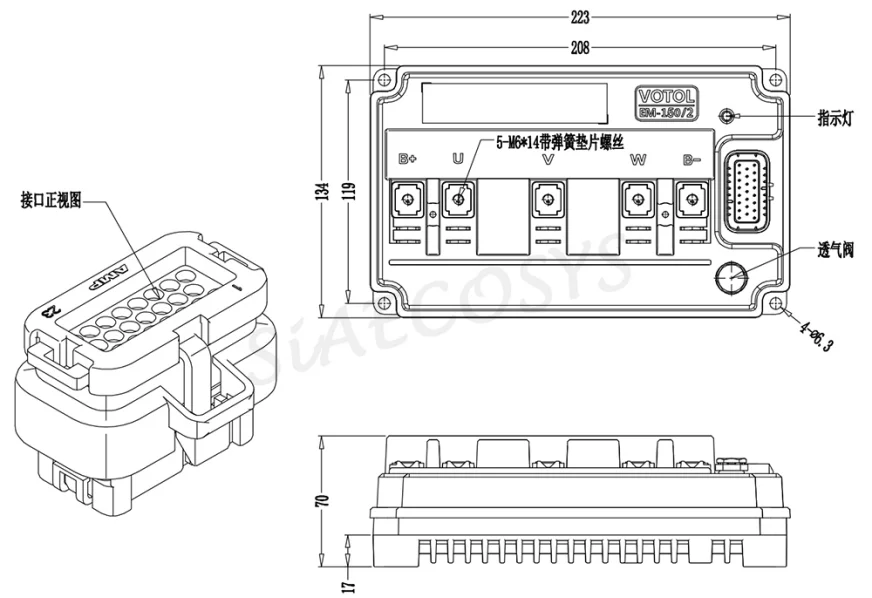

Drawing for EM150-2sp Controller

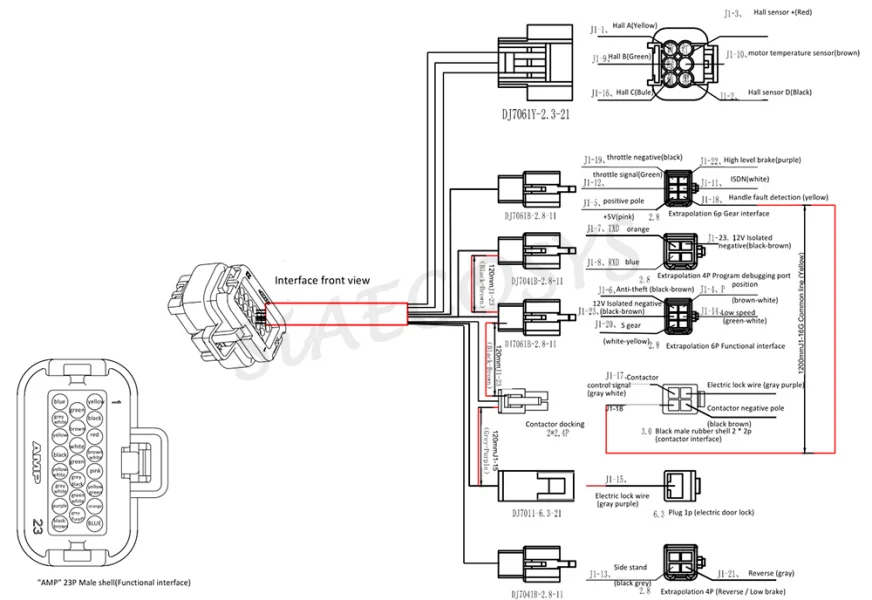

Controller Wiring Definition

3.Vehicle Wiring suitable for EM50sp-EM150sp controller

Wiring Diagram

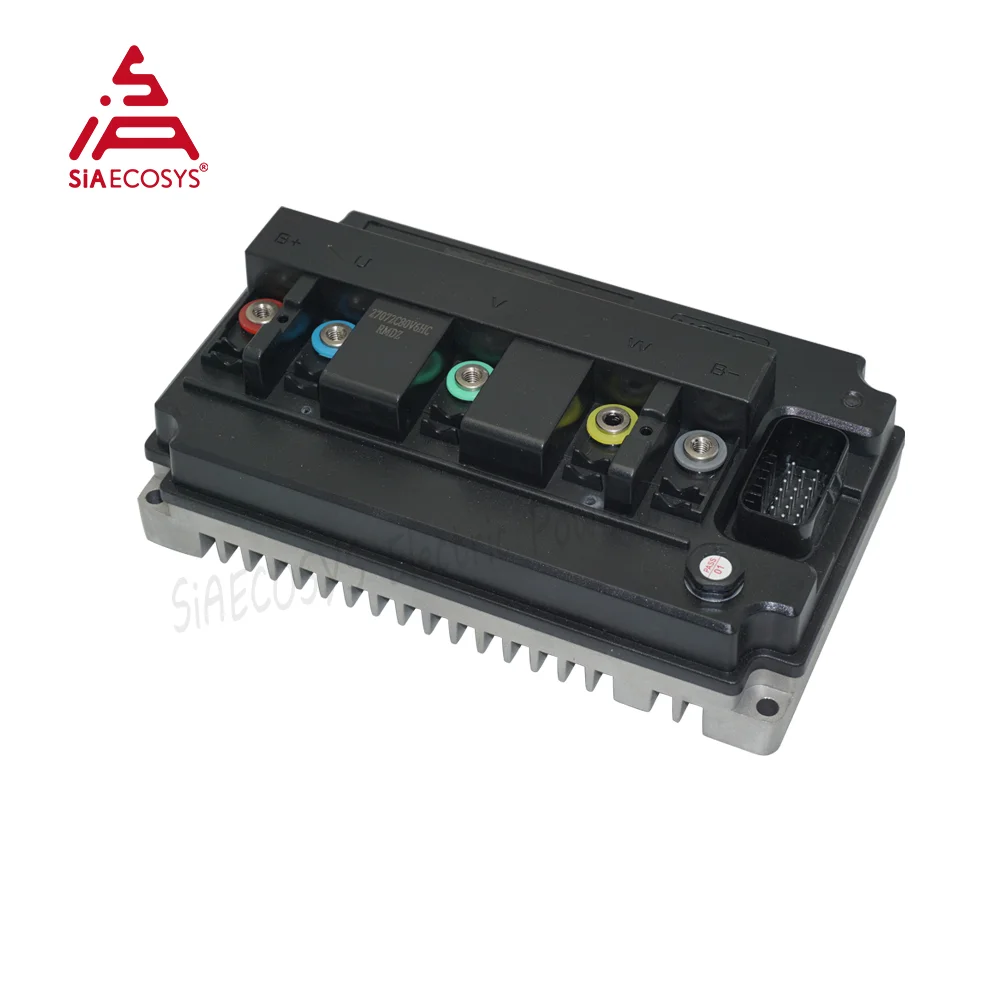

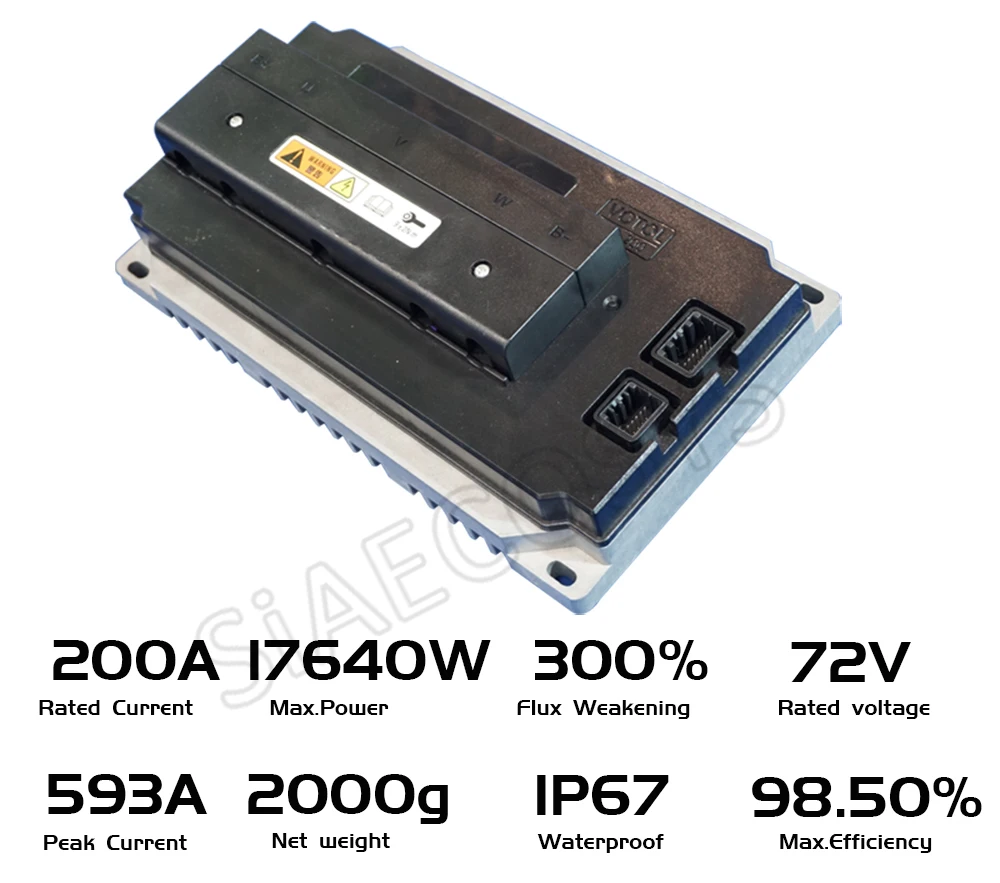

3.EM200SP sine wave motor controller with standard CAN-BUS

There is latest new hardware controller, it support 1st2nd3rdspeed gear, sport mode, reverse mode (no Parking mode), soft start as default.

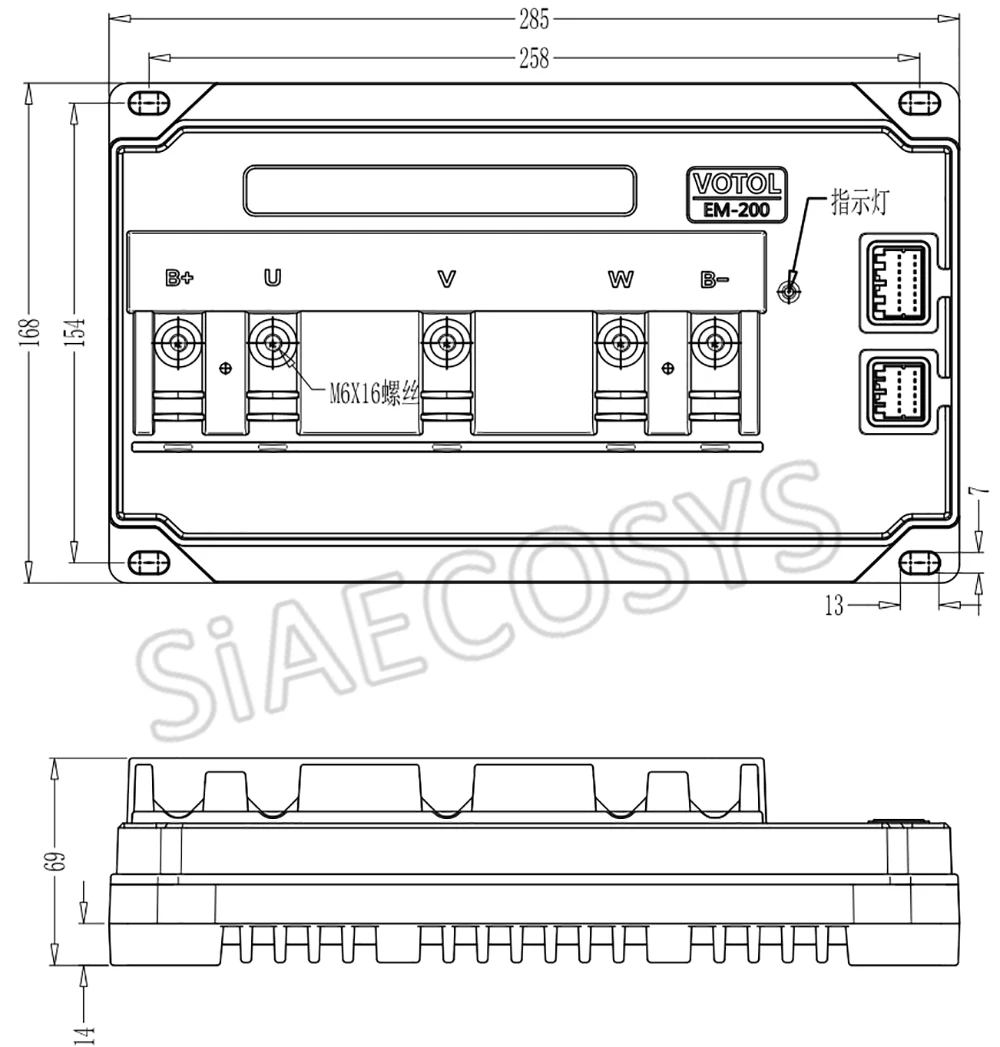

Drawing for EM200sp Controller

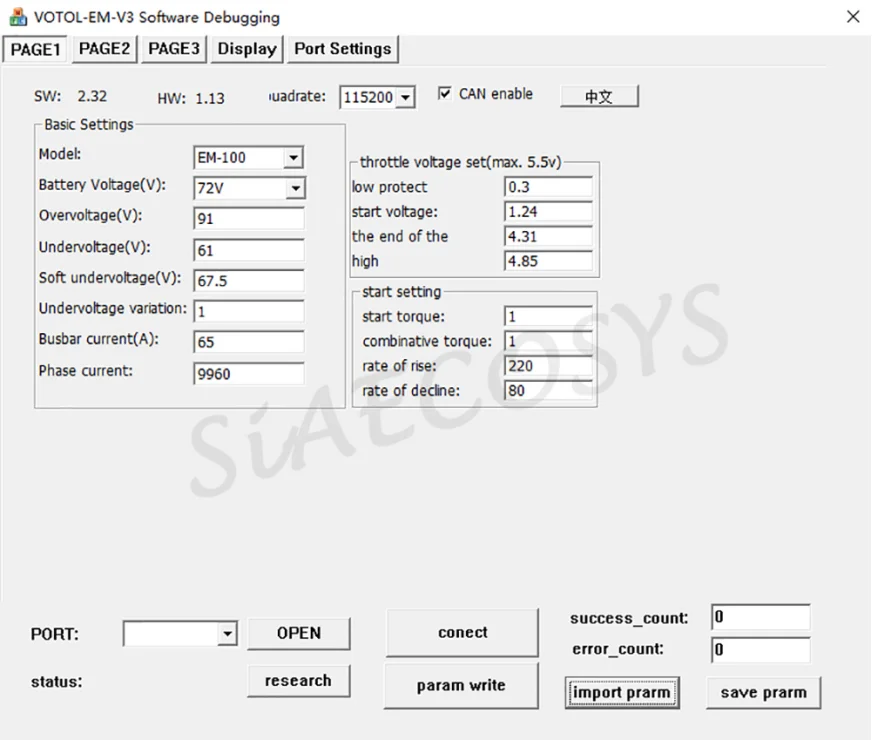

EM Controller Software Interface
