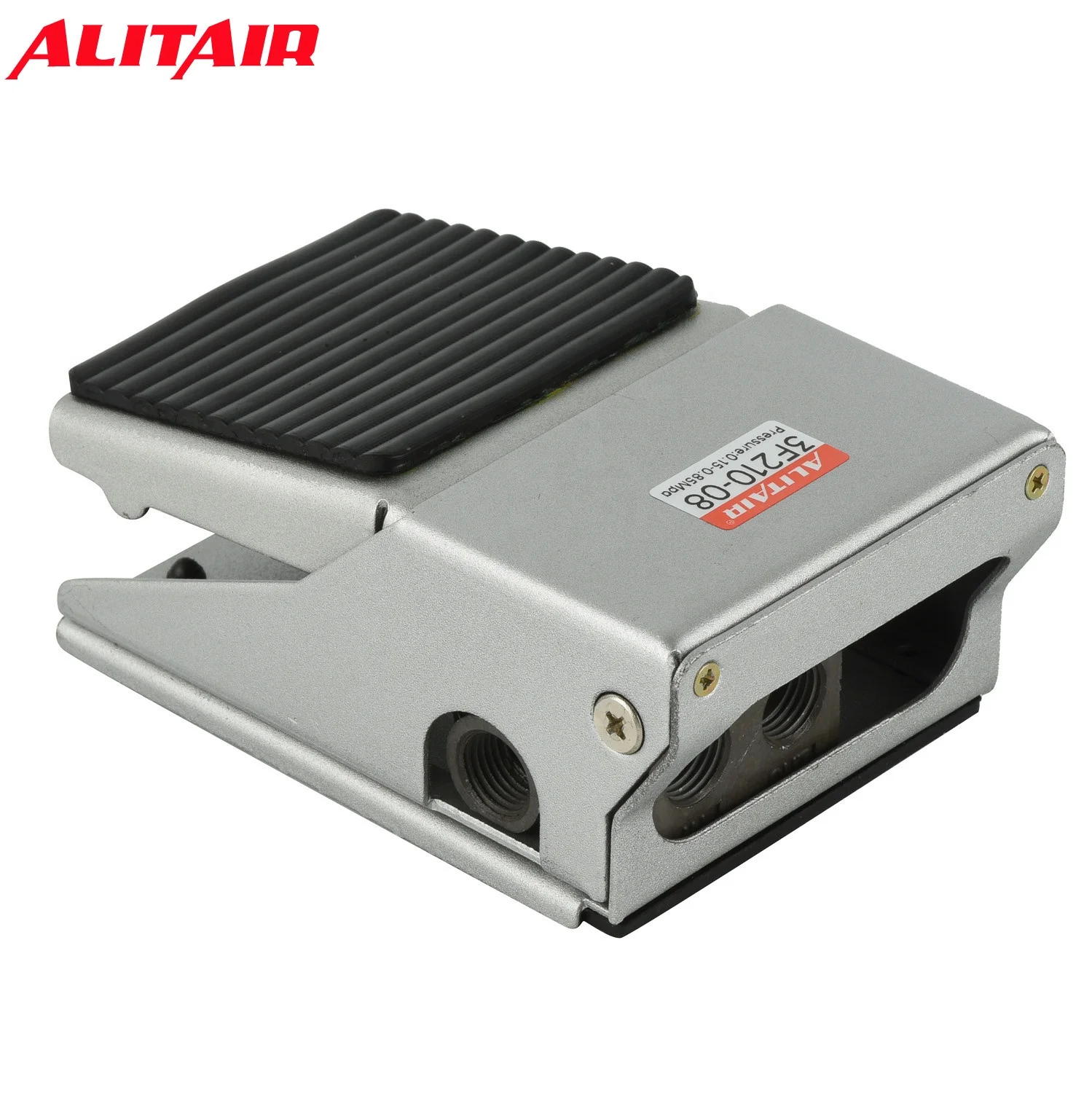

Airtac Type 3F210 08 Aluminum Foot Pedal Lock Cover Valve
- Category: >>>
- Supplier: Ningbo Alita Pneumatic Co. Ltd.
Share on (1600593952558):
Product Overview
Description
Product Description
Specifications
plastic foot valves
2 position, 5 way
exhaust outlet:1/4"
motion pattern,direct drive type
various types are available
Model : 3FM210-M5 3F210-06 3FM210-06 3FM210-08 3F210-08
4F210-08 4F210-08L 4F210-08F 4F210-08LF
FV AND 4F type of foot valve,
Can with cup or not
plastic foot valves
2 position, 5 way
exhaust outlet:1/4"
motion pattern,direct drive type
various types are available
Model : 3FM210-M5 3F210-06 3FM210-06 3FM210-08 3F210-08
4F210-08 4F210-08L 4F210-08F 4F210-08LF
FV AND 4F type of foot valve,
Can with cup or not
Model | 4F210-08 | 4F210-08L | 4F210-08G | 4F210-08LG | FV420 | FV320 | |||||
Working Medium | Air(to be filtered by 40μ filter element) | ||||||||||
Motion Pattern | Direct drive type | ||||||||||
Valve Type | 5 port 2 way | 4 port 2 way | 3 port 2 way | ||||||||
Port Size | supply=Outlet=Exhaust=G1/4" | supply=Outlet==G1/4" Exhaust=G1/8" | |||||||||
Working Presure | 0~0.8MPa | ||||||||||
Max. Ambient Temperature | 0~60 o C | ||||||||||
1. The aluminum foot pedal is designed with direct acting, which is steady and reliable.2. If the duration of direction-change is
long, the valves with lock may be ed.
3. The clamping framework is steady and reliable that it is easy and quick to unlock. However, with the limitation of the
dimension of structure, it can not bear frequent strong impact.
4. Plastic guard with high strength may be ed.
Summary:
F series plastic foot valves have 1/4", M5 and 1/8", including 3/2, 4/2 and 5/2, spring return type, with lock, with cover, with
lock and cover type. Also produce the special valve according to the customers' requirements.
long, the valves with lock may be ed.
3. The clamping framework is steady and reliable that it is easy and quick to unlock. However, with the limitation of the
dimension of structure, it can not bear frequent strong impact.
4. Plastic guard with high strength may be ed.
Summary:
F series plastic foot valves have 1/4", M5 and 1/8", including 3/2, 4/2 and 5/2, spring return type, with lock, with cover, with
lock and cover type. Also produce the special valve according to the customers' requirements.
