New 12v And 220v Available Video Survey Cameras Wells Water Well Drilling Inspection Camera
Downhole TV (submersible camera) is a high-tech electronic instrument that captures video images in time in water. Downhole TV is composed of underwater camera, transmission cable, host control box, photoelectric encoder, electric winch and video system.It has the advantages of waterproof, high pressure resistance, high temperature resistance, but also has simple operation, large data volume, clear images, real-time image monitoring, collection, recording, at the same time to the remote and near scenery automatic focus, can present clear images, can be used for real-time preservation of monitoring data.Especially under the condition of dry hole and clean water hole, it can obtain very clear color images in real time, which provides a * basis for various hole accident handling, with unique intuition and authenticity
FEATURES AT A GLANCE
New 12v And 220v Available Video Survey Cameras Wells Water Well Drilling Inspection Camera
I. Physical button control system:

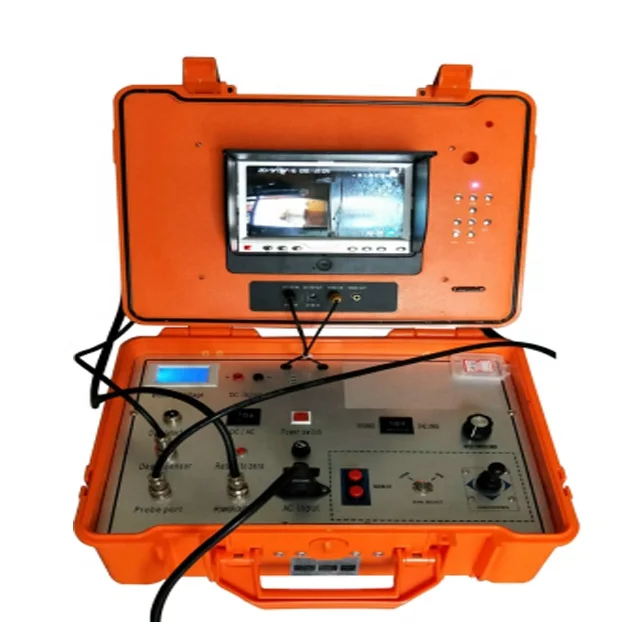

* ABS engineering plastic master control box / aviation aluminum alloy control box
* Voltage input: 220V / 12V
* Depth interface: connection depth sensor
* probe interface: connect probe, transmit video and power
* data interface: can write the well number, can calibrate the depth
* video system: ultra HD SD card video recorder, video, photo, direct back function, 16G SD card video system, maximum support 32G
* depth zero: please depth to zero before logging, in order to count accurately
* Depth display: depth real-time display to the control box display,
* display: 7 inch / 10 inch / 12 inch bright LED display,
* control box panel button operation of the direction and Angle of the downhole camera, rotation and camera light source brightness and focus length adjustment, and the rise and speed of the cable and camera probe
* 12v Battery power supply function, (available within 600 m of well depth
Right elevation
Left elevation
Front elevation

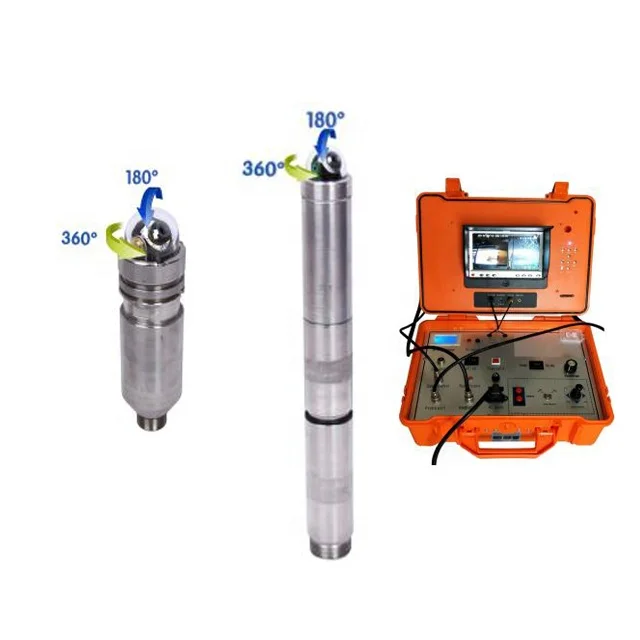

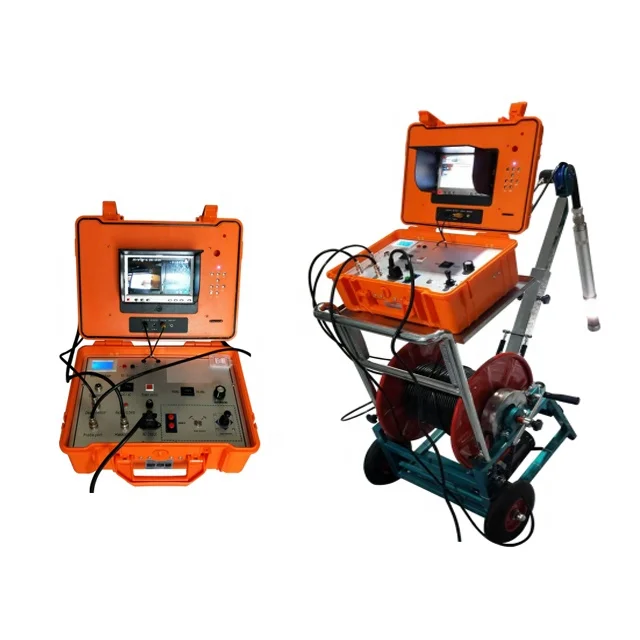

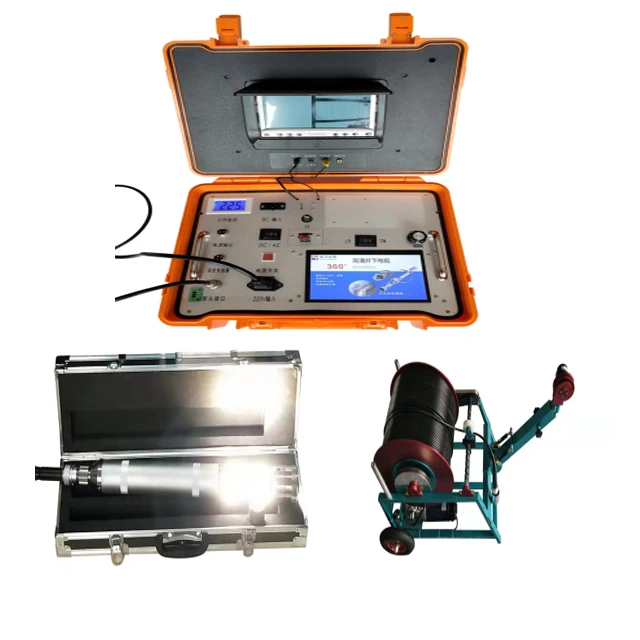

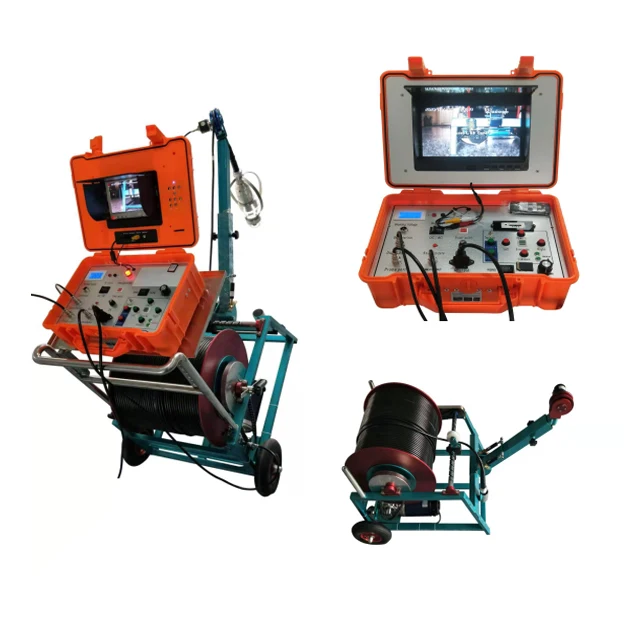

PRODUCT CONFIGURATION
New 12v And 220v Available Video Survey Cameras Wells Water Well Drilling Inspection Camera
PRODUCT SPECIFICATIONS
Downhole TV in oil, hydrological drilling is mainly used for the division of formation structure, wall formation fissure and karst development discrimination, distinguish fault fracture development zone, determine the karst distribution position and long-term monitoring in hole, downhole TV can in vertical drilling, horizontal drilling and have any Angle of drilling monitoring.In the repair project of the well, the underground TV mainly detects the damage of the casing, the falling objects in the well and the filter pipe hole. It can shoot the damage and leakage of the casing and casing wall of the burning well in real time, and transmit the clear images to the display on the ground by using its supporting special underwater cable

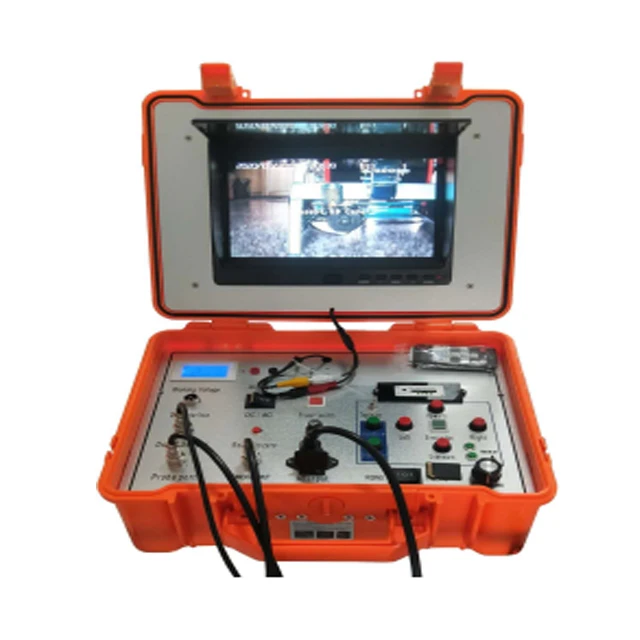

Control Box | ABS engineering plastic control box, 220V (12V is optional) input |

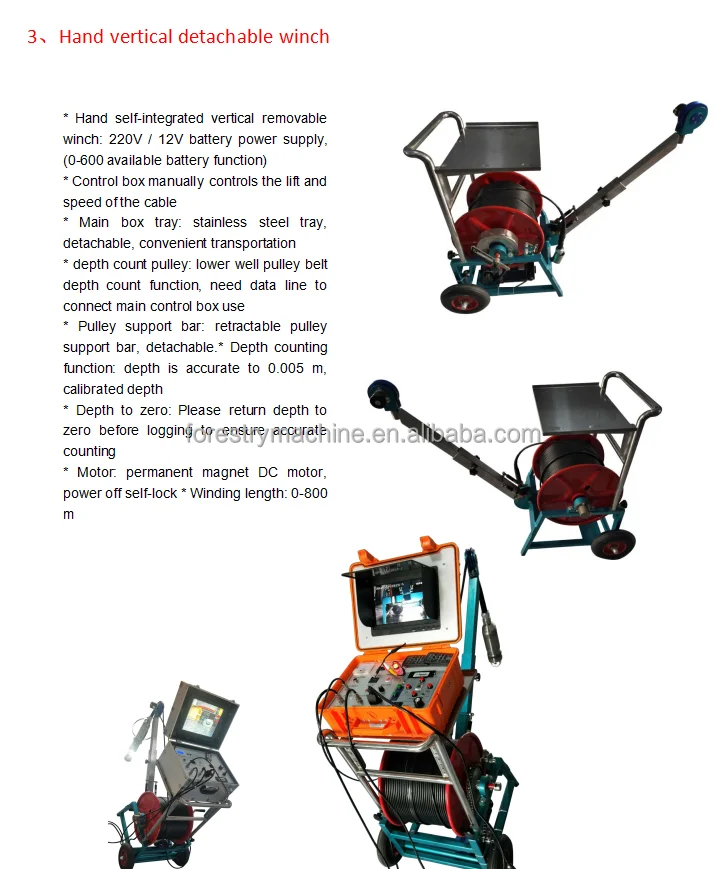

Winch | Electric and manual combined winch, detachable |
Monitor | 7 inch (optional 12 inch) LED high brightness monitor |
Control and Video Recording System | Ultra HD SD recorder. The control panel controls the direction and angle of the downhole camera and the adjustment of the brightness and focal length of the camera light source; the control box manually controls the lifting and speed of the cable and the probe. |

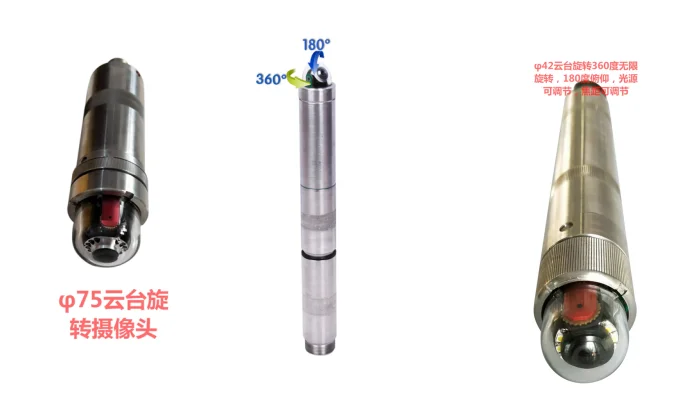

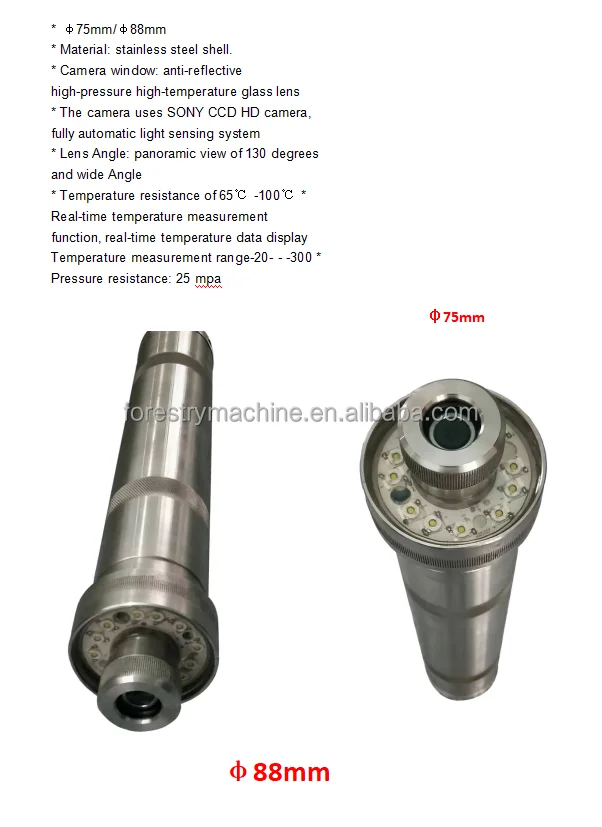

Single Rotary Probe | Φ90mm, φ75mm, φ40mm is optional. The camera rotates 360 degrees clockwise and infinitely counterclockwise, tilting 180 degrees flip. Brightness focal length is adjustable. Manually control the direction and angle of the downhole camera, the brightness of the light source and focal length for clear video images, 5-level dimming. φ40cm and φ75mm probe are with front 6/8 highlight patch beads, φ90mm probe is with front 12 highlight patch beads, rear 16 LED strong light bulb bezel focal |

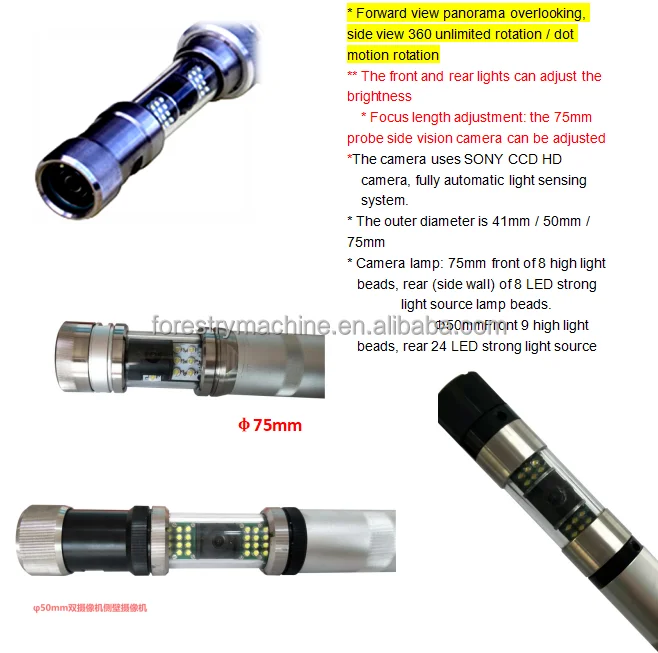

Dual Rotary Probe | Φ75mm, φ50mm, φ41mm is optional. Front rear camera, rear side wall camera 360 degree clockwise rotation and counterclockwise infinite rotation. Brightness of the light source can be adjusted for both front and rear lights, five-level dimming. φ75mm side wall camera can adjust the focus. |
Depth Counter | Accurate to 0.005m |
Logging Cable | 6-core Bearing, 800m |
Centralizer | High Elasticity Stainless Steel |
12V Input(Optional) | Battery power supply function (available within 800 meters) |
Tool Box | Camera probe and connecting cable and accessories |

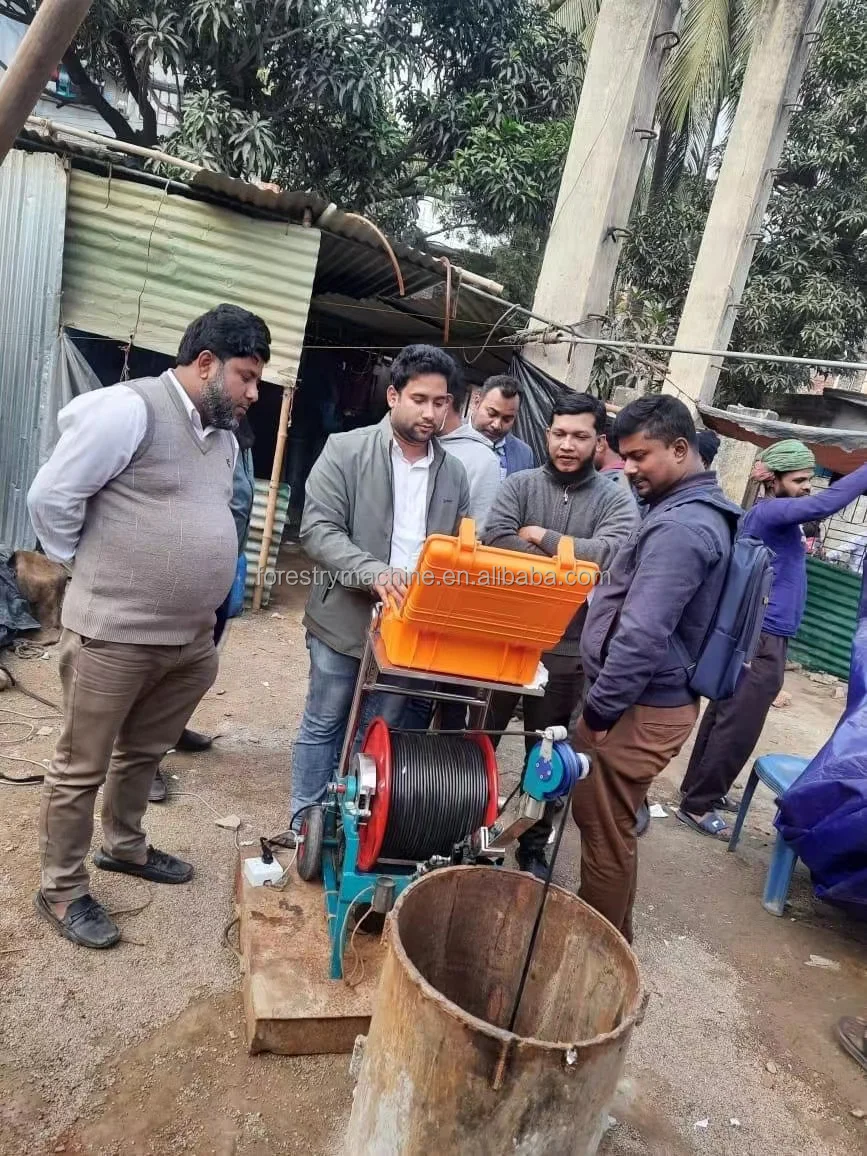

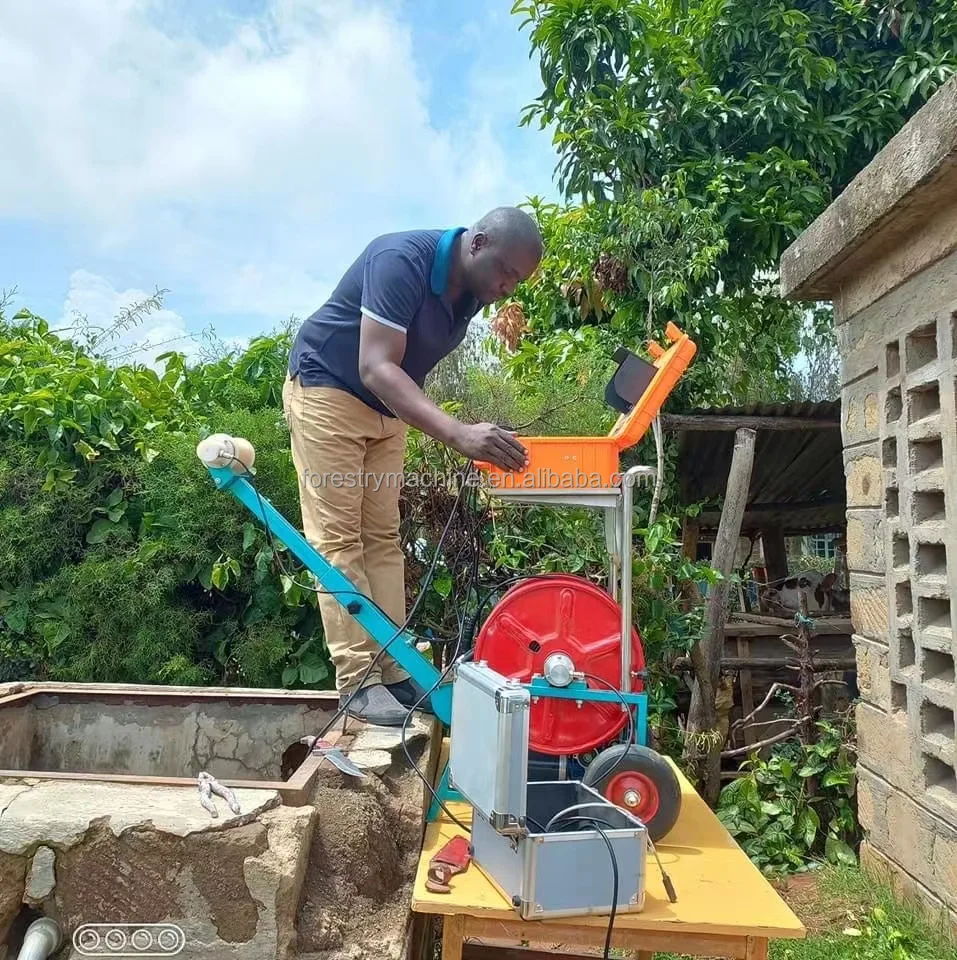

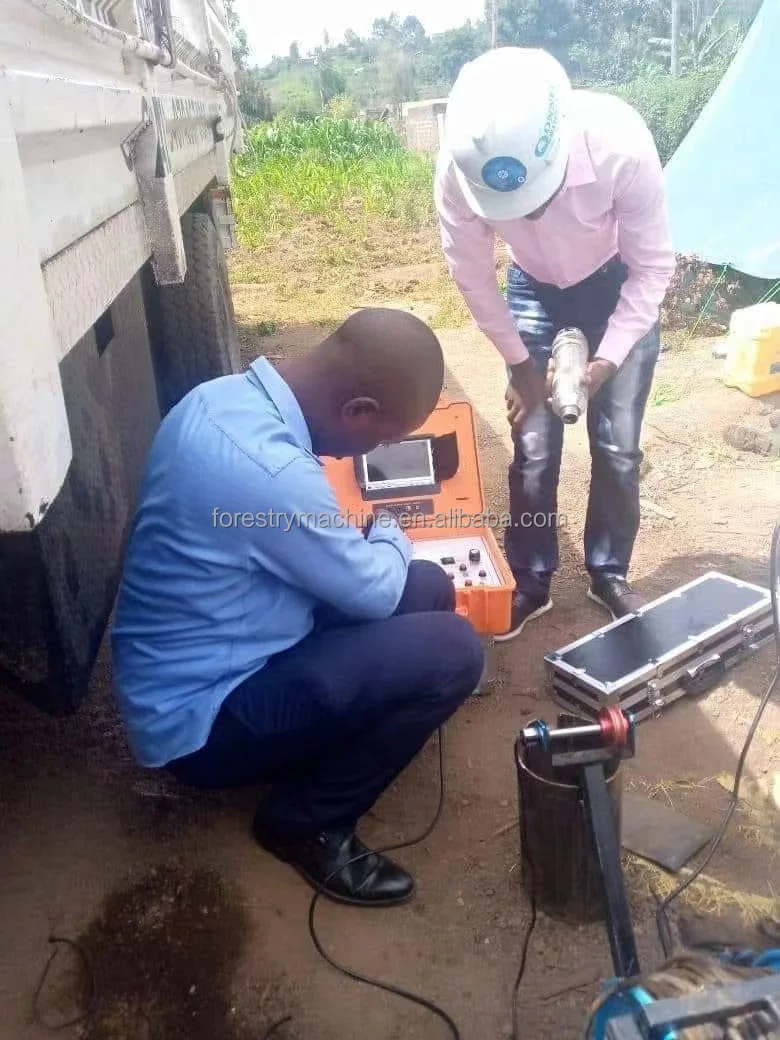

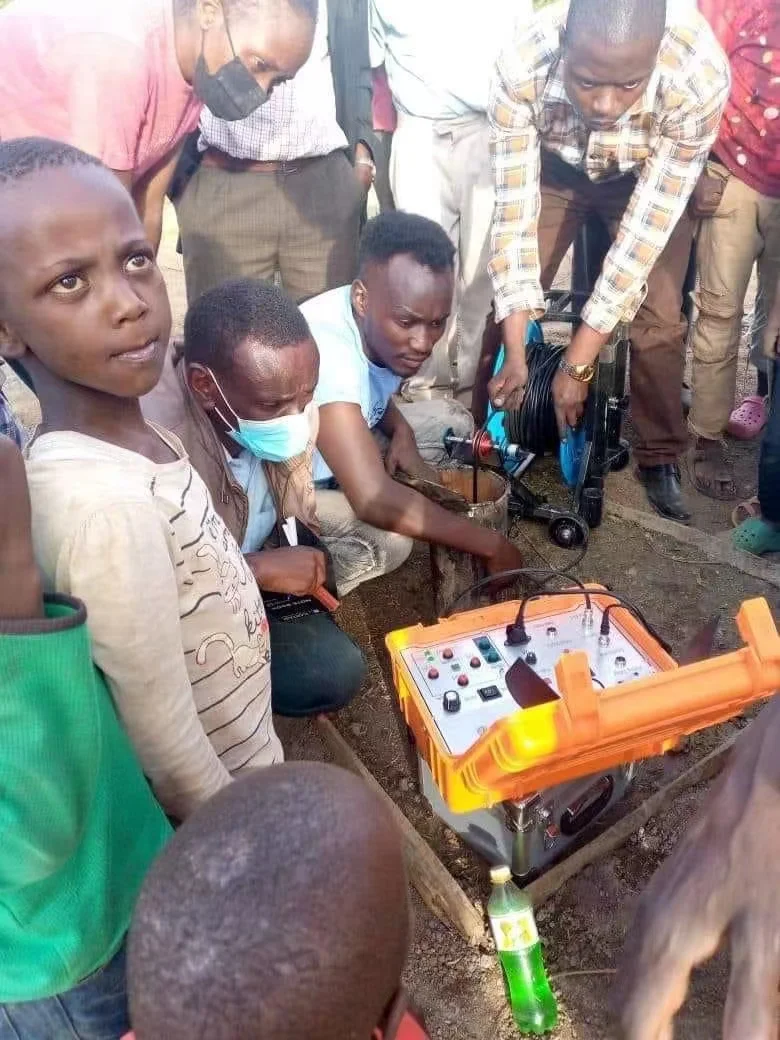

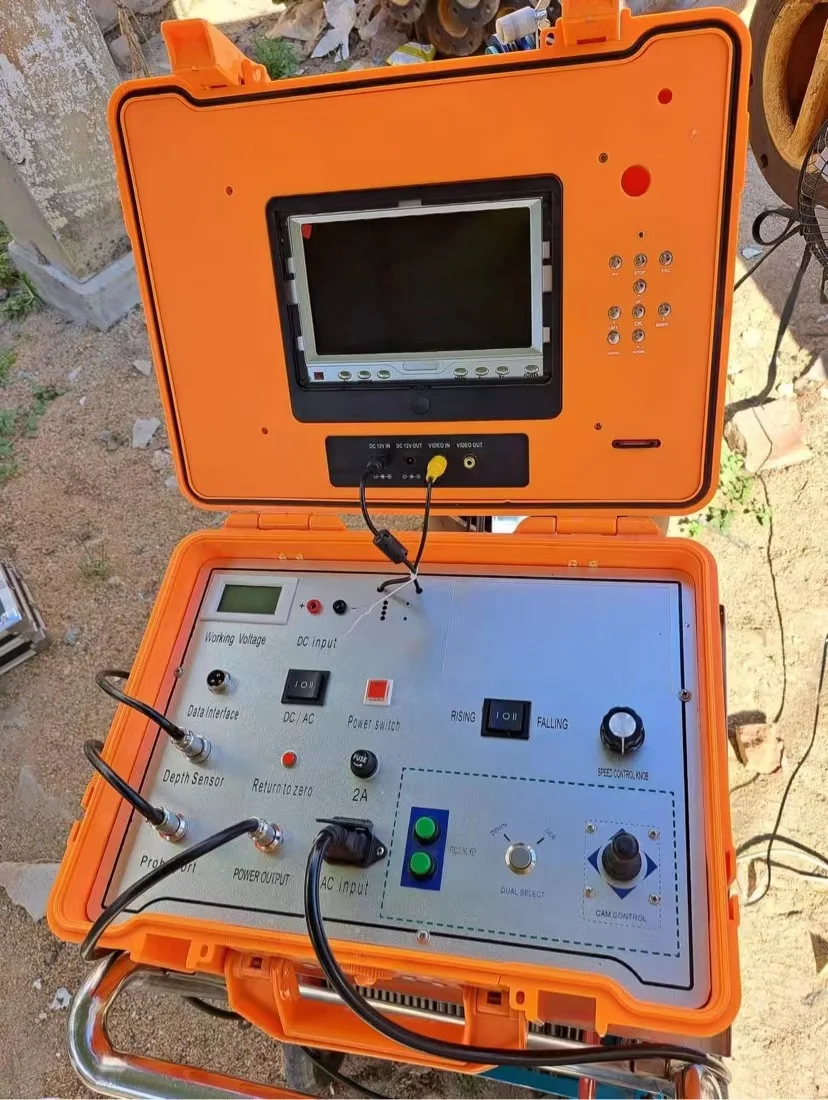

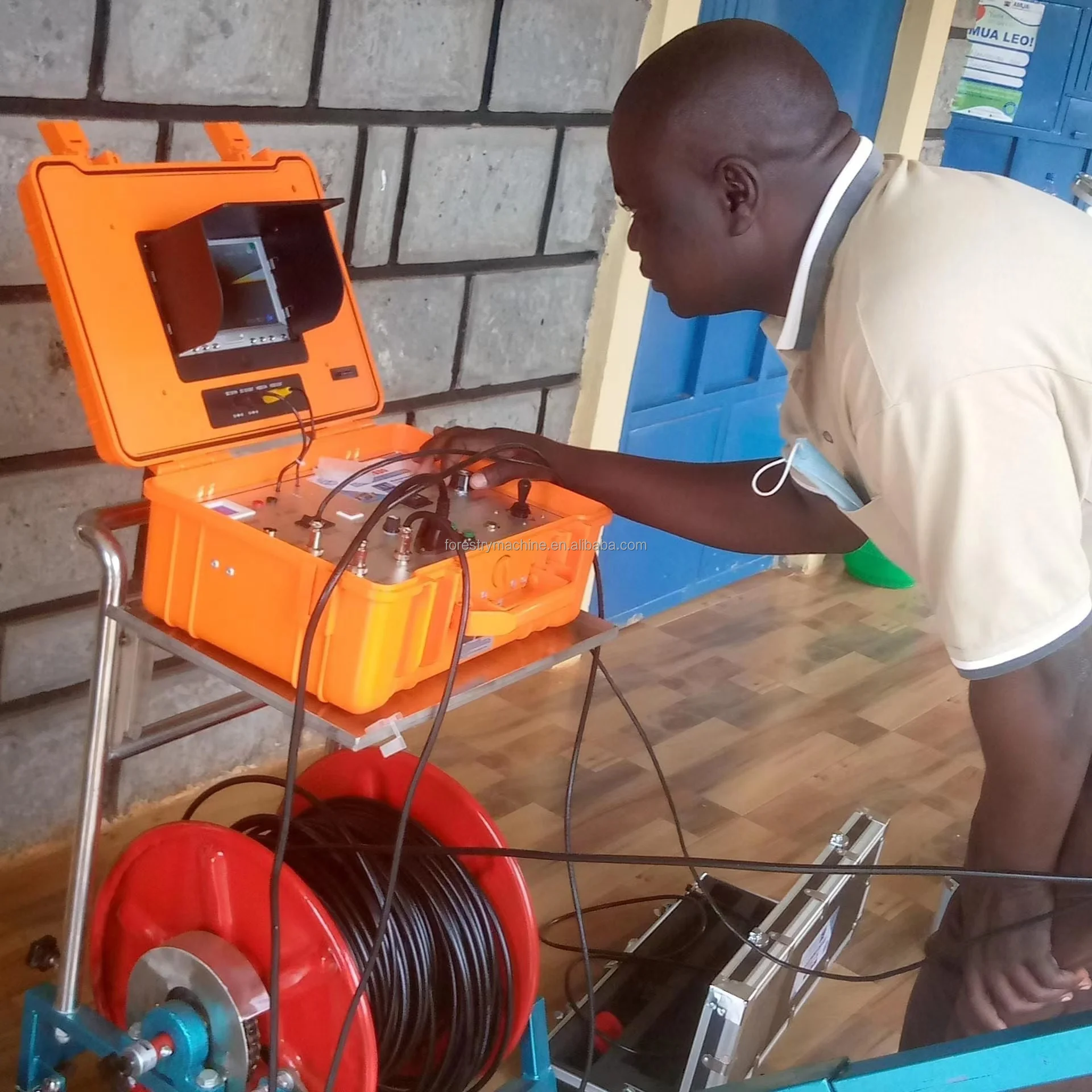

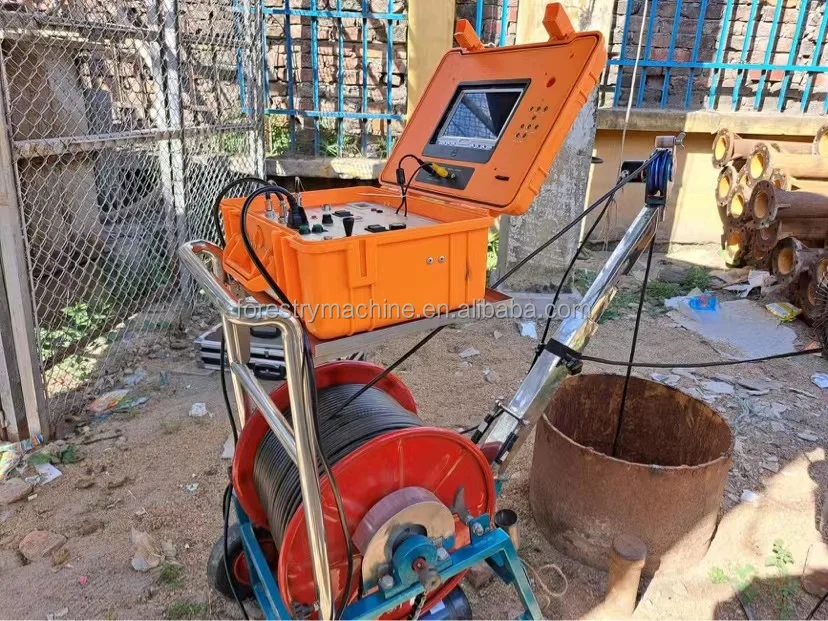

Customer Photos
