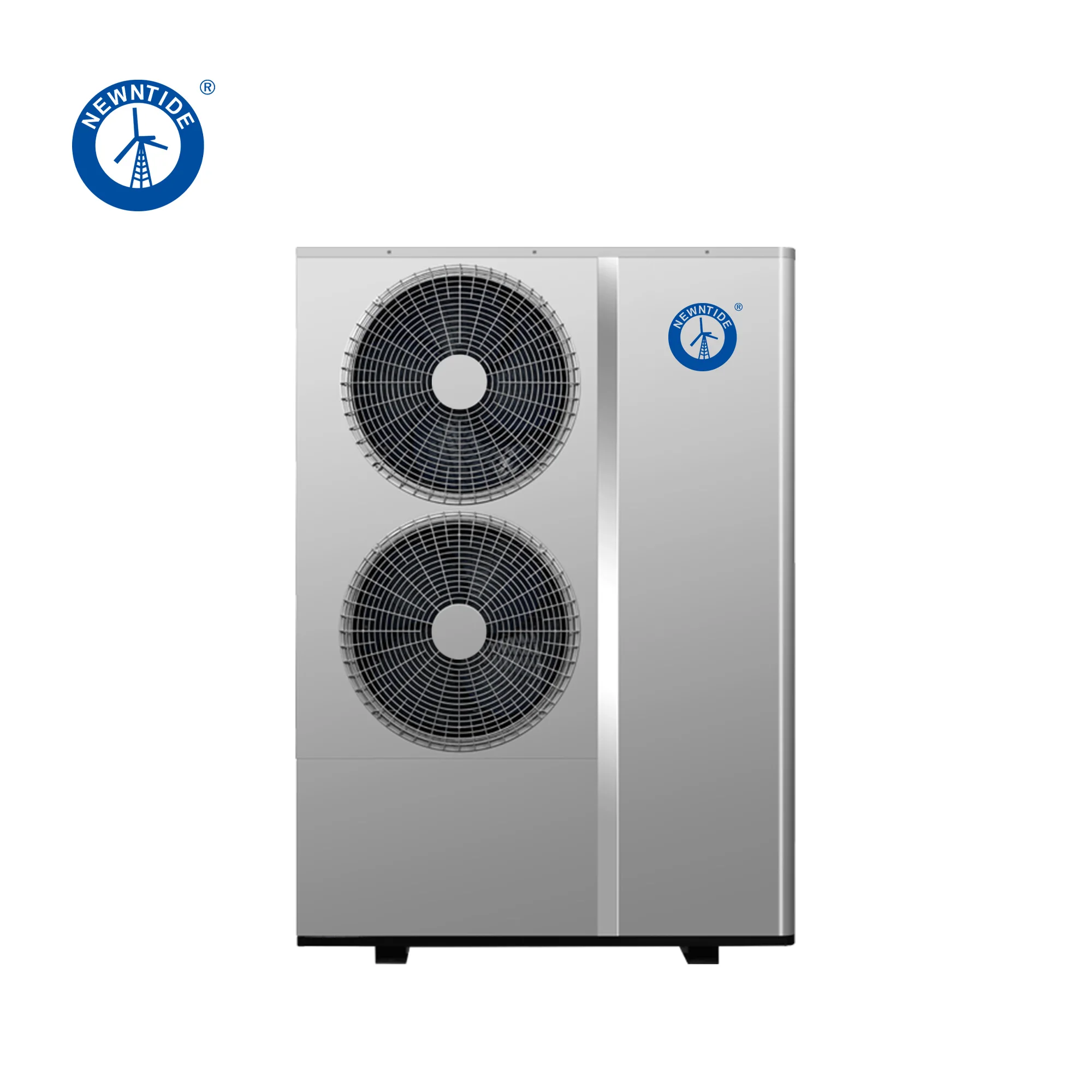

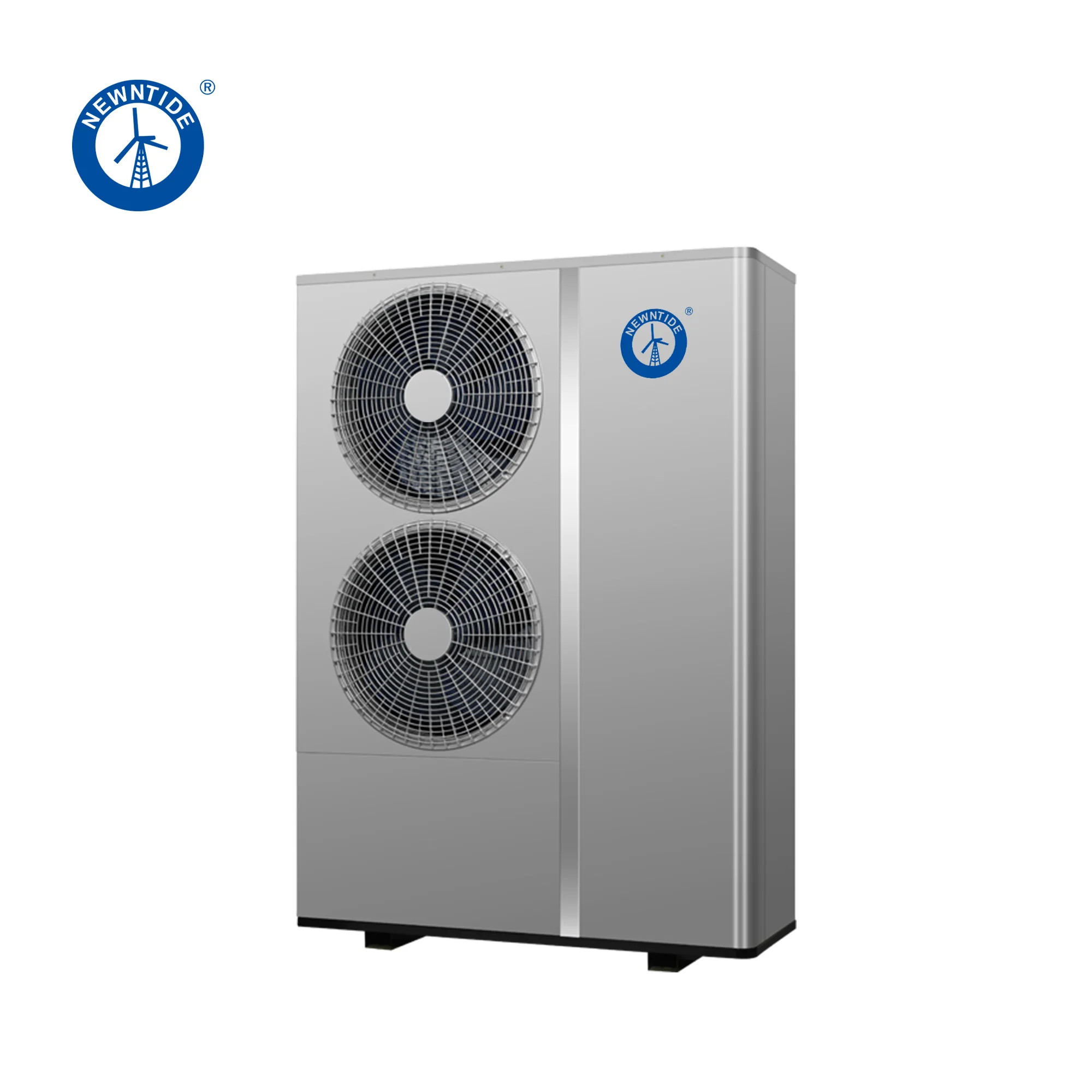

Monoblock Residential Hot Water Heater for House Heating Inverter heat pump
- Category: >>>
- Supplier: Guangdong New Energy Technology Development Co. Ltd.
Share on (1600594259019):
Product Overview
Description
Company Profile
Why Choose New Energy NEWNTIDE? | ||||||||
"NEWNTIDE", is the brand name and short for Guangdong New Energy Technology Development Co., Ltd. (广东纽恩泰新能源科技发展有限公司) | ||||||||
1. As one of the largest manufacturers of Swimming Pool Heat Pumps, House Heating Heat Pumps, Heating & Cooling Heat Pumps and Heat Pump Water Heater in China. New Energy's vision is "Air Energy for changing Life". | ||||||||
2. No.1 in volume of air source heat pump water heater supplying for domestic market and sharp growing for overseas markets. | ||||||||
3. Leading brand with over 1100 patents & Turnover 220 million USD in 2020. | ||||||||
4. Two production bases with Annual capacity up to 2 million units. | ||||||||
5. ISO9001, CE, Erp Energy Label, ROHS, ETL, SAA, C- tick are certificated. | ||||||||
6. Long-term strategic partnership with Japnese Mitsubishi & Emerson. | ||||||||
Product Description
Hurricane Series: Full DC inverter, hot water heat pump | ||||||||
As a smart domestic water heater based on the Full Inverter Technology, Hurricane Series All in One Hot Water Heat Pump performs excellently in energy-saving and noise control. It's no doubt an ideal choice for the green lifestyle. | ||||||||
Product Details

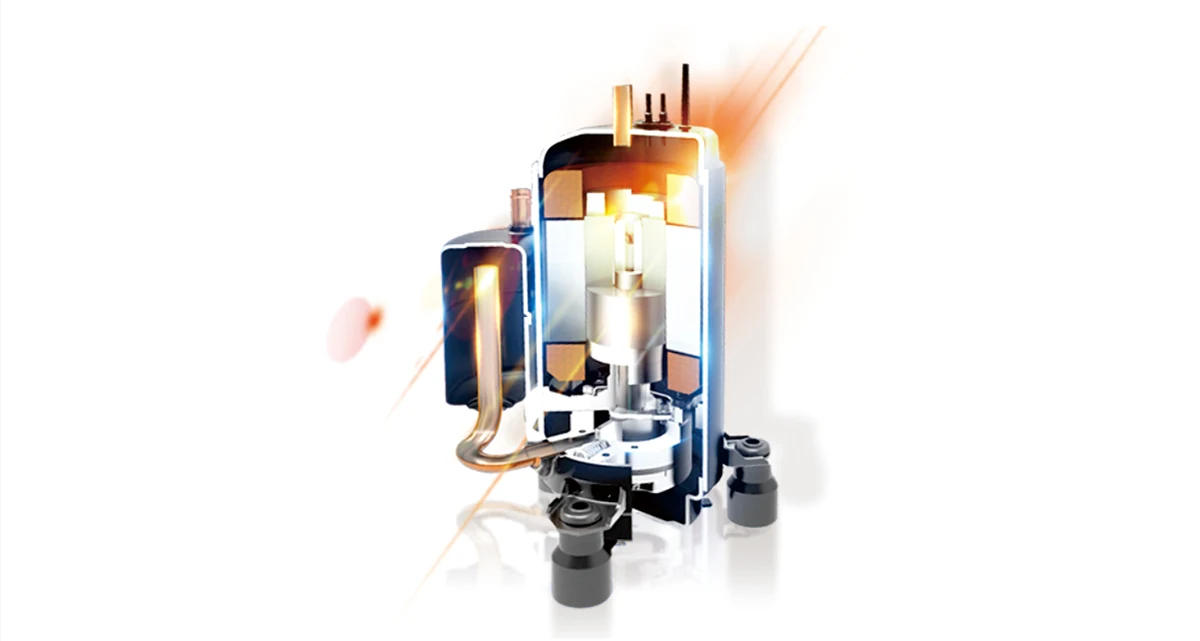

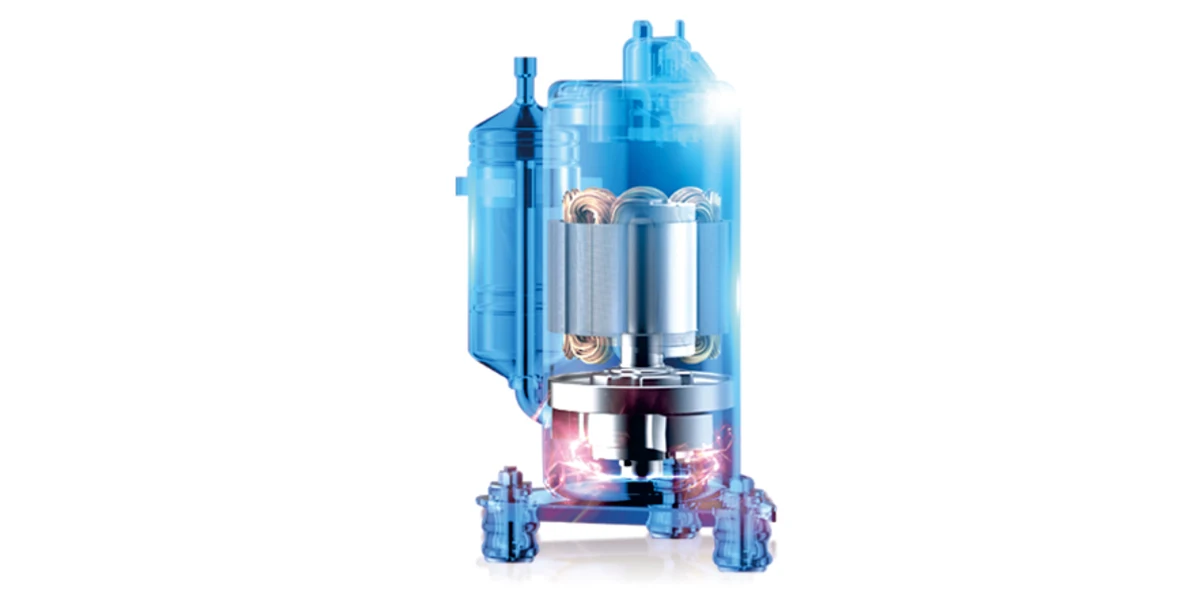

● Twin-rotary Mitsubishi Compressor
The world famous twin-rotary compressor is running quietly and powerful, and proved to be more stable with long lifetime span.

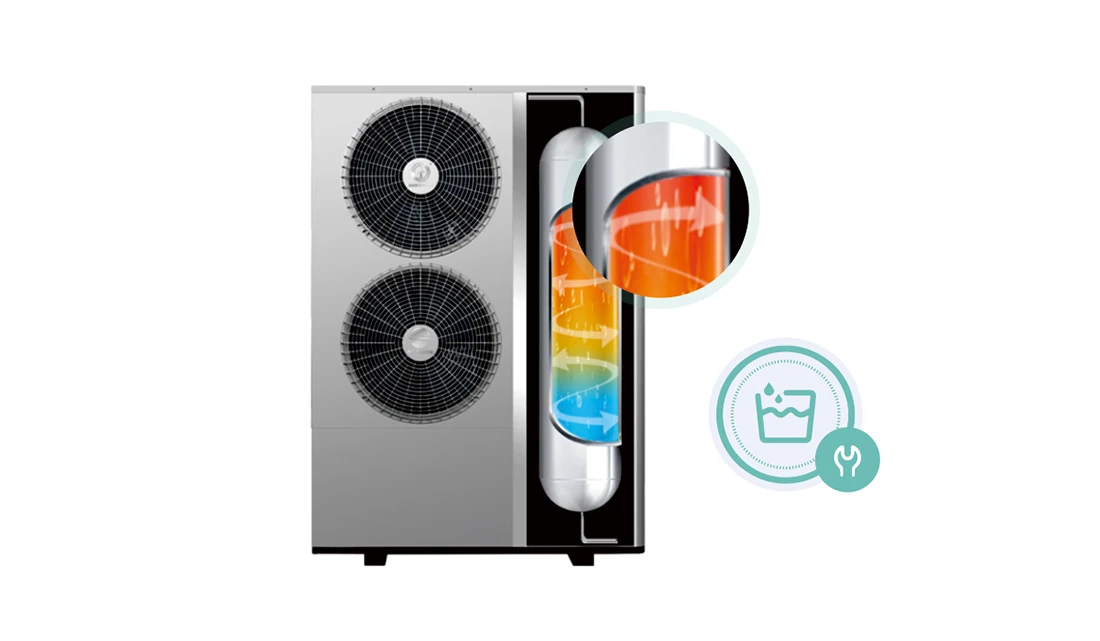

● Built-in Water Tank
Integrates water tanks inside, easy installation and operation, saving up installation space greatly.
● Fast Heating
With wide range of frequency from 20Hz to 80Hz, which makes fast heating available and energy saving realized.

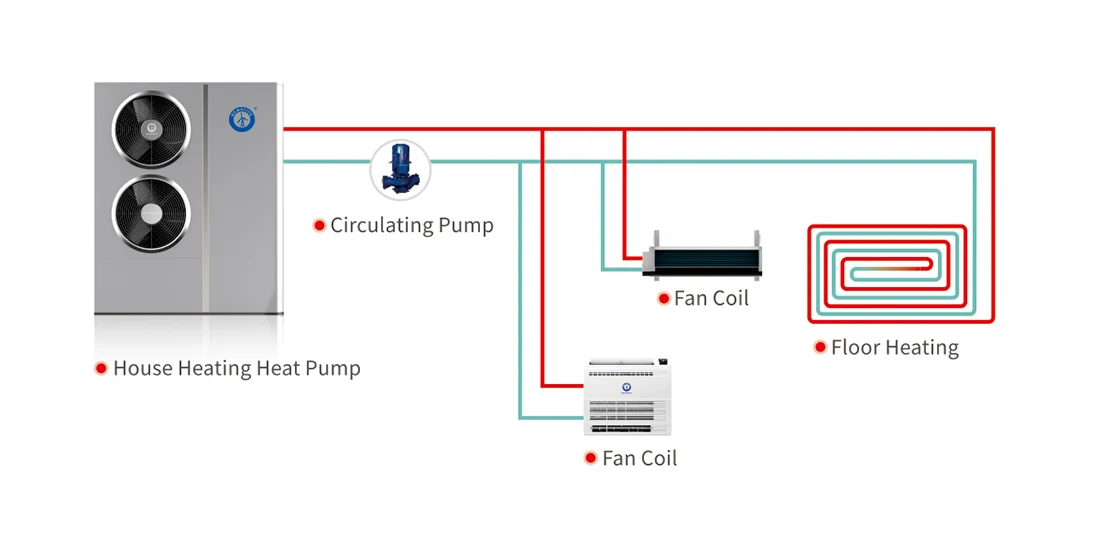

●Best Solution for Domestic Hot Water and Floor Heating
It works not only as water heater for kitchen and bathroom, but also for room heating by underfloor pipelines and radiators.
● Environmentally Friendly
There is no air pollution exhausted. And the refrigerant is innocuous and does no harm to the ozone sphere.
Product Parameters
Model: NE-F | 55HWR3INV-260L | 100HWR3INV-260L | 80HWR3INV-80L | 100HWR3INV-80L | |||
Secondary Series Name | Titan | Aurora | |||||
Power Supply (V/Ph/Hz) | 220-240V / 1Ph / 50Hz | ||||||
Max. Outlet Water Temp. (℃) | 60 | 60 | 60 | 60 | |||
Rated Heating Capacity (kW) | 5.4 | 10 | 8 | 9.6 | |||
Power Input (kW) | 1.25 | 2.375 | 1.9 | 2.66 | |||
COP | 4.32 | 4.21 | 4.21 | 3.61 | |||
Heating Capacity Range(kW) | 3~8.5 | 6.2~14.5 | 3~8.5 | 5~11 | |||
Power Input Range(kW) | 0.6~1.75 | 1.25~3.75 | 0.6~2 | 1~3.2 | |||
Max. Power Input (kW) | 2.24 | 4.84 | 2.156 | 3.212 | |||
Max. Running Current (A) | 10.2 | 22 | 9.8 | 14.6 | |||
Water Tank Volume (L) | 260 | 260 | 80 | 80 | |||
Hot Water Volume (L/h) | 65 | 214 | 171 | 205 | |||
Water Connection (inch) | G1" | G3/4" | G3/4" | G3/4" | |||
Sound Pressure at 1m dB(A) | ≤55 | ≤55 | ≤50 | ≤50 | |||
Operation Temp. Range (℃) | -15~43 | ||||||
Refrigerant Type | R410A | ||||||
Net Weight (kg) | 150 | 180 | 75 | 110 | |||
Net Dimensions(L*W*H) (mm) | 1021*535*1845 | 1021*535*1845 | 900*350*1250 | 965*350*1380 | |||
*Test Condition | Ambient Temperature: (DB/WB) 20°C / 15°C Water temperature from 15°C to 55°C. | ||||||
Notice | The above data is for reference only, the specific data is subject to actual product. | ||||||
Packing & Delivery
FAQ
Q: How many years have your company been in heat pump industry?
A: We are the NO.1 heat pump exporter in China.
We NEWNTIDE has full experience in the field of heat pumps for more than 19 years. NEWNTIDE has kept growing rapidly during these years since it was established. In 2019, our turn over reached an amount of 101 million US dollars and in the same year NEWNTIDE was loaded on the China's New OTC market.
Q: Do you accept OEM & ODM?
A: Yes. We can produce NEWNTIDE standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
Q: How about the channel management?
A: First, in order to lead global positive market competition, NEWNTIDE will not sell the same product to two clients in one region. Second, we are willing to give the A-level agent rights, or even exclusive agent rights to clients with strong sales and service capability for certain market/product, who would enjoy our most competitive product price and tiered special discount for substantial order. Last but not least, for specific markets, we prefer to operate as a co-brand with our clients, or offer NEWNTIDE's own brand products and services to dealers.
Q: What support do you offer to clients?
A: We can: provide product certification requirements for local markets; provide catalogs, technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.
Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment for heat pump ?
A: Payment<= 5000USD, 100% in advance.
A: We are the NO.1 heat pump exporter in China.
We NEWNTIDE has full experience in the field of heat pumps for more than 19 years. NEWNTIDE has kept growing rapidly during these years since it was established. In 2019, our turn over reached an amount of 101 million US dollars and in the same year NEWNTIDE was loaded on the China's New OTC market.
Q: Do you accept OEM & ODM?
A: Yes. We can produce NEWNTIDE standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
Q: How about the channel management?
A: First, in order to lead global positive market competition, NEWNTIDE will not sell the same product to two clients in one region. Second, we are willing to give the A-level agent rights, or even exclusive agent rights to clients with strong sales and service capability for certain market/product, who would enjoy our most competitive product price and tiered special discount for substantial order. Last but not least, for specific markets, we prefer to operate as a co-brand with our clients, or offer NEWNTIDE's own brand products and services to dealers.
Q: What support do you offer to clients?
A: We can: provide product certification requirements for local markets; provide catalogs, technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.
Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment for heat pump ?
A: Payment<= 5000USD, 100% in advance.
Payment>= 5000USD, 30% T/T in advance ,balance before shippment.
AIibaba trade assurance payment available.
L/C Payment available only with 1 millon+ USD dealing amount.
Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 24 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.
AIibaba trade assurance payment available.
L/C Payment available only with 1 millon+ USD dealing amount.
Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 24 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.
