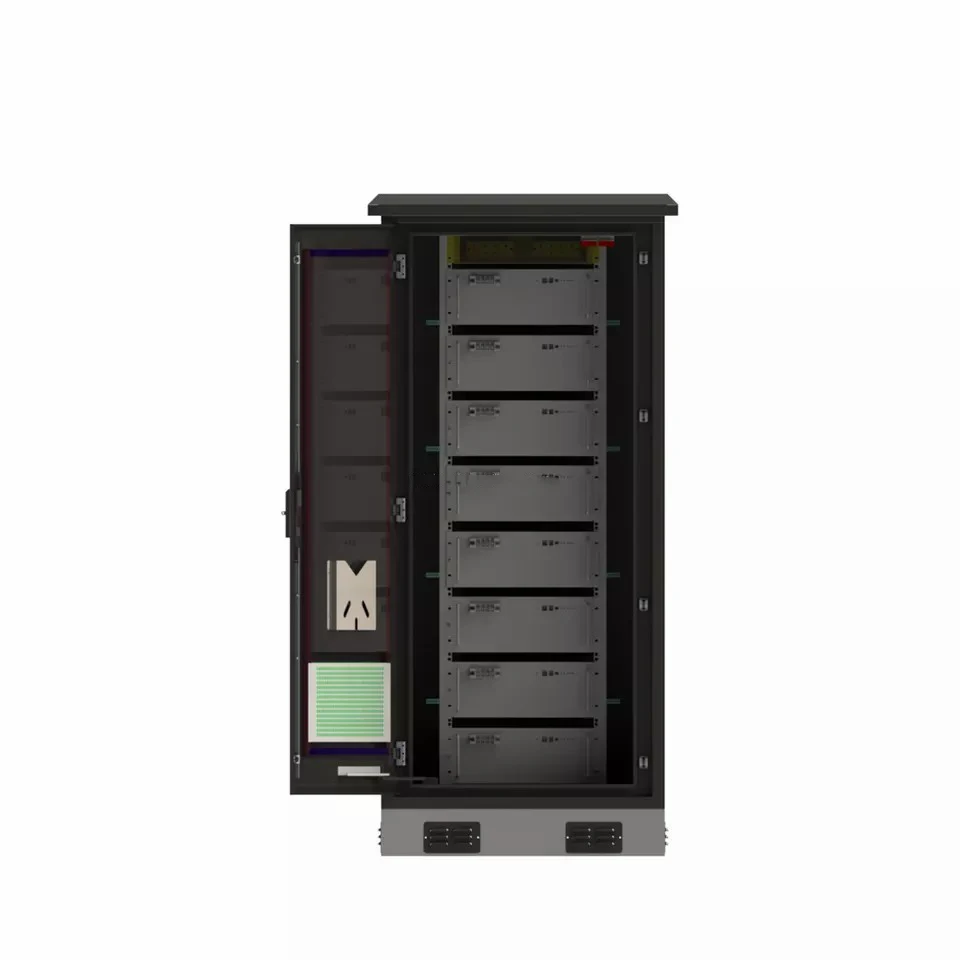

Commercial Solar Energy Storage System High Voltage Battery 50kwh Lifepo4 Racked Cabinet Lithium Iron Battery
- Category: >>>
- Supplier: Shenzhen Xianghao Industry Co. Ltd.
Share on (1600594294065):
Product Overview
Description

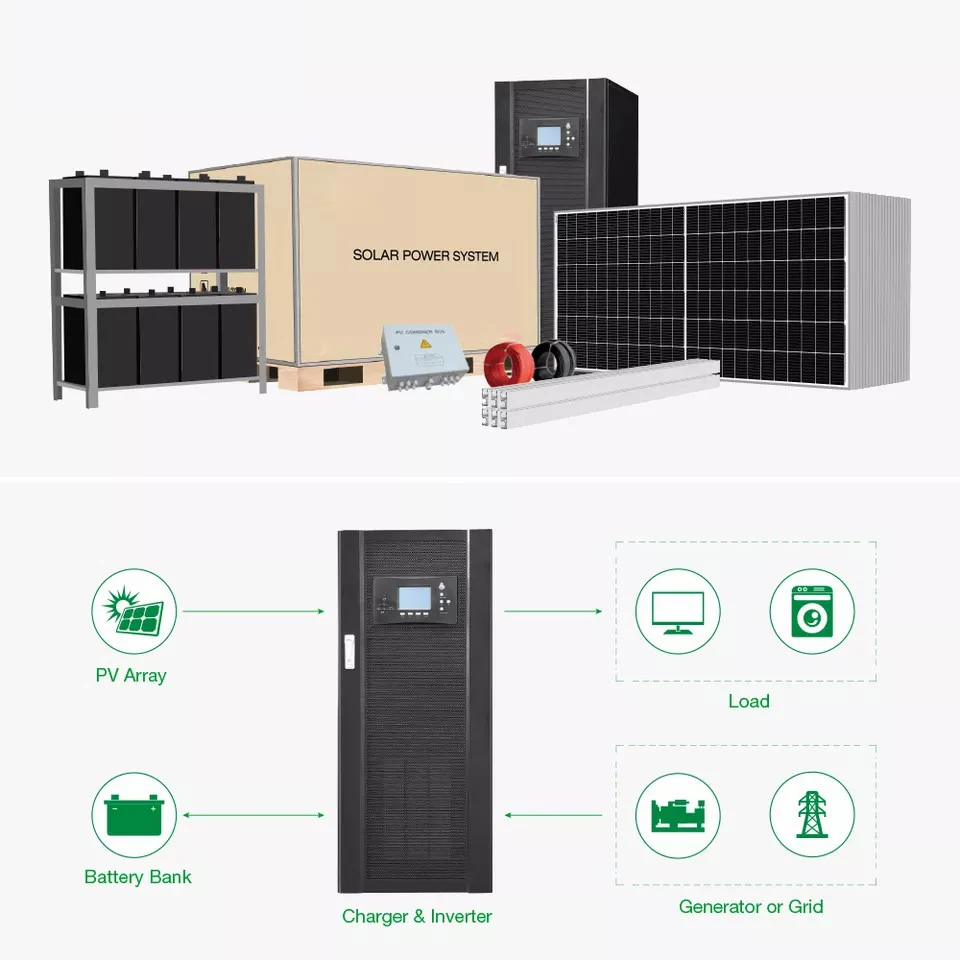

Complete Solar System
Item | 50KWh Product | Remark | ||
Nominal Energy | 50.3KWh | --- | ||
Nominal Capacity | 126Ah | ±5% @25℃ | ||
Nominal Voltage | 400V | --- | ||
Absolute Maximum Voltage | 453.6V | --- | ||
Cut-off Voltage (discharging) | 324V | --- | ||
Configuration | 108S7P | --- | ||
Continuous Charge | 120A | |||
Continuous Discharge | 120A | |||
Recommended Depth of Discharge | 90% | --- | ||
Maximum Depth of Discharge | 100% | --- | ||
Weight | <420Kg | --- | ||
Cooling | Natural cooling | --- | ||
Ingress Protection | Indoor | --- | ||
Storage Humidity | 25% ~ 95%RH | |||
Operating Humidity | 0 – 90% RH | |||
Storage Temperature | -20℃~40 ℃ | SOC>30%，one full charge needed per two months | ||
Storage Temperature | Discharge | -20 ℃~60 ℃ | Long term use below 0℃, can choose electric auxiliary heating function. | |
Charge | 0 ℃~55 ℃ | |||
Product Drawings
Components
Solar Panels
* PID Free PV Module
* 0-5W Positive Power Output Guarantee
* 25 Years Power Output Guarantee
* 100% Double Full EL Inspection
* 0-5W Positive Power Output Guarantee
* 25 Years Power Output Guarantee
* 100% Double Full EL Inspection
Hybrid Inverter
*Automatic Switch to charge loads, batteries or from Grid backup with priority setting function;
*Lithium Battery and GEL storage battery compatible with almost all types of inverters;
*Comprehensive WIFI monitor
*Lithium Battery and GEL storage battery compatible with almost all types of inverters;
*Comprehensive WIFI monitor
Solar Battery
Lithium and GEL Storage Batteries Optional;
100Ah/150Ah/200Ah, with 100kwh/300kwh/500kwh capacity;
BMS Communication matched with almost all types of hybrid energy inverters;
Installation is convenient with cable, rack etc Accessories ready in package.
100Ah/150Ah/200Ah, with 100kwh/300kwh/500kwh capacity;
BMS Communication matched with almost all types of hybrid energy inverters;
Installation is convenient with cable, rack etc Accessories ready in package.

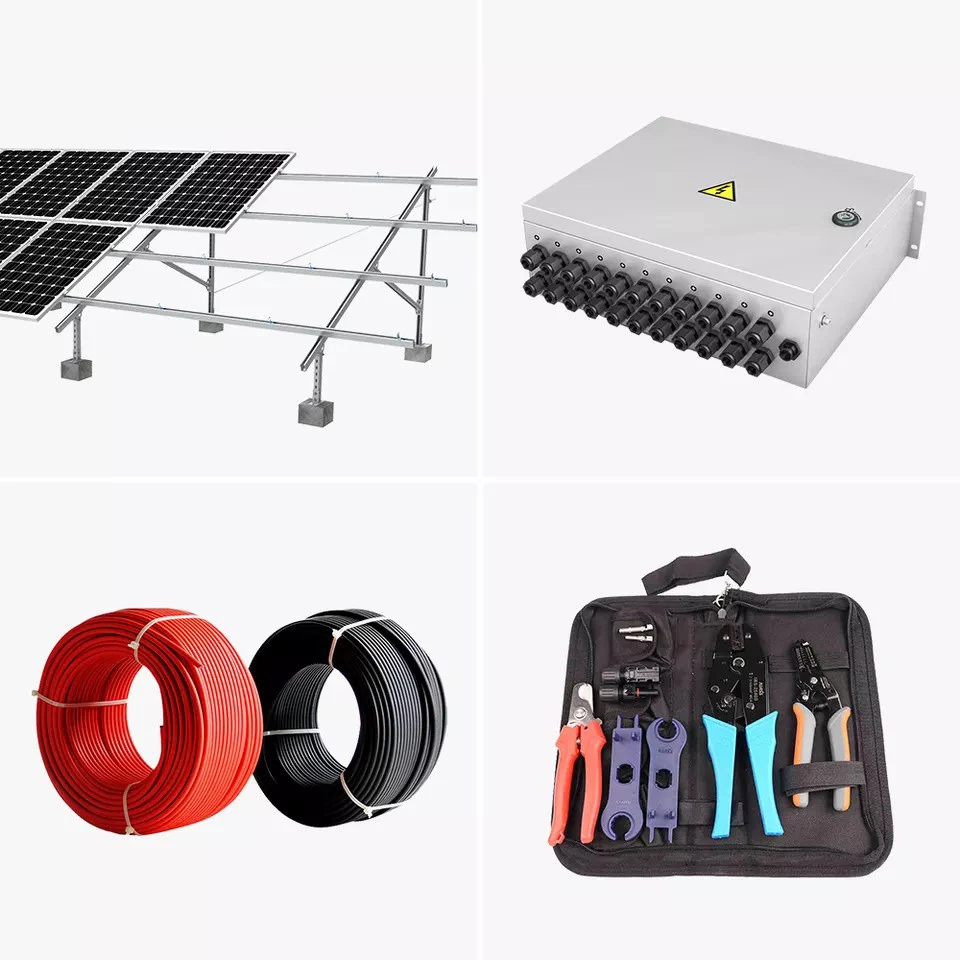

Mounting Structure
Free design with CAD drawing
Customized for :
Rooftop(Flat/Pitched), Ground , Car Parking Lot
Adjustable tile angle from 0 to 65 degree
Compatible with all solar modules.
Customized for :
Rooftop(Flat/Pitched), Ground , Car Parking Lot
Adjustable tile angle from 0 to 65 degree
Compatible with all solar modules.
Installation Tools Box
*Include all necessory tools for installation
*Connector spanner, Crimping pliers
PV Combiner Box, PV Cable installation tools etc.
*Connector spanner, Crimping pliers
PV Combiner Box, PV Cable installation tools etc.
Company Information
Why Choose Us
For Batteries LFP Prismatic cells , 4000+ cycles , 3 Years Warranty , Support 4S4P , Group24 size ,12KG
For services 24- hours after sales line , one step services , give you entile solutions for your project
For customize needs we can customize for you , such Voltage , Capacity , discharge current etc
For additional benefits For resellers we provide super price for you and policy, pls contact us if interest !
XIANGHAO strives to make the safest lithium iron phosphate batteries possible.
That’s why our batteries have been rigorously tested and are certified to be safely used in applications around the world.
What’s more, all XIANGHAO lithium batteries conform to CE, UN38.3,MSDS , shipping regulations.
1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
3.Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
For services 24- hours after sales line , one step services , give you entile solutions for your project
For customize needs we can customize for you , such Voltage , Capacity , discharge current etc
For additional benefits For resellers we provide super price for you and policy, pls contact us if interest !
XIANGHAO strives to make the safest lithium iron phosphate batteries possible.
That’s why our batteries have been rigorously tested and are certified to be safely used in applications around the world.
What’s more, all XIANGHAO lithium batteries conform to CE, UN38.3,MSDS , shipping regulations.
1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
3.Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
Shipping
FAQ
Q1.Can I just try samples for the first order?
Trail order is acceptable. We can sell just few pcs for you the confirm the specifications of our products.
Q2.Can we put LiFePO4 battery pack in parallel or series by ourselves?
YES, but the batteries should be in same voltage and capacity, or it will influence the cycle life of the battery pack. Also you
should tell us and we will match them before delivery. Before handling the battery, check the voltage of each battery is
necessary.
Q3.Can we put different LiFePO4 battery pack in parallel or series by ourself?
Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;
1>Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate.
2>Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3>Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for
each battery.
Q4.what is your warranty?
We offer 2 years warranty for all our battery pack.we ensure at least 2000 cycle life for the LiFePO4 battery pack,which
means,after 2000@80% DOD,there will still around 60% capacityt left.You can use it for at least 5 years for normal 1 time charge
and discharge everyday.
Q5.How does XZEnergy ship the LiFePo4 battery packs?
The goods can be picked up by your own forwarder. If there is no forwarder. Then we can ship the battery packs.For sample order or
small battery packs,we can ship by express through Fedex, UPS, TNT, DPD etc.If whole parcel over 100KG,can ship by air or by
sea,sea shipping is more economical.
You could tell your nearest airport name and sea port name for XZEnergy sales person to check the best option for you.
Trail order is acceptable. We can sell just few pcs for you the confirm the specifications of our products.
Q2.Can we put LiFePO4 battery pack in parallel or series by ourselves?
YES, but the batteries should be in same voltage and capacity, or it will influence the cycle life of the battery pack. Also you
should tell us and we will match them before delivery. Before handling the battery, check the voltage of each battery is
necessary.
Q3.Can we put different LiFePO4 battery pack in parallel or series by ourself?
Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;
1>Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate.
2>Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3>Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for
each battery.
Q4.what is your warranty?
We offer 2 years warranty for all our battery pack.we ensure at least 2000 cycle life for the LiFePO4 battery pack,which
means,after 2000@80% DOD,there will still around 60% capacityt left.You can use it for at least 5 years for normal 1 time charge
and discharge everyday.
Q5.How does XZEnergy ship the LiFePo4 battery packs?
The goods can be picked up by your own forwarder. If there is no forwarder. Then we can ship the battery packs.For sample order or
small battery packs,we can ship by express through Fedex, UPS, TNT, DPD etc.If whole parcel over 100KG,can ship by air or by
sea,sea shipping is more economical.
You could tell your nearest airport name and sea port name for XZEnergy sales person to check the best option for you.
