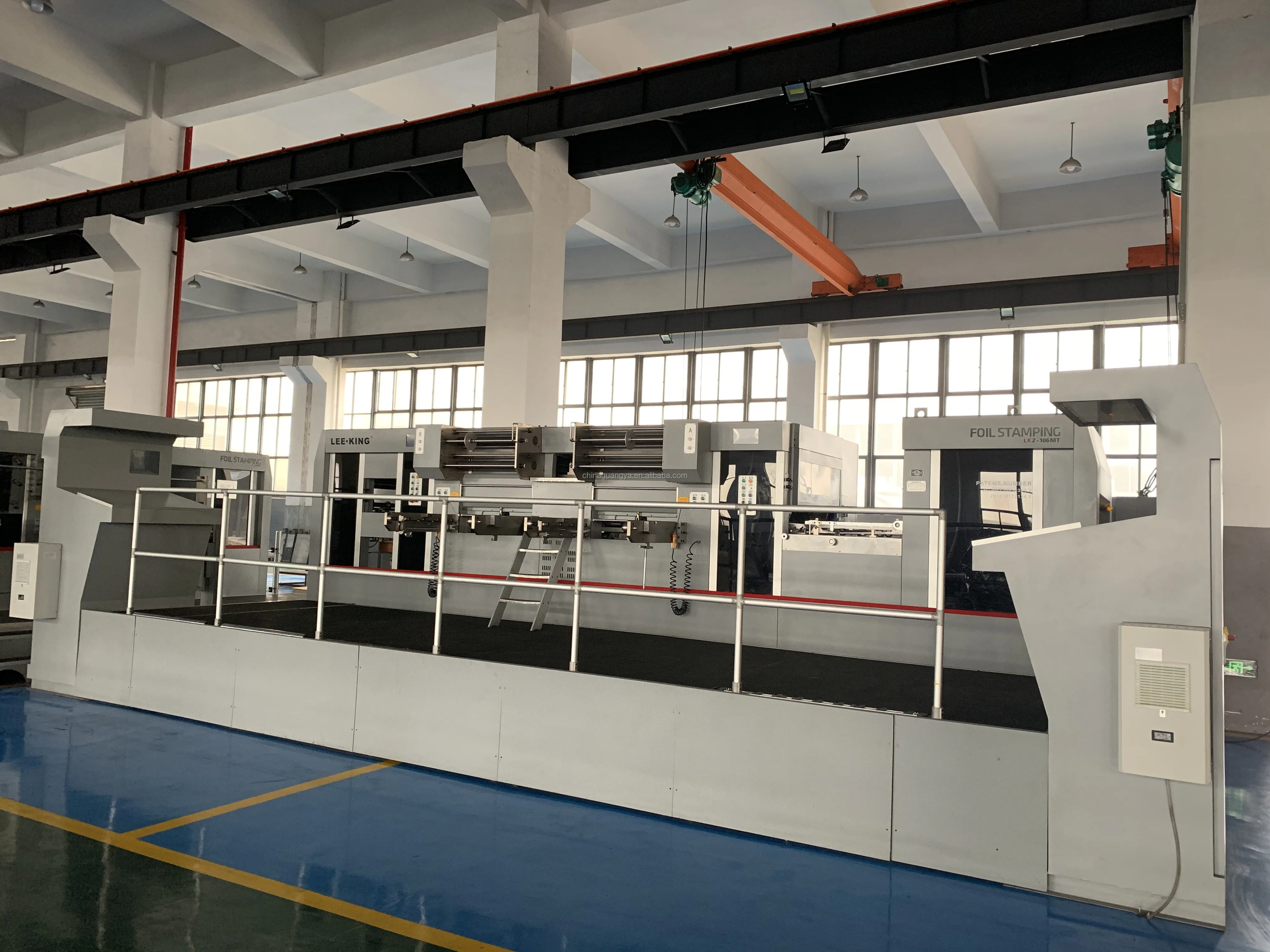

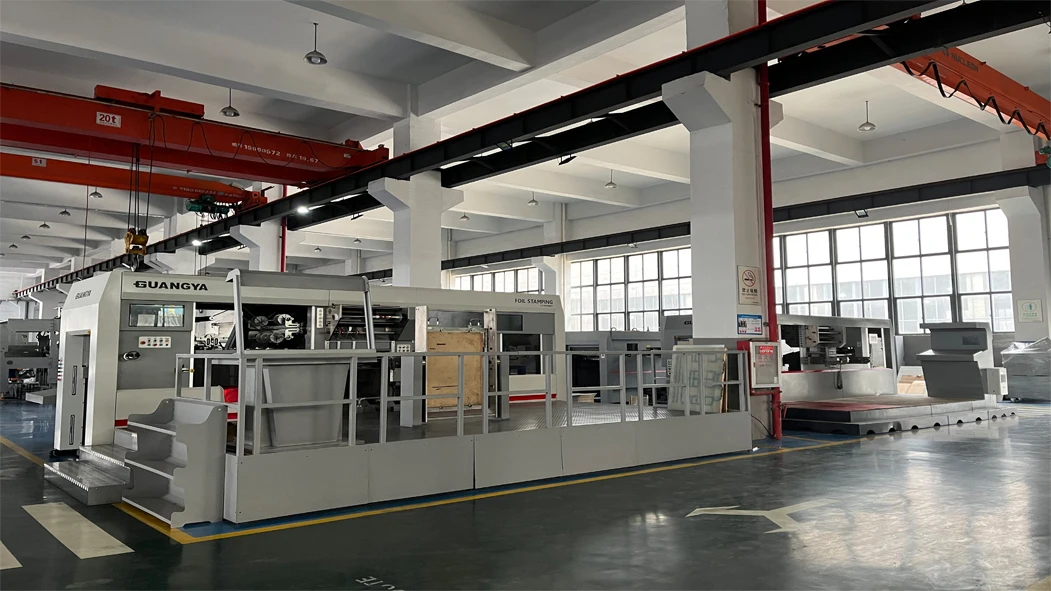

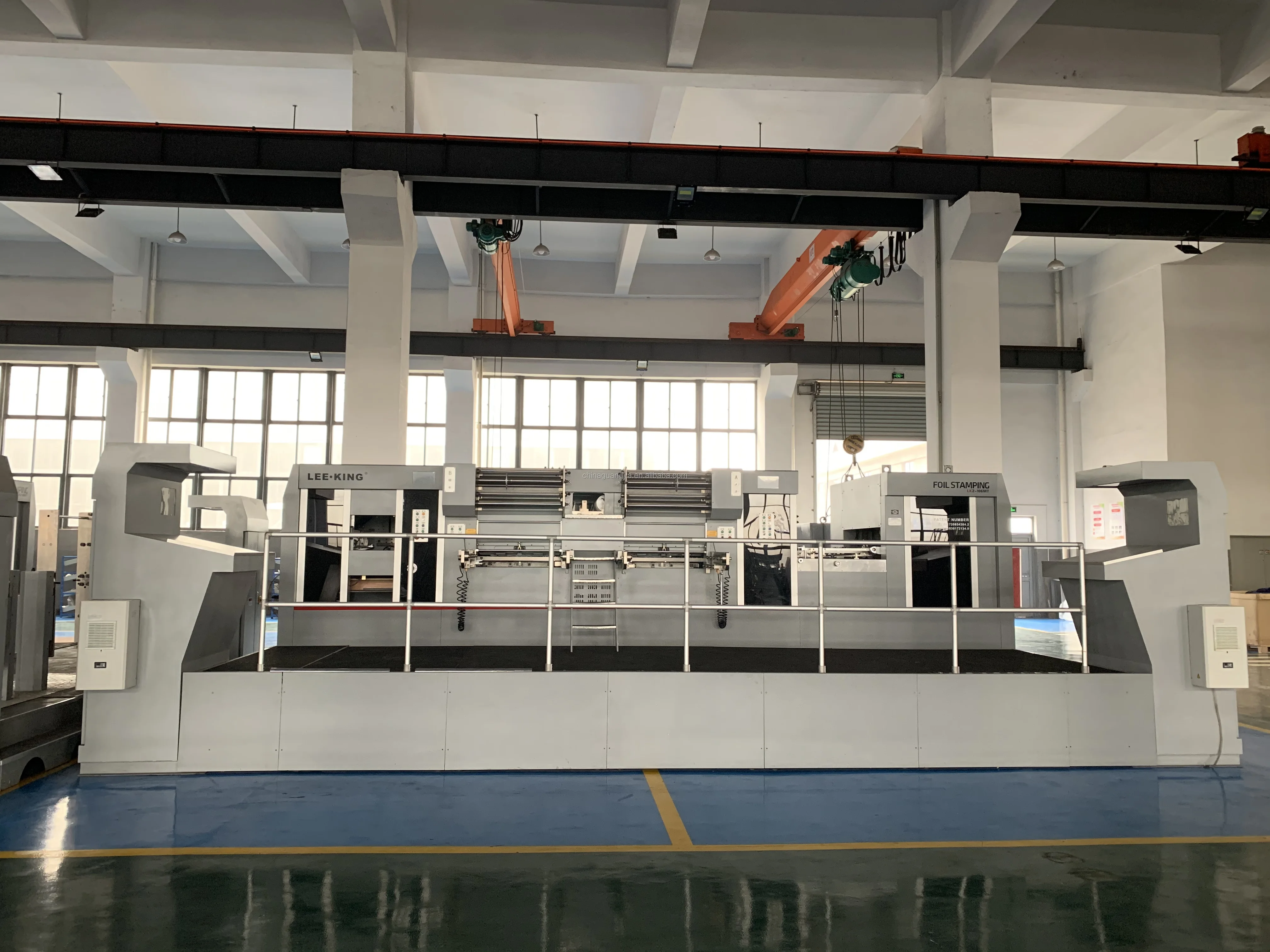

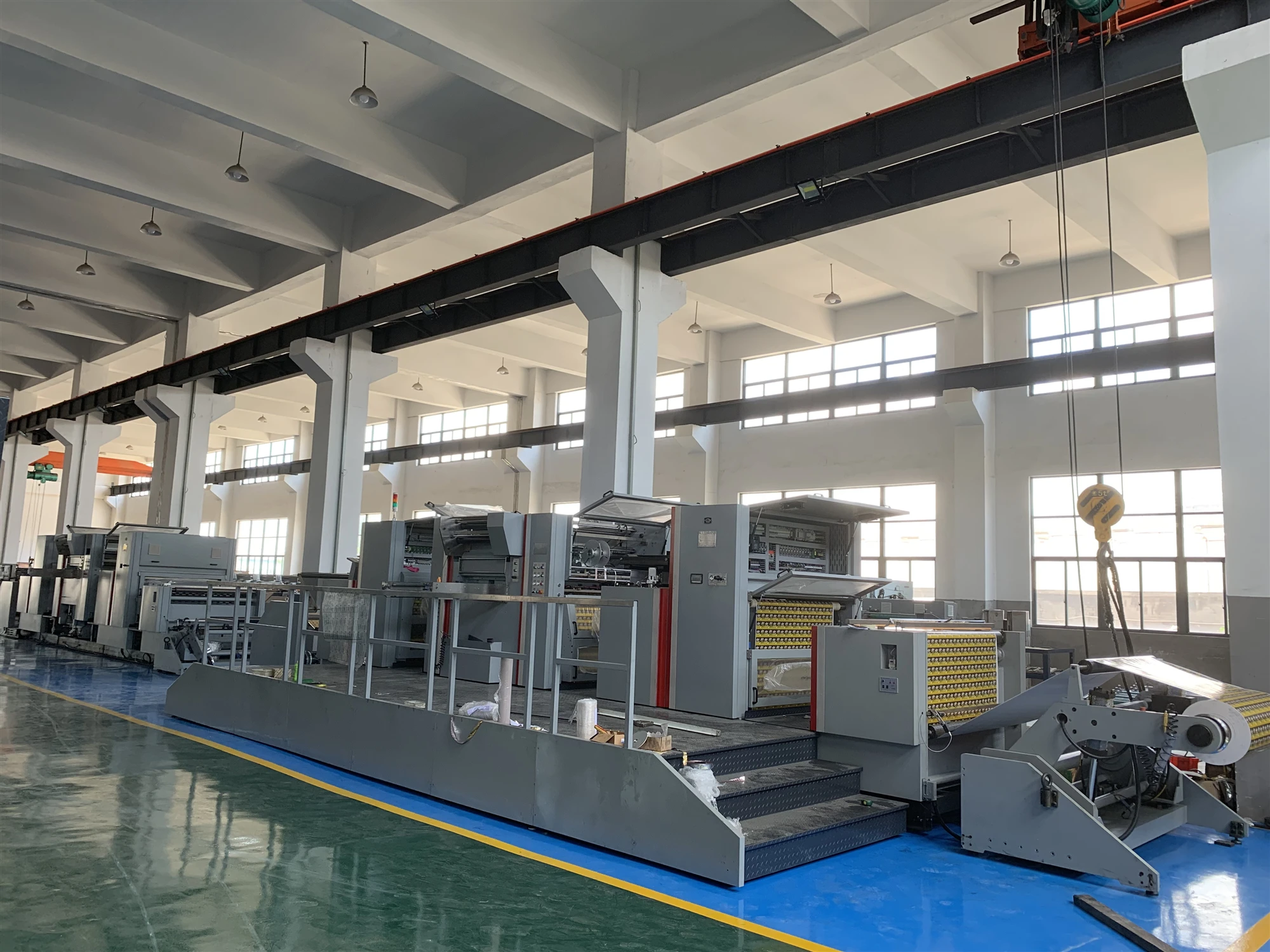

LK2 106MT automatic paper press and hot stamping die cutting machine in one step

LK2 106MT automatic paper press and hot stamping die cutting machine in one step

Category: Paper Processing Machinery >>>
Supplier: Wenzhou,Guangya,Machinery,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

Automatic feeding, foil stamping, embossing, die cutting and delivery in one pass

Ewduce paper distortion, incease registering precision

Reduce flow time, improve work efficiency

7 group: longitudinal 3,transversal 4

Advantage

Machine has two mainframe, it can make the following job in one processing
1. Stamping + Stamping
2. Stamping + Die cutting + Stripping
3. Embossing + Die cutting + Stripping
4. Stamping + Embossing

Model	LK2-106MT
Max. sheet size	1060×770mm
Min. sheet size	450×370mm
Max.die cutting size	1050×750mm
Max.stamping size	1050×750mm
Inner chase size	1100*790mm
Gripper margin	8-17mm
Accuracy of die cutting	±0.1mm
Paper range	90-2000g/m2(cardboard) 0.1-2mm(cardboard) ≤4mm(corrugated)
Maximum cutting pressure	300T
Max. mechanical speed	7500s/h
Max.stamping speed	6500s/h

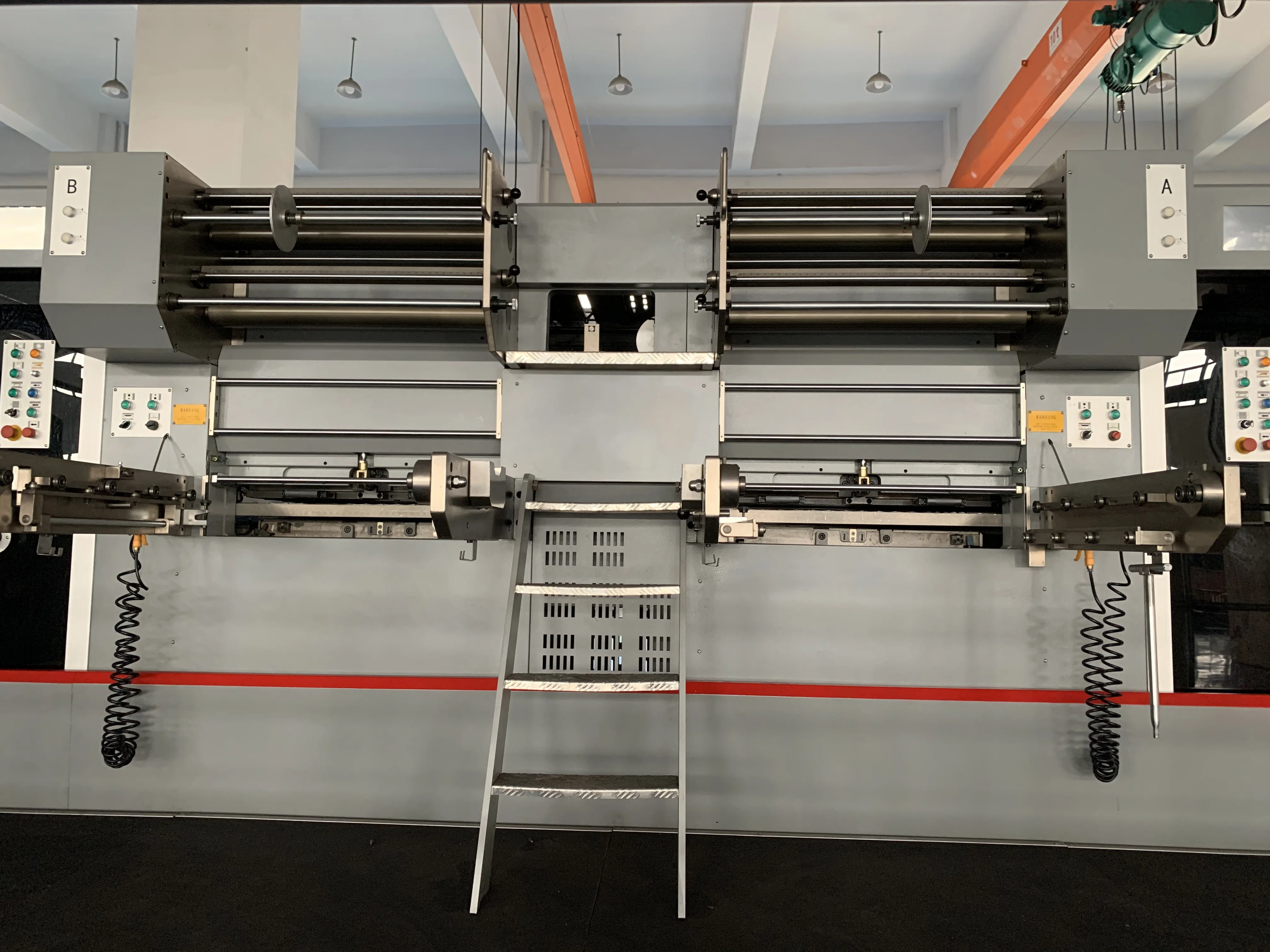

Press 1 foil pulling shafts	longitudinal 3,transversal 2
Press 2 foil pulling shafts	transversal 2
Press 1 Zones individually heated	12 heating zones ( each zone can be adjusted independently, max 200℃ )
Press 2 Zones individually heated	12 heating zones ( each zone can be adjusted independently, max 200℃ )
Max. foil diameter	250mm
Max.delivery pile height	1250mm
Max.feeding pile height	1350mm
Main motor power	30kw
Heating pipe power	48kw
Servo motor power	24kw
Total Machine power	105kw
Machine weight	40T
Air requirements	0.6Mpa, >0.37m3/min
Overall machine dimensions	9645×4145×2610mm
