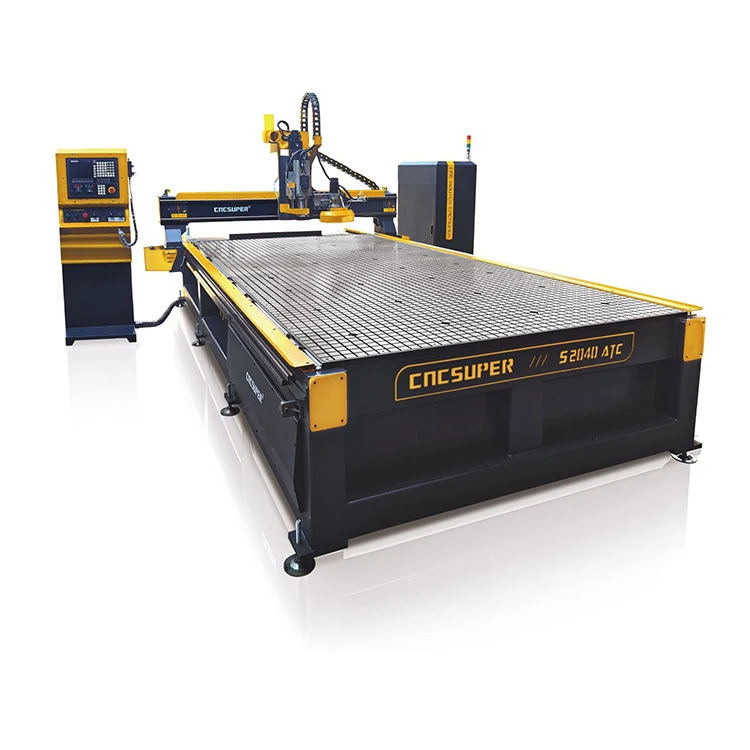

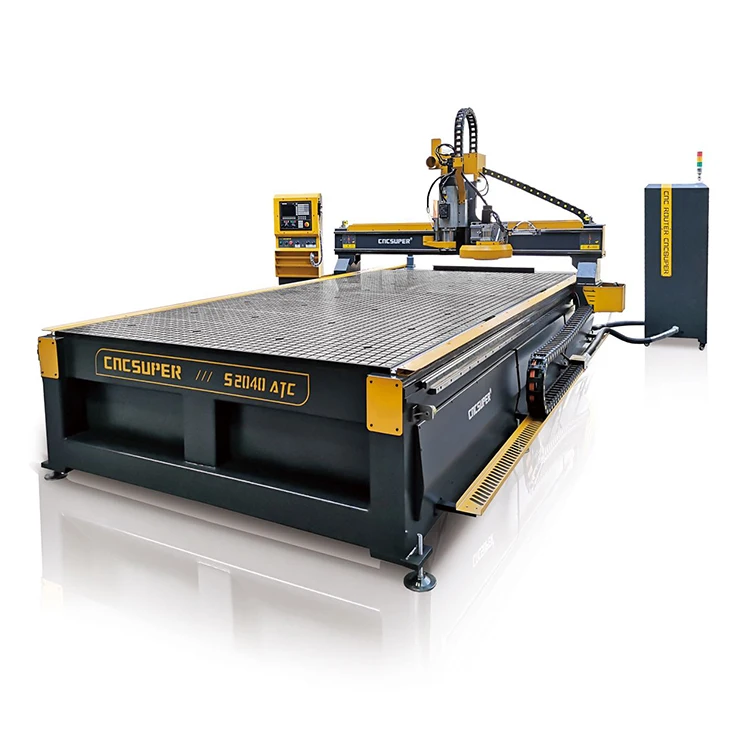

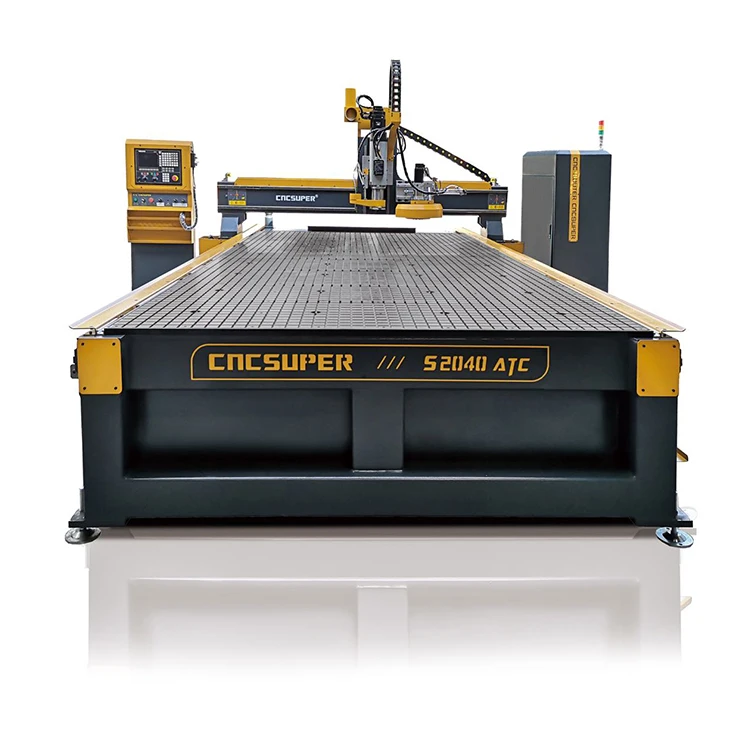

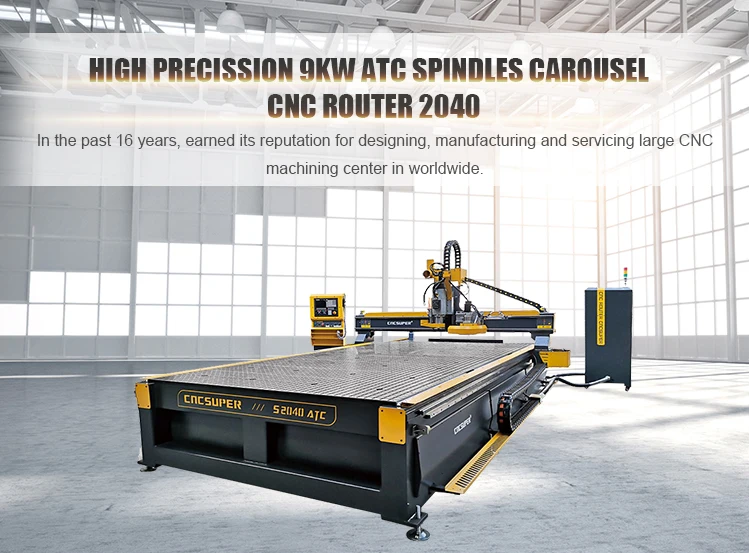

2040 Wood 3d Cnc Router Turkey Cnc Wood Router Machines Wooden Cnc Cutting Router And 3d Machine
- Category: >>>
- Supplier: Guangdong Super Intelligent Equipment Co. Ltd.
Share on (1600594566136):
Product Overview
Description
Products Description
Product Feature:
1 Gantry moving design, Y-axis dual motors with precision grinding helical gear transmission to ensure the accuracy of the machine;
2. Equipped with high-precision 9KW ATC tool change spindle, rotating speed 24000rmp / min, save time and avoid manual tool change error;
3. Adopted whole set DELTA servo motors and drivers, working speed up to 25000mm / min;
4. Automatic tool sensor, precision tool setting, practical and convenient;
5. NC Studio NK280 Control system with hand wheel, easy to operate and control;
6. Dry rotary vane Taiwan EUROVAC 7.5kw vacuum pump plus vacuum table section design, makes the smaller material can be processed at any time.
Product Parameters
NO. | Description | Parameter | ||
1 | XYZ working area | 2000*4000*200mm, 6*13ft | ||
2 | Optional working area | 1300*2500*200mm, 4*8ft 1500*3000*200mm, 5*10ft 2000*3000*200mm, 6*10ft | ||
3 | Lathe Structure | Annealing heavy-duty structure | ||
4 | Guide | Original TAIWAN HIWIN | ||
5 | Z Structure | Original TAIWAN TBI Ball Screw transmission | ||
6 | Traveling Positioning Accuracy | ±0.03/300mm | ||
7 | Repositioning Positioning Accuracy | ±0.03 | ||
8 | Table | 10 zones vacuum table plus T-slot | ||
9 | Vacuum pump | 7.5KW Taiwan EUROVAC vacuum pump | ||
10 | Max. Speed | 35000mm/min | ||
11 | Max. Working Speed | 25000mm/min | ||
12 | Spindle Power Motor | 9KW air cooling ATC Spindle | ||
13 | Spindle Speed | 24000RPM | ||
14 | Drive Mode | DELTA servo motors and drivers | ||
15 | Reducer | French MOTOREDUCER | ||
16 | Lubrication system | Automatic lubrication system | ||
17 | Working Voltage | 380V/50Hz/3 phases | ||
18 | Command | G Code, *uoo, *mmg, *plt | ||
19 | Operating System | Original NC Studio controller (NK280 with hand wheel) | ||
20 | Tool change type | Rotary type knife library | ||
21 | Tool magazine motor | MIGE servo motors and drives | ||
22 | Magazine capacity | 8 positions ATC | ||
23 | Collet | ER32 | ||
24 | Software | Type3/Artcam | ||
25 | Dust cleaning system | Spindle cover+dust collector+pipe+bags | ||
26 | Weight | 3000KG |
Product Details
Application
Related Products
Simple to operation cnc router machine
*Advance structure design with hot working treatment makes performance stably and durably.
*DSP A11 control system Simple operation for new customer.
*Taiwan DELTA servo ,Japan SHIPMO reducer.
*Original taiwan HIWIN high quality rail and blocks,more accurately.
*DSP A11 control system Simple operation for new customer.
*Taiwan DELTA servo ,Japan SHIPMO reducer.
*Original taiwan HIWIN high quality rail and blocks,more accurately.
Rotary device 4 axis multi spindles cnc router machine
*Add rotary axis can 3d carving processing of cylindrical workpieces etc.
*Adopt original taiwan delta servo system, more faster.
*5 zones vacuum table with large suction air vacuum pump.
*Heavy-duty seamless welded structures design, with 2pcs air cooling spindles.
*Adopt original taiwan delta servo system, more faster.
*5 zones vacuum table with large suction air vacuum pump.
*Heavy-duty seamless welded structures design, with 2pcs air cooling spindles.
ATC door/furniture making carving machine
*Automatic platen press,material fixed effect is better.
*Multi spindles carving for different engraving designs and effects.
*Taiwan HIWIN linear square rails.
*Original TAIWAN DELTA servo motors and drivers.
*Multi spindles carving for different engraving designs and effects.
*Taiwan HIWIN linear square rails.
*Original TAIWAN DELTA servo motors and drivers.

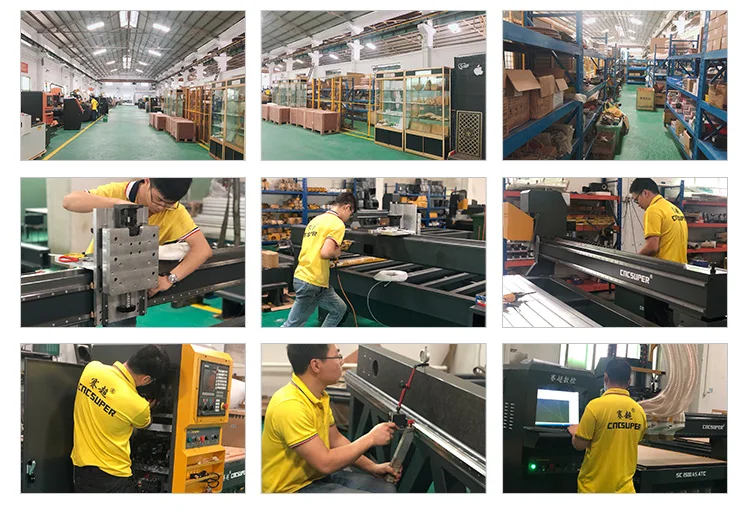

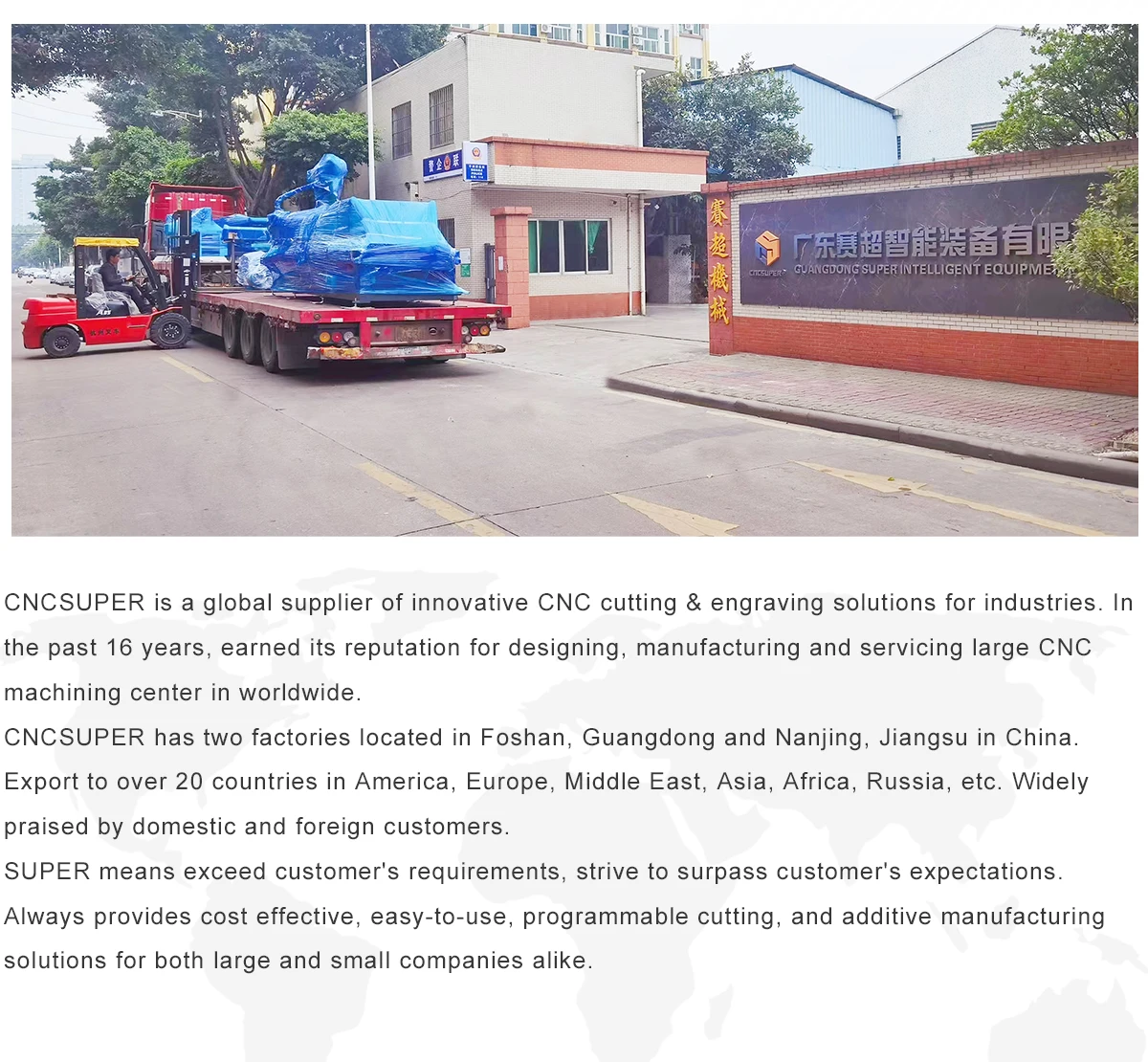

Company Introduction
