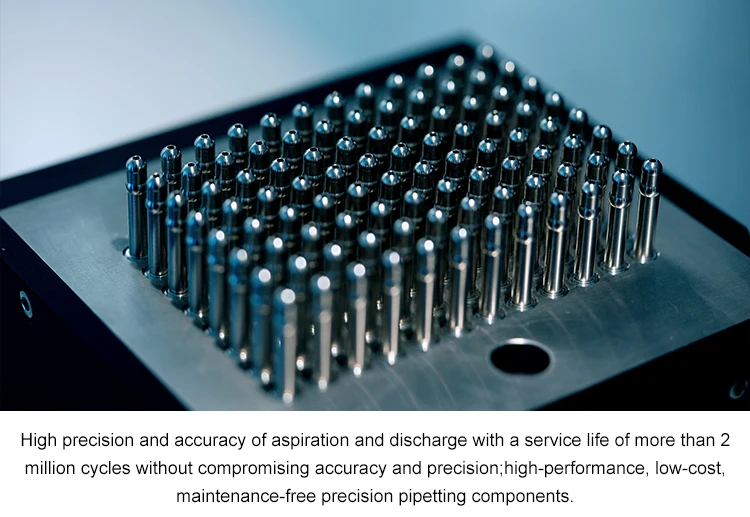

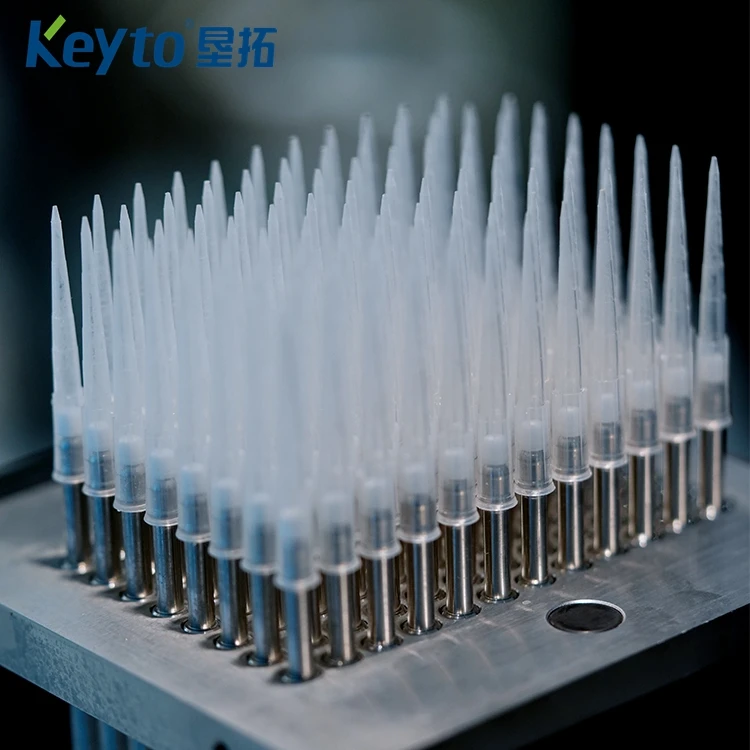

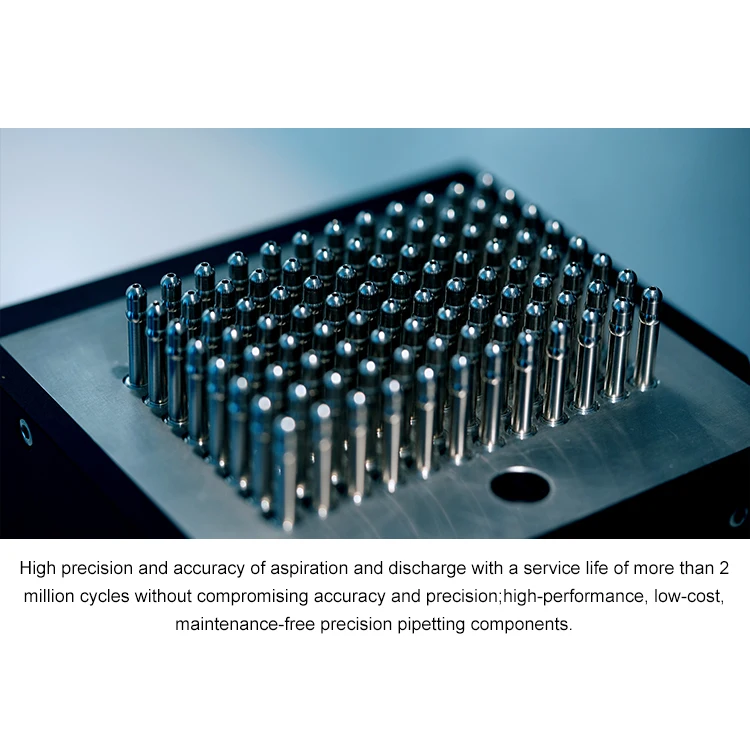

Keyto High Performance Precision Pipetting Components Liquid Handling Pump Series 96 Channel Pipetting Module
- Category: >>>
- Supplier: Shenzhen Keyto Fluid Control Co. Ltd.
Share on (1600594672139):
Product Overview
Description
Product Paramenters
Name | 300u1 Pipette | 1ml Pipette | |
Displacement of a single syringe (ul) | 3.5 | 6 | |
Discharge Volume Per Step Of Sample Feeding Motor 1 (Ul) | 0.0829 | 0.2827 | |
Number Of Syringes | 96 | ||
Syringe Stroke (Mm) | 36 | ||
Tip Back Stroke (Mm) | 20 | ||
Step Angle Of Stepper Motor (°) | 1.8 | ||
Sampling Motor 1 Current (A) | 2.2 | ||
Feeding Motor 1 Screw Lead (Mm) | 2 | ||
Linear Distance Per Step Of Sample Feeding Motor 1 (Mm) | 0.01 | ||
Back-Up Tip Motor 2 Current (A) | 2 | ||
Tip Motor 2 Lead Screw Lead (Mm) | 1.27 | ||
Back Tip Motor 2 Linear Distance Per Step | 0.00635 | ||
Suction And Discharge Accuracy (%) | 3% | ||
Aspiration And Discharge Repeatability (%) | 3% | ||
Working Pressure (Mpa) | 0.3 | ||
Life (Million Times) | 200 | ||
Working Medium | Water, Oil, Weak Acid And Weak Base, Etc. | ||
Dimensions (Mm) | 156*193*303 | ||
Products Description

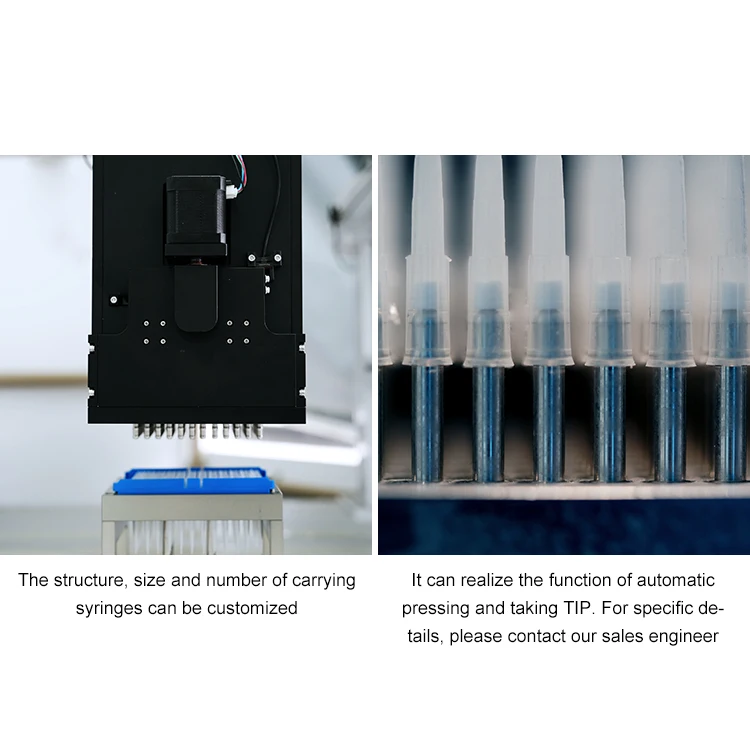

The structure, size and number of carrying
syringes can be customized
It can realize the function of automatic
pressing and taking TIP. For specific de-
tails, please contact our sales engineer

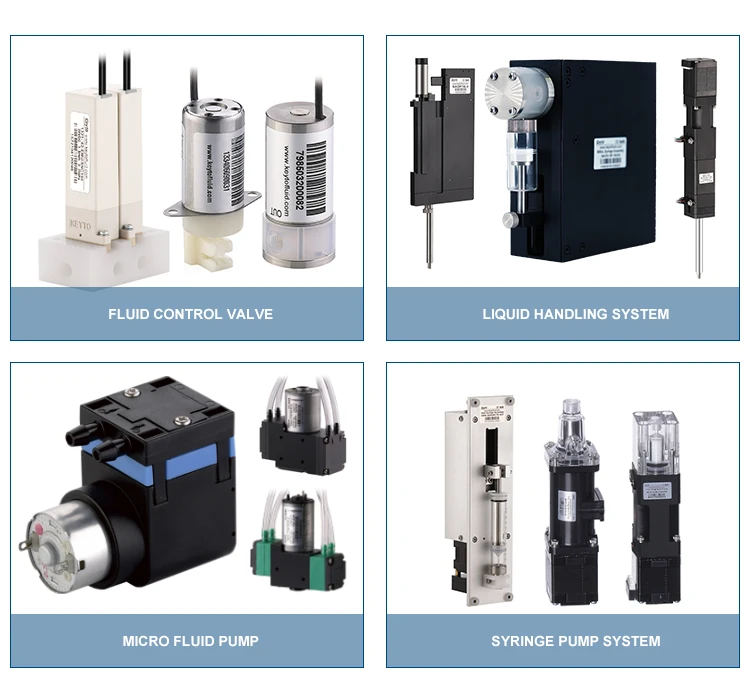

Main Products

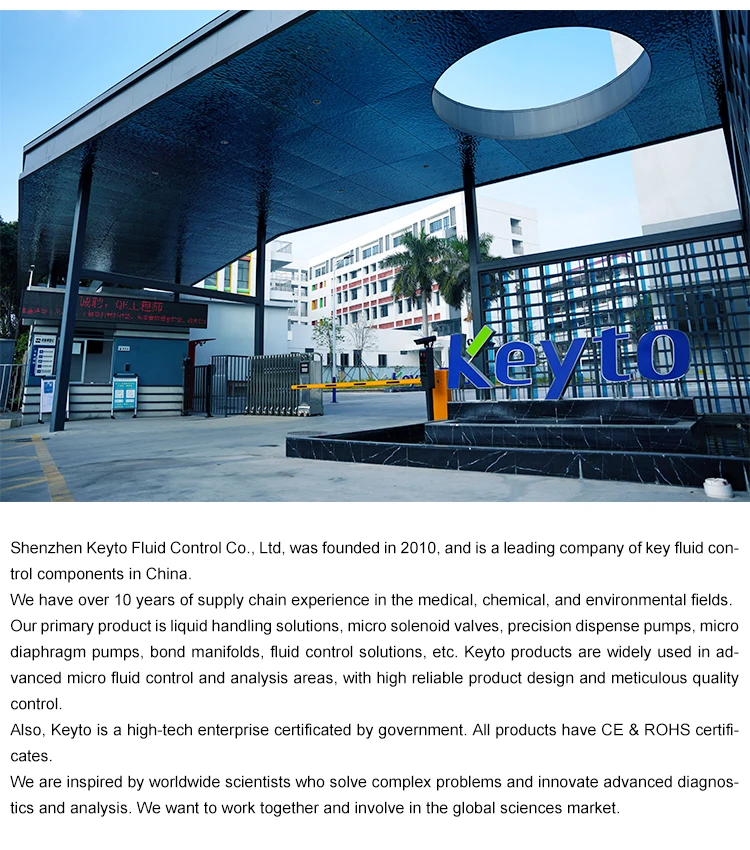

Company Profile
Certification & Exhibition

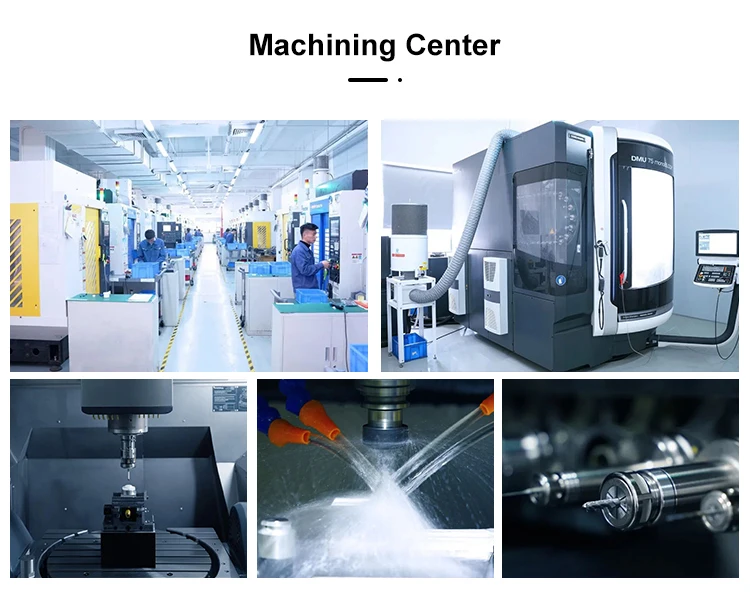

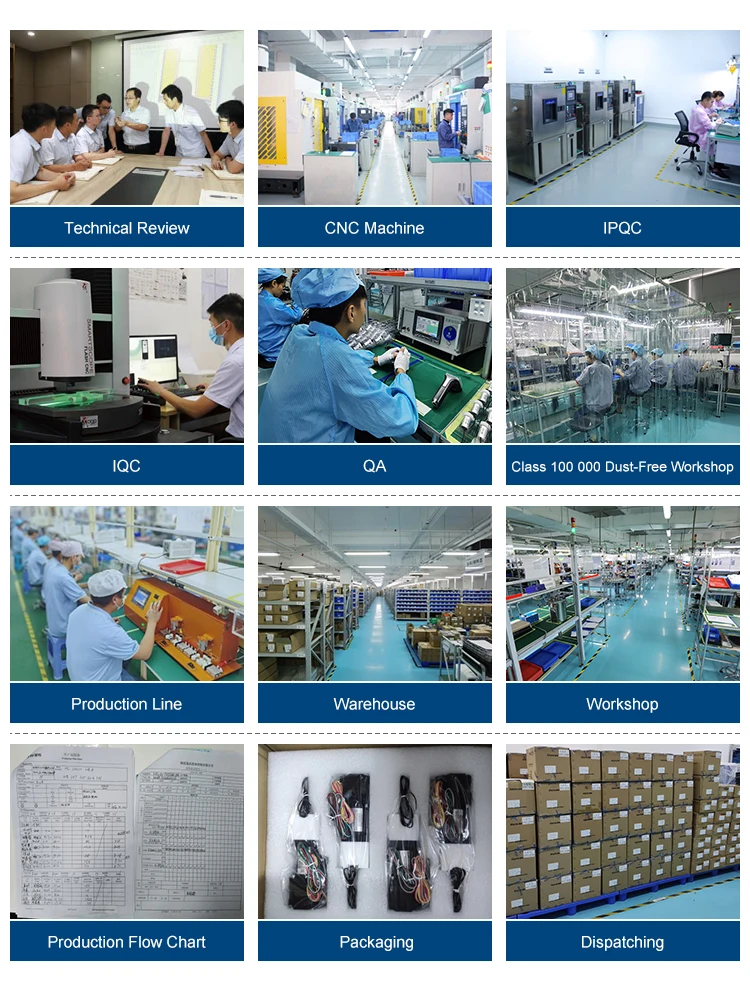

Production Process
Packaging & Shipping
FAQ
1.How can I customize my products?
Attach your drawings with details(Suface treatment,material,quantity and special requirements etc).
2.How long I can get the quaotation?
We will offer the quotation within 48 hours(Considering the time difference).
3.Are there any other requirements for the order?
OEM&ODM are welcomed.
4.Can I get a sample for testing?
We will offer free or charged samples depends on the products.
5.How long will you produce the parts?
Normally three weeks
6.What's your payment terms?
T/T
7.How about the transportation?
By sea or by air
Attach your drawings with details(Suface treatment,material,quantity and special requirements etc).
2.How long I can get the quaotation?
We will offer the quotation within 48 hours(Considering the time difference).
3.Are there any other requirements for the order?
OEM&ODM are welcomed.
4.Can I get a sample for testing?
We will offer free or charged samples depends on the products.
5.How long will you produce the parts?
Normally three weeks
6.What's your payment terms?
T/T
7.How about the transportation?
By sea or by air
