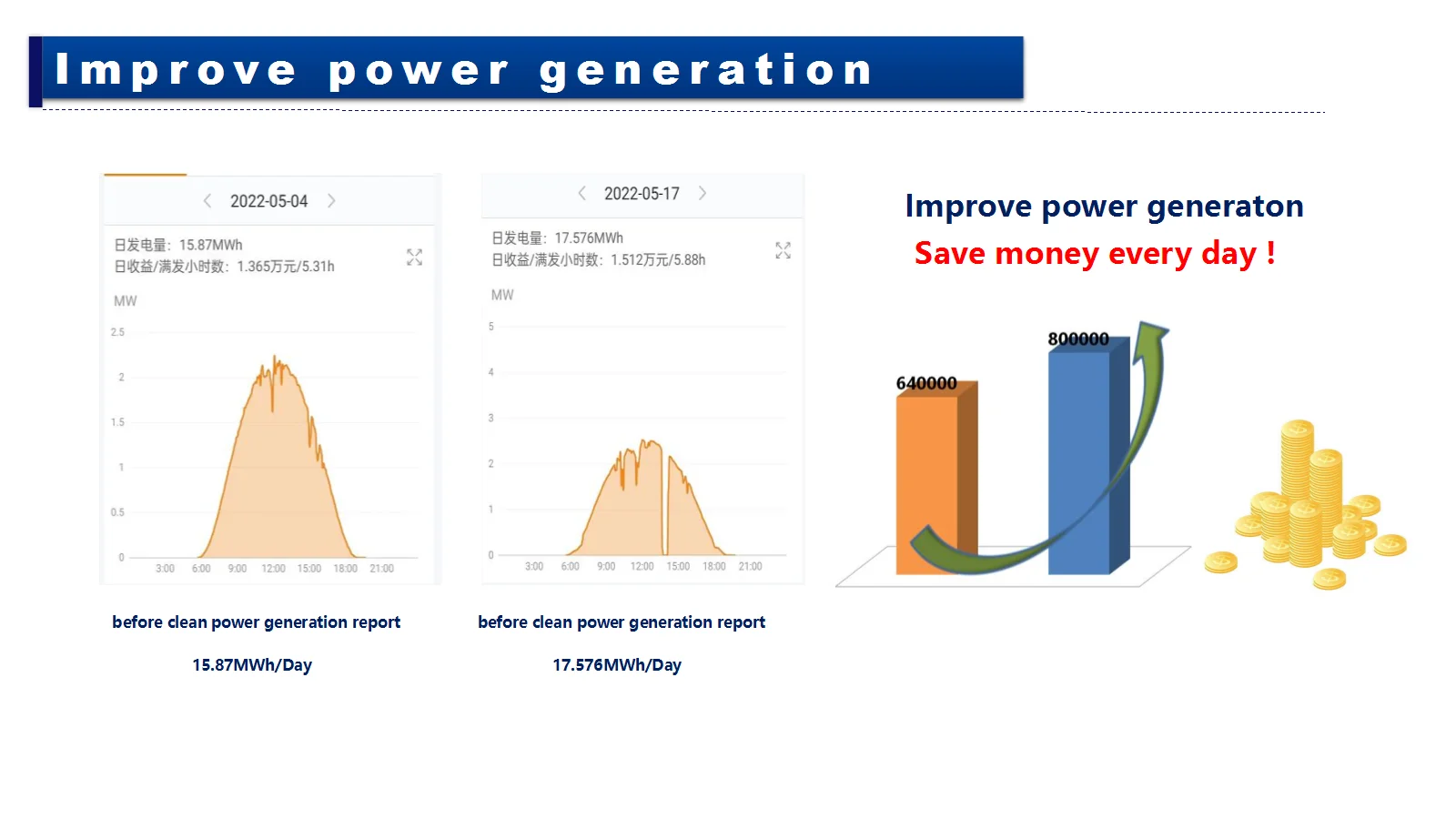

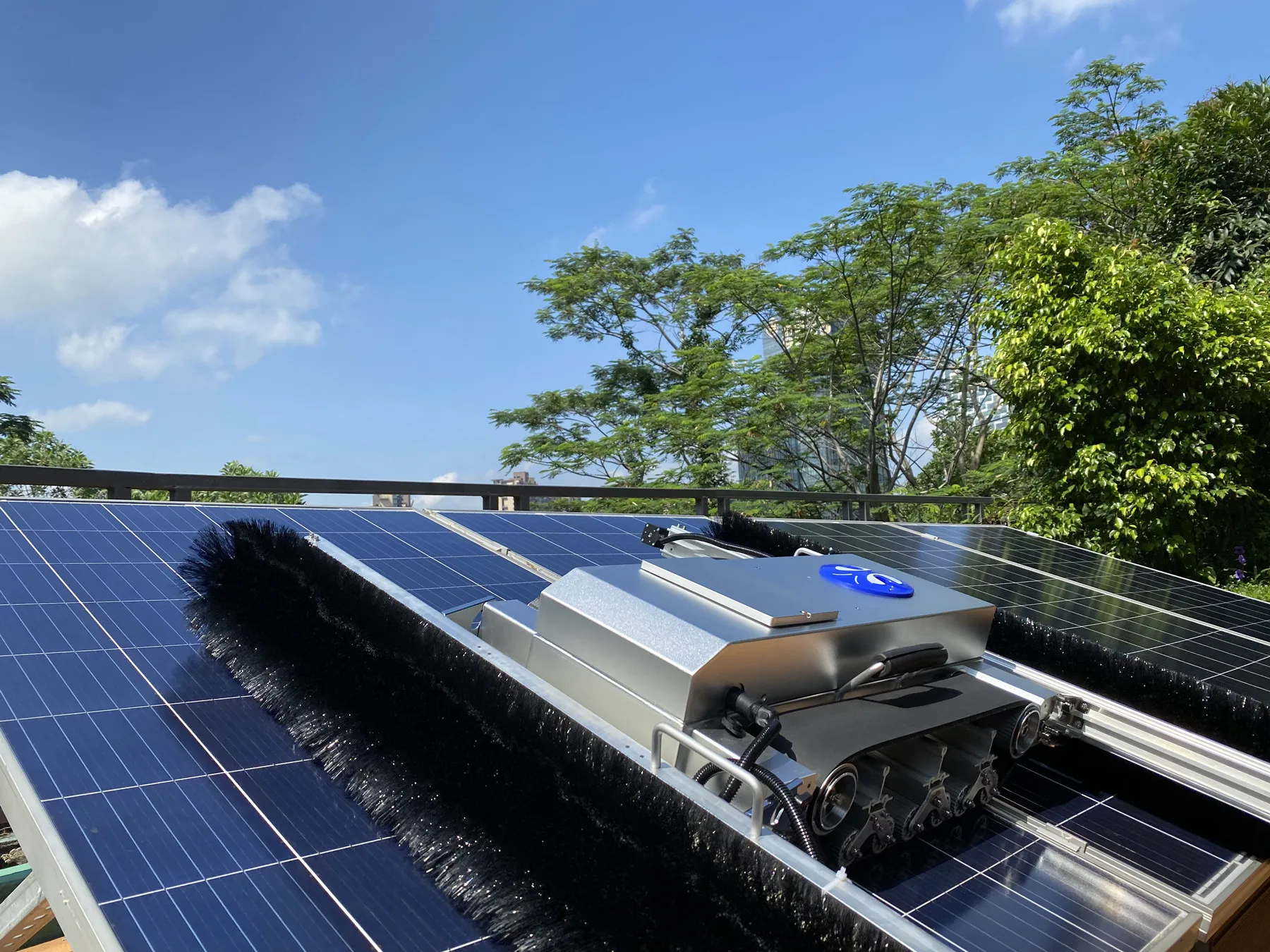

Automatic solar panel cleaning robot to increase the efficiency of solar panels up to 30%
- Category: >>>
- Supplier: Beijing Xs Mall Scientific&trading Co. Ltd.
Share on (1600594986734):
Product Overview
Description
Specification

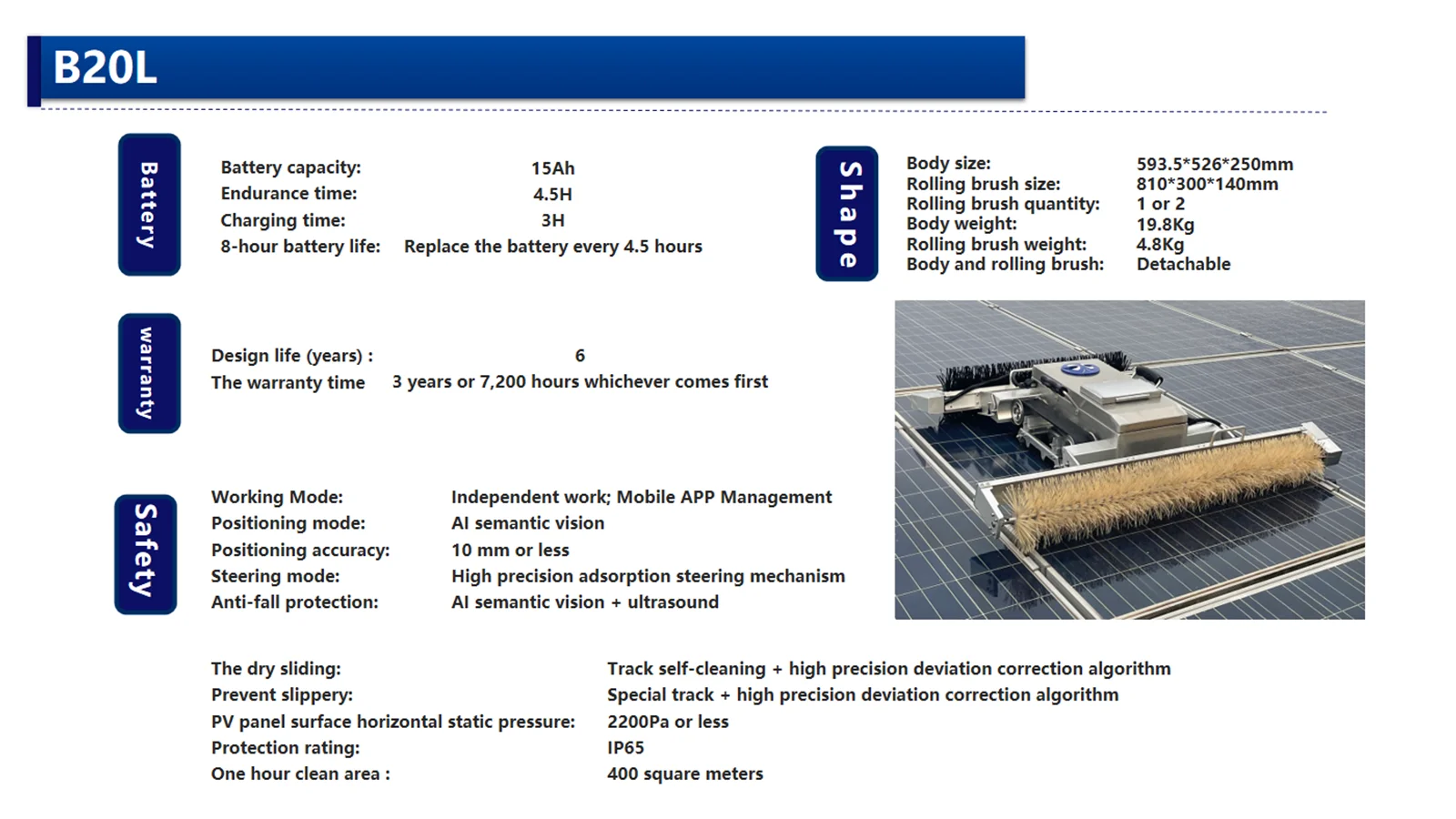

Shape | Body Size | 594*526*250 | ||
Brush Size | 810*300*140 | |||
Brush Quantity | 1/2 | |||
Body Weight | 19.8Kg | |||
Brush Weight | 4.8Kg | |||

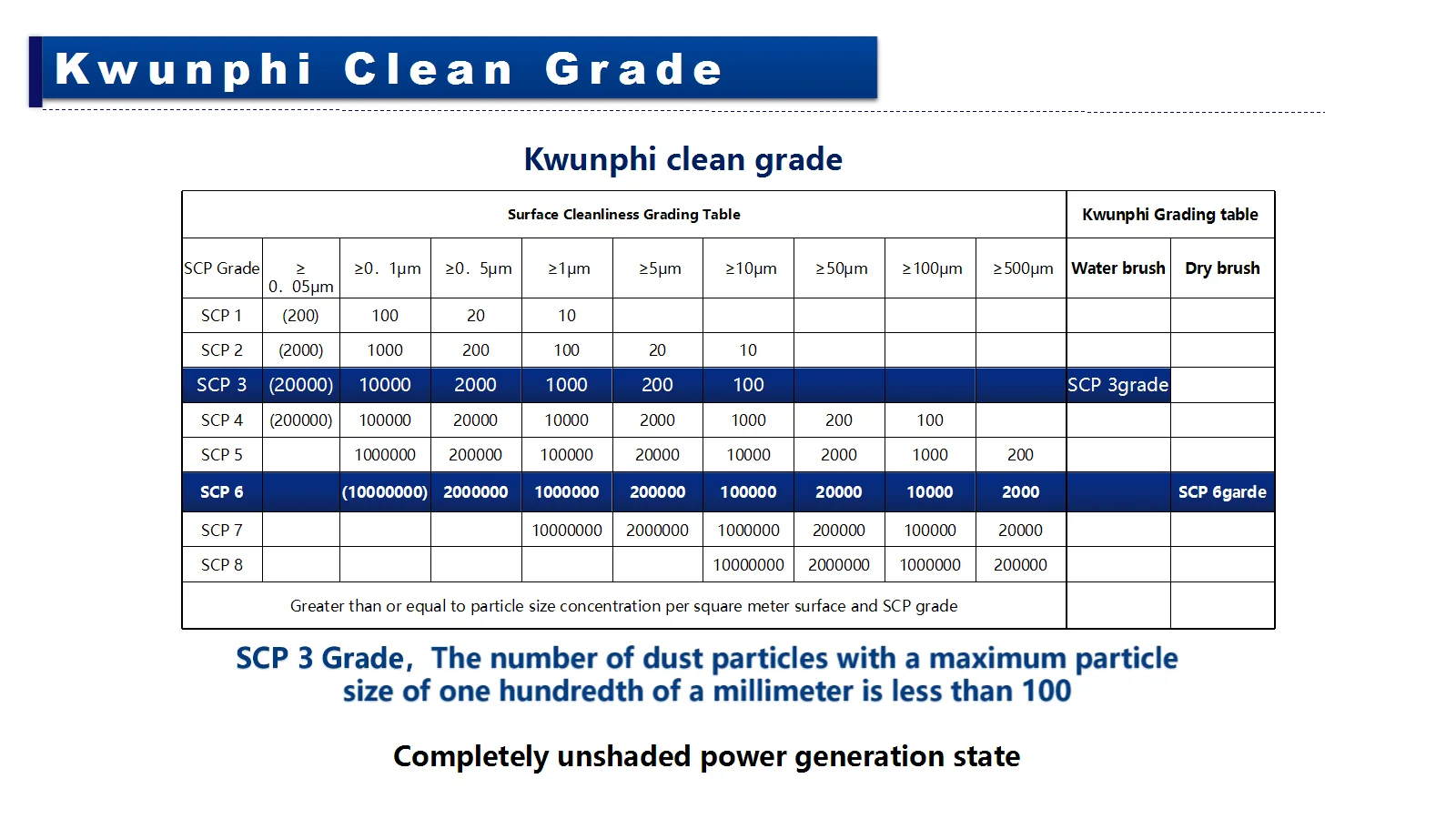

Clean Capacity | Dust (Adhesion ≤10-6N) | ≥99% | ||
Dust Accumulation (adhesion ≤10-4N) | ≥95% | |||
Dried Guano (Adhesion ≤10-2N) | ≥85% | |||
Cleaning Efficiency (SQM/H) | 400 | |||
Lifespan | Design life (years) | 4 | ||
Warranty | 2 years or 4800 hours | |||
Battery | Battery capacity | 15Ah | ||
Working Time | 4.5 hours | |||
Charging time | 3 hours | |||
9 hour battery life | Replace Once | |||

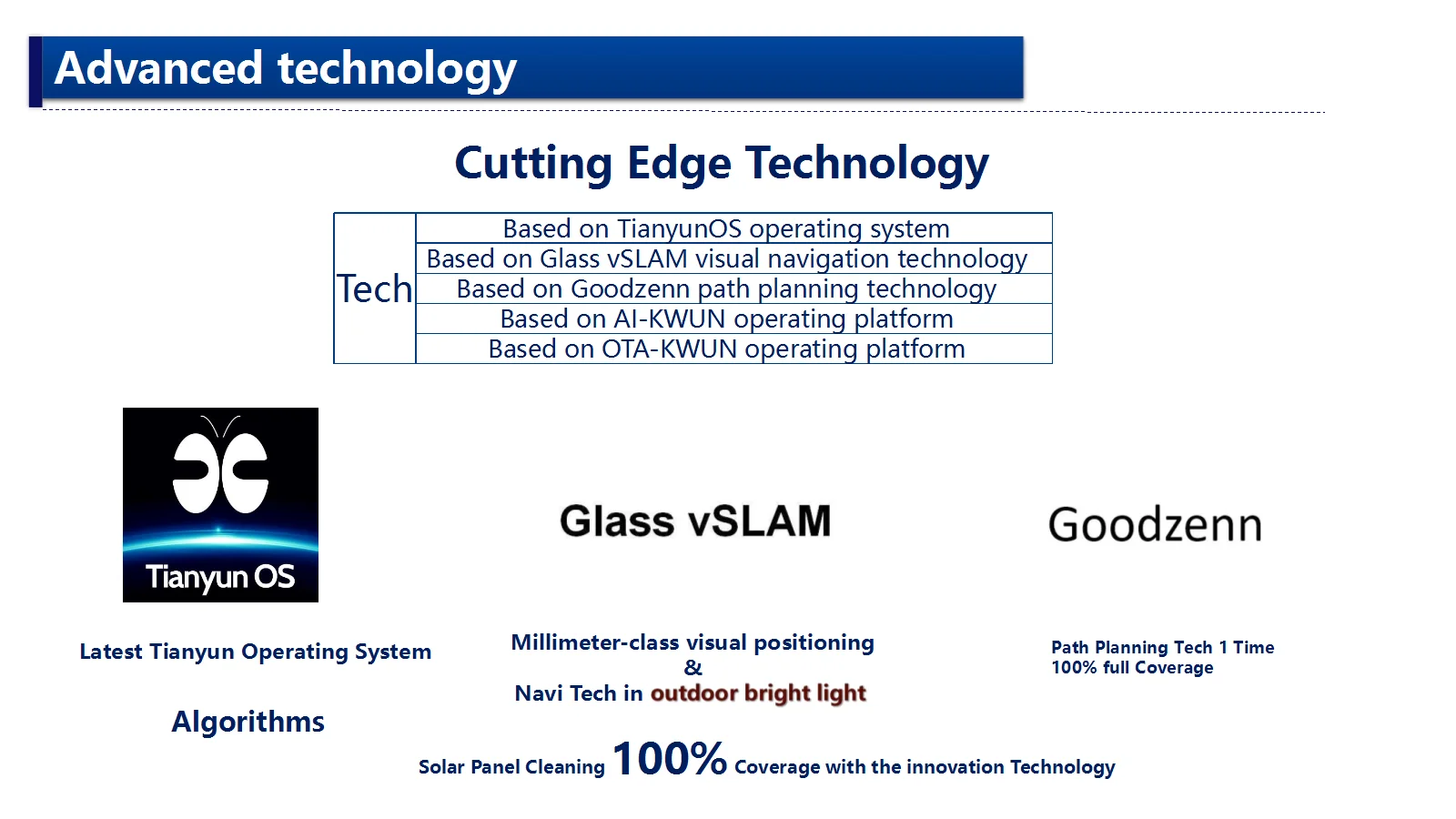

Technology | Based on TianyunOS operating system | |||
Based on Glass vSLAM visual navigation technology | ||||
Based on Goodzenn path planning technology | ||||
Based on AI-KWUN operating platform | ||||
Based on OTA-KWUN operating platform | ||||
Security | Working Mode | Independent Autonomous | ||
Robot Management | APP | |||
Positioning | AI + Semantic Vision | |||
Positioning Accuracy | MM | |||
Steering mode | High Precision Adsorption Steering mechanism | |||

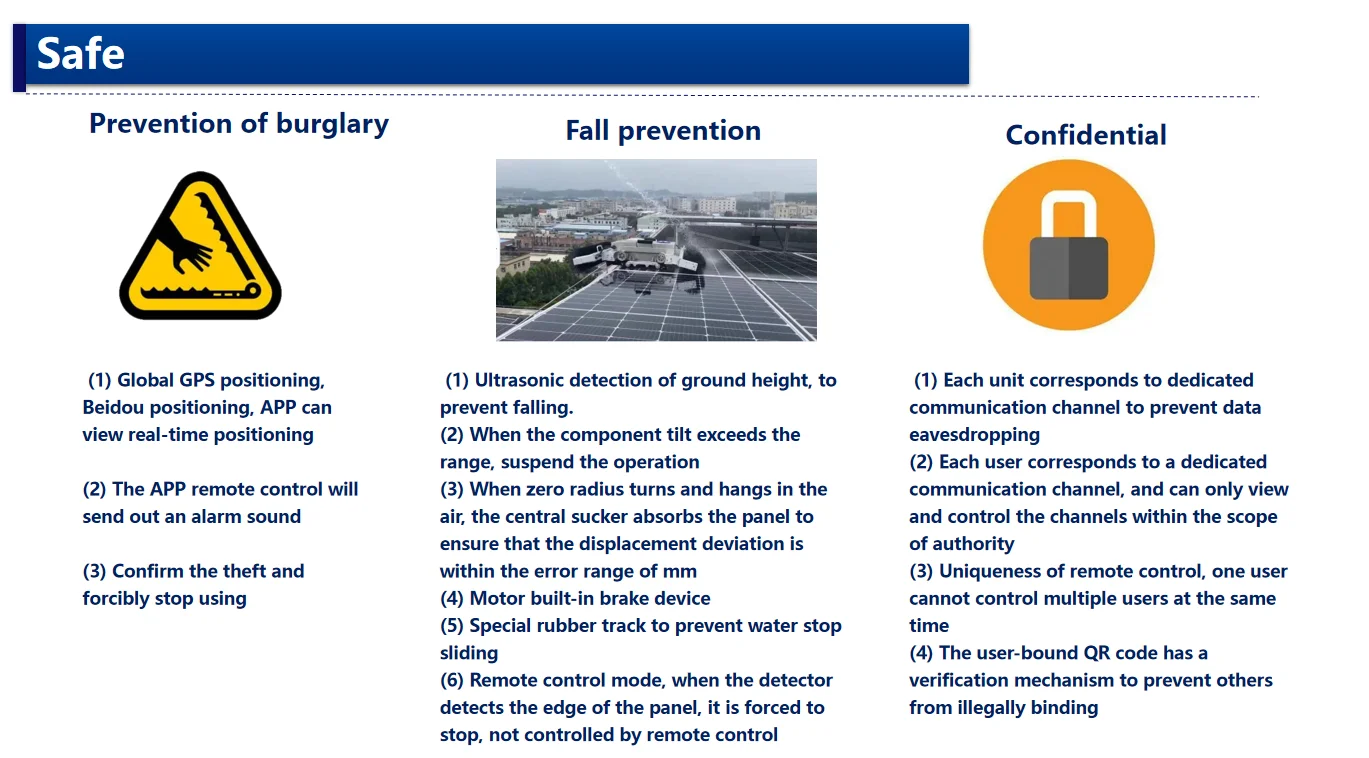

Anti-Fall protection | AI Semantic Vision + Ultrasonic | |||
Anti-Slip | High Precision Deviation Correction Algorithm | |||

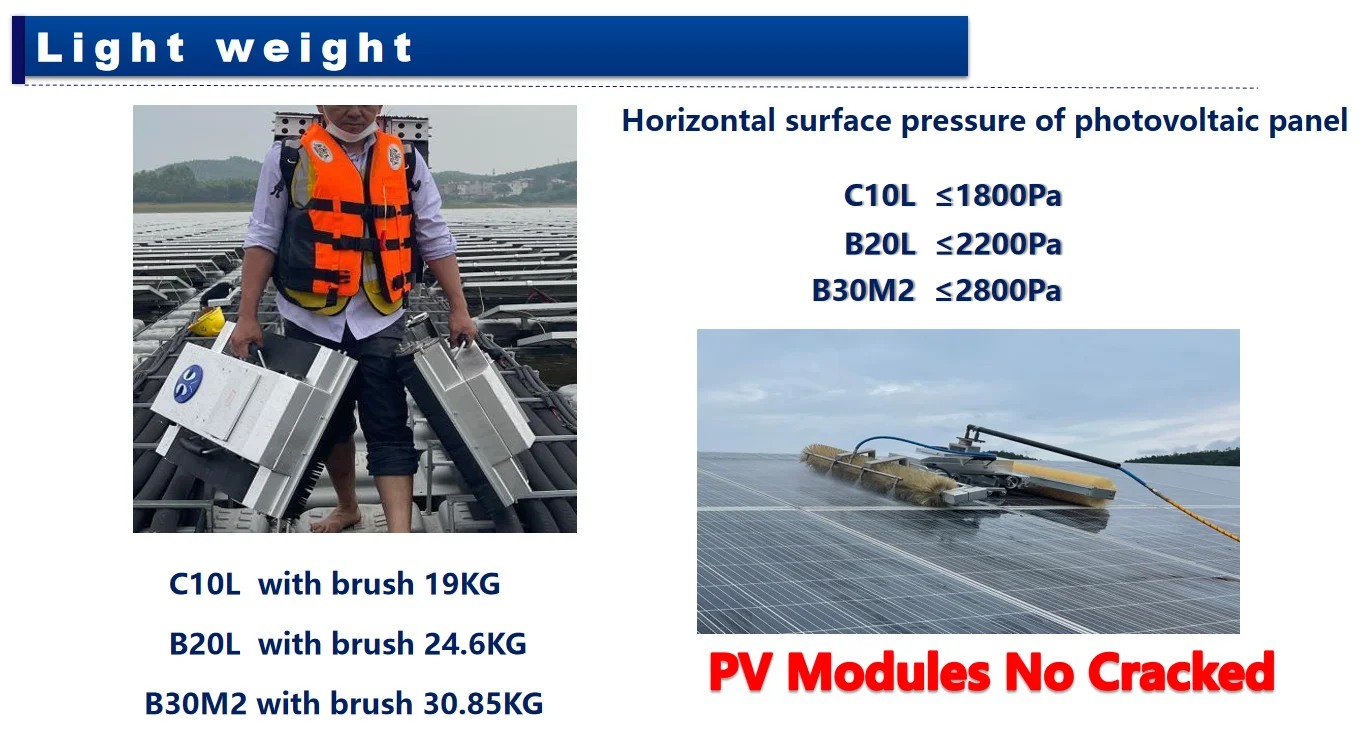

Panel Surface Pressure | ≤2100Pa | |||
Water and Dust Grade | IP65 | |||

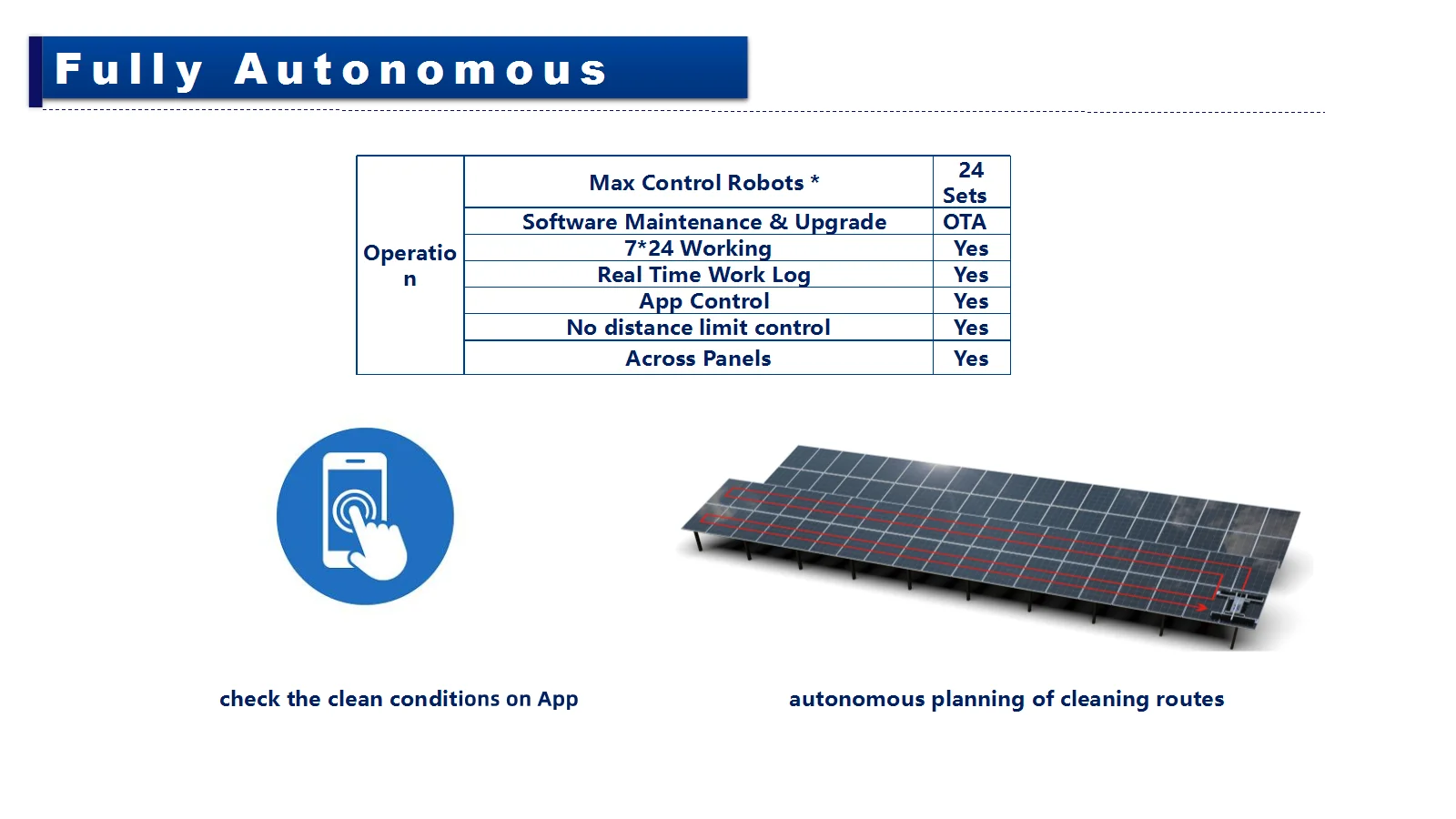

Operation | Max Robot NO. Controlled | 24 | ||
Recommended Max Robots Controlled On Slope | 4 | |||
Recommended Max Robots Controlled On Roof | 4 | |||
Software maintenance and upgrade | OTA | |||

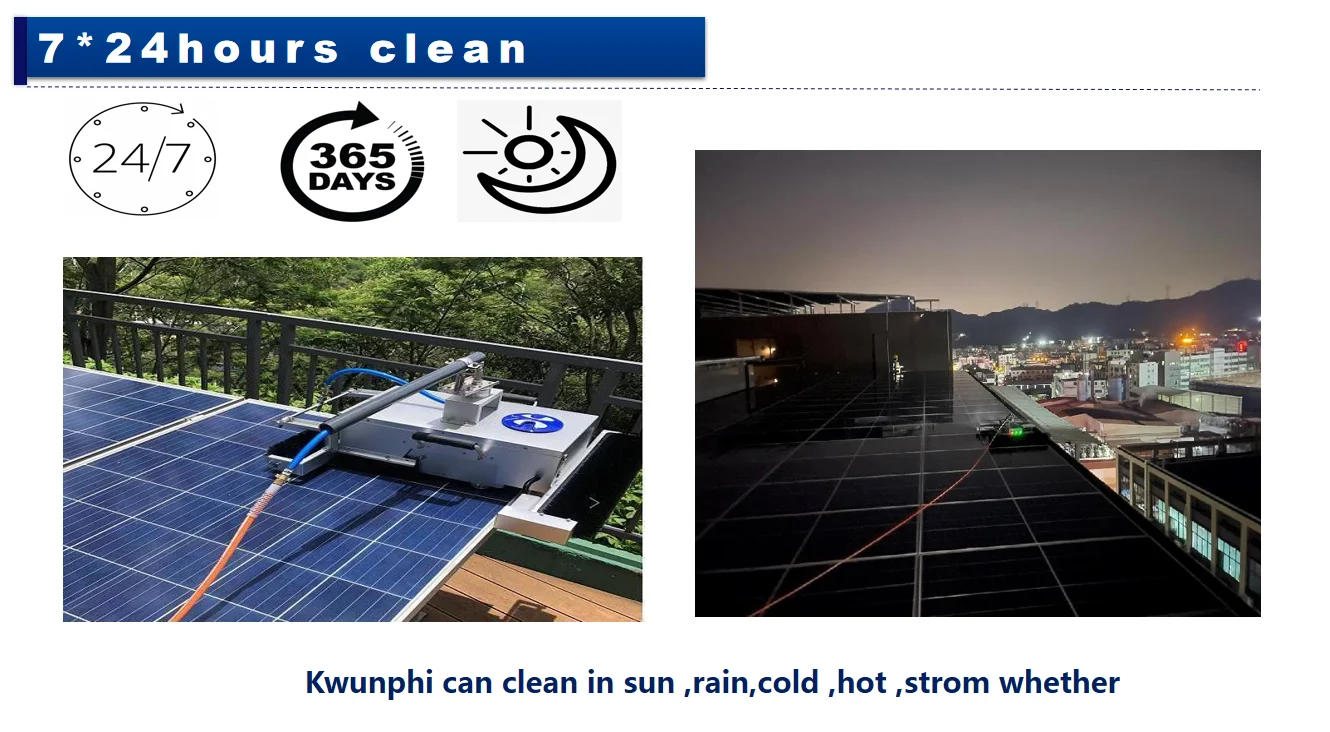

Day & Night Work 7/24 | Yes | |||
Real time logs | Yes | |||
Can retract by drone | Yes | |||
Unmanned operation | Yes | |||
Control Remotely | Yes | |||
Across the Gap and Height | Yes | |||
Brush speed adjustable | Yes | |||
Brush Detachable | Yes | |||

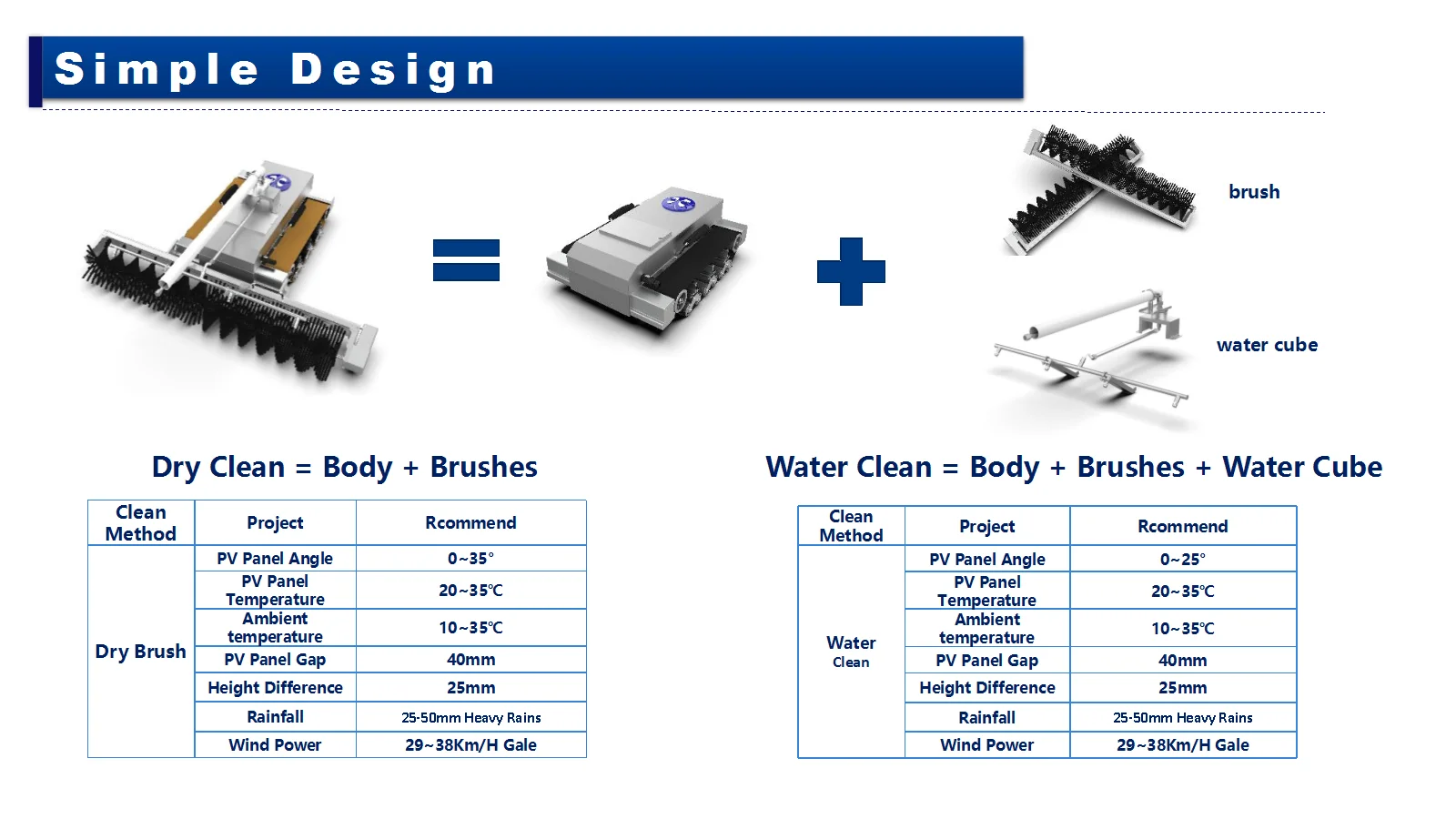

Recommended Operating Condition | ||||

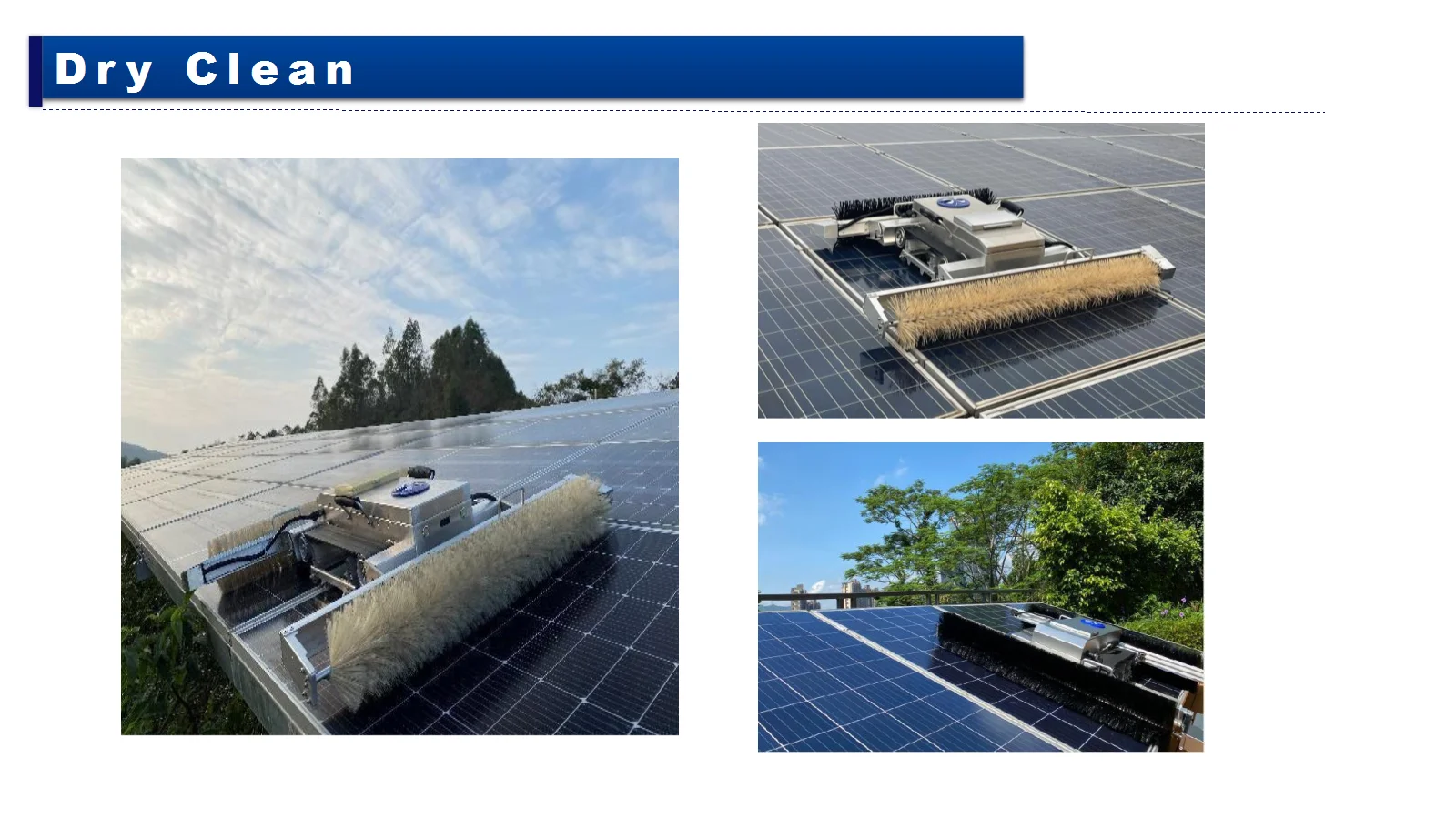

Brush Cleaning | PV Angle | 0~20° | ||
PV Surface Temperature | 20~80℃ | |||
The Environment Temperature | 10~50℃ | |||
Across PV Panel Gap | 40mm | |||
Across PV Panel Height Difference | 30mm | |||
Rainfall Proof | Refer to Water Cleaning | |||
Wind Proof | 62~74Km/H Wind | |||

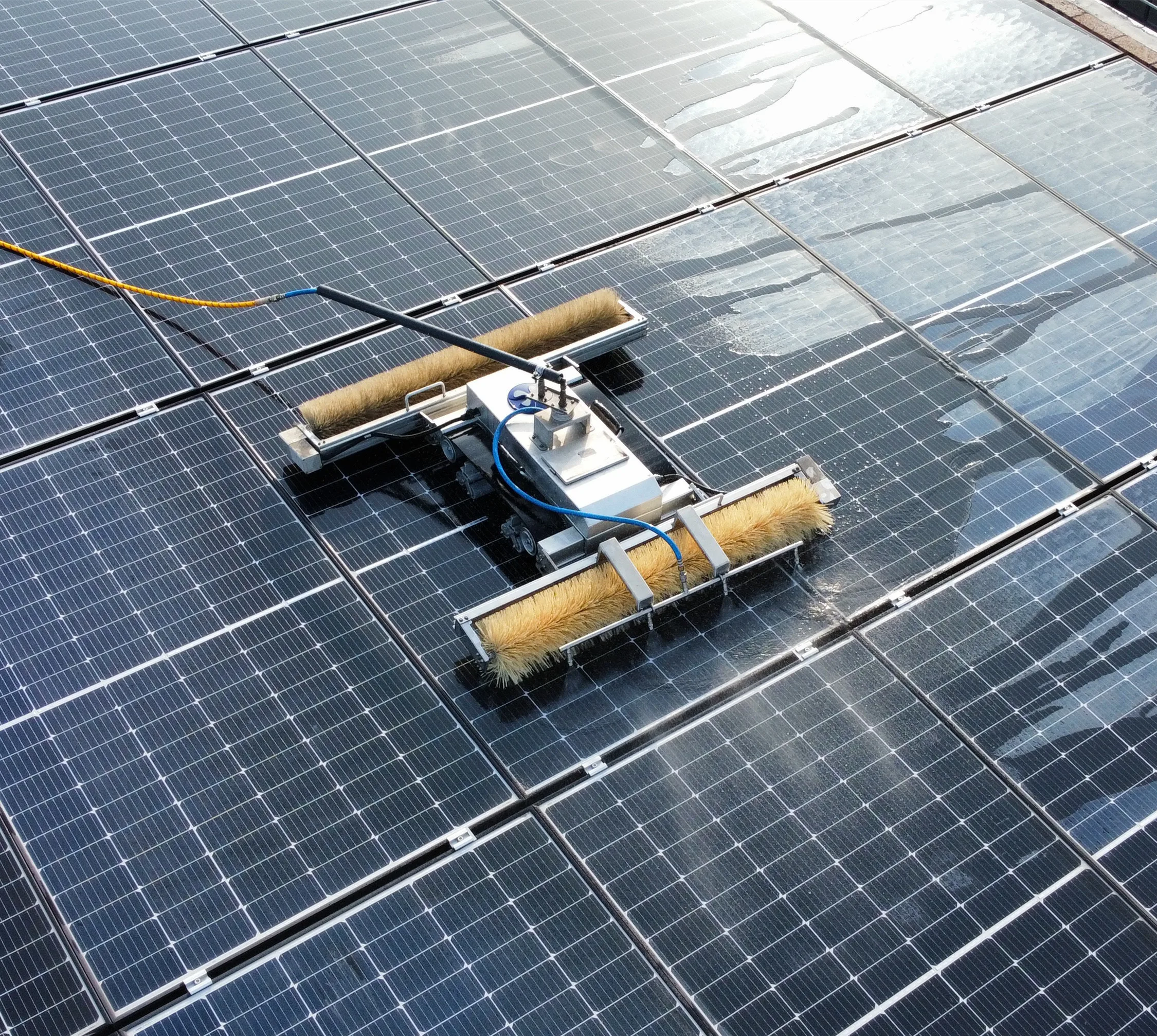

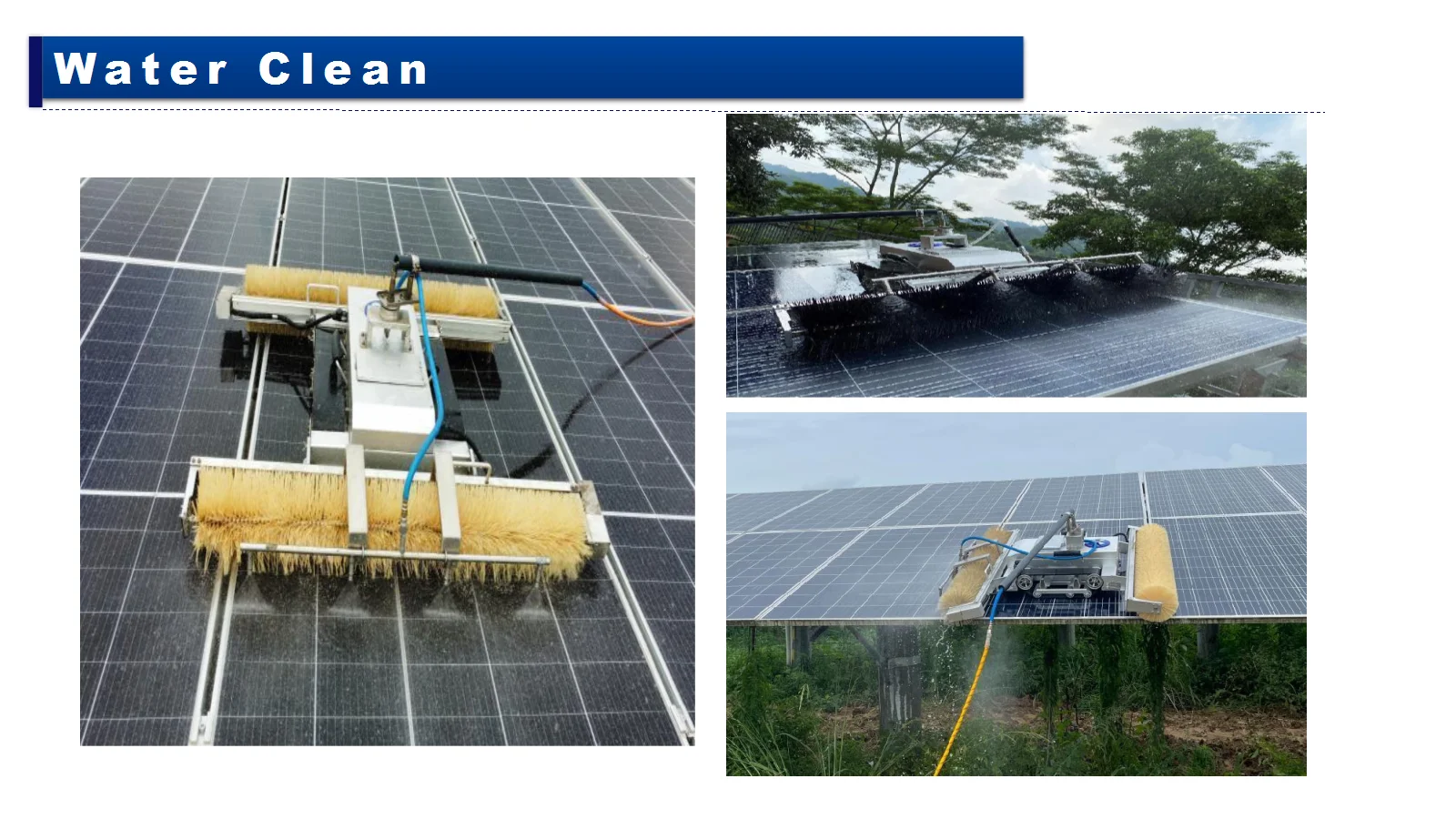

Water Cleaning | PV Angle | 0~15° | ||
PV Surface Temperature | 20~35℃ | |||
The Environment Temperature | 10~35℃ | |||
Across PV Panel Gap | 40mm | |||
Across PV Panel Height Difference | 25mm | |||
Rainfall Proof | 25~50mm Heavy Rain | |||
Wind Proof | 29~38Km/H Wind | |||

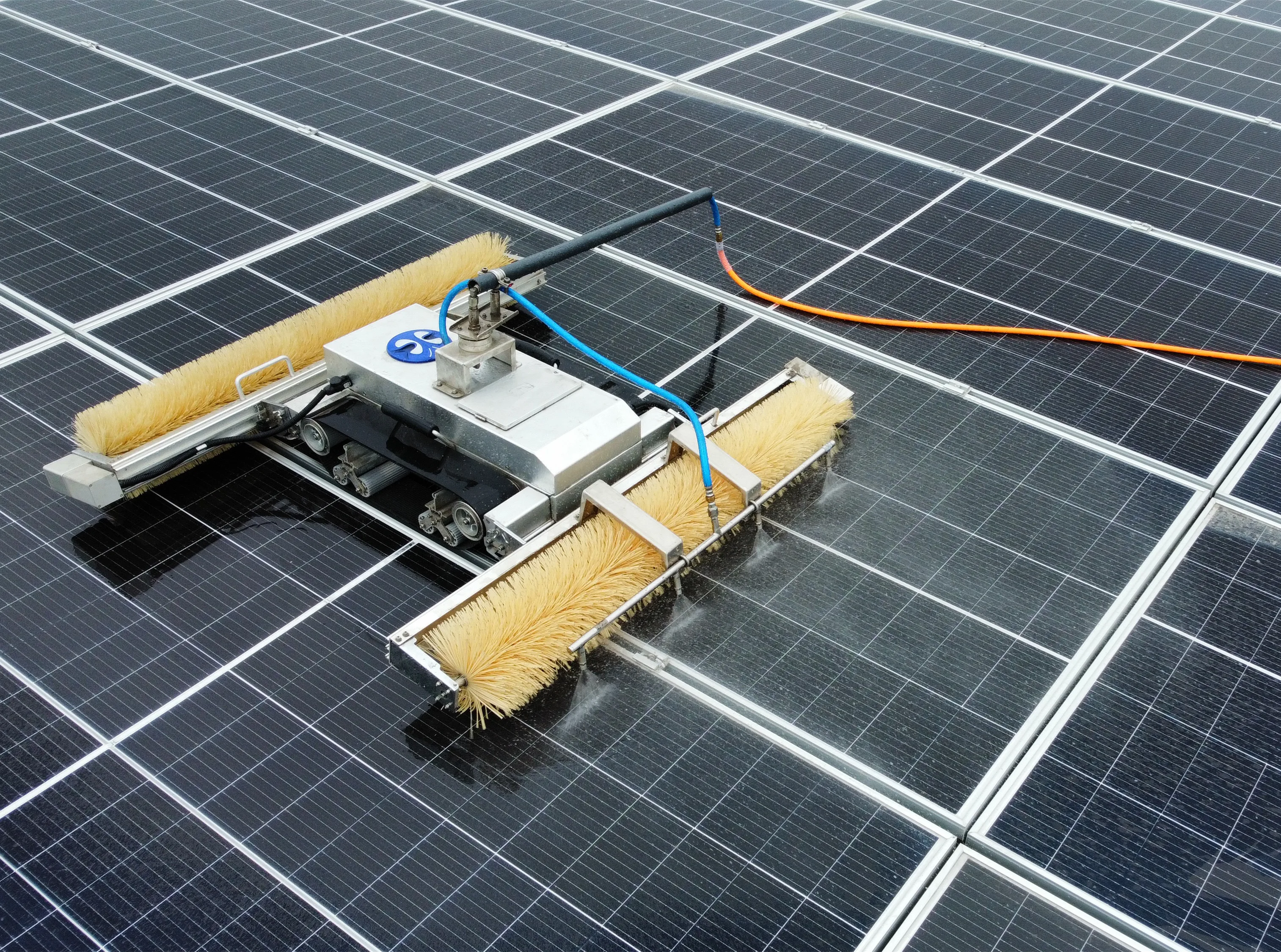

Products Description
Company Profile
Shenzhen Kwunphi Robot Co., LTD., founded in 2018 in Shenzhen, is a national high-tech enterprise founded by the senior
management team of international well-known robot enterprises. With the mission of providing wall mobile robot technology solutions worldwide, The company is specialized in the research and development, production and commercialization of high quality wall mobile robots, and is the world's leading AI technology application enterprise.
management team of international well-known robot enterprises. With the mission of providing wall mobile robot technology solutions worldwide, The company is specialized in the research and development, production and commercialization of high quality wall mobile robots, and is the world's leading AI technology application enterprise.

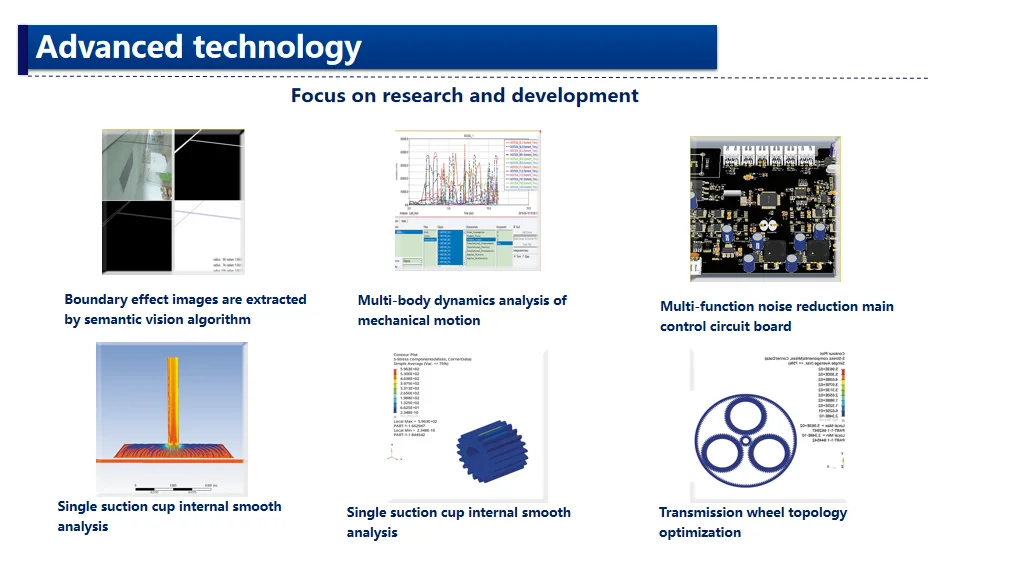

The research and development team of strange bug robot has broken through the technical restricted area of high-precision positioning and control of glass wall environment, and effectively solved the difficulty of the control technology of gravity sliding position correction of the wall. The Tianyunos wall autonomous movement control platform was established based on four core technologies, namely "adsorption and movement efficiency", "Glass vSLAM vision technology", "Goodzenn path planning algorithm" and "wall motion control". Kwunphi developed by strange bug is the world's first fully autonomous photovoltaic cleaning robot, with a cleaning efficiency of 33% higher than manual, clean as new and simple and convenient. Listed by the market since the warm feedback demand.
Kwunphi solar clean robot have more than 100 core intellectual property rights and proprietary technologies, and has established r&d pipelines for a variety of innovative wall robot products in the fields of big data, security, new energy, communication, entertainment and so on, covering a variety of indoor and outdoor wall cleaning, detection, patrol, data collection and other application scenarios. More advanced technology products will be released in the future.
After three years and six generations, Kwunphi, the world's first photovoltaic module cleaning robot based on visual positioning, was put into commercial application in 2021. It has been successively used in the projects of State-owned enterprises such as China State Power Investment Corporation, China Power Construction Corporation, China Energy Construction Corporation, China General Nuclear Power Corporation, Guangzhou Development And Guangdong Electric Power Corporation, and has been exported to more than 20 countries and regions.
Our Advantages

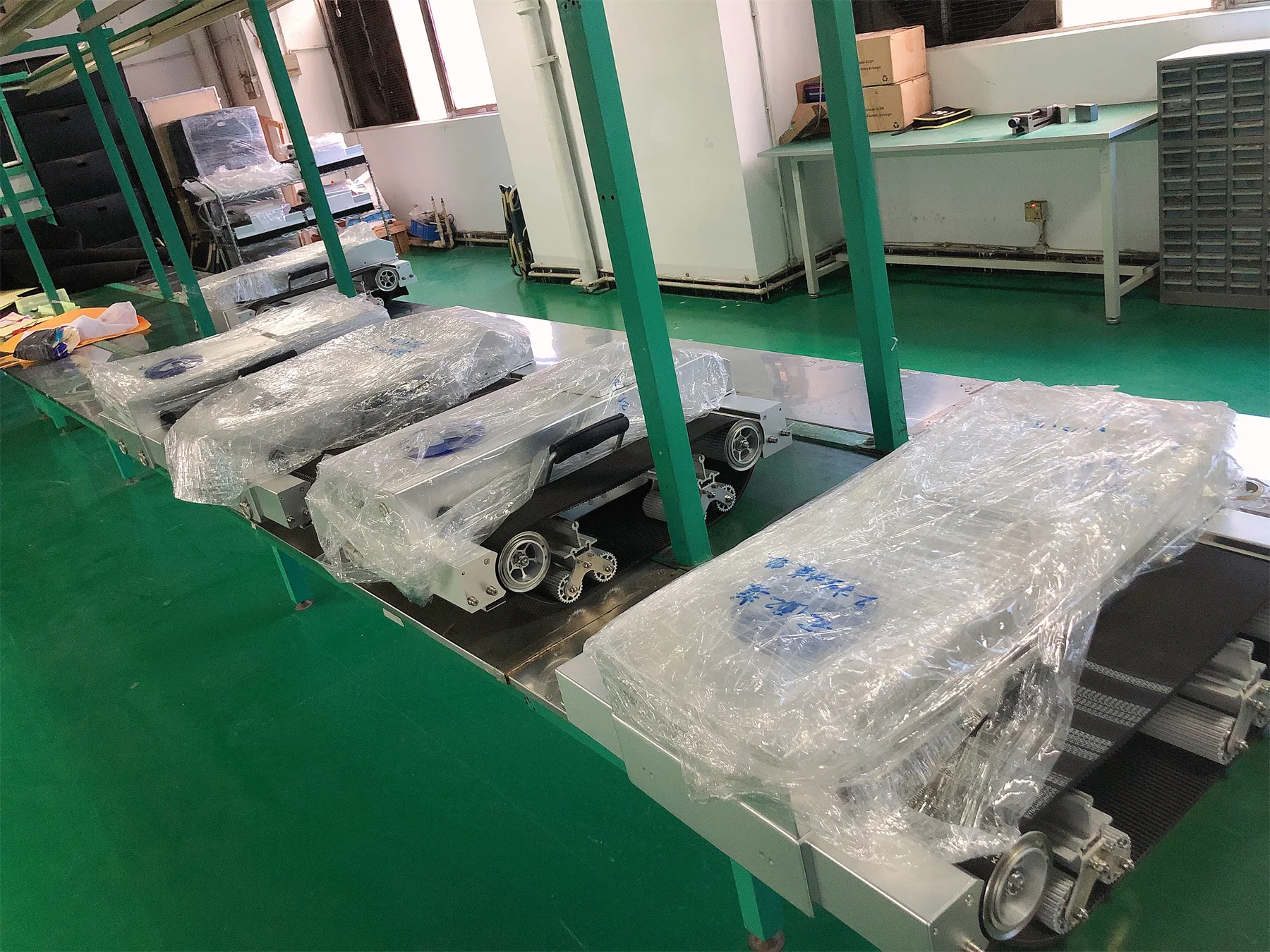

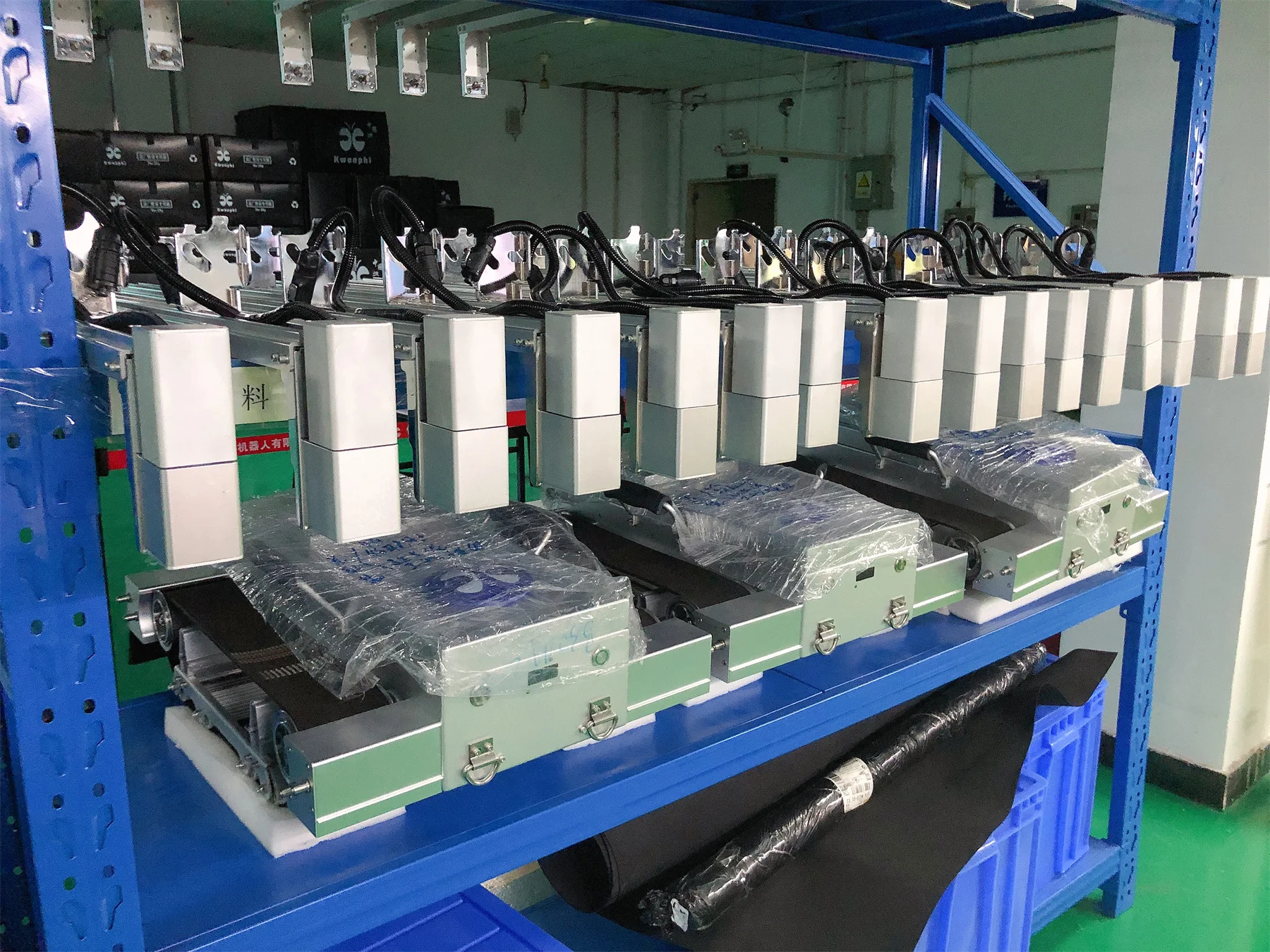

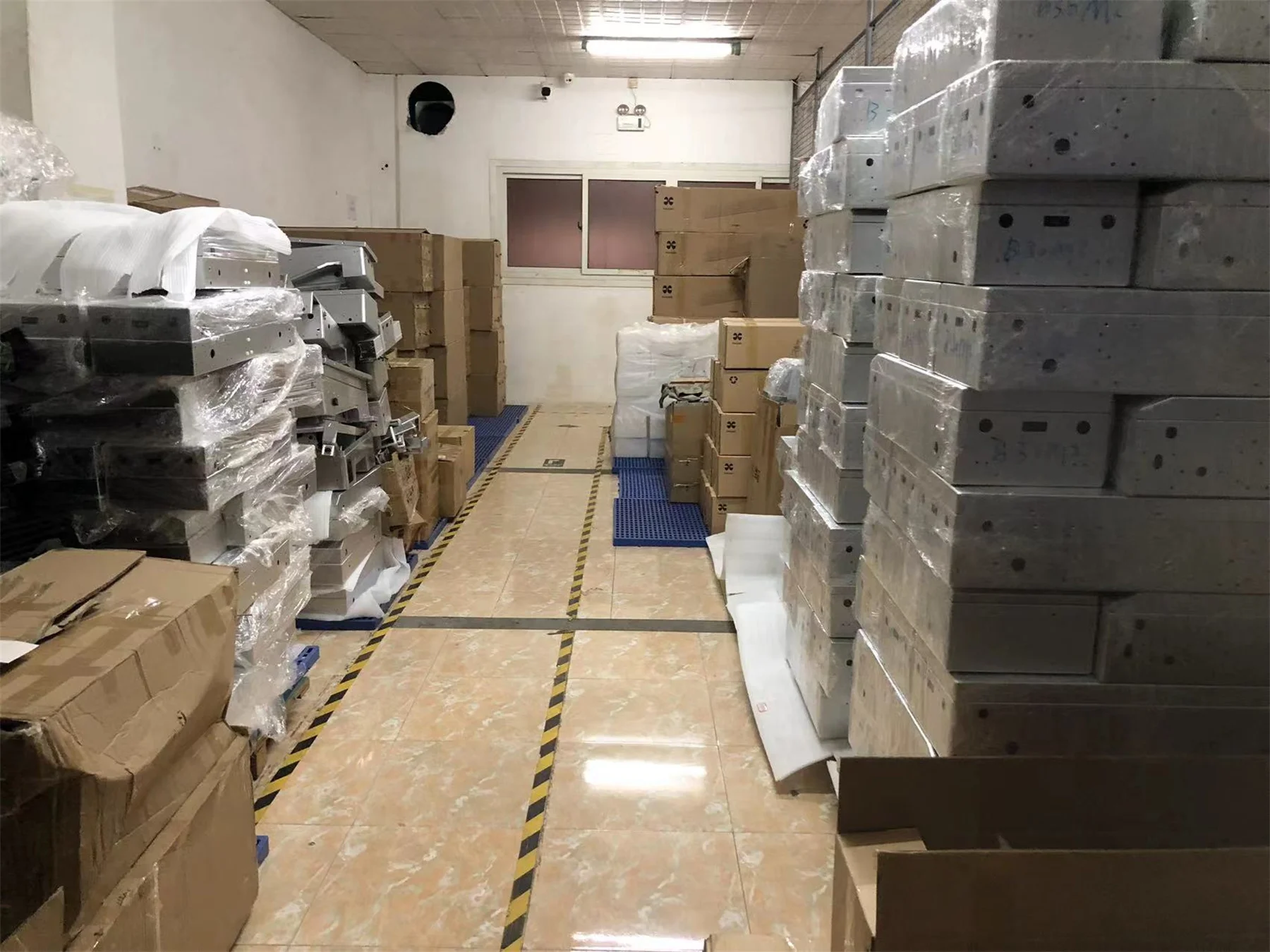

Packing & Delivery
FAQ
1, Is there a distance limit for app control?
There's no distance limit. Kwunphi will stop automatically at the end of the work.
2,Does it have to be connected to the Internet to work?
No. Kwunphi can work as usual without the Internet, but cannot send reports to the app.
3, What is the maximum Angle it can climb?
Theoretically, it can climb at a maximum angle of 60 degrees. In actual work,we suggest that dry cleaning normally climbs 35 degrees and water cleaning normally climbs 25 degrees.
4, How to repair Kwunphi when it has problems?
Through kwunphi cloud data, we can find and fix 90% of the problems. If there are damaged parts in kwunphi,you can contact your local agent for maintenance.

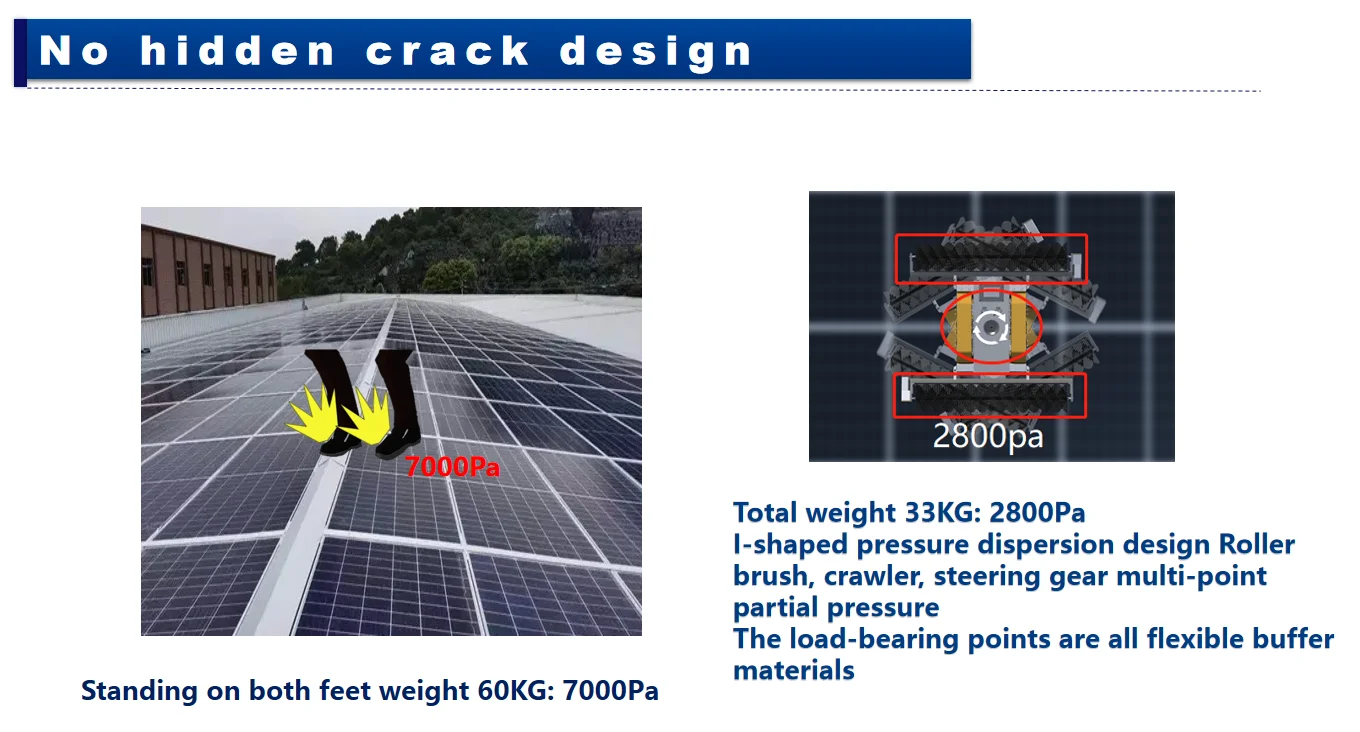

5, Will the solar panel be worn by frequent cleaning with kwunphi?
No. The maximum pressure of kwunphi is 2800 Pa while the pressure below 3800 Pa is safe for solar panels. You can use it safely.
6, Can kwunphi use unfiltered water for cleaning?
Its back brush will clean the remaining dust under the tracks
2,Does it have to be connected to the Internet to work?
No. Kwunphi can work as usual without the Internet, but cannot send reports to the app.
3, What is the maximum Angle it can climb?
Theoretically, it can climb at a maximum angle of 60 degrees. In actual work,we suggest that dry cleaning normally climbs 35 degrees and water cleaning normally climbs 25 degrees.
4, How to repair Kwunphi when it has problems?
Through kwunphi cloud data, we can find and fix 90% of the problems. If there are damaged parts in kwunphi,you can contact your local agent for maintenance.
5, Will the solar panel be worn by frequent cleaning with kwunphi?
No. The maximum pressure of kwunphi is 2800 Pa while the pressure below 3800 Pa is safe for solar panels. You can use it safely.
6, Can kwunphi use unfiltered water for cleaning?
Its back brush will clean the remaining dust under the tracks
