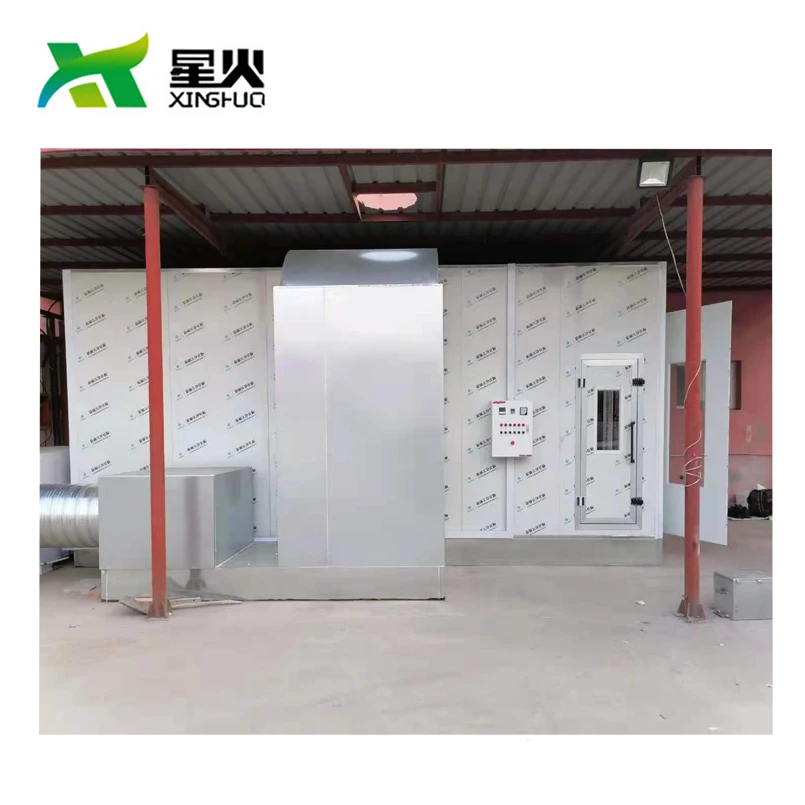

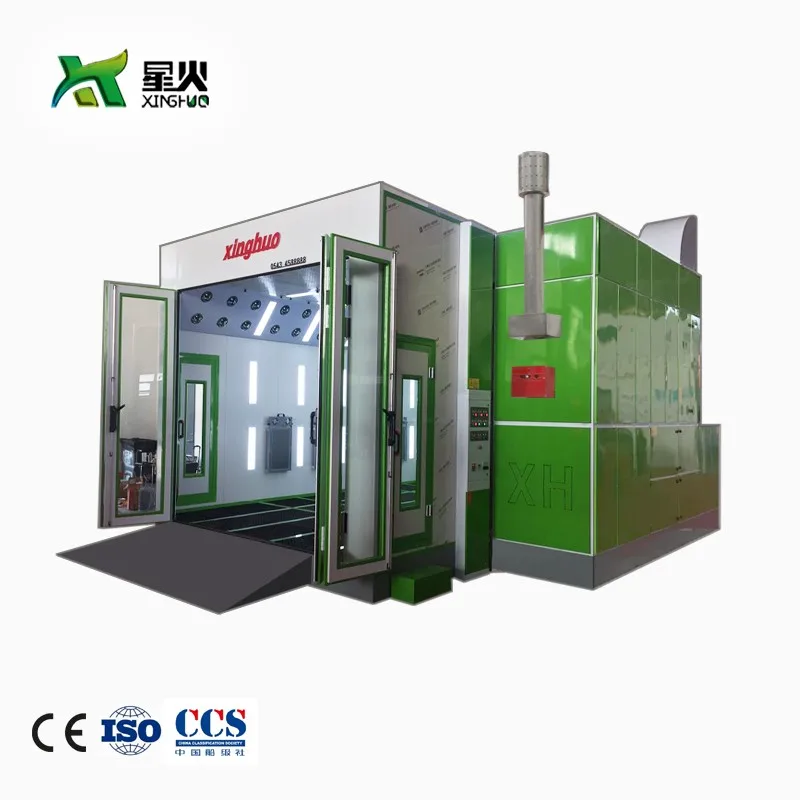

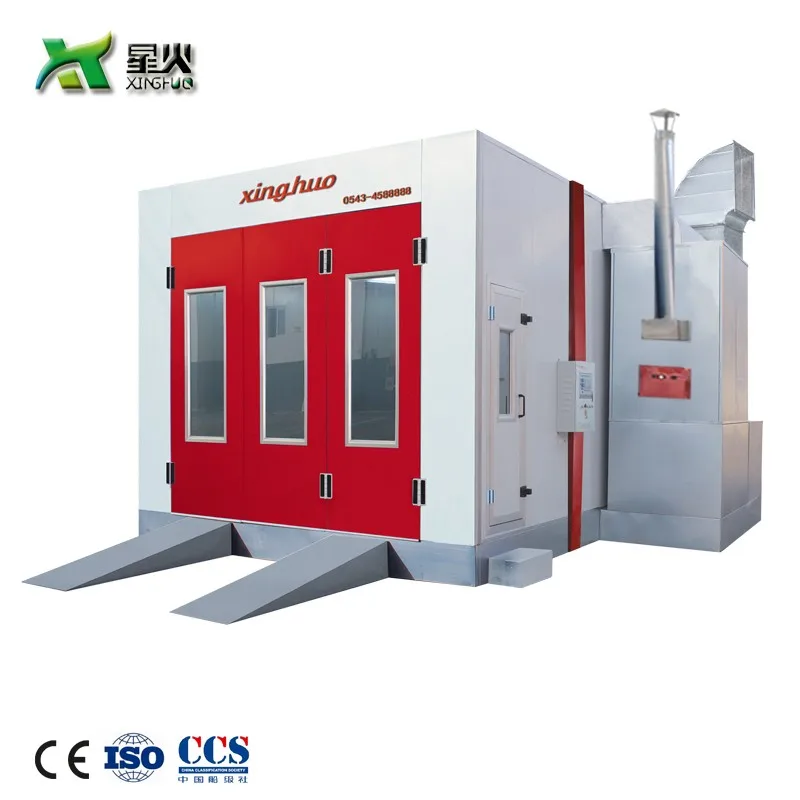

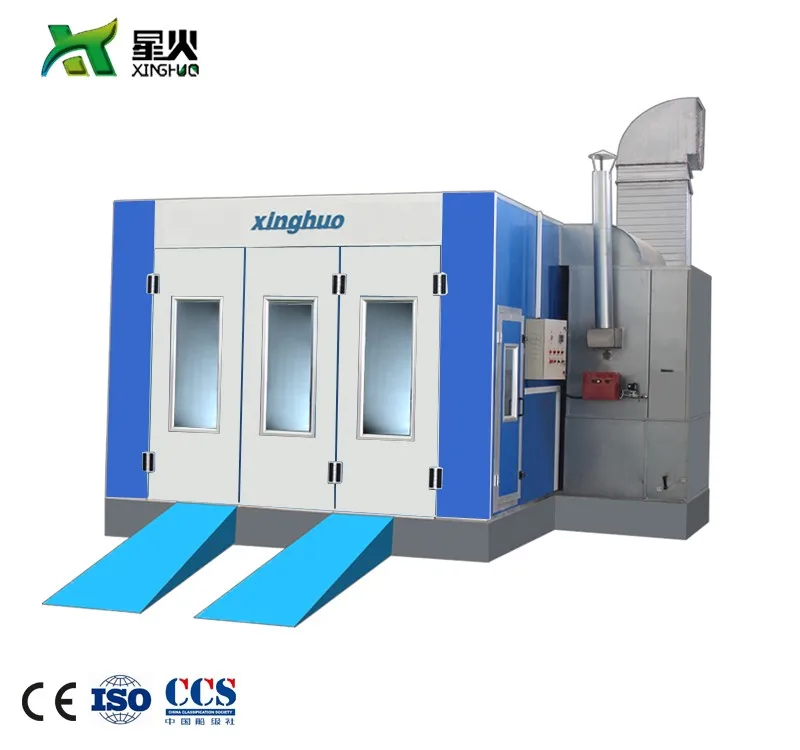

Car Spray Booth Paint Booth Paint Room (1600595009857)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Advantages


Our company advantages

-More than 20 years in spray booth for car painting field

-products got 'CE ' and 'ISO 9001'certificates.

- Professional pre-sales and after-sales service.

-One year the quality assurance

-Accept Customization

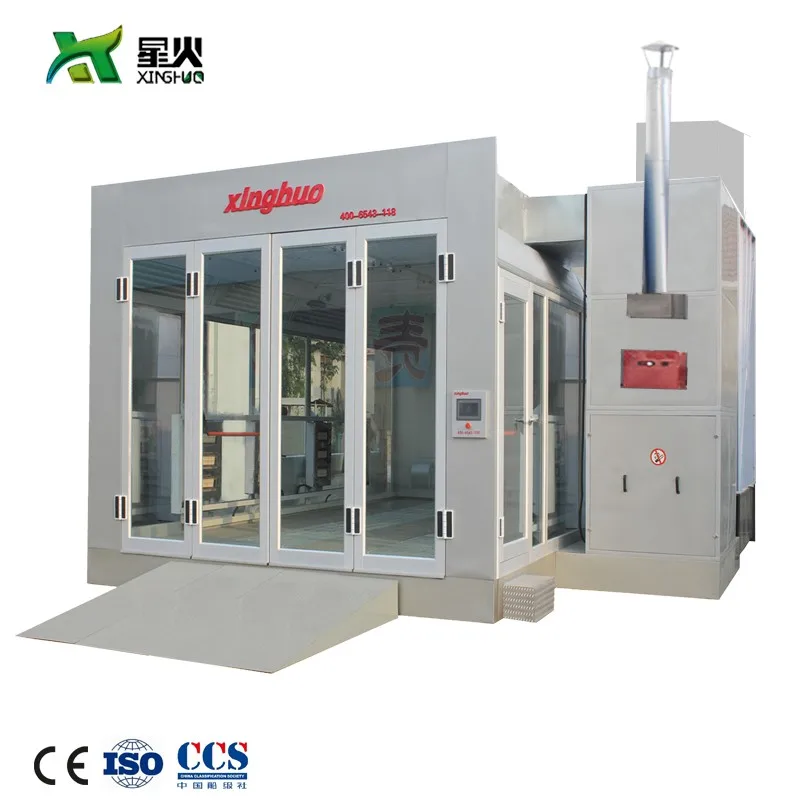

Related product show





Product parameters




fuel Oil painting room parameters
Product name

spray booth

power
20kw

External size(L/W/G)mm

7000*5500*3300

Internal size(L/W/G)mm

6900*3900*2600

Voltage

380V/50HZ

Certification

CE/ISO9001

Baking temperature

≤85℃
Wallls/ceilings

panels 50 mm thick

Air-intake fans

1unit 7.5KW

Air-exhaust fan

1unit 5.5KW

Color

customization

Basement system

high-quality galvanized sheet

Heating system
Riello Brand Diesel Burner
Ceiling light

32 sets LED tubes



Configurations

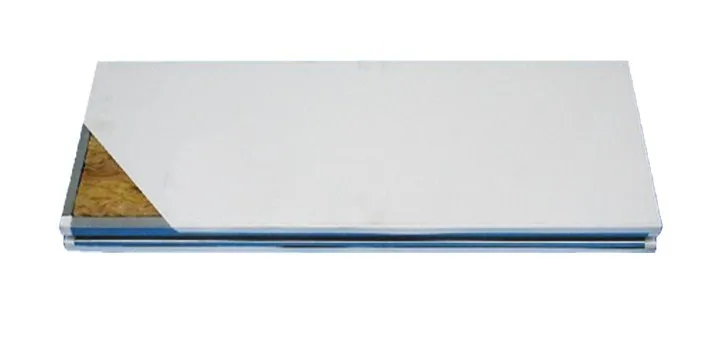

Housing system

-50mm manual purification color steel plate

- high density hydrophobic basalt for 4 sides sealing edge

- High-quality galvanized sheet bending and fastening

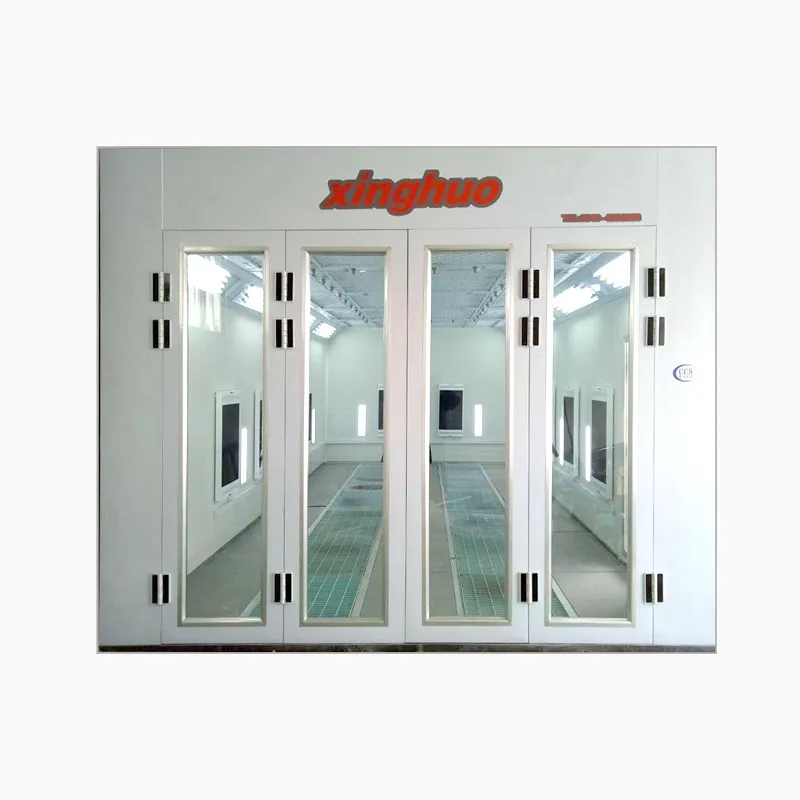

The door

-Design folding four doors
-Full sheet metal door fabrication with the external latch
-Glass observation room installed

-another side have one safe door
-Equipped with safety pressure lock

-when the room reaches the limit value, automatically spring open the safety door for pressure relief

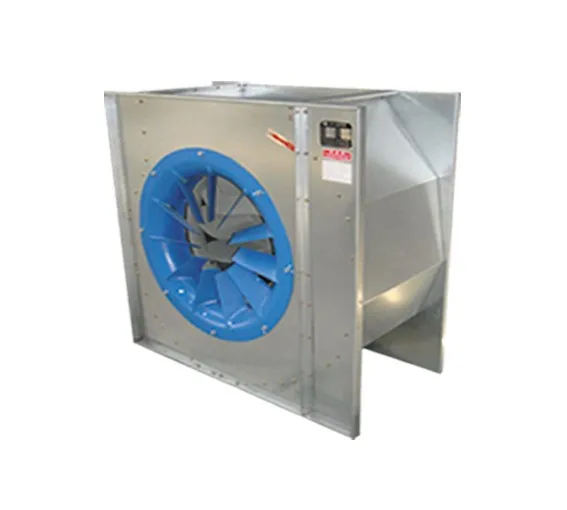

Air system

-DDF Siemens technology European turbofan

-one  7.5KW air intake fan and one 5.5KW exhausting air fan

-High quality galvanized sheet framework and skin

-Have a sound insulation layer

-The box body and the house body are separated to prevent resonance

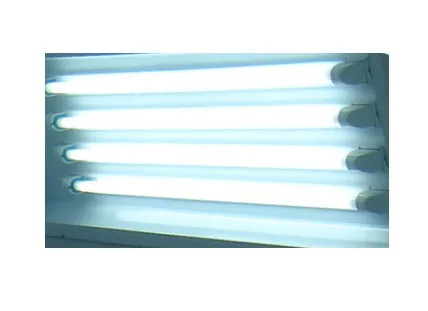

Illumination system

- 32 sets of LED tubes with an illumination of ≥1000 lux

-- The light box is made of galvanized sheet by bending,welding and spraying production

-The light boxes are located on both sides of the spray booth and are fixed at the top of the spray booth at a 45 degree angle.



Filtering system

-Dry type multi-filtration
-effectively filtering fog particles

Heating system
-Italy riello brand diesel burner

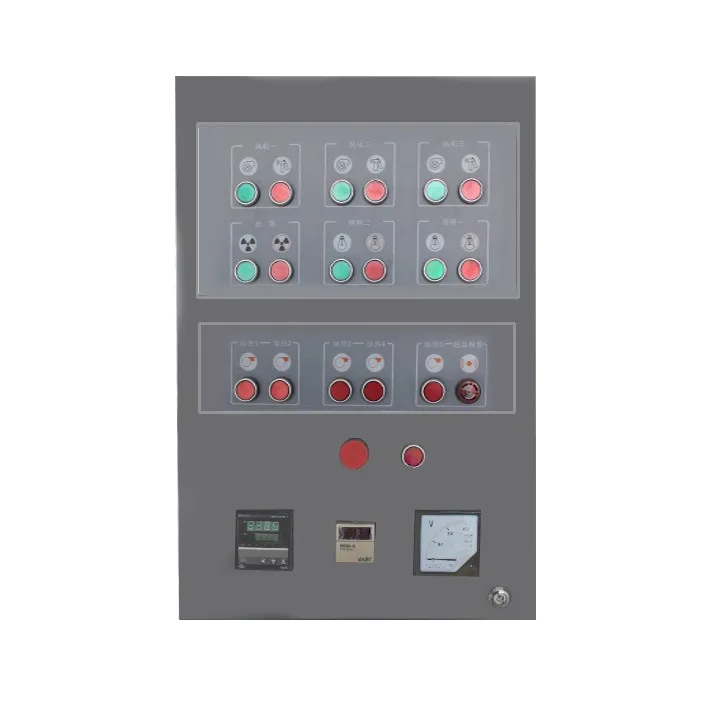

Control panel

- Adopt integrated manual mechanical control system


-With temperature time setting, normal temperature painting, paint switch, lighting switch, emergency stop switch, fault alarm,etc

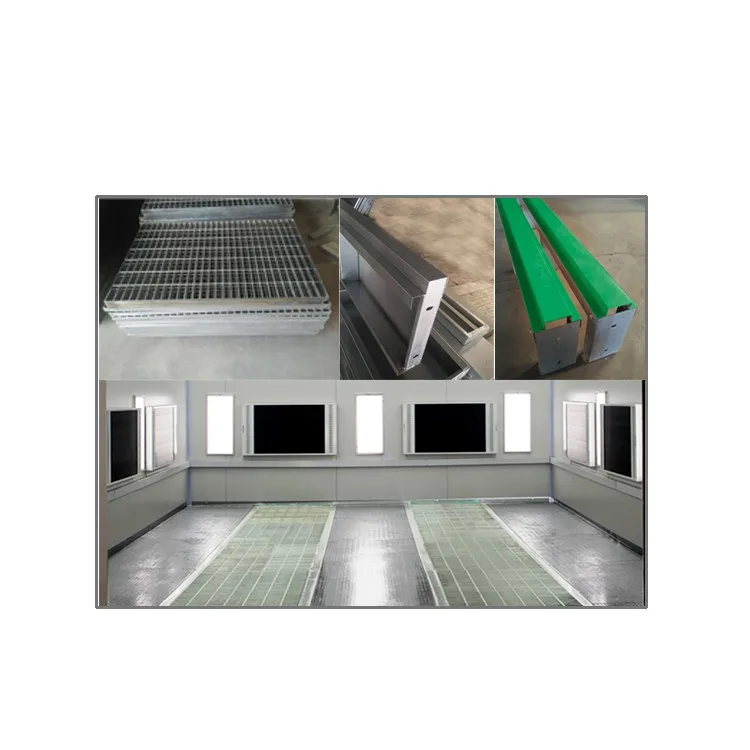

Basement system

- The surrounding is made of high-quality galvanized sheet.

- The load-bearing bracket is 1.8mm galvanized sheet with convex steel structure welded

- Steel grilles(30*4mm flat iron and 8 #threaded steel welding)*2rows

- Non-slip boards(painted by the tread plate)*3rows

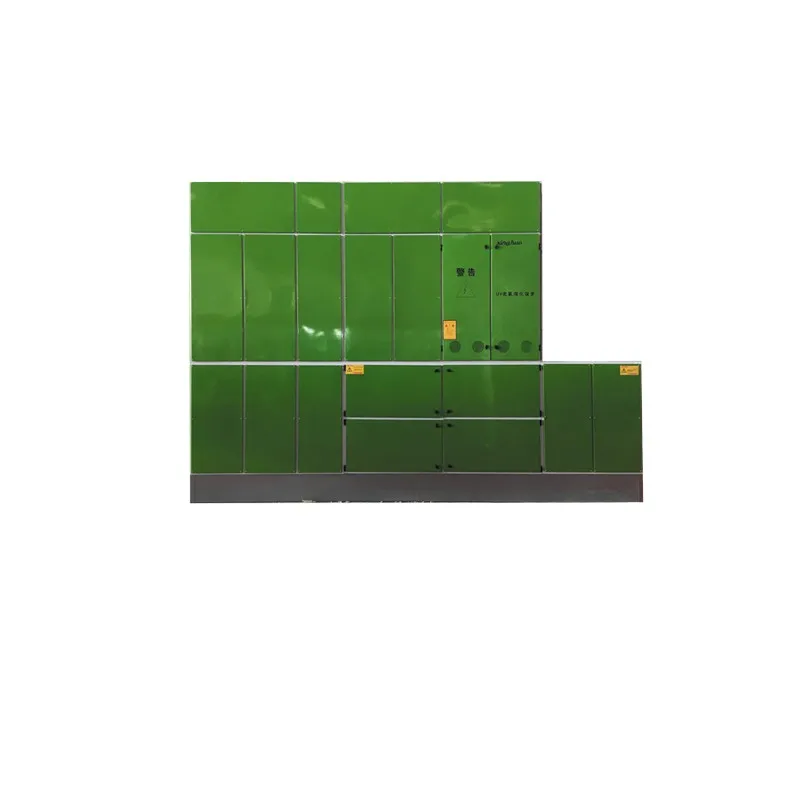

Environmental protection system

-Photooxygen catalytic purification equipment

- multi-layer filtration

-effective decomposition of waste gas pollutants, the purification rate of up to 90%

-W filter paper and glass fiber cotton

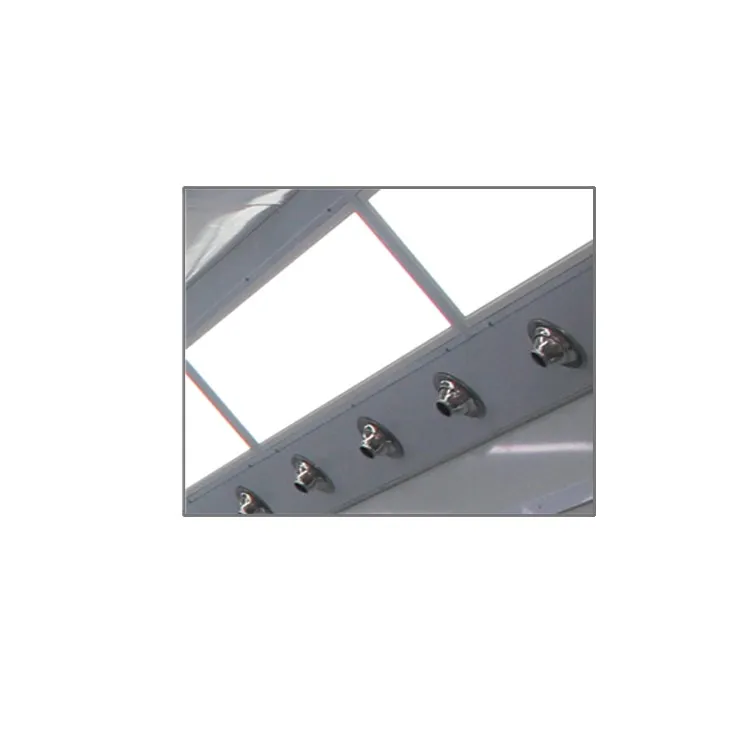

Water paint installation


-Adjustable to tell the air shower nozzle


-2 YDW centrifugal fans to supply air independently

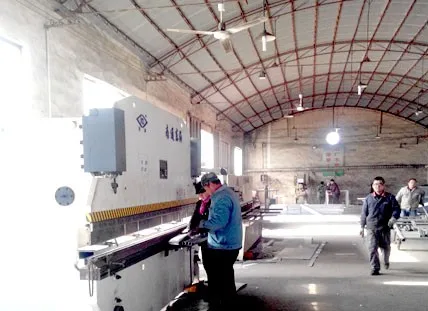

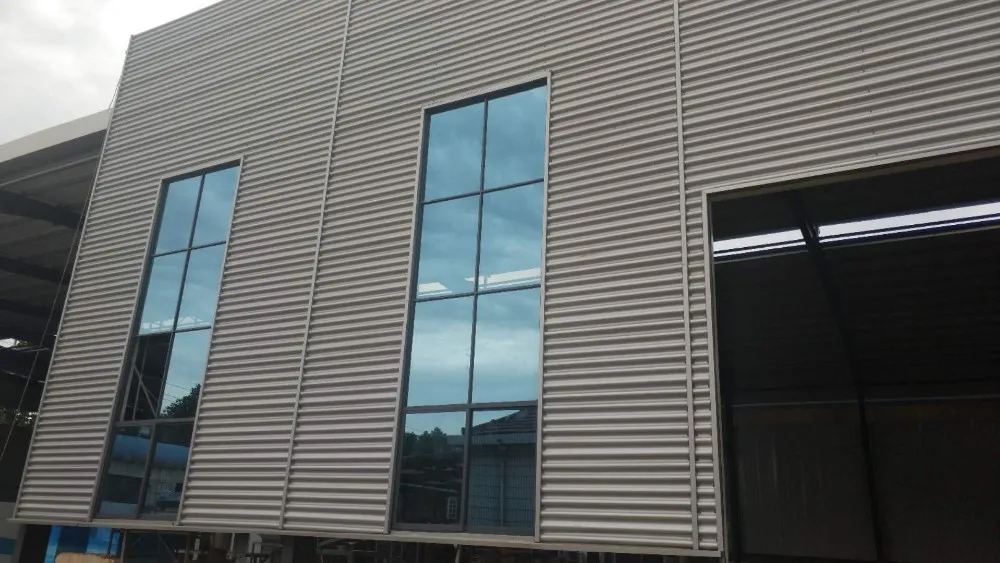

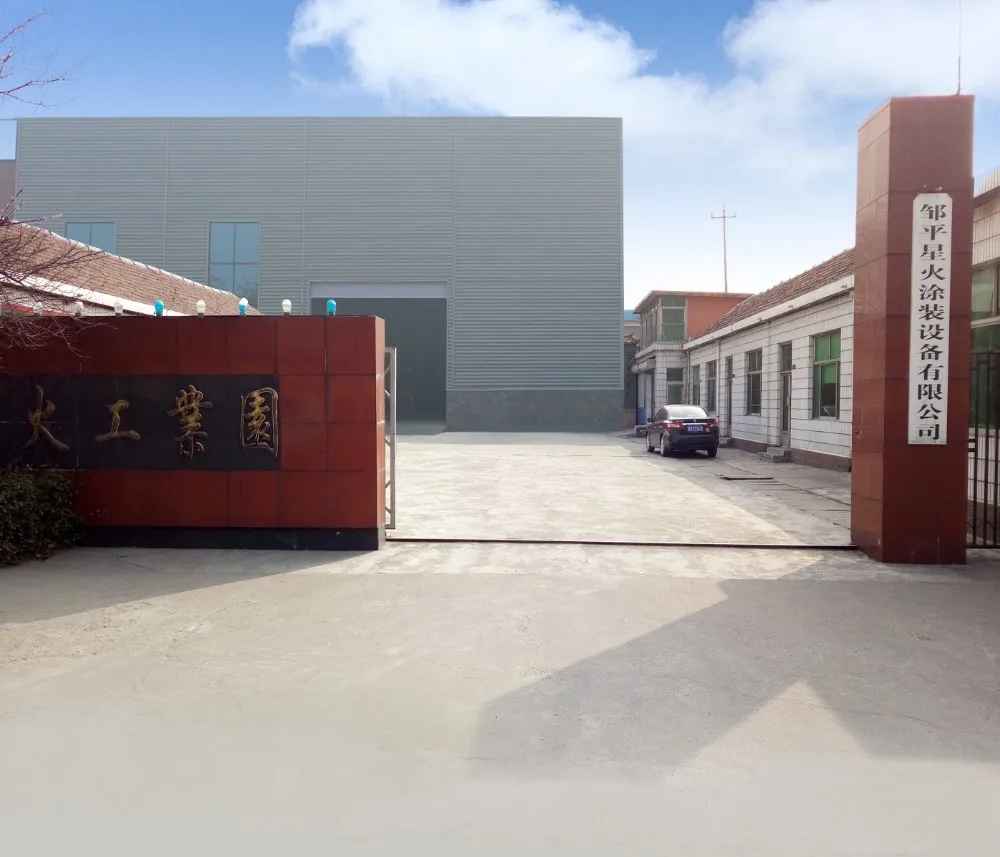

Our company




Shandong province Zouping county spark coating equipment limited company is a high-tech enterprise which integrates specializing in the design, production and sales of spray-baked paint room, waste gas treatment and environmental protection equipment and industrial painting equipment as one.The company integrates design, manufacturing, installation, commissioning and consulting services,committed to the research, development and promotion of new products, new technologies and new processes.The company is located in Mingji Development Zone, Zouping County, Shandong Province,the company has a variety of advanced professional processing equipment such as large-scale shearing, CNC bending, punching machine tools.Products sell well all over the country and Japan, South Korea, North Korea, Vietnam, Russia and other neighboring countries,won the praise of the majority of users.

Companies adhere to the people-oriented, cooperative innovation, excellence as the concept,established a complete R&D and quality assurance system,products passed the ISO9001: 2015 quality management system certification,and has been rated as "contract-honoring and trust-keeping enterprise" many times,and passed the traffic product certification in 2010,passed China classification society traffic product certification in 2014,and reached a long-term cooperation agreement with the huge group.The Spark brand has matured and been put on the market stably,our customer network and product sales services have covered the world,the products are widely used in the surface coating of various industries such as automobile industry painting production and paint repair for the market after vehicle maintenance service, paint production in the railway rail transit industry and parts, construction machinery, energy equipment, wood furniture and other industries.

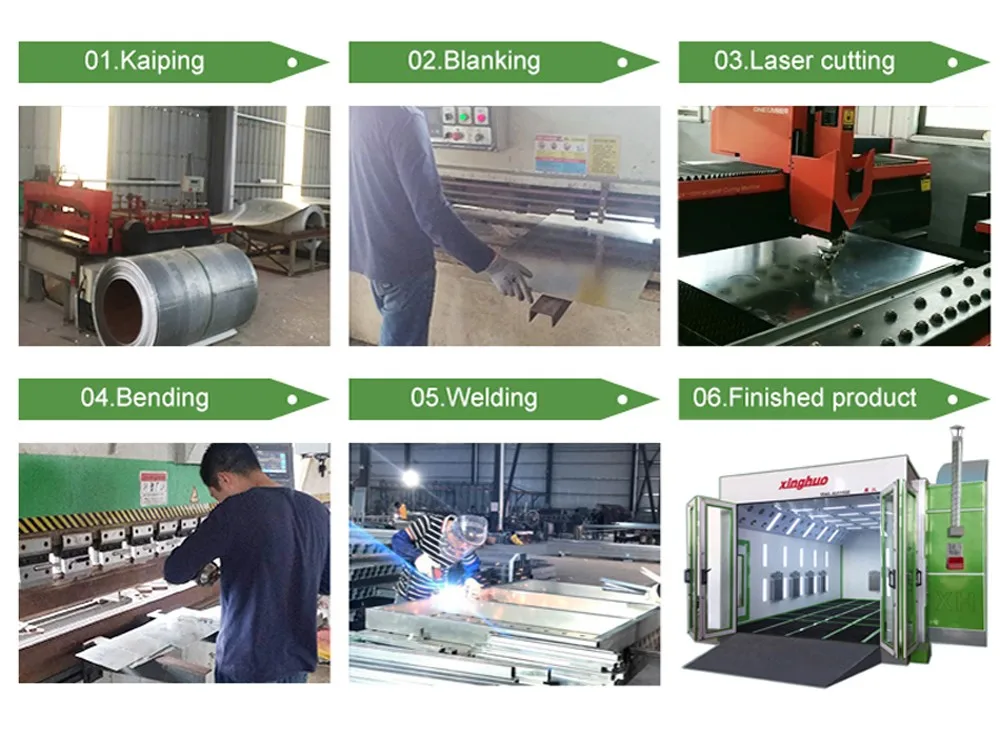

Product process




Quilty is the first,customer satisfaction is our glory,welcom to visit and communicate.



Certifications

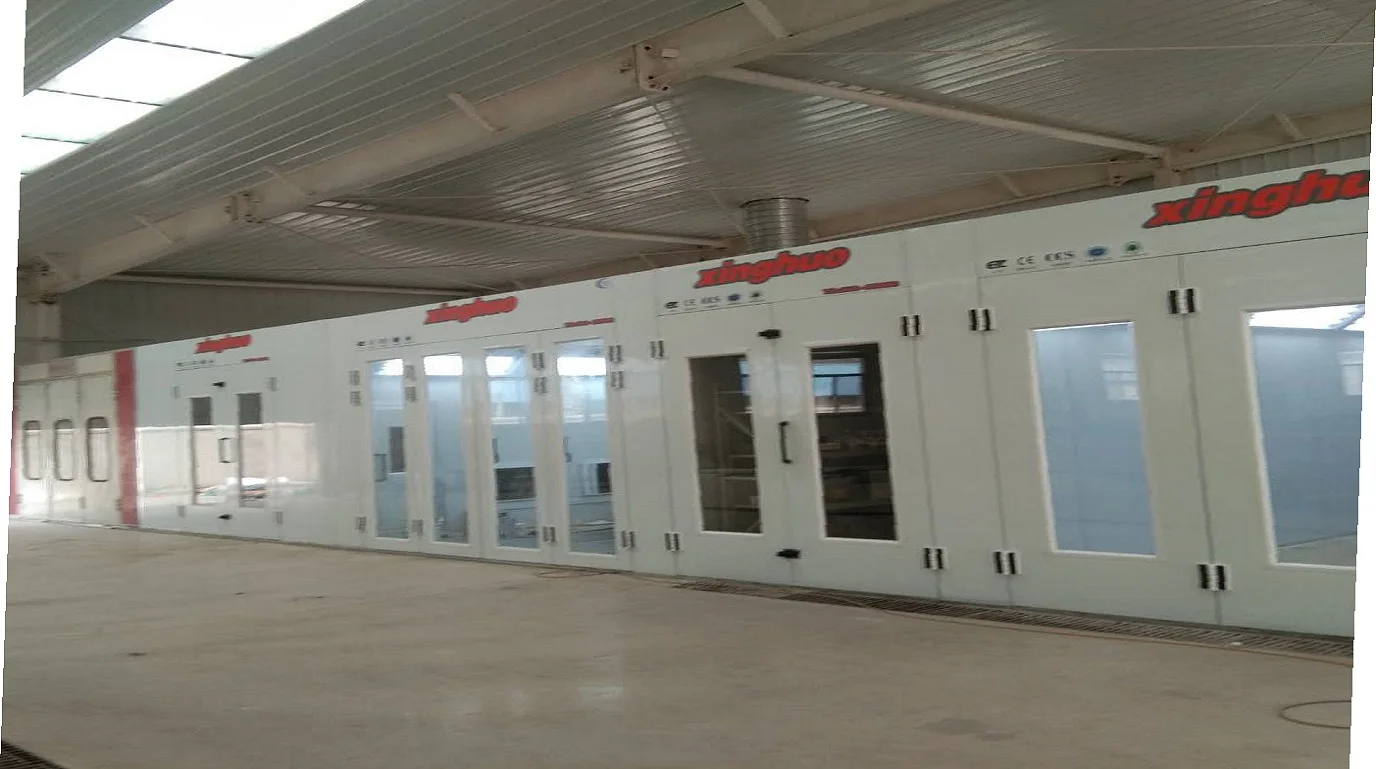

Our exhibition




FAQ






Welcom you to contact
