circuit breaker oem manufacturers 130 amp 1250 amps circuit breaker mccb
- Category: >>>
- Supplier: Zhejiang Dabo Electric Co. Ltd.
Share on (1600595098567):
Product Overview
Description
Product Description
Product introduction

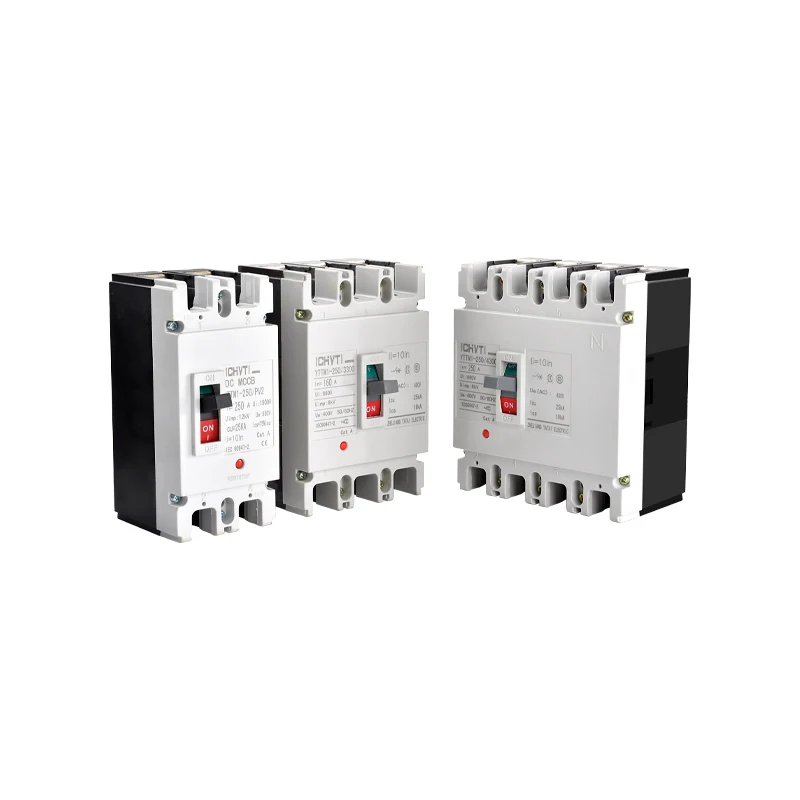

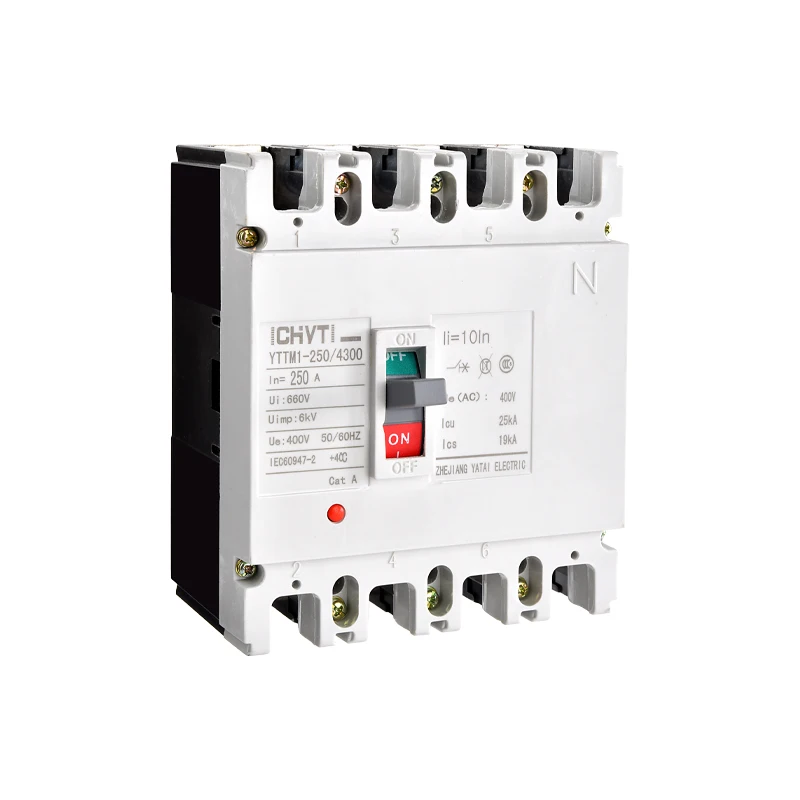

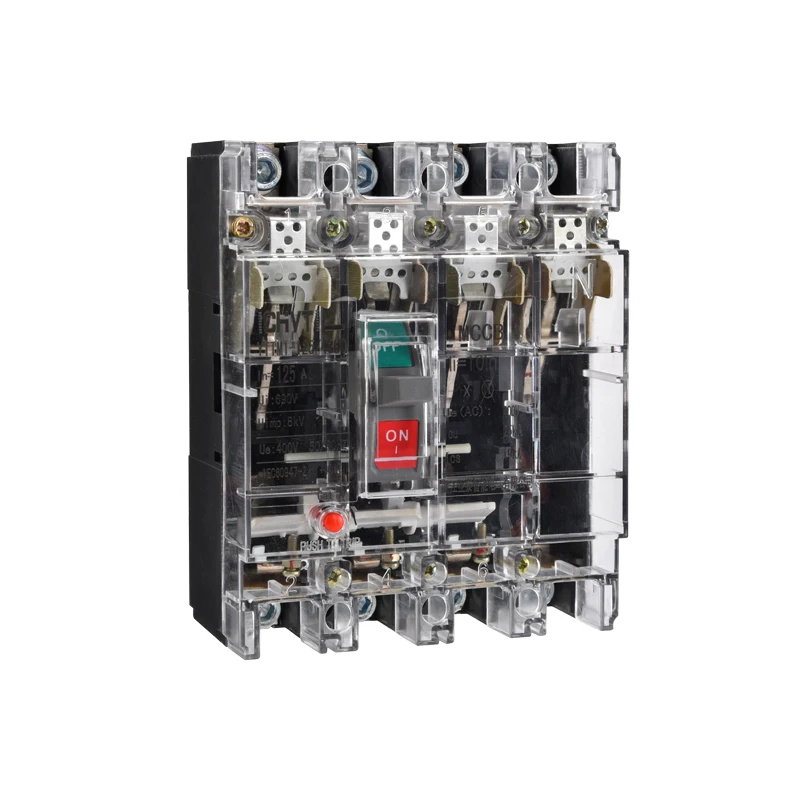

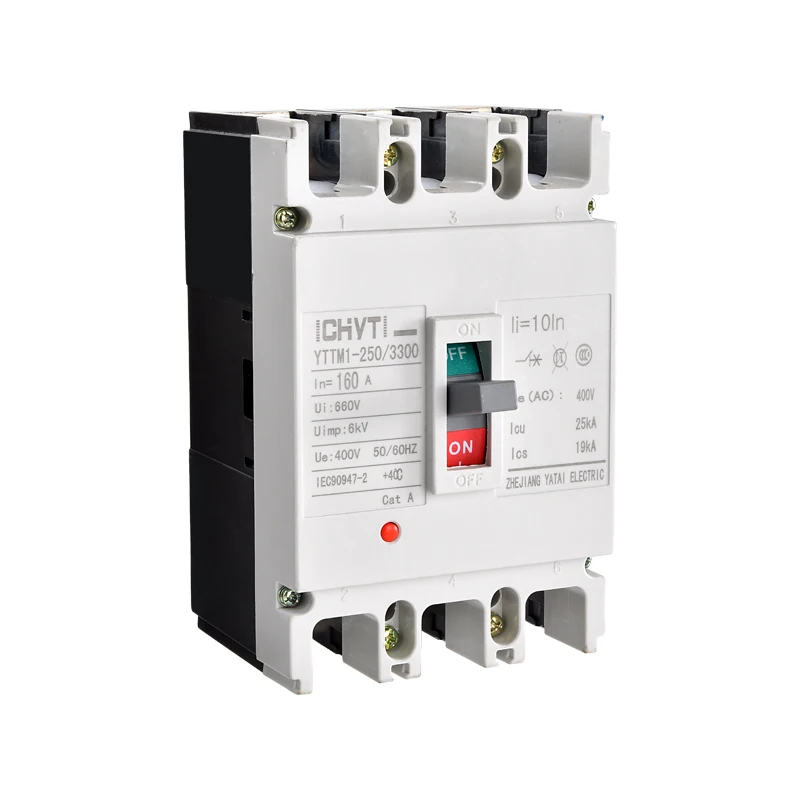

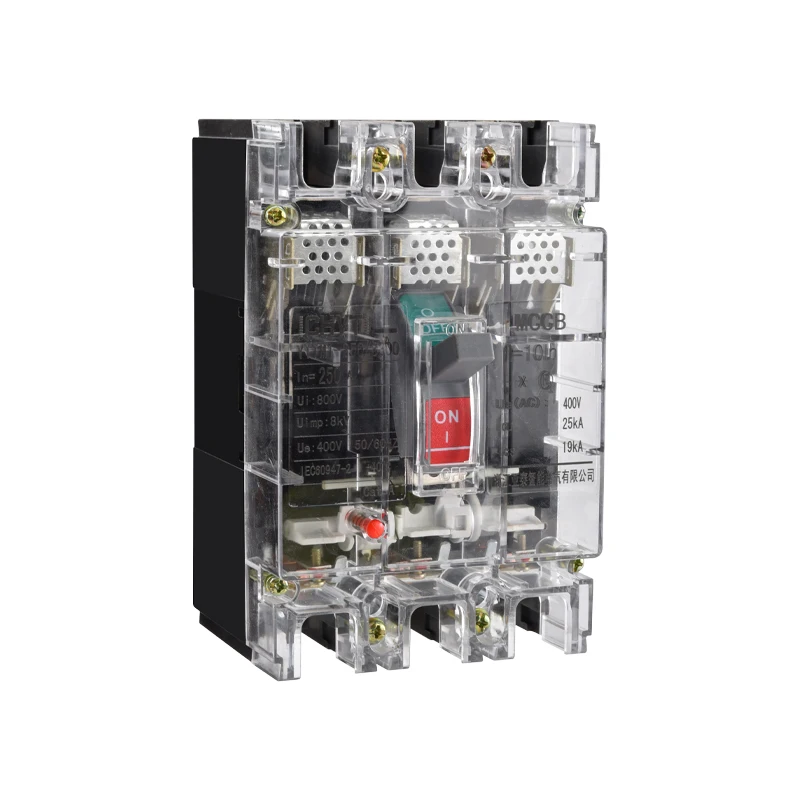

YTTM1 series moulded case circuit breaker is a new type product developed and manufactured by Adopting international advanced technology. It is supplied with rated insulation voltage 660V and used for circuit of AC 50Hz, rated operation voltage AC 400V or below rated operation current up to 125A for infrequent changing over and starting of the motors. Equipped with the protection devices for over-current, short circuit and under voltage, the product is capable of preventing damage of circuits and supply units. The product conforms to IEC60947-2 standard.
Product features
Small volume, breaking capacity high, electric arcing short ,anti-vibration.
Additional accessories
MX24V: Shunt Release 24Vdc
MX220V Shunt Release 220Vac
OF: Auxiliary contact
MX220V Shunt Release 220Vac
OF: Auxiliary contact
Specification
Product Model | YTTM1-63 | YTTM1-125 | YTTM1-250 | YTTM1-400 | YTTM1-630 | YTTM1-800 | |
Rated Frame Current (A) | 63 | 125 | 250 | 400 | 630 | 800 | |
Rated Current (A) | 6,10,16,20,25,32,40, 50,63 | 10,16,20,25, 32,40,50,63 80,100,125 | 100,125, 140,160,180200,225,250 | 225,250,315, 350,400 | 400, 500, 630 | 630, 700, 800 | |
Rated Working Voltage (V) | AC400V | AC690V | AC690V | AC690V | AC690V | AC690V | |
Rated Insulated Voltage (V) | AC500V | AC800V | AC800V | AC800V | AC800V | AC800V | |
Rated Ultimate Short-circuit Breaking Capacity KA 400V | 25 | 35 | 35 | 50 | 50 | 75 | |
Rated Runing Breaking Capacity KA 400V | 18 | 22 | 22 | 35 | 35 | 50 | |
Overall Dimension | L | 135 | 150 | 165 | 257 | 270 | 210 |
W 3P/4P | 78/103 | 92/122 | 107/142 | 150/198 | 182/240 | 115.5 | |
H | 73.5 | 68 | 86 | 105 | 110 | 70 |
Details Images
Company Profile
ZHEJIANG YATAI INTELLIGENT ELECTRIC CO.,LTD is a professional solar PV electric components manufacturer located in Yueqing City, China. We're specialized in DC circuit breakers, Surge Protective Devices, PV fuses, isolator switches, MC4 connectors etc.
Our experience of working in the electrical industry for more than 10 years allows us to create solar DC components that comply with the latest DC standards. We can assure you perfect quality and excellent service. We're looking forward to having a good-long term cooperaton with you and your company.
Our experience of working in the electrical industry for more than 10 years allows us to create solar DC components that comply with the latest DC standards. We can assure you perfect quality and excellent service. We're looking forward to having a good-long term cooperaton with you and your company.
Packing & Delivery
FAQ
Q: why should you buy from us not from other suppliers?
A:The product specifications are complete, the variety is rich, and the company has more than ten years of production, research and development and sales experience. The company's team is young and energetic.
Q:When I can receive quotation and detail information after send the enquiry?
A: Reply will be sent in 48hours.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q:Can I get a sample for test before place order?
A:Of course!
Q:How's the delivery?Because I really need them is urgently?
A: Samples cost 5-7 days. Bulk order cost 12-15 days.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train.
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance.
If you have another questions, pls feel free to contact us.
