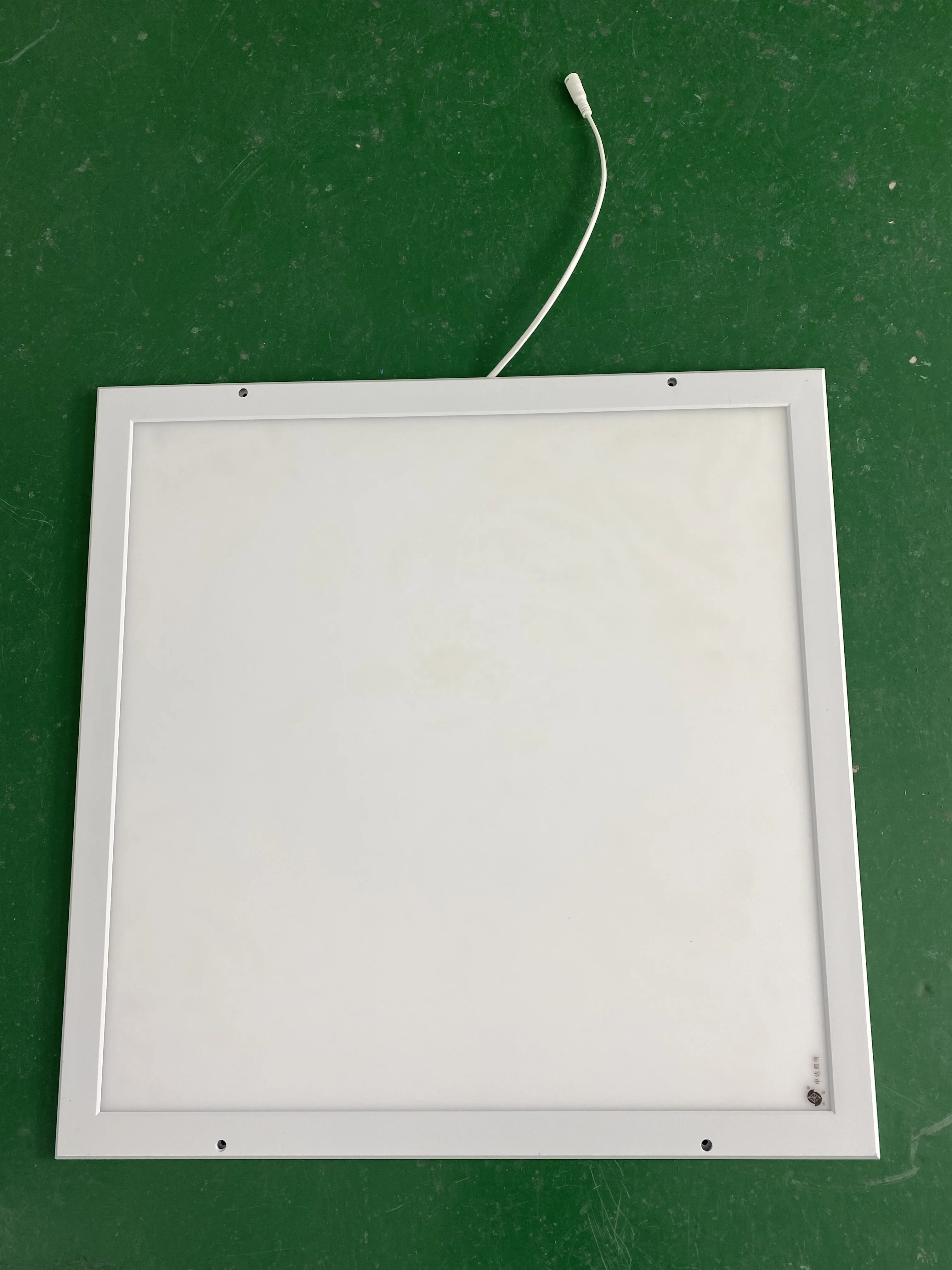

led panel led on the ceiling 40 watts 60 cm x 60 cm IP54 cleanroom lighting
led panel led on the ceiling 40 watts 60 cm x 60 cm IP54 cleanroom lighting
led panel led on the ceiling 40 watts 60 cm x 60 cm IP54 cleanroom lighting
led panel led on the ceiling 40 watts 60 cm x 60 cm IP54 cleanroom lighting
led panel led on the ceiling 40 watts 60 cm x 60 cm IP54 cleanroom lighting
led panel led on the ceiling 40 watts 60 cm x 60 cm IP54 cleanroom lighting
led panel led on the ceiling 40 watts 60 cm x 60 cm IP54 cleanroom lighting

led panel led on the ceiling 40 watts 60 cm x 60 cm IP54 cleanroom lighting

Share on (1600595116253):


Price:$35.00

Quantity:


Product Overview

Description

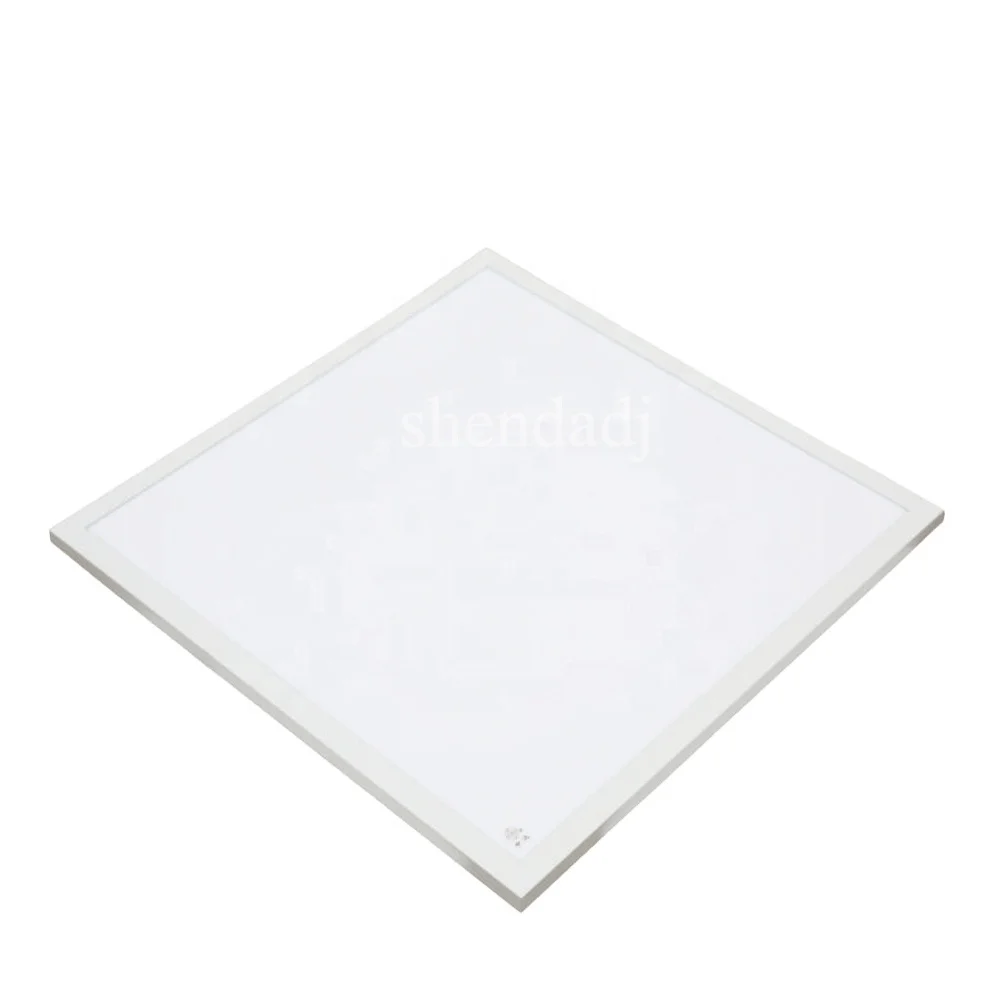

PRODUCT DESCRIPTION

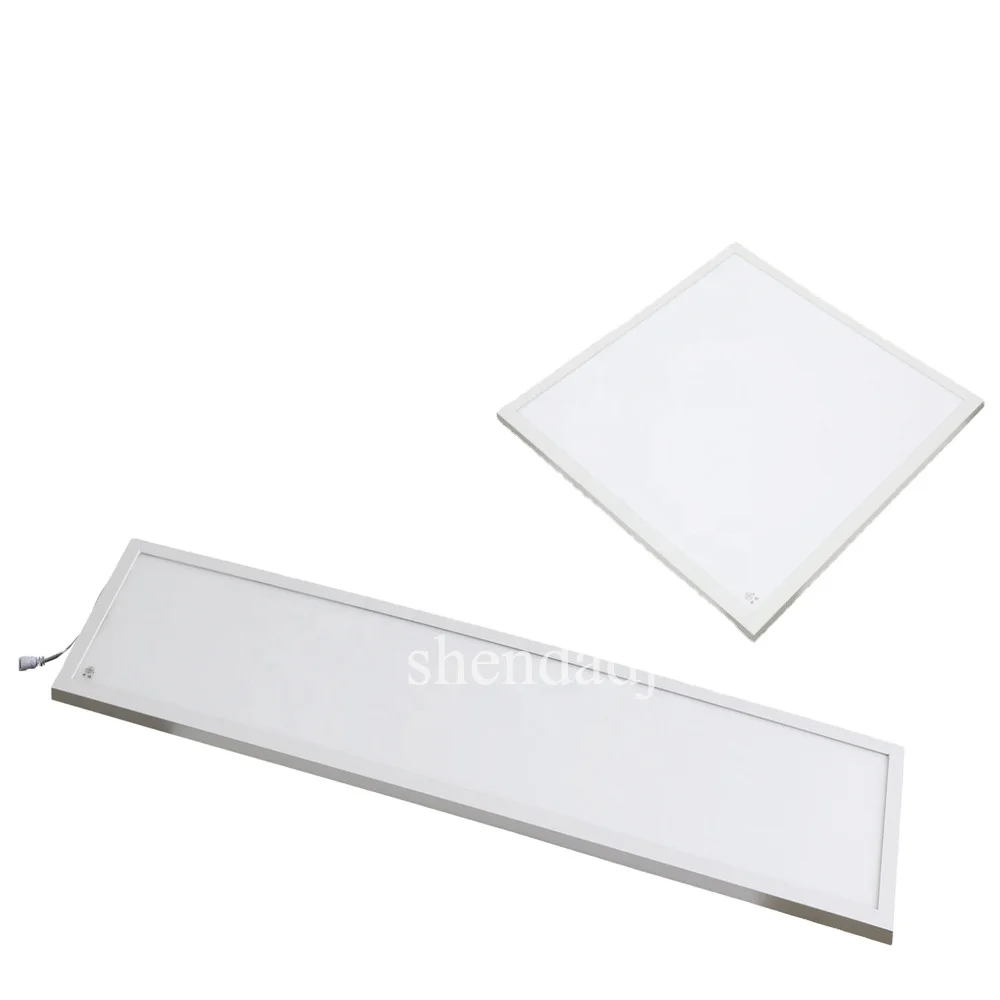

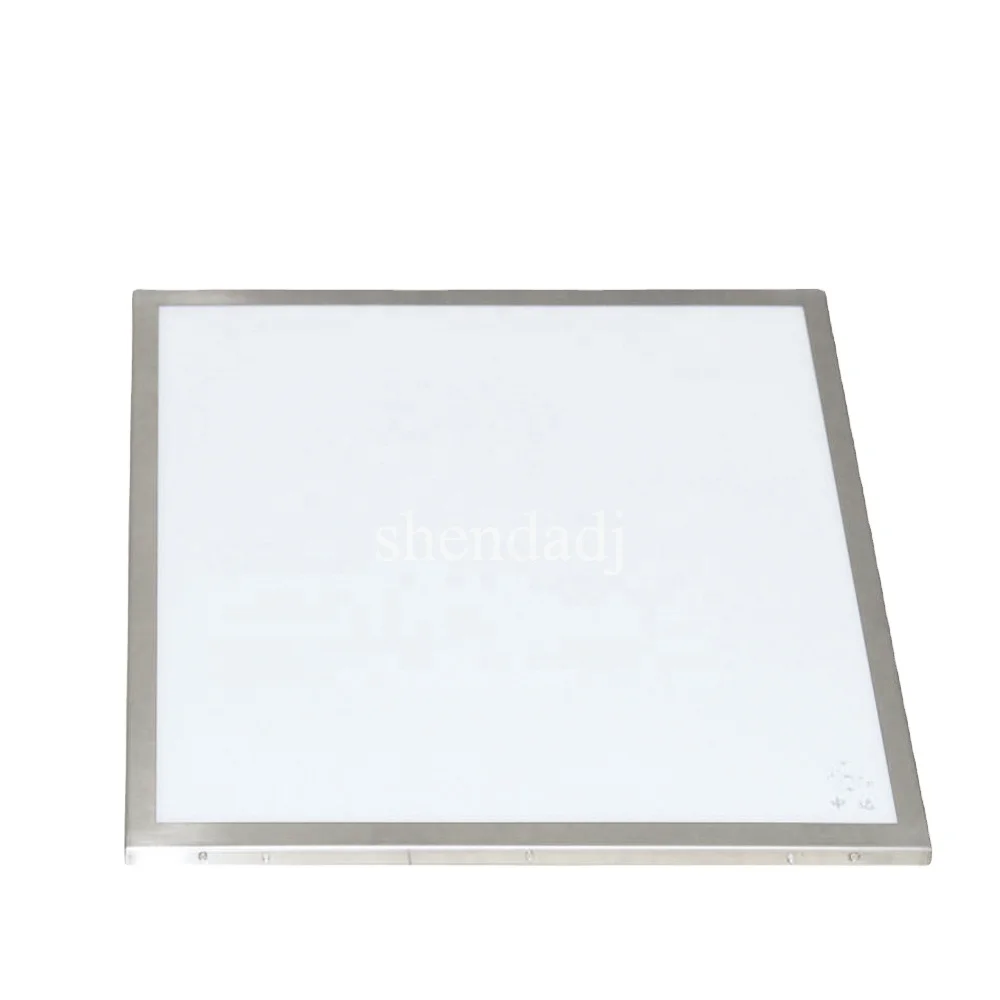

CLEANROOM LIGHTING-SD05PA/B
cleanroom ultra slim led panel are used in where hygiene keeps great importance, such as pharmaceutical industries, laboratories and hospitals as well as food production facilities. This classic type of fixtures represent a high level of dust-proof and water-proof which give a safe use and a cleaning environment to plants. Reliable led engine delivers, symmetric lighting beams and flexible mounting ways make it access to a wide range of application.


Model
MQ-Y42/SD05PA/B
MQ-Y60/SD05PA/B
Watt
42W
60W
Size
600X600mm
1200X600mm
thickness
12mm
Lumen
4200lm
6000lm
Efficinency
100lm/w
100lm/w
Frame
white powder coated aluminum alloy housing
light guide plate
PMMA acrylic 2.0mm
filter
opal white PS 1.2mm
backplate
iron plate
IP rating
IP54(front face)
driver
isolated constant current LED modules IP20 lifud( other brand drivers for option: Tridonic, OSRAM, BOKE, Meanwell etc.)
Input
220-240VAC(100-277VAC), 50/60HZ
beam way
edgelit
beam angle
112 degree
light source
SANAN LED SMD4014 LM80
SANAN LED SMD4014 LM80
light qty
216pcs
312pcs
flicker
free
Dimmable
NONE/1-10V/10V PMW/DALI dimming for option
Gland
SS waterproof gland
Gasket
EVA/EDPM
Acceptable customization
OEM/ODM
Emergency time
90mins/180mins for option
Certification
CE EMC LVD ROHS
ingress protection level
IP54/IP20
UGR
>22 / <19
working lifespan
30,000hours/50,000hours
warranty
2 years


Model(SD05P)
Power
(W)
Dimension
(mm)
Lumen
(lm)
CCT(K)
CRI
SDCM
MQ-Y60/SD05PAB
60W
1200X600
6000
3000K/4000K/5000K/6000K
80/90
3/6
MQ-Y60/SD05PAB
60W
1200X280
6000
3000K/4000K/5000K/6000K
80/90
3/6
MQ-Y60/SD05PAB
60W
600X600
6000
3000K/4000K/5000K/6000K
80/90
3/6
MQ-Y48/SD05PAB
48W
1200X280
4800
3000K/4000K/5000K/6000K
80/90
3/6
MQ-Y42/SD05PAB
42W
1200X280
4200
3000K/4000K/5000K/6000K
80/90
3/6
MQ-Y42/SD05PAB
42W
600X600
4200
3000K/4000K/5000K/6000K
80/90
3/6
MQ-Y24/SD05PAB
24W
900X280
2400
3000K/4000K/5000K/6000K
80/90
3/6
MQ-Y20/SD05PAB
20W
600X280
2000
3000K/4000K/5000K/6000K
80/90
3/6
MQ-Y14/SD05PAB
14W
300X300
1400
3000K/4000K/5000K/6000K
80/90
3/6

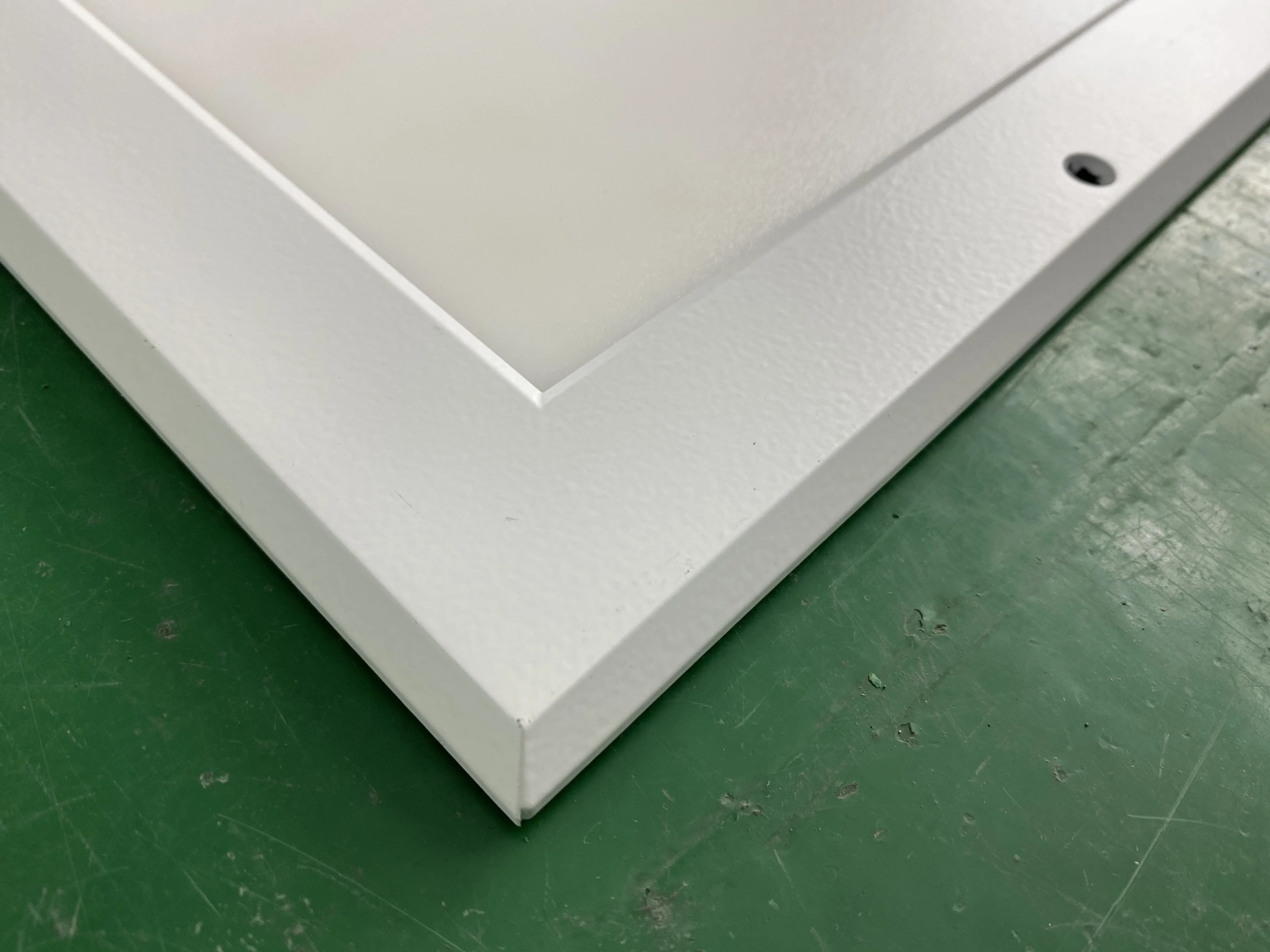

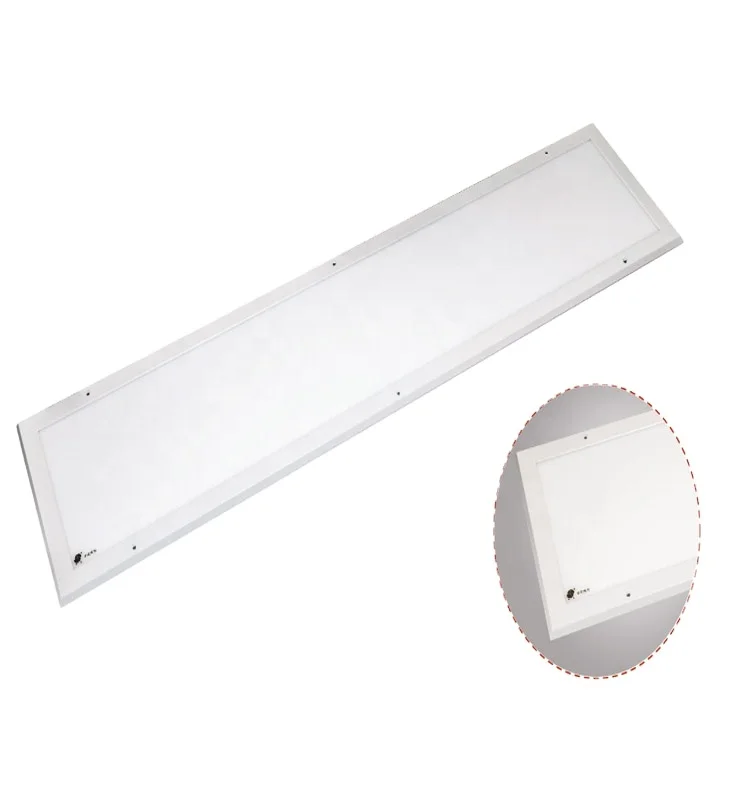

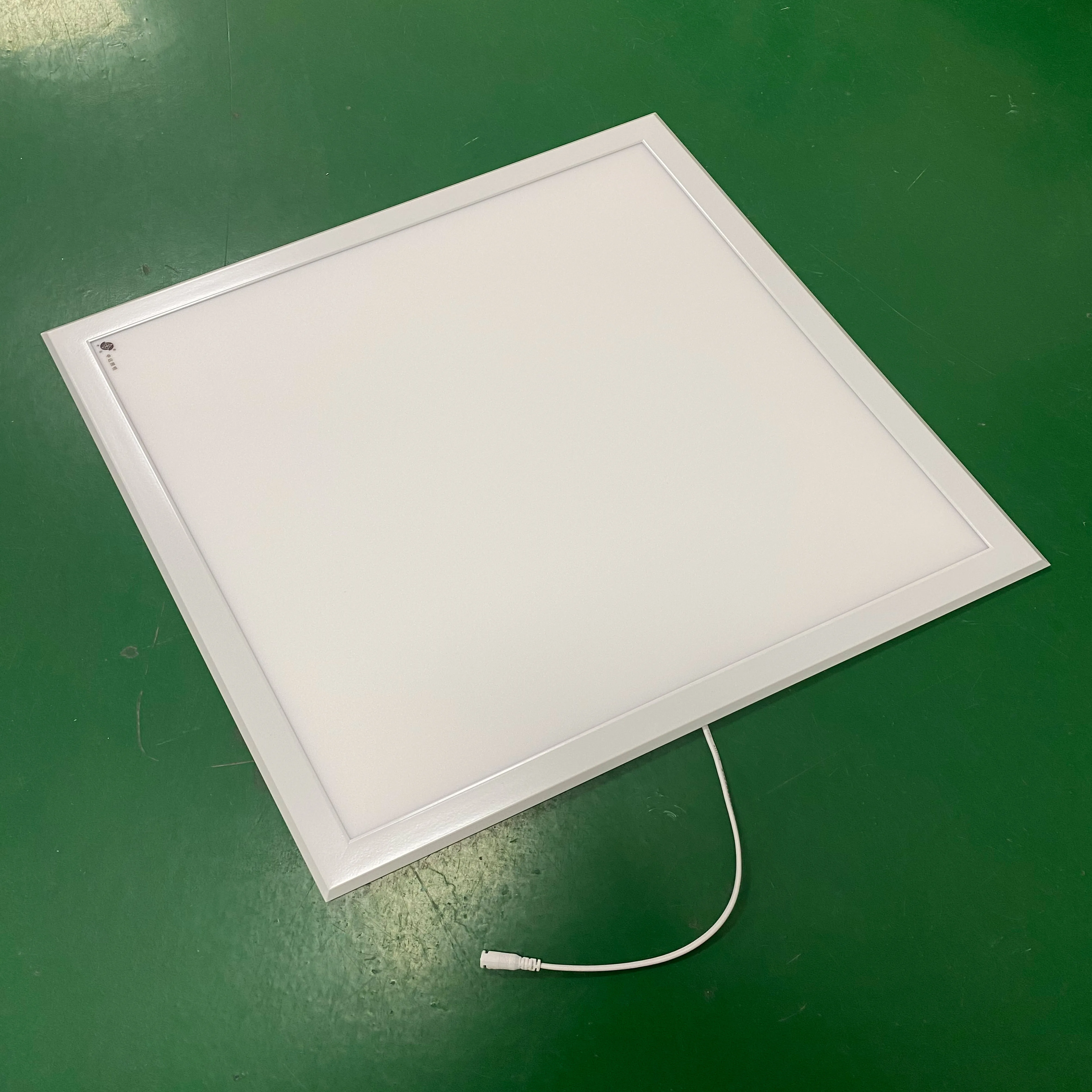

PRODUCT DETAILS

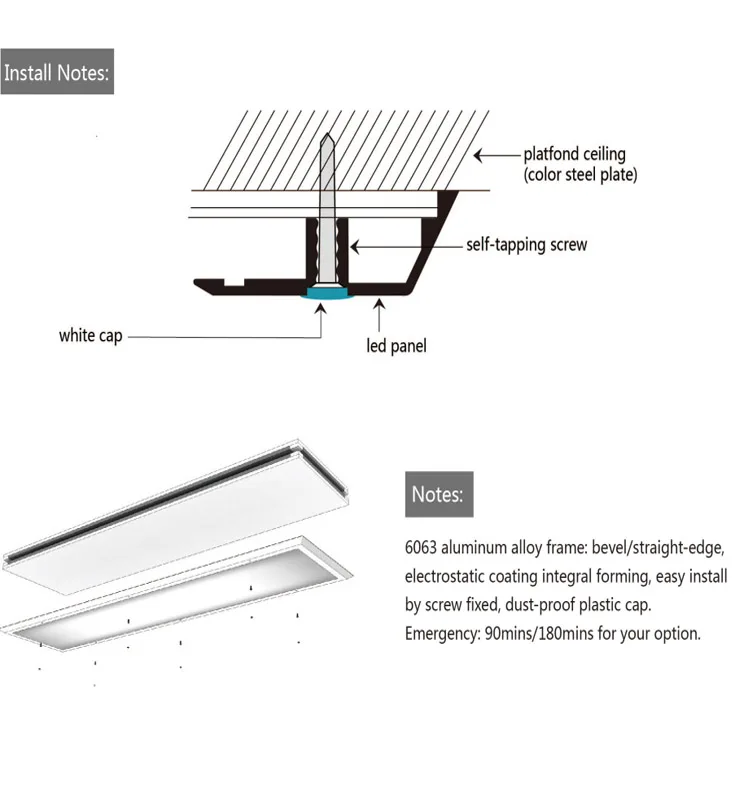

SD05PA

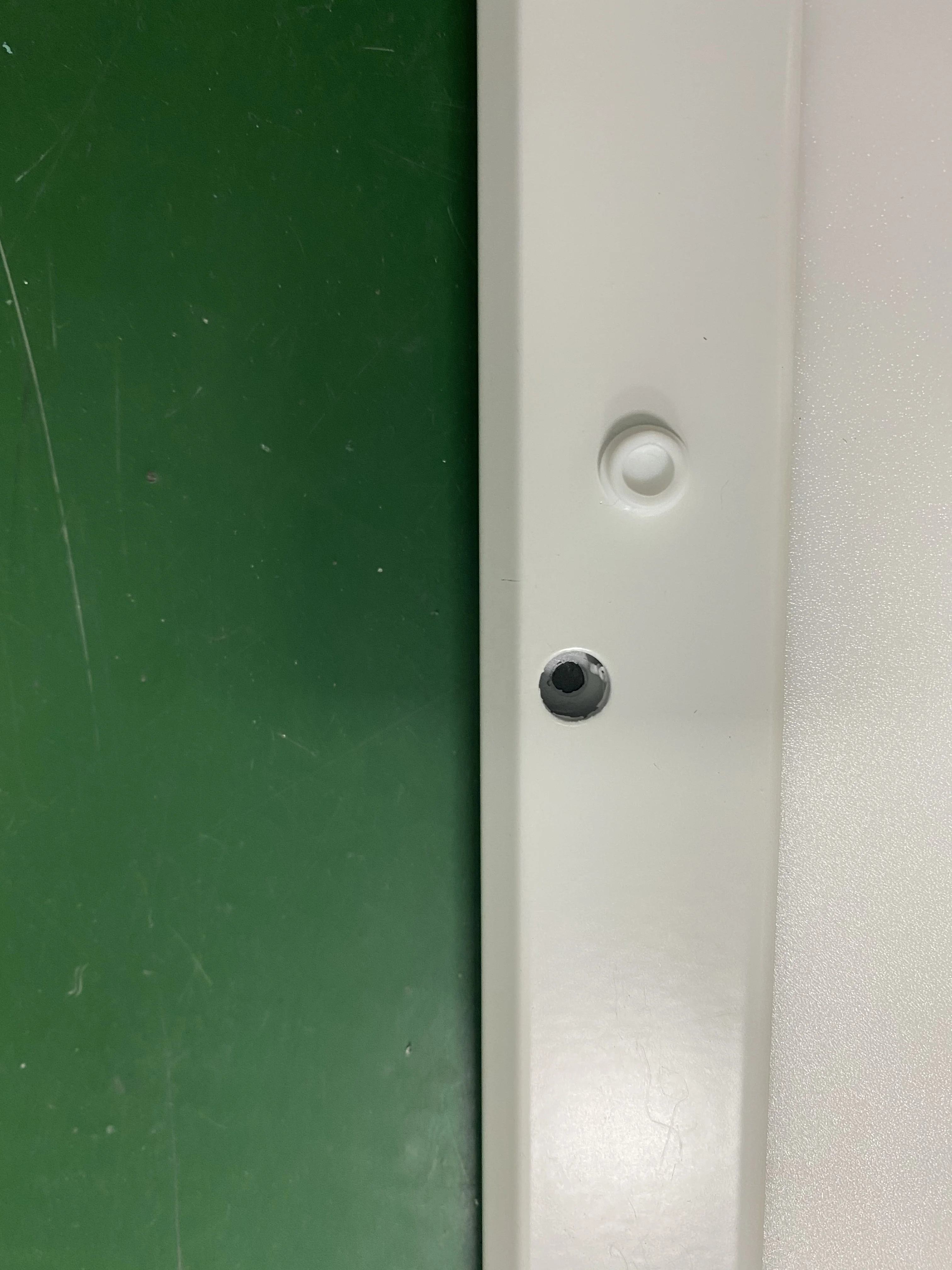

surface mounted in screws

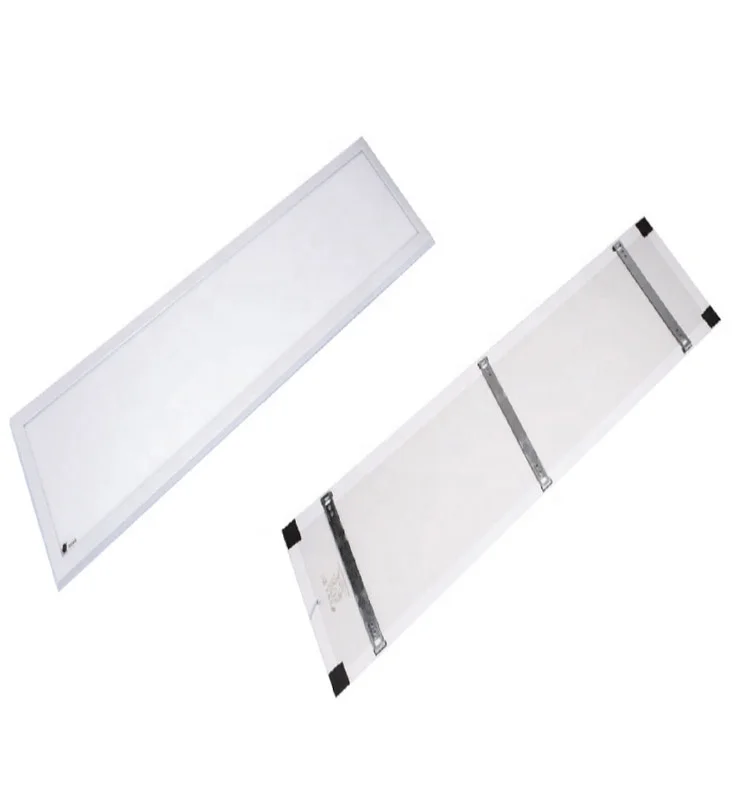

SD05PB
surface mounted in bracket/magnetic

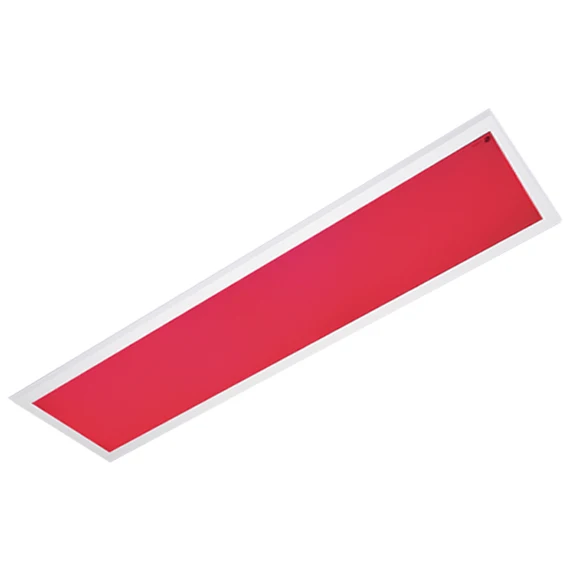

flush mounted in square-corner

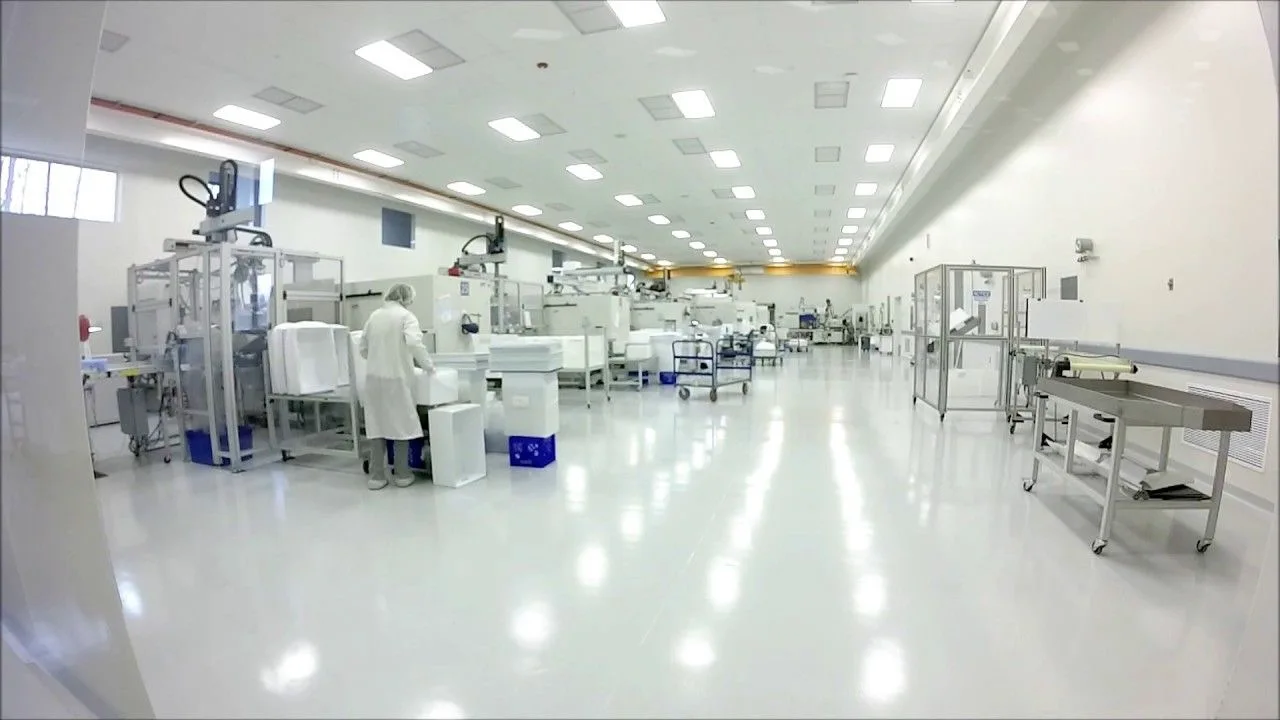

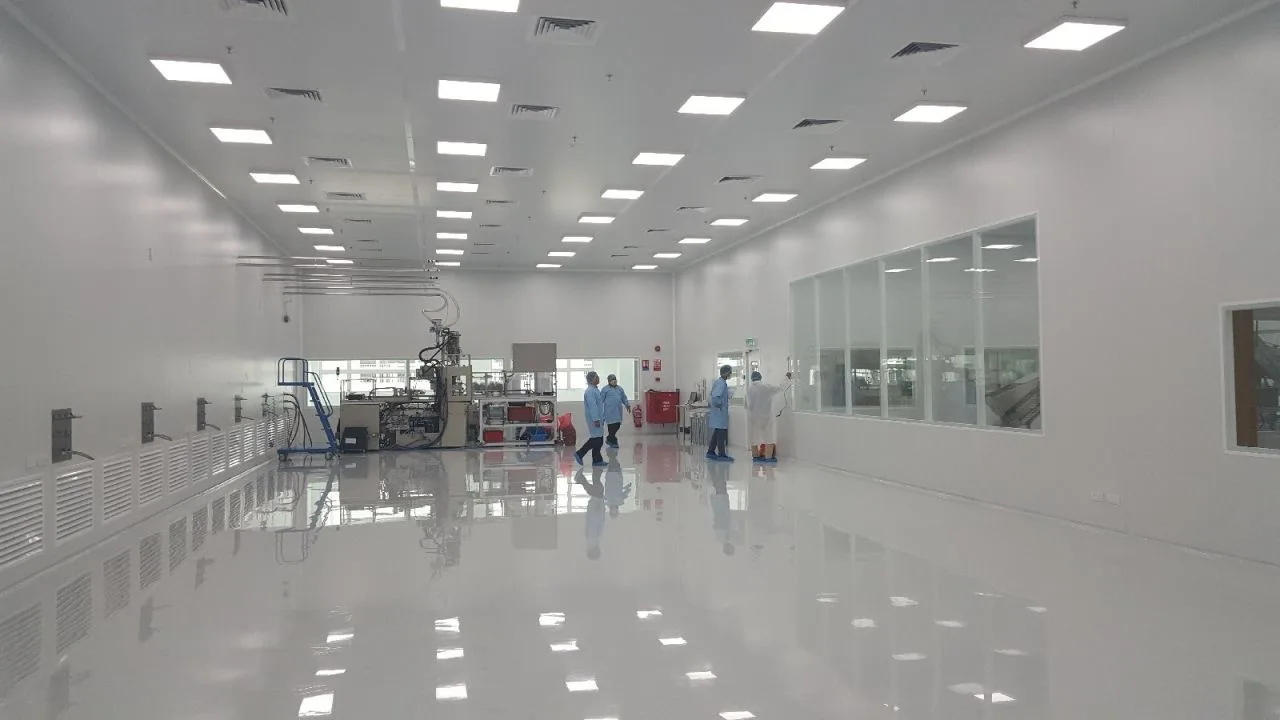

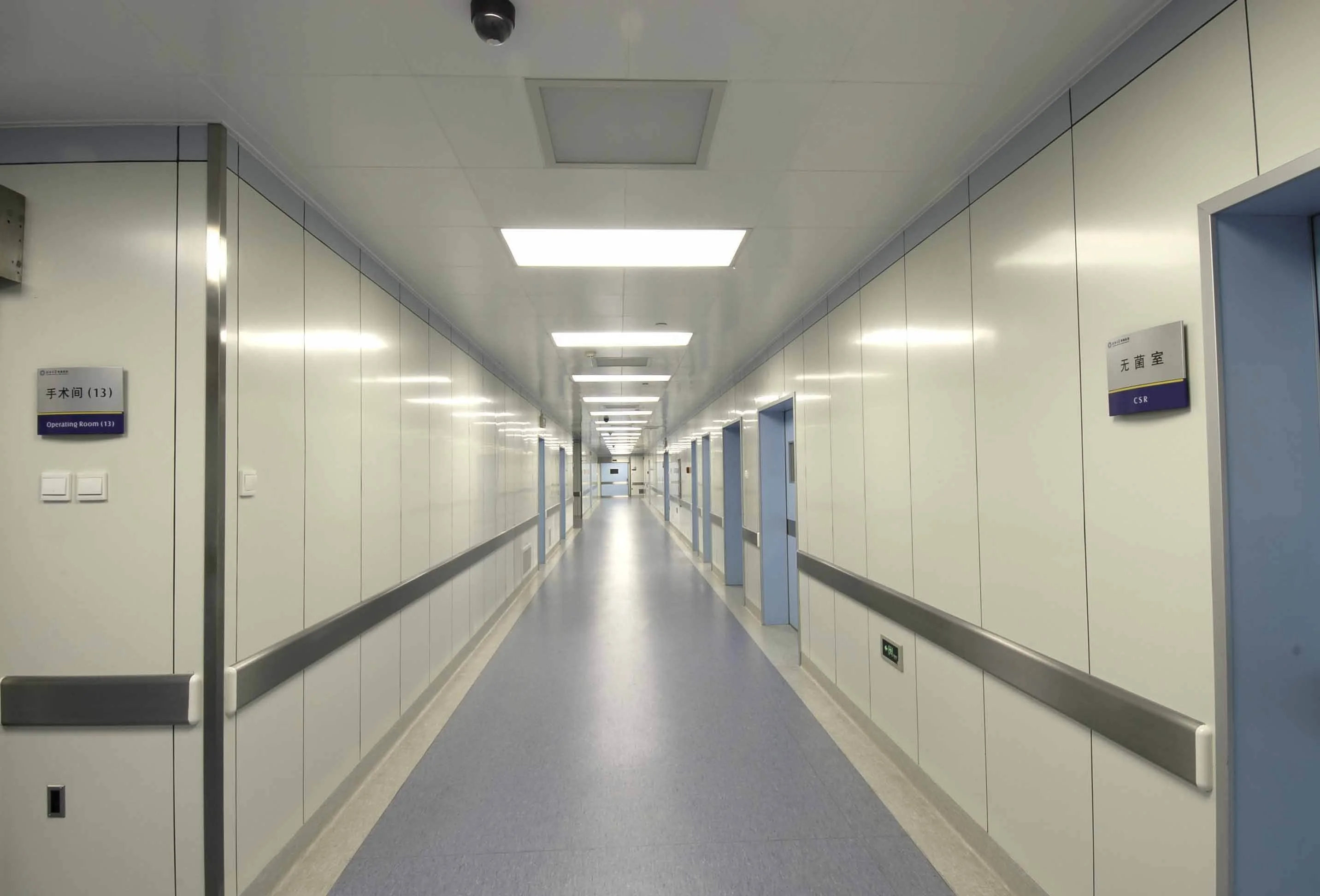

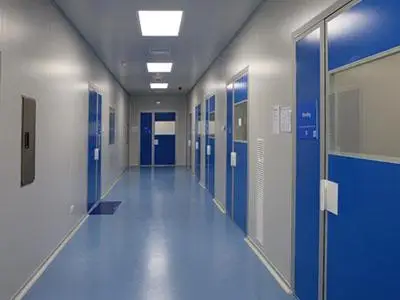

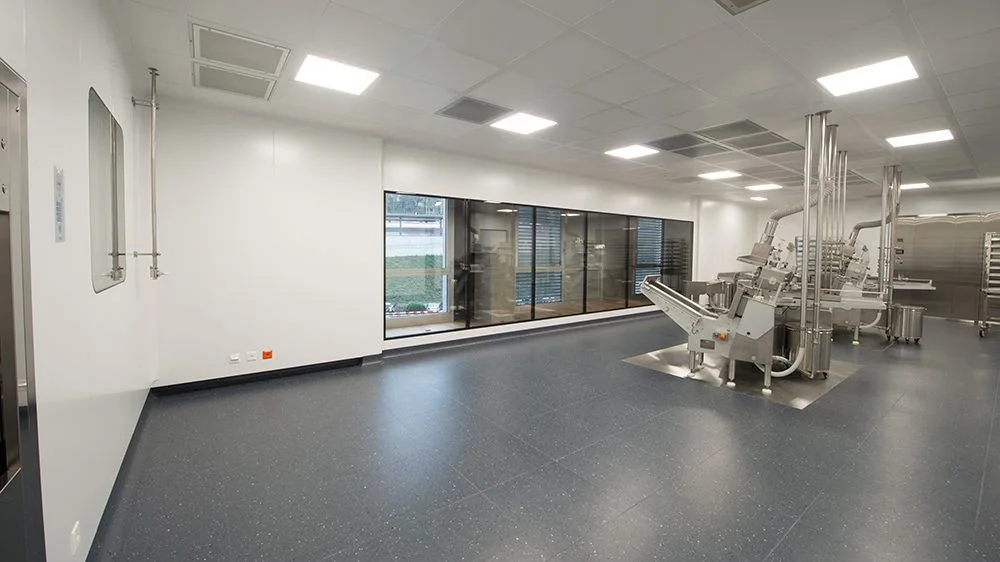

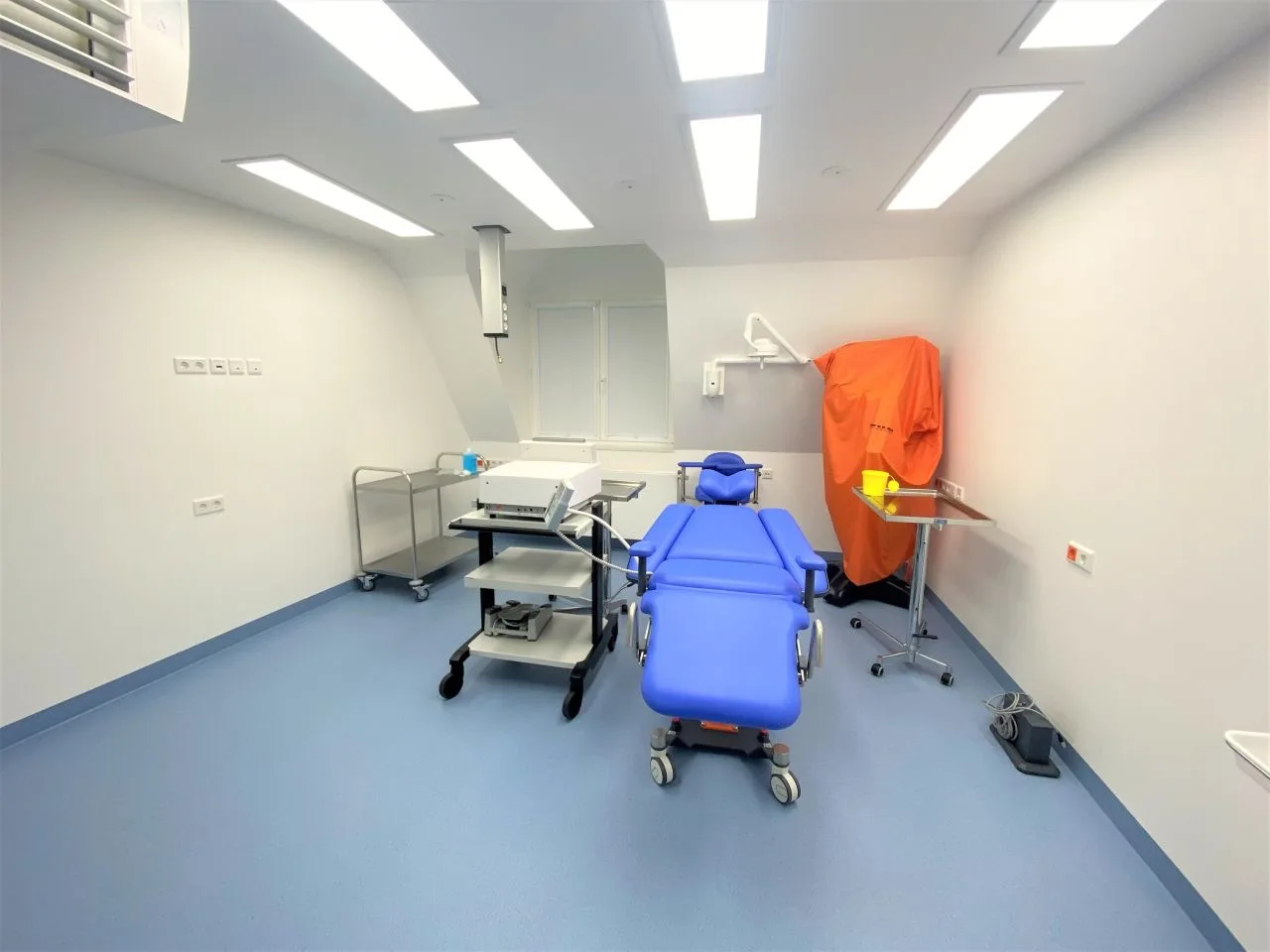

CASES






COMPANY INFORMATION

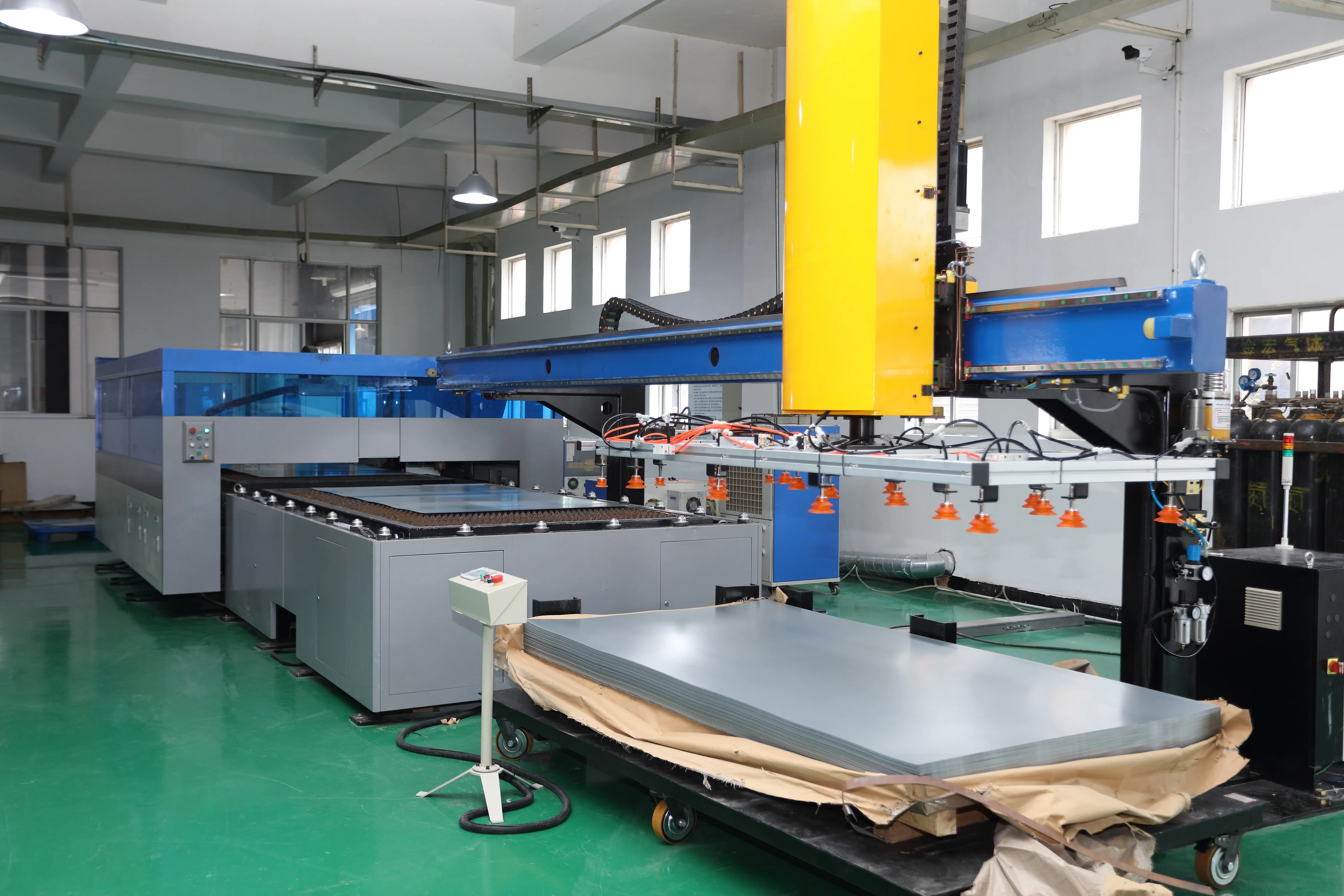

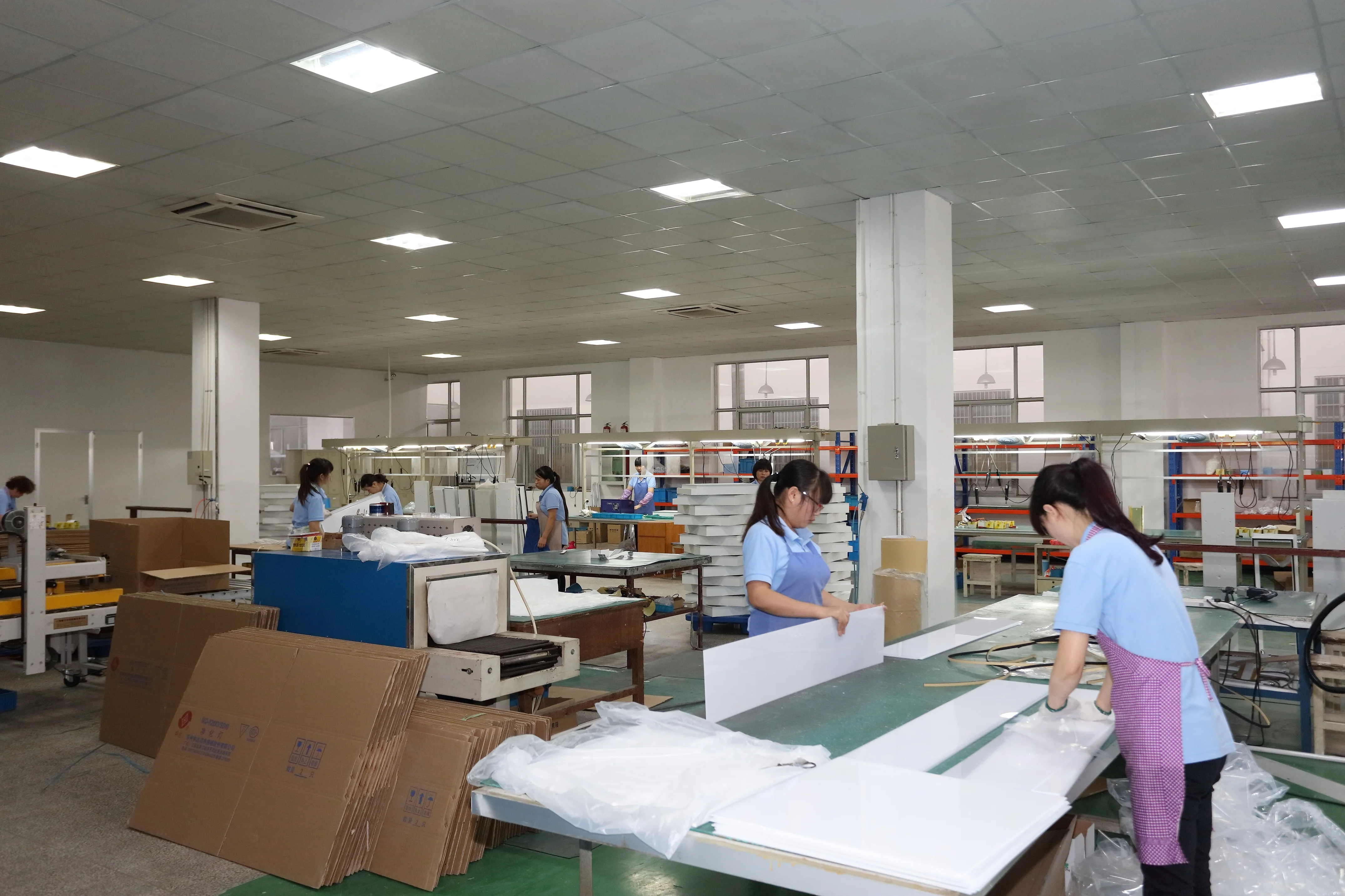

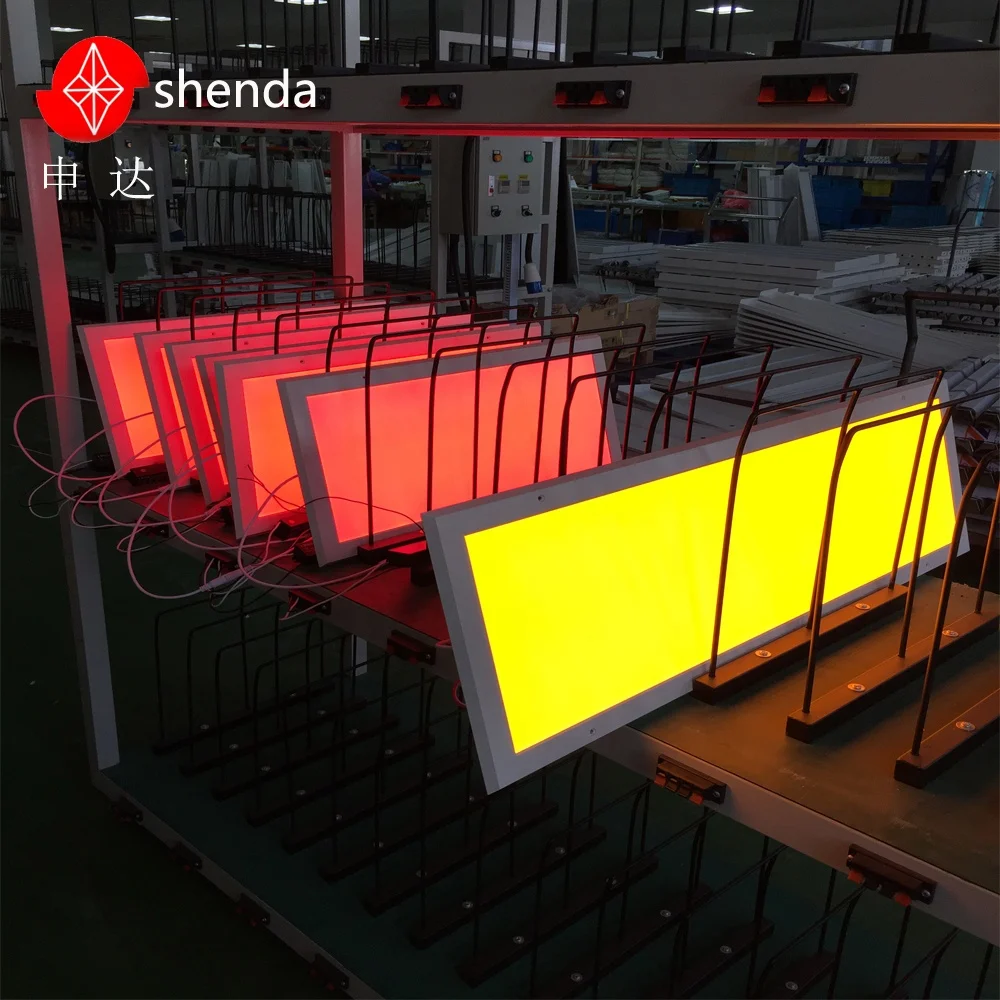

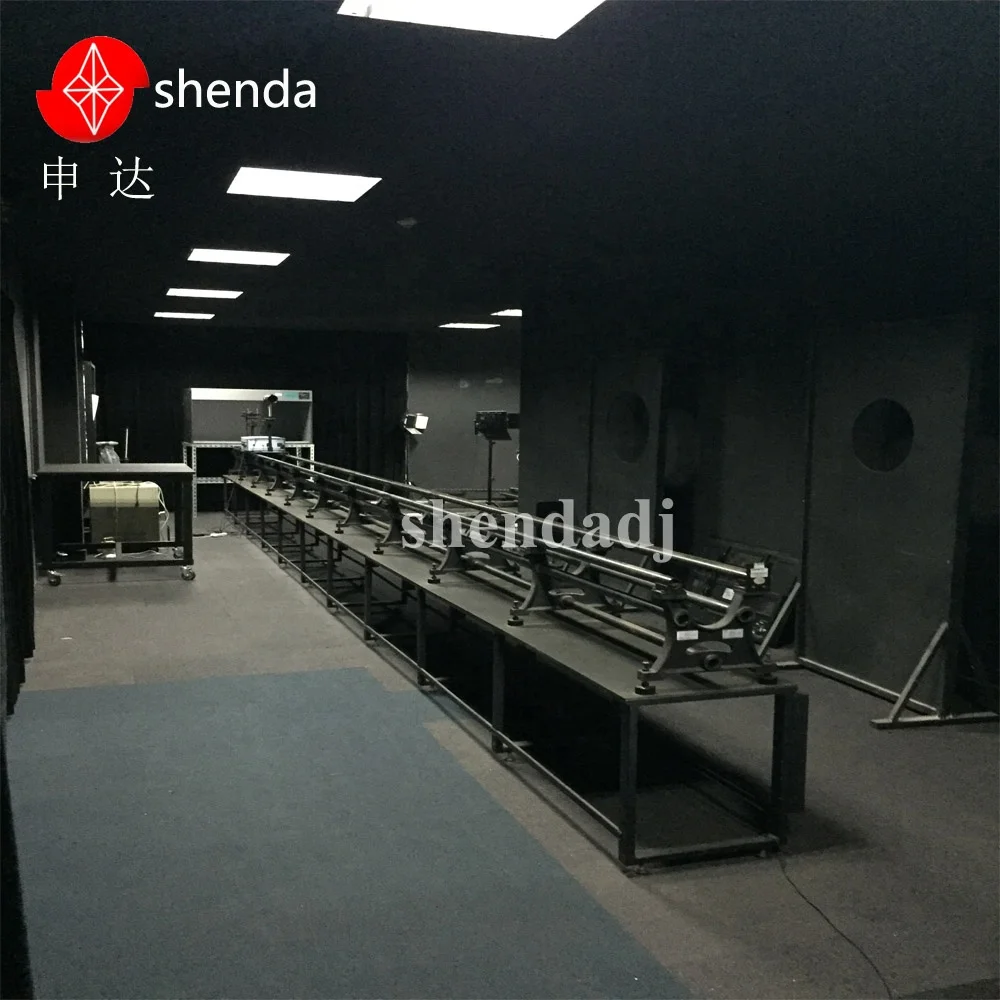

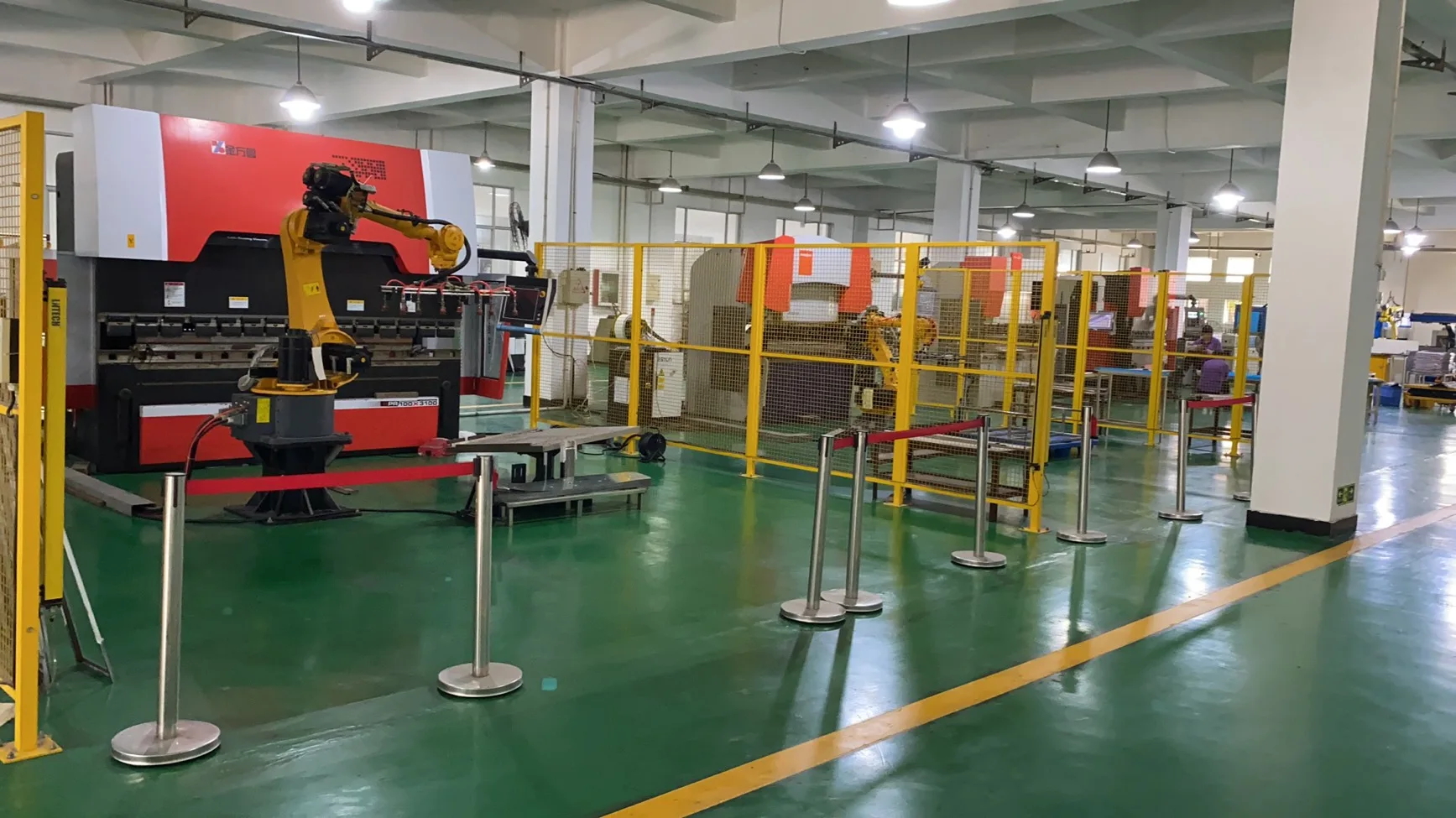

Established in 1994, SUZHOU SHENDA CLEANROOM LIGHTING CO., LTD is a professional manufacturer of cleanroom lighting, mainly producing cleanroom luminaires and various light fixture, and focus on designing and new customization of OEM ODM. SHENDA products have passed CCC, CE TUV GS RoHs certificates. Relying on its advanced equipment, superb exquisite craftsmanship and manchineries as well as its R&D team, SHENDA products have owned customes fond and likeness. around the world.

SHENDA products: cleanroom led panel light, cleanroom luminaires and cleanroom lighting fixtures meets customers need and cleanroom GB stanard in its quality and product design. for example, MQ-Y42/SD14TB CLEANROOM LED PANEL LIGHT is a top opening cleanroom led panel light with an installation of ceiling flush mounting, top opening enables its easily maintenance and its smooth surface makes it easy cleaning, high transfer PC/PMMA diffuser makes it enjoy a good light efficiency and high lumen.Low light decay gives long lifespan and brand leds ensures good light efficiency and high lumen and non-blue ray hazard.






OUR EXHIBITION






FAQ


Q1.Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.

Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
