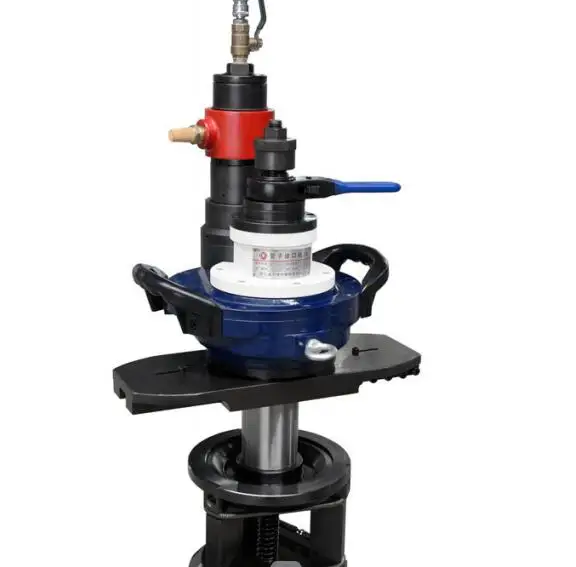

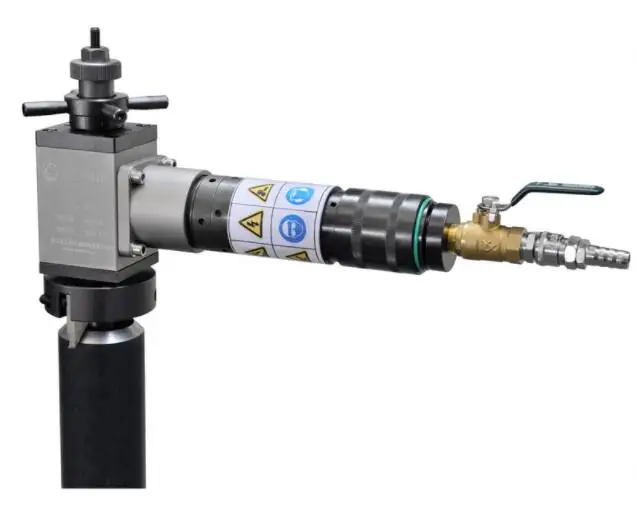

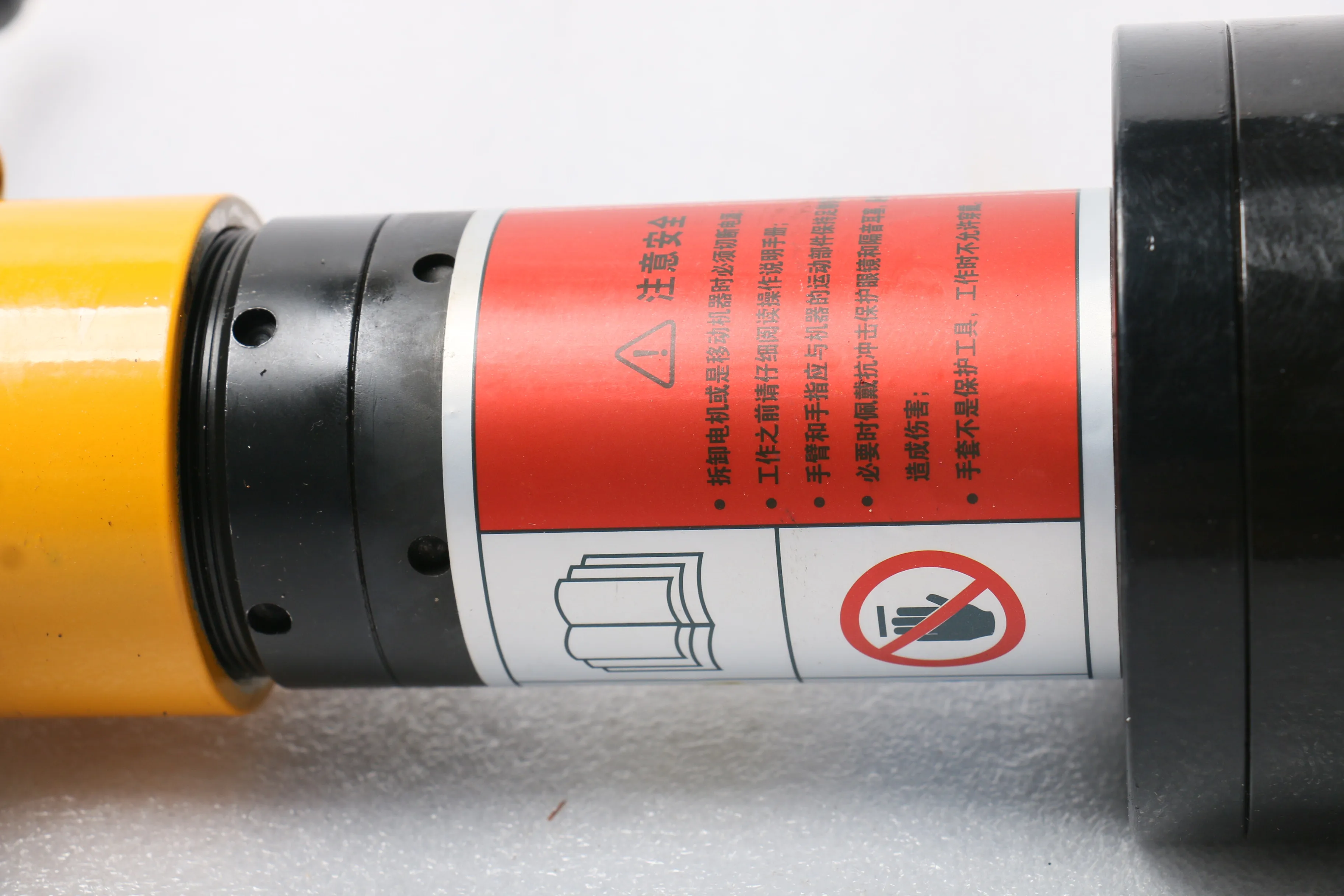

Pneumatic pipe Chamfering machine ISP 159
- Category: >>>
- Supplier: Shanghai Taole Machine Co. Ltd.
Share on (1600595166705):
Product Overview
Description
FEATURES AT A GLANCE
1.Cold cutting, without influence the material of the pipe
2.ID mounted, adopt T structure

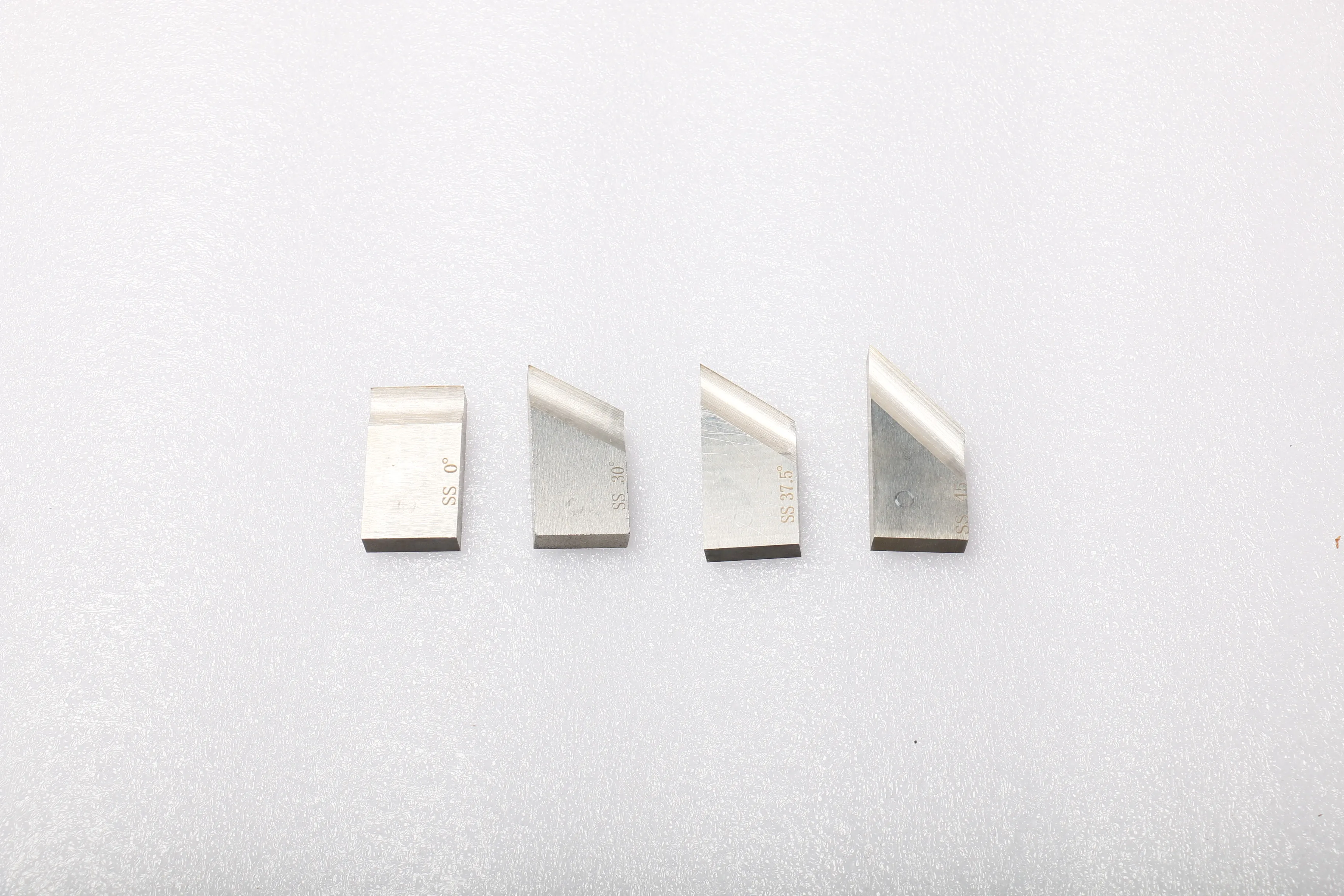

3.Varity of beveling shape: U, Single-V, double-V,J beveling
4.It can also be used for repairing inner wall and deep hole processing.
5.Working range: Each model with a wide working range for operation.
6.Driven motor: Pneumatic and Electric
7.Customized machine is acceptable
2.ID mounted, adopt T structure
3.Varity of beveling shape: U, Single-V, double-V,J beveling
4.It can also be used for repairing inner wall and deep hole processing.
5.Working range: Each model with a wide working range for operation.
6.Driven motor: Pneumatic and Electric
7.Customized machine is acceptable
PRODUCT SPECIFICATIONS
Model NO. | ISE/ISP 259 | Certification | CE ISO |
Automation | Semi-AutomaticPower | Suitable for | Alloy, Carbon Steel, Stainless Steel |
Pipe Diameter | 65-159mm | Wall Thickness | <=20 |
Rotation Speed | 35r/Min | Material | Carbon Steel, Stainless Steel , Alloy Steel etc |
Transport Package | Tool Box or Wooden Case | Specification | Depends on model |
Trademark | TAOLE | Origin | Shanghai, China |
HS Code | 8460909000 | Production Capacity | 500 Sets Per Month |
MODEL & RELATED
Model Type | Spec | Capacity Inner Diameter | Wall thickness | Rotation Speed |
ID MM | Standard /MM | |||
1) ISE Driven By Electric 2) ISP Driven By Pneumatic | 30 | 18-28 | ≦15 | 50r/min |
80 | 28-76 | ≦15 | 55r/min | |
120 | 40-120 | ≦15 | 30r/min | |
159 | 65-159 | ≦20 | 35r/min | |
252-1 | 80-240 | ≦20 | 18r/min | |
252-2 | 80-240 | ≦75 | 16r/min | |
352-1 | 150-330 | ≦20 | 14r/min | |
352-2 | 150-330 | ≦75 | 14r/min | |
426-1 | 250-426 | ≦20 | 12r/min | |
426-2 | 250-426 | ≦75 | 12r/min | |
630-1 | 300-600 | ≦20 | 10r/min | |
630-2 | 300-600 | ≦75 | 10r/min | |
850-1 | 600-820 | ≦20 | 9r/min | |
850-2 | 600-820 | ≦75 | 9r/min |
CERTIFICATIONS

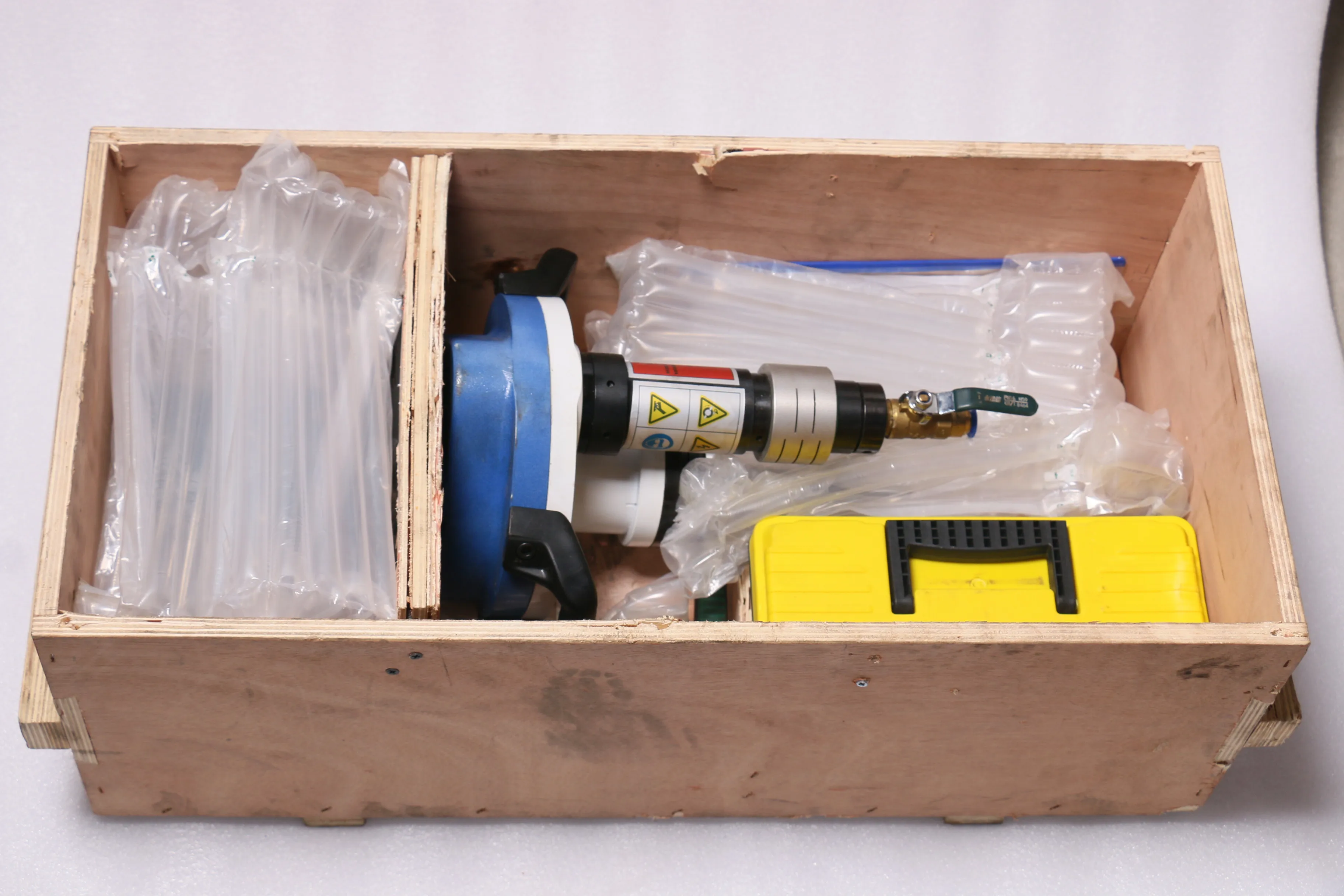

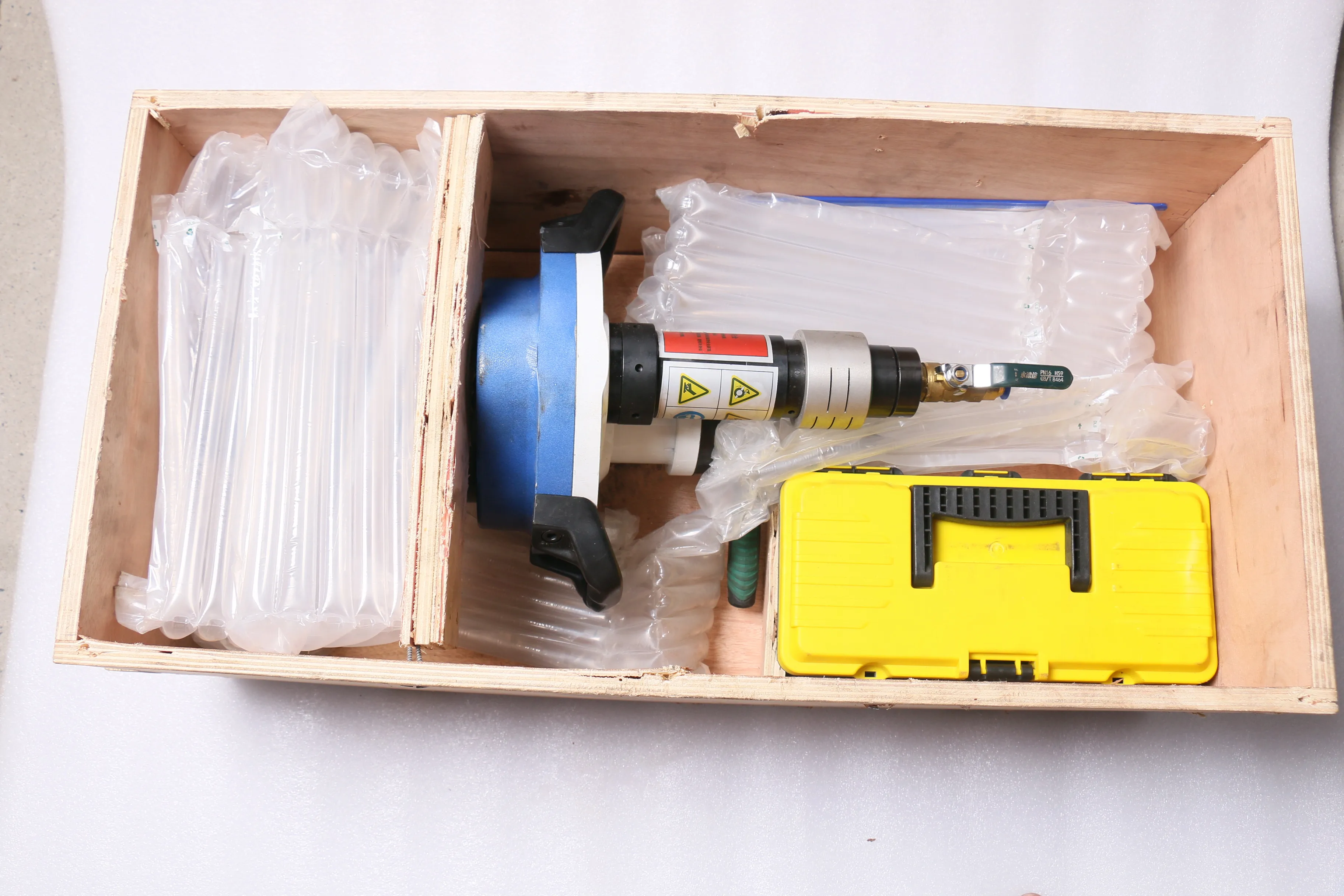

Machine Packing
Successful Project
SIMILAR PRODUCTS
FAQ
Q: Are you manufacture?
A; Yes. We are China manufacture. Our main products including ergonomic pallet strapping machine system,battery powered strapping tools and carts, pneumatic strapping tools for steel and pet bands.
Q: What is your deliver Time?
A:Standard machine can be ready in 3-7 days. Customized machine will be 25-45 days.
Q: What about payment terms?
A:We will suggest 100% by T/T while amount less than USD 10000 while machine ready in few days. 50% deposit, 50% balance for bigger amount or customizedprojects.
Q: What about your after sales service?

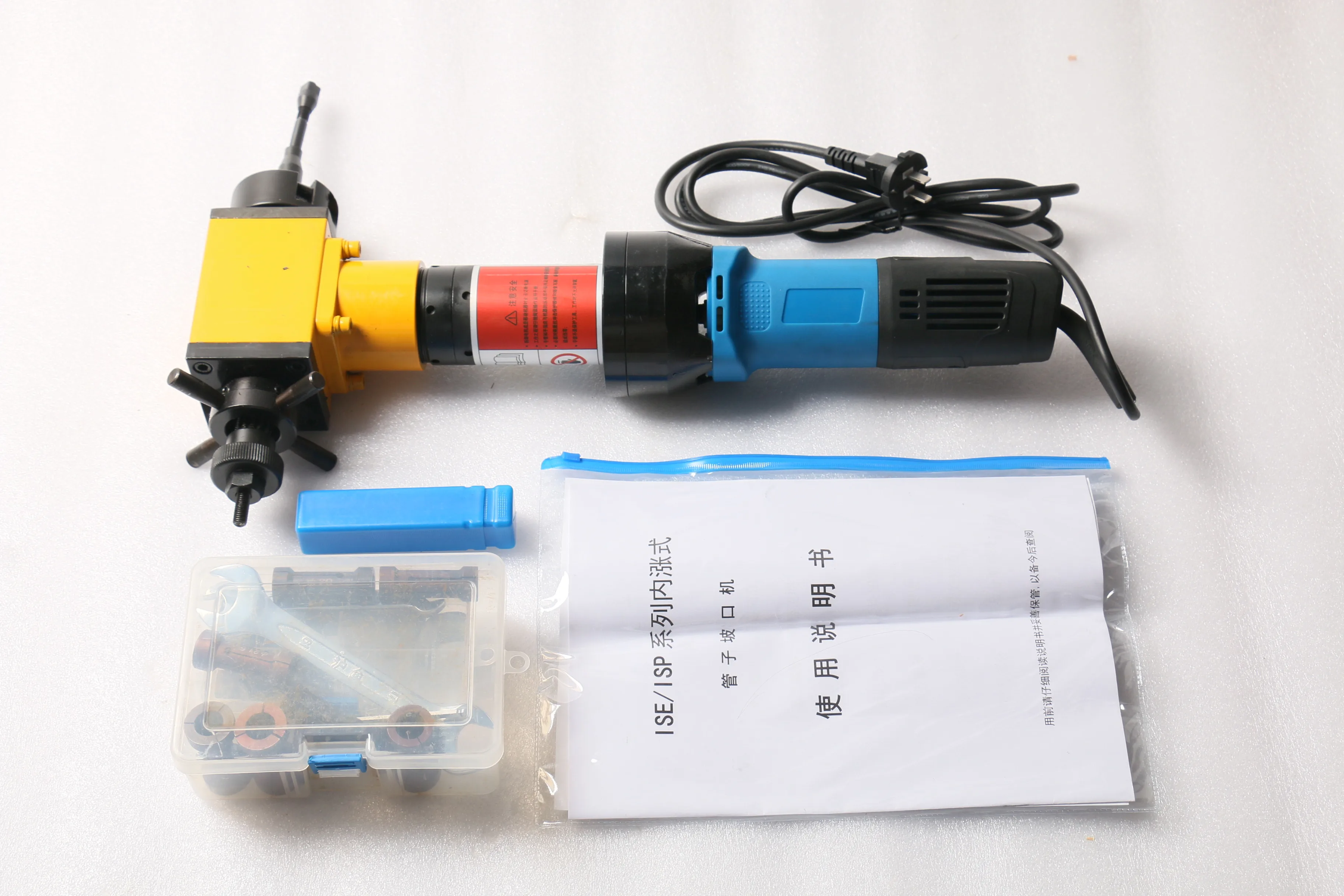

A: It is a simple machine tools on operation and we have English manual with machine.Machine can direct use after your receive it. In furhter any problems. We can provide video and remote service by Email,Phone and supply with necessary spare parts etc. Thank you.
