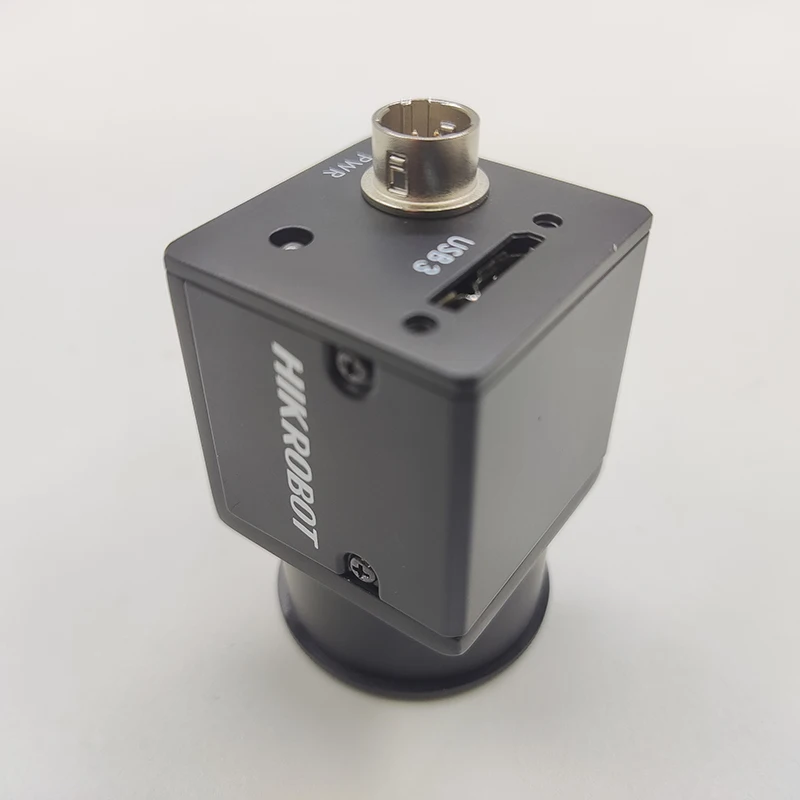

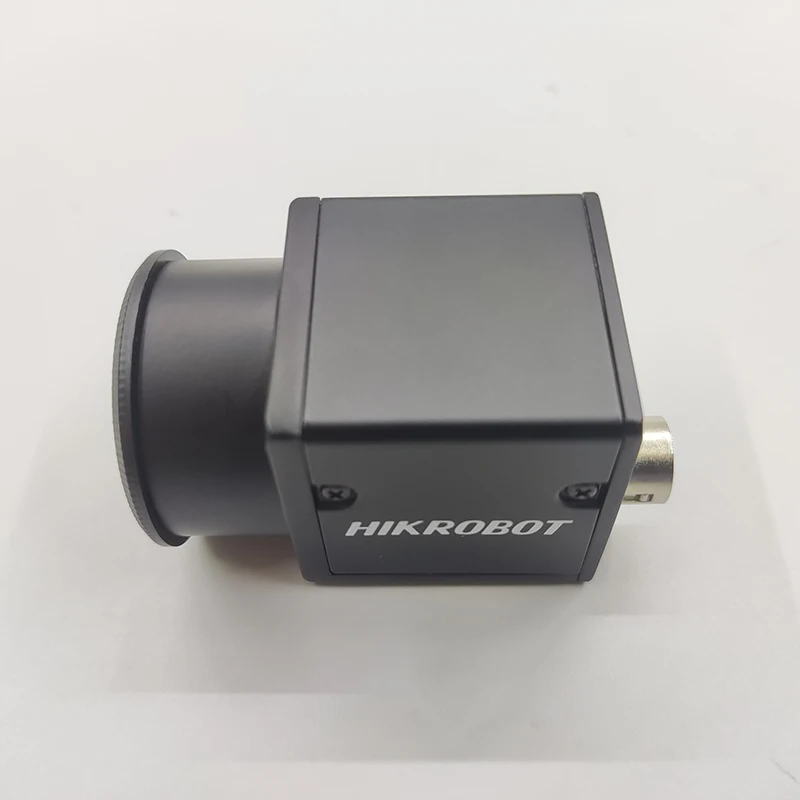

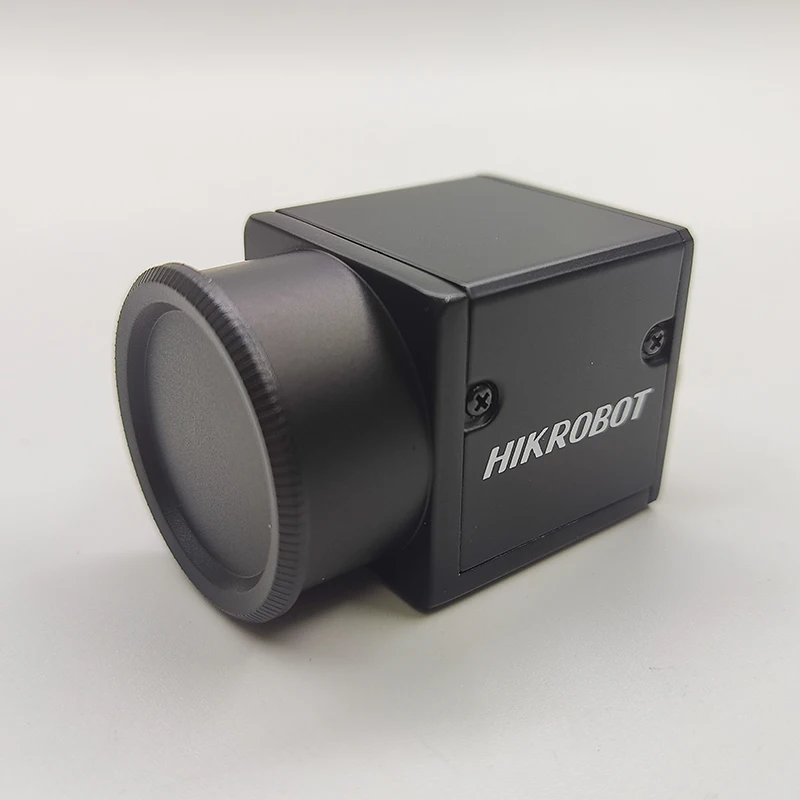

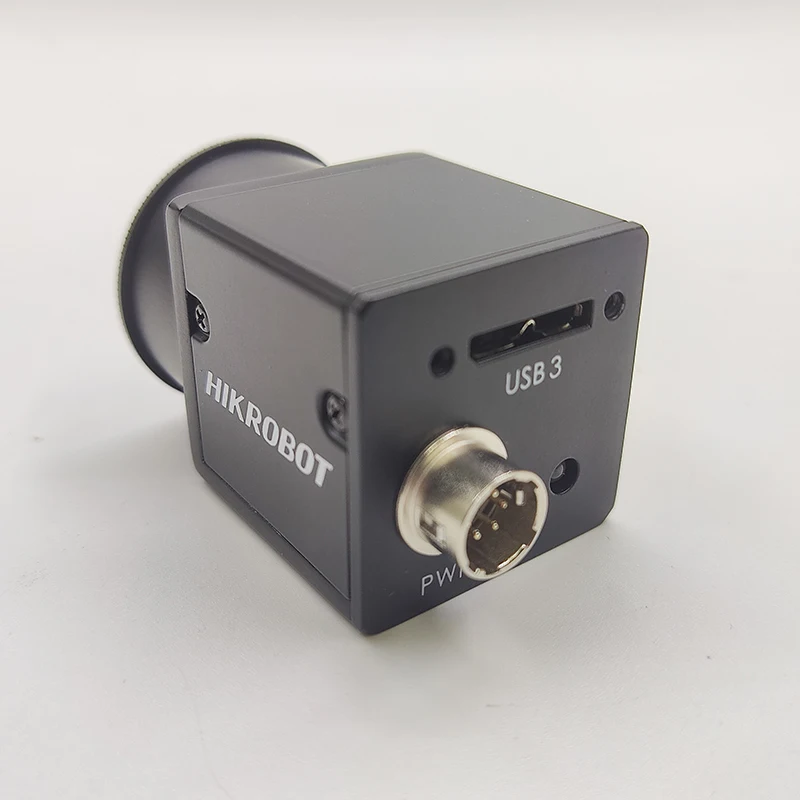

HIKROBOT MV CE013 80UM 1.3MP SS Sensor USB 3.0 150 fps High Frame Rate Area Scan Camera
- Category: >>>
- Supplier: Shenzhen Zhixiang Shijue Technology Co. Ltd.
Share on (1600595245099):
Product Overview
Description
Product Features
1. Support automatic or manual adjustment of gain, exposure time, Gamma, LUT correction, etc.
2. Support custom ROI, support horizontal mirroring and vertical mirroring
3. Support hard trigger, soft trigger and free running mode
4. The structure is compact, the external dimension is 29 mm × 29 mm × 30 mm, which is suitable for smaller installation requirements
5. Compatible with USB3 Vision protocol and GenICam standard, and can be seamlessly connected with third-party software platforms
2. Support custom ROI, support horizontal mirroring and vertical mirroring
3. Support hard trigger, soft trigger and free running mode
4. The structure is compact, the external dimension is 29 mm × 29 mm × 30 mm, which is suitable for smaller installation requirements
5. Compatible with USB3 Vision protocol and GenICam standard, and can be seamlessly connected with third-party software platforms
Products Description
Specifications
Model Number | Model | MV-CE050-80UM |
Name | 1.3 MP USB 3.0 area scan camera, SS | |
Performance | Sensor Type | CMOS, Global Shutter |
Sensor model | SS | |
Pixel size | 4.0 µm×4.0 µm | |
Target surface size | 1/2.7" | |
Resolution | 1280×1024 | |
Maximum frame rate | 148 fps@1280×1024 | |
Dynamic range | 60 dB | |
Signal-to-noise ratio | 40 dB | |
Exposure time | 30 μs~1 sec | |
Shutter mode | support automatic exposure, manual exposure, one-key exposure mode | |
B&W/Color | Black & White | |
Pixel Format | Mono 8/10/10Packed/12/12Packed | |
Binning | not supported | |
Downsampling | not supported | |
Mirroring | support horizontal mirroring, vertical mirroring | |
Gain | 0 dB ~ 20 dB | |
Electrical Characteristics | Data interface | USB3.0 |

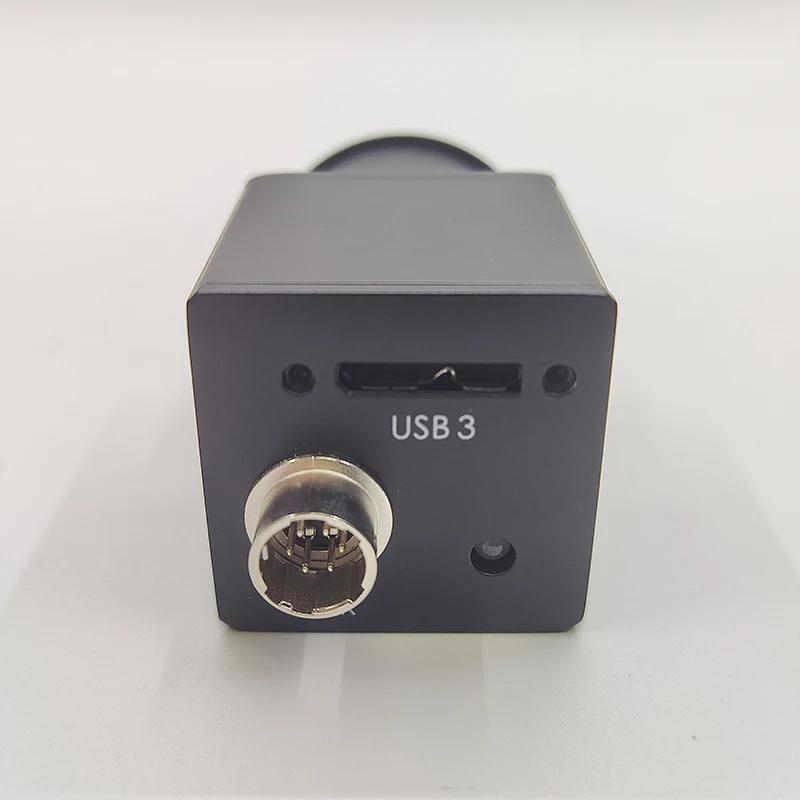

Digital I/O | 6-pin P7 connector provides power supply and I/O: 1 opto-isolated input (Line0), 1 opto-isolated output (Line1), 1 bidirectional configurable non-isolated I/O (Line2) | |
Power supply | 12 VDC, support USB power supply | |
Typical power consumption | 2.4 W@5 VDC (USB powered) | |

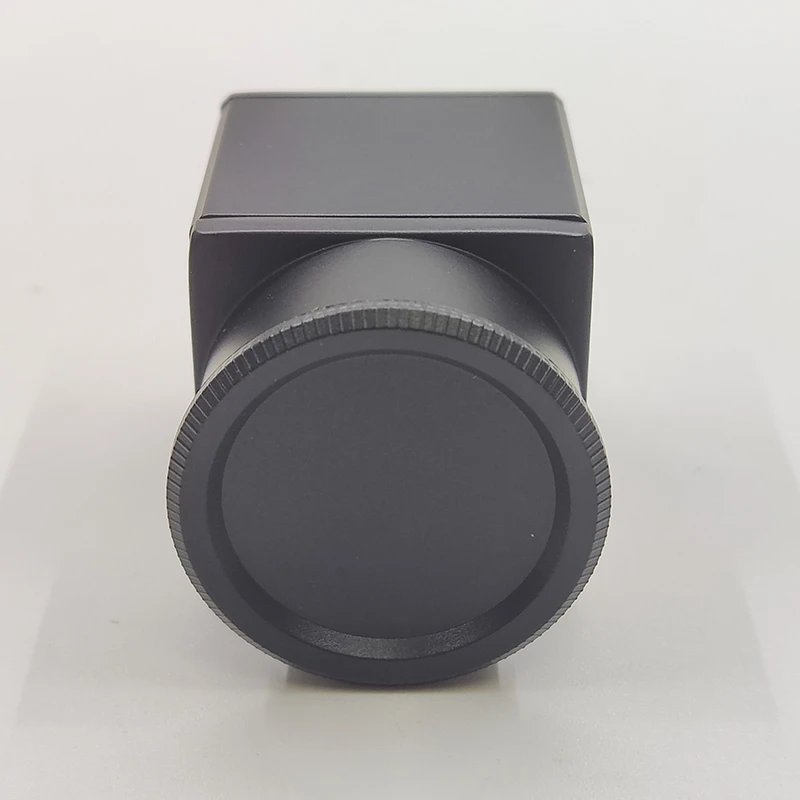

Structure | Lens mount | C-Mount |

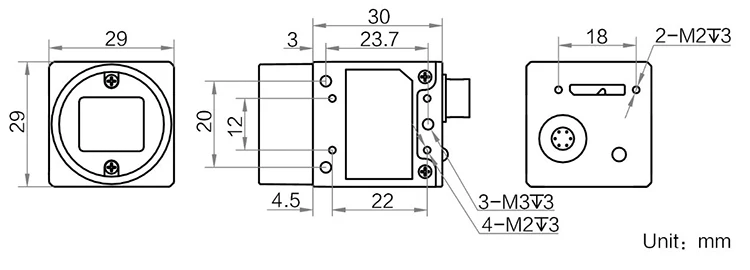

Dimensions | 29mm×29mm×30mm | |
Weight | Approx. 56g | |
IP protection grade | IP30 (when the lens and cable are installed correctly) | |
Temperature | working temperature 0 ~ 50℃, storage temperature -30 ~ 70℃ | |
Humidity | 20% ~ 80%RH non-condensing | |
General Specifications | Software | MVS or 3rd party software supporting USB3 Vision protocol |
Operating System | Windows XP/7/10 32/64bits, Linux 32/64bits | |
Protocol/Standard | USB3 Vision, GenlCam | |
Certification | CE, FCC, RoHS, KC |
Product packaging
