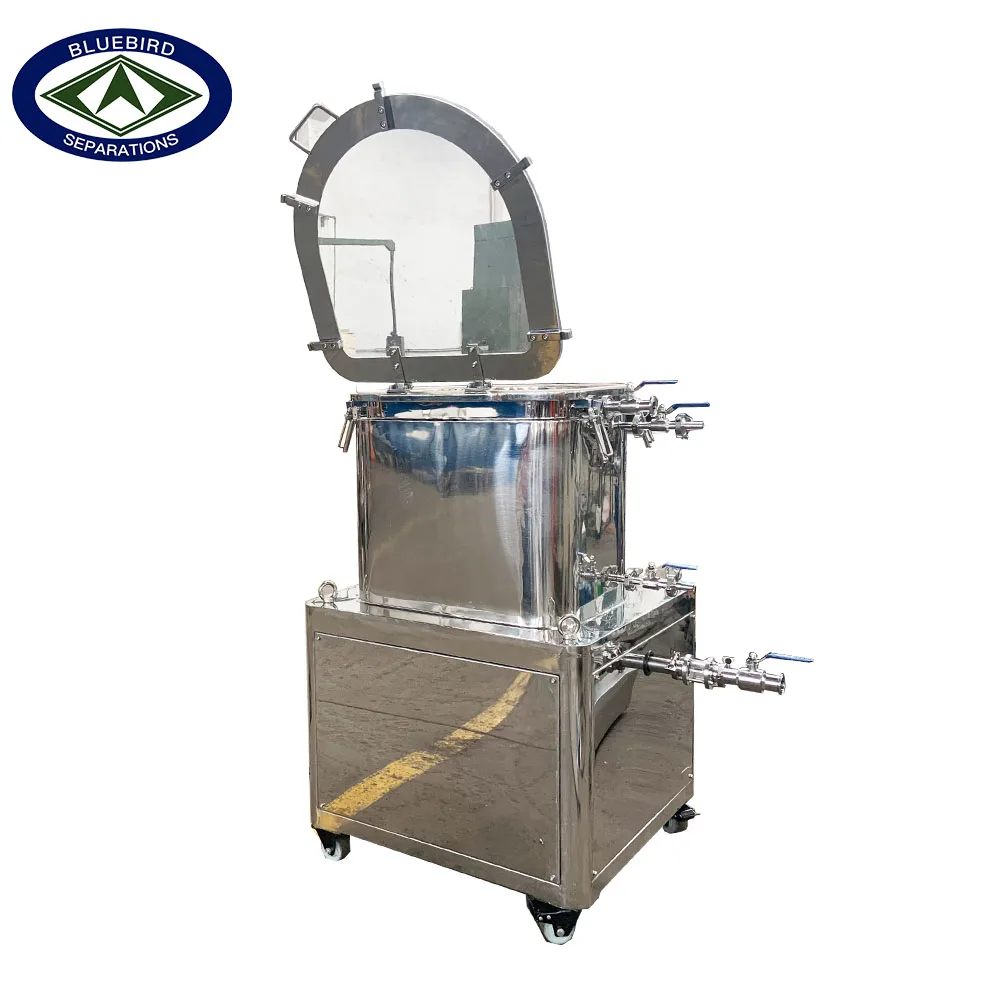

Low temperature solventless trichome ice water extraction separator machine
- Category: >>>
- Supplier: Jiangsu Blovebird Centrifuge Co. Ltd.
Share on (1600595309261):
Product Overview
Description
Product Description

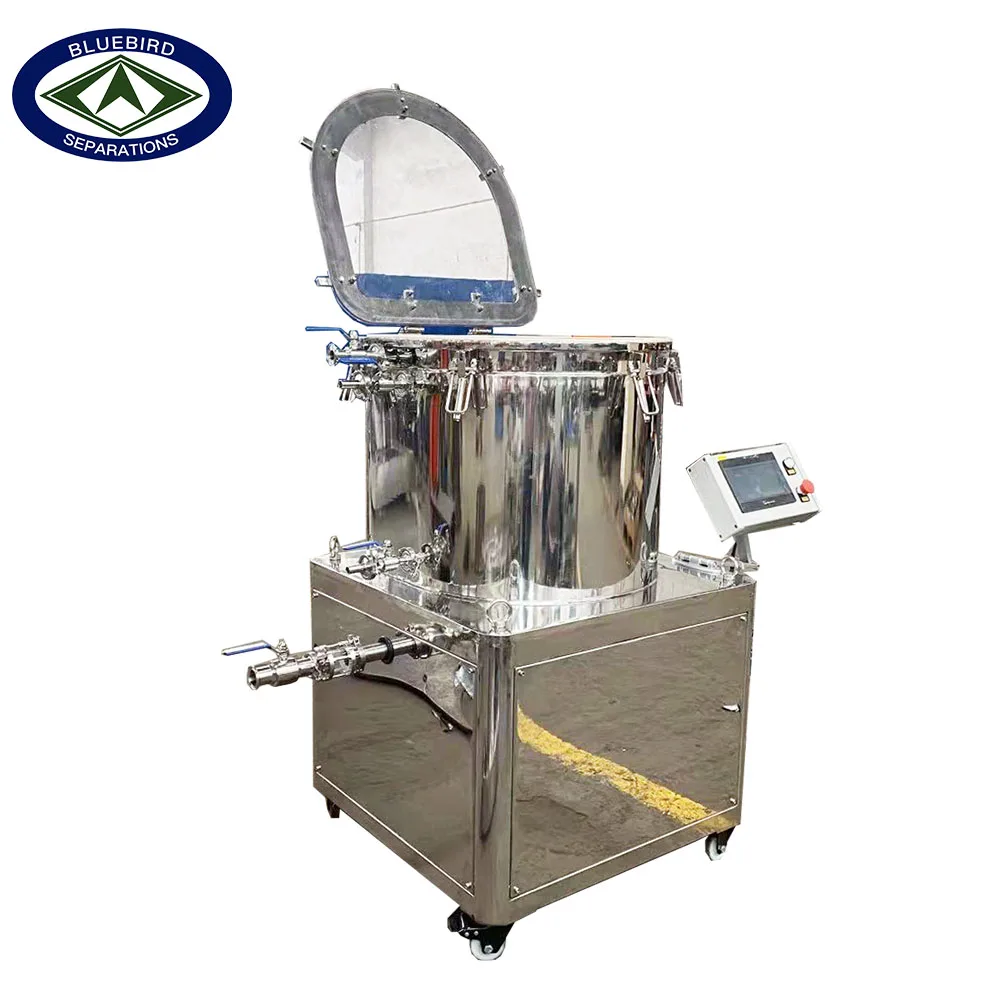

The Vortex Trichome Separator is a solvent-free separation device that separates cannabinoids and terpene rich trichomes from biomass using mechanical separation techniques to produce high quality ice water hashish. It is used in the solvent-free extraction technology of cannabis.
The working process of the vortex trichome separator:
The bottom-driven blades combined with the uniquely shaped flume create cross-flowing turbulence, resulting in powerful mixing forces. In the absence of contamination by plant particles, the trichomes rapidly separate from the plants and remain in the water as suspended insoluble solids. Once the slurry mixture of water and trichomes is separated from the remaining biomass, it can be easily filtered, separated, collected and dried to obtain a high quality hash.
Main Features
①Solvent-free extraction technology
②Generate countercurrent vortex
③Use the interlayer for cooling
④High efficient
⑤PLC touch screen, easy to operate
⑥Food grade stainless steel
Product Paramenters
Product Name | Vortex Trichome Separator | ||
Model | VTS-50 | VTS-75 | |
Capacity | 190L | 285L | |
Maximum Throughput | 14kg | 21kg | |
Interlayer Volume | 17L | 30L | |
Cooling area | 0.9㎡ | 1.35㎡ | |
RotatingSpeed | 200-800rpm | 200-800rpm | |
Power | 1.1kw | 1.1kw | |
Measuring Range | -20-100℃ | -20-100℃ | |
Material | 304 | 304 | |
Overall Dimension | 1500*827*1360 | 1700*1027*1360 | |
Package Dimension | 990*920*1535 | 1190*1120*1535 | |
Package Weight | 400kg | 600kg | |
Detailed Pictures

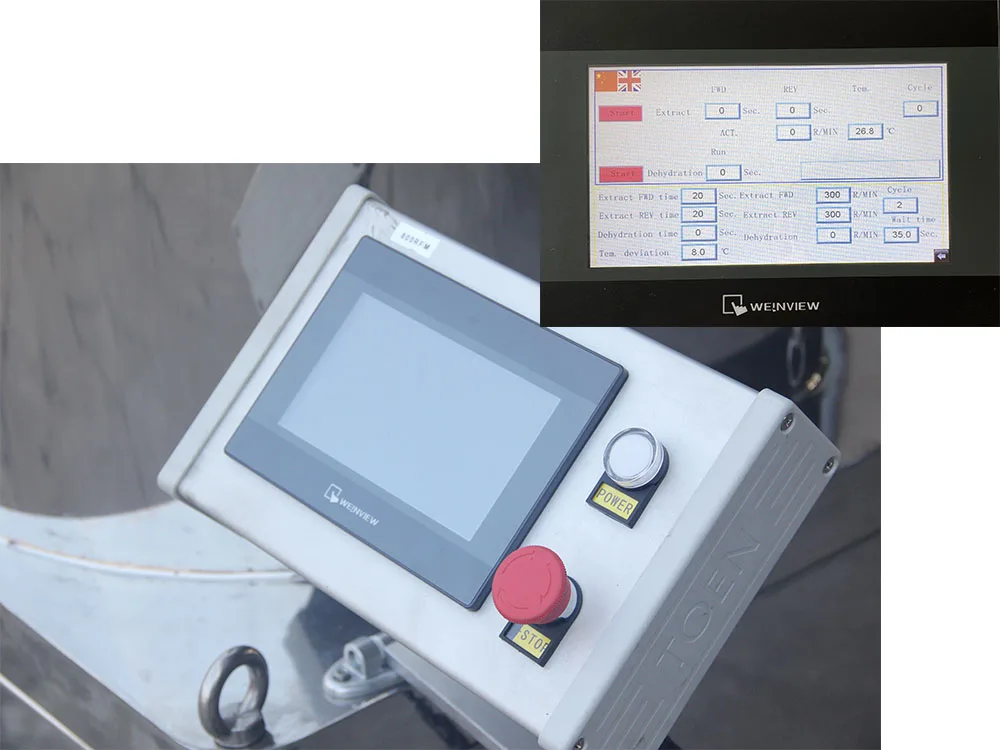

PLC touch screen, easy to operate

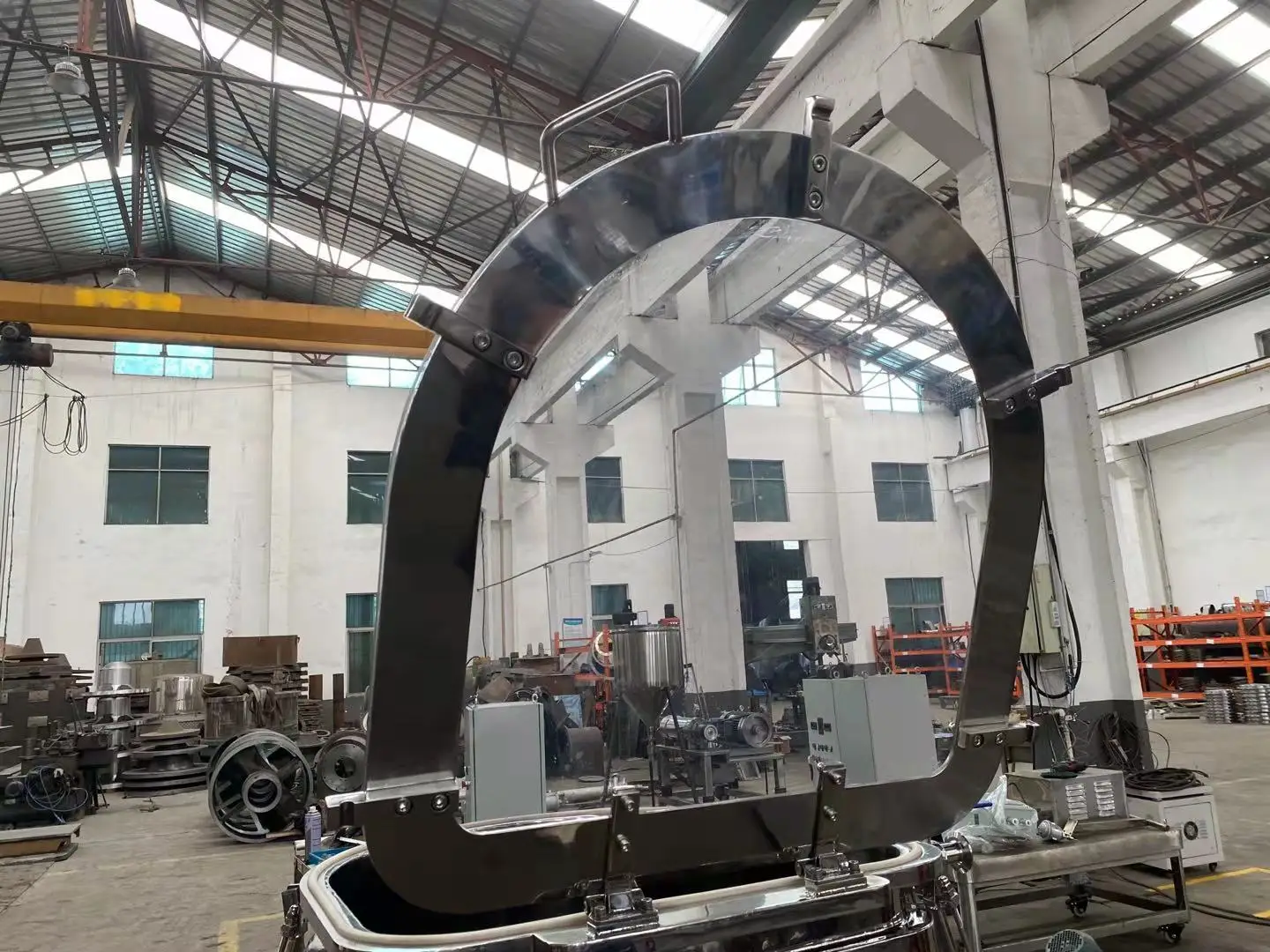

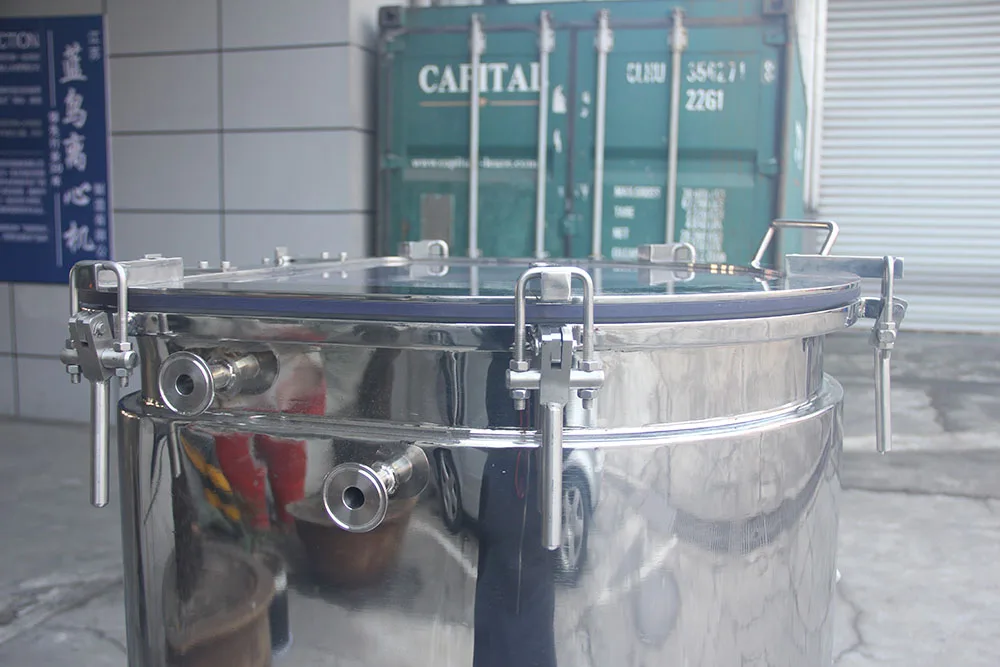

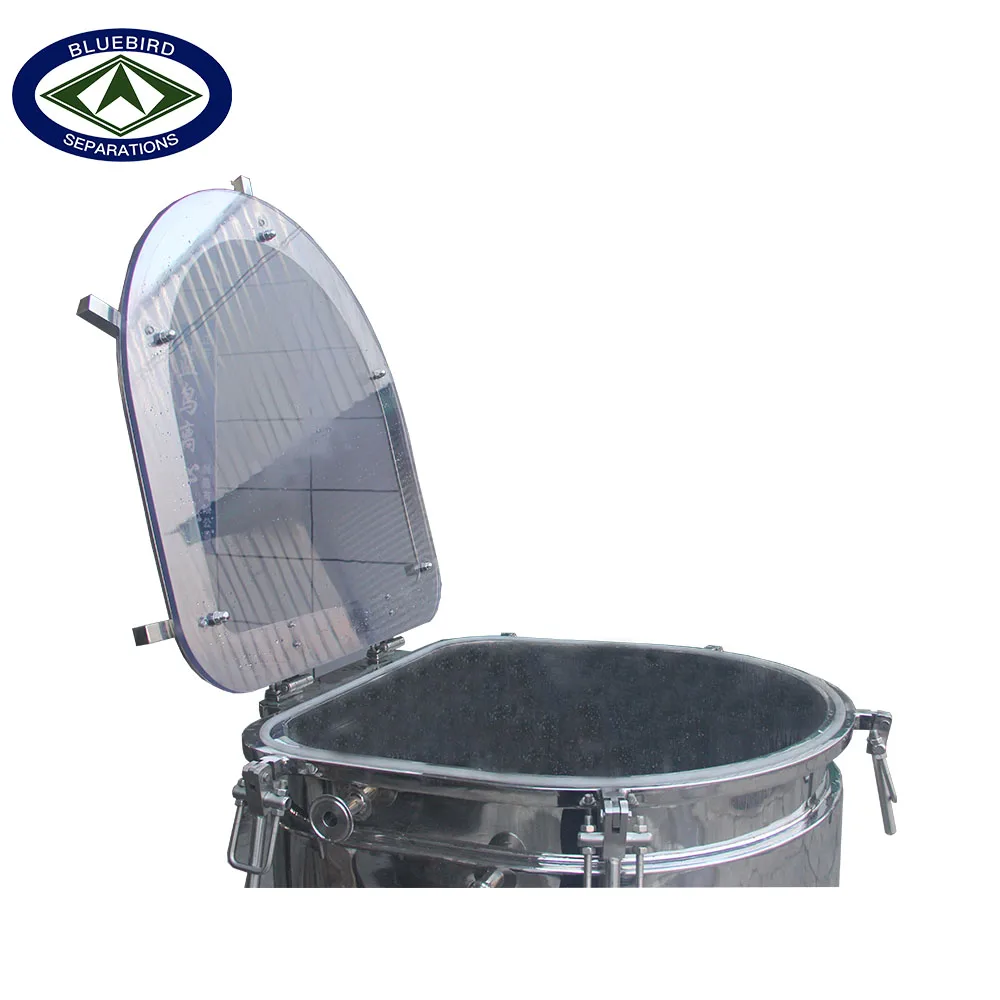

The internal separation state can be clearly observed with a sight glass on the upper cover

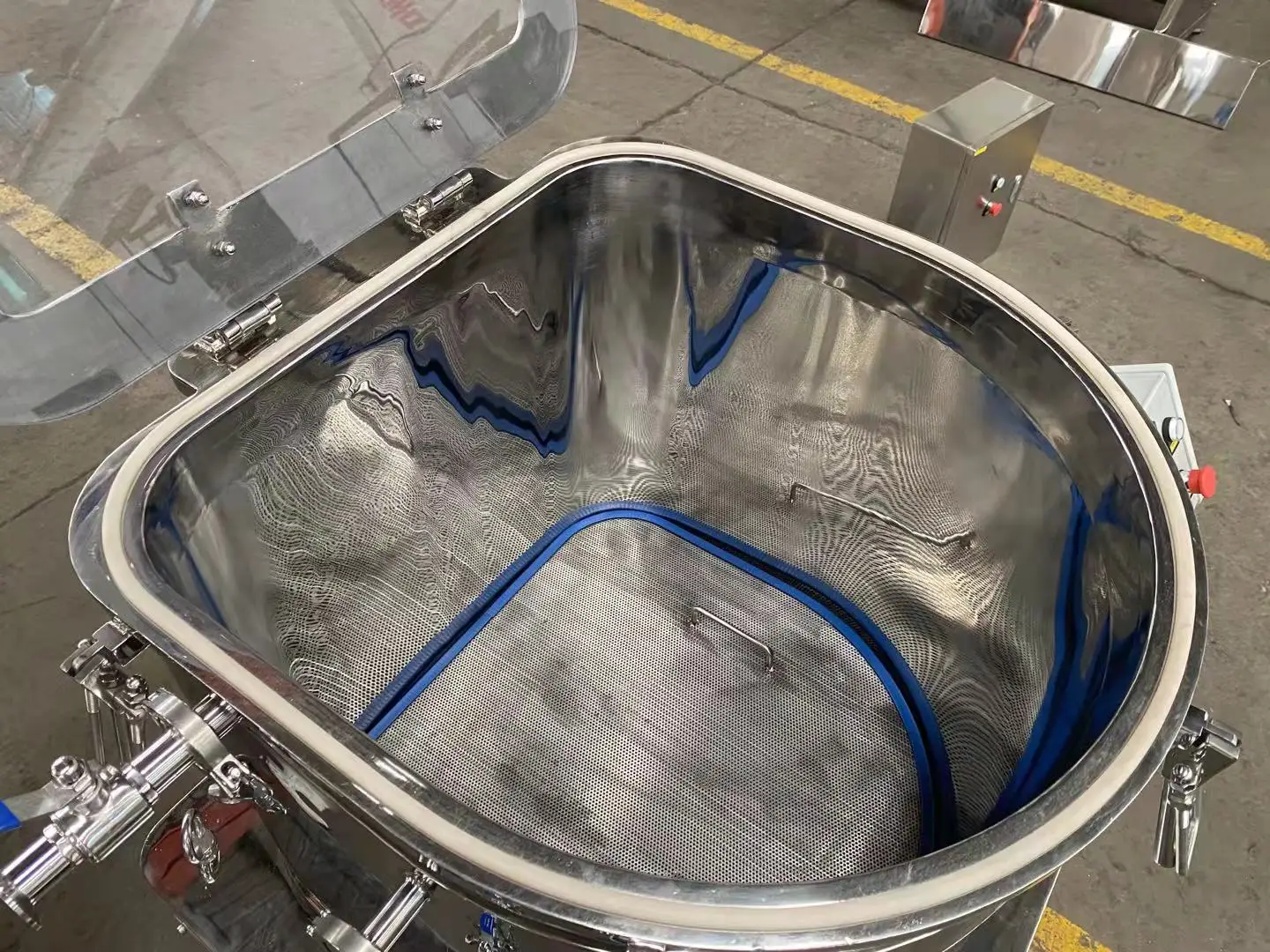

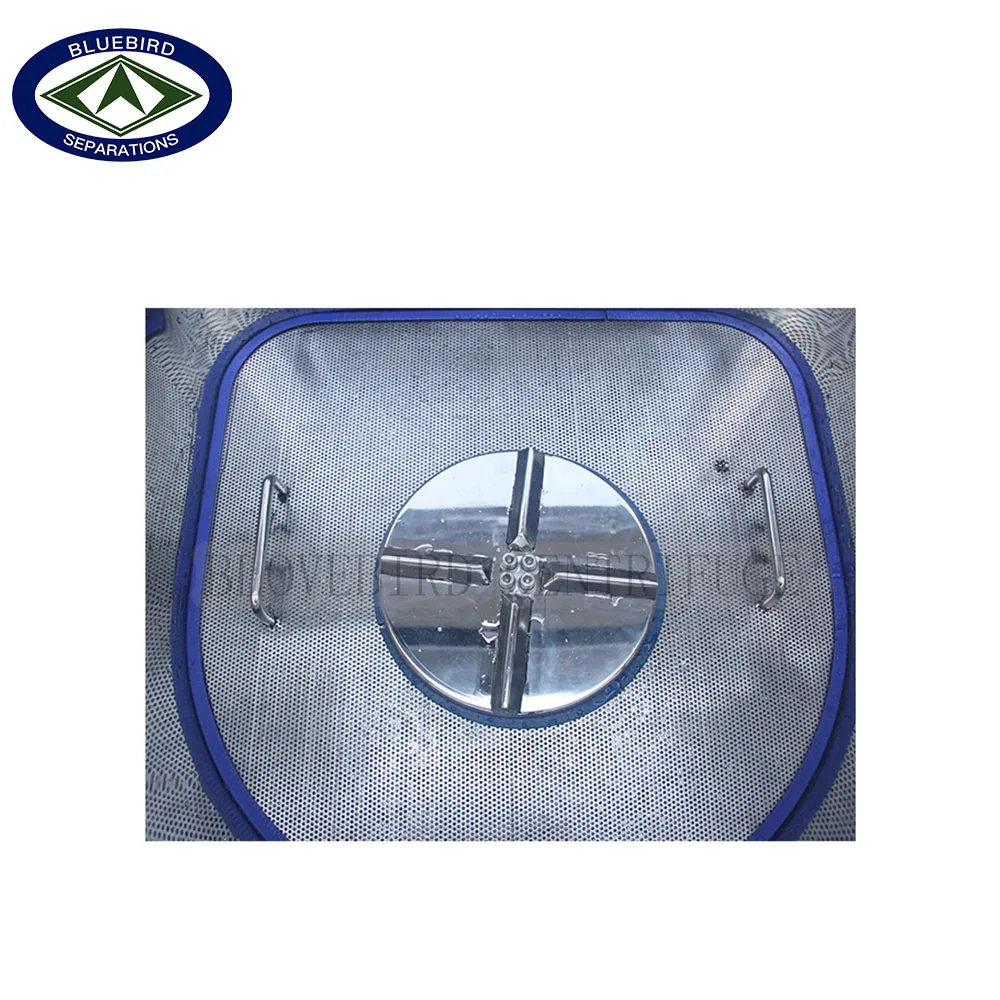

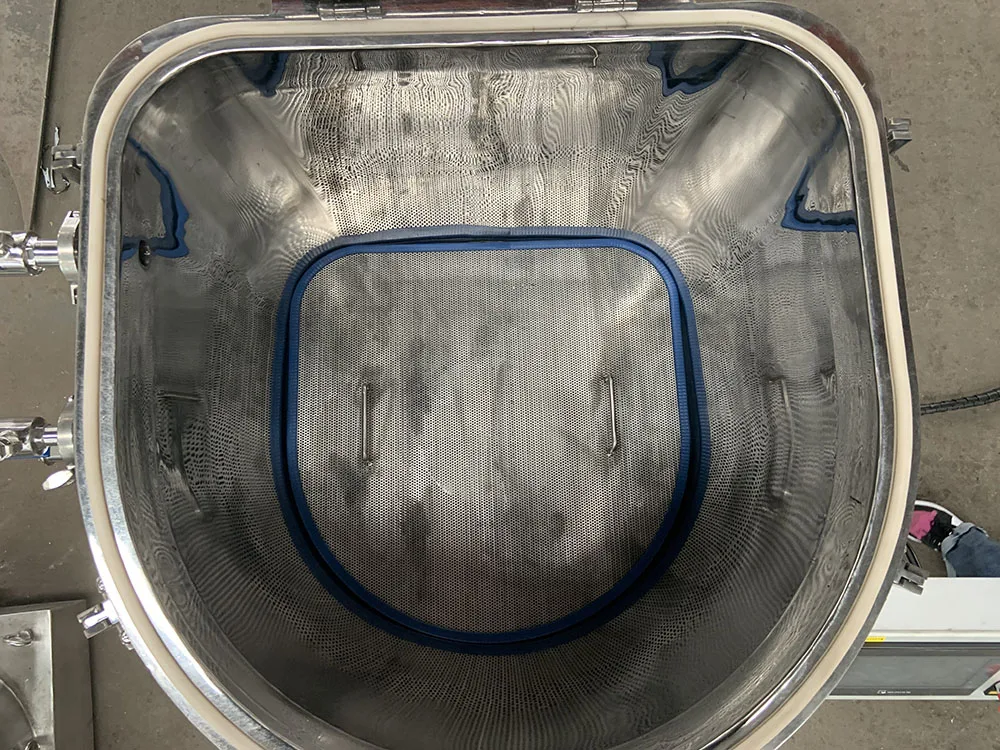

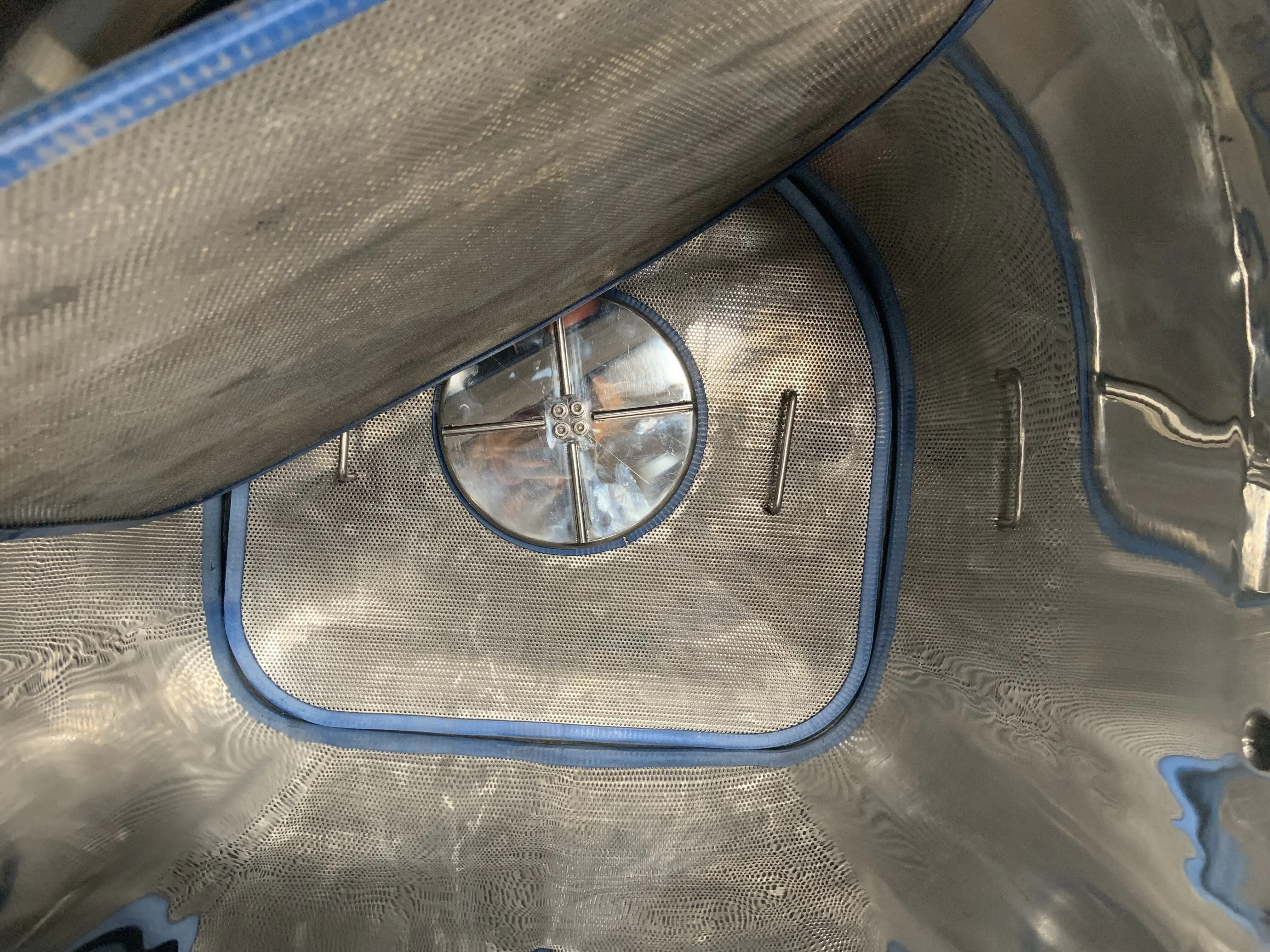

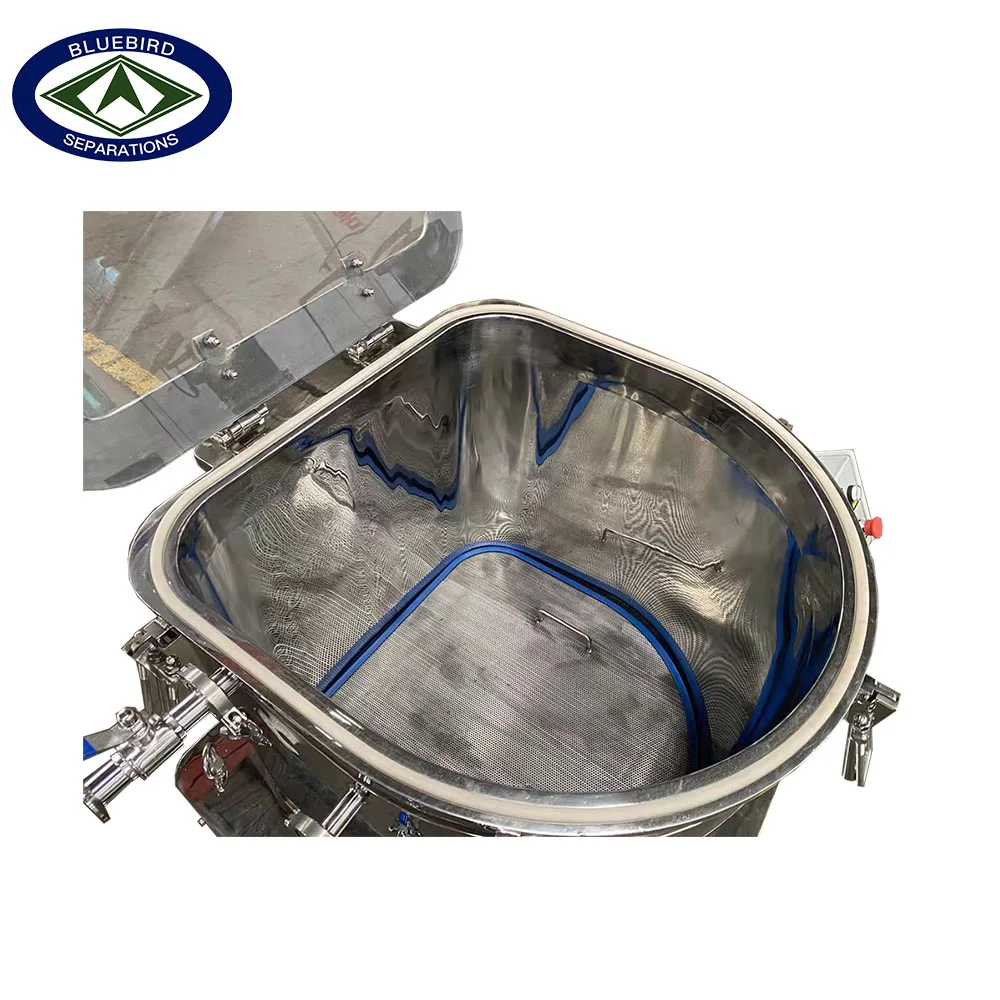

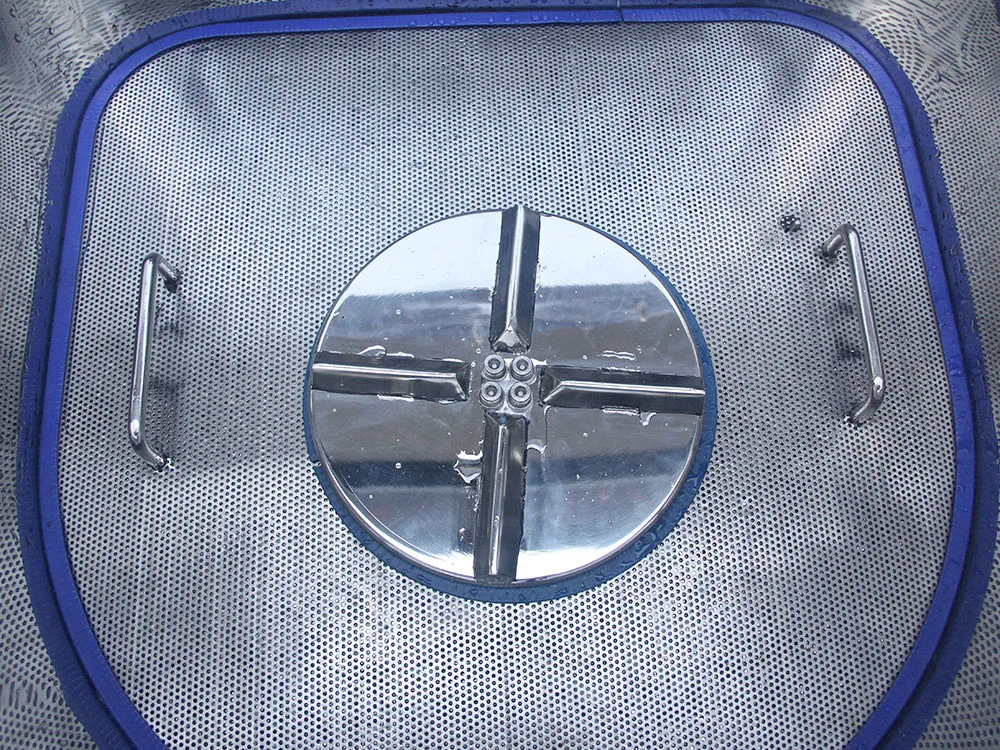

The bottom strainer can trap residue inside the separator

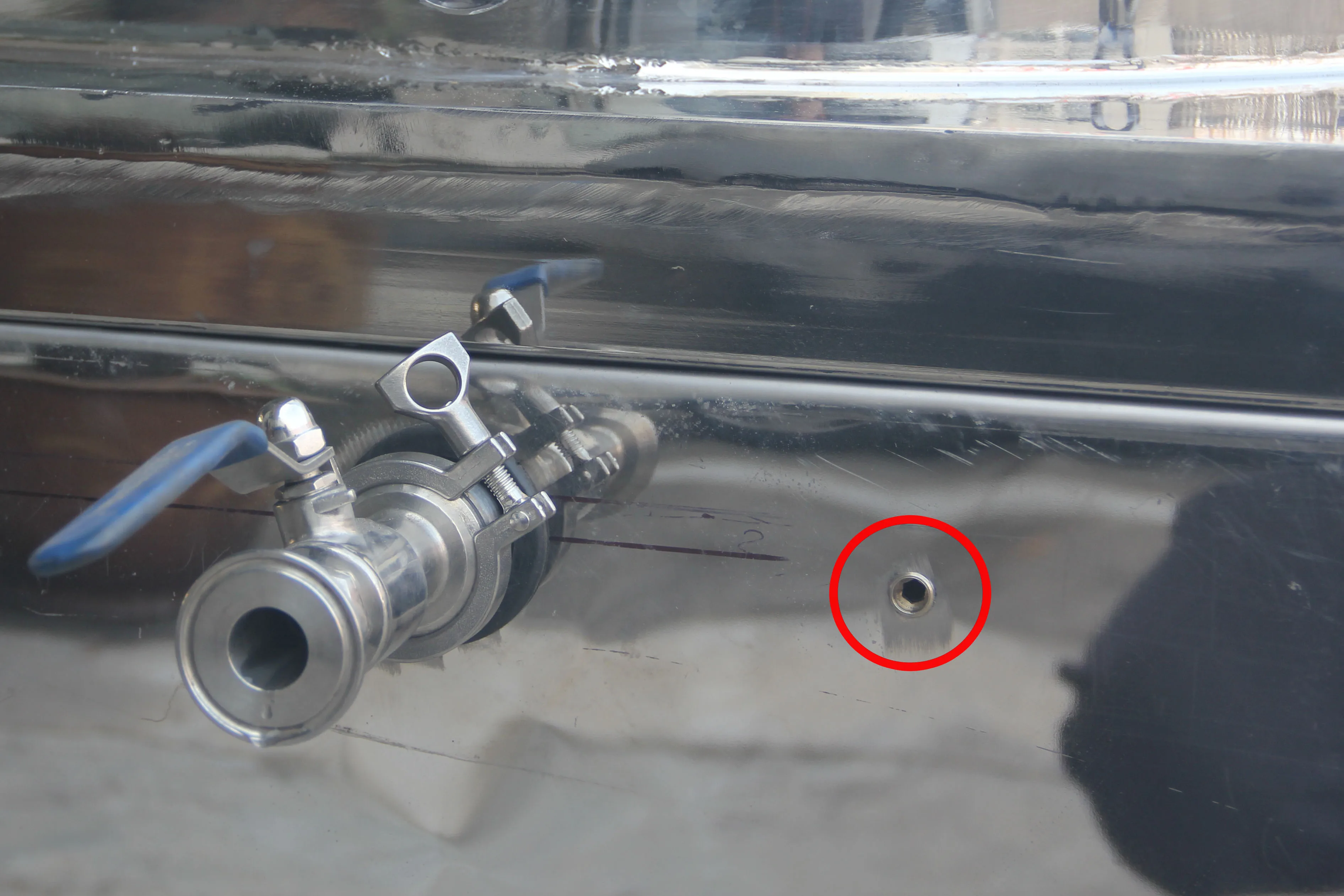

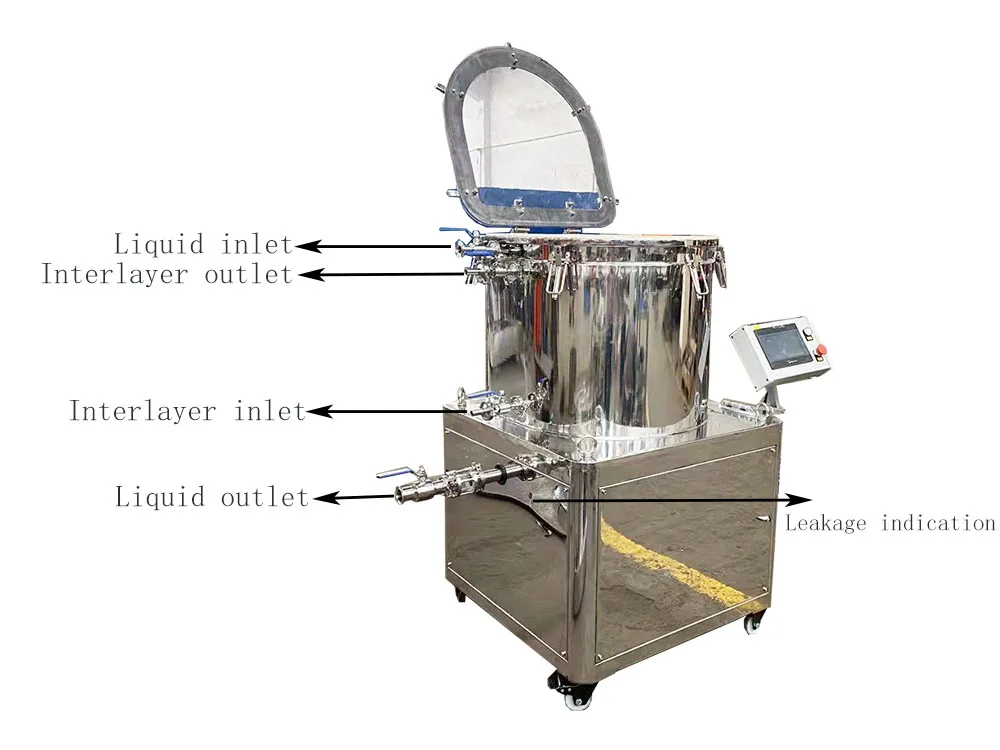

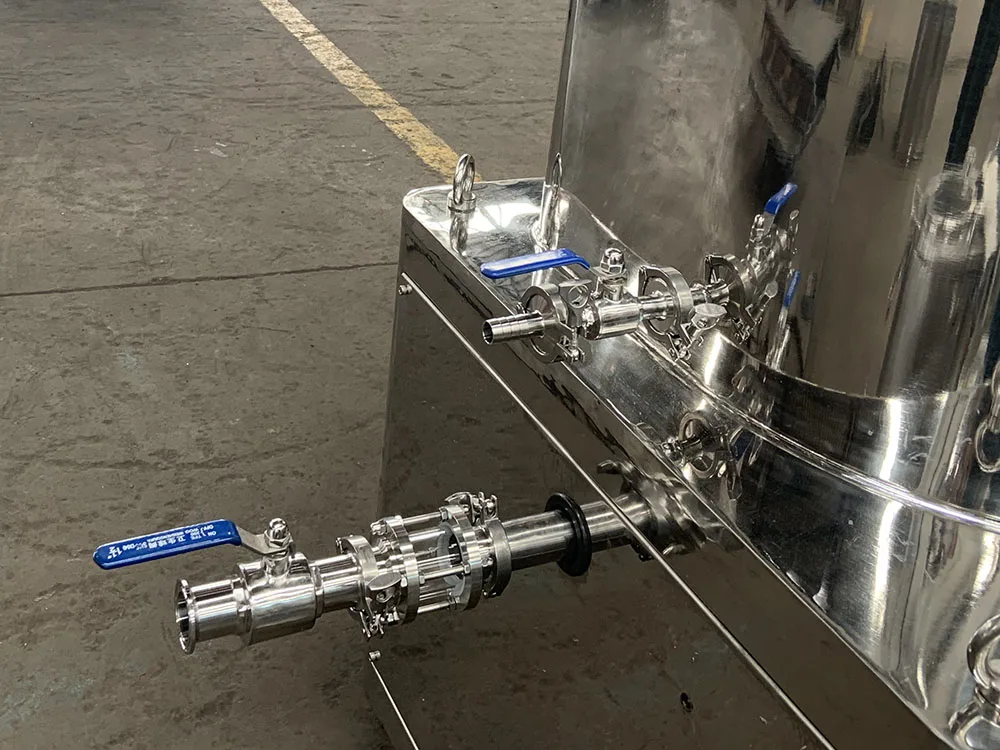

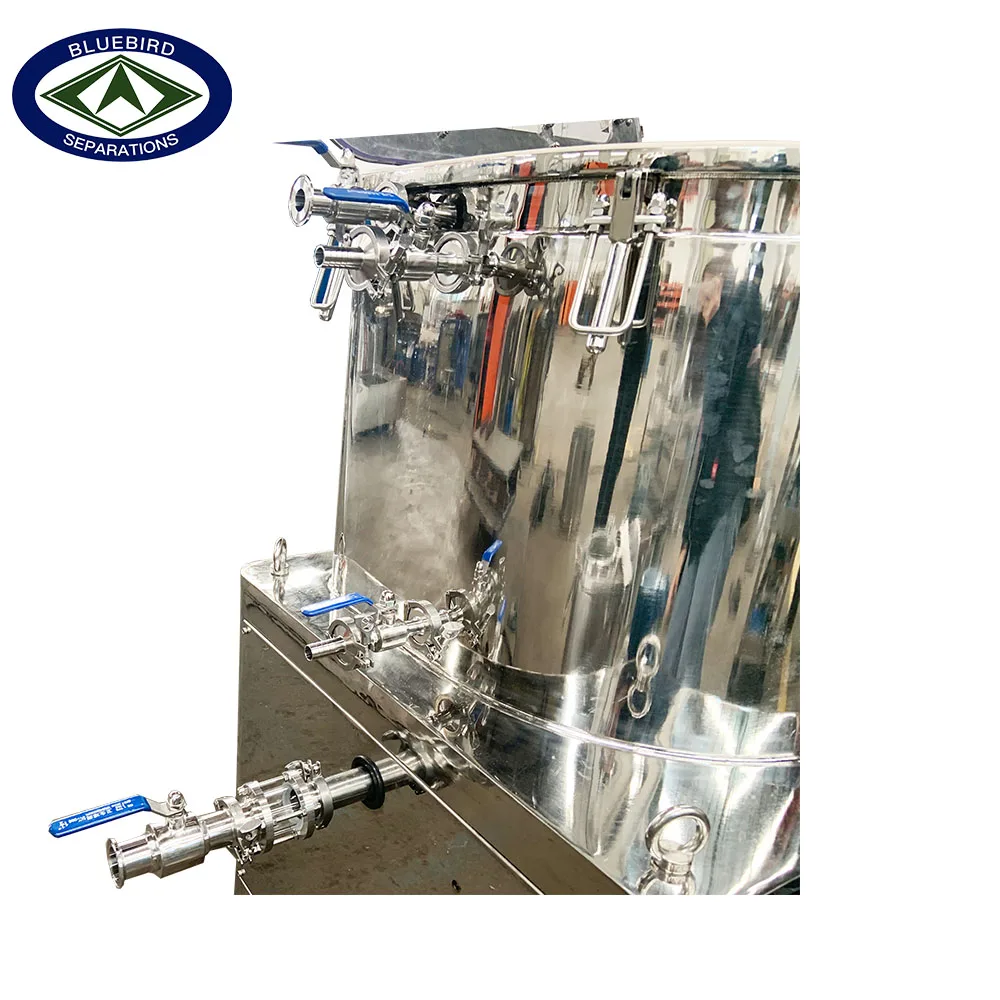

Leakage indication pipe can remind you when to replace the sealing ring wearing parts
Detailed pictures:
Why Choose Us
Jiangsu Blovebird Centrifuge Co. Ltd
-Verified Supplier
- Holding 40 Patents
- CE & ISO certificated
- Innovative R&D Team
- 30 Years' Experience in this field
- Awarded as a High-tech Enterprise
- No. 1 Machinery Plant in Zhangjiagang
- Precise Production Line Meeting the GMP Requirements
- 8500 Square Meter Facilities in Strategic Location in Yangze River Delta
Blovebird Cetificates and Patents.
International certification, National Certificate of equipment verification, and more than 40 invention patents are done in Blovebird Separations.
Verification Certificates of equipments: ISO9001, CE, TUV
Verification Certificates of equipments: ISO9001, CE, TUV
----------------------------------------------------------------------------------------------------
Factory Site
Product packaging
*We will do a 24-hour immersion test for each machine before shipment to prevent leakage!
