Product Overview
Description
What is the Electronic Shelf Label?
Electronic Shelf Label is a kind of system uses electronic paper display and ultra-low-power wireless networking technology to realize paperless management, product information management inventory management and so on, which helps customers to save a lot of manpower costs, manage empired goods, and improving the overall level of retail information technology.
Why Should We Use ESL?
Traditional manual replacement labels are time-consuming and laborious, with high error rates, high costs, and can not replace the information timely.
Electronic Shelf Labels can almost eliminate the problem of traditional manual operation, achieve network update fastly, efficiently. Not only increase productivity, but also save labor and material costs.
Advantages of the SUNY Electronic Shelf Labels | ||||
1 | E-ink Color Display | 3 color B/W/R or B/W/Y | ||
2 | Long Power Life | 5 years battery life | ||
3 | LED light | 3 colors up to 7 combination（R，G，B，C，M，Y，W） | ||
4 | Page Cache | Quick update | ||
5 | Broadcast | act as advertising player | ||
6 | Temperature Sensor | real time temperature monitoring | ||
7 | Replacement Battery | Quick releaseTM Design, Side-mounted battery compartment | ||
8 | Instant Update | Instant Update—— Update 10,000 piece ESL up to 10s | ||
9 | Seamless Connection | NET Core SDK support Windows, Mac. OSX. Linux. | ||
10 | Sub MHz ISM | communication high penetrate penetration, anti interference ability transmission distance | ||

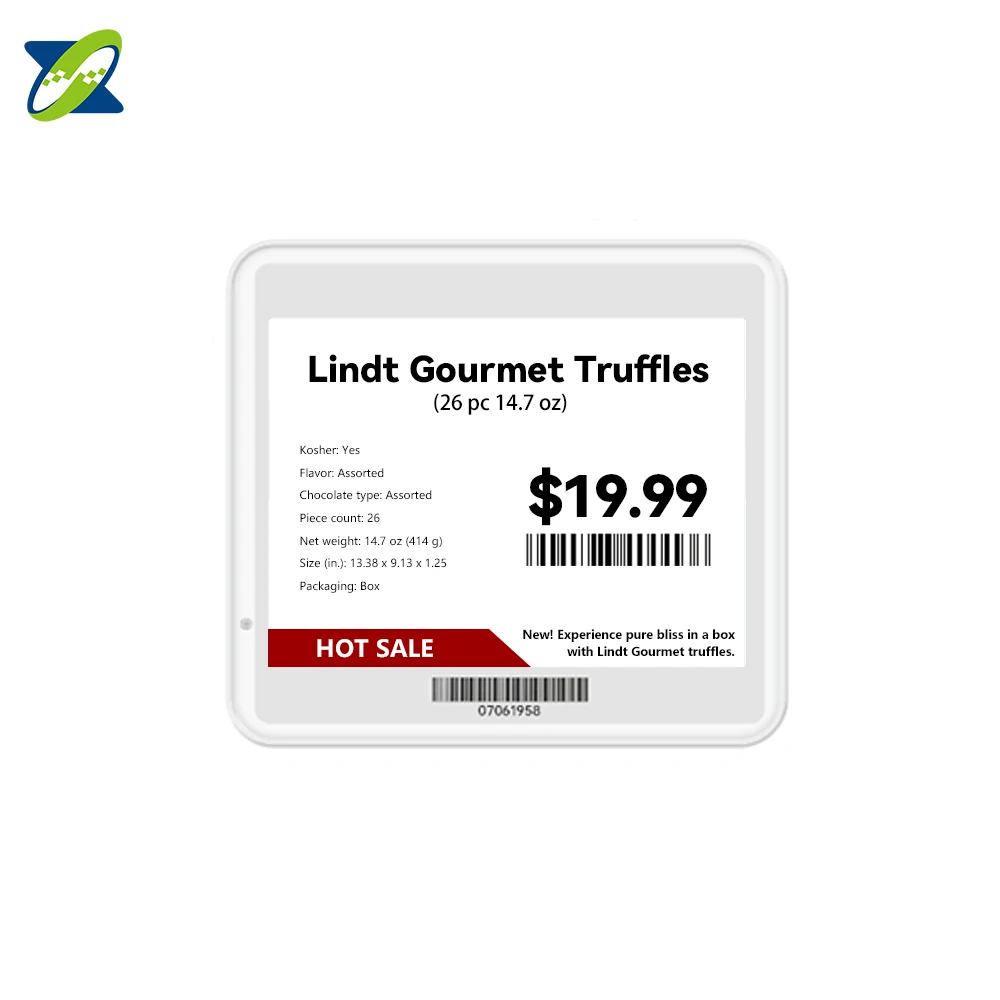

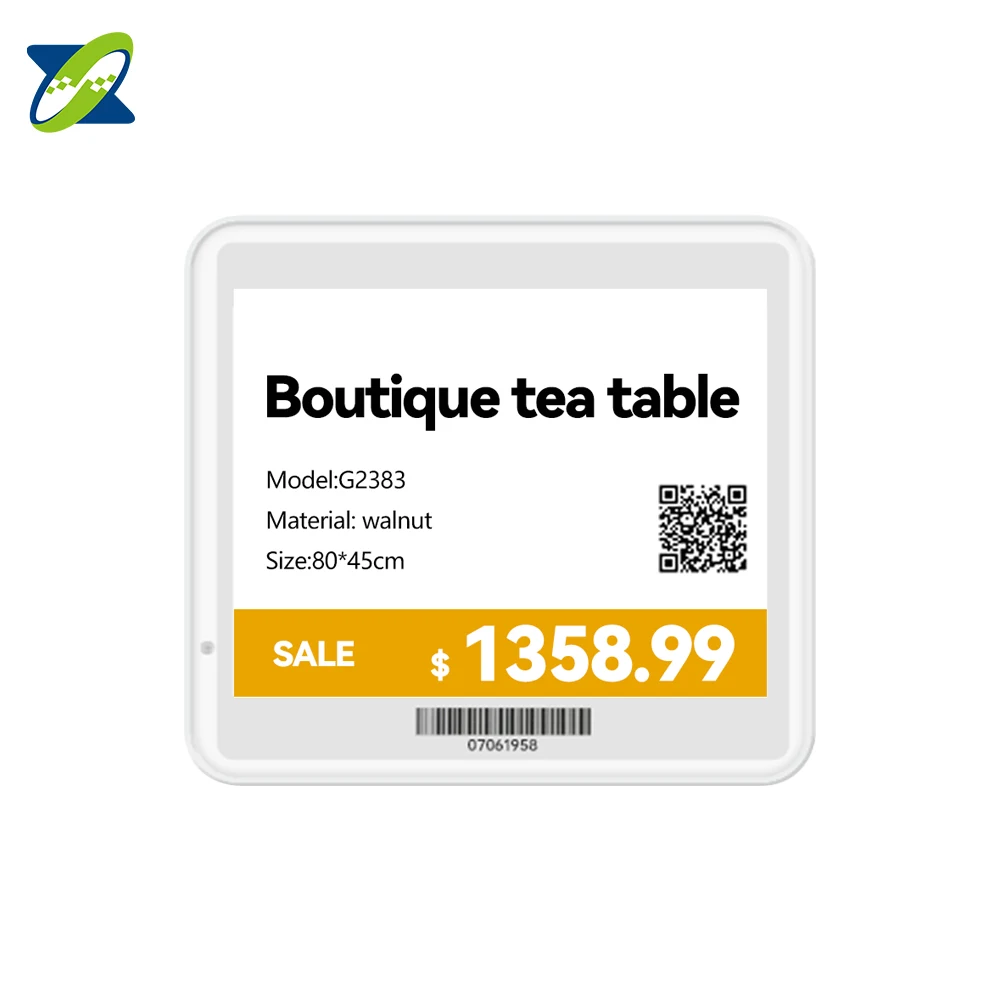

Product Information
Part N.o. | S-ETR0420R |
Dimensions（mm） | 103*97*14 |
Weight | 97g |
Display Size | 4.2 inch |
Active Area（H*V） | 86*64(mm) |
Display Resolution | 400(H)×300(V) |
Pixel Colors | Black/White/Red |
Display Technology | Dot-matrix E-ink Epaper Display |
Viewable Angle | Close to 180° |

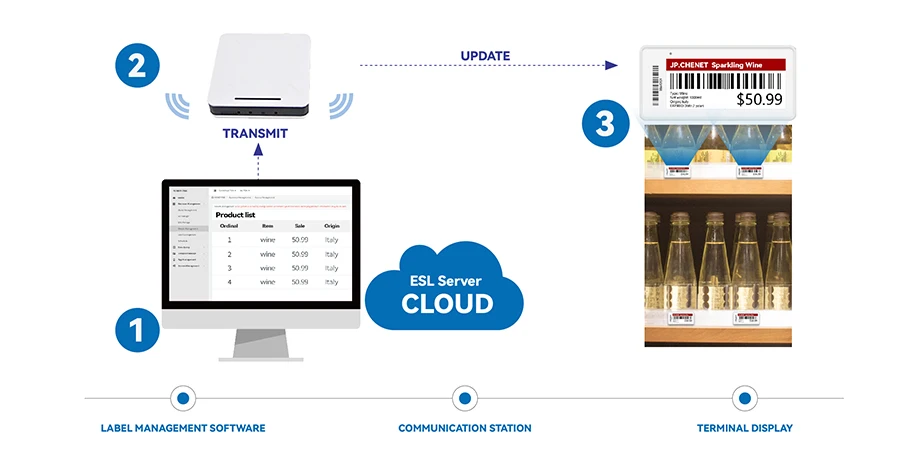

How does it works?
ESL Server SDK Supported

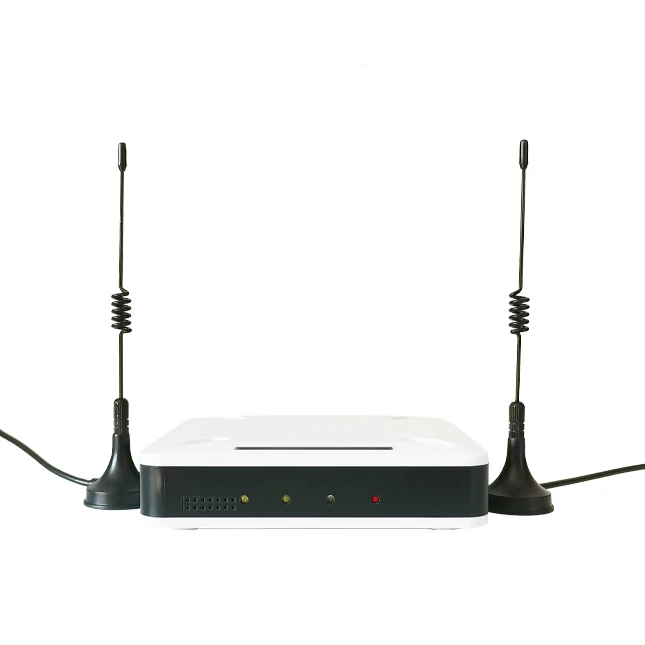

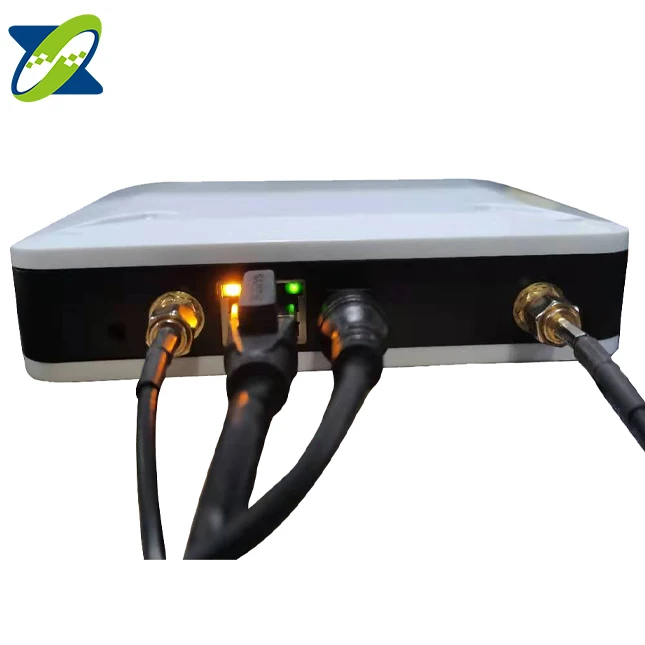

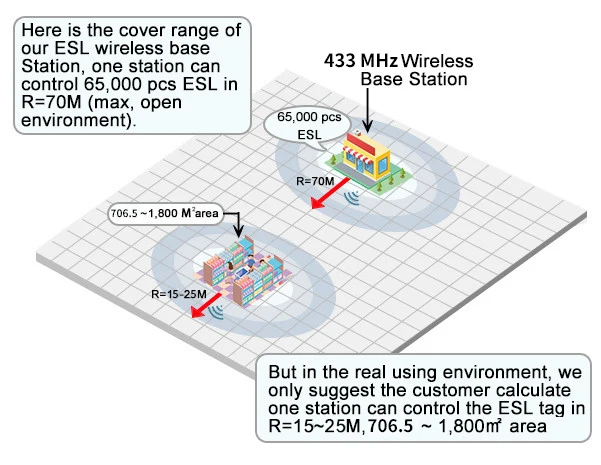

Base Station

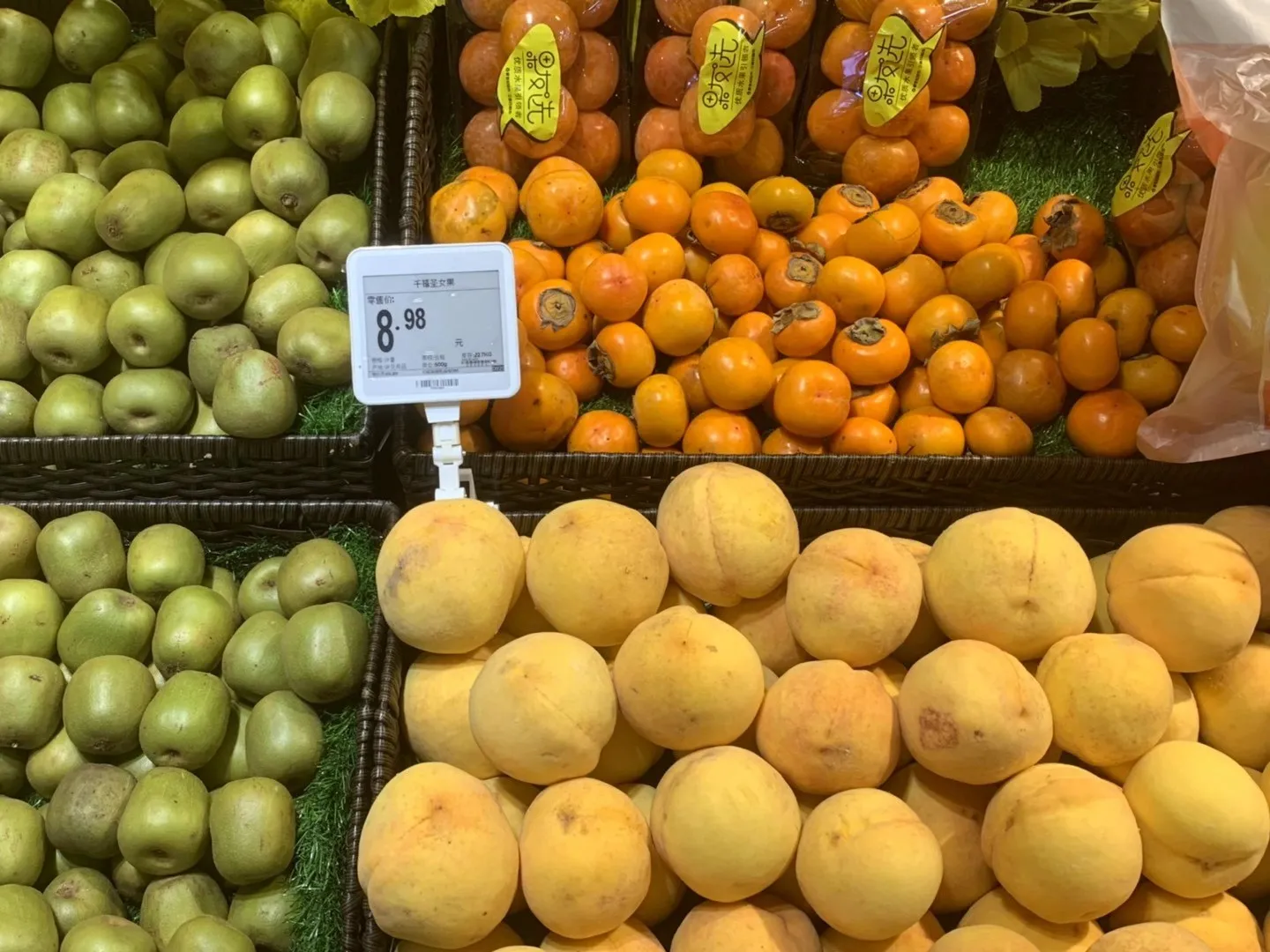

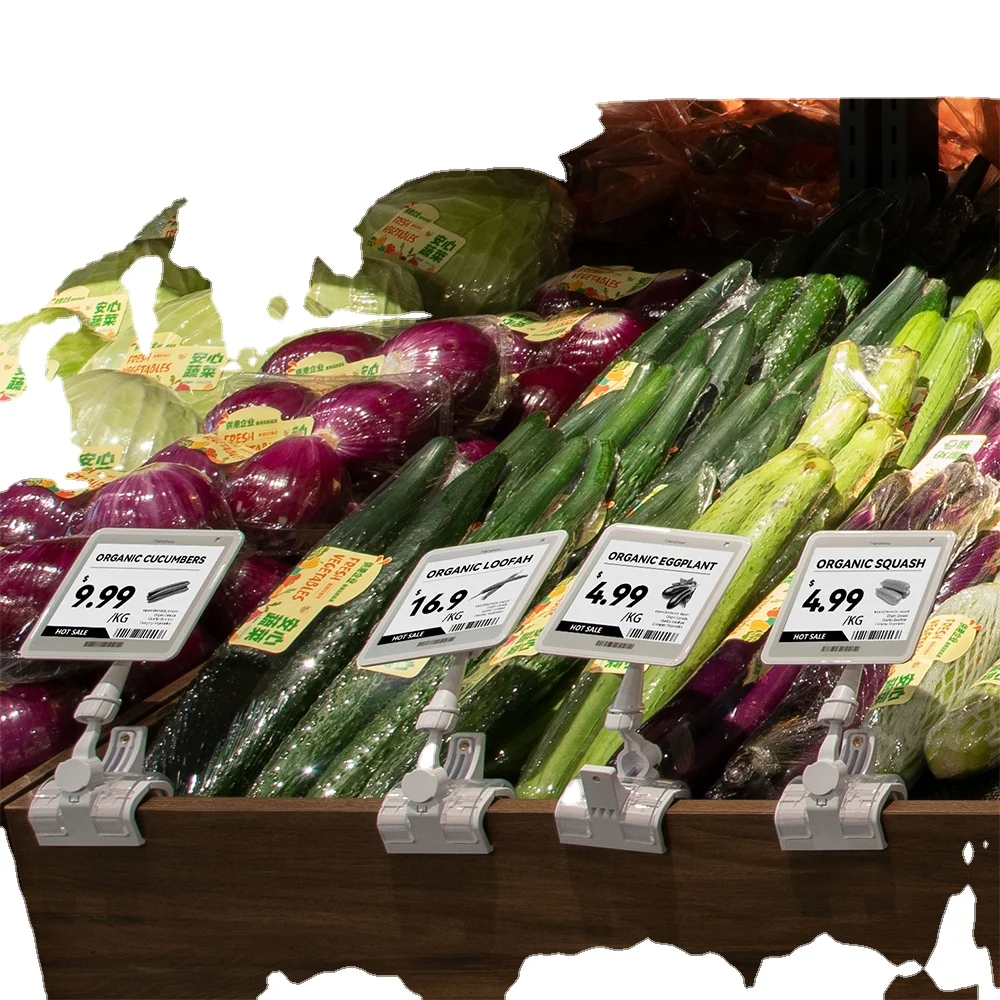

Application&Feedback

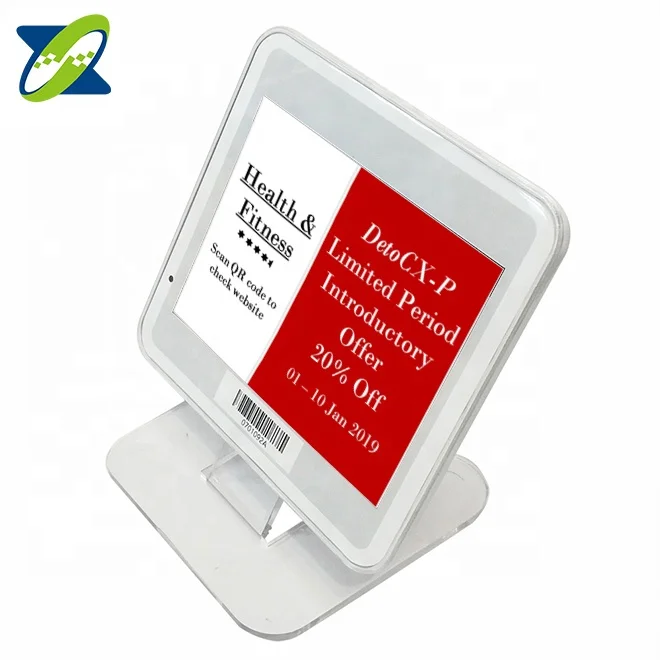

Accessories Supported
Company&Service
FAQ
Q1: Do you supply ESL demo kit for testing?
A: Yes. ESL demo kit is available, which includes all sizes of ESL price tags, base station, software and some accessories.
Q2: What is the warranty?
A: Our warranty is 1 year (non-human damage)
Q3: How about the lead time?
A: Sample order is usually 2-3 days, for bulk order is 1-3 weeks
Q4: Are there any requirements for pc configuration?
A: Windows Server 2008 or above，64 bit (X64)，40GB ROM，8G RAM
Q5: What are the different between 433 MHz and 2.4 GHz?
A: 433 MHz covers a wider range and transmits the date more stable and safer. For
2.4G Hz, it carries big data but easily Interfered by other frequencies.
2.4G Hz, it carries big data but easily Interfered by other frequencies.
Q6: Is it possible to control the Electronic Shelf Labels with Wi-Fi?

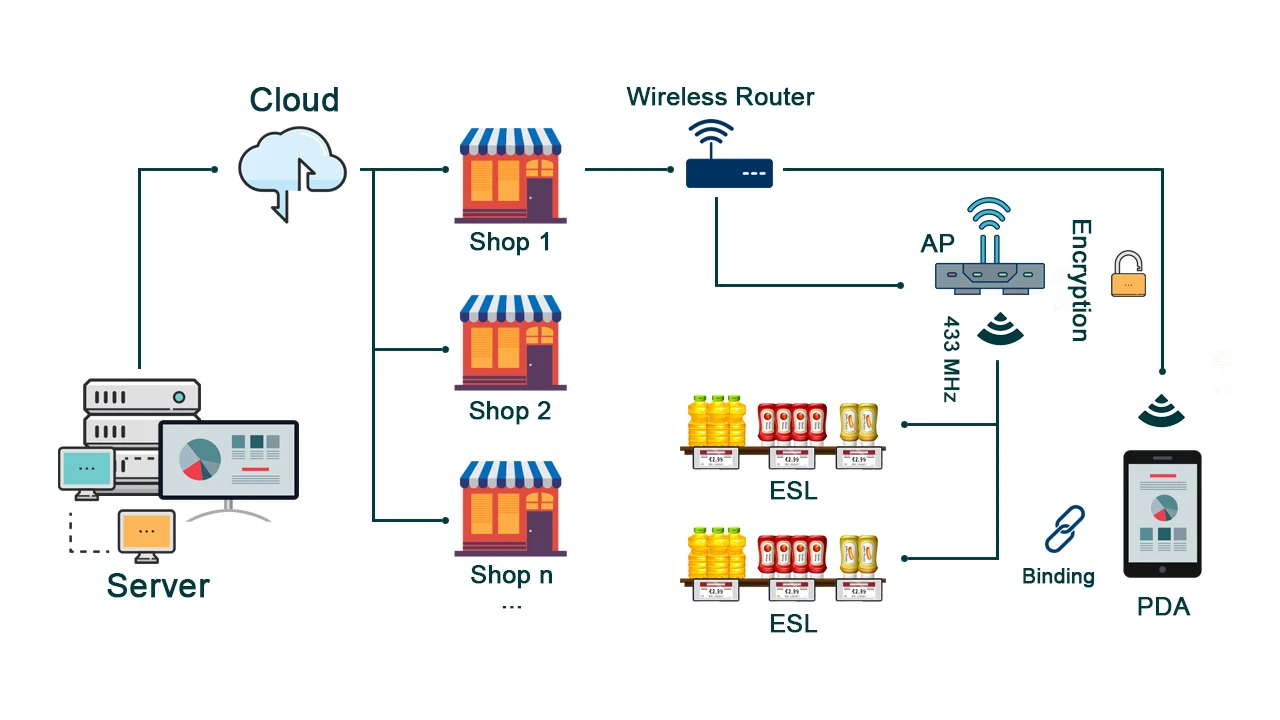

A: Our ESL system includes three parts: Electronic shelf label, base station ,software. And the working principle is that the software control base station by LAN, base station control esl tag by wireless (433MHz). Our base station also has the Wi-Fi module. So you can control the Electronic shelf label by Wi-Fi, but the data update delay will happen by this way.
