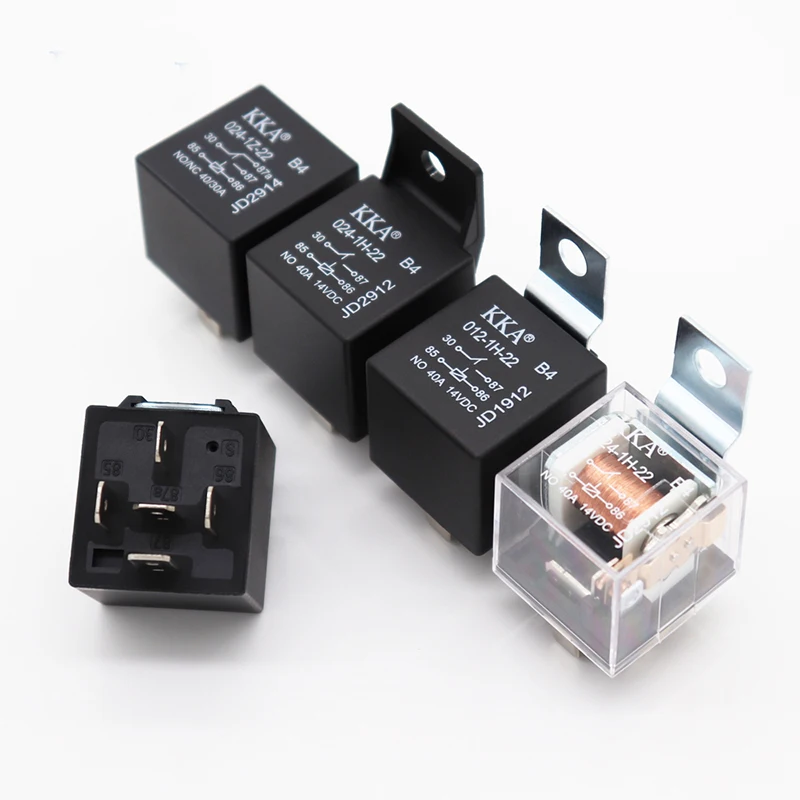

KKA-B4 12V/24V 4pin/5pin Универсальный 40A автомеханический переключатель, автомобильные реле авто реле для автомобиля, двигатель, транспортные средства,
- Category: Auto Relays >>>
- Supplier: Zhejiang,KKA,Electrics,Technology,Co.,Ltd.
Share on:
Product Overview
Description
If no mention of which type auto relays, we will send 12V 5pin full brass pins, cubic type auto relay without bracket.
FEATURES

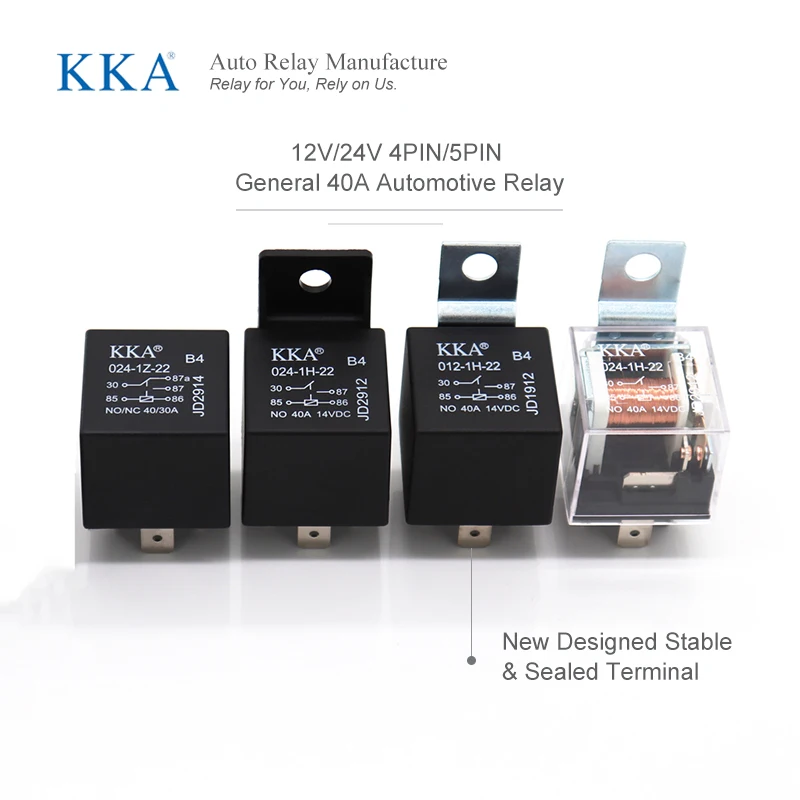

● Universally Substitute: Universal pins position design for substitute of most cubic 30A/40A auto relays

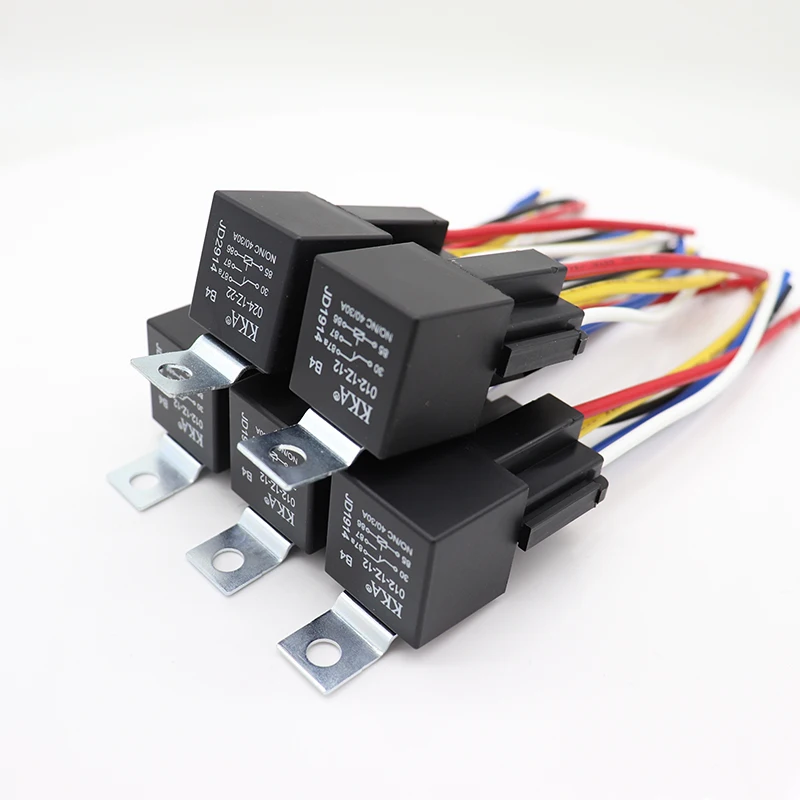

● High switching capability: Normally open 40A/14V DC and normally close 30A/14V DC.● Premium quality: Durable relay and harness socket with 5 wires; Made by high-grade materials to ensure superior quality and long lifespan
● Male-female slot design: Unique male-female slot design, easy to connect the relay with harness socket, clean and neat after installation

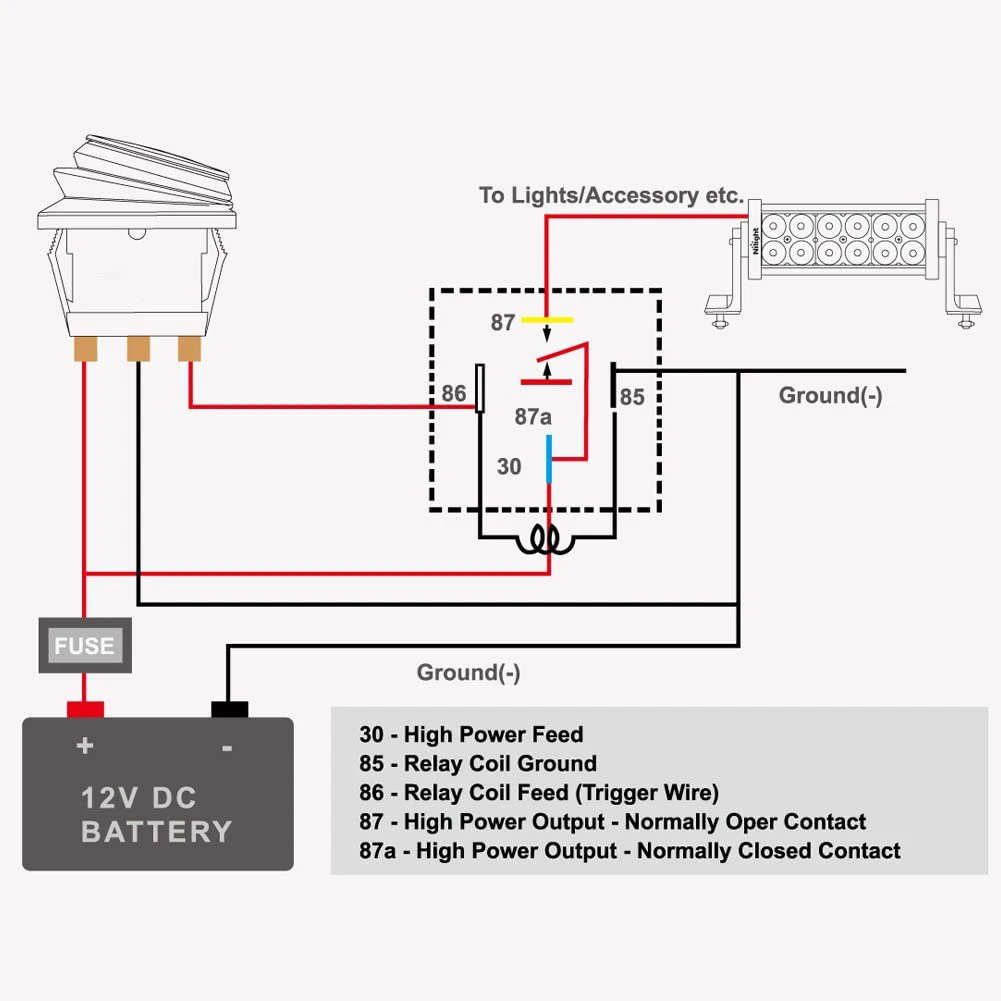

● Easy wiring: The relay sockets come with different colors for loads/accessories, simple and convenient wiring
PACKAGE
25 pieces/box, 500 pieces/carton
Carton Dimension of relay with metal bracket
33cm*31.5cm*31cm, 500pcs
19kg for 4pin relay
19.3kg for 5pin relay
Carton Dimension of relay without bracket
44.3cm*29.7cm*18.1cm, 500pcs
16.9kg for 4pin relay
17.4kg for 5pin relay
Contact Ratings | ||
Contact Form | 1A, 1B, 1C | |
Contact Load Volt. | 13.5VDC/27VDC | |
Contact Material | AgSnO2 | |
Electric Endurance | 1*105 | |
Mechanical Endurance | 1*106 | |
Coil Ratings | ||
Nominal Volt. | 12V/24V | |
Pick-up Volt. | ≤8VDC/16VDC | |
Release Volt. | ≥1.2VDC/2.4VDC | |
Coil Res. | 80Ω/320Ω | |
Coil Power | 1.8W | |
Max. Coil Volt. (23℃) | 20.2VDC/40.5VDC | |
Max. Coil Volt. (85℃) | 15.7VDC/31.5VDC | |
25 pcs/box 500 pcs/carton
