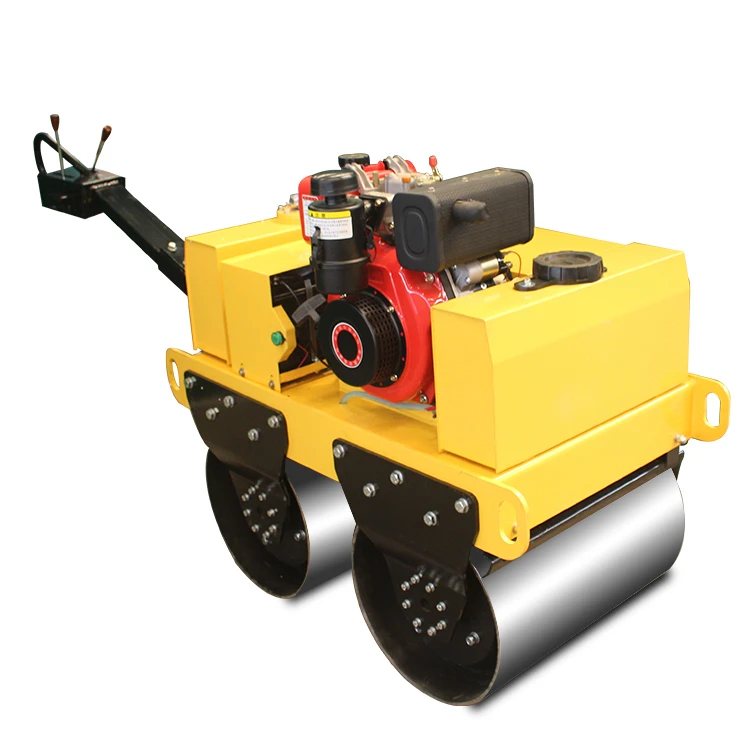

construction machine double drum small road roller compactor hand push mini road roller manufacturer
- Category: Road Roller >>>
- Supplier: Shandong,Benma,Engineering,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Features
1.The machine is equipped with the brand power, brand-name quality assurance, superior performance, easy to start.
2.The working radius is small, can walking in a narrow area.
3.Lengthen handrail, easy to turn, save time and effort.
4. It uses the Japanese-made FYH(seiko)bearings, to ensure the machine's performance.
Product Paramenters
Model | BM50 | |||||||||||
WEIGHT | ||||||||||||
Operating Weight | 540kg | |||||||||||
Static Linear Load | 45n/cm | |||||||||||
DIMENSION | ||||||||||||
Working Width | 780mm | |||||||||||
Overall Length | 2480mm | |||||||||||
Overall Height | 1820mm | |||||||||||
Packing Size | 1600*850*1900mm | |||||||||||
Steel Wheel Width | 600mm | |||||||||||
Steel Wheel Diameter | 426mm | |||||||||||
Start Up | Recoil hand pull electric start | |||||||||||
DRIVE | ||||||||||||
Engine Brand | HONDA | Changchai/Changfa | Changchai | |||||||||
Engine Model | GX270 | 178F | RD180 | |||||||||
Engine Type | Gasoline, four stroke | Diesel, four stroke | Diesel, water cooled | |||||||||
Number Of Cylinder | 1 | |||||||||||
Output Power | 6.7kw | 4.4kw | 5.7kw | |||||||||
Rotating Speed | 3600rpm | 3600rpm | 2600rpm | |||||||||
WALKING CHARACTERISTICS | ||||||||||||
Speed | 0-3.8km/h | |||||||||||
Grade Ability | 30% | |||||||||||
BRAKES | ||||||||||||
Walking Way | Two-way hydraulic, chain transmission | |||||||||||
EXCITING SYSTEM | ||||||||||||
Vibrating Drum | Front+Rear | |||||||||||
Vibrating Frequency | 70hz | |||||||||||
Vibrating Amplitude | 0.6mm | |||||||||||
Exciting Force | 20kn | |||||||||||
SPRINKLER SYSTEM | ||||||||||||
Water Spray Form | Gravity-Type Water | ----- | ||||||||||
CAPACITY | ||||||||||||
Fuel Capacity | 5.9L | 2.7L | 6.5L | |||||||||
Lubricating Oil Capacity | 1.1L | 1.1L | 2L | |||||||||
Hydraulic Tank Capacity | 18L | |||||||||||
Water Tank Capacity | 20L | ----- | ||||||||||

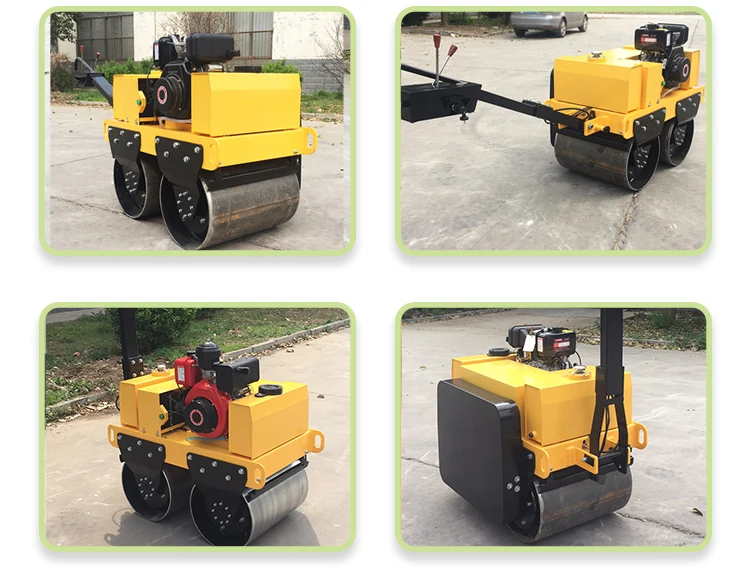

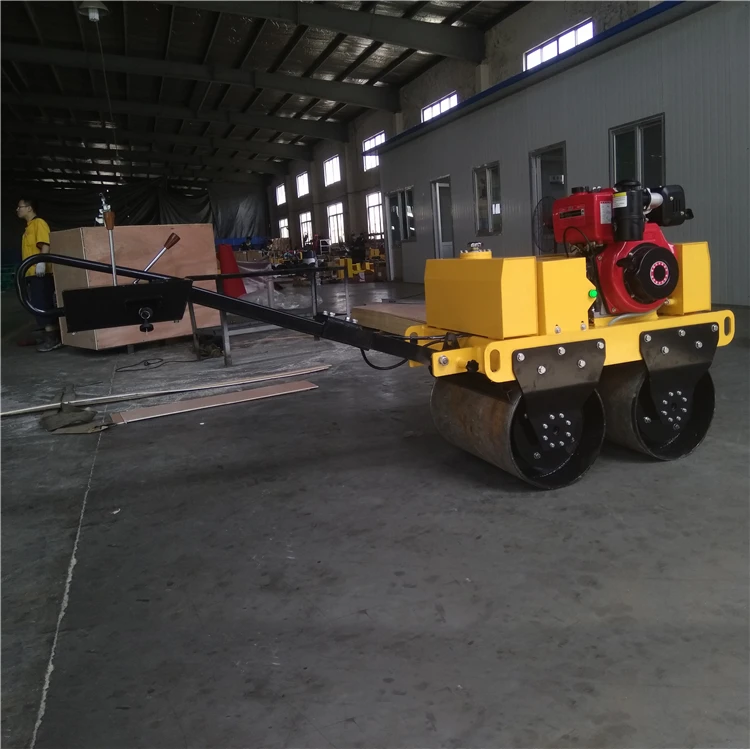

Details Images

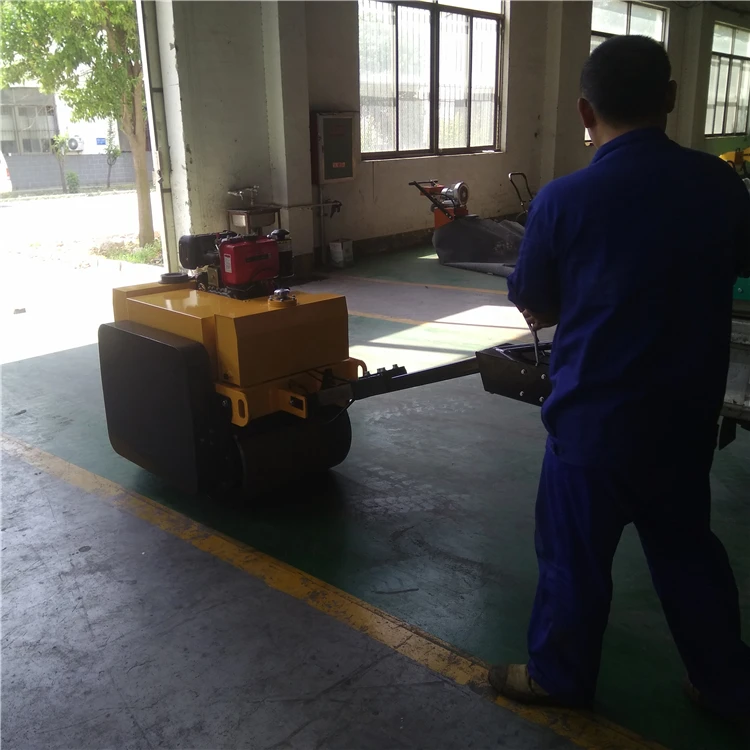

Product display
Company Profile

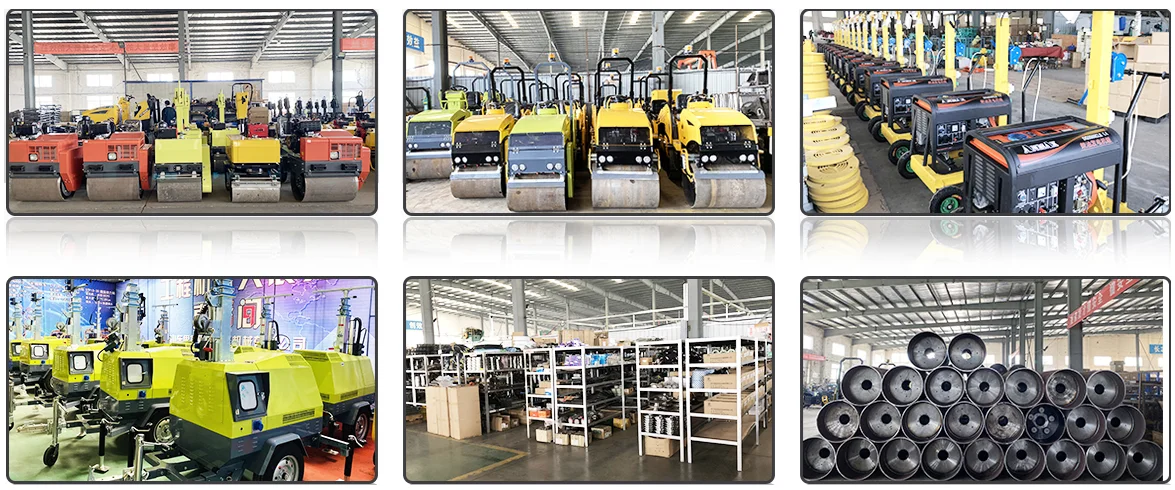

WORKSHOP DISPLAY
FAQ
1. who are we?
We are based in Shandong, China, start from 2014,sell to North America(20.00%),South America(16.00%),Africa(11.00%),
We are based in Shandong, China, start from 2014,sell to North America(20.00%),South America(16.00%),Africa(11.00%),
Central America(11.00%),Southeast Asia(9.00%),Northern Europe(7.00%), Eastern Europe(7.00%),Mid East(6.00%),
Western Europe(5.00%), Southern Europe(4.00%),Oceania(2.00%),Domestic Market(1.00%),South Asia(1.00%).
There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
road roller,hydraulic power station,mobile light tower,crack sealing mchine,power trowel
4. why should you buy from us not from other suppliers?
Our factory has 20 years manufacturing experience, and passed ISO9001 quality certificate.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
road roller,hydraulic power station,mobile light tower,crack sealing mchine,power trowel
4. why should you buy from us not from other suppliers?
Our factory has 20 years manufacturing experience, and passed ISO9001 quality certificate.
Our products are of high quality and have passed CE certificate.
We provide OEM service and Lifetime after-sales service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
