Product Overview
Description
Products Description
Product Features
1. It adopts two gluepots, which is convenient for using glue of two different colors, and avoids cleaning the gluepots frequently.
2. This machine is suitable for the straight edge sealing of solid wood board, fiberboard, particleboard and other sheets.
3. With many functions like polishing slotting, scraping, tracking trimming, finishing, edge sealing, pre-milling, etc.
4. Adopting intensive units with high-speed motors, it can ensure maximum finishing quality of the machine.
2. This machine is suitable for the straight edge sealing of solid wood board, fiberboard, particleboard and other sheets.
3. With many functions like polishing slotting, scraping, tracking trimming, finishing, edge sealing, pre-milling, etc.
4. Adopting intensive units with high-speed motors, it can ensure maximum finishing quality of the machine.

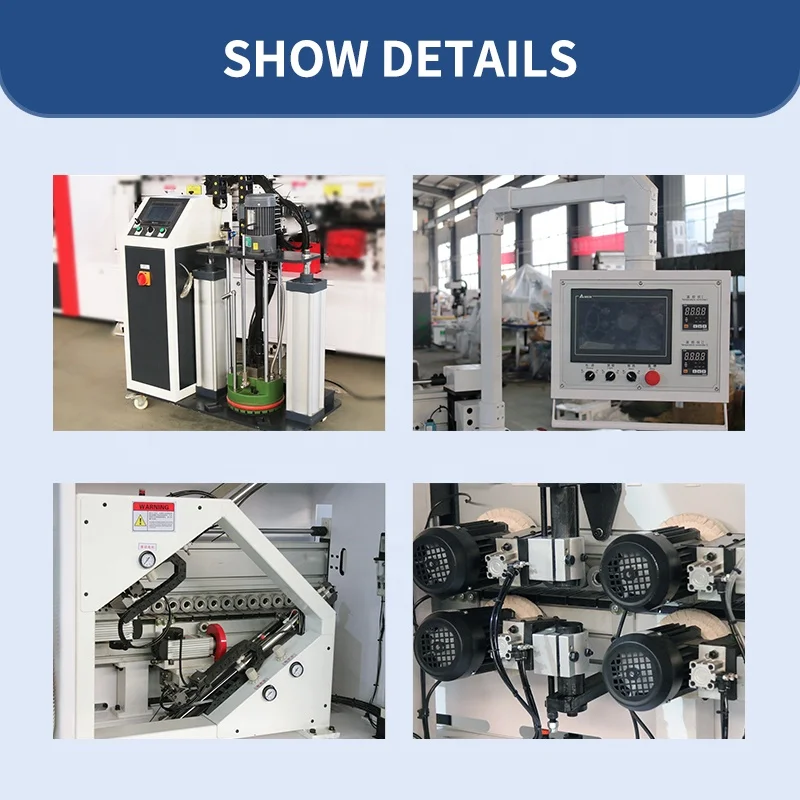

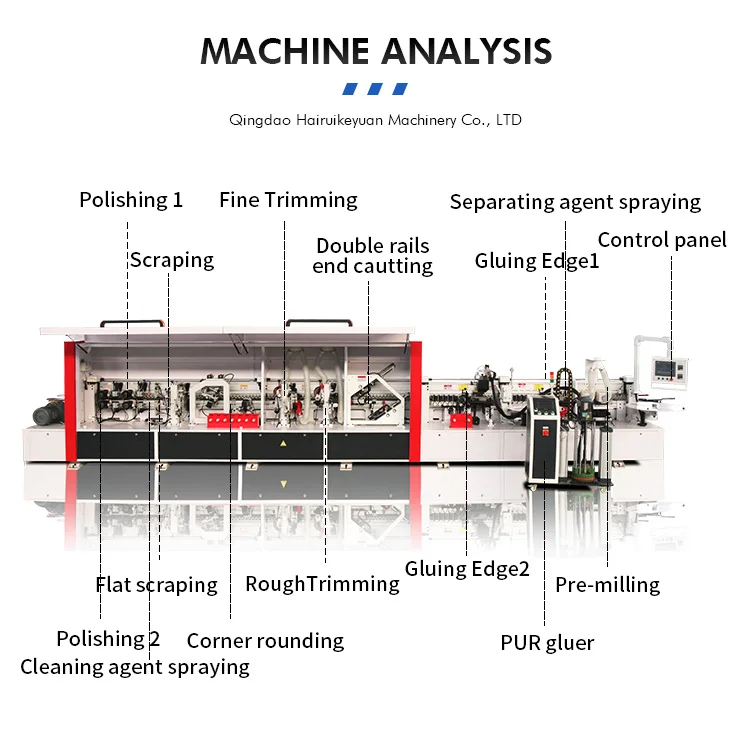

Touch screen control
Simple and intuitive operation and control, all functions start and stop with one button, and the speed is adjustable. Digital temperature display, support Chinese and English switching. Fault alarm prompt.

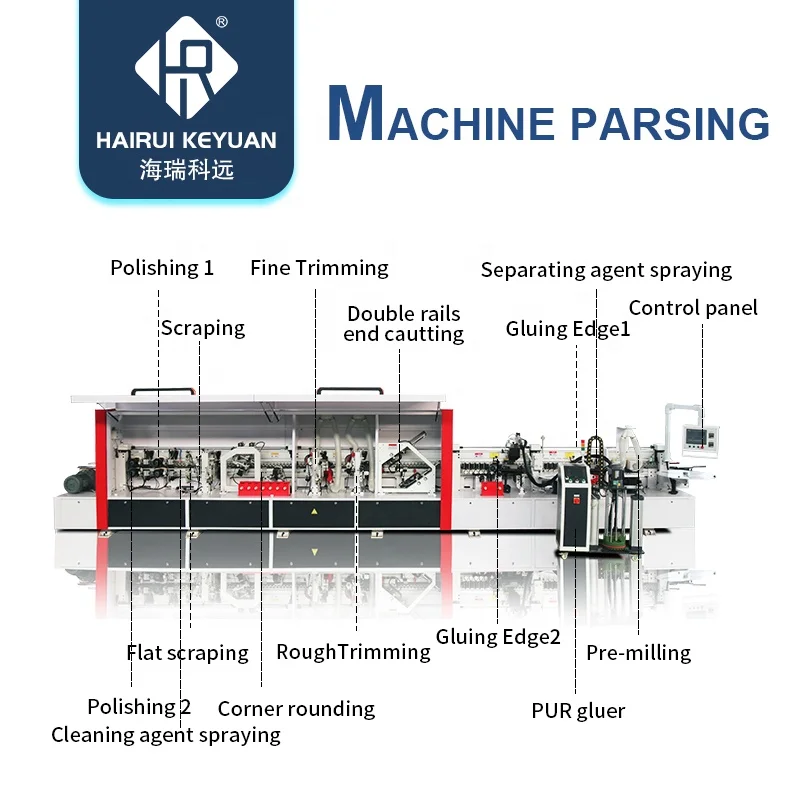

Pre-milling function
The use of double milling cutters to modify the marks and burrs has achieved the ideal edge banding effect.
Glue pressing 1
The glue pot heats the sol, and spreads the glue evenly on the plate and the edge banding through the mesh thread conveying structure. At the same time, the steel body pressing wheel presses the edge band and the plate tightly to make the adhesion stronger, and there is no glue on the top and bottom of the plate. mark.
Melt glue pressing 2
The fast melt glue system, fast heating, and high-precision glue-coating wheels ensure perfect and uniform glue coating on various materials. At the same time, the steel body pressing wheel presses the edge band and the plate tightly to make the adhesion stronger. There are no glue marks on the top and bottom of the board.
Double track high-speed all together
Imported guide rail slider and high-speed motor are used to cut the surface of the excess edge banding skin to make the cut surface more neat and fast. Fast speed and high efficiency.
Rough trimming
The rough trimming knife is a 15° flat knife, leaving a margin of 40-50 filaments for fine trimming. It adopts automatic profiling and high-frequency high-speed motor to achieve fast cutting.
Fine trimming
The finishing knife is R2 oblique trimming knife, leaving a margin of 5~6 wires for scraping. It adopts profiling automatic tracking and high-frequency high-speed motor to realize fast cutting. R2 oblique trimming knife trims the arc.
Corner rounding
The profile tracking round corner device can make the end surface of the board smoother and make the board look more atmospheric.
Scraping
It is used to eliminate the wavy marks caused by the cutting process of trimming non-linear motion, so that the upper and lower parts of the plate are more smooth and neat. At the same time, the size of the arc angle can be adjusted to make the sealing effect more perfect.
Flat scraping
Further repair the excess edge banding tape or glue left due to improper trimming or improper debugging, so that the board looks cleaner and smoother.
Polishing 1
After the trimming is completed, the first time is polished and polished to make the trimming arc smoother. The upper and lower polishing wheels can adjust the height separately.
Polishing 2
After finishing the first polishing, perform a second polishing and polishing, so that the arc of the trimming is smoother, and the upper and lower polishing wheels can adjust the height separately.
Product Paramenters
model | HR-SG668PUR | edge thickness | 0.4-3mm | ||
motor power | 25KW | panel width | ≥50mm | ||
panel thickness | 15-65mm | air presssure | 0.6-0.8mpa | ||
feed speed | 18-22-28m/min | Min work piece width | 50mm | ||
Min work piece length | 150mm | weight | 3.5t | ||
machine size | 9500X1200X1750mm | ||||
Sample & Application
Related Product
Customer feedback

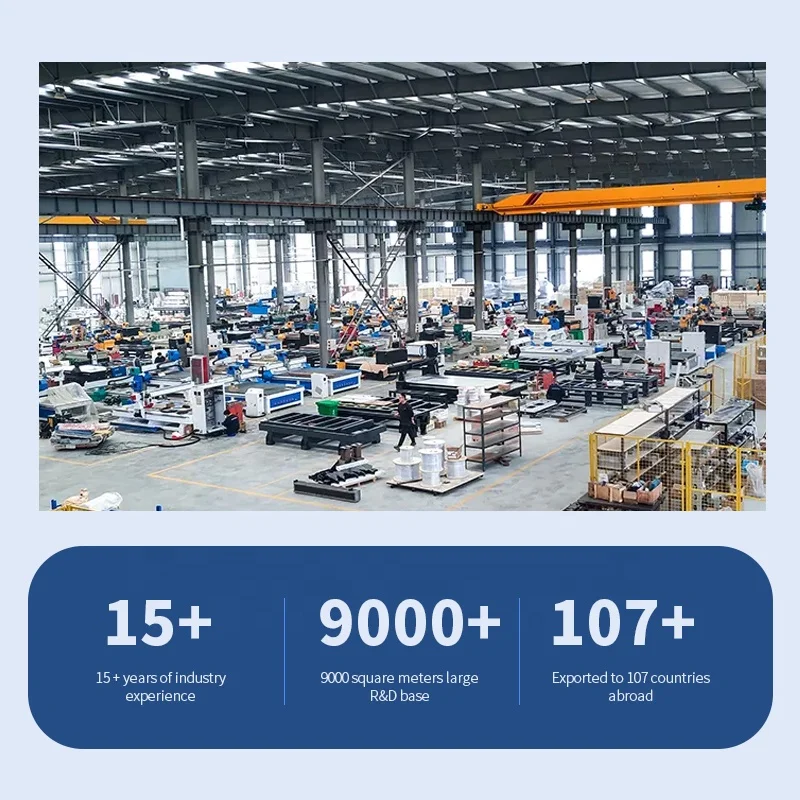

Company Profile
Exhibition
FAQ
Q: Do you offer installation?
A: Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely.
Q: Where can we get replacement parts?
A: Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
Q: How long can we get replacement parts?
A: Common spare parts can be delivered by express with in one week. Some parts can be purchased locally.
Q: What technical support do you offer?
A:1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
Q: What other machine do you offer?
Q: What other machine do you offer?
A: We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sandingmachine, CNC router, drilling machine, saw machine can be provided as well.
Q: Can you set the system to our language?
A: Our system supports common languages like Chinese, English, Russian, Spanish, French, Germany.
