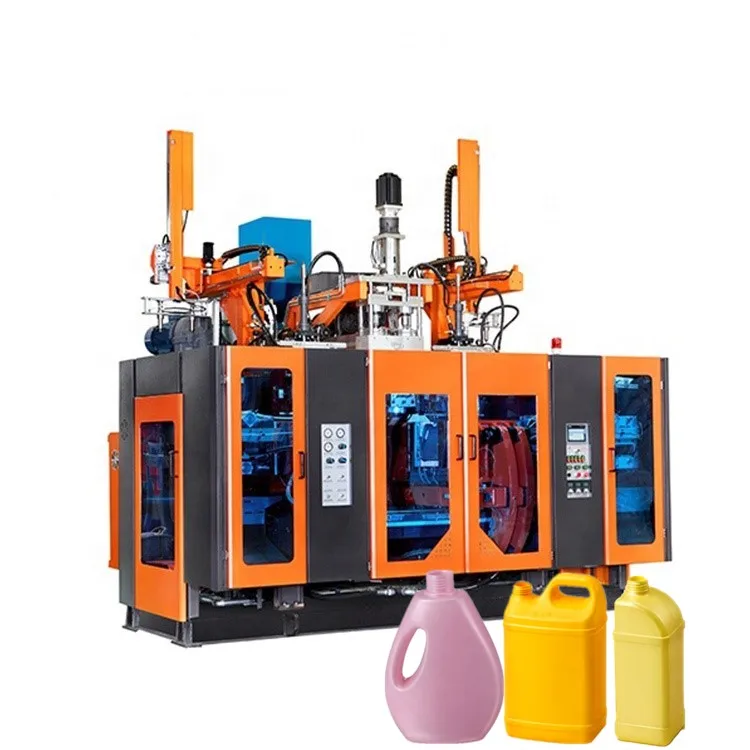

Extrusion blow molding machine for 1 5 liter

Share on (1600596029950):


Price:$60,000.00 - $70,000.00

Quantity:


Product Overview

Description



Product Description




Specification


item
value
Condition
New
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Application
Bottle
Plastic Processed
HDPE, PE, PE/PP, HDPE/PP
Place of Origin
China
Brand Name
Leshan
Year
2022
Voltage
380v-415v
Dimension(L*W*H)
customized
Hollow part volume
1-5 liter
Clamping Force (kN)
80
PLC Brand
Siemens
Screw L/D Ratio
24
Screw diameter (mm)
75mm
Output (kg/h)
90kg/h
Automation
Automatic
No. of Screw Heating Zone
3
Screw Heating Power(kW)
10kW
Extruder Motor Power(kW)
22kW
Mold Platen Size(Width)(mm)
300mm
Mold Platen Size(Height)(mm)
400mm
Air Pressure(MPa)
0.6MPa
Air Comsumption(m³/min)
0.5m³/min
Die Head Heating Power(kW)
12kW
Accumulator Capacity(L)
0L
Power (kW)
61
Weight (T)
9
Key Selling Points
Automatic
Warranty
1 Year
Applicable Industries
Food & Beverage Factory, PLASTIC
Showroom Location
Egypt, Canada, Turkey, Germany, Brazil, India, UAE, Ukraine, Nigeria, Malaysia
high production
300 pcs per hour


Packing & Delivery




Standard exporting machine packing with plastic film


Company Profile

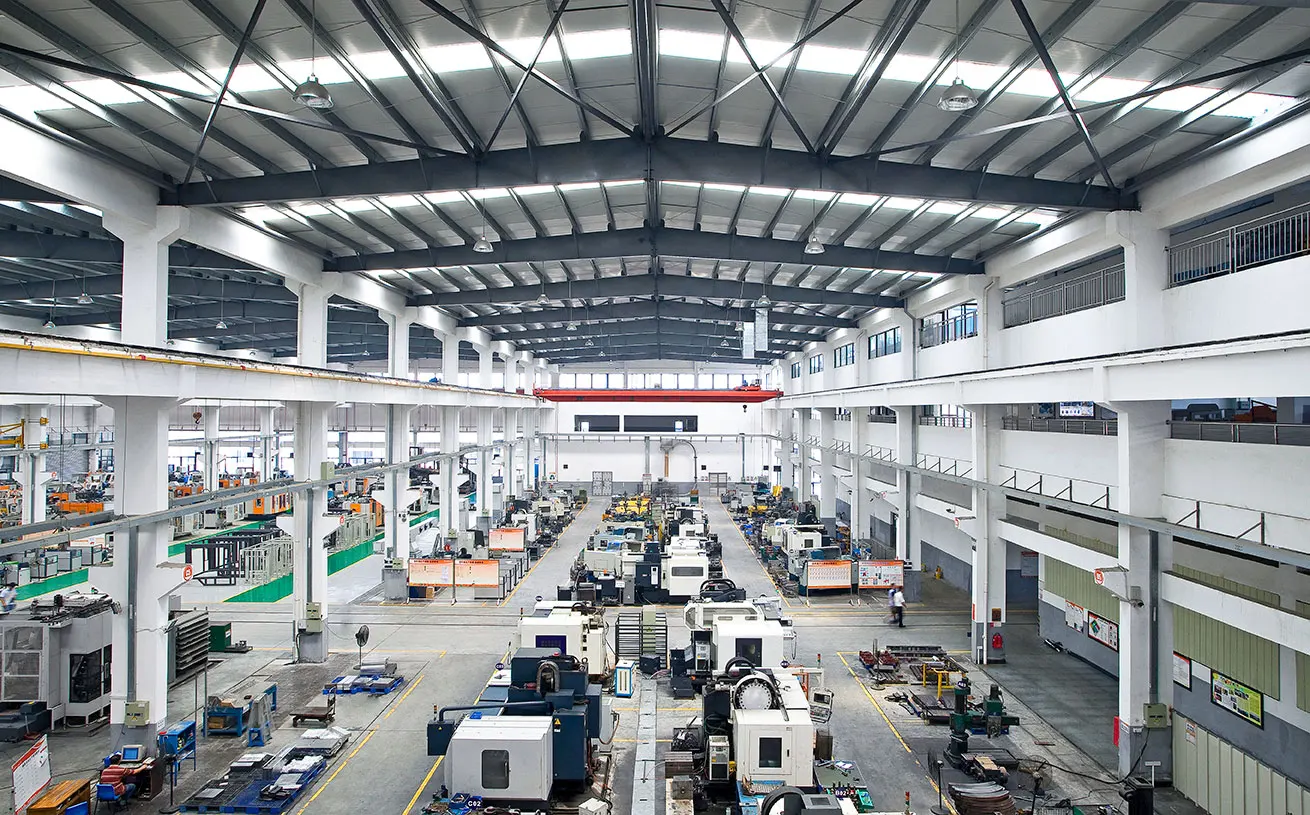

GUANGDONG LESHAN INTELLIGENT EQUIPMENT CORP. LTD's main products include Hydraulic Blow Molding Machine, All-Electric PET Blow Molding Machine and High-precision Mould. After more than 20 years' development, we has founded a technical team which was built up by outstanding qualified plastic machinery professionals who combined with rich theoretical knowledge and practical experience. And they always spare no effort in devoting themselves to the development of blow molding machine. Currently ,LESHAN has Pentahedron gantry machining center, Vertical CNC gantry machining-center , Four axis CNC machining-center,Numerically controlled lathe, Numerical-controlled knee bend machine , Numerical-controlled cutting machine and other specialized equipment. We are also armed with comprehensive strength such as strong R&D power,production marketing,technical support,etc..
Through years of creation , Leshan has been transformed the patent technology into application. We also use International standards and the ISO9001:2012 quality management system in producing. Therefore,Leshan Blow Molding Machine stands in the front rank in every standard compared with other domestic trades no matter in production quality or in efficiency, in energy consumption or control and maintenance, etc. Further more, our sales quantity is far ahead of other domestic trades, and we have awarded the title of "Guangdong Hi-tech enterprise" ,the honor of "Brand-name products in Guangdong Province" and "Guangdong Province Well-known Trademark". Our company also brought in the Germanic technical 3D scanner which is exclusive used for mold-designing . The advanced Leshan Blow Molding Machine working with the superior Leshan Mould makes the production speed faster and the production quality the topest.
Leshan Hydraulic Blow Molding Machine is adopted by many listed companies and China's top 500 enterprises, such as Wahaha, Yili, Sinopec, Monarch, Kunlun, Bawang, Liby, Cnice, BlackCow Food, Walch, Unilever, ect. Leshan's products are not only widely sold in China, but are also exported to Russia, Australia, Poland, Saudi Arabia, Bengal, Vietnam , etc..
All Leshan People inherit a consistent aim of :"Be happy to create new technology, Be good at helping user's development". Both various regions sales team and service network are dedicating to supply the impeccable pre-sales and after-sales service. We also offer the fastest reaction and solution to clients'questions and requirements.


FAQ


1. who are we?
We are based in Guangdong, China, start from 1995,sell to Domestic Market(60.00%),Southeast Asia(20.00%),Africa(8.00%),North America(5.00%),South America(2.00%),South Asia(1.00%),Western Europe(1.00%),Eastern Asia(1.00%),Central America(1.00%),Mid East(1.00%). There are total about 301-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Extrusion Blow Molding Machine

4. why should you buy from us not from other suppliers?
Leshan Intelligent Equipment is the top3 manufacturer in China for Extrusion Blow Molding machine which includes All Electric type,Hydraulic type and precision mould. We dedicate in providing most reliable packaging solution to all customers in the world.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
