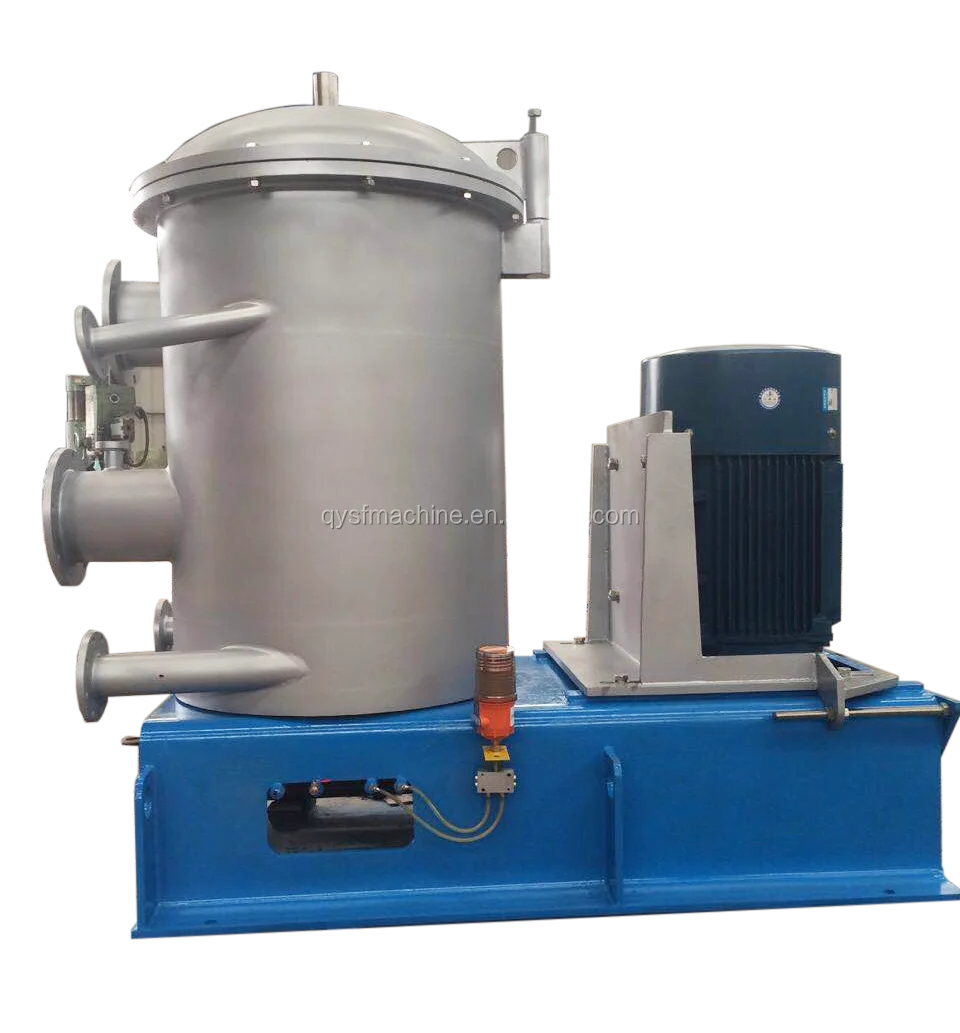

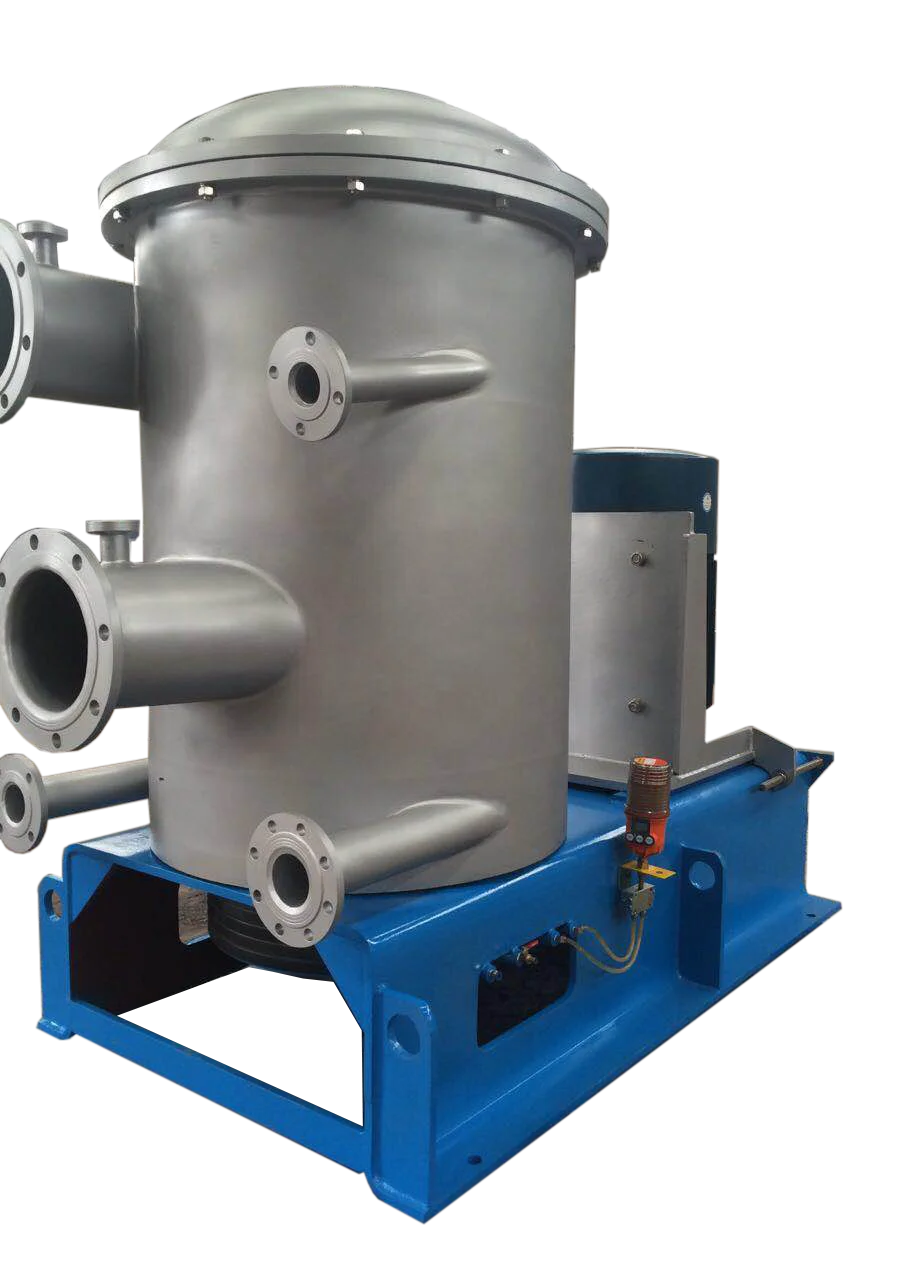

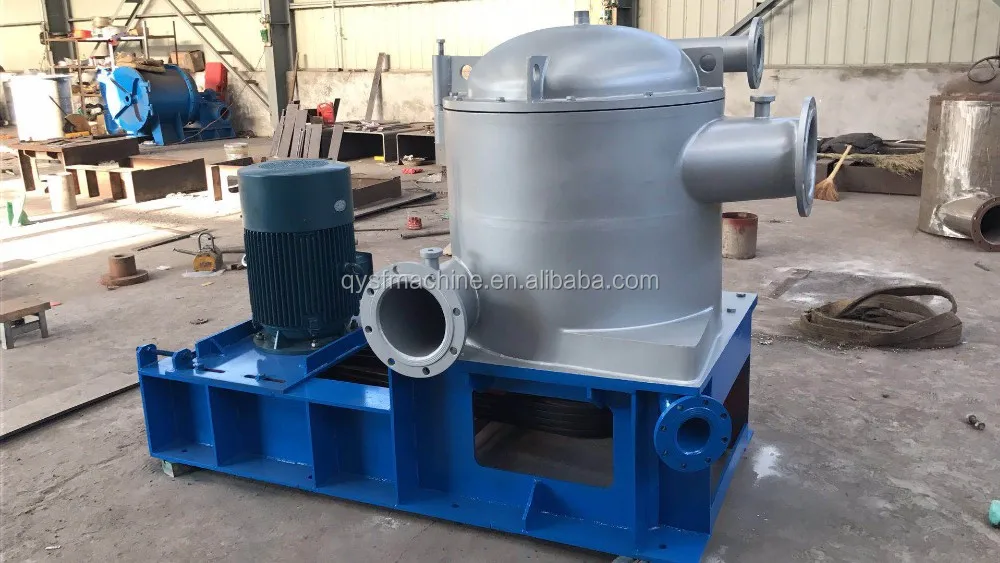

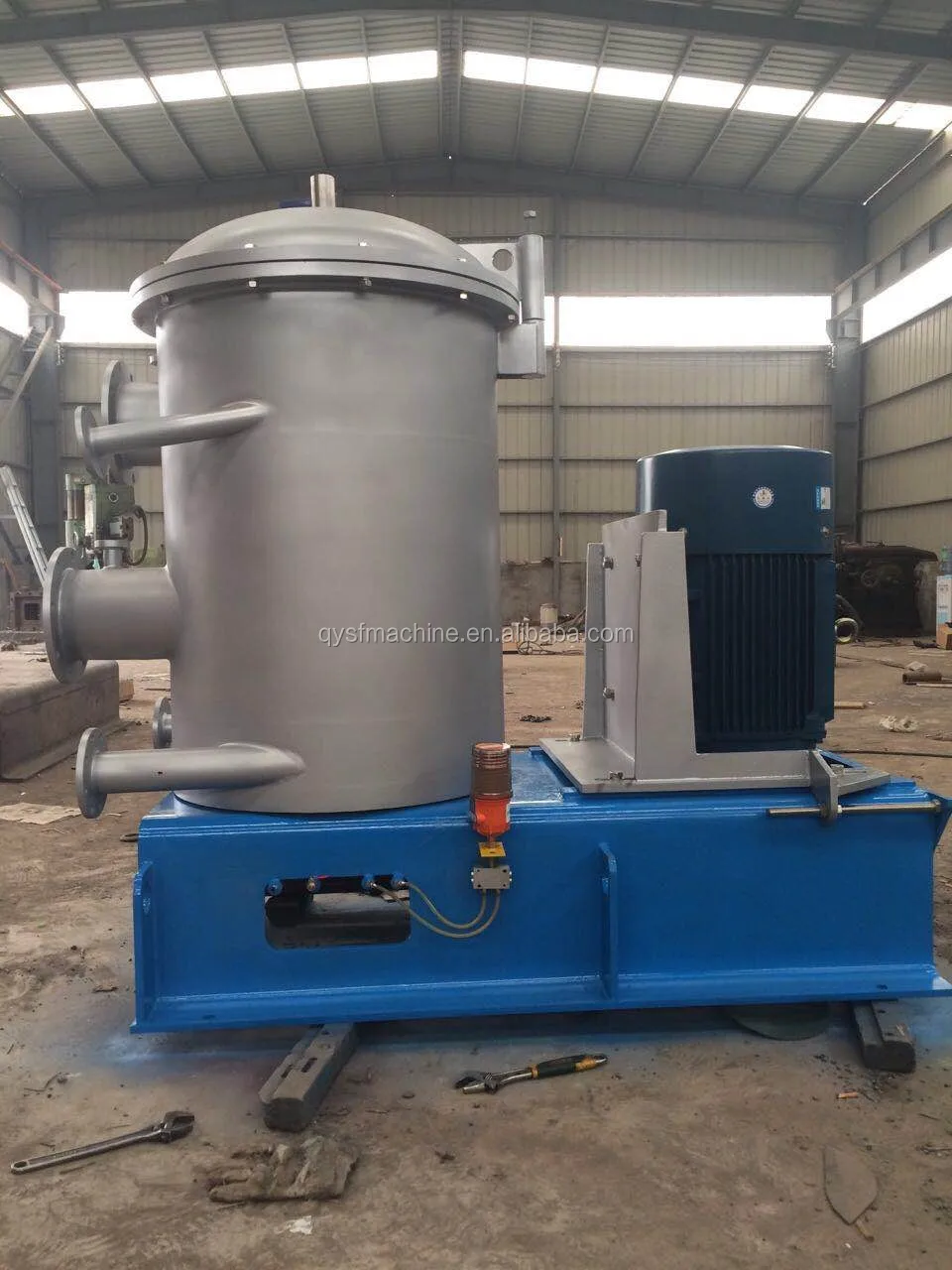

Prefect inflow pressure screen for pulp and paper machine
- Category: >>>
- Supplier: Qinyang Shengfeng Paper Making Machinery Co. Ltd.
Share on (1600596032405):
Product Overview
Description
Product Description

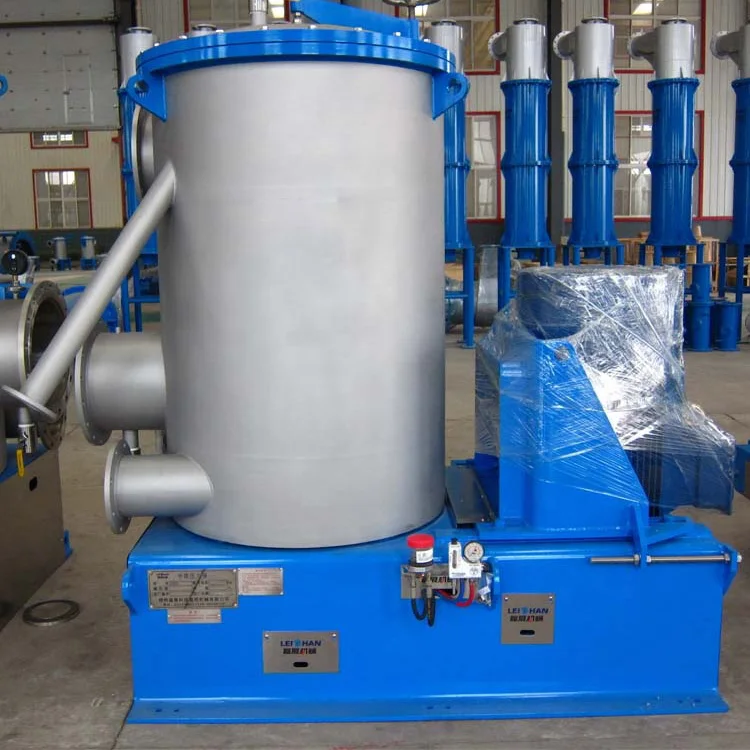

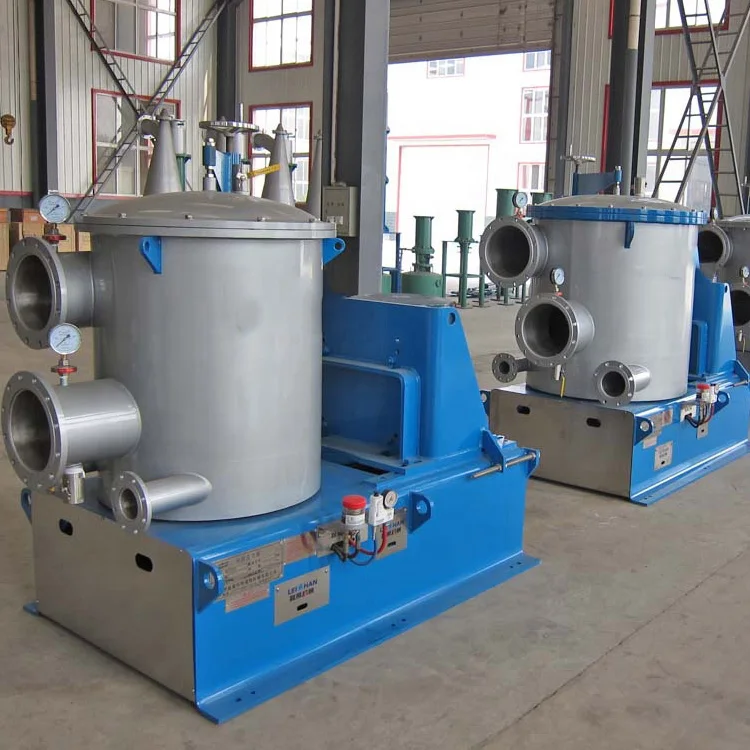

Paper machine pressure screen automatic is used as a screening equipment to screen out rejects in stock preparation.
Main Technical Parameters
| Type | ZNS21 | ZNS22 | ZNS23 | ZNS24 | ZNS25 | ZNS26 | ZNS27 | ZNS28 | ZNS29 | |
| Screening area(m2) | 0.21 | 0.32 | 0.66 | 0.96 | 1.26 | 1.7 | 2.12 | 3.29 | 4.48 | |
| Inlet consistency(%) | 1.0-4.0 | |||||||||
| Production capacity(TPD) | Hole | 30-40 | 50-80 | 90-160 | 135-250 | 180-320 | 220-420 | 260-500 | 400-700 | 500-1000 |
| Slot | 20-30 | 30-50 | 60-100 | 90-150 | 120-190 | 150-210 | 200-300 | 300-450 | 320-730 | |
| Inlet pressure(Mpa) | 0.2-0.4 | |||||||||
| Motor power(kw) | 15-22 | 22-55 | 30-75 | 37-90 | 45-110 | 55-132 | 75-160 | 90-220 | 132-280 | |
Packaging & Shipping
Our Services

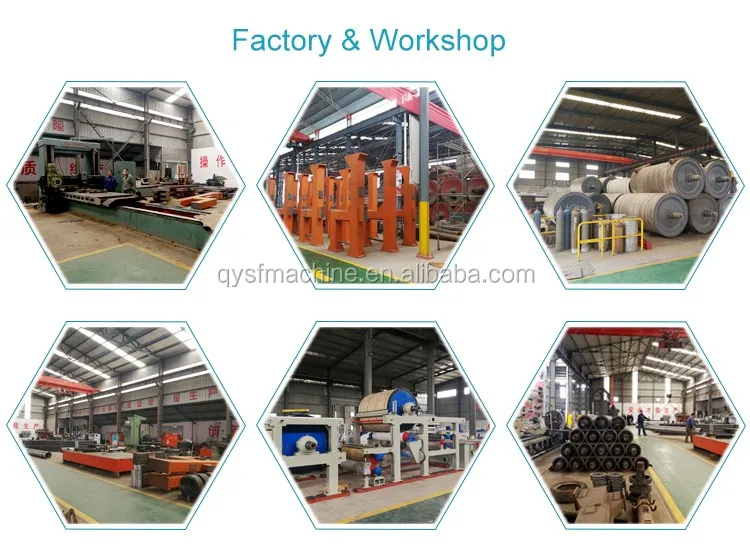

Company Information
