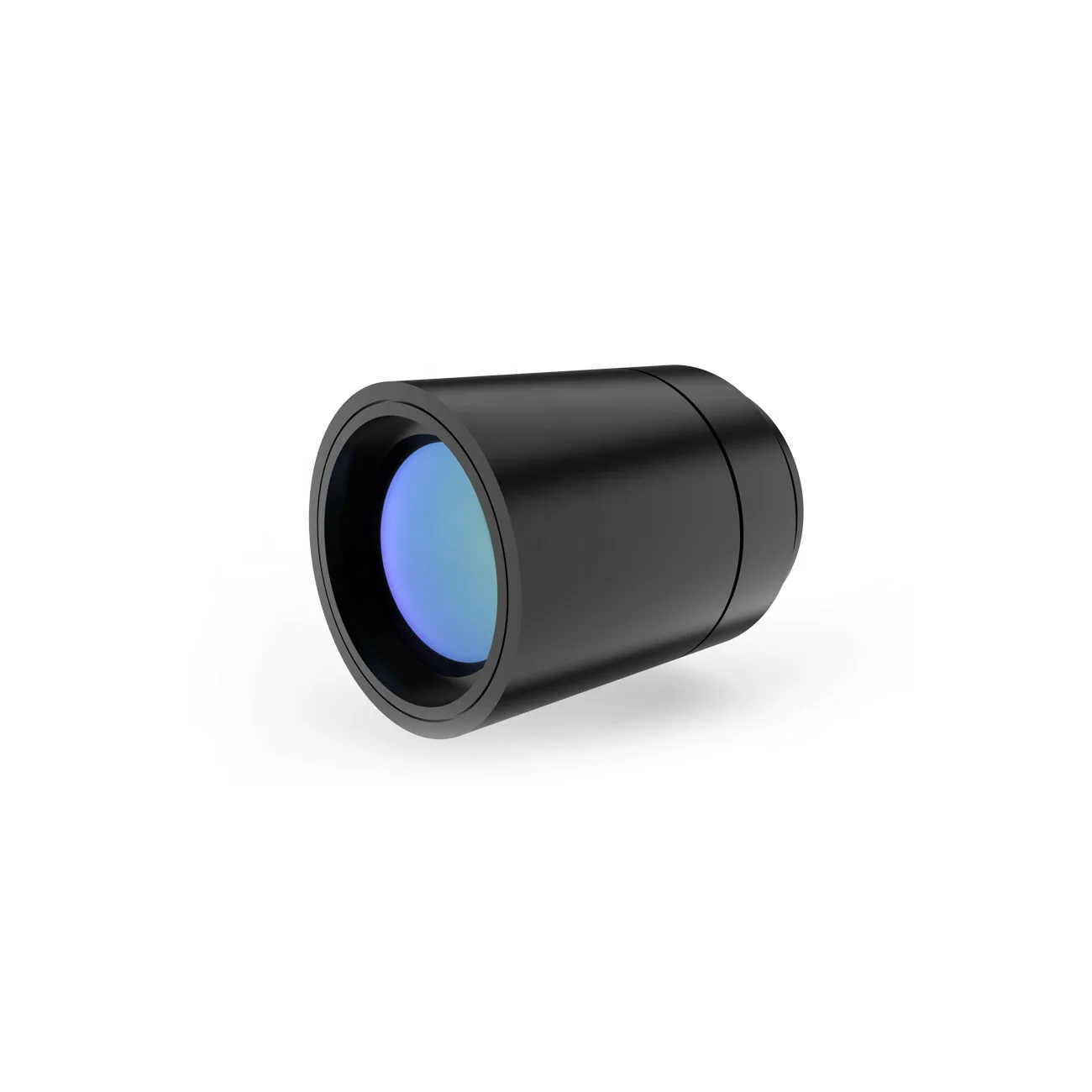

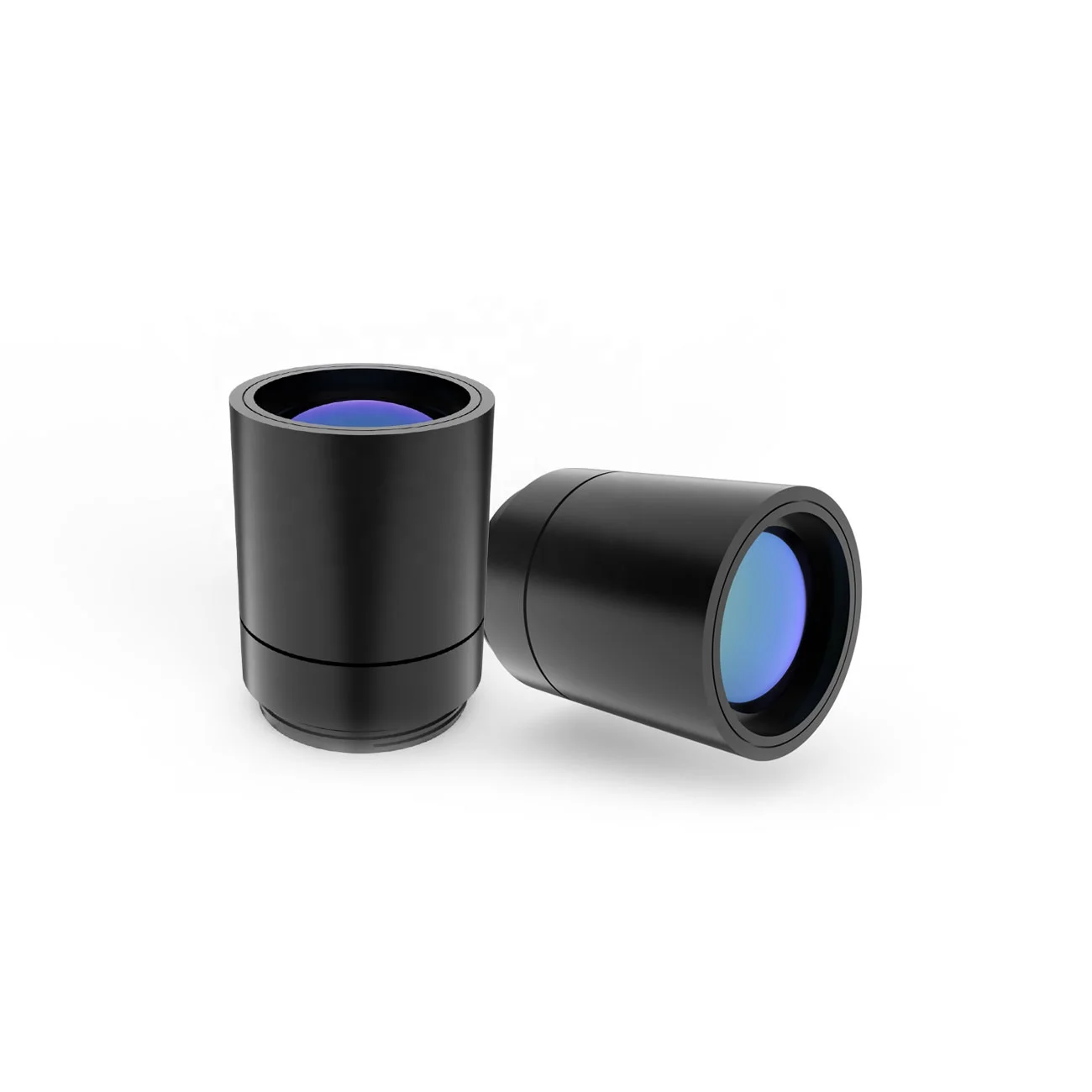

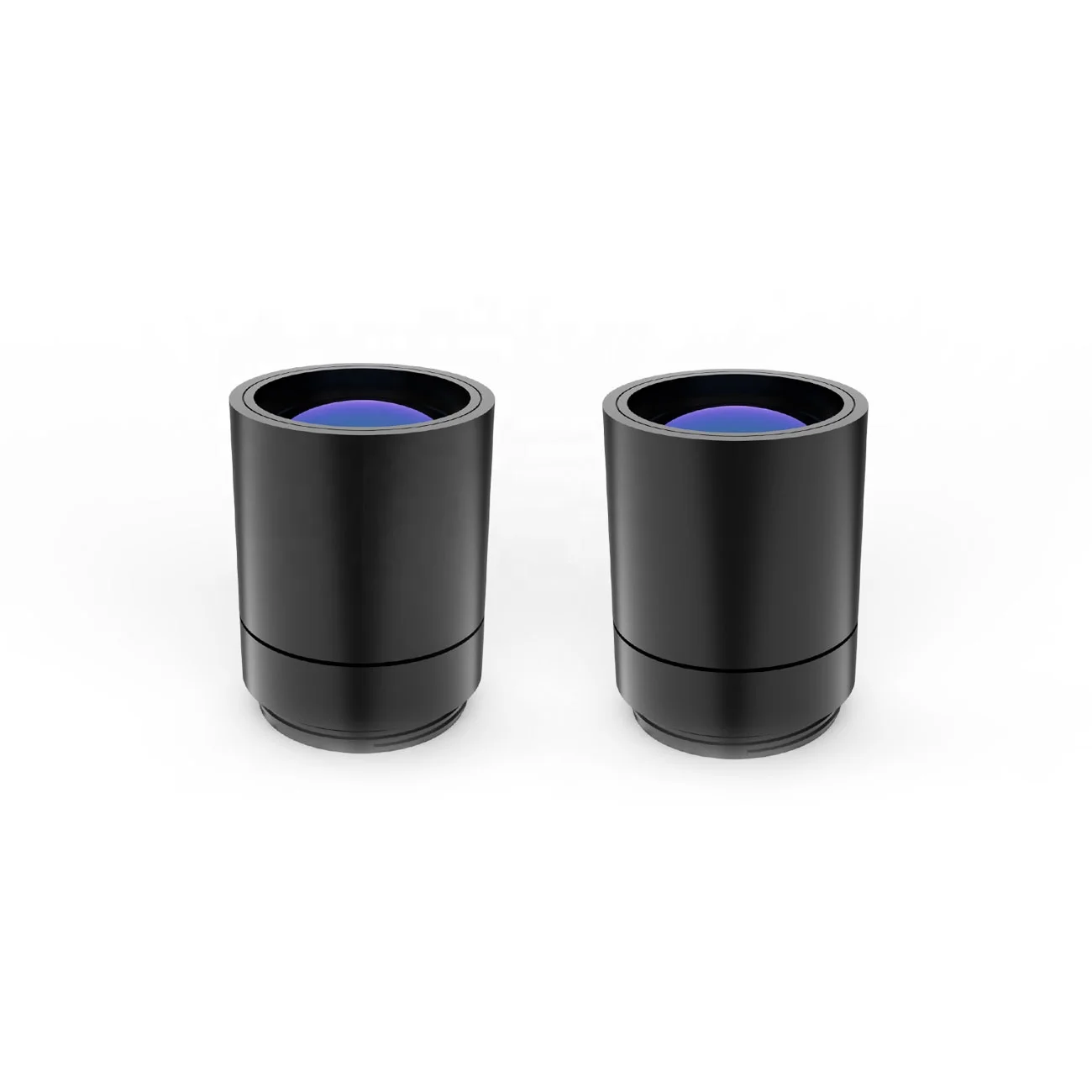

CCTV Lens VFOV 10 degrees fixed focus 25mm TTL45mm F/No. 1.5 ahd 1080p dome camera/hcd 6070r barifocal lens
- Category: >>>
- Supplier: Shenzhen Hiismart Optoelectronic Technology Co. Ltd.
Share on (1600596038340):
Product Overview
Description

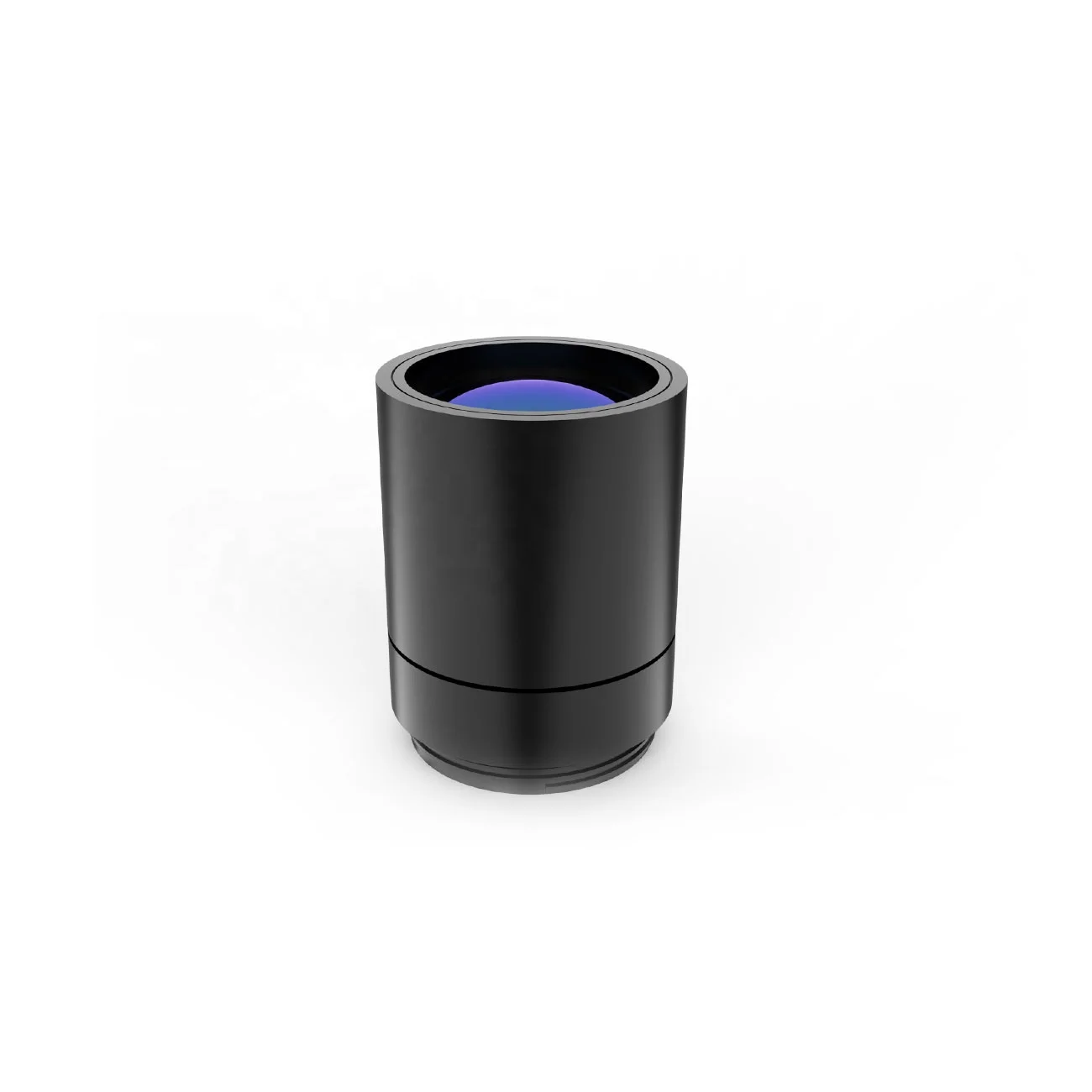

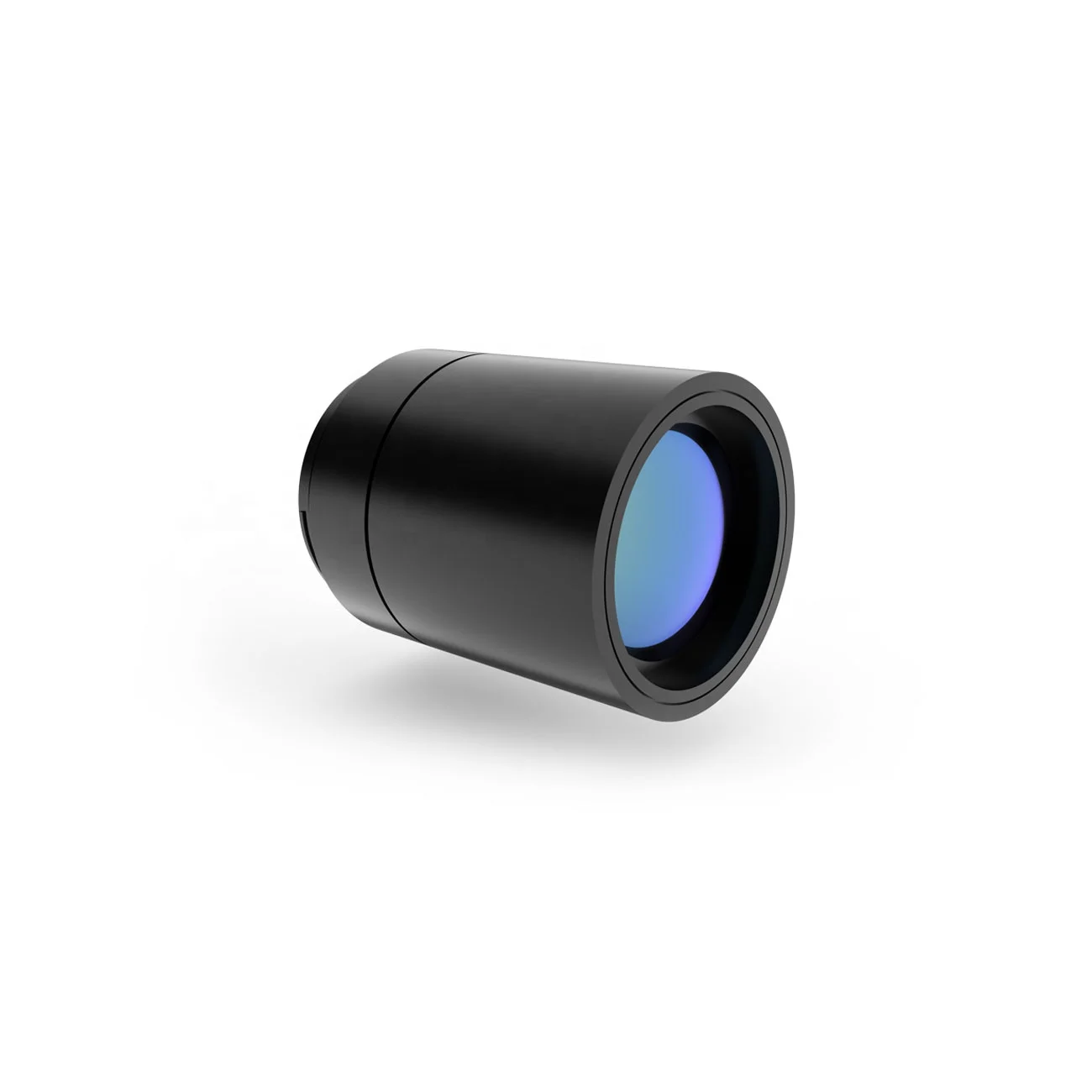

CCTV Lens VFOV 10 degrees fixed focus 25mm TTL45mm F/No. 1.5 CS mount Lens
Product Description
| Sensor Type | 1/1.8'' COMS |
| Focal Length | 25±5% |
| Max Image Height | 9.7mm |

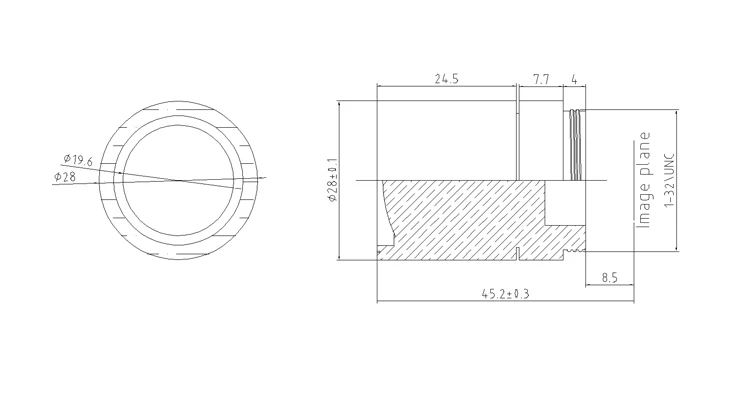

| Total Length | 45.2±0.3 |
| F/No. | 1.5±10% |
| Flange Back Length | 8.5±0.3 |
| TV Distortion | 0.7% |
| Relatve Illumination | >51% |
| Lens Structure | 4G |
| Mount | CS |
| Optical FOV | 1/1.8''(IMX178) 3072*1728,2.4um | 1/1.9''(IMX185) 1920*1080,3.8um | 1/2.8''(IMX291) 1920*1080,2.9um |
| D | 19.5±3° | 19.1±3° | 14.8±3° |
| H | 17±2° | 16.6±2° | 12.8±2° |
| V | 9.6±2° | 6.4±2° | 7.2±2° |
2.8
Specification
1, High Quality CCTV Lens
2, No distortion Camera Lens
3, Total length: 45mm
4, Use widly for the night vision device
Application
Night Vision Device
