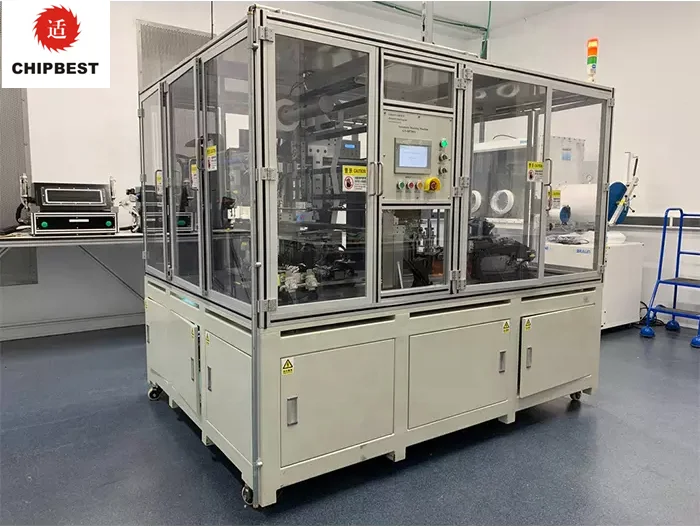

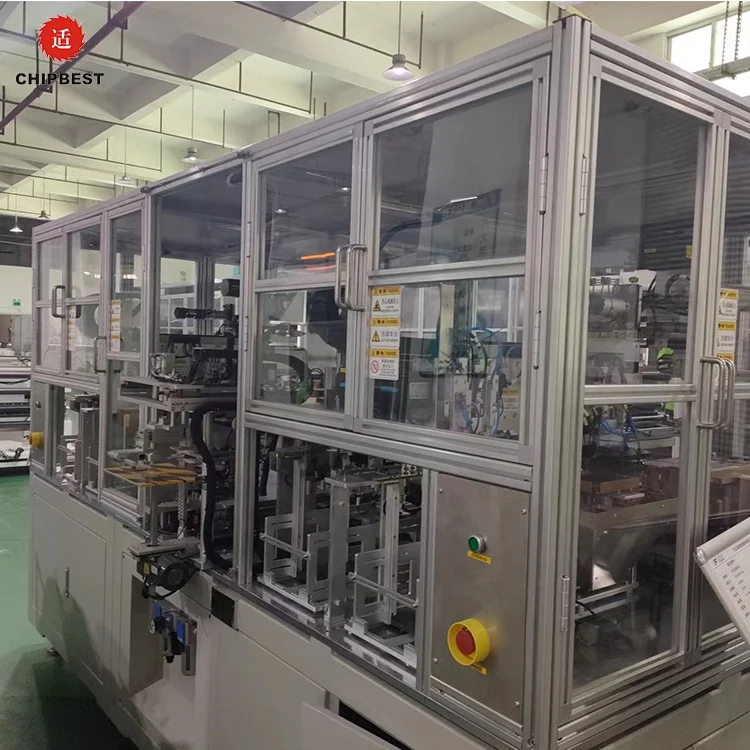

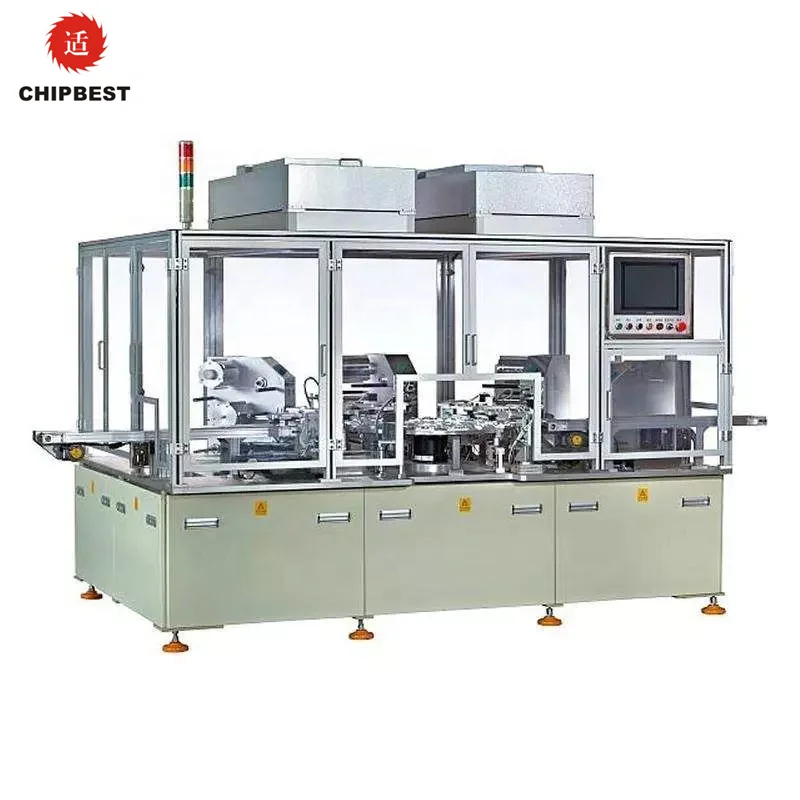

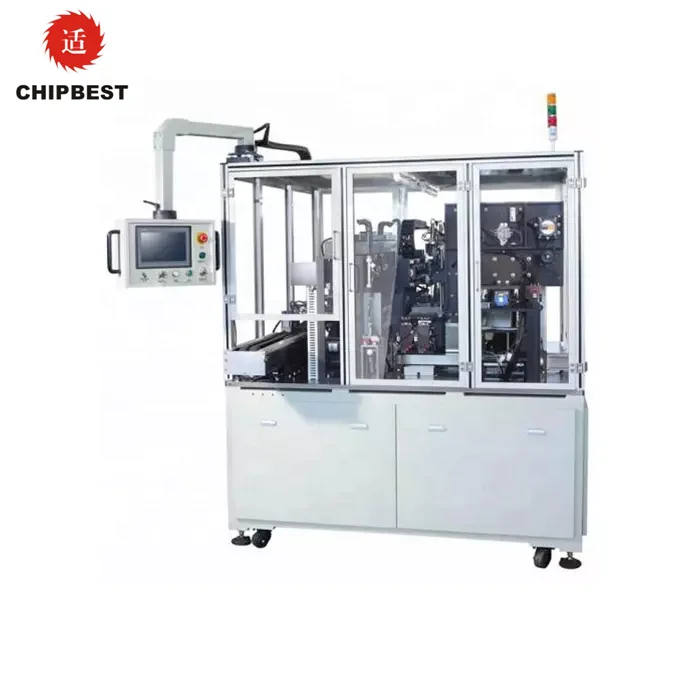

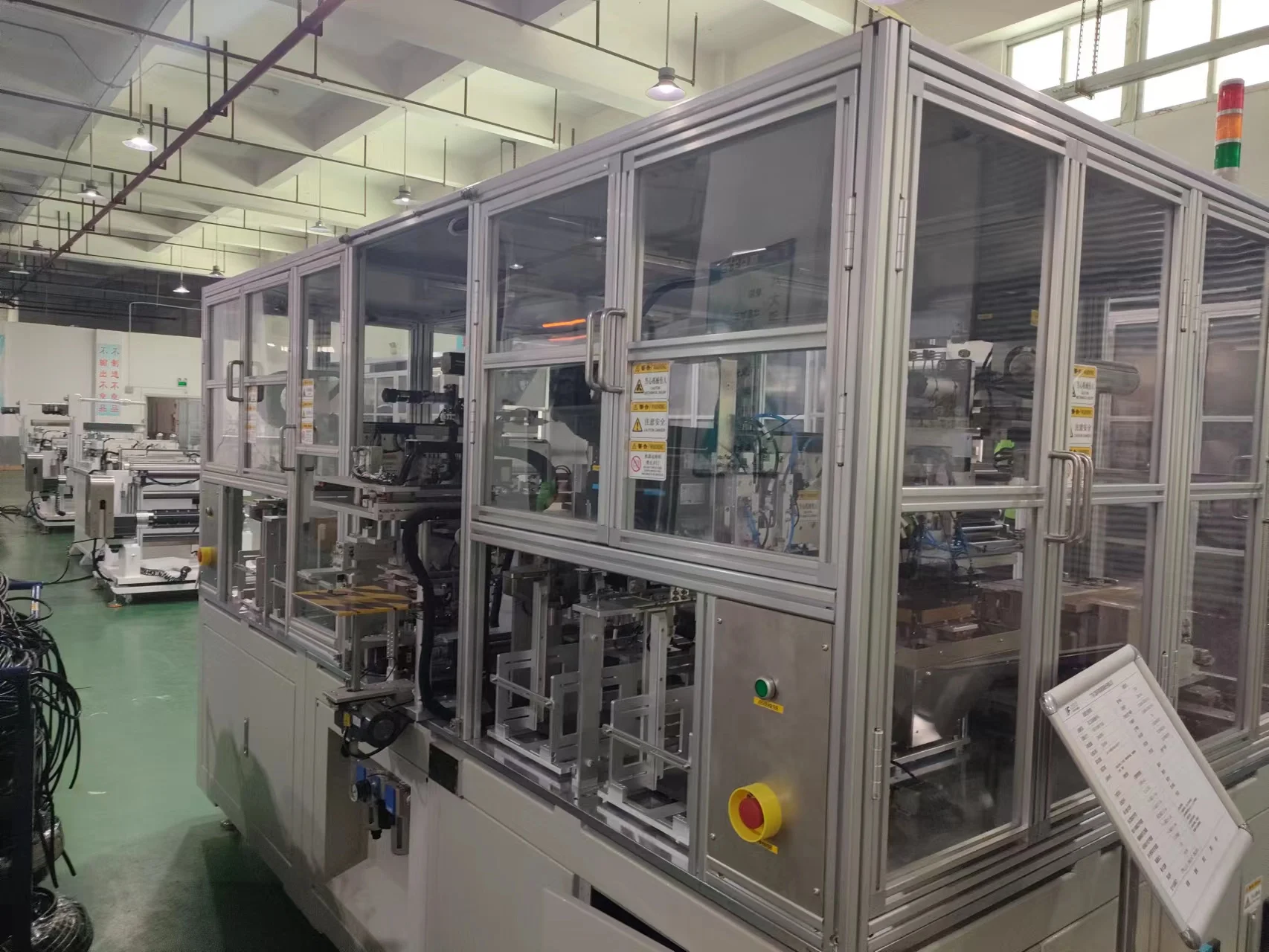

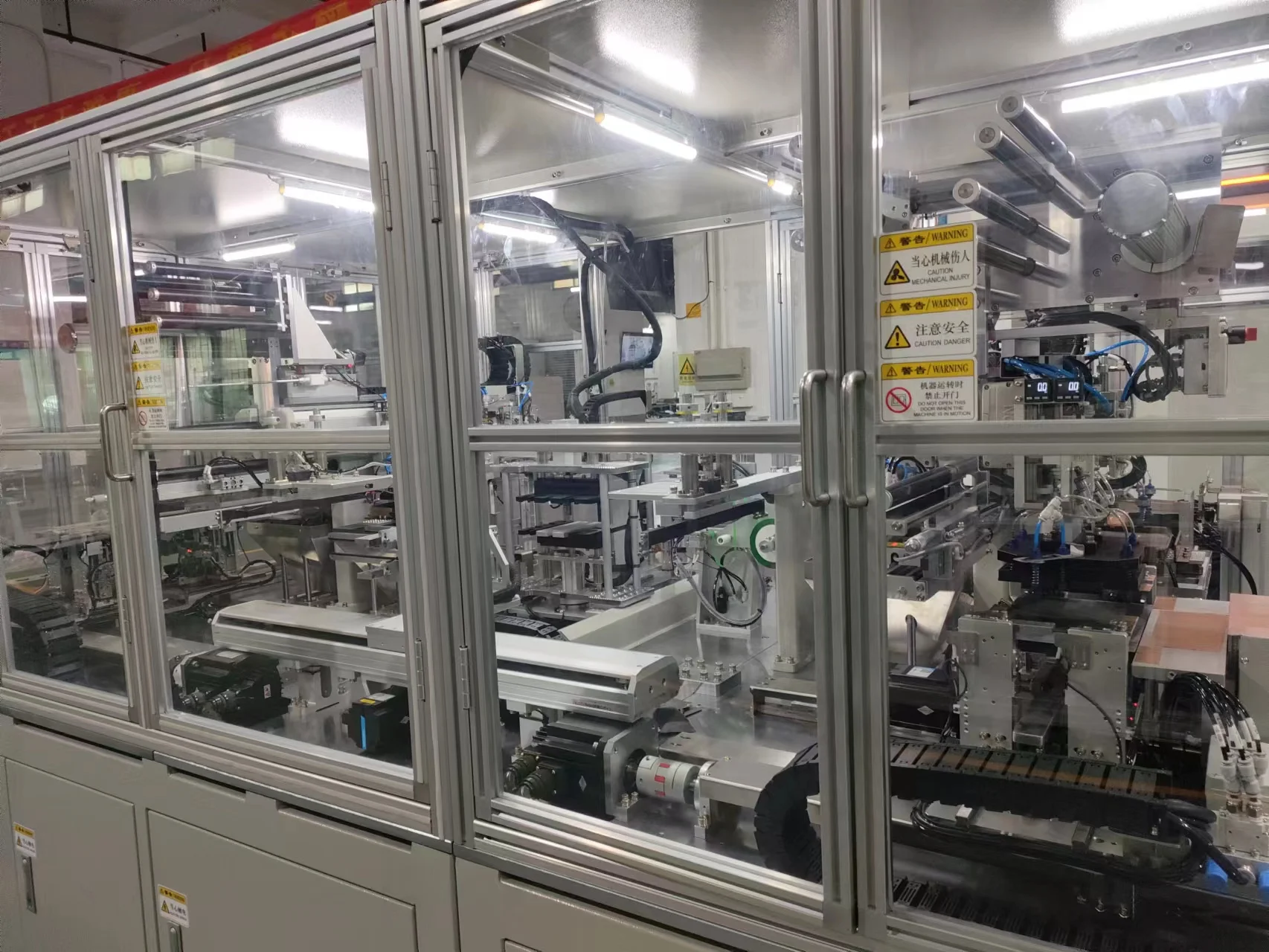

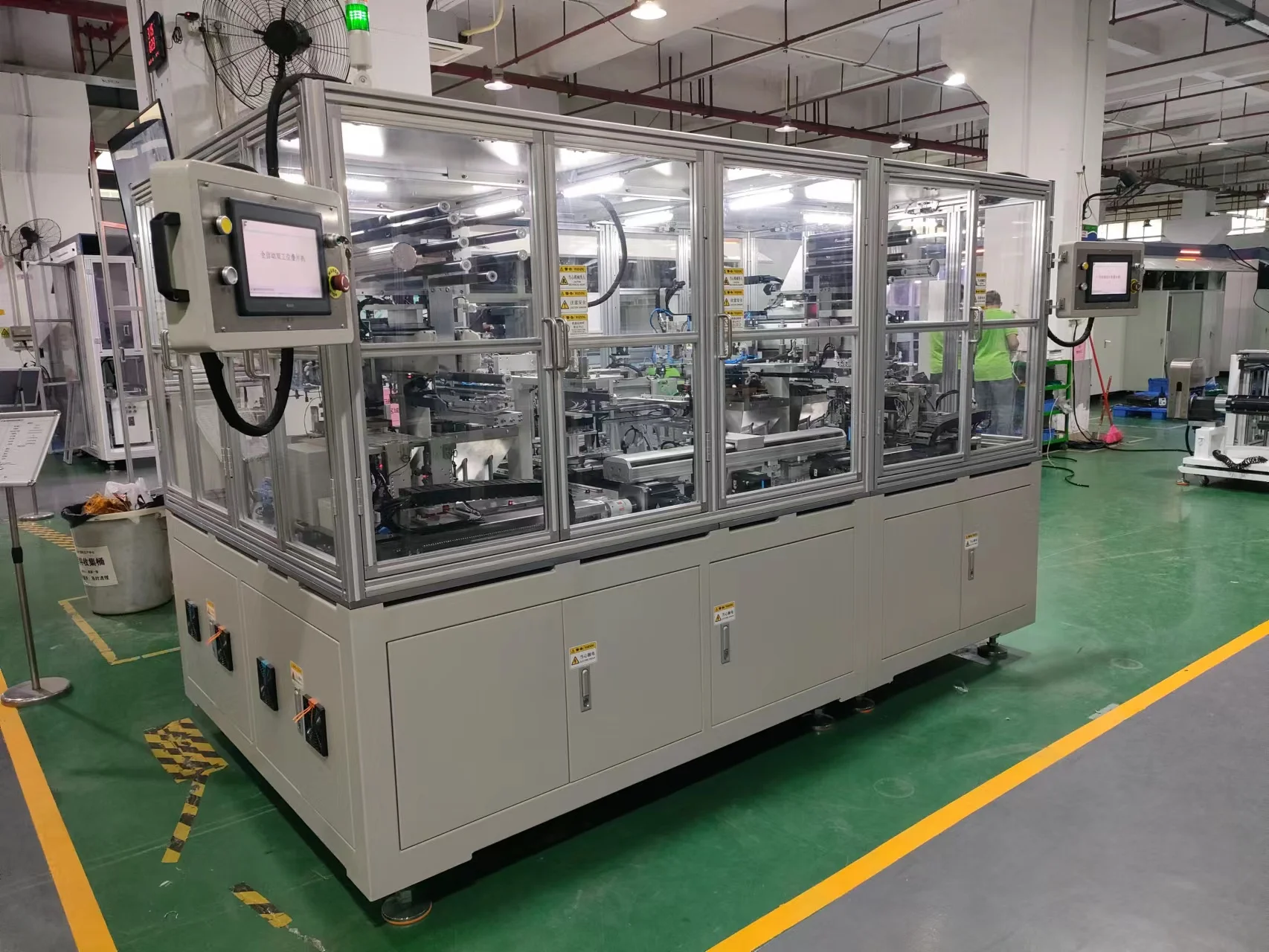

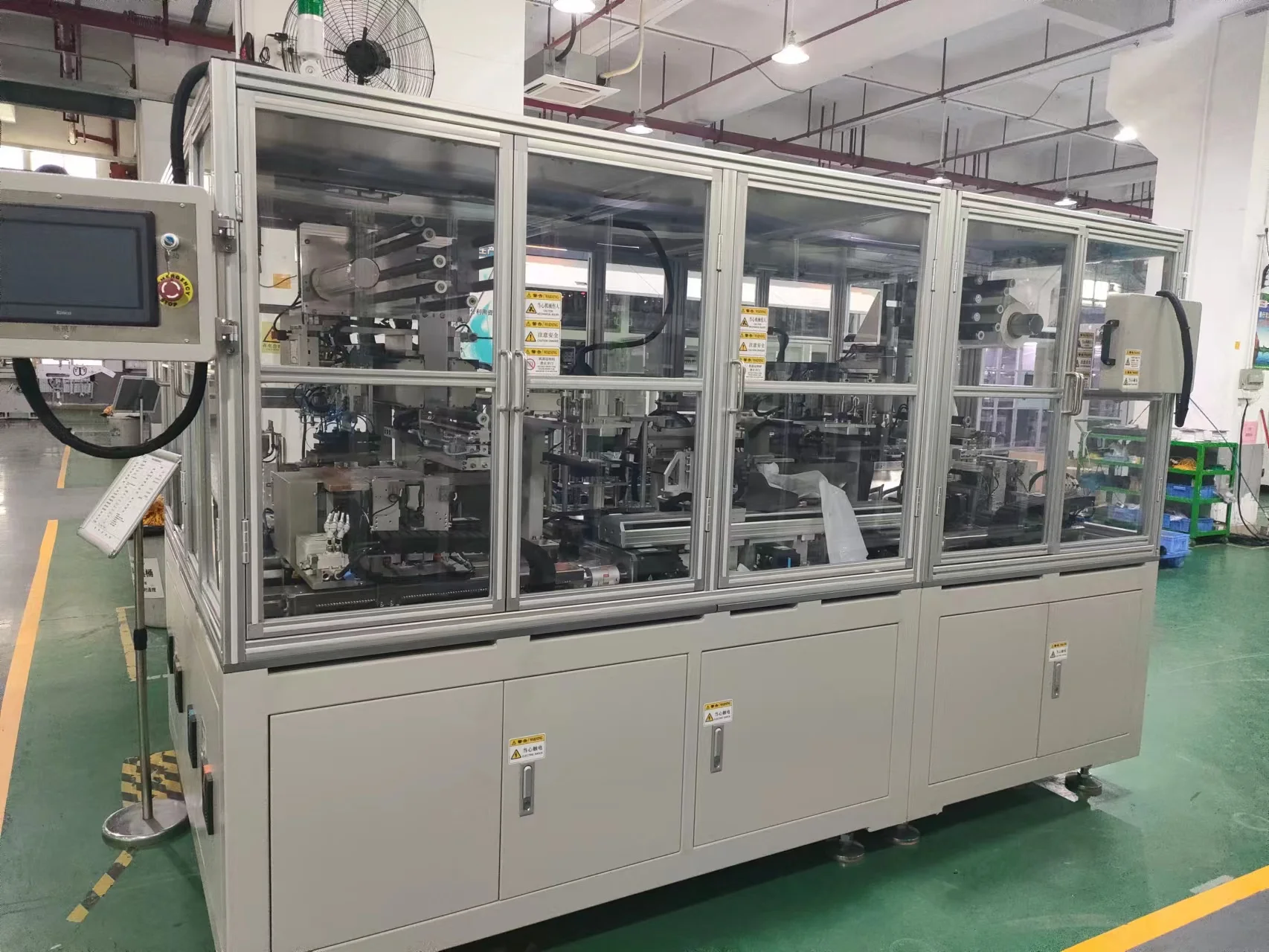

China Made battery pack making lithium pouch cell stacking machine
- Category: >>>
- Supplier: Chipbest Technology (Dongguan) Co. Ltd.
Share on (1600596064784):
Product Overview
Description
Product Description
Device Function

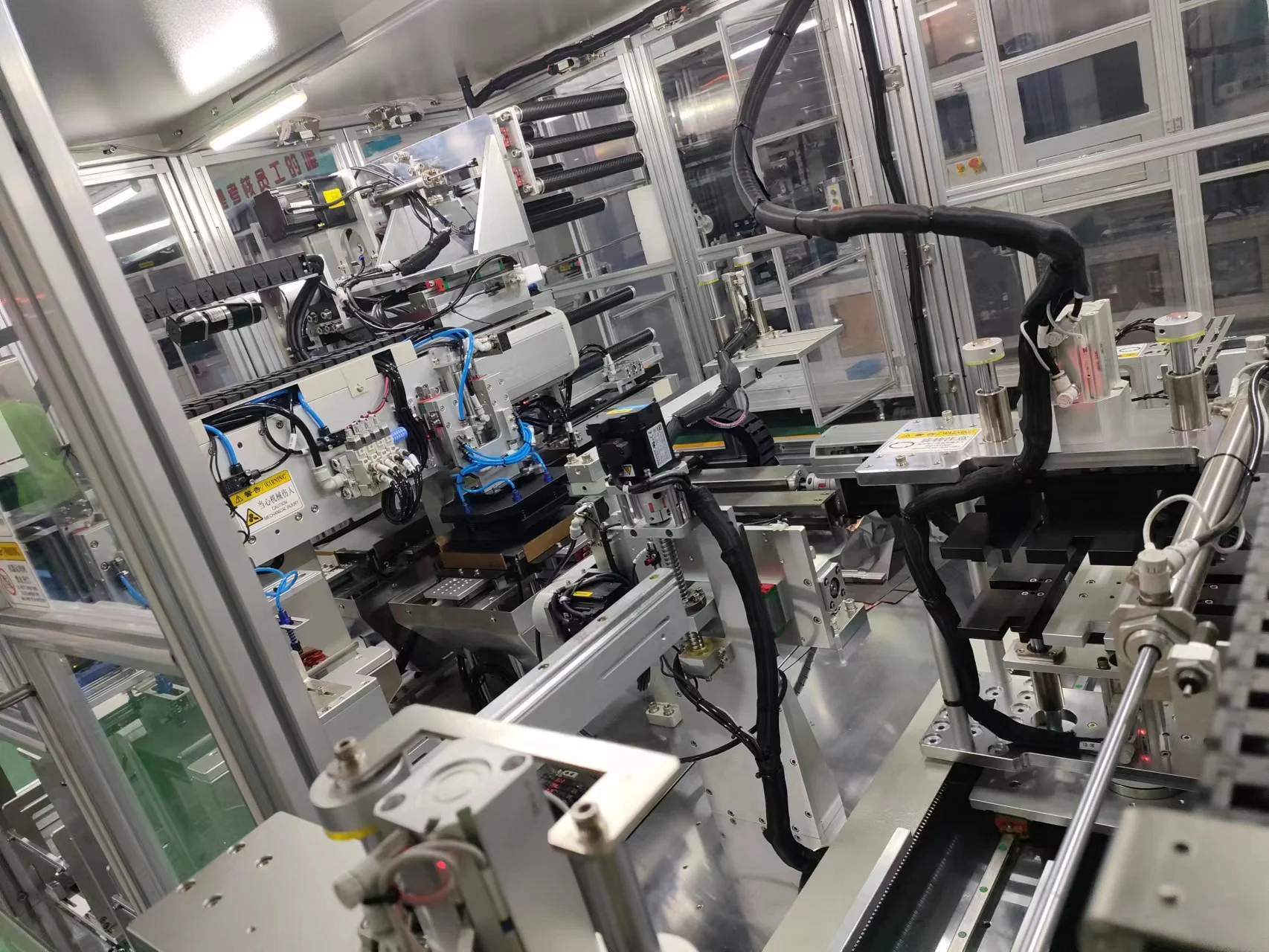

This equipment is mainly used for zigzag lamination of square lithium-ion power battery cells.
The battery stacking machine is a high-accuracy Semi-auto stacking machine with many advanced features to ensure a stable,repeatable and precise electrode stacking. It adopts "Z" glyph laminated.
![]()
Advanced Features:
1 PLC Touch Screen Control with easy condition setting
2 Continuous "Z" fashion stacking with a separator
3 Auto electrode pick-up & stacking via vacuum suction manipulator
4 Through four manipulator to remove electrode from material box placed second para platform, after calibration then place on
lamination platform, laminated with automatic clamping device on stage.
5 Unreeling rotors for separator film feeding
6 Auto-tension control for separator film delivery
Advanced Features:
1 PLC Touch Screen Control with easy condition setting
2 Continuous "Z" fashion stacking with a separator
3 Auto electrode pick-up & stacking via vacuum suction manipulator
4 Through four manipulator to remove electrode from material box placed second para platform, after calibration then place on
lamination platform, laminated with automatic clamping device on stage.
5 Unreeling rotors for separator film feeding
6 Auto-tension control for separator film delivery

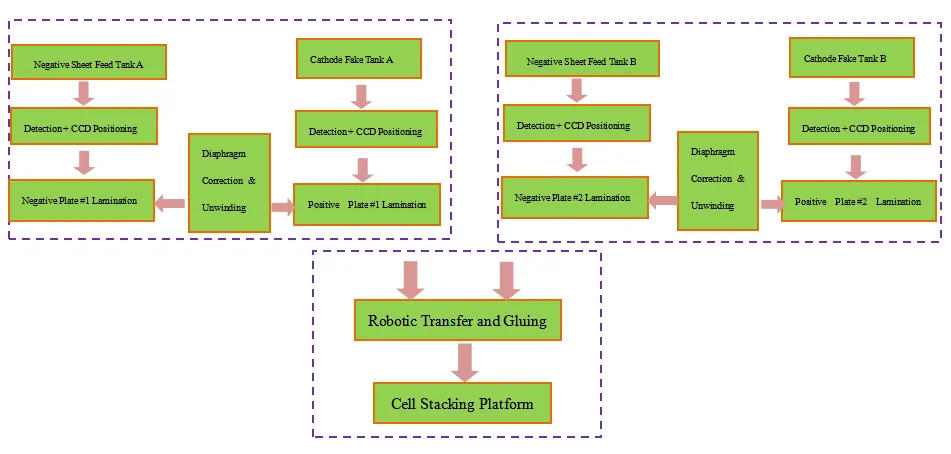

Workflow
The diaphragm is automatically unwound, and introduced into the lamination table through the roller with constant tension. The lamination table drives the diaphragm to move back and forth. The suction cups take out the positive and negative plates from the feed tank respectively. After CCD positioning correction, they are placed on the lamination table. Once it achieves a pre-set number of layers, the diaphragm is thermally cut off (leaving a small amount of tailings). And then the cells are transferred to the gluing mechanism by the manipulator; After that, the glued cells will be transferred to the stacking platform by the manipulator.
Equipment Features
1. Diaphragm: active unwinding; tension control;diaphragm positioning correction; diaphragm de-static; diaphragm alignment accuracy from sides: ±0.3mm (head and tail alignment ±0.5mm);
2. High precision: Through precise positioning process for the pole pieces, the overall lamination accuracy for each piece is guaranteed to reach ±0.3mm (alignment accuracy for adjacent pole pieces: ±0.2mm);Alignment accuracy between pole piece and diaphragm: center deviation ±0.2mm.
3. High efficiency: lamination speed can reach 0.5-0.6s/piece (for double station, excluding auxiliary time 13s)
4. Anti-dust protection: an anti-dust protection mechanism is installed in the material box and at a pre-positioning location;
5. Reliability: The equipment module is fixed with positioning pins;
6. Excess-cell/ Less-cell Fool-proof Mechanism:once an emergency situation with excess-cell/ less-cell loading happens, the system will accurately detect and alarm through the ultrasonic sensor meanwhile activate the emergency stop function automatically, which can effectively prevent more than required cells from being stacked into the battery.
7. Incoming pole pieces detection: The four corners of the pole piece and the pole lugs are detected by CCD to identify
missing/folded corners.When any NG pole piece is identified, the system will automatically alarm and stop.
missing/folded corners.When any NG pole piece is identified, the system will automatically alarm and stop.
8. The material box for pole pieces, the lamination table and the suction piece are all equipped with dust removal devices, and all
dust is centrally treated;
dust is centrally treated;
Specification
item | value |
Condition | New |
Brand Name | Chipbest |
Year | 2022 |
Model Number | JS-DPJ300-D |

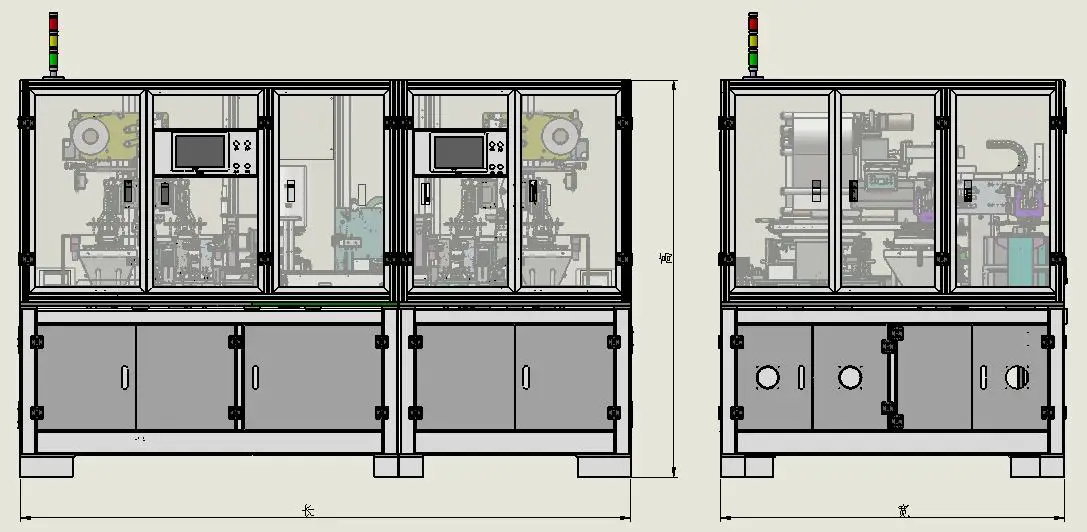

Dimension(L*W*H) | 3200 x 1700 x 2000 mm |
Weight | 4000KG |
Place of Origin | China |
Guangdong | |
Automatic Grade | Automatic |
Voltage | AC380V±10% |
Power | 26 KVA |
Machinery Capacity | 0.5-0.6S/piece (for dual workstation, related to the size of the pole piece) |
Key Machines | Lamination Table |
After-sales Service Provided | Online Support |
Application | Li-ion Battery Mfg |
Type | Fully Automatic |
Warranty | 1 Year |
Function | Automatical Production |
Advantage | High Efficiency Low Cost |
Material | Stainless Steel |
Keyword | Battery Production Machine |
Capacity | 0.5-0.6S /piece |
Power Supply | Voltage: AC380V±10%; Three-phase; Power: 26KVA; Frequency: 50Hz |
Packing & Delivery

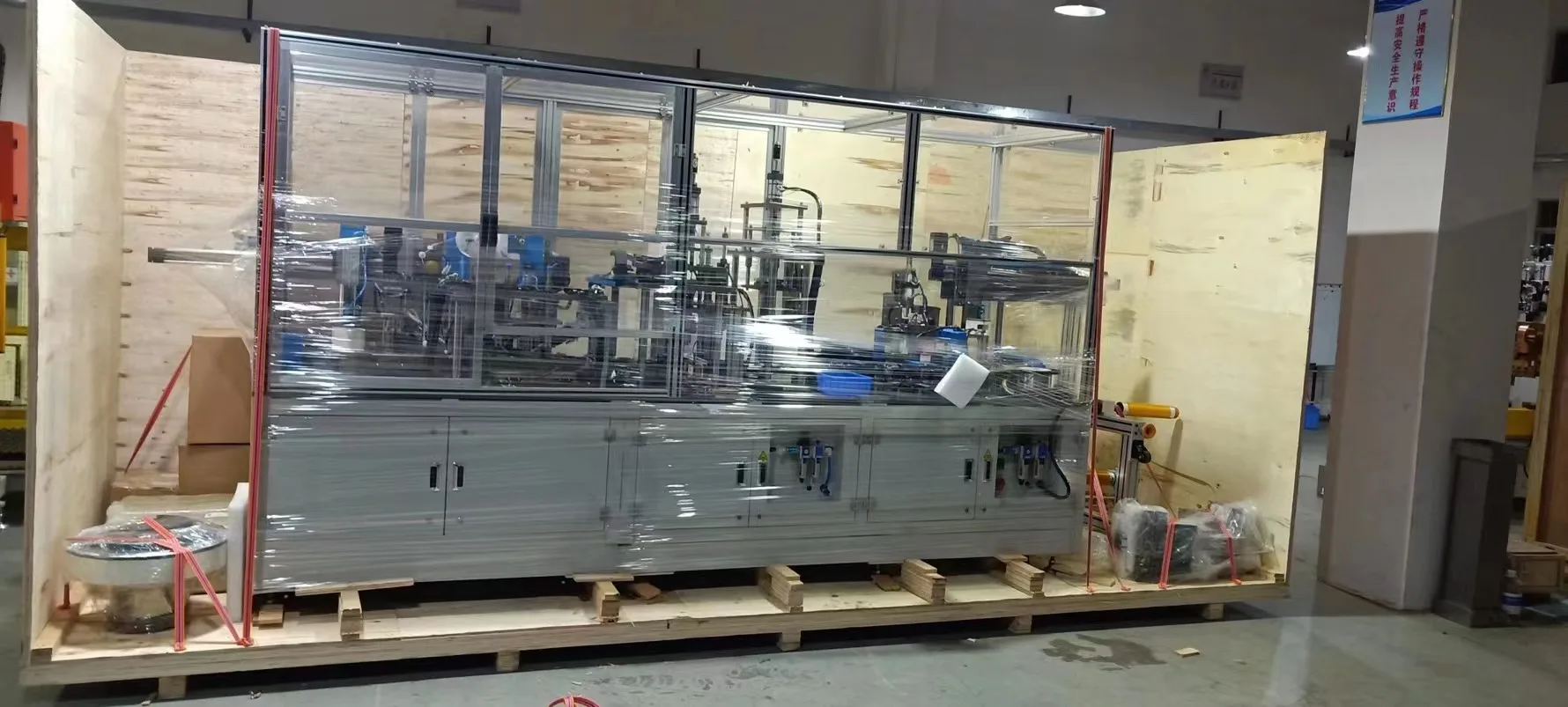

Strong Plywood Case
Company Profile
Chipbest is a one-stop automation solution provider of R&D, manufacturing, marketing and service. It has four subsidiaries, namely Chipbest Technology (Dongguan) Co., Ltd., Chipbest Automation Technology Nanjing Co., Ltd., Chipbest Automation Technology (Shanghai) Co., Ltd. and Chipbest (Jinxi) Green Ecological Food & Tourism Co., Ltd. (under preparation). Our main products include personal health protection equipment (face mask machine, bed cover machine, shower cap machine, sleeve machine, etc.), nucleic acid (virus) extracting&filling machine, swab packaging machine, automated production equipment for antigen reagent detection kit, automatic assembly equipment for TV sets screen , condom production equipment, power battery manufacturing equipment, automatic detection equipment for wire solder of solid crystal in the semiconductor field (semiconductor AOI). Our scope covers major industry sectors like automation equipment manufacturing, rice food and gourmet franchise, animal husbandry, green low-carbon ancient village tourism and rural revitalization etc.
Through continuous research and innovation, Chipbest Technology (Dongguan) Co., Ltd. Independently developed disposable medical flat mask machine, N95 folding mask machine, KF94 (fish-shaped) mask machine, cup-shaped mask machine, bed cover machine, bath cap machine, sleeve machine, condom production equipment, nucleic acid (virus) extracting&filling machine, swab packaging machine, automatic production equipment for antigen reagent detection kits, automatic TV screen assembly equipment, power battery manufacturing equipment, automatic detection equipment for wire solder of solid crystal in the semiconductor field (semiconductor AOI), etc. A lot of equipment has been exported to more than 100 countries and regions such as France, Canada, the United States, Turkey, South Korea, Bulgaria, Romania, India, Nepal, Iran, Thailand, etc.
Our principle is that the right one is the best. We will provide the most suitable solutions, products and service for the individual needs from different customers all around the world !
Through continuous research and innovation, Chipbest Technology (Dongguan) Co., Ltd. Independently developed disposable medical flat mask machine, N95 folding mask machine, KF94 (fish-shaped) mask machine, cup-shaped mask machine, bed cover machine, bath cap machine, sleeve machine, condom production equipment, nucleic acid (virus) extracting&filling machine, swab packaging machine, automatic production equipment for antigen reagent detection kits, automatic TV screen assembly equipment, power battery manufacturing equipment, automatic detection equipment for wire solder of solid crystal in the semiconductor field (semiconductor AOI), etc. A lot of equipment has been exported to more than 100 countries and regions such as France, Canada, the United States, Turkey, South Korea, Bulgaria, Romania, India, Nepal, Iran, Thailand, etc.
Our principle is that the right one is the best. We will provide the most suitable solutions, products and service for the individual needs from different customers all around the world !
Why Choose Us?
* Easy for installment and adjustment, we will divide the device into some big parts, you only need follow the installation video and manual to install the machine.
* Automatic alarm stop system + 3 emergency stop devices, In case of lack of material or failure, the machine will automatically stop, high safety.
* Small size, improve space utilization, save workshop, some types of our machine can shipped by small airline, save shipping fee cost and time.
* We are committed to making the best mask machine in China, take every process seriously: R&D, material selection, assemblement, transportation, installation, adjustment and after-sales service.
* 1 year warranty, lifetime service, 24 hour online technical support. support on-site installation,adjustment,trainning and maintenance
* oone-stop manufacturer of mask machine and packing machine with high quality, mask raw materials and spare parts.
* Good materials, the wearing parts are made of SKD11, DC53, M2 alloy steel with long service life and easy disassemble and installation of wearing parts.
* Automatic alarm stop system + 3 emergency stop devices, In case of lack of material or failure, the machine will automatically stop, high safety.
* Small size, improve space utilization, save workshop, some types of our machine can shipped by small airline, save shipping fee cost and time.
* We are committed to making the best mask machine in China, take every process seriously: R&D, material selection, assemblement, transportation, installation, adjustment and after-sales service.
* 1 year warranty, lifetime service, 24 hour online technical support. support on-site installation,adjustment,trainning and maintenance
* oone-stop manufacturer of mask machine and packing machine with high quality, mask raw materials and spare parts.
* Good materials, the wearing parts are made of SKD11, DC53, M2 alloy steel with long service life and easy disassemble and installation of wearing parts.

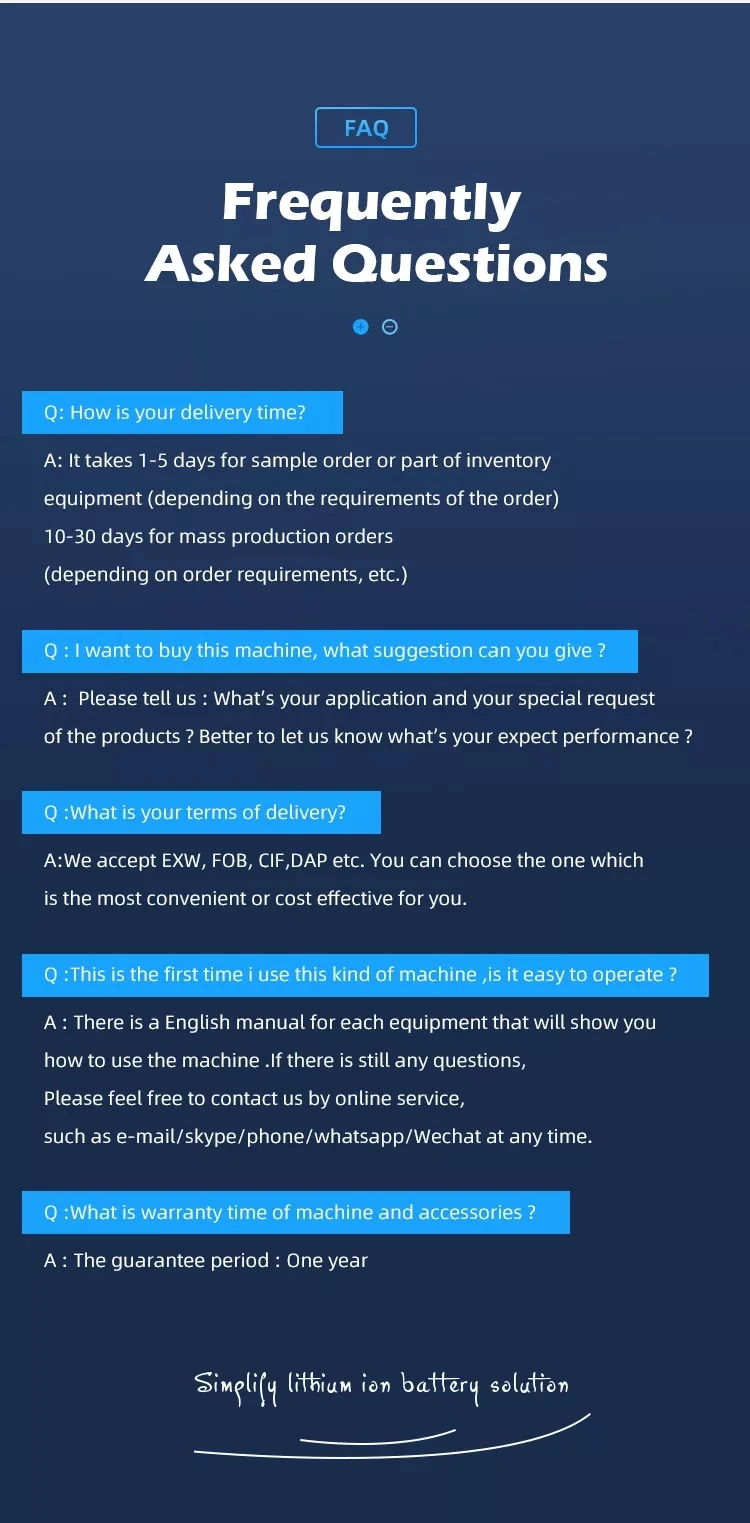

FAQ
