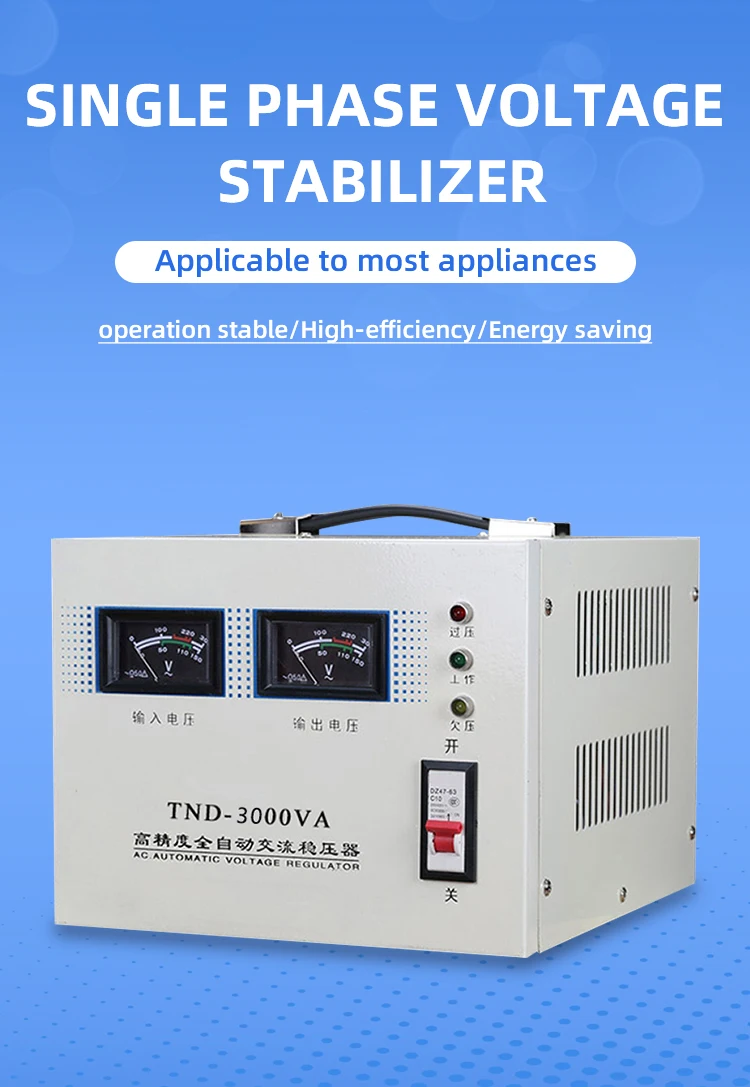

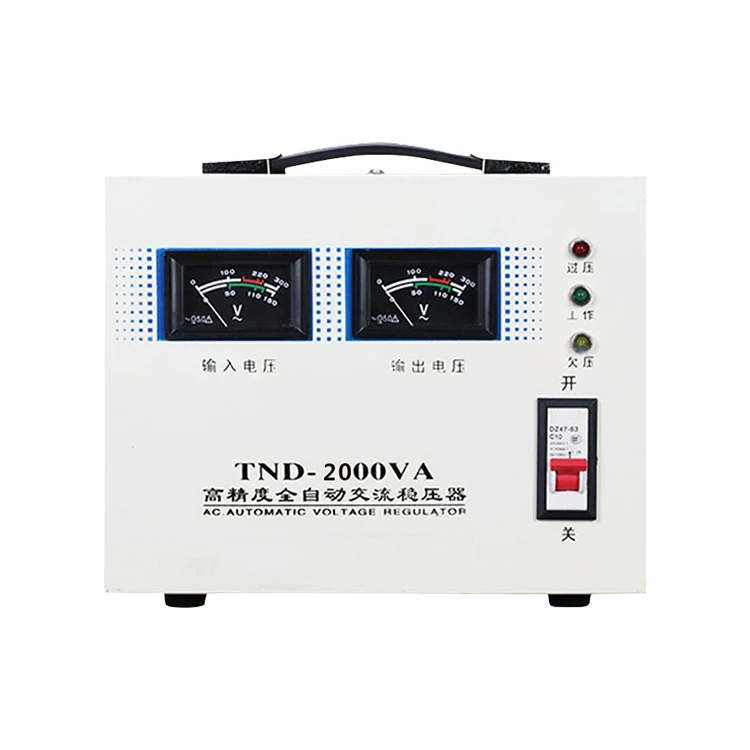

TND series Single Phase High Precision Voltage Regulator 3000W AC automatic voltage regulator TND Voltage Stabilizer
- Category: >>>
- Supplier: Yucoo Network Equipment Co. Limited
Share on (1600596072048):
Product Overview
Description
Product Introduction
Technical Parameter
Specifications | ||
Power | 500VA-30KVA | |

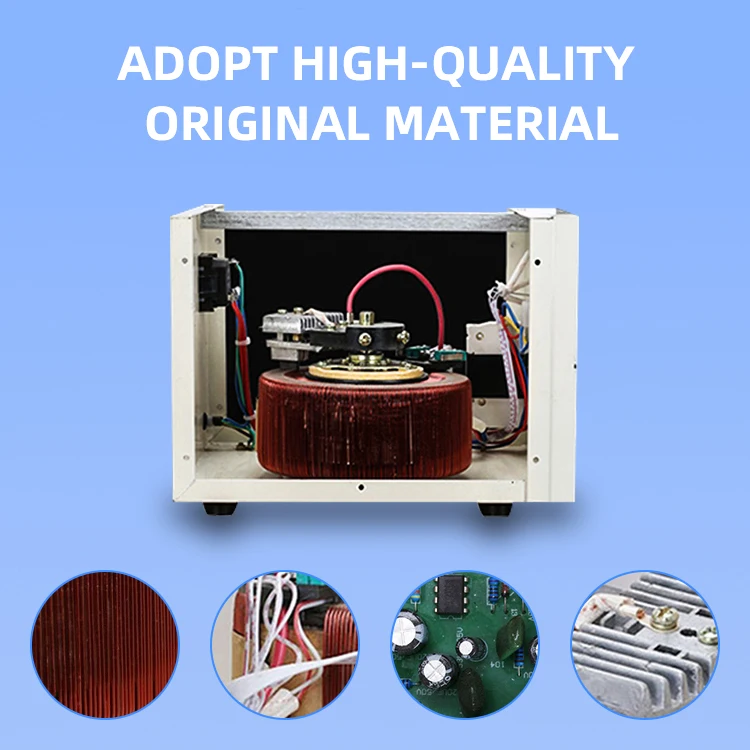

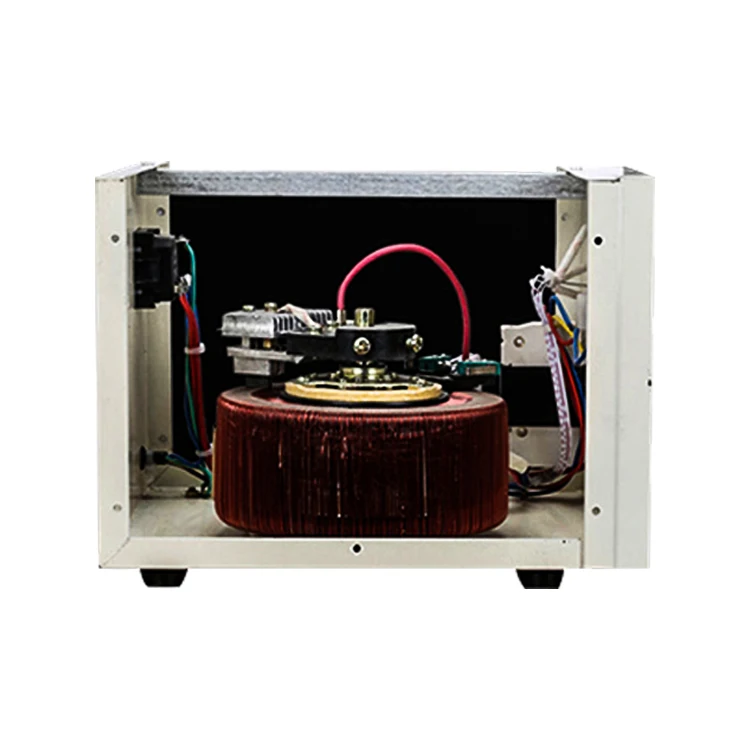

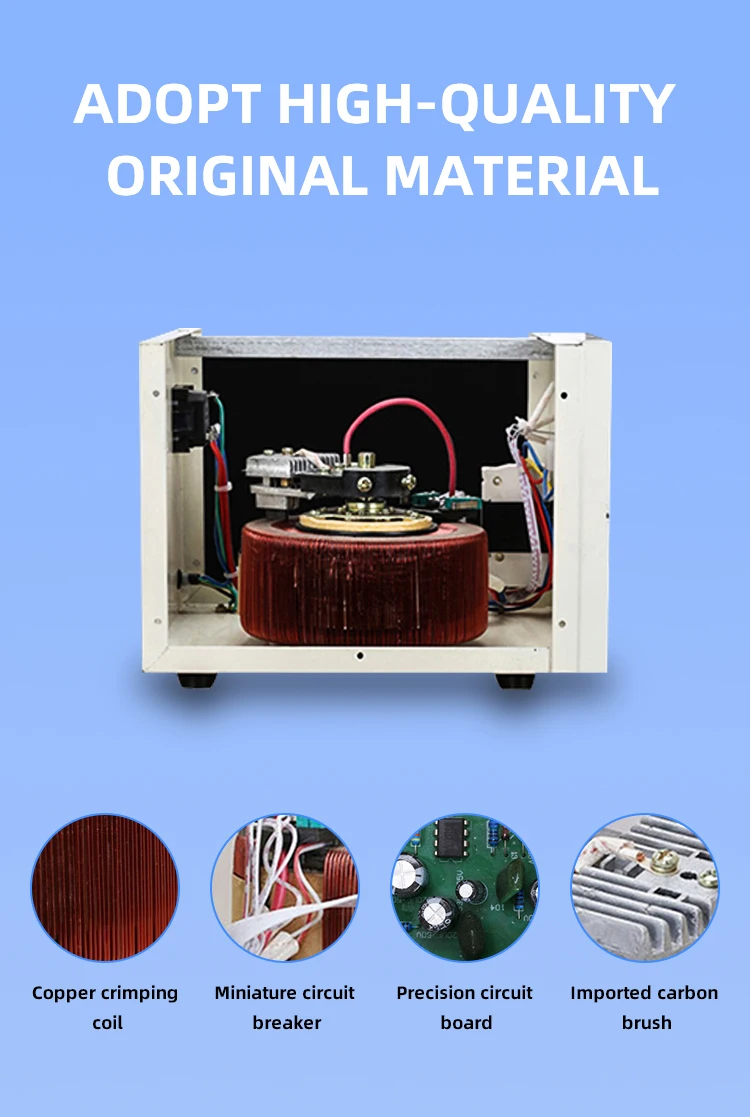

Control Method | Servo Motor(Carbon brush) | |
Phase | Single Phases | |
Type | Servo motor control | |
Frequency | 50/60Hz | |
Input voltage | Single Phase Voltage(110V/120V/200V/220V/230V)±20% | |
Output voltage | Single Phase Voltage(110V/120V/200V/220V/230V)±1%~5% | |
Output Accuracy | ±1% (1%~5% Adjustable) | |
Efficiency | ≥98% | |
Response time | ≤0.5S | |
Delay time(When it is on) | ≤5s(Optional) | |
Waveform Distortion | ≤1% | |
Cooling mode | Dry air-cooled | |
Work efficiency | ≥90% | |
Voltage rate of change | 1-5% Adjustable | |

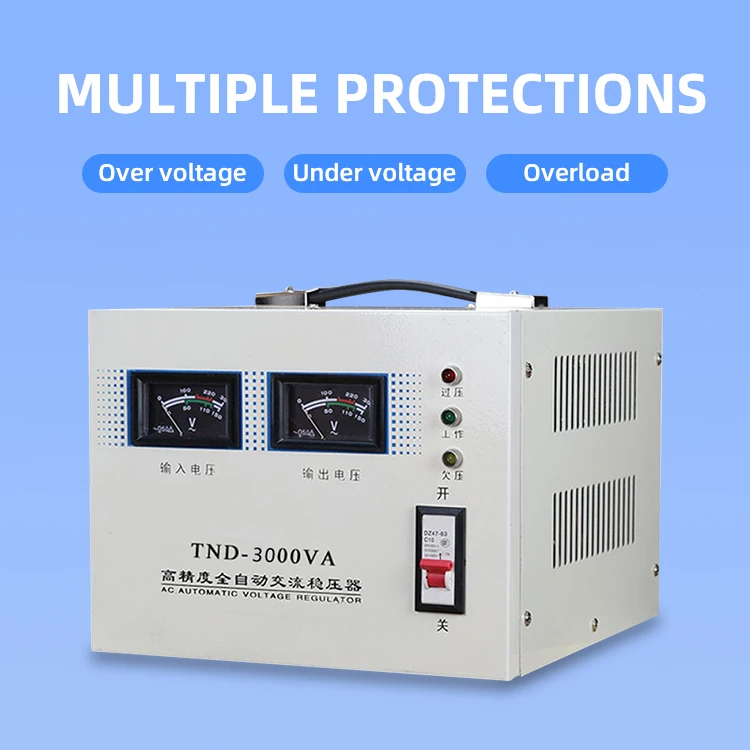

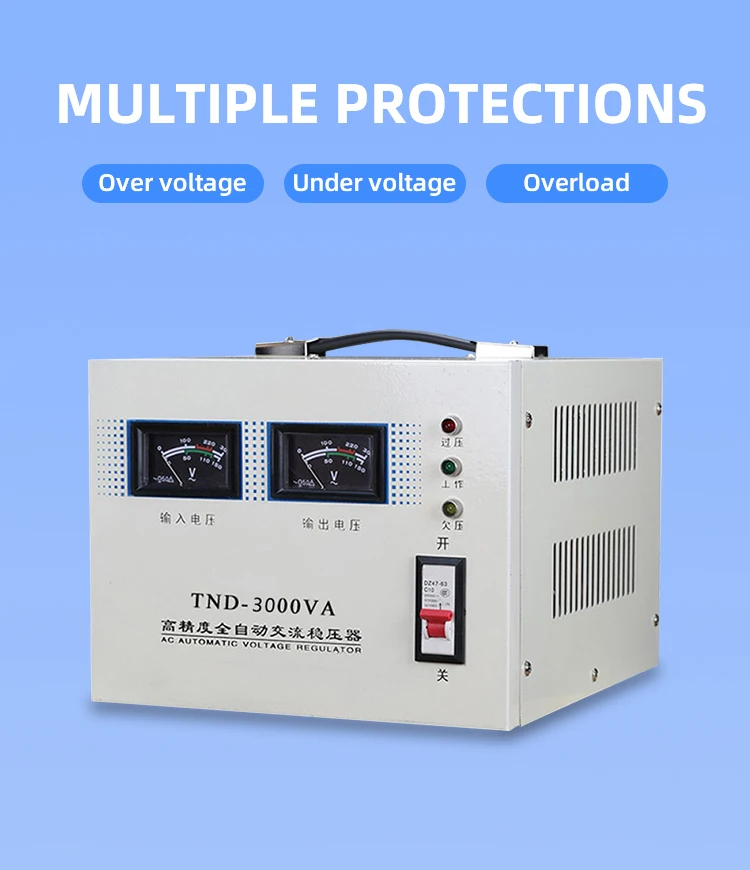

Protections | Over Voltage, Under Voltage, Overload, Short Circuit | |
Bypass | Available | |
Insulation resistance | ≥2MΩ | |
Delectric Strength | No breakdown for 2000VAC/ min. | |
Working environment | Temperature -10-40 °C | |
Noise | <65dB/m | |
Working Humidity | 20%-90% | |
