1 ton material loading and unloading all electric lifting vehicle Stacker
- Category: >>>
- Supplier: Hebei Leichai Internal Combustion Engine Co. Ltd.
Share on (1600596151329):
Product Overview
Description

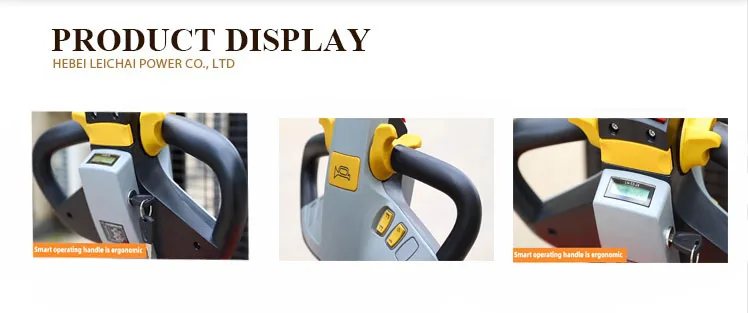

Product display
Product information
Name | unit full electric lift car |
Model/ | CDD |
Rated load | 2000 kg |
Lifting height | 3000 mm |
Vehicle height mm | 2150 mm |
Vehicle length (excluding pedal) pedal plus 500mm | 1900 mm |
Fork minimum height | 90 mm |
Maximum fork adjustable width | 680 mm |
Fork length | 1000 mm |
Minimum turning radius | 1800 mm |
Load center distance | 500-600 |
Battery (customizable 210AH) | AH 24V 120AH * 2 |
Drive motor | 1.2 kw |
Lifting motor | 2.2 kw |
Nose wheel diameter | 80 mm |
Rear auxiliary wheel diameter | 125 mm |
Drive wheel diameter | 250 mm |
Car length 500mm (pedal) | 1900 mm |
Vehicle width | 860 mm |
Fork width | 680 mm |
Mast frame material (customizable steel O H steel) | C steel |
Travel speed (full load/no load) | 4.0km/h-6.0km/h |
Lifting speed (full load/no load) | 0.08m/s-0.13m/s |
Full load maximum gradeability | 10% |
Wheel track | 1555 mm |
Product Features
1. Electric walking, electric lifting.
2. The mast is made of imported steel or custom-made manganese steel, so that the body will never be deformed and durable.

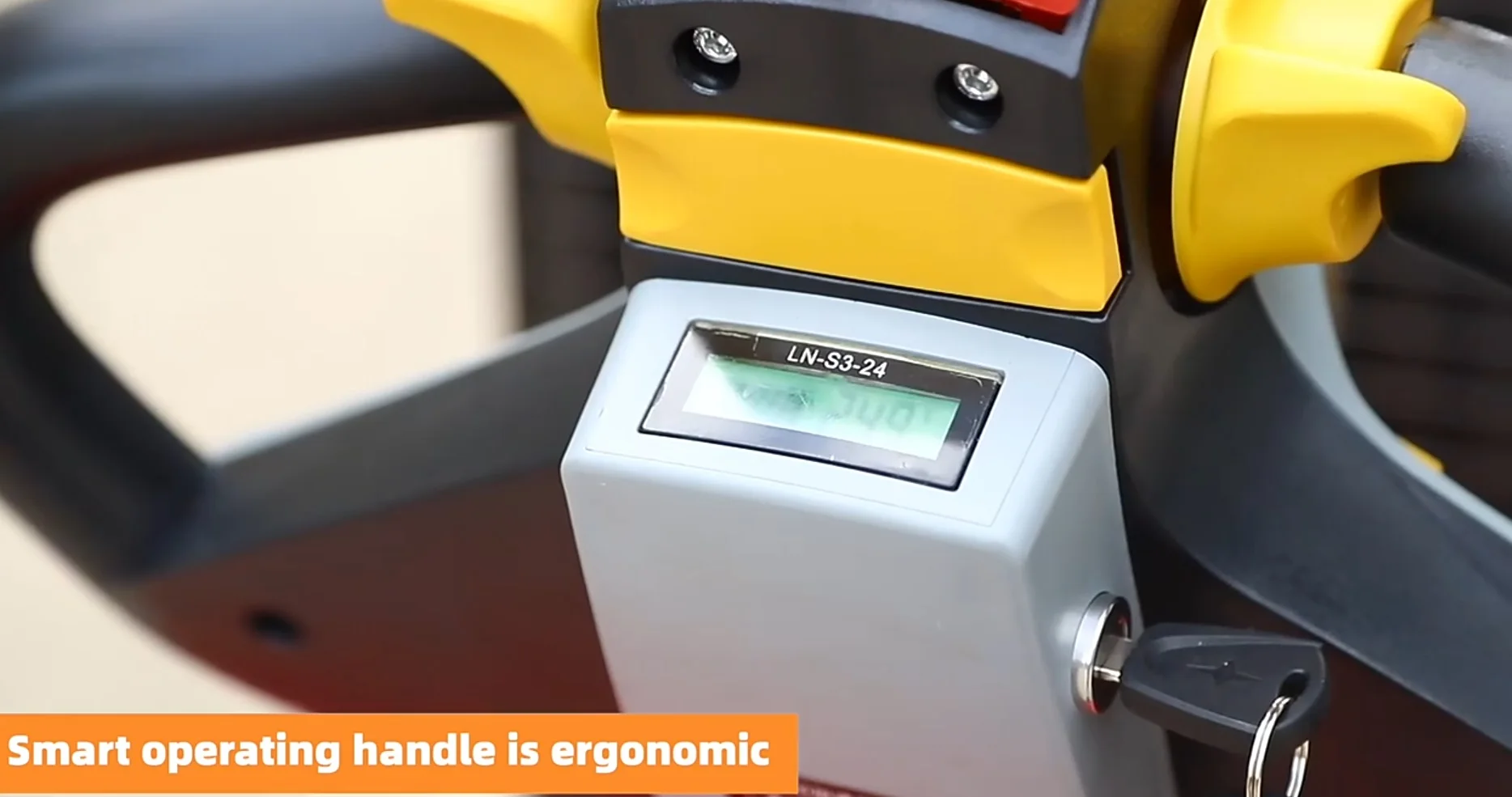

3. The electronic control system of the original joint venture brand is sensitive in response and safe in operation.
4. The drive assembly imported from Italy is powerful.
5. Combination of large-capacity traction battery makes the continuous working time longer.
6. The intelligent charger guarantees the service life of the battery.
1. Electric walking, electric lifting.
2. The mast is made of imported steel or custom-made manganese steel, so that the body will never be deformed and durable.
3. The electronic control system of the original joint venture brand is sensitive in response and safe in operation.
4. The drive assembly imported from Italy is powerful.
5. Combination of large-capacity traction battery makes the continuous working time longer.
6. The intelligent charger guarantees the service life of the battery.
