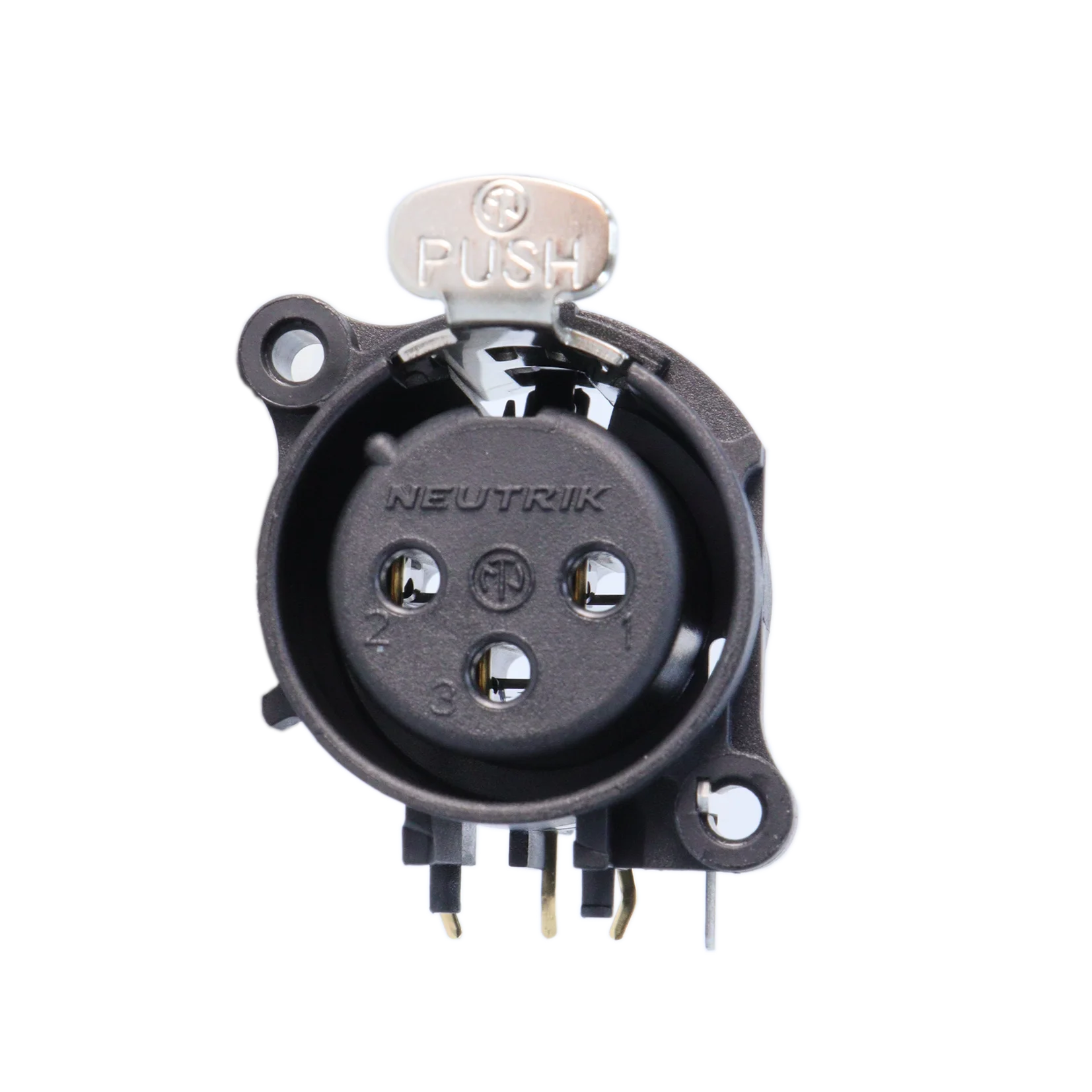

Neutrik 3pin female XLR audio connectors NC3FAAH2 for neutrik
- Category: >>>
- Supplier: Shenzhen Pawpaw Electronic Technology Co. Ltd.
Share on (1600596155301):
Product Overview
Description
Products Description
NC3FAAH2
NEUTRIK audio and video female XLR 3 pin chassis connector
Applying to video&lighting, audio interface, audio equipments, guitar.
Product parameters | ||
Capacitance between contacts | ≤ 4 pF | |
Contact resistance | ≤ 6 mΩ | |
Dielectric strength | 1,5 kVdc | |
Insulation resistance | > 10 GΩ (initial) | |
Rated current per contact | 6 A | |
Rated voltage | < 50 V | |
Grounding Options | Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1 | |
Insertion force | ≤ 20 N | |
Withdrawal force | ≤ 20 N | |
Lifetime | > 1000 mating cycles | |
Wiring | Horizontal PCB mount | |
Locking device | Retention spring | |
Mounting direction | Rear mounting | |
Chassis shape | A | |
Mounting | A-Screw | |
Contacts | Bronze (CuSn6) | |
Locking element | Steel Ck67 | |
Shell | Polyamide (PA 6.6 30 % GR) | |
Environmental | ||
Approvals | UL | |
Flammability | UL 94 HB | |
Standard compliance | IEC 61076-2-103 | |
Protection class | IP 40 | |
Solderability | Complies with IEC 68-2-20 | |
Temperature range | -30 °C to +80 °C | |

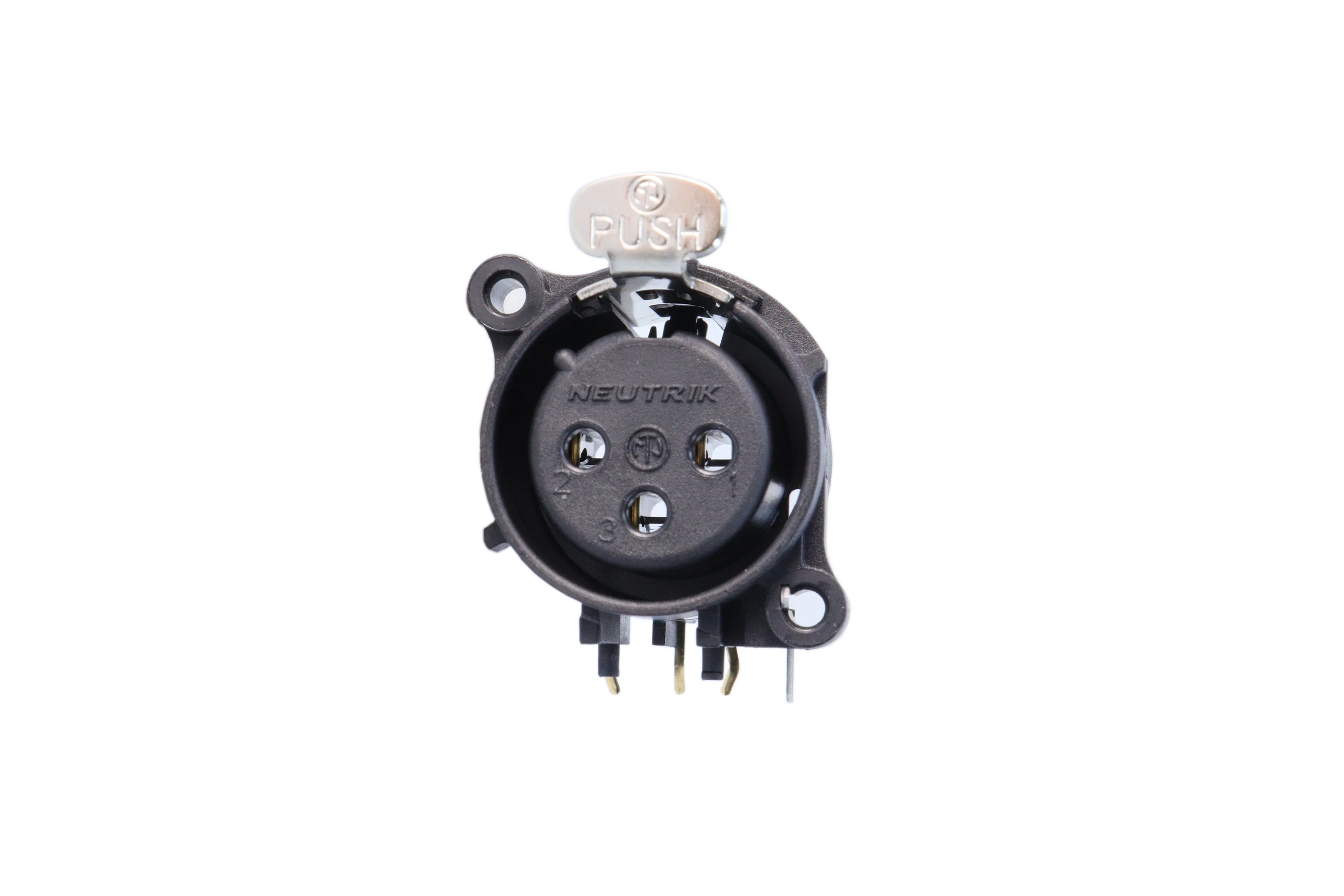

3 pin female XLR Chassis connector NC3FAAH2
Grounding
1. Separate ground contact to mating connector shell and front panel.
2. Vertical PCB mount.
Features & Benefits
1. Practical series connectors.
2. Selective gold plated contact and PCB termination area.
3. Tulip type contacts, high contact pressure, long-lasting durability.
