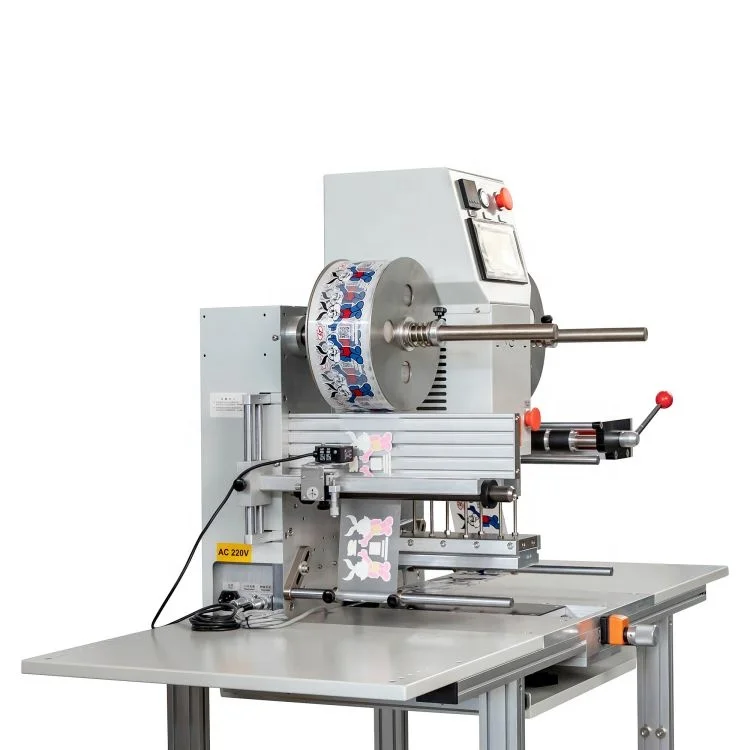

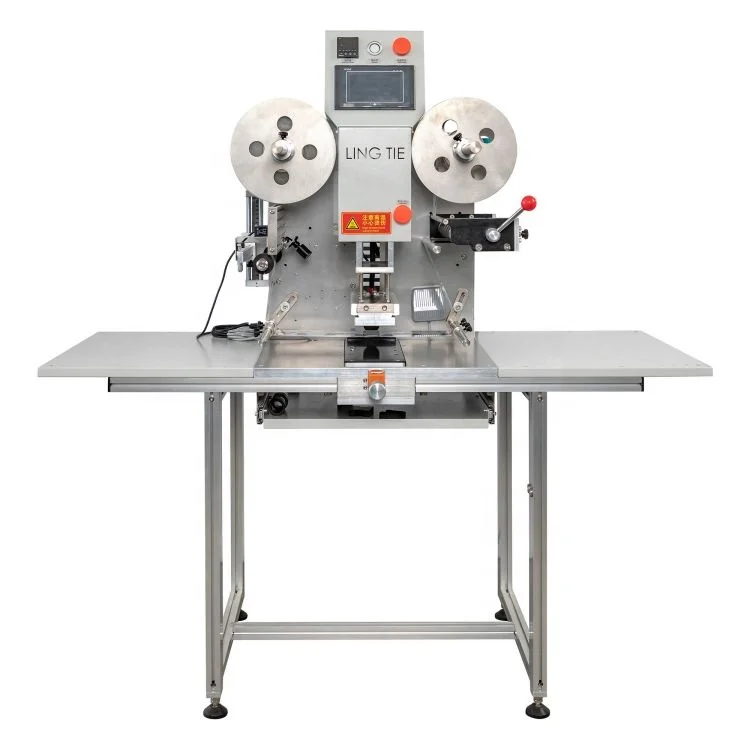

Heat Press Printing Machine for Eva Insoles Logo Making Machine
- Category: Other Shoemaking Machines >>>
- Supplier: Zhongling (xiamen) Technology Co. Ltd.
Share on (1600596160093):
Product Overview
Description

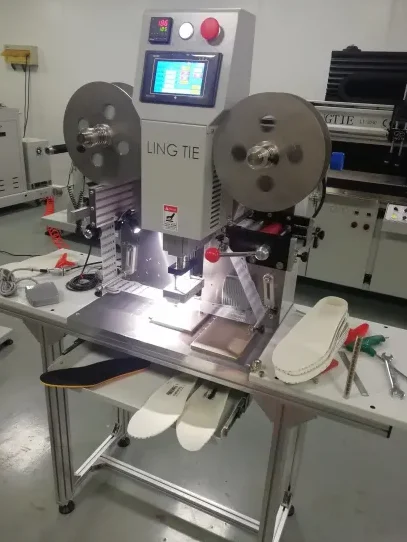

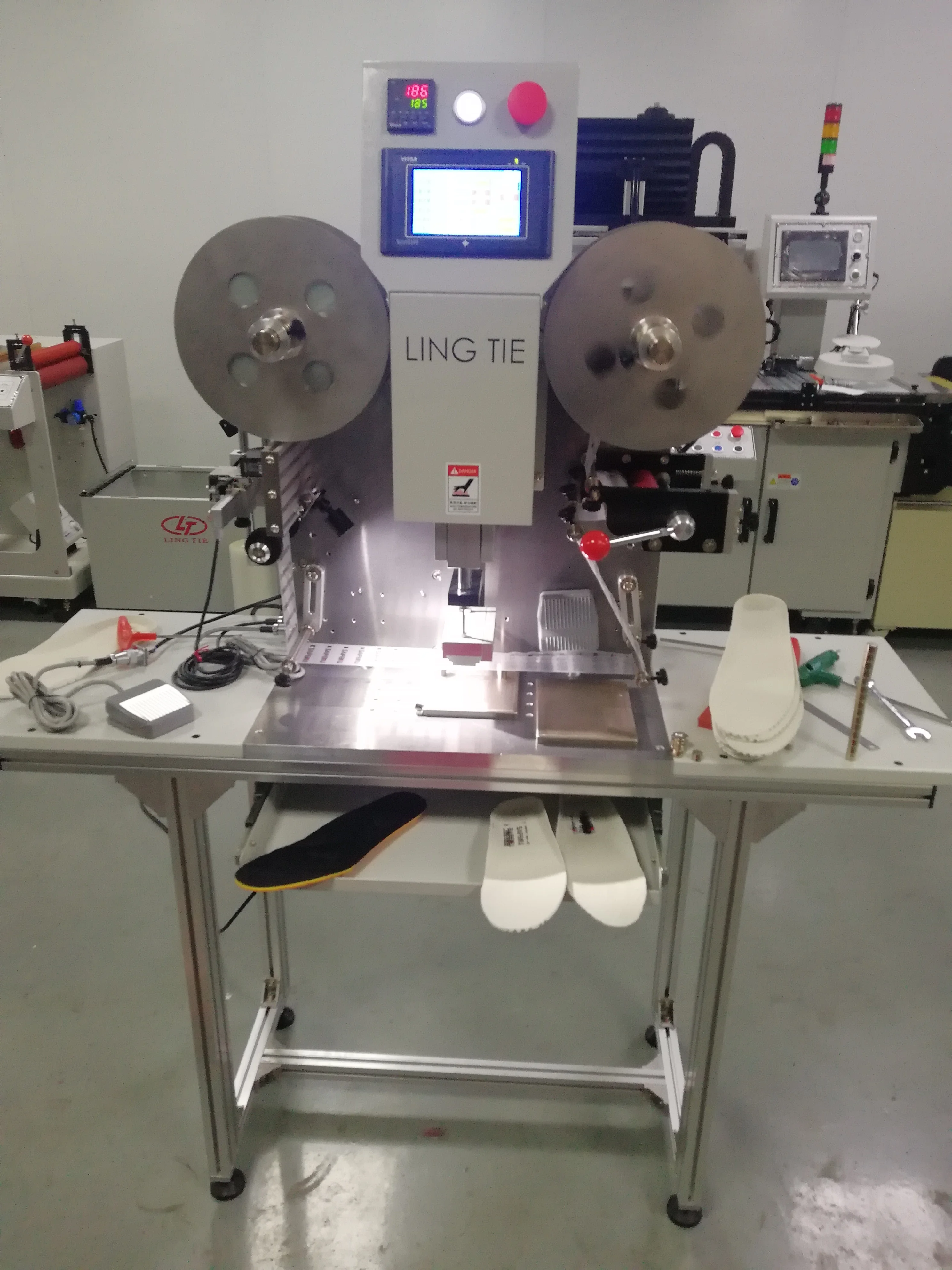

Insole logo making machine
Shoes Insole Making Machine is suitable for automatic heat press of roll label logo. The Insole logo material rolls line can automatically and continuously running by PLC control panel.
Product Description
Technical Parameter | Shoes Insole Logo Making Machine | ||||||||||||||
Model | LTI-100 | LTI-200 | |||||||||||||
Max. heat press size | mm | 100*100 | 200*200 | ||||||||||||
Max. winding roll diameter | mm | OD195(240) | OD240 | ||||||||||||
Winding core ID | mm | 25-76(1-3 inch) | 25-76(1-3 inch) | ||||||||||||
Heat press temperature | ºC | Room temperature-200 | Room temperature-200 | ||||||||||||
Heat press term | S | 0.1-99 (adjustable) | 0.1-99 (adjustable) | ||||||||||||
Speed | t/h | 0-3600 (Depends on heat press term) | 0-3600 (Depends on heat press term) | ||||||||||||
Voltage | V | 1P 220 | 1P 220 | ||||||||||||
Air pressure | mpa | 0.4-0.6 | 0.4-0.6 | ||||||||||||
Power | kw | 0.8 | 1.2 | ||||||||||||
Weight | KG | 80 | 100 | ||||||||||||
Machine size | mm | L680*W400*H745 | L680*W500*H745 | ||||||||||||
Work table size | mm | L1400*W400*H1500 +80 adjustable | L1400*W500*H1500 +80 adjustable | ||||||||||||

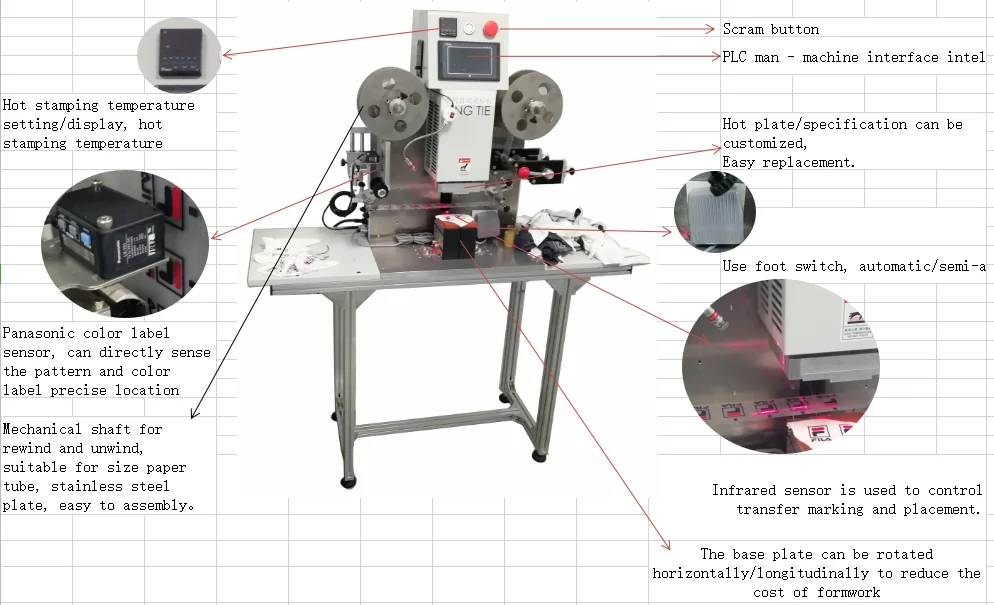

Details

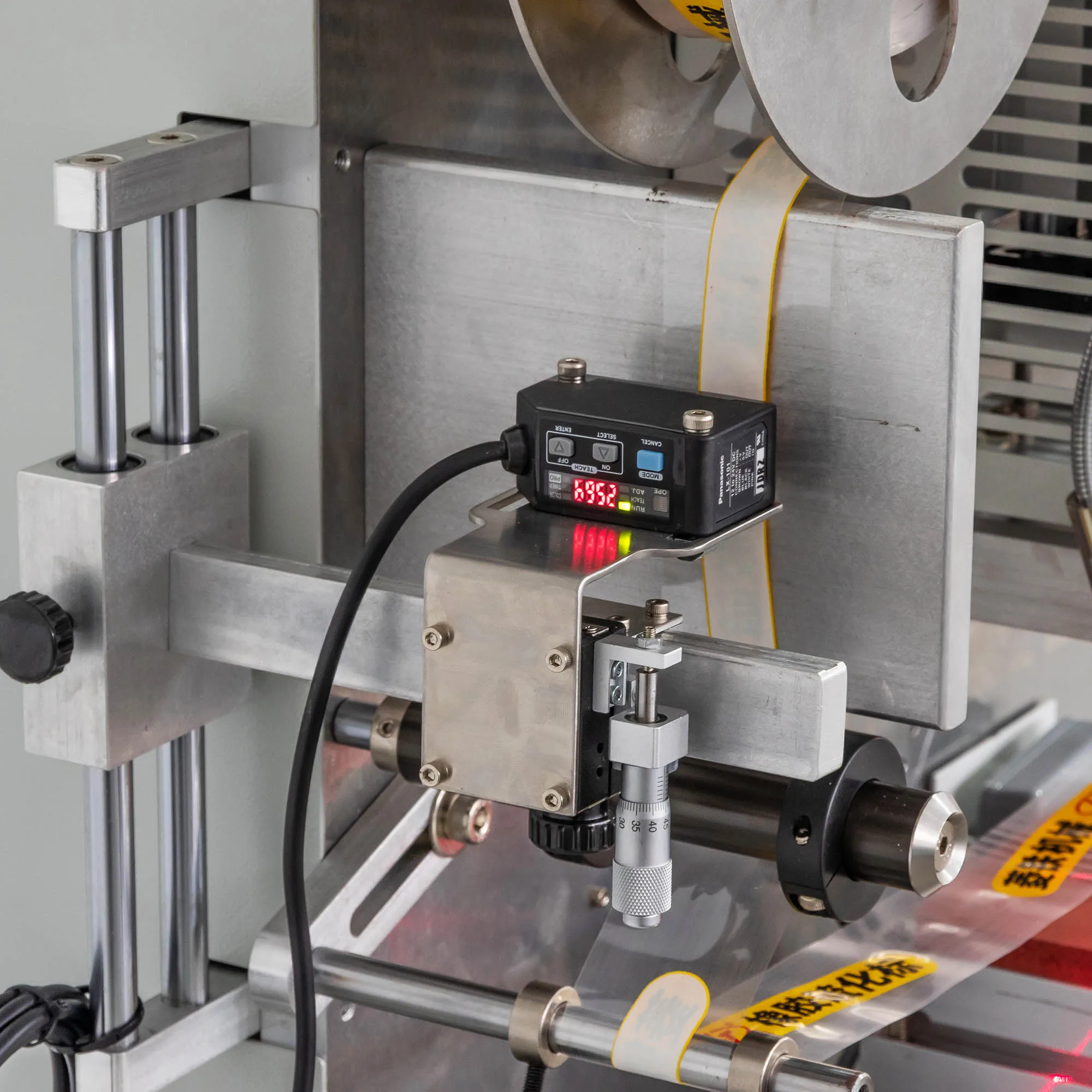

Panasonic color sensor, automatic stop when sense logo
Efficient, accurate, durable and easy to operate, which makes the automatic Label transfer stamping machine completely different from other stamping machines on the market

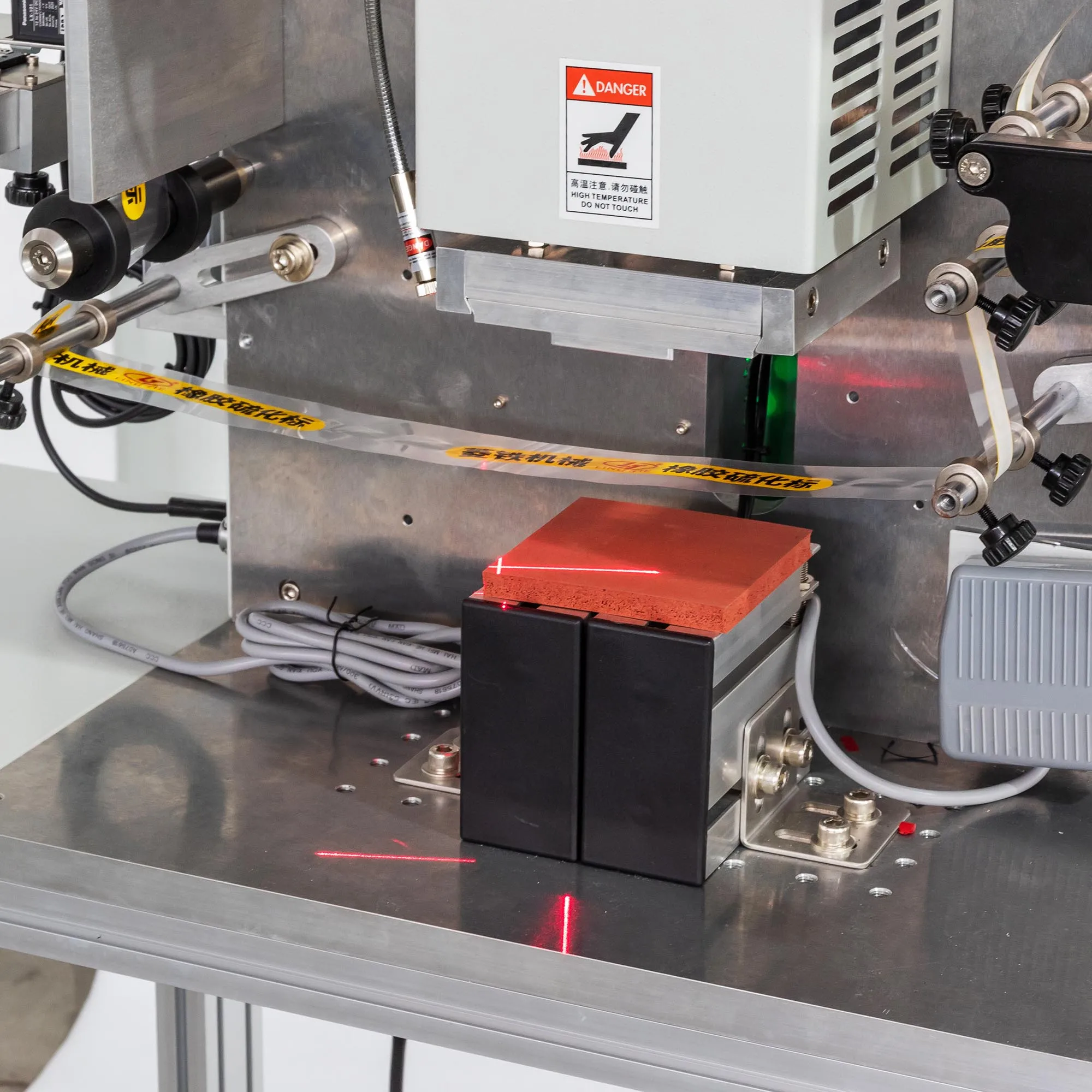

Infrared sensor is used to control transfer marking and placement.
Emergency stop switch
The base plate can be rotated horizontally/longitudinally to reduce the cost of formwork

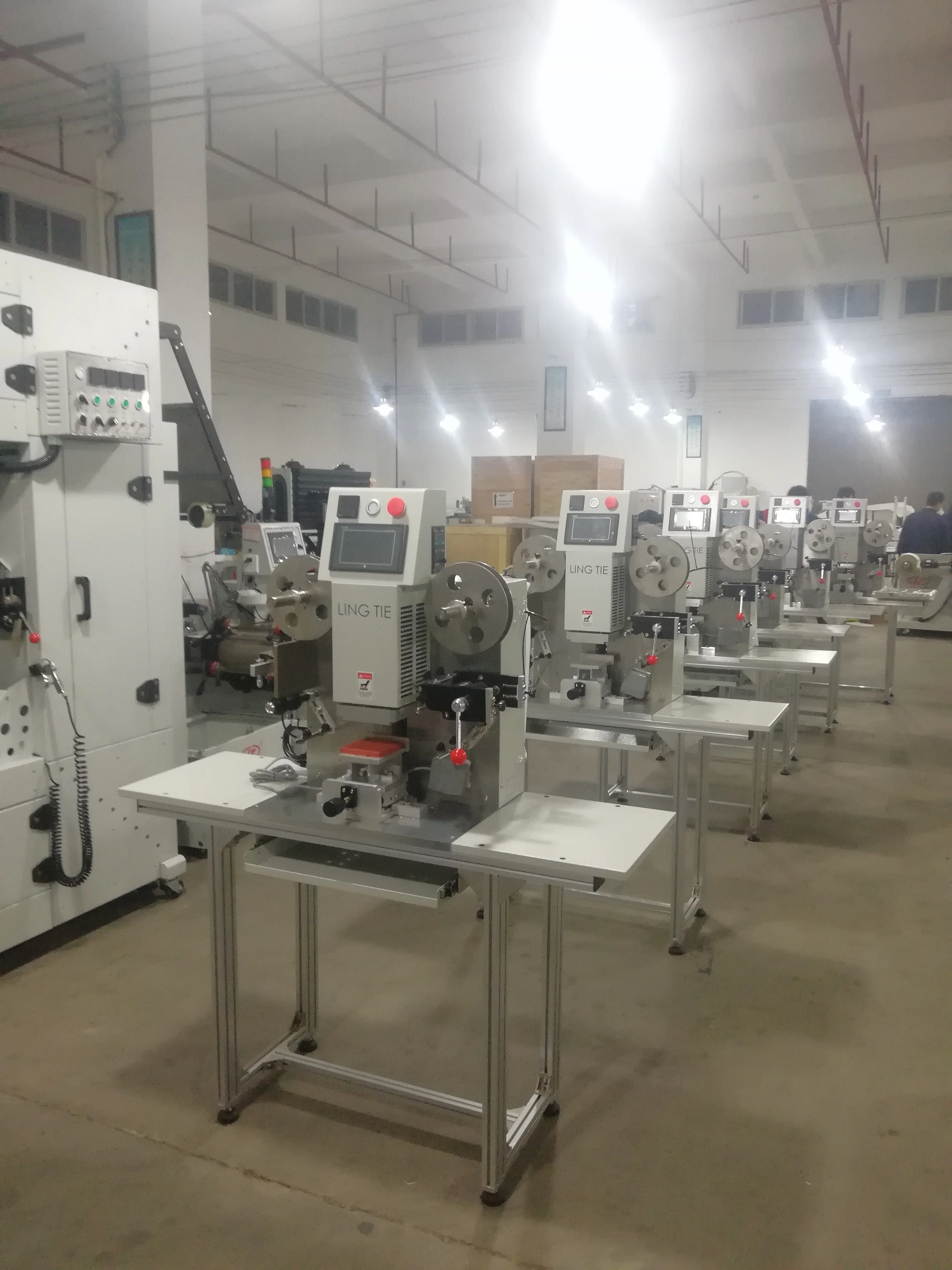

Workshop
