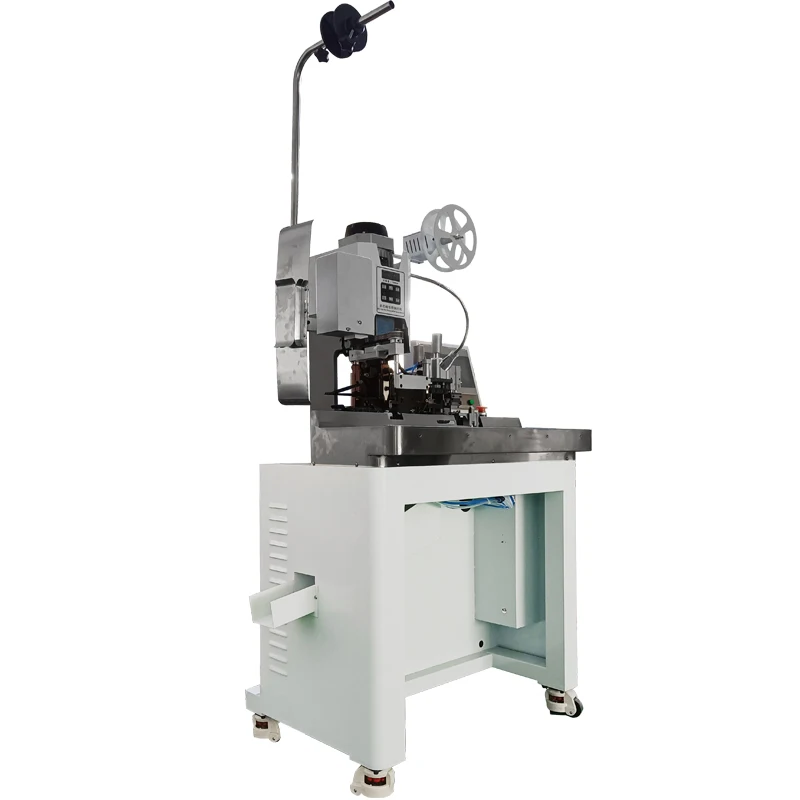

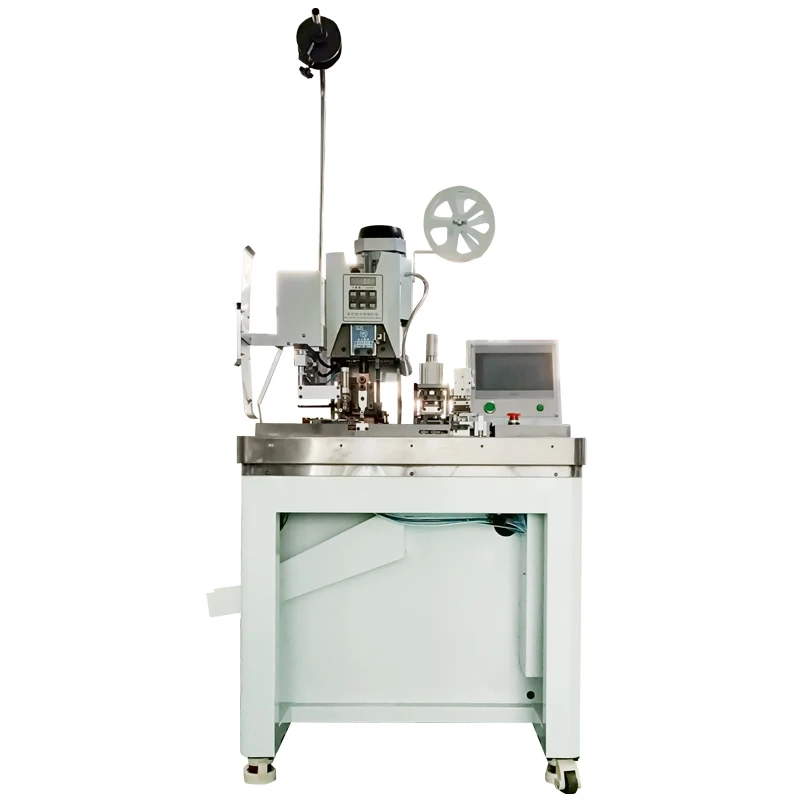

2022 High Quality Automatic Cable Wire Cutting and Crimping Wire Terminal Machine
- Category: >>>
- Supplier: Zhongshan Jinghuadian Automation Equipment Co. Ltd.
Share on (1600596174924):
Product Overview
Description
Product Description
Mechanical size: 80W*80D*173H(MM)
Weight: about 600KG
Applicable：wires are AWG1007#20—#30
Adopt silent electronic clutch terminal machine.
Digital control interface, touch operation panel, ultra-low noise
Efficiency: 3600PCS/H,

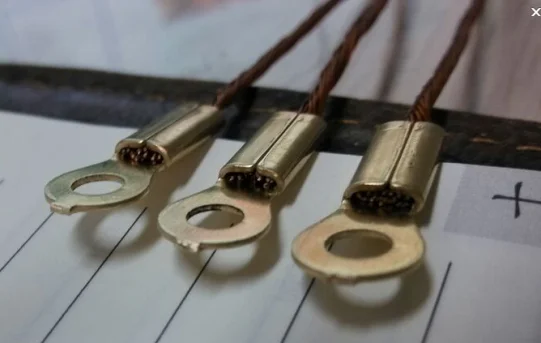

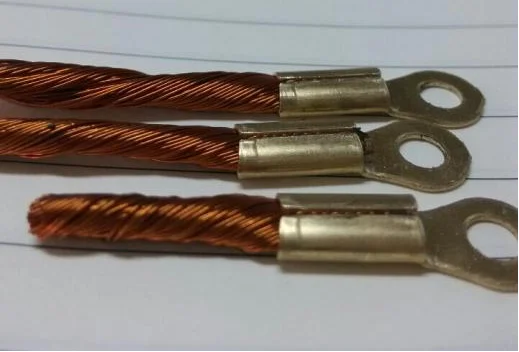

when the shortest tangent. The wire is cut to a certain size, one end is terminal, and one end is fully or half stripped. The terminal crimping position, stripping length and tangent depth can be automatically set.
Tangent length：40mm-9999mm
Cutting length accuracy: 0.2MM (design 0.005 total length)
Stripping length: 1 side 10MM; 2 sides 1.5MM-10MM
Crimping capacity: 19600N (2T)
Control method: microcomputer control series
Detection device: detection of low pressure, abnormal shutdown, etc., whether there is wire, terminal crimping, and wire blocking
Compressed air: 0.5Mpa (5kgf/cm) about 200NL/Min
Weight: about 600KG
Applicable：wires are AWG1007#20—#30
Adopt silent electronic clutch terminal machine.
Digital control interface, touch operation panel, ultra-low noise
Efficiency: 3600PCS/H,
when the shortest tangent. The wire is cut to a certain size, one end is terminal, and one end is fully or half stripped. The terminal crimping position, stripping length and tangent depth can be automatically set.
Tangent length：40mm-9999mm
Cutting length accuracy: 0.2MM (design 0.005 total length)
Stripping length: 1 side 10MM; 2 sides 1.5MM-10MM
Crimping capacity: 19600N (2T)
Control method: microcomputer control series
Detection device: detection of low pressure, abnormal shutdown, etc., whether there is wire, terminal crimping, and wire blocking
Compressed air: 0.5Mpa (5kgf/cm) about 200NL/Min
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | JHD |
Model Number | HD-927 |
Usage | Stripping |
Air Pressure | 4-6 kg/cm2 |
Capability | 2000-4500 PCS/h (by line length and decide) |
Applicable | Wires for AWG1007 # # 20-30 |
Parameters | The end terminal, end the whole strip or half strip |
Stripping Length | 1.5 mm - 10 mm |
Pressure | 2 tons |
After-sales service provided | Online and video technical support |
Company Profile
Zhongshan Jinghuadian Automation Equipment Co., Ltd. is located in China's electronic base-Zhongshan city, has been engaged in R & D, production, sales, electronic equipment, automatic packaging machine equipment, non-standard automation equipment, etc. The company has a group of high-quality R & D talents with more than 15 years of professional technology. With excellent products, reasonable prices, and high-quality service, we have made innovation and won the praise of our customers. We will make unremitting efforts to sincerely repay the trust and support of new and old customers for a long time.
Business philosophy: high quality, professionalism, dedication, integrity, development, win-win
Business Policy: technology first, integrity-based, innovation development
Main products: Capacitor cutting foot molding, machine resistance cutting foot molding machine, PC board cutting machine, PC board cutting foot machine, LED cutting foot molding machine,
Tungsten steel knife, triode crystal forming machine, jumper forming machine, vibrating plate (customizable), automatic screw packaging machine, automatic vertical packaging machine, automatic non-standard equipment (customizable);
Business philosophy: high quality, professionalism, dedication, integrity, development, win-win
Business Policy: technology first, integrity-based, innovation development
Main products: Capacitor cutting foot molding, machine resistance cutting foot molding machine, PC board cutting machine, PC board cutting foot machine, LED cutting foot molding machine,
Tungsten steel knife, triode crystal forming machine, jumper forming machine, vibrating plate (customizable), automatic screw packaging machine, automatic vertical packaging machine, automatic non-standard equipment (customizable);
