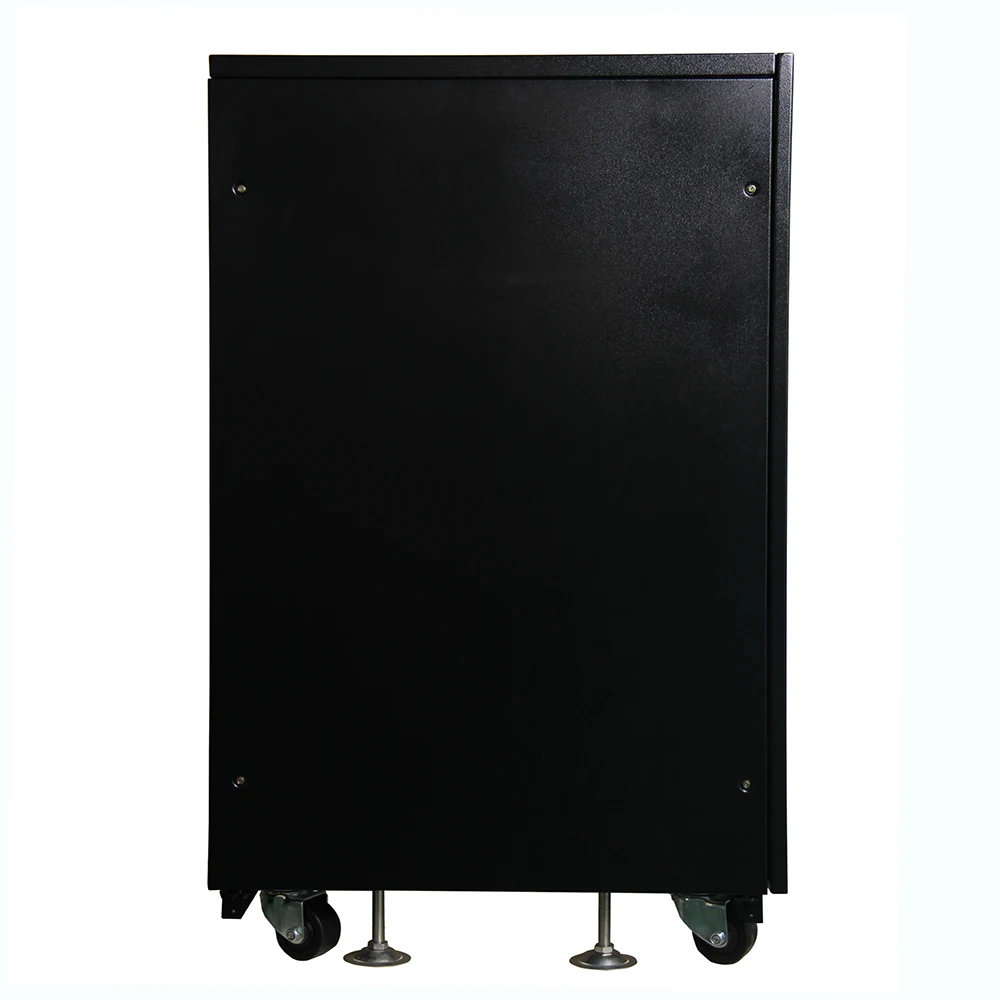

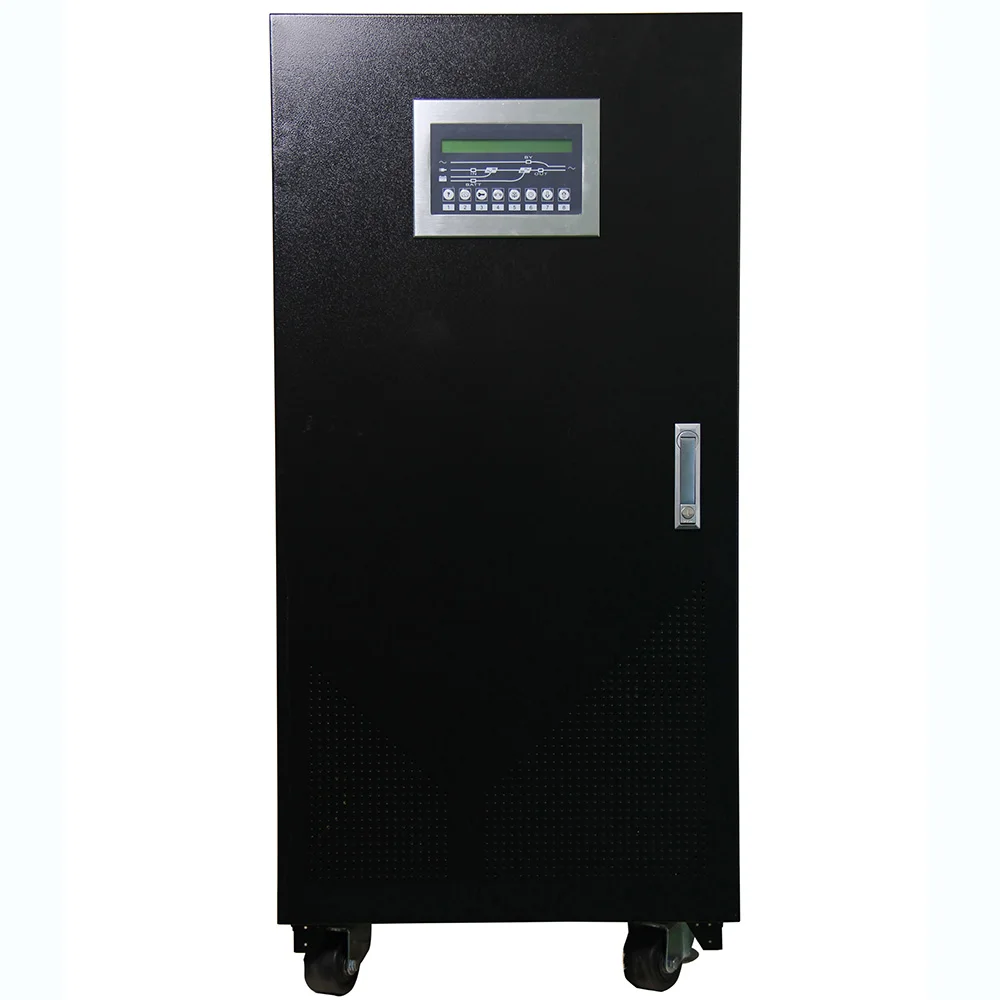

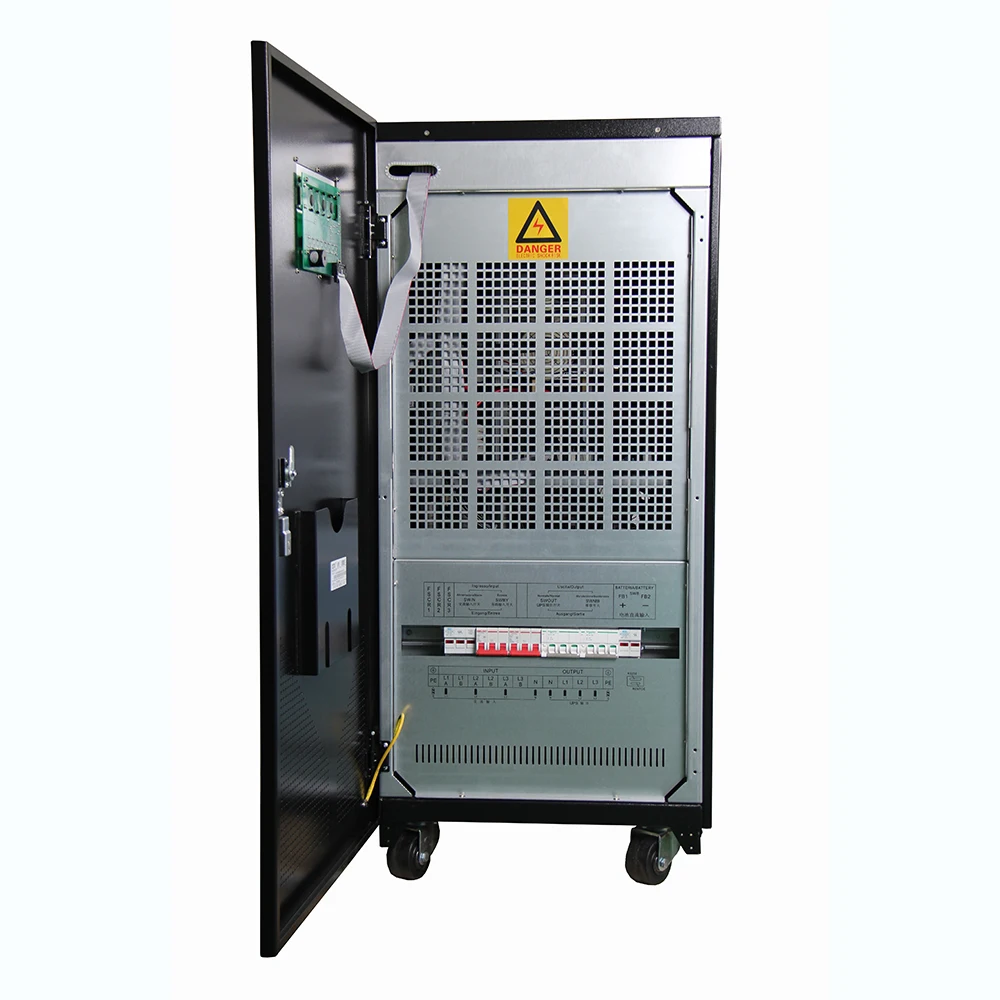

30KVA 3 phase 380V UPS power supply for industrial
30KVA 3 phase 380V UPS power supply for industrial
30KVA 3 phase 380V UPS power supply for industrial
30KVA 3 phase 380V UPS power supply for industrial
30KVA 3 phase 380V UPS power supply for industrial
30KVA 3 phase 380V UPS power supply for industrial
30KVA 3 phase 380V UPS power supply for industrial

30KVA 3 phase 380V UPS power supply for industrial

Share on (1600596194496):


Price:$2,400.00 - $2,800.00

Quantity:


Product Overview

Description





Main Features


■Double conversion on-line UPS;
■3 phase in 3 phase out;
■Transfer time 0s;
■High reliability operation with pure sine wave;
■Low frequency with isolated transformer;
■Wide AC input range 380V/400V/415Vac±25%;
■Stable AC output voltage 380V/400V/415Vac±1%;
■Strong anti-impact ability with IGBT technology;
■Completely digitized control technology;

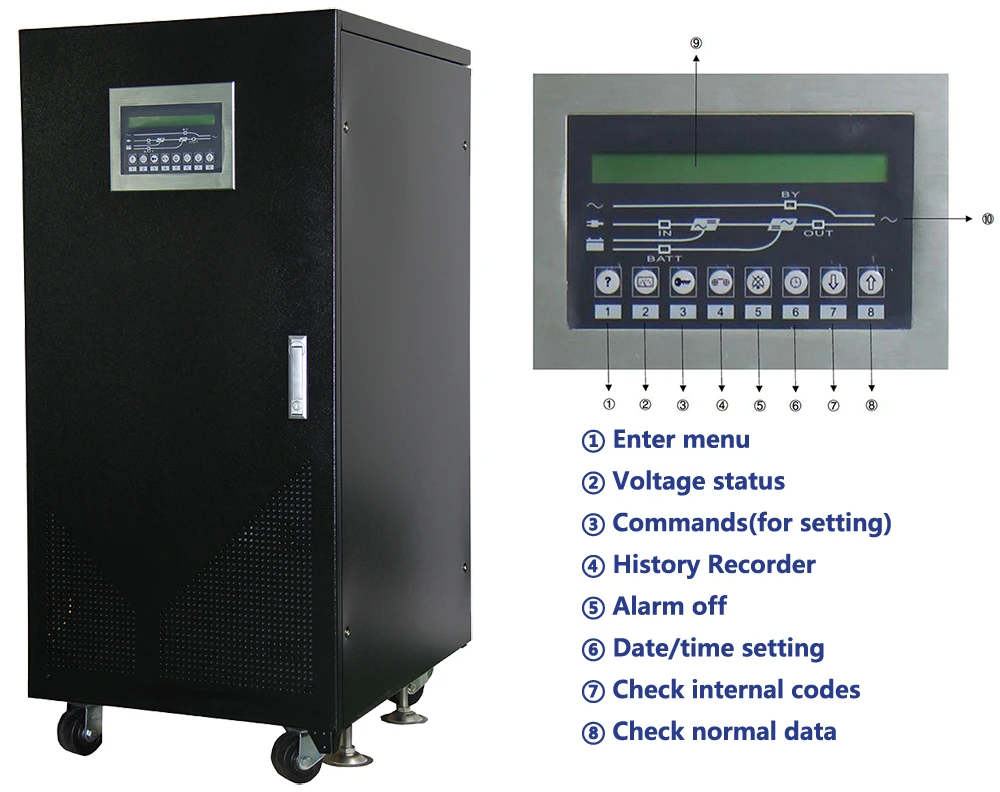

■LCD+LED display or LCD touch screen display optional;
■Reliable and comprehensive protection, Short circuit; Over voltage; Overload and so on;
■Battery optimization good performance with smart battery management (ABM) technology
current function;
■Widely application: Telecom, Banking, Securities, Industry, Transportation, Electrical power, instrumentation application and etc.


Technical Parameters


Model
JK10KVA
JK15KVA
JK20KVA
JK30KVA
JK40KVA
JK50KVA
Rated power
8KW
12KW
16KW
24KW
32KW
40KW
Power factor
＞0.8
Display
LED
Including the state of input, inverter, bypass and battery
LCD
Input & output voltage, frequency, battery voltage, present of loads, internal humidity
Rectifier
Input nominal voltage
380VAC
Range
±25% three phase four wires input
Input nominal frequency
50/60Hz±5%
Output wave form
Pure sine wave
Charger
Charge mode
Constant current first, then constant voltage;
floating charging and Equalized Charging automatically convert
Floating charge voltage
432VDC
Equalized Charge voltage
464VDC
Charge current
1-10A(user adjustable)
Battery
Battery type
free-maintenance, lead-acid battery, 2V battery; gel type battery
DC voltage
384VDC
Battery capacity
Unit 7-999AH optional ( different capacity, difference charge current)
Inverter
Nominal voltage
380VAC
Output voltage stability
±1%(Steady-state load) ±5%(Load fluctuations)
Frequency stability
50/60Hz±0.5%
Crest factor
>3:1
THD
pure sine wave <3%(linear load)
overload capability
110%300mins 125% 10mins 150%1mins
Efficiency
>97%(With copper transformer)
Bypass
Rated voltage
380VAC
Bypass voltage range
380V±20%(10%15%20% adjustable）
Rated frequency
50/60Hz auto identification
Bypass frequency range
±20%(±1% to ±5% adjustable)
Transfer time
0ms
Protection Function
Input protection
overrun high or low input, overrun frequency
Output protection
overcurrent, short circuit, low power factor
Battery protection
over charge, over discharge protection
Temperature protection
environmental overheating, inverter over temperature protection
hardware fault protection
Auxiliary power anomaly, circuit breaker tripping, fuses disconnect and the power device over-current voltage protection
Environment
Ambient temperature
0-400C
Cooling mode
forced ventilation
Surge capacity
(0/700µs,5KV) 8/20µs,20KA
Noise dB
58dB-70dB
Protection class
IP21
Security capability
Input and output electrical resistance to ground 3000VAC, leakage less than 3.5mA, insulation resistance> 2mW (500VDC)
GENERAL
Dimension (mm)
555*725*1120
Net Weight（Kgs）
212
244.5
255.5
301.5
350
400
Option
Display
Touch Panel
Communication interface
RS232;dry contact interface; remote control(SNMP)
Redundancy & Parallel
serial hot backup or redundancy & parallel


Product Details






Application

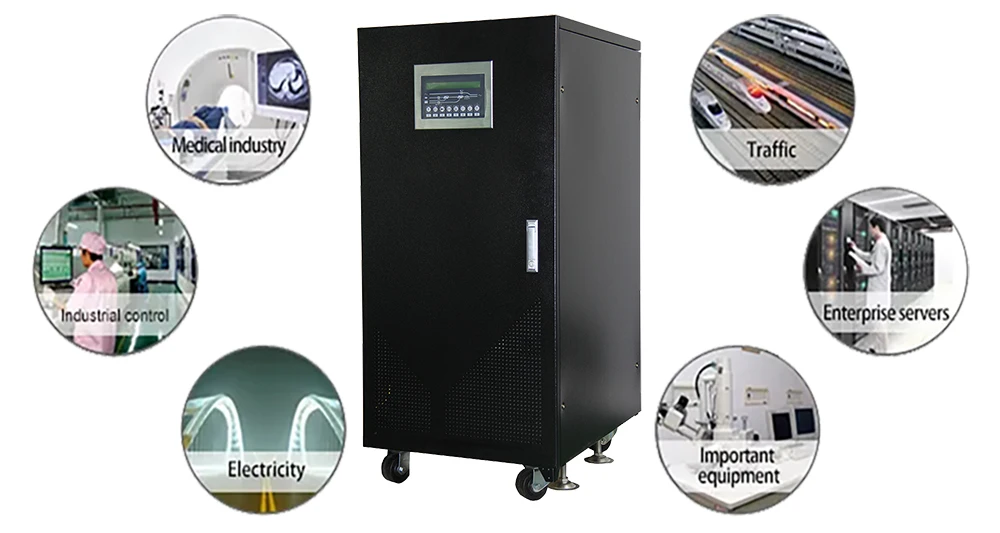

This series of UPS is a low frequency UPS. It adopts power frequency technology and high-quality materials to provide users with stable and isolated clean power. So it is suitable for various scenarios, such as medical treatment, banking, transportation,communication, factories, etc.

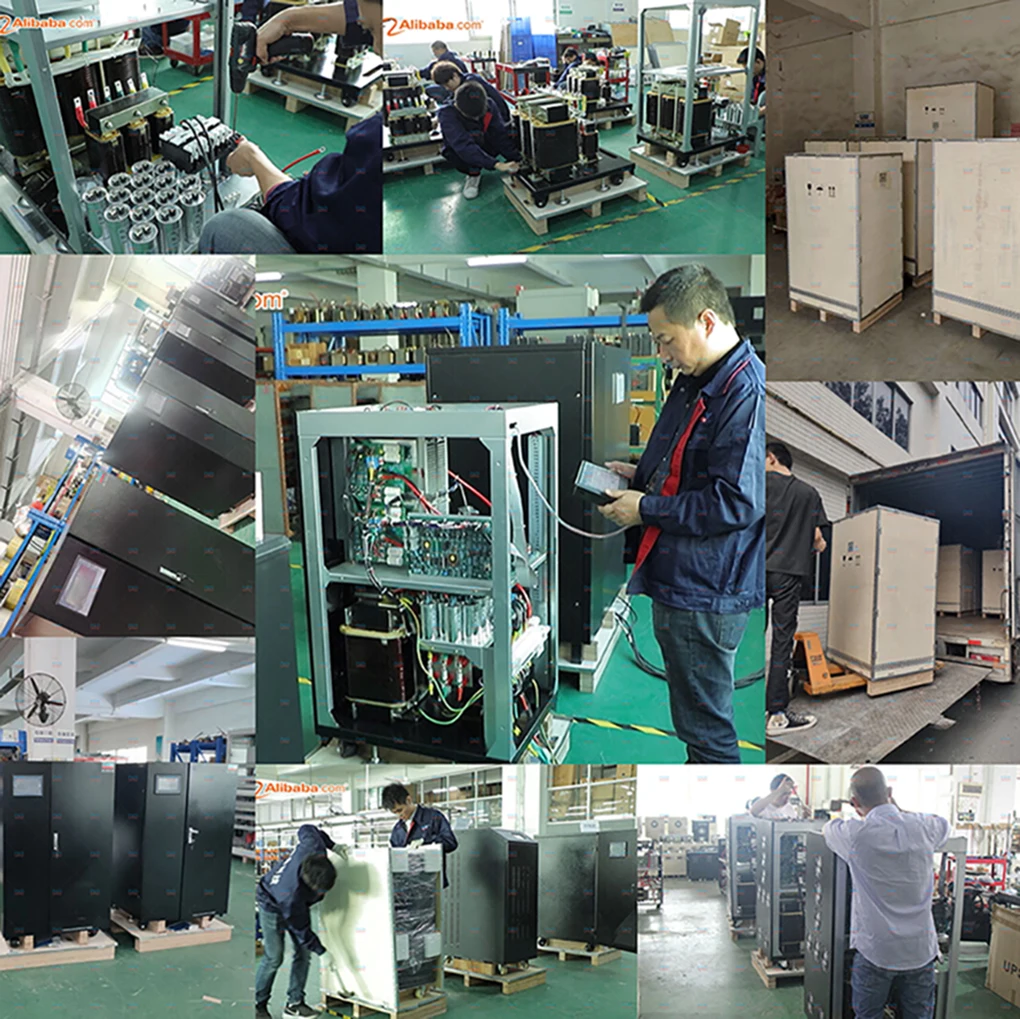

Production & Packing & Delivery


Each UPS will go through strict quality control and testing to ensure that users get a high-quality UPS.




Company Profile


Foshan Panpower Science & Technology Co.,Ltd is the earliest manufacturer in China, producing power supply products. We have independent intellectual property and strong design and development capability. Our products include UPS power, kinds of inverter,EPS, voltage stabilizer, maintenance-free sealed lead acid battery. Our products are applied to many industries, such as aviation,railway, bank, security, electric power, road, national defense, insurance, electrical power and others. The customs, hospitalsand governments give us a good evaluation due to our competitive price, high quality and complete service.








FAQ


Q1: Are you a factory?
A1: Yes, we are a factory specialized in UPS field over 20 years.
Q2: Are your UPS pure sine wave output?
A2: Yes, all of our UPS are pure sine wave output.
Q3: What kind of output you can do?
A3: Normally we produce UPS with 110V/120V/220V/230V/240V/380V/400V/415V, 50Hz/60Hz.If you have special requirements, pls tell us for engineer consulting.
Q4: What is the warranty time?
A4: Normal 1 year, 2~5 years is negotiable.
Q5: What is the payment way?
A5: T/T, Western Union, Moneygram, Paypal, LC
Q6: What is the delivery time?
A6: 1~7 days for sample, 3~25 days for bulk order.
