China WOLF best selling Mini780T small loader with 1 ton loading capacity
- Category: >>>
- Supplier: Qingdao Zongjin Engineering Machinery Co. Ltd.Qingdao Ltd.
Share on (1600596195014):
Product Overview
Description
Product Description
Mini 780T is one innovative loader, with new completely appearance, from new structure, frame, rear
hood and cabin, you can easily find out the differences from traditional loader. Open cabin and enclosed
cabin meets your different demands. It has been widely welcomed by European customers when published.

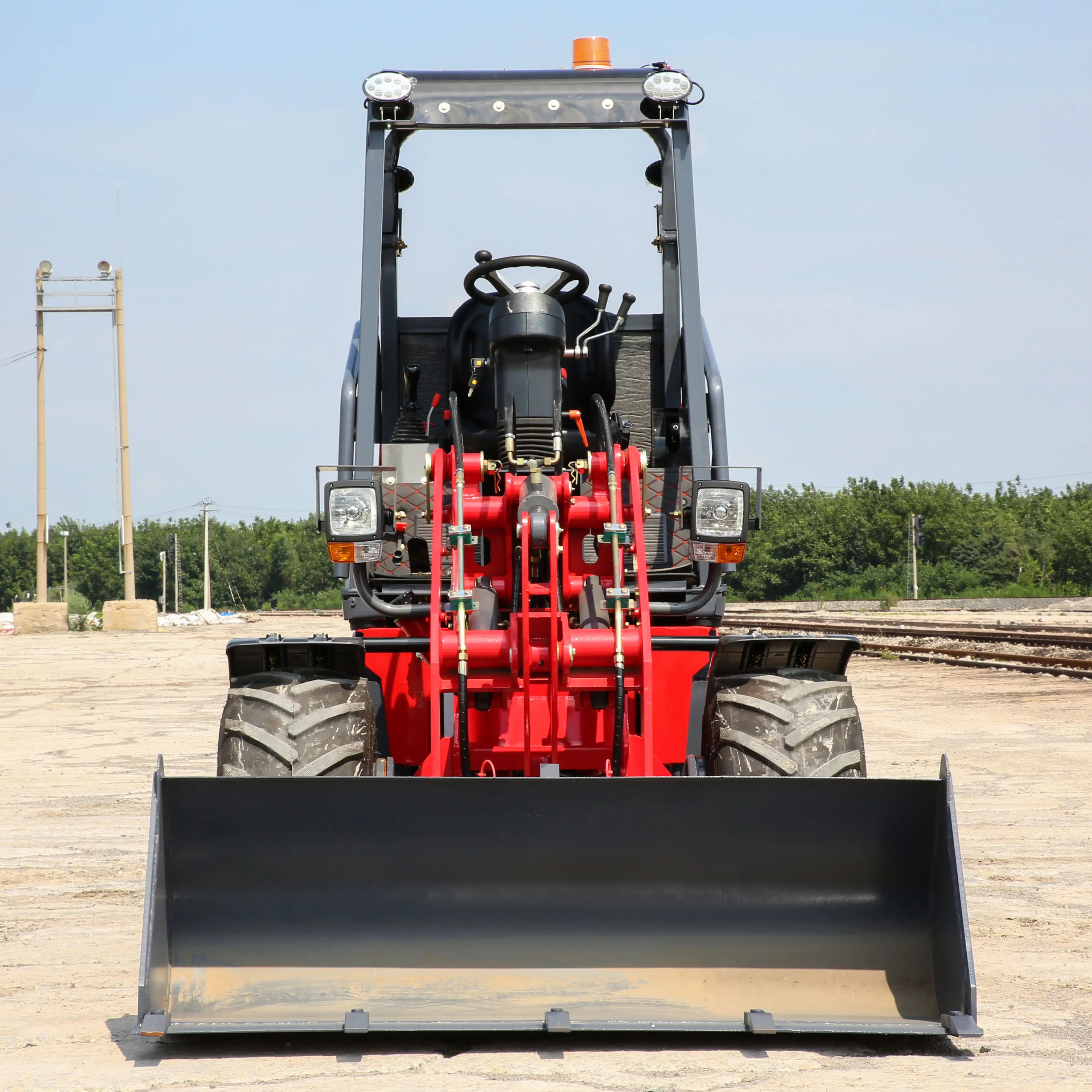

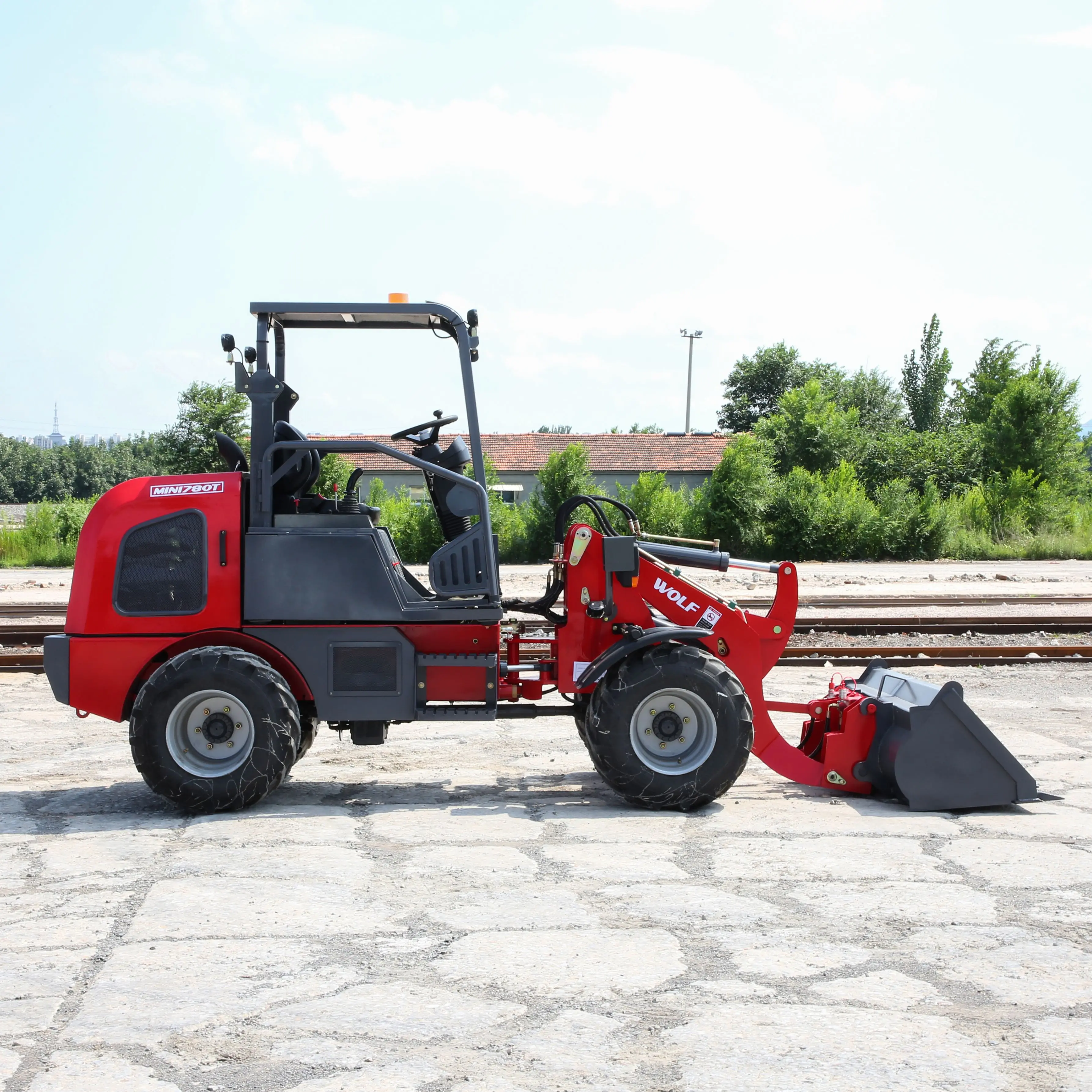

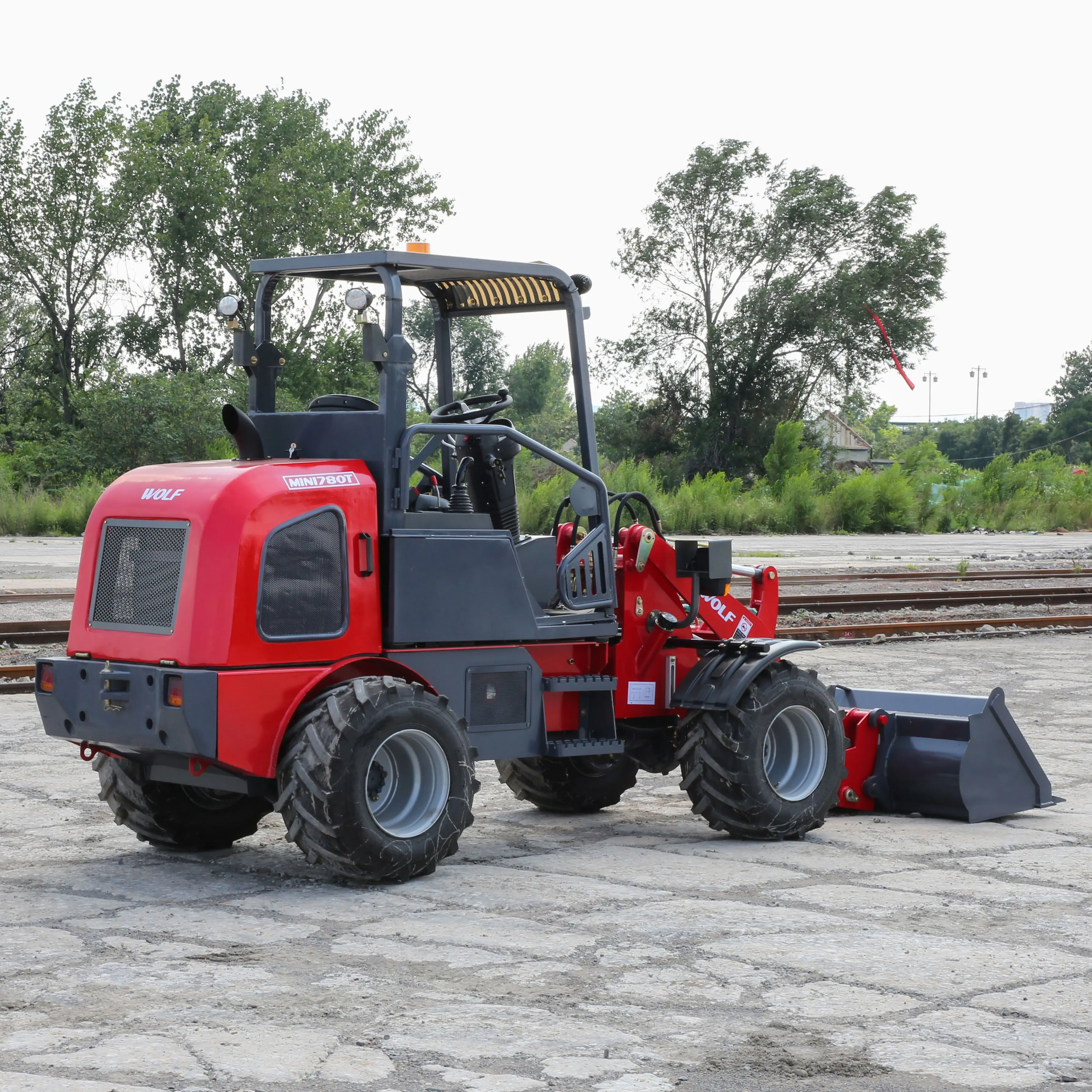

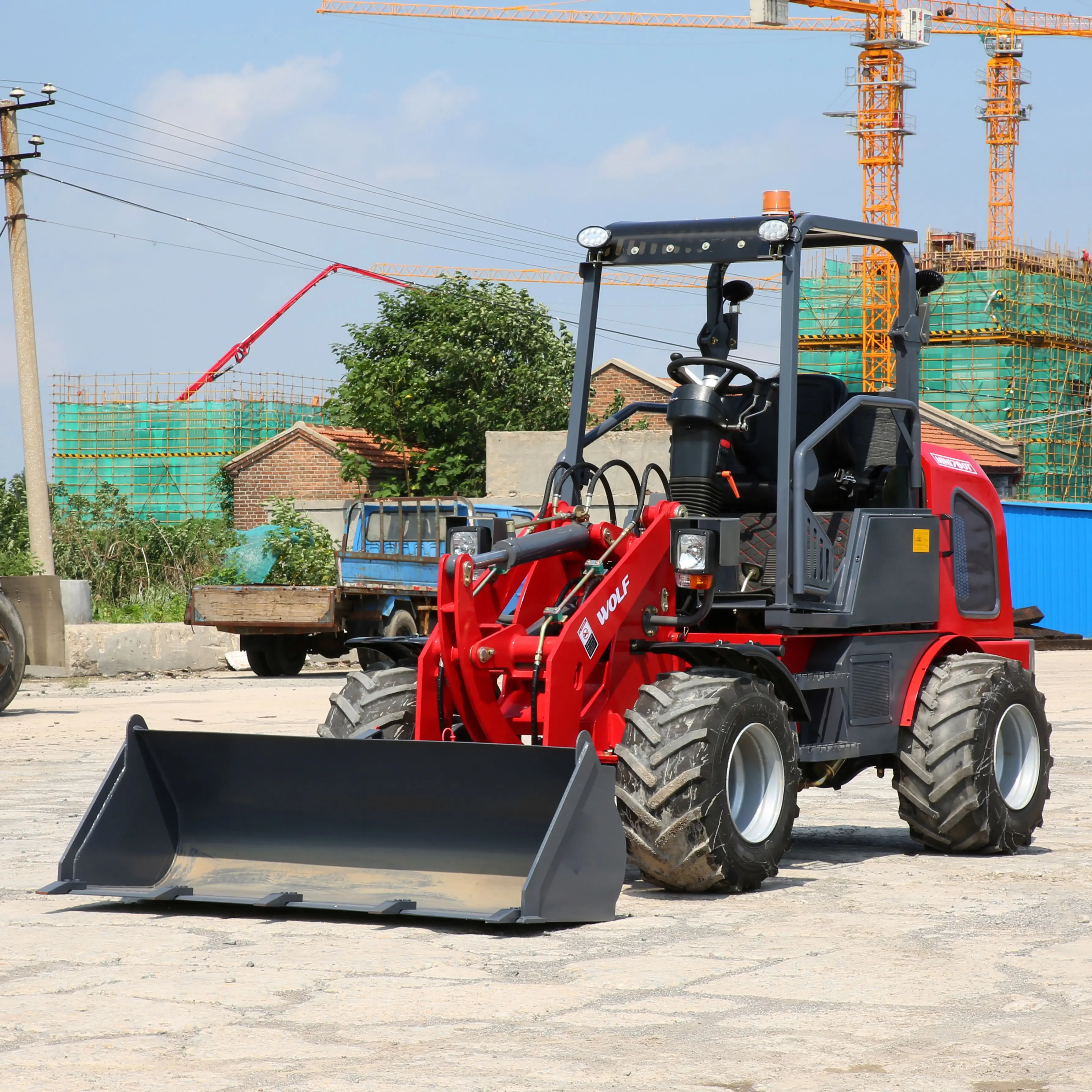

Mini780T with open cabin

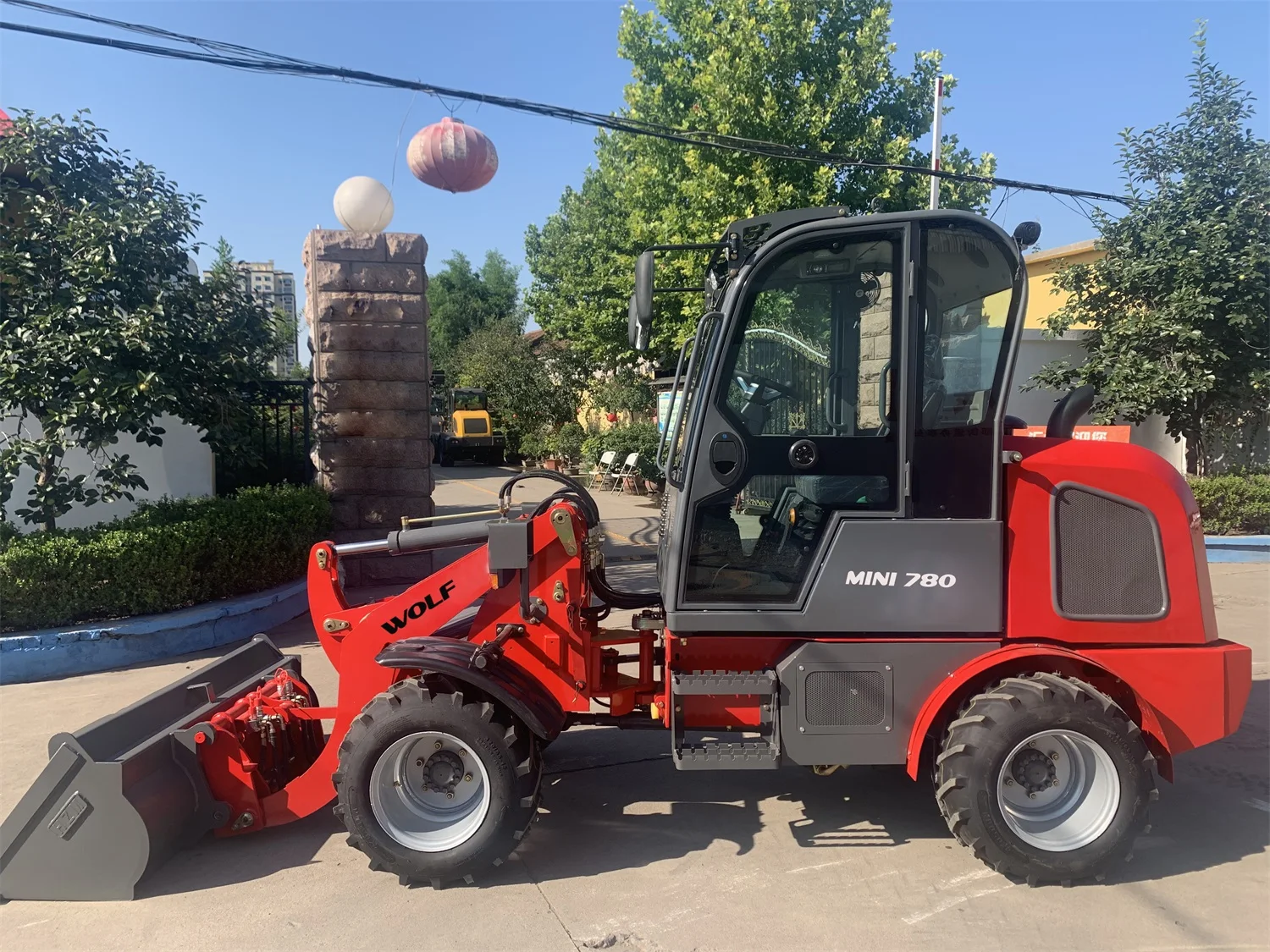

Mini780T with enclosed cabin

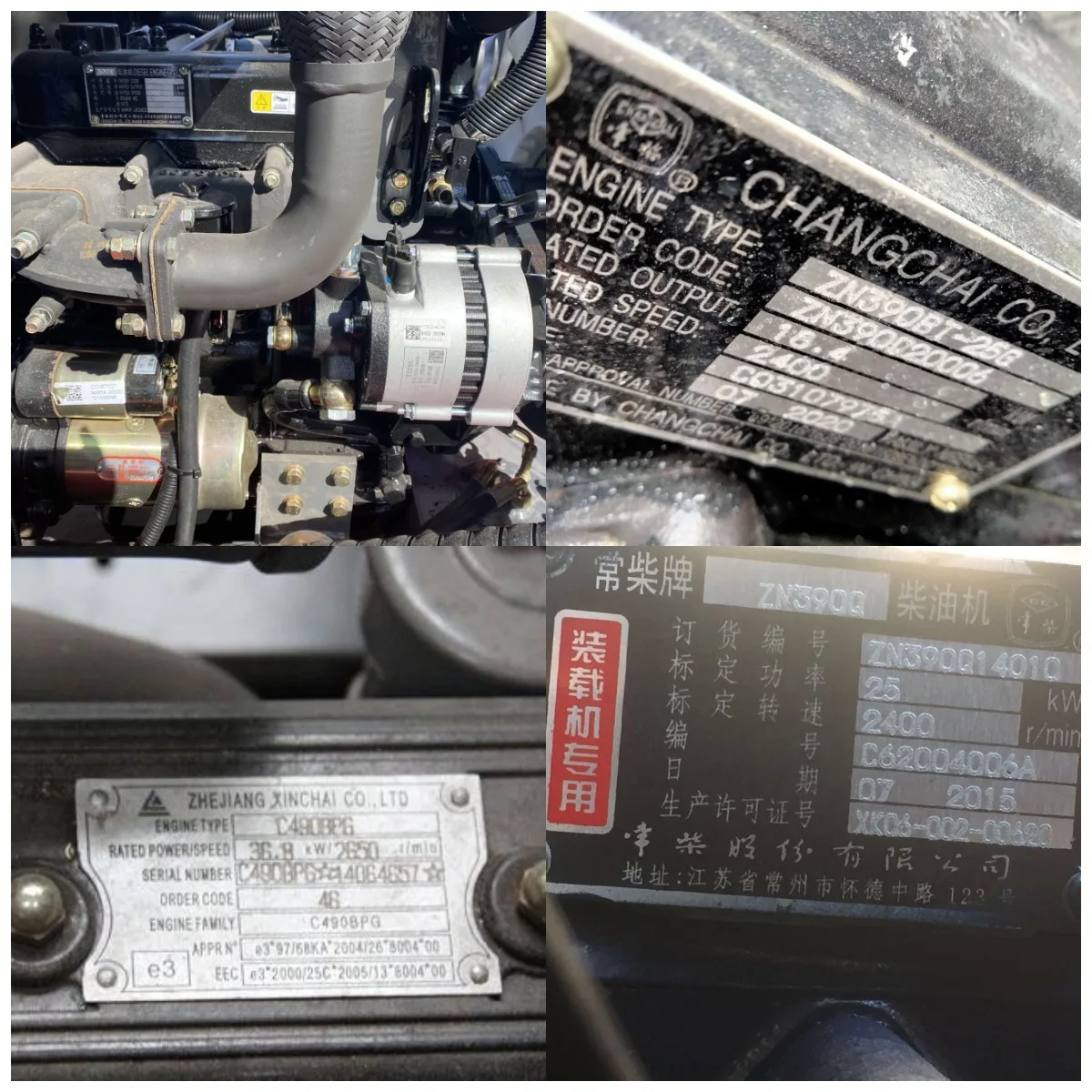

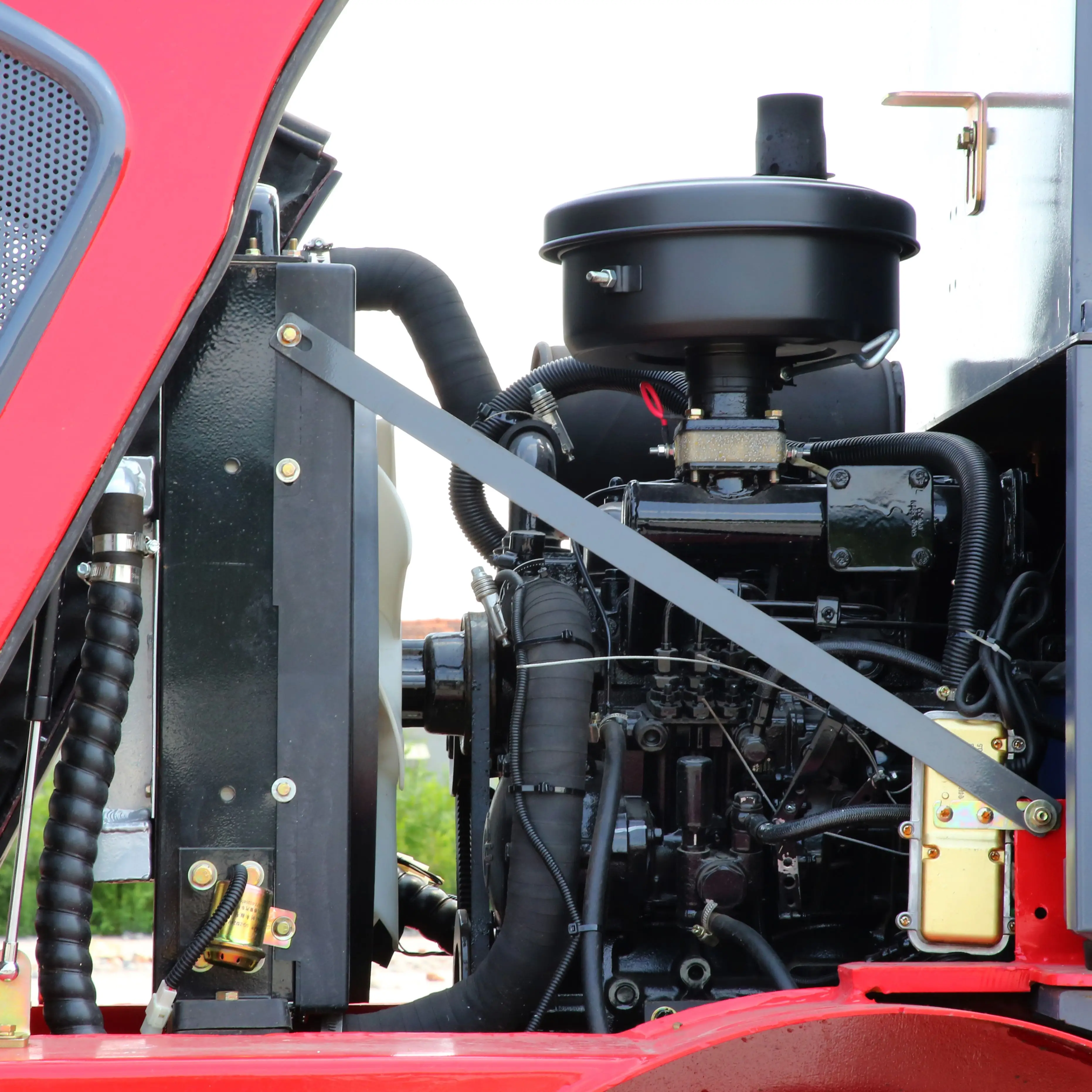

Engines:
The standard engine is Changchai ZN390Q engine, which has good torque and is economical in
consumption, and you can also choose optional Xinchai 490 Euro 3 engine or Changchai 390 Euro 5
engine based on different engine emmission standards in different markets. Always one for you!

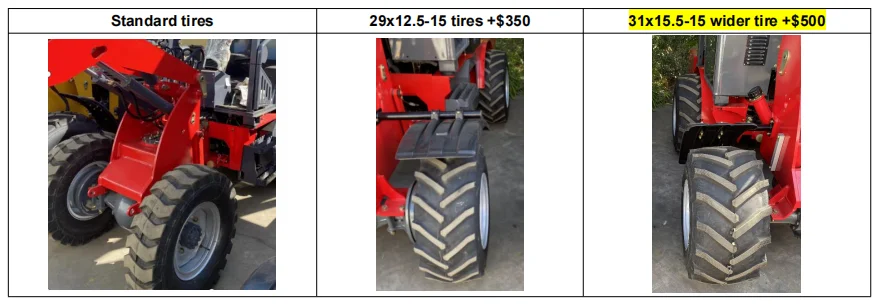

Tires:
We have different tires for you to choose based on your working conditions. Standard narrow tires, a
little wider 29x12,5-15 tires, and the most common used 31x15.5-15 tires. You can always customize
your own loader.
Specifications:
Whole drive system | Hydraulic system(torque converter) | |
Specification | Overall weight (kg) | 2650 (with cab) |
2550 (with roll bar) | ||
L×W×H(mm) | 4500×1550×2440 | |
Rated bucket capacity(m3) | 0.5 | |
Rated load(kg) | 1000 | |
Dump height (mm) | 2000 | |
Dump distance(mm) | 800 | |
Wheel base(mm) | 2145.07 | |
Thread(mm) | 1175 | |
Total time(s) | 8 | |
Engine | Standard Model | ChangchaZN390 |
Type | Direct injection, Horizontal, Water-cooled, 3 stroke | |
Rated power(KW) | 25 | |
Rated speed(r/min) | 2400 | |
Steering system | Max. turning angle | 40 |
Min turning radius(mm) | 3800-4200MM | |
Hydraulic system | Working pressure | 16Mpa |
Boom lifting time | 4.2S | |
Tank capacity | 30L | |
Stand bucket | Width (mm) | 1600 |

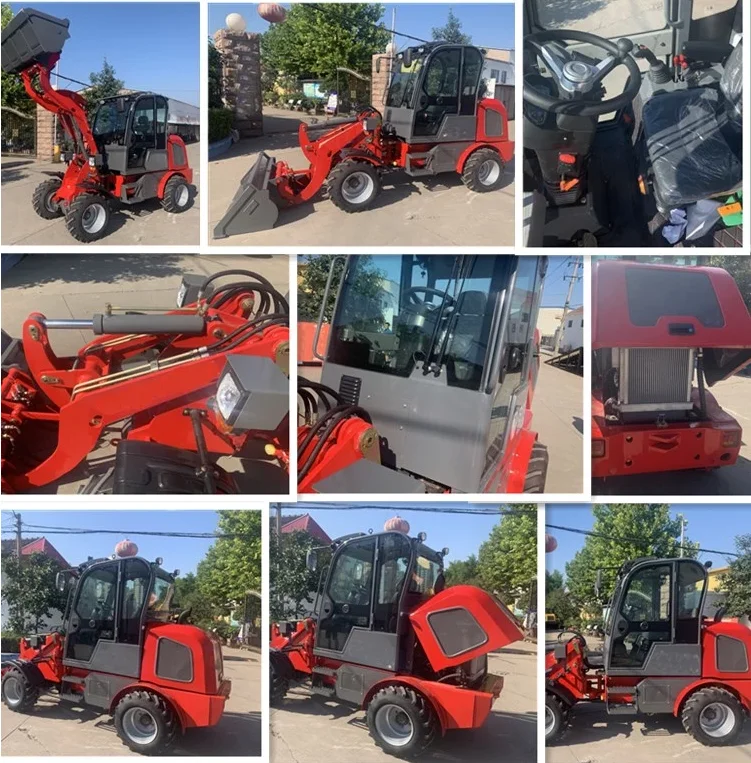

Details:
We cannot produce perfect loaders, but we are always trying our best to be better in every detail.

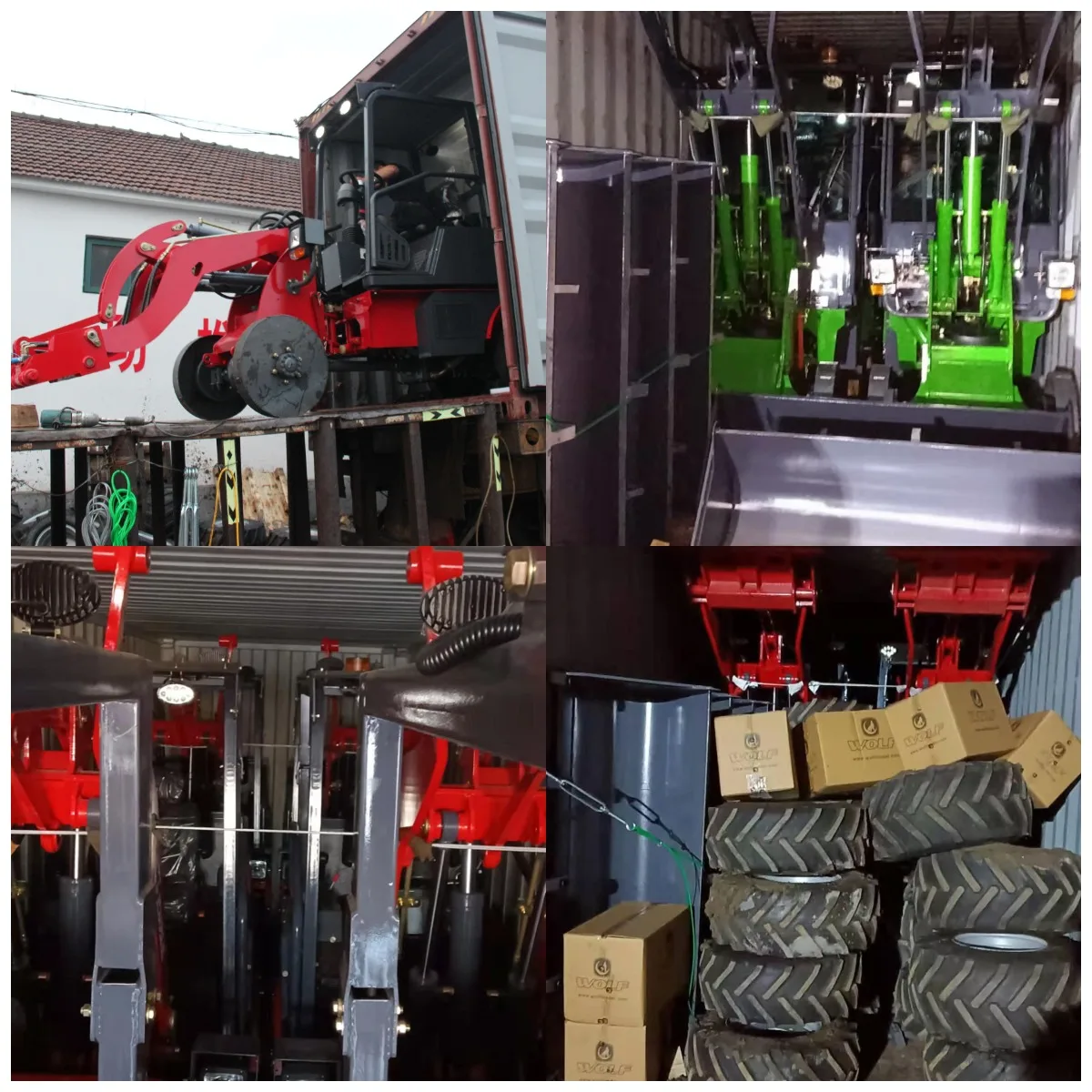

Shipment:
Considering the high shipping cost to all over the world from China. We have been always thinking of
making good use of every container space to try to load as many loaders as possible in one container.
We have found a way (to change the tires with small wheels) to load 6 sets of Mini780T loaders in one
40HQ container, this has helped our dealers in great way to reduce freight and win more profit.
Certifications:
All of the machines are CE approved. Quality can be assured.
A variety of attachments for your specific need.
Customer Feedbacks
Your satisfaction is always our goal.
FAQ
Q: Why should I choose Wolf instead of other brands?
A: With 11 years exporting experience, Wolf has been a well known brand in the market, now you can see
Wolf machines working in more than 70 countries. What we can provide:
· Qualified machines with CE certification.
· Easier access and zero-profit spare parts support.
· Timely service (any of your questions will be answered within 12 hours).
· Customized equipment with all kinds of attachments.
Q: What is your delivery time?
A: The delivery time is around 30 working days. It also depends on the models and the quantity of your order.
In peak season,the production may take longer.
Q: What is the payment term?
A: Normally the payment term is T/T 30% as deposit, balance 70% before shipment.
Q: What color can I choose?
A: There are Yellow, Red, Blue, Black, White, Orange,and Green. We can customize the color when you order more.
Q: What about the after sales? How can I get spare parts?
A: We have 1 year warranty for each machine, within 1 year, if any parts broken because of quality issues, the new
parts would be sent to you free of charge by DHL, within 5 working days. We have professional after-sales team to
support you at any time no matter the machine is within warranty or not.
