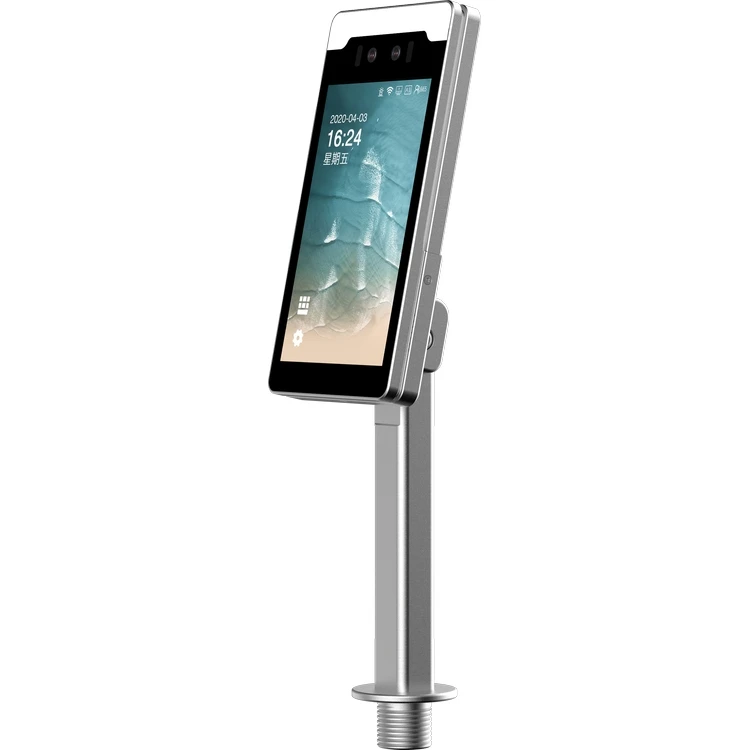

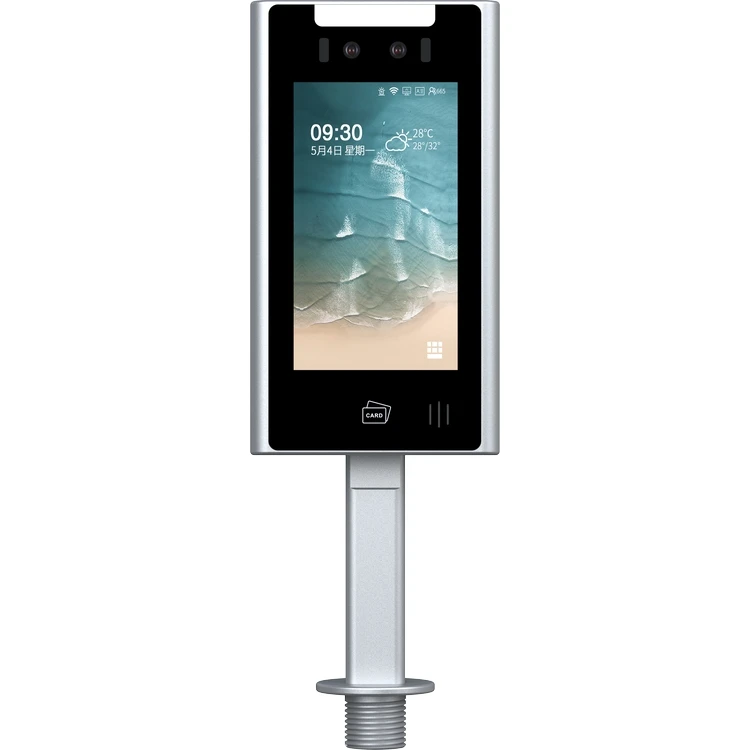

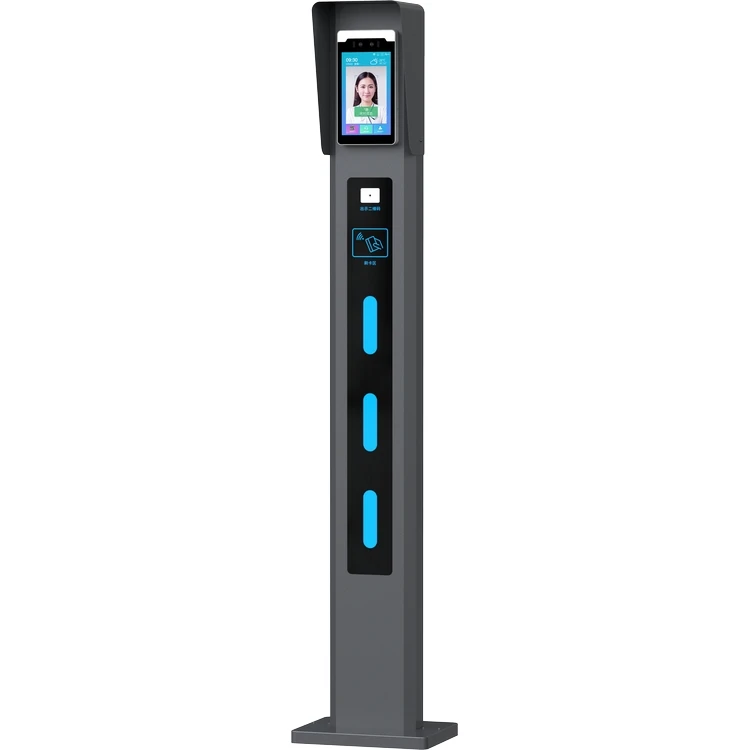

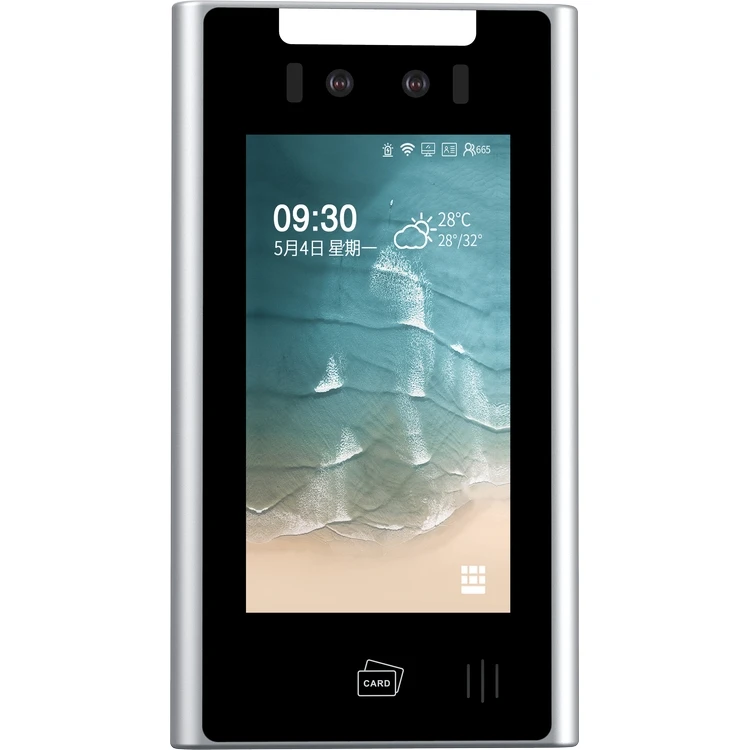

SDK IP Biometric AI Face Recognition Terminal Temperature Measurement Machine Facial Recognition
- Category: >>>
- Supplier: Shenzhen Xinyun Technology Co. Ltd.
Share on (1600596233715):
Product Overview
Description
Products Description
Product model | -608R-B1-A2 | -608R-L3-A2 | ||
Basic parameters | Installation scenarios | Wall installation | Gate installation | |
Operating temperature and humidity | 10ºC to 36ºC, <90ºC RH | |||
Protection level | IP54 | IP54 | ||
Application scenarios | Indoors (No interference from sunlight and wind) | |||
Dimensions | 238*128*21.5mm (Height*Width*Thickness) | 389*128*21.5mm (Height*Width*Thickness) | ||
Material | Aluminum alloy | |||
System parameters | System | Embedded Linux system | ||
CPU | High-performance embedded processor | |||
Storage | Internal storage 1GB, data storage 8GB | |||
Display screen | 8’’ HD LCD with resolution of 800*1280 | |||
Lens focus | 4.5mm | |||
Camera | Binocular camera, 200W pixels with WDR | |||
Infrared temperature measurement | Temperature measurement range | 34ºC—42ºC | ||
Temperature measurement error | ±0.5ºC | |||
Temperature measurement distance | ≤50CM | |||
Recognition performance | Recognition distance | 0.3-3m（The recognition distance during temperature measurement is less than 50cm） | ||
Recognition time | Less than 400ms | |||
Storage capacity of face database | 1: N, N<=20000（Support upgrade to 50000） | |||
Accuracy | 99% | |||
Peripheral interface | Power interface | 1 x DC12V, DC005 female 2.1*5.5 | ||
USB interface | 1 x USB2.0 | |||
Relay output | 1 x on-off output, 2PIN 3.8 spacing terminal | |||
RJ45 cable interface | 1 x RJ45 Internet access | |||
Wiegand output interface | 1 x WG output | |||
Door sensor signal | 1 x door sensor detection | |||
Firefighting linkage | 1 x firefighting linkage | |||

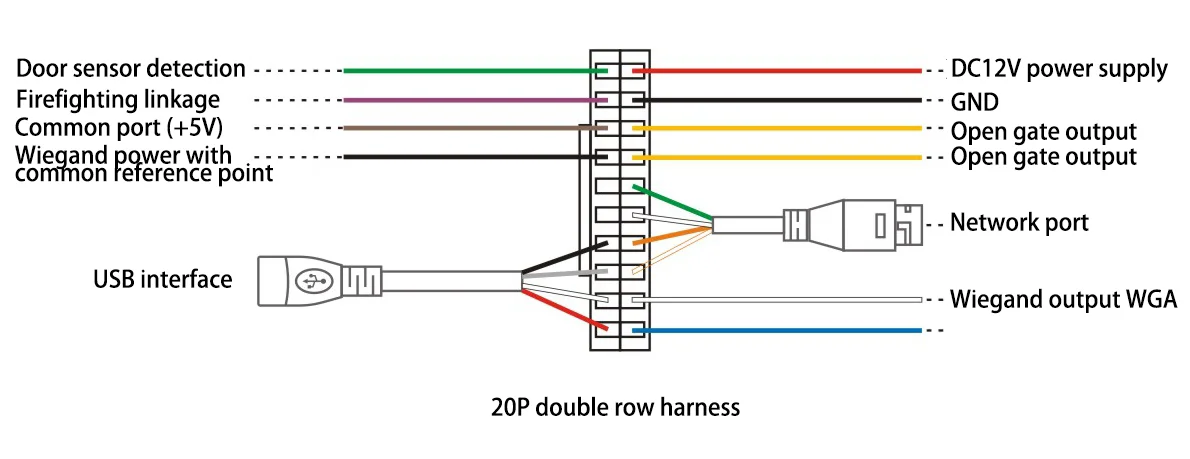

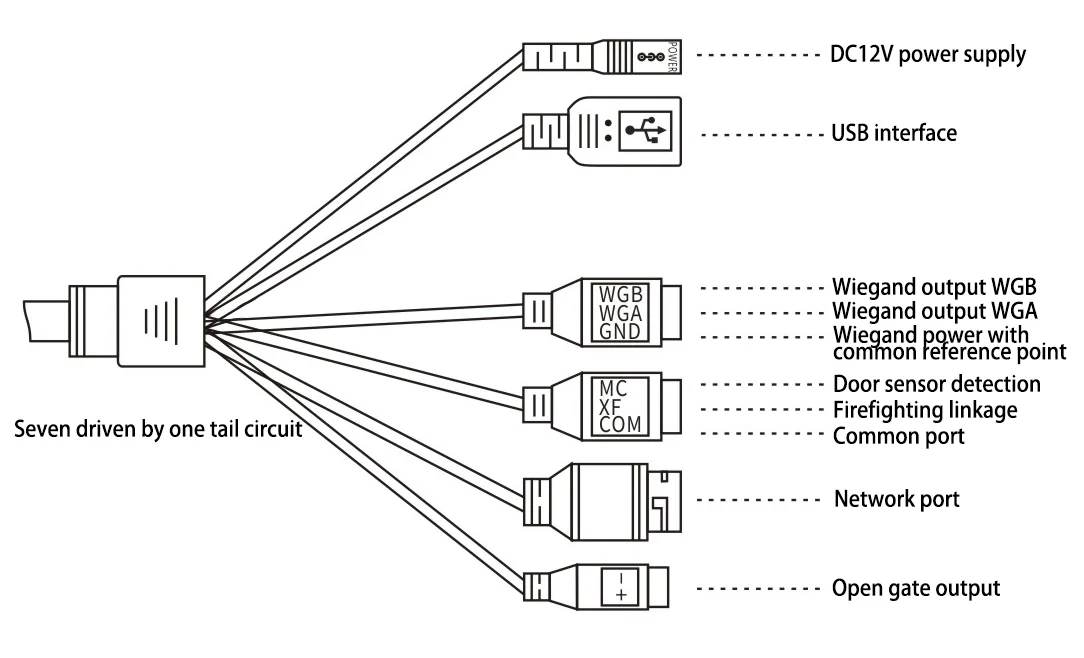

Diagram of tail circuit wiring
Wiring diagram
