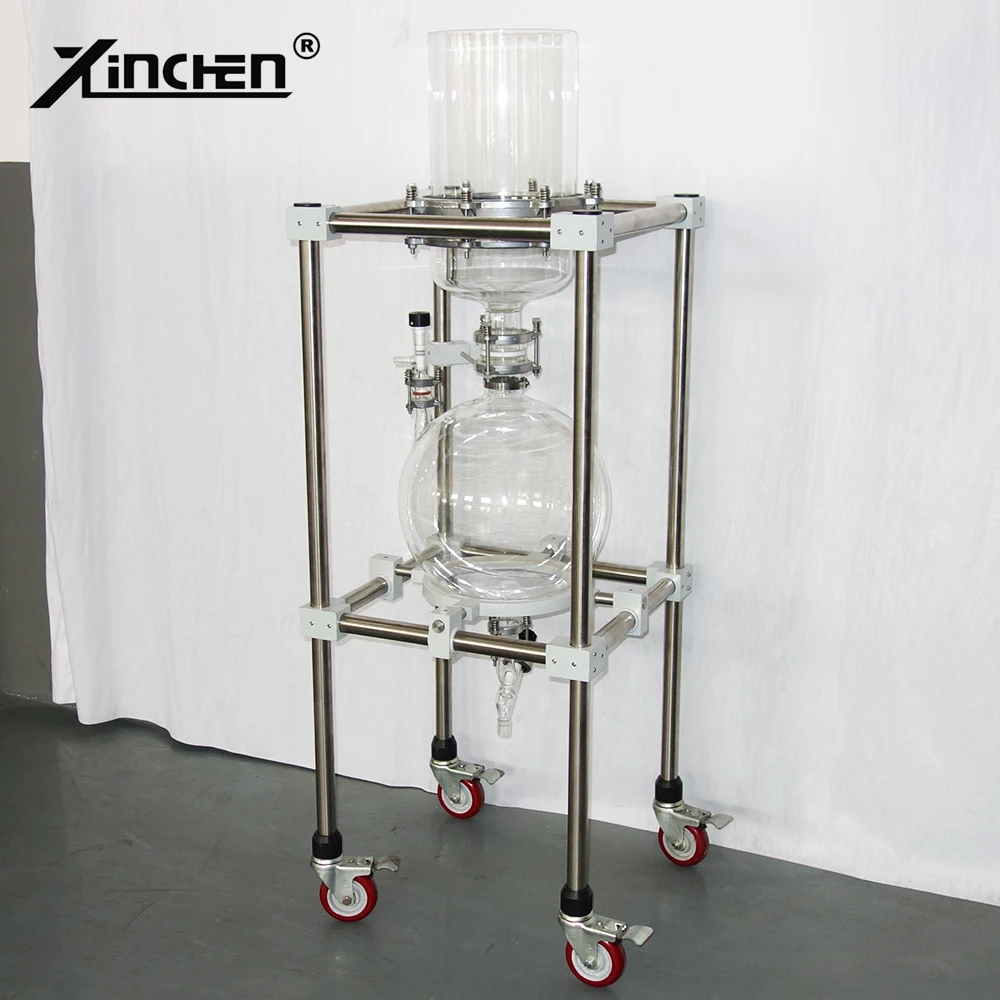

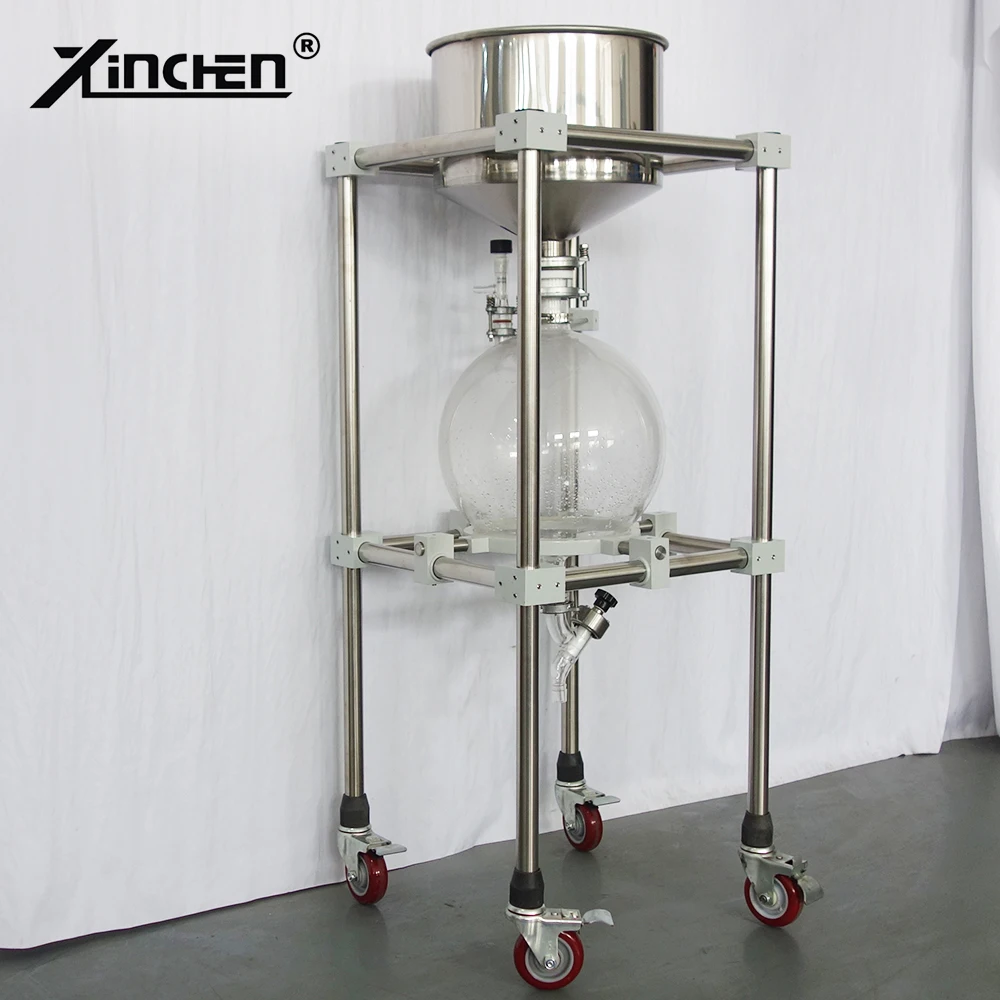

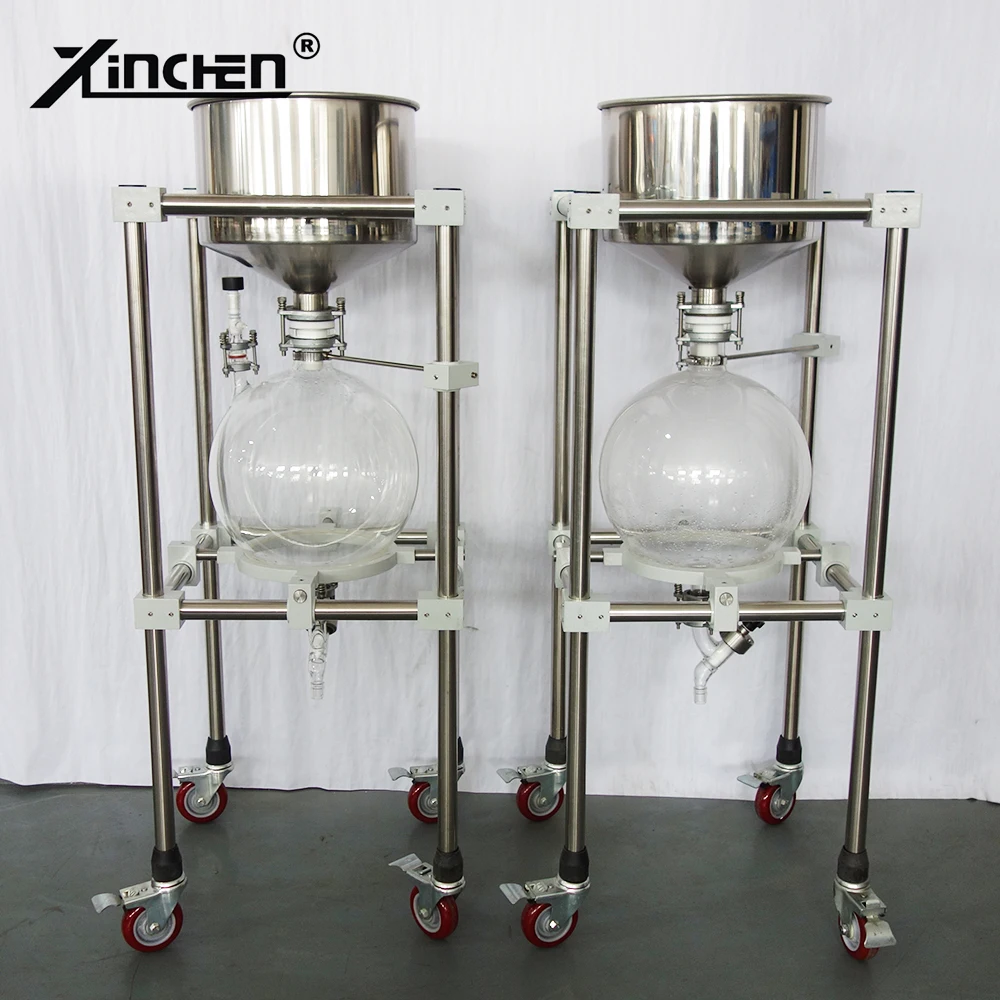

Laboratory Vacuum Filtration System 10 20 50 100 liter Vacuum Suction Filter
- Category: >>>
- Supplier: Nanjing Ningkai Instrument Co. Ltd.
Share on (1600596245356):
Product Overview
Description
Product Overview

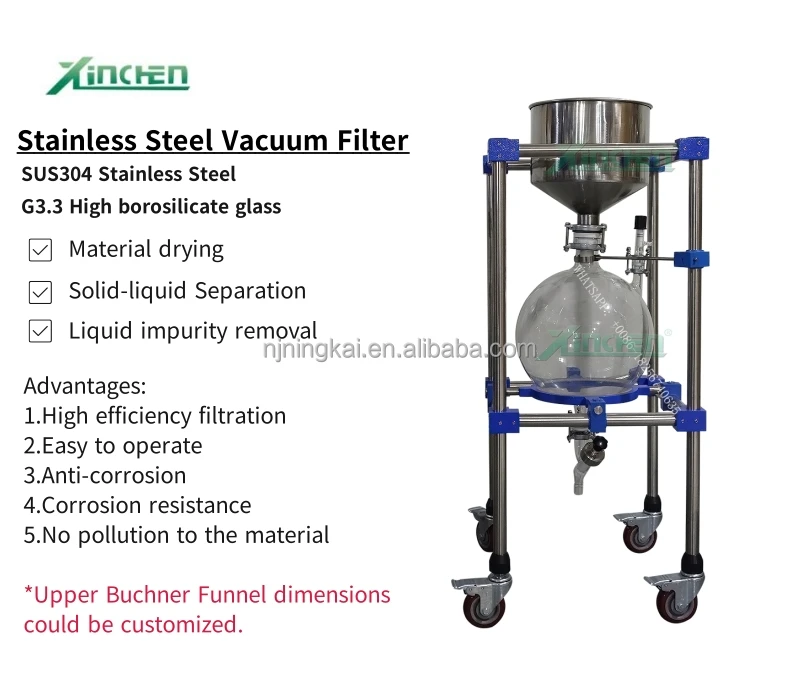

The Vacuum Suction Filter is mainly used for liquid-solid filtration under vacuum condition.
Through filtration can be done simply with gravity, more often vacuum filtration is employed because the filtration speed is much faster with high vacuum.
Liquid poured into a funnel passes through a filter, which retains the particulate, and filtrate can be collected into a filter flask, directly or via a vacuum manifold.
Product Features
1. High quality borosilicate glass 3.3 with excellent physical and chemical properties for glass parts.
2. Perfect sealing property and no dead corner design for charging solution or power more easily.
3. One vacuum value for connecting vacuum pump for processing vacuum filtration.
4. Cost-saving modular design and can be customized by clients' requirements.

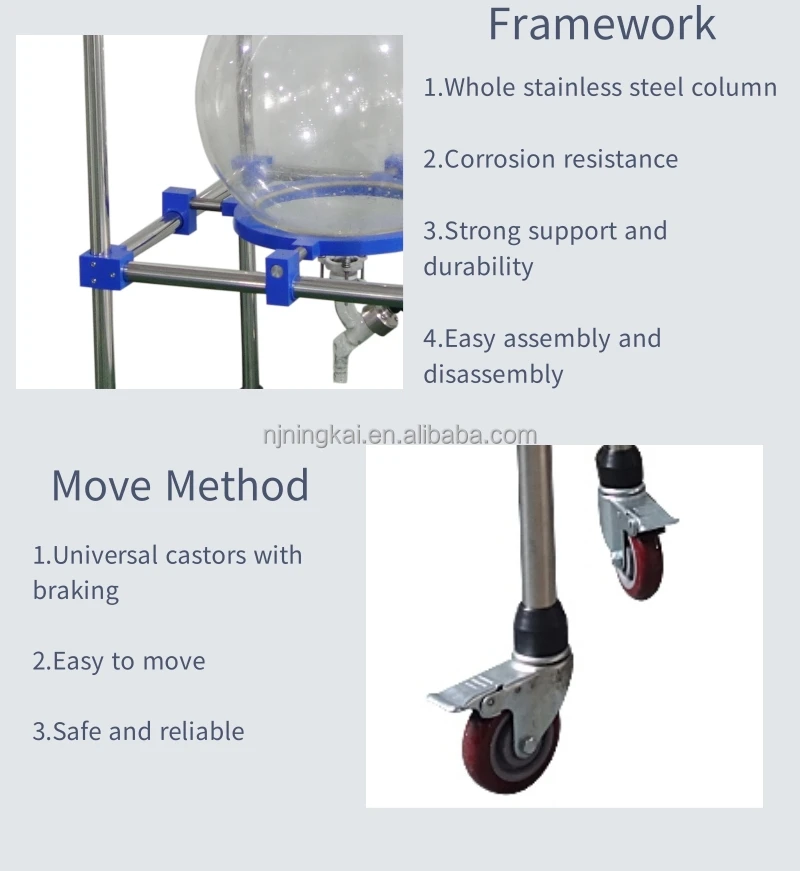

5. Safe in operation, easy to move around with lockable casters.
PRODUCT SPECIFICATIONS
Product Model | ZKQ-10L | ZKQ-20L | ZKQ-30L | ZKQ-50L | ||||
Glass Material | G3.3 high borosilicate glass | G3.3 high borosilicate glass | G3.3 high borosilicate glass | G3.3 high borosilicate glass | ||||
Funnel Material | SUS304 | SUS304 | SUS304 | SUS304 | ||||
Filter Funnel Size | φ300*200mm | φ350*220mm | φ400*240mm | φ500*280mm | ||||

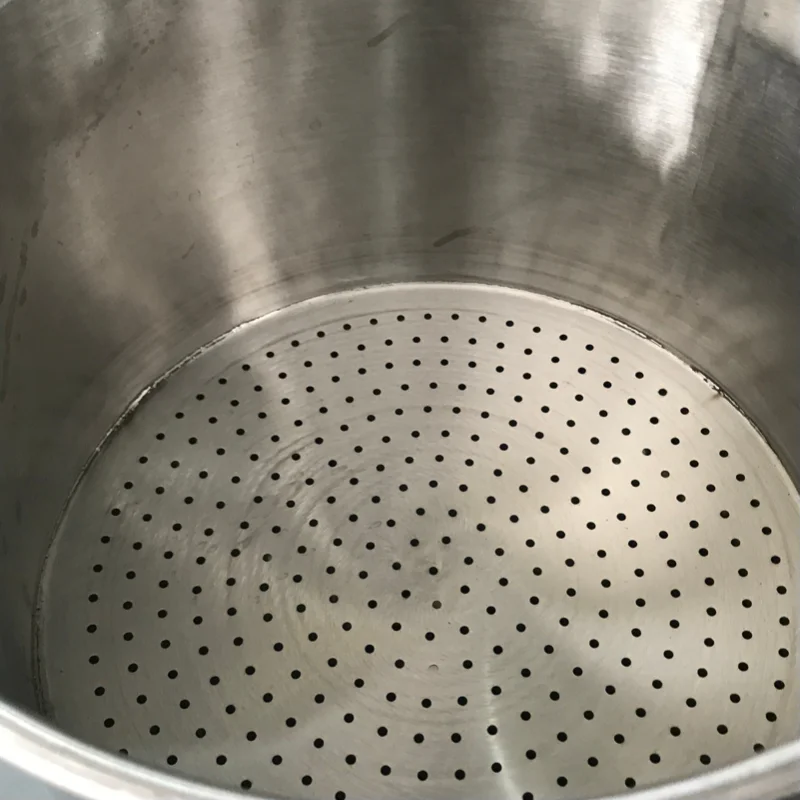

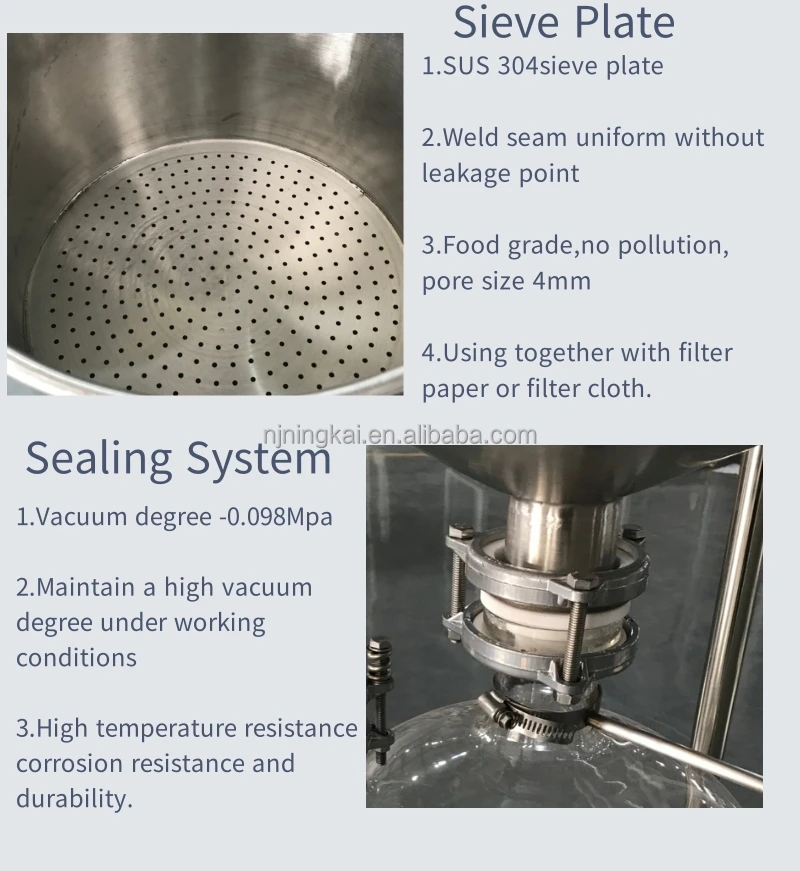

Material and Size of Seive Plate | SUS304/φ300 | SUS304/φ350 | SUS304/φ400 | SUS304/φ500 | ||||
Filtering Device | Filter paper or filter cloth | Filter paper or filter cloth | Filter paper or filter cloth | Filter paper or filter cloth | ||||
Spherical Collecting Bottle | 10L | 20L | 30L | 50L | ||||
Openings of Collecting Bottle | 3 | 3 | 3 | 3 | ||||
Suction Port | DN50 | DN50 | DN50 | DN80 | ||||
Exhaust Port | φ35 | φ35 | φ35 | φ35 | ||||

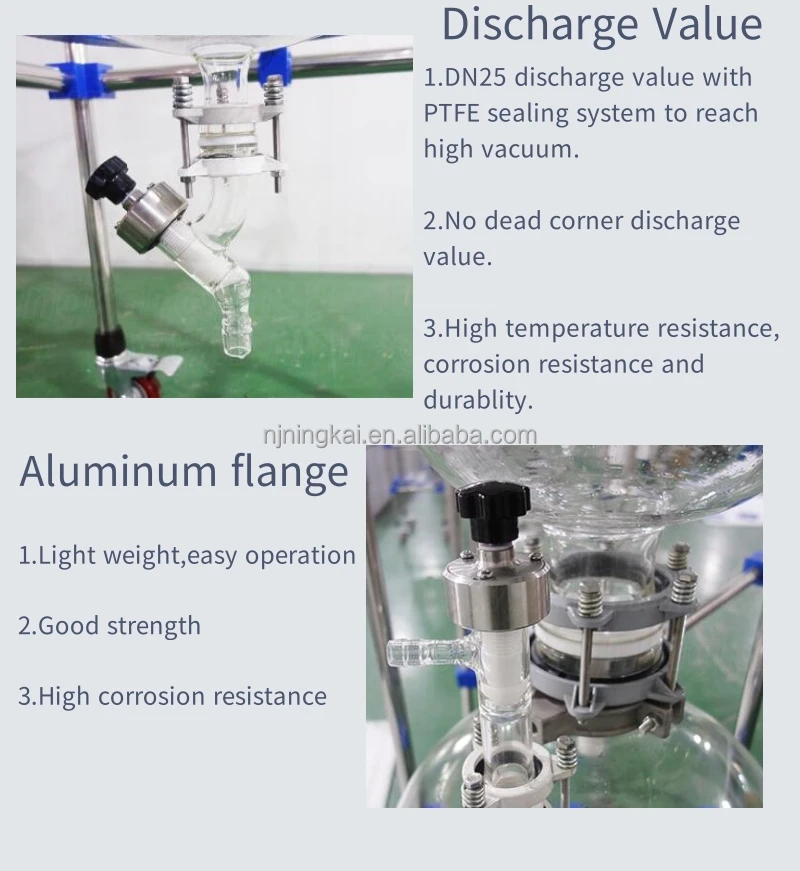

Discharge Value | DN25 | DN25 | DN25 | DN25 | ||||
Discharge Value Distance from Ground | 300mm | 300mm | 300mm | 300mm | ||||
Vacuum Degree | -0.098Mpa | -0.098Mpa | -0.098Mpa | -0.098Mpa | ||||
Frame Material | SUS304 movable framework | SUS304 movable framework | SUS304 movable framework | SUS304 movable framework | ||||
The speed of material filtration is related to the following factors: | ||||||||
1.Material characteristics (such as: the size of the material and the fluidity of solid-liquid mixing) | ||||||||
2.The pore size of the filter paper or filter cloth ( the pore size is too small to block the flow rate of the filtrate) | ||||||||
3.The size of the filter sieve plate. | ||||||||
4.The vacuum degree of the system. | ||||||||

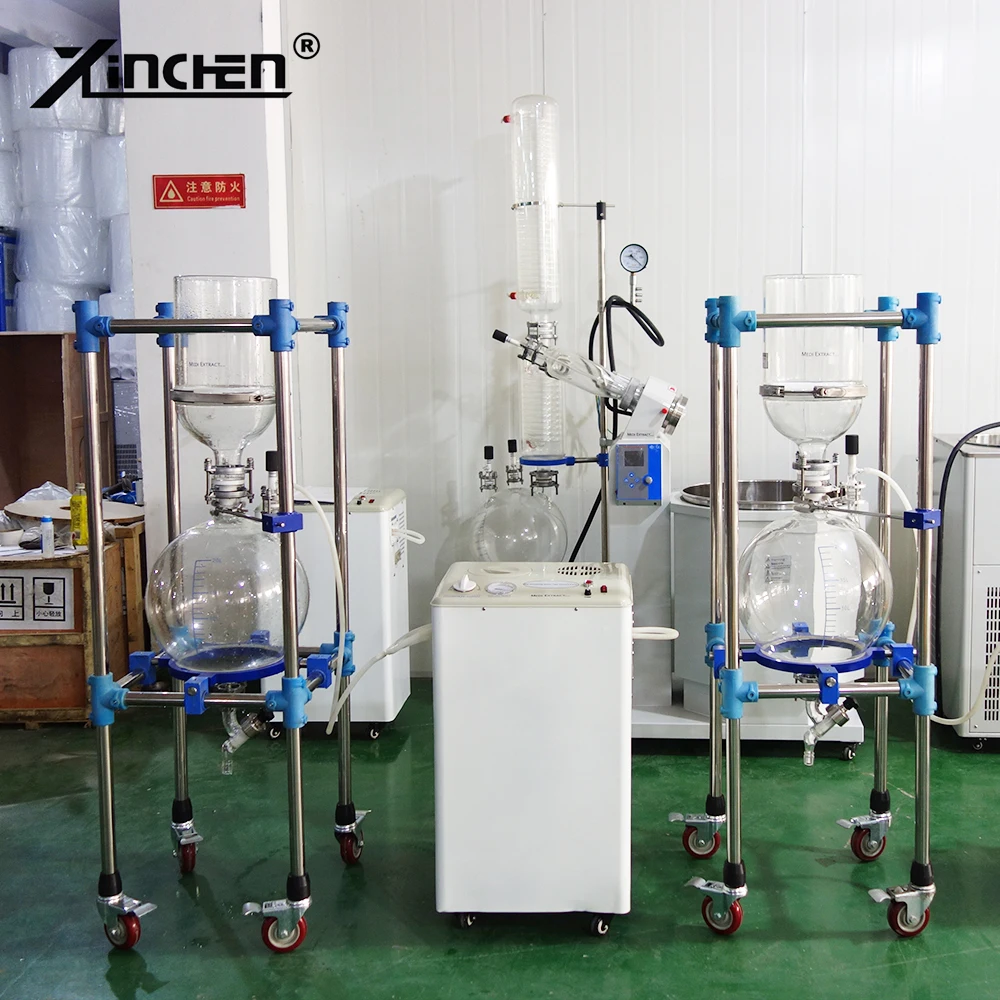

Details Images

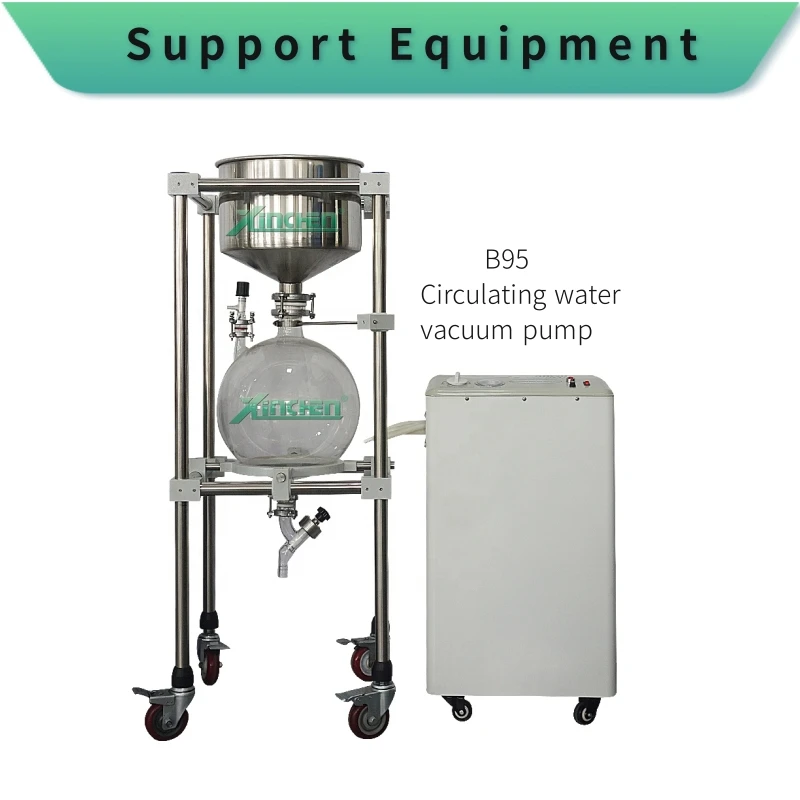

B95 Water Circulating Vacuum Pump
It is a new kind of multi-use equipment which designed on the basis of the principle of generating negative pressure by using the jet flow and using the recycled water as the working fluid, which can provide the vacuum conditions for chemical experiments and recirculated cooing water for the reaction equipment.
Product Characteristics
1.Obvious water-saving effect. The water added once can be used for a long term.
2.Multi-functional and integrated roles. Thisproduct, besides providing the vacuum conditions, can also equally perform the external cycle operation and provide recirculated cooling water for the reaction equipment.
3.Novelty appearance and easy usage, low height, small size, light weight and convenient movement.
4.Individual or simultaneous air pumping operation for the installation of five suction mouths.The suction pipeline is equipped with check values to prevent the recycled water from backing into the equipment of being vacuumized in case of accidental shut down in the process of vacuum operation.
5.Corrosion-resistant and pollution-free.The pump of this product is made of stainless steel, not subject to the influence of acid-base corrosion materials.
Product Characteristics
1.Obvious water-saving effect. The water added once can be used for a long term.
2.Multi-functional and integrated roles. Thisproduct, besides providing the vacuum conditions, can also equally perform the external cycle operation and provide recirculated cooling water for the reaction equipment.
3.Novelty appearance and easy usage, low height, small size, light weight and convenient movement.
4.Individual or simultaneous air pumping operation for the installation of five suction mouths.The suction pipeline is equipped with check values to prevent the recycled water from backing into the equipment of being vacuumized in case of accidental shut down in the process of vacuum operation.
5.Corrosion-resistant and pollution-free.The pump of this product is made of stainless steel, not subject to the influence of acid-base corrosion materials.
Technical Parameters
Mode | B95 |
Pumping capacity | 100L/min |
Water tank capacity | 57L |
Motor power | 550W |
Operation voltage | Single Phase 110V/60Hz; 220V/60Hz; 230V/50Hz; 240V/50Hz |
Frame Material and Move method | SS304 stainless steel with static electricity spray; Universal castors |
Dimensions | 450x350x820mm |
Weight | 40KG |
Place of Application
Vacuum suction filter are widely used in petroleum industry, chemical industry, food & beverage factory, pharmaceutical factory, insectcide factory, metallurgical industry, scientific institution, environment protection, universities, construction & building areas, biology, consmetics, kilo labs, pilot plant, farms, plant oil & CBD oil extraction and purification etc.
Packaging & Shipping
Packaging: Export standard wooden case package with inner protections( light weight material with protective ) .
Some foam boards and bubble films will be put into the inner package for any damage or other breakage with human wrong handling loading and uploading .
Shipping: By sea or by air as you wishes .( TNT , UPS , FedEx , EMS , DHL , SF or other logistics ) .
About Us

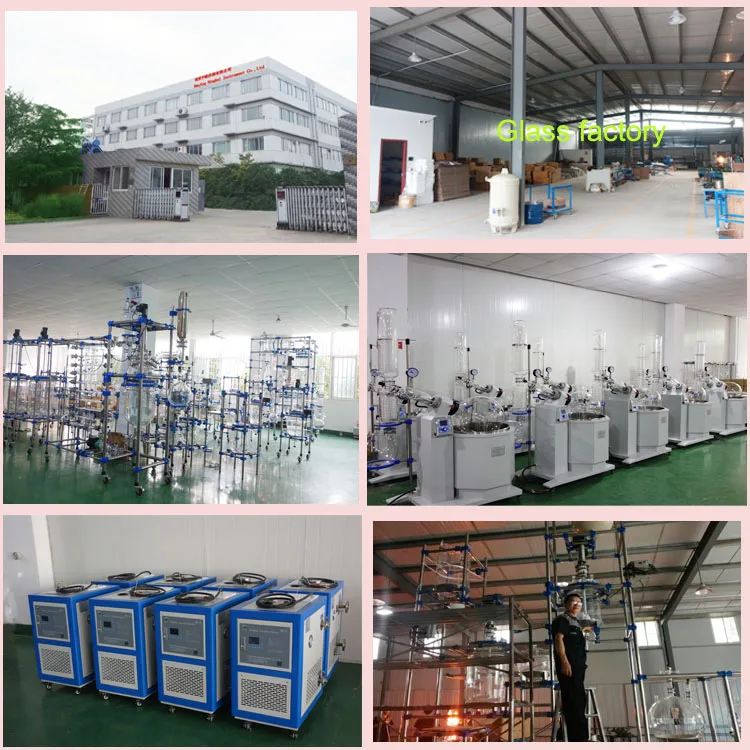

Ningkai Instrument Co . Ltd is located in Nanjing , China , where own hundreds of universities and research institutes. And famous as its thousands of years long history culture. Profound culture and strong scientific research strength , provide sustainable and vigorous power for Ningkai development .
Ningkai Instrument has exported its products to Europe , South America , North America , Latin America , Asia , Australia , MiddleEast , Africa and etc . Providing technical support for tens of thousands organizations to solve problems within their research ,special for university , research institutes, inspection agencies , industries and etc .
Main products include Glass Reactor(single layer, double- layer and three- layer) , Rotary Evaporator , Short Path Molecular Distillation , Heating Circulators , Heating Refrigeration Circulator , Low Temperature Circulator , Ultrasonic Cell Crusher , Industrial Ultrasonic Treatment Equipment , Ultrasonic Cleaning Machine , High(Low) Temperature Constant Temperature Trough , Hybridization Oven , UV Cross-linker , Flap Type Homogenizer , Dry Bath and etc .
Ningkai Instrument has exported its products to Europe , South America , North America , Latin America , Asia , Australia , MiddleEast , Africa and etc . Providing technical support for tens of thousands organizations to solve problems within their research ,special for university , research institutes, inspection agencies , industries and etc .
Our Advantages
1. We are factory and we have been in this line for about ten years , with rich experience in marketing , developing , researching , engineering , manufacturing etc.
2. Different categories and series instruments for your selection .
3. You will enoy the complete and good service from the start of order to the end of transaction .
4. Our all products can be suppliable with cusotm made .

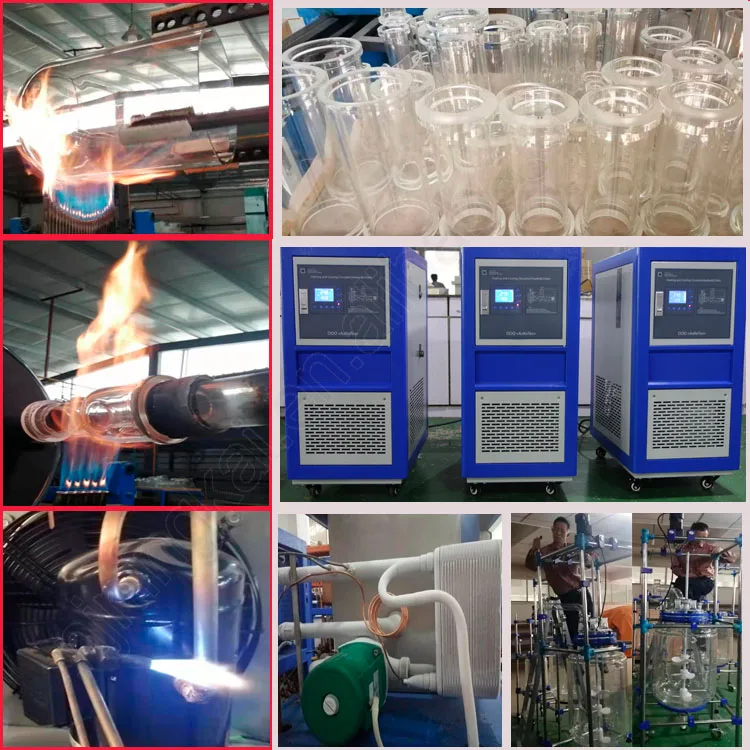

5. We have our own glass factory and produce the glass you want .
6. Strict quality control from incoming , assembly , soldering , maintainance , aging tothe final shipping .
7. Production ability: 200-300 sets per month , maximum annual output 4000 sets , minimum output 3000 sets .
8. Engineering team presided over by professors level cheif engineer who has more than 10 years proctical working experience .
8. Engineering team presided over by professors level cheif engineer who has more than 10 years proctical working experience .
Our Partners
Peking University , Tsinghua University , Nanjing University , Tianjing University , Qiangyang Chemical Industry Company , AppTec, EYELA , AUCMA , BT4 , HHitech , etc
